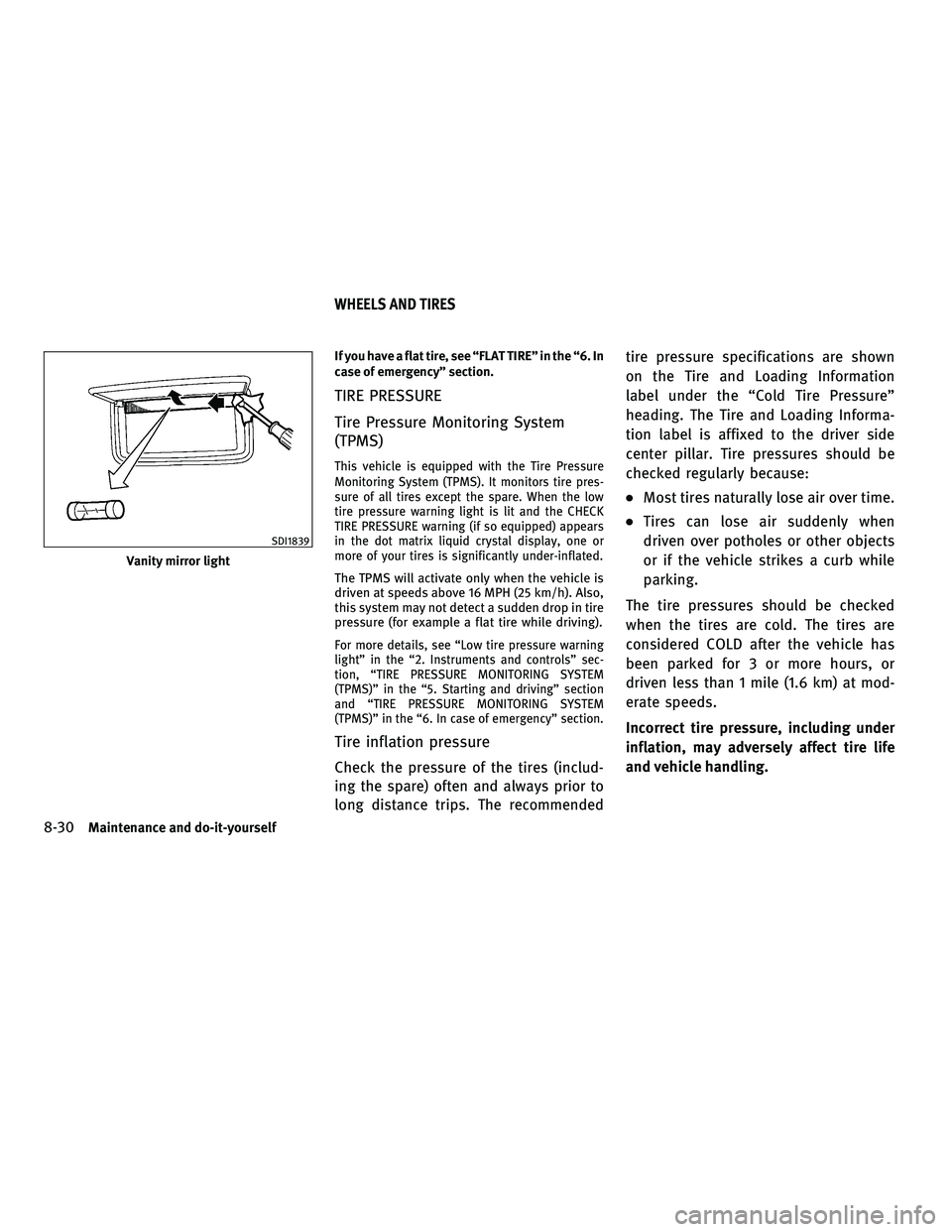

If you have a flat tire, see “FLAT TIRE” in the “6. In
case of emergency” section.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS). It monitors tire pres-
sure of all tires except the spare. When the low
tire pressure warning light is lit and the CHECK
TIRE PRESSURE warning (if so equipped) appears
in the dot matrix liquid crystal display, one or
more of your tires is significantly under-inflated.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h). Also,
this system may not detect a sudden drop in tire
pressure (for example a flat tire while driving).
For more details, see “Low tire pressure warning
light” in the “2. Instruments and controls” sec-
tion, “TIRE PRESSURE MONITORING SYSTEM
(TPMS)” in the “5. Starting and driving” section
and “TIRE PRESSURE MONITORING SYSTEM
(TPMS)” in the “6. In case of emergency” section.
Tire inflation pressure
Check the pressure of the tires (includ-
ing the spare) often and always prior to
long distance trips. The recommendedtire pressure specifications are shown
on the Tire and Loading Information
label under the “Cold Tire Pressure”
heading. The Tire and Loading Informa-
tion label is affixed to the driver side
center pillar. Tire pressures should be
checked regularly because:
●Most tires naturally lose air over time.
●Tires can lose air suddenly when
driven over potholes or other objects
or if the vehicle strikes a curb while
parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or
driven less than 1 mile (1.6 km) at mod-
erate speeds.
Incorrect tire pressure, including under
inflation, may adversely affect tire life
and vehicle handling.
Vanity mirror light
SDI1839
WHEELS AND TIRES
8-30Maintenance and do-it-yourself
—
—
07/26/10—dmoore


Card holder.................. .2-48
Car phone or CB radio .............4-85
Catalytic converter, Three way catalyst . . . .5-2
Center multi-function control panel ......4-2
Child restraints ................ .1-19
Child restraints Booster seats ............... .1-33
LATCH system ................ 1-21
Precautions on child restraints ......1-19
Child safety .................. .1-17
Child safety rear door lock ...........3-6
Chimes Audible reminders .............2-18
Seat belt warning light and chime ....2-14
Cigarette lighter and ashtrays ........2-44
Circuit breaker, Fusible link ..........8-23
Cleaning exterior and interior ......7-2 , 7-4
Climate control, Automatic climate
control ..................... .4-30
Clock ..................... .2-43
Coat hooks .................. .2-48
Cockpit ..................... .2-2
Cold weather driving ............. .5-92
Command (See Bluetooth Hands-Free
Phone System) .............4-87 , 4-101
Compact Disc (CD) player
(See audio system) .............. .4-61
Compact spare tire ............. .8-40
Console box ................. .2-47
Controller, Center multi-function control
panel ...................... .4-4
Controls Control panel button (display) .......4-2
Heater and air conditioner controls
(See automatic climate control) .....4-30 Coolant
Capacities and recommended
fuel/lubricants ............... .9-2
Changing engine coolant .........8-11
Checking engine coolant level ......8-10
Corrosion protection ..............7-6
Cruise control ..................5-39
Cruise

control
Fixed speed cruise control (on ICC
system) .................. .5-58
Intelligent cruise control (ICC) system . . 5-41
Cruise indicator ............... .2-22
Cup holders .................. .2-45
Current fuel consumption ...........2-25
D
Daytime running light system .........2-35
Defroster switch, Rear window and outside
mirror defroster switch ............2-32
Dimensions .................. .9-10
Display cleaning ................ .4-6
Display controls (See center multi-function
control panel) ................. .4-2
Distance Control Assist (DCA) system . . . .5-62
Distance Control Assist (DCA) system
switch indicator ............... .2-23
Distance Control Assist (DCA) system
warning light ................. .2-12
Distance to empty .............. .2-25
Dot matrix liquid crystal display .......2-19
Drive belts .................. .8-18
Drive positioner ............... .3-26
Driving Cold weather driving ............5-92 Driving with automatic transmission . . . 5-12
Precautions when starting and driving . . 5-2
E
Economy, Fuel ................ .5-81
Elapsed time ................. .2-25
Elapsed time and trip odometer .......2-25
Emission control information label ......9-12
Emission control system warranty ......9-21
Engine Before starting the engine .........5-10
Break-in schedule ............. 5-80
Capacities and recommended
fuel/lubricants ...............9-2
Changing engine coolant .........8-11
Changing engine oil and filter ......8-12
Checking engine coolant level . . ....8-10
Checking engine oil level .........8-11
Engine block heater ............5-93
Engine compartment check locations . . . 8-6
Engine cooling system ..........8-10
Engine oil .................. 8-11
Engine

oil and oil filter
recommendation ..............9-6
Engine oil replacement indicator ....2-23
Engine oil viscosity .............9-6
Engine serial number ...........9-12
Engine specifications ............9-8
Engine start operation indicator . . . . . 2-21
If your vehicle overheats .........6-11
Starting the engine ............. 5-11
Engine coolant temperature gauge . .....2-7
Entry/exit function, Automatic drive
positioner ................... .3-26
10-2
—
—
07/26/10—dmoore


Seat belt(s)Child safety ................ .1-17
Infants .................... 1-18
Injured persons ............... 1-13
Larger children ............... 1-18
Precautions on seat belt usage ......1-11
Pre-crash seat belts with comfort
function ................... 1-13
Pregnant women .............. 1-13
Seat belt cleaning .............7-6
Seat belt extenders ............1-16
Seat belt maintenance ...........1-17
Seat belts .................. 1-11
Seat belts with pretensioners ......1-47
Seat belt warning light and chime ....2-14
Shoulder belt height adjustment .....1-16
Small children ............... 1-18
Three-point type .............. 1-14
Seat(s) Climate controlled seats .........2-40
Driver-side memory ............3-26
Heated seats ................ 2-39
Seats .....................1-2
Seat synchronization function ........3-27
Security system (INFINITI Vehicle Immobilizer
System), Engine start .............2-29
Security system, Vehicle security system . .2-27
Selector lever Shift lock release ............. .5-15
Servicing air conditioner
(See automatic climate control) .......4-30
Servicing climate control ...........4-44
SETTING button ................ .4-14
Shifting, Automatic transmission .......5-12
Shift lock release Transmission ............... .5-15Shoulder belt height adjustment
.......1-16
Spare tire .................... .9-9
Spark plugs .................. .8-19
Speedometer .................. .2-6
Starting Before starting the engine .........5-10
Precautions

when starting and driving . . 5-2
Starting the engine ............. 5-11
STATUS button ................. .4-8
Status light, Front passenger air bag . . . .1-43
Steering Heated steering wheel ...........2-38
Power steering fluid ............8-14
Power steering system ..........5-84
Steering lock release malfunction
indicator .................. 2-21
Steering-wheel-mounted controls for
audio .................... 4-83
Tilt/telescopic steering ..........3-21
Storage .................... .2-45
Sunglasses holder .............. .2-46
Sunshade (rear) ............... .2-53
Sun visors ................... .3-22
Supplemental air bag warning labels . . . .1-48
Supplemental air bag warning light . .1-48 , 2-15
Supplemental restraint system ........1-36
Supplemental restraint system, Precautions
on supplemental restraint system ......1-36
Switch Autolight switch ............. .2-33
Fog light switch .............. 2-37
Hazard warning flasher switch ......2-37
Headlight switch .............. 2-33
Ignition switch automatic transmission
models ................... 5-12
Intelligent Brake Assist (IBA) OFF switch . . 2-42
Power door lock switch...........3-5
Rear window and outside mirror defroster
switch .................... 2-32
Turn signal switch ............. 2-37
Vehicle dynamic control (VDC) off
switch ................... 2-43
T
Tachometer ................... .2-7
Temperature gauge, Engine coolant
temperature gauge .............. .2-7
Theft (INFINITI Vehicle Immobilizer System),
Engine start .................. .2-29
Three-way catalyst ............... .5-2
Tilt/telescopic steering .............3-21
Tire Tire replacement indicator ........2-23
Tire rotation ................ 8-37
Tire pressure, Low tire pressure warning
light ...................... .2-13
Tires Flat tire ................... .6-2
Low tire pressure warning system ....5-3
Spare tire ................. 8-40
Tire and Loading information label . . . 8-32
Tire chains ................. 8-37
Tire dressing ................7-4
Tire pressure ................ 8-30
Tire pressure monitoring system
(TPMS) ....................5-3
Types of tires ............... 8-36
Uniform tire quality grading .......9-20
Wheels and tires ............. 8-30
Wheel/tire size ...............9-9
10-6
—
—
07/26/10—dmoore
