Engine oil and filter
1. Place a large drain pan under the drainplug.
2. Remove the oil filler cap.
3. Remove the drain plug
1with a wrench
and completely drain the oil.
CAUTION
Be careful not to burn yourself, as the engine oil
is hot.
●Waste oil must be disposed of properly.
● Check your local regulations.
4. (Perform steps 4 to 7 only when the
engine oil filter change is needed.)
Loosen the oil filter2with an oil filter
wrench. Remove the oil filter by turning it by
hand.
5. Wipe the engine oil filter mounting sur- face with a clean rag.
CAUTION
Be sure to remove any old rubber gasket re-
maining on the mounting surface of the engine.
Failure to do so could lead to engine damage.
6. Coat the gasket on the new filter with clean engine oil.
7. Screw in the oil filter clockwise until a slight resistance is felt, then tighten ad-
ditionally more than 2/3 turn.
Oil filter tightening torque:11 to 15 ft-lb
(14.7 to 20.5 N·m)
8. Clean and re-install the drain plug with a new washer. Securely tighten the drain
plug with a wrench.
Drain plug tightening torque:22 to 29 ft-lb
(29 to 39 N·m)
Do not use excessive force.
9. Refill engine with recommended oil and install the oil filler cap securely.
CAUTION
The dipstick must be inserted in place to pre-
vent oil spillage from the dipstick hole while
filling the engine with oil.
See “CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS” in the “9. Technical and
consumer information” section for drain and refill capacity. The drain and refill capacity
depends on the oil temperature and drain time.
Use these specifications for reference only.
Always use the dipstick to determine the proper
amount of oil in the engine.
10. Start the engine and check for leakage
around the drain plug and the oil filter.
Correct as required.
11. Turn the engine off and wait more than 15 minutes. Check the oil level with the
dipstick. Add engine oil if necessary.
After the operation
1. Install the engine undercover into positionas the following steps.
a. Pull the center of the small plastic clip out.
b. Hold the engine undercover into position.
c. Insert the clip through the undercover into the hole in the frame, then push the
center of the clip in to lock the clip in
place.
d. Install the other bolts that hold the un- dercover in place. Be careful not to strip
the bolts or over-tighten them.
2. Lower the vehicle carefully to the ground.
3. Dispose of waste oil and filter properly.
Maintenance and do-it-yourself8-13
—
—
01/13/10—pattie

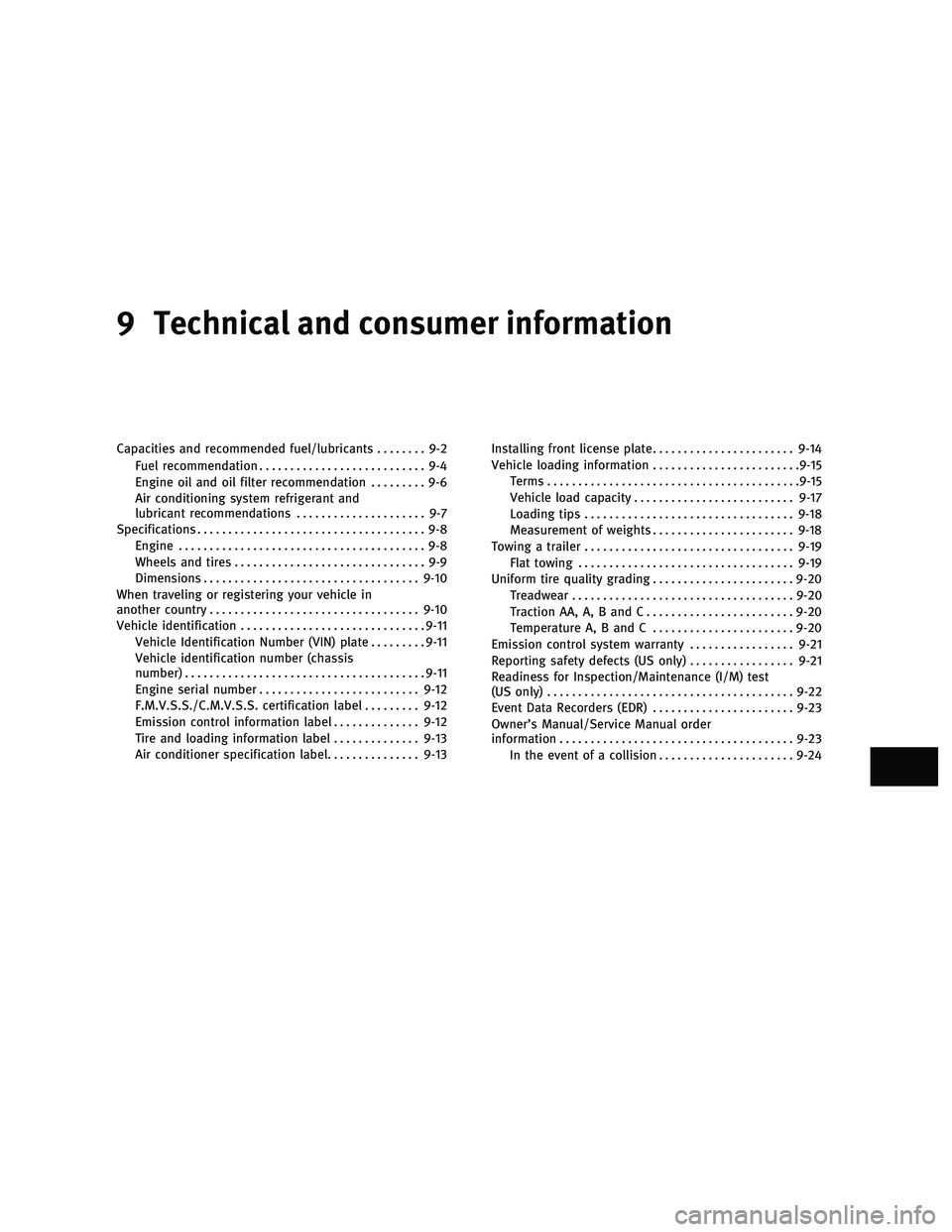

9 Technical and consumer information
Capacities and recommended fuel/lubricants........ 9-2
Fuel recommendation ........................... 9-4
Engine oil and oil filter recommendation ......... 9-6
Air conditioning system refrigerant and
lubricant recommendations ..................... 9-7
Specifications ..................................... 9-8
Engine ........................................ 9-8
Wheels and tires ............................... 9-9
Dimensions ................................... 9-10
When traveling or registering your vehicle in
another country .................................. 9-10
Vehicle identification .............................. 9-11
Vehicle Identification Number (VIN) plate .........9-11
Vehicle identification number (chassis
number) ....................................... 9-11
Engine serial number .......................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label .........9-12
Emission control information label ..............9-12
Tire and loading information label ..............9-13
Air conditioner specification label ...............9-13Installing front license plate
.......................9-14
Vehicle loading information ........................9-15
Terms ......................................... 9-15
Vehicle load capacity .......................... 9-17
Loading tips .................................. 9-18
Measurement of weights ....................... 9-18
Towing a trailer .................................. 9-19
Flat towing ................................... 9-19
Uniform tire quality grading .......................9-20
Treadwear .................................... 9-20
Traction AA, A, B and C ........................ 9-20
Temperature A, B and C ....................... 9-20
Emission control system warranty .................9-21
Reporting safety defects (US only) .................9-21
Readiness for Inspection/Maintenance (I/M) test
(US only) ........................................ 9-22
Event Data Recorders (EDR) .......................9-23
Owner’s Manual/Service Manual order
information ...................................... 9-23
In the event of a collision ......................9-24
—
—
07/15/10—tbrooks

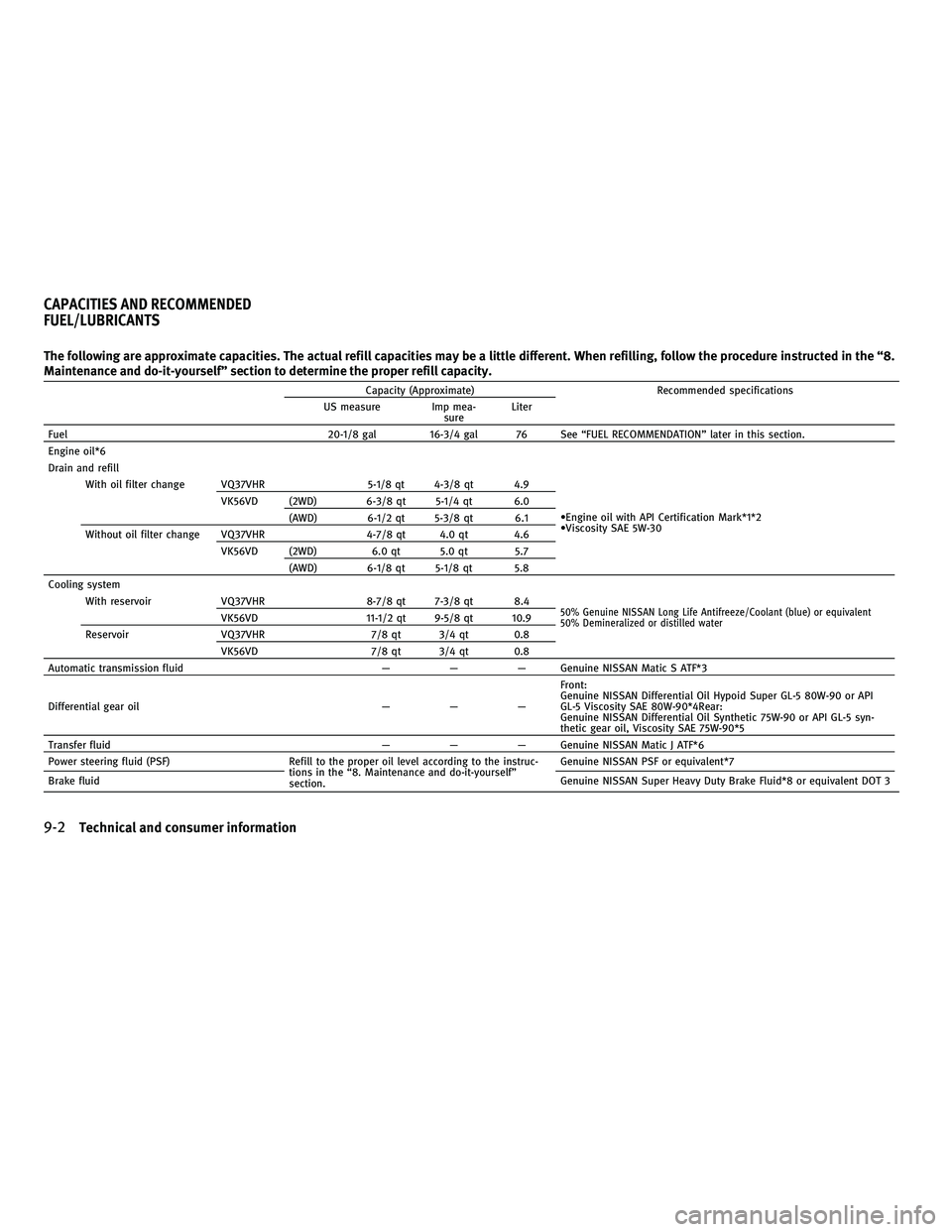

The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure instructed in the “8.
Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)Recommended specifications
US measure Imp mea- sureLiter
Fuel 20-1/8 gal 16-3/4 gal 76 See “FUEL RECOMMENDATION” later in this section.
Engine oil*6
Drain and refill With oil filter change VQ37VHR 5-1/8 qt 4-3/8 qt 4.9
•Engine oil with API Certification Mark*1*2
•Viscosity SAE 5W-30
VK56VD (2WD) 6-3/8 qt 5-1/4 qt 6.0
(AWD) 6-1/2 qt 5-3/8 qt 6.1
Without oil filter change VQ37VHR 4-7/8 qt 4.0 qt 4.6
VK56VD (2WD) 6.0 qt 5.0 qt 5.7
(AWD) 6-1/8 qt 5-1/8 qt 5.8
Cooling system With reservoir VQ37VHR 8-7/8 qt 7-3/8 qt 8.4
50% Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
50% Demineralized or distilled waterVK56VD11-1/2 qt 9-5/8 qt 10.9
Reservoir VQ37VHR 7/8 qt 3/4 qt 0.8
VK56VD 7/8 qt 3/4 qt 0.8
Automatic transmission fluid ——— Genuine NISSAN Matic S ATF*3
Differential gear oil ———Front:
Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API
GL-5 Viscosity SAE 80W-90*4Rear:
Genuine NISSAN Differential Oil Synthetic 75W-90 or API GL-5 syn-
thetic gear oil, Viscosity SAE 75W-90*5
Transfer fluid ——— Genuine NISSAN Matic J ATF*6
Power steering fluid (PSF) Refill to the proper oil level according to the instruc-
tions in the “8. Maintenance and do-it-yourself”
section. Genuine NISSAN PSF or equivalent*7
Brake fluid Genuine NISSAN Super Heavy Duty Brake Fluid*8 or equivalent DOT 3
CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS
9-2Technical and consumer information
—
—
01/13/10—pattie


Card holder.................. .2-48
Car phone or CB radio .............4-85
Catalytic converter, Three way catalyst . . . .5-2
Center multi-function control panel ......4-2
Child restraints ................ .1-19
Child restraints Booster seats ............... .1-33
LATCH system ................ 1-21
Precautions on child restraints ......1-19
Child safety .................. .1-17
Child safety rear door lock ...........3-6
Chimes Audible reminders .............2-18
Seat belt warning light and chime ....2-14
Cigarette lighter and ashtrays ........2-44
Circuit breaker, Fusible link ..........8-23
Cleaning exterior and interior ......7-2 , 7-4
Climate control, Automatic climate
control ..................... .4-30
Clock ..................... .2-43
Coat hooks .................. .2-48
Cockpit ..................... .2-2
Cold weather driving ............. .5-92
Command (See Bluetooth Hands-Free
Phone System) .............4-87 , 4-101
Compact Disc (CD) player
(See audio system) .............. .4-61
Compact spare tire ............. .8-40
Console box ................. .2-47
Controller, Center multi-function control
panel ...................... .4-4
Controls Control panel button (display) .......4-2
Heater and air conditioner controls
(See automatic climate control) .....4-30 Coolant
Capacities and recommended
fuel/lubricants ............... .9-2
Changing engine coolant .........8-11
Checking engine coolant level ......8-10
Corrosion protection ..............7-6
Cruise control ..................5-39
Cruise

control
Fixed speed cruise control (on ICC
system) .................. .5-58
Intelligent cruise control (ICC) system . . 5-41
Cruise indicator ............... .2-22
Cup holders .................. .2-45
Current fuel consumption ...........2-25
D
Daytime running light system .........2-35
Defroster switch, Rear window and outside
mirror defroster switch ............2-32
Dimensions .................. .9-10
Display cleaning ................ .4-6
Display controls (See center multi-function
control panel) ................. .4-2
Distance Control Assist (DCA) system . . . .5-62
Distance Control Assist (DCA) system
switch indicator ............... .2-23
Distance Control Assist (DCA) system
warning light ................. .2-12
Distance to empty .............. .2-25
Dot matrix liquid crystal display .......2-19
Drive belts .................. .8-18
Drive positioner ............... .3-26
Driving Cold weather driving ............5-92 Driving with automatic transmission . . . 5-12
Precautions when starting and driving . . 5-2
E
Economy, Fuel ................ .5-81
Elapsed time ................. .2-25
Elapsed time and trip odometer .......2-25
Emission control information label ......9-12
Emission control system warranty ......9-21
Engine Before starting the engine .........5-10
Break-in schedule ............. 5-80
Capacities and recommended
fuel/lubricants ...............9-2
Changing engine coolant .........8-11
Changing engine oil and filter ......8-12
Checking engine coolant level . . ....8-10
Checking engine oil level .........8-11
Engine block heater ............5-93
Engine compartment check locations . . . 8-6
Engine cooling system ..........8-10
Engine oil .................. 8-11
Engine

oil and oil filter
recommendation ..............9-6
Engine oil replacement indicator ....2-23
Engine oil viscosity .............9-6
Engine serial number ...........9-12
Engine specifications ............9-8
Engine start operation indicator . . . . . 2-21
If your vehicle overheats .........6-11
Starting the engine ............. 5-11
Engine coolant temperature gauge . .....2-7
Entry/exit function, Automatic drive
positioner ................... .3-26
10-2
—
—
07/26/10—dmoore


Event Data Recorders (EDR)..........9-23
Exhaust gas (carbon monoxide) ........5-2
Filter Air cleaner housing filter .........8-19
Changing engine oil and filter ......8-12
F
Flashers
(See hazard warning flasher switch) .....2-37
Flat tire ..................... .6-2
Flat towing .................. .9-19
Floor mat cleaning ............... .7-5
Fluid Automatic transmission fluid (ATF) . . . .8-14
Brake fluid ................. 8-15
Capacities and recommended
fuel/lubricants ...............9-2
Engine coolant ............... 8-10
Engine oil .................. 8-11
Power steering fluid ............8-14
Window washer fluid ...........8-15
FM-AM-SAT radio with Compact Disc (CD)
player ..................... .4-58
F.M.V.S.S./C.M.V.S.S. certification label . . .9-12
Fog light switch ............... .2-37
Forward Collision Warning (FCW) system . .5-73
Front passenger air bag and status light . .1-43
Front power seat adjustment ..........1-3
Front-seat active head restraints ........1-7
Front seat, Front seat adjustment .......1-3
Fuel Capacities and recommended
fuel/lubricants ............... .9-2
Fuel economy ................ 5-81
Fuel economy information (display) . . . 4-10 Fuel-filler cap
................ 3-19
Fuel-filler door ............... 3-19
Fuel octane rating .............9-4
Fuel recommendation ...........9-4
Gauge ....................2-8
Fuses ..................... .8-22
Fusible links ................. .8-23
G
Garage door opener, HomeLink Universal
Transceiver .................. .2-57
Gascap .................... .3-19
Gauge ...................... .2-5
Gauge Engine coolant temperature gauge .
. . .2-7
Fuel gauge ..................2-8
Odometer ..................2-6
Speedometer ................2-6
Tachometer .................2-7
Trip computer ............... 2-24
General maintenance ..............8-2
Glove box ................... .2-47
H
Hands-free phone system, Bluetooth
(with navigation system) ...........4-86
Hands-free phone system, Bluetooth
(without navigation system) .........4-96
Hazard warning flasher switch ........2-37
Headlights Aiming control (See adaptive front
lighting system (AFS)) ...........2-35 Bulb replacement
............. 8-28
Headlight switch .............. 2-33
Xenon headlights ............. 2-32
Head restraints ................. .1-4
Heated seats ................. .2-39
Heated steering wheel .............2-38
Heater Automatic climate control . . . . .....4-30
Engine block heater ............5-93
HomeLink Universal Transceiver .......2-57
Hood release ................. .3-16
Hook, Coat hooks .............. .2-48
Horn ...................... .2-39
I
Ignition switch, Automatic transmission
models ..................... .5-12
Ignition switch (Push-button) ..........5-7
Immobilizer system ............. .2-29
In-cabin microfilter .............. .4-43
Indicator, Dot matrix display .........2-19
Indicator lights ................ .2-15
INFINITI Vehicle Immobilizer System .....2-29
INFINITI voice recognition standard
mode ..................... .4-109
INFINITI

voice recognition system ......4-109
INFO button .................. .4-8
Inside mirror ................. .3-23
Inspection/maintenance (I/M) test ......9-22
Instrument brightness control ........2-36
Instrument panel ............... .2-4
Intelligent Brake Assist (IBA) off indicator
light ...................... .2-16
Intelligent Brake Assist (IBA) system .....5-77
10-3
—
—
07/26/10—dmoore


Meters and gauges.............. .2-5
Meters and gauges, Instrument brightness
control ..................... .2-36
Mirror Inside mirror ............... .3-23
Outside mirrors .............. 3-24
Monitor, Rearview monitor ..........4-24
Moonroof ................... .2-51
Music box hard drive ..........4-57 , 4-76
N
New vehicle break-in .............5-80
O
Odometer .................... .2-6
Off-road recovery ............... .5-5
Oil Capacities and recommended
fuel/lubricants ............... .9-2
Changing engine oil and filter ......8-12
Checking engine oil level .........8-11
Engine oil .................. 8-11
Engine oil viscosity .............9-6
Oil filter replacement indicator .....2-23
Operation, Indicators for operation
(dot matrix) .................. .2-21
Outside air temperature ............2-25
Outside mirrors ................ .3-24
Owner’s Manual/Service Manual order
information .................. .9-23 P
Panic alarm .................. .3-14
Parking Parking brake operation ..........5-16
Parking on hills .............. 5-83
Parking brake break-in ............5-84
Personal lights ................ .2-55
Phone, Car phone or CB radio ........4-85
Power Power door lock .............. .3-4
Power outlet ................ 2-44
Power steering fluid ............8-14
Power steering system ..........5-84
Power windows .............. 2-49
Power front seat adjustment ..........1-3
Precautions Audio

operation ............. .4-44
Braking precautions ............5-84
Child restraints ............... 1-19
Cruise control ............... 5-39
Maintenance .................8-5
Seat belt usage ............... 1-11
Supplemental restraint system ......1-36
When starting and driving .........5-2
Pre-crash seat belts with comfort function . .1-13
Preview function ............... .5-85
Preview function (for Intelligent cruise
control system) ................ .5-62
Preview Function warning light ........2-14
Push-button ignition switch ..........5-7
Push starting ................. .6-10 R
Radio ..................... .4-44
Radio Car phone or CB radio ...........4-85
FM-AM-SAT radio with Compact Disc (CD)
player .................... 4-58
Rain-sensing auto wiper system . . . . . . .2-31
Rapid air pressure loss .............5-6
Readiness for inspection/maintenance
(I/M) test (US only) ............. .9-22
Rear door lock, Child safety rear door lock . .3-6
Rear sunshade ................ .2-53
Rearview monitor .............. .4-24
Rear window and outside mirror defroster
switch ..................... .2-32
Recorders, Event data .............9-23
Registering your vehicle in another
country .................... .9-10
Remote keyless entry system .........3-13
Reporting safety defects (US only) ......9-21
Roadside assistance program .........6-2
Rollover ..................... .5-5
Roof, Moonroof ............... .2-52
Safety Child seat belts .............. .1-17
Reporting safety defects (US only) ....9-21
S
Satellite radio operation ............4-59
Seat adjustment Front power seat adjustment ........1-3
Front seats ..................
1-3
10-5
—
—
07/15/10—tbrooks

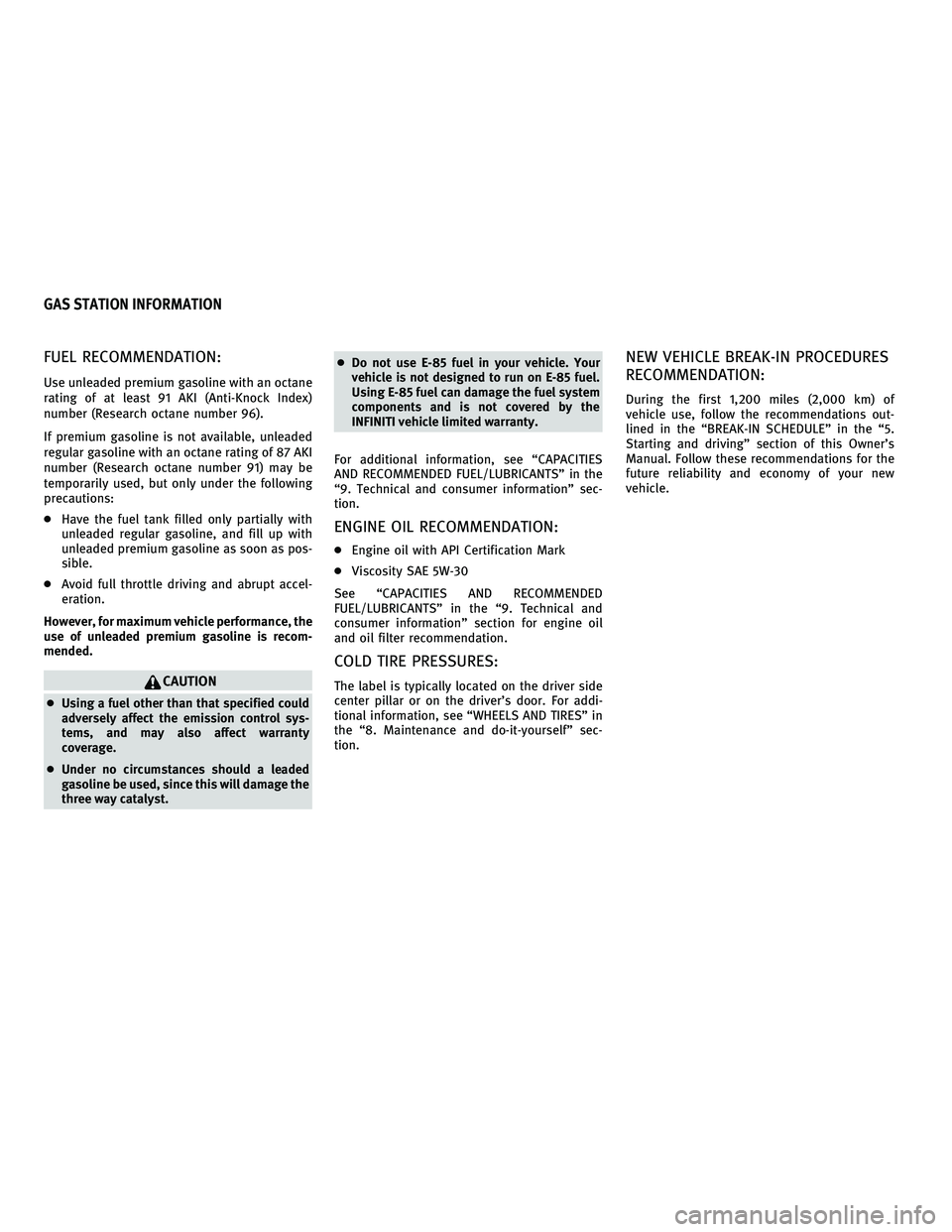

FUEL RECOMMENDATION:
Use unleaded premium gasoline with an octane
rating of at least 91 AKI (Anti-Knock Index)
number (Research octane number 96).
If premium gasoline is not available, unleaded
regular gasoline with an octane rating of 87 AKI
number (Research octane number 91) may be
temporarily used, but only under the following
precautions:
●Have the fuel tank filled only partially with
unleaded regular gasoline, and fill up with
unleaded premium gasoline as soon as pos-
sible.
● Avoid full throttle driving and abrupt accel-
eration.
However, for maximum vehicle performance, the
use of unleaded premium gasoline is recom-
mended.
CAUTION
● Using a fuel other than that specified could
adversely affect the emission control sys-
tems, and may also affect warranty
coverage.
● Under no circumstances should a leaded
gasoline be used, since this will damage the
three way catalyst. ●
Do not use E-85 fuel in your vehicle. Your
vehicle is not designed to run on E-85 fuel.
Using E-85 fuel can damage the fuel system
components and is not covered by the
INFINITI vehicle limited warranty.
For additional information, see “CAPACITIES
AND RECOMMENDED FUEL/LUBRICANTS” in the
“9. Technical and consumer information” sec-
tion.
ENGINE OIL RECOMMENDATION:
● Engine oil with API Certification Mark
● Viscosity SAE 5W-30
See “CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS” in the “9. Technical and
consumer information” section for engine oil
and oil filter recommendation.
COLD TIRE PRESSURES:
The label is typically located on the driver side
center pillar or on the driver’s door. For addi-
tional information, see “WHEELS AND TIRES” in
the “8. Maintenance and do-it-yourself” sec-
tion.
NEW VEHICLE BREAK-IN PROCEDURES
RECOMMENDATION:
During the first 1,200 miles (2,000 km) of
vehicle use, follow the recommendations out-
lined in the “BREAK-IN SCHEDULE” in the “5.
Starting and driving” section of this Owner’s
Manual. Follow these recommendations for the
future reliability and economy of your new
vehicle.
GAS STATION INFORMATION
—
—
07/15/10—tbrooks
