ECO mode INFINITI M 2011 Owner's Guide

method is to push and hold the “OFF”
button for more than 2 seconds.
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off automatically
5 seconds after the operation is finished.
To turn on the screen, set this item to the ON
position, or push and hold the “
OFF”
button.
● Brightness/Contrast/Background Color
To adjust the brightness and contrast of the
screen, select the “Brightness” or “Contrast”
key.
Then, you can adjust the brightness and the
contrast using the INFINITI controller.
For information on the “Background Color” key,
refer to the separate Navigation System Own-
er’s Manual.
Color Theme :
Choose the theme color of the menu screen
from “Black”, “Brown” or “Silver”.
Display settings (models without
navigation system)
The “Display” screen will appear when pushing
the DISP button on the control panel.
Display :
To turn off the screen, push the ENTER button
and turn the “ON” indicator off.
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off automatically
5 seconds after the operation is finished.
To turn on the screen, set this item to the “ON”
position or push the “
” button. Brightness/Contrast/Background Color :
To adjust the brightness, contrast and back-
ground color of the screen, select the appropri-
ate “Brightness”, “Contrast” or “Background
Color” key and push the ENTER button.
Then, you can adjust the brightness, and the
contrast using the INFINITI controller. Switch
the background color to the daytime mode or
the nighttime mode by pushing the ENTER
button.
SAA2115
4-18Monitor, climate, audio, phone and voice recognition systems
—
—
01/12/10—pattie


Comfort settings
Models with navigation system
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Others” key, and then selecting the “Comfort”
key. This key does not appear on the display
until the ignition switch is pushed to the ON
position.
Models without navigation system
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Comfort” key. This key does not appear on the
display until the ignition switch is pushed to the
ON position.
Auto Interior Illumination :
When this item is turned to ON, the interior
lights will illuminate if any door is unlocked.
Light Sensitivity :
Adjust the sensitivity of the automatic head-
lights higher (right) or lower (left).
Lift Steering Wheel on Exit (if so equipped) :
When this item is turned to ON, the steering
wheel moves upward for easy exit if the ignition
switch is in the LOCK position and the driver’s
door is opened. After getting into the vehicleand pushing the ignition switch to the ACC
position, the steering wheel moves to the pre-
vious position.
Slide Driver Seat Back on Exit (if so equipped) :
When this item is turned to ON, the driver’s seat
moves backward for easy exit if the ignition
switch is in the OFF position and the driver’s
door is opened. After getting into the vehicle
and pushing the ignition switch to the ACC
position, the driver’s seat moves to the previous
position.
Light Off Delay :
Choose the duration of the automatic headlight
off timer from 0, 30, 45, 60, 90, 120, 150 and
180 second periods.
Selective Door Unlock :
When this item is turned to ON, only the driver’s
door is unlocked first after the door unlock
operation. When the door handle request
switch on the driver’s or front passenger’s side
door is pushed to be unlocked, only the corre-
sponding door is unlocked first. All the doors
can be unlocked if the door unlock operation is
performed again within 60 seconds.
When this item is turned to OFF, all the doors
will be unlocked after the door unlock operation
is performed once.
Models with navigation system
SAA3151
Models without navigation system
SAA3150
Monitor, climate, audio, phone and voice recognition systems4-19
—
—
01/12/10—pattie


Intelligent Key Lock/Unlock :
When this item is turned to ON, door
lock/unlock function by pushing the door
handle request switch will be activated.
Return All Settings to Default :
Select this item and then select “YES” to return
all settings to the default.
Clock settings (models with
navigation system)
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Others” key, and then selecting the “Clock”
key.
On-screen Clock :
When this item is turned to ON, a clock is
always displayed in the upper right corner of
the screen.
This clock will indicate the time almost exactly
because it is always adjusted by the GPS sys-
tem.Clock Format (24h) :
When this item is turned to ON, the 24-hour
clock is displayed. When this item is not turned
to ON, the 12-hour clock is displayed.
Offset (hour)/(min) :
Adjust the time by increasing or decreasing per
hour or per minute.
Daylight Saving Time :
Turn this item to ON for daylight saving time
application.
Time Zone :
Choose the time zone from the following
●
Pacific
● Mountain
● Central
● Eastern
● Atlantic
● Newfoundland
● Hawaii
● Alaska
SAA2487
4-20Monitor, climate, audio, phone and voice recognition systems
—
—
01/12/10—pattie


Language & Units settings
The Language & Units settings display will
appear when pushing the SETTING button, se-
lecting the “Language & Units” key with the
INFINITI controller and pushing the ENTER but-
ton.
For models with the navigation system, select
the “Others” key to show the “Language &
Units” key.
Select Language :
Select the “Select Language” key. Choose “En-
glish”, “Français” or “Español” for your favorite
display appearance.
If you select the “Français” key, the French
language will be displayed, so please use the
French Owner’s Manual. To obtain a French
Owner’s Manual, see “OWNER’S
MANUAL/SERVICE MANUAL ORDER INFORMA-
TION” in the “9. Technical and consumer infor-
mation” section.
Select Units :
Select the “Select Units” key. Choose “US”
(Mile, °F, MPG) or “Metric” (km, °C, L/100 km)
for your favorite display appearance.Select Units (Tire Pressure) :
Choose the “Select Units (Tire Pressure)” key
and push the ENTER button. From the following
display, select “kPa” or “psi”. *When the igni-
tion switch in the ACC position, the “Select
Units (Tire Pressure)” key is not displayed.
Voice Recognition settings (models
with navigation system)
For details about the “Voice Recognition” set-
tings, see “INFINITI VOICE RECOGNITION SYS-
TEM (models with navigation system)” later in
this section.
Models with navigation system
SAA3007
Models without navigation system
SAA3014
Monitor, climate, audio, phone and voice recognition systems4-21
—
—
01/12/10—pattie


Camera settings
The “CAMERA” screen will appear when select-
ing the “Camera” key with the INFINITI control-
ler and pushing the ENTER button.
For the details about the camera system opera-
tion, see “REARVIEW MONITOR” later in this
section.
Predictive Course Lines :
When this item is turned to ON, the predicted
course lines will be displayed on the monitor
when the selector/shift lever is in the “R”
(Reverse) position.
Image Viewer (models with
navigation system)
The image files in the USB memory will be
displayed. To display the Image Viewer, push
the SETTING button, select the “Other” key and
then select the “Image Viewer” key. The image
of the selected file is displayed on the right side
of the screen.
When a number of folders are included in the
USB memory, select a folder from the list to
display the file list.
Images will not be shown on the display while the
vehicle is in any drive position to reduce driver
distraction. To view images, stop the vehicle in a
safe location and apply the parking brake.
Models with navigation system
SAA2404
Models without navigation system
SAA2606
SAA2491
4-22Monitor, climate, audio, phone and voice recognition systems
—
—
01/12/10—pattie


when backing up to the positionAif the object
projects over the actual backing up course.
HOW TO ADJUST SCREEN
To adjust the Display ON/OFF, Brightness, Tint,
Color, Contrast and Black Level of the RearView
monitor, push the SETTING button with the
RearView monitor on, select the “Display” key
on the screen and select the item key and
adjust the level using the INFINITI controller.
Do not adjust the Brightness, Tint, Color, Con-
trast and Black Level of the RearView monitor
while the vehicle is moving. Make sure the
parking brake is firmly applied and the engine
is not running.
The display of the predicted course lines can be
set to ON or OFF. For details, see “Camera
settings” earlier in this section.
OPERATING TIPS
● When the selector lever is shifted to the “R”
(Reverse) position, the monitor screen auto-
matically changes to the RearView monitor
mode.
● It may take some time until the RearView
monitor is displayed after the selector lever
has been shifted to “R” from another posi-
tion or to another position from “R”. Objects
may be distorted momentarily until the Rear- View monitor screen is displayed com-
pletely.
● When the temperature is extremely high or
low, the screen may not clearly display
objects. This is not a malfunction.
● When strong light directly enters the cam-
era, objects may not be displayed clearly.
This is not a malfunction.
● Vertical lines may be seen in objects on the
screen. This is due to strong reflected light
from the bumper. This is not a malfunction.
● The screen may flicker under fluorescent
light. This is not a malfunction.
● The colors of objects on the RearView moni-
tor may differ somewhat from those of the
actual object.
● Objects on the monitor may not be clear in a
dark place or at night. This is not a malfunc-
tion.
● If dirt, rain or snow attaches to the camera,
the RearView monitor may not clearly dis-
play objects. Clean the camera.
● Do not use alcohol, benzine or thinner to
clean the camera. This will cause discolora-
tion. To clean the camera, wipe with a cloth
dampened with diluted mild cleaning agent
and then wipe with a dry cloth. ●
Do not damage the camera as the monitor
screen may be adversely affected.
● Do not use wax on the camera window. Wipe
off any wax with a clean cloth dampened
with mild detergent diluted with water.
Monitor, climate, audio, phone and voice recognition systems4-29
—
—
01/12/10—pattie


Open or close, and adjust the air flow direction
of ventilators.
: This symbol indicates that the ventila-tors are closed.
: This symbol indicates that the ventila-tors are open.
WARNING
● The air conditioner cooling function oper-
ates only when the engine is running.
● Do not leave children or adults who would
normally require the support of others alone
in your vehicle. Pets should not be left alone
either. On hot, sunny days, temperatures in
a closed vehicle could quickly become high
enough to cause severe or possibly fatal in-
juries to people or animals.
● Do not use the recirculation mode for long
periods as it may cause the interior air to
become stale and the windows to fog up.
Start the engine and operate the automatic
climate control system.
Front
SAA3142
Rear
SAA3012
VENTILATORS AUTOMATIC CLIMATE CONTROL
4-30Monitor, climate, audio, phone and voice recognition systems
—
—
01/13/10—tbrooks

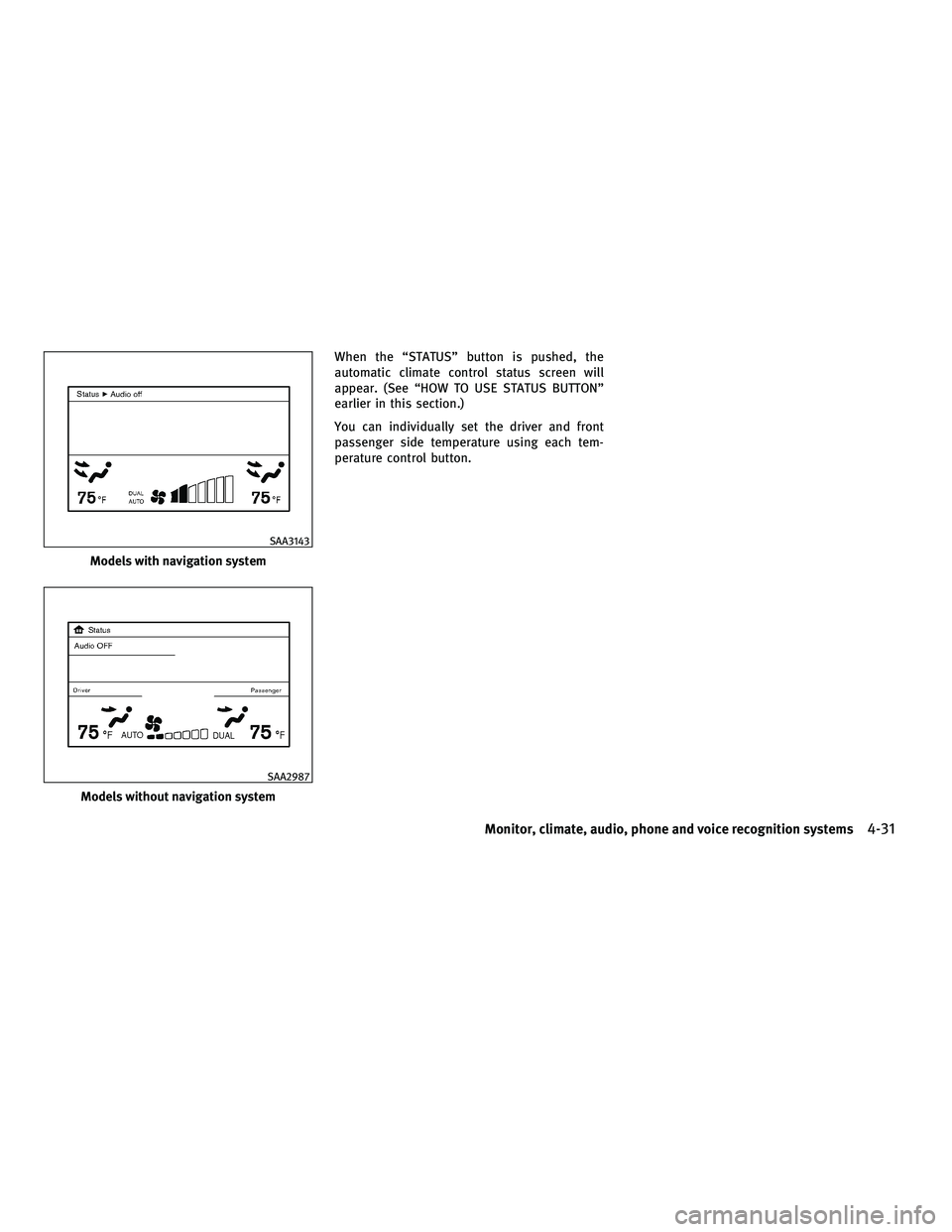

When the “STATUS” button is pushed, the
automatic climate control status screen will
appear. (See “HOW TO USE STATUS BUTTON”
earlier in this section.)
You can individually set the driver and front
passenger side temperature using each tem-
perature control button.
Models with navigation system
SAA3143
Models without navigation system
SAA2987
Monitor, climate, audio, phone and voice recognition systems4-31
—
—
01/13/10—tbrooks


1. “” front defroster button
2. “
” rear window defroster button
(See “REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH” in the
“2. Instruments and controls” section.) 3. “OFF” button for climate control system
4. “” fan speed decrease button
5. “
” fan speed increase button 6. “AUTO” automatic climate control ON
button
7. “
” air intake control button
8. “
” air recirculation button.
9. “CLIMATE” button
10, 11. Temperature control button (driver side)
12. “
” manual air flow control button
(driver side)
13. “
” manual air flow control button
(passenger side)
14, 15. Temperature control button (passen- ger side)
AUTOMATIC CLIMATE CONTROL
(Type A)
Automatic operation
Cooling and/or dehumidified heating (AUTO) :
This mode may be used all year round. The
system works automatically to control the in-
side temperature, air flow distribution and fan
speed after the preferred temperature is set
manually.
1. Push the “AUTO” button on. (The indicatoron the button will illuminate and AUTO will
be displayed.)
Type A
SAA2952
4-32Monitor, climate, audio, phone and voice recognition systems
—
—
01/13/10—tbrooks


2. Push the temperature control button(driver side) to set the desired tempera-
ture.
●The temperature can be set within the
following range.
– For U.S.: 60 to 90°F (16 to 32°C)
– For Canada: 64 to 90°F (18 to 32°C)
● The temperature of the passenger com-
partment will be maintained automati-
cally. Air flow distribution and fan speed
will also be controlled automatically.
3. To turn off the climate control system, push the “OFF” button.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.
Dehumidified defrosting or defogging:
1. Push the front defroster “” button.
(The indicator light on the button will
come on.)
2. Push the temperature control button to set the desired temperature.
●To quickly remove ice from the outside of the
windows, push the fan speed increase
“
” button and set it to the maximum
position. ●
As soon as possible after the windshield is
clean, push the “AUTO” button to return to
the auto mode.
● When the front defroster “
” button is
pushed, the air conditioner will automati-
cally be turned on at outside temperatures
above 23°F (5°C) to defog the windshield,
and the air recirculate mode will automati-
cally be turned off.
Outside air is drawn into the passenger
compartment to improve the defogging per-
formance.
Manual operation
Fan speed control :
Push the fan speed increase “
”or
decrease “
” buttons to manually control
the fan speed.
Push the “AUTO” button to return to automatic
control of the fan speed. Air recirculation :
Push the air recirculation “
” button to
change the air circulation mode. When the
indicator light illuminates, the flowing air is
recirculated inside the vehicle.
The air recirculation mode cannot be activated
when the air conditioner is in the front defrost-
ing mode “
”.
Outside air circulation :
Push the outside air circulation “
” button
to change the air circulation mode. When the
indicator light illuminates, the flowing air is
drawn from outside the vehicle.
Automatic air intake control :
To set the automatic control mode, perform one
of the following operations.
● When the outside air circulation mode is on,
push and hold the outside air circulation
“
” button for more than 2 seconds.
● When the air recirculation mode is on, push
and hold the air recirculation “
” but-
ton for more than 2 seconds.
When setting the automatic control mode, both
indicator lights will blink twice indicating that
the system is in the automatic control mode.
Monitor, climate, audio, phone and voice recognition systems4-33
—
—
01/12/10—pattie
