DVD (Digital Versatile Disc) player
(models with navigation system)
●Do not force a compact disc into the CD/DVD
insert slot. This could damage the CD/DVD
player.
● During cold weather or rainy days, the player
may malfunction due to humidity. If this occurs, remove the CD/DVD and dehumidify
or ventilate the player completely.
● The player may skip while driving on rough
roads.
● The CD/DVD player sometimes cannot func-
tion when the passenger compartment tem-
perature is extremely high. Decrease the
temperature before use.
● Only use high quality 4.7 in (12 cm) round
discs that have the “COMPACT disc DIGITAL
AUDIO” or “DVD Video” logo on the disc or
packaging.
● Do not expose the CD/DVD to direct sunlight.
● CD/DVDs that are of poor quality, dirty,
scratched, covered with fingerprints, or that
have pinholes may not work properly.
● The following CD/DVDs are not guaranteed
to play:
– Copy control compact discs (CCCD)
– Recordable compact discs (CD-R)
– Rewritable compact discs (CD-RW)
– Recordable DVDs (DVD±R, DVD±R DL)
– Rewritable DVDs (DVD±RW, DVD±RW DL) ●
Do not use the following CD/DVDs as they
may cause the CD/DVD player to malfunc-
tion.
– 3.1 in (8 cm) discs
– CD/DVDs that are not round
– CD/DVDs with a paper label
– CD/DVDs that are warped, scratched or have abnormal edges
– This audio system can only play prere- corded CD/DVDs. It has no capabilities to
record or burn CD/DVDs.
● If the CD/DVD cannot be played, one of the
following messages will be displayed.
Disc Read Error:
– Confirm that the CD/DVD is inserted cor- rectly (the label side is facing up, etc.).
– Confirm that the CD/DVD is not bent or warped and it is free of scratches.
Please Eject Disc: – This may be an error due to the tempera- ture inside the player being too high.
Remove the CD/DVD by pushing the EJECT
button, and after a short time reinsert the
CD/DVD. The CD/DVD can be played when
the temperature of the player returns to
LHA0484
Monitor, climate, audio, phone and voice recognition systems4-47
—
—
07/15/10—tbrooks


●A USB device cannot be formatted with this
system. To format a USB device, use a
personal computer.
● Partitioned USB devices may not be played
correctly.
● Some characters used in other languages
(Chinese, Japanese, etc.) are not displayed
properly on the vehicle center screen. Using
English language characters with a USB de-
vice is recommended.
● Do not connect a USB device if a connector
or cable is wet. Allow the cable and/or
connectors to dry completely before con-
necting the USB device. If the connector is
exposed to fluids other than water, evapora-
tive residue may cause a short between the
connector pins.
● Large video podcast files cause slow re-
sponses in an iPod. The vehicle center
display may momentarily black out, but it
will soon recover.
● If an iPod automatically selects large video
podcast files while in the shuffle mode, the
vehicle center display may momentarily
black out, but it will soon recover.
● Audiobooks may not play in the same order
as they appear on an iPod. ●
An iPod nano (1st Generation) may remain
in fast forward or rewind mode if it is
connected during a seek operation. In this
case, please manually reset the iPod.
● An iPod nano (2nd Generation) will con-
tinue to fast forward or rewind if it is discon-
nected during a seek operation.
● An incorrect song title may appear when the
Play Mode is changed while using the iPod
nano (2nd Generation)
iPod is a trademark of Apple Inc., registered in
the U.S. and other countries.
Compressed Audio Files (MP3/WMA/
AAC)
Explanation of terms :
● MP3 — MP3 is short for Moving Pictures
Experts Group Audio Layer 3. MP3 is the
most well known compressed digital audio
file format. This format allows for near “CD
quality” sound, but at a fraction of the size
of normal audio files. MP3 conversion of an
audio track can reduce the file size by
approximately a 10:1 ratio (Sampling: 44.1
kHz, Bit rate: 128 kbps) with virtually no
perceptible loss in quality. The compression
reduces certain parts of sound that seem
inaudible to most people. ●
WMA — Windows Media Audio (WMA) is a
compressed audio format created by Micro-
soft as an alternative to MP3. The WMA
codec offers greater file compression than
the MP3 codec, enabling storage of more
digital audio tracks in the same amount of
space when compared to MP3s at the same
level of quality.
● AAC/M4A — Advanced Audio Coding (AAC) is
a lossy audio compression format. Audio
files that have been encoded with AAC are
generally smaller in size and deliver a higher
quality of sound than MP3.
● Bit rate — Bit rate denotes the number of
bits per second used by a digital music file.
The size and quality of a compressed digital
audio file is determined by the bit rate used
when encoding the file.
● Sampling frequency — Sampling frequency
is the rate at which the samples of a signal
are converted from analog to digital (A/D
conversion) per second.
● Multisession — Multisession is one of the
methods for writing data to media. Writing
data once to the media is called a single
session, and writing more than once is
called a multisession.
● ID3/WMA Tag — The ID3/WMA tag is the part
of the encoded MP3 or WMA file that con-
Monitor, climate, audio, phone and voice recognition systems4-49
—
—
07/15/10—tbrooks

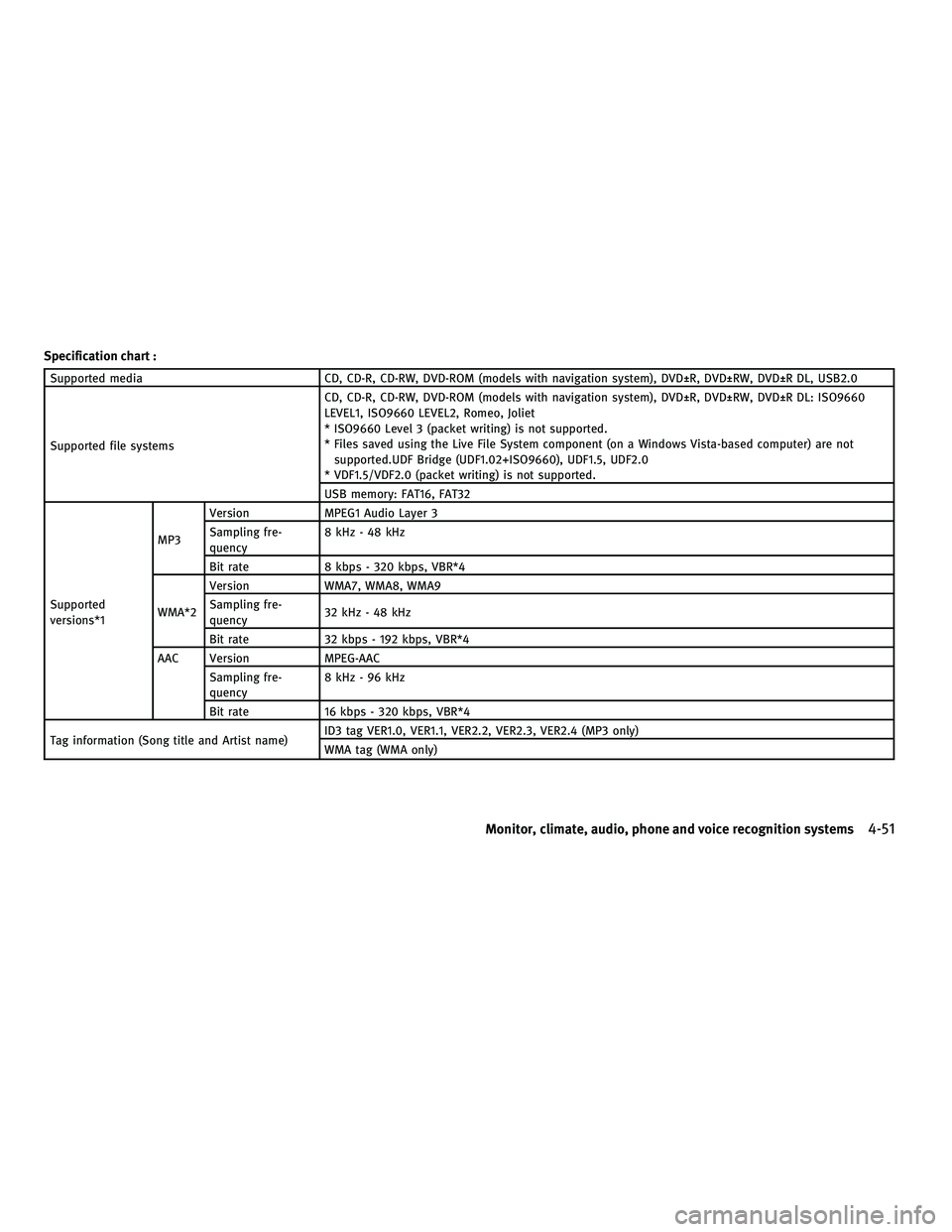

Specification chart :
Supported mediaCD, CD-R, CD-RW, DVD-ROM (models with navigation system), DVD±R, DVD±RW, DVD±R DL, USB2.0
Supported file systems CD, CD-R, CD-RW, DVD-ROM (models with navigation system), DVD±R, DVD±RW, DVD±R DL: ISO9660
LEVEL1, ISO9660 LEVEL2, Romeo, Joliet
* ISO9660 Level 3 (packet writing) is not supported.
* Files saved using the Live File System component (on a Windows Vista-based computer) are not
supported.UDF Bridge (UDF1.02+ISO9660), UDF1.5, UDF2.0
* VDF1.5/VDF2.0 (packet writing) is not supported.
USB memory: FAT16, FAT32
Supported
versions*1 MP3
Version
MPEG1 Audio Layer 3
Sampling fre-
quency 8 kHz - 48 kHz
Bit rate 8 kbps - 320 kbps, VBR*4
WMA*2 Version
WMA7, WMA8, WMA9
Sampling fre-
quency 32 kHz - 48 kHz
Bit rate 32 kbps - 192 kbps, VBR*4
AAC Version MPEG-AAC
Sampling fre-
quency 8kHz-96kHz
Bit rate 16 kbps - 320 kbps, VBR*4
Tag information (Song title and Artist name) ID3 tag VER1.0, VER1.1, VER2.2, VER2.3, VER2.4 (MP3 only)
WMA tag (WMA only)
Monitor, climate, audio, phone and voice recognition systems4-51
—
—
07/15/10—tbrooks


Supported mediaCD, CD-R, CD-RW, DVD-ROM, (models with navigation system) DVD±R, DVD±RW, DVD±R DL, USB2.0
Folder levels Models with navigation system:
Folder levels: 8, Folders: 512 (including root folder), Files: 5,000
Models without navigation system:
Folder levels: 8, Folders and files: 999 (Max. 255 files for one folder)
Text character number limitation Models with navigation system: 100 characters
Models without navigation system: 64 characters
Displayable character codes*3 01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian), 04: UNICODE (UTF-16 Non-BOM Big
Endian), 05: UNICODE (UTF-8), 06: UNICODE (Non-UTF-16 BOM Little Endian), 07: SHIFT-JIS
*1 Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.
*2 Protected WMA files (DRM) cannot be played.
*3 Available codes depend on what kind of media, versions and information are going to be displayed.
*4 When VBR files are played, the playback time may not be displayed correctly.
4-52Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks

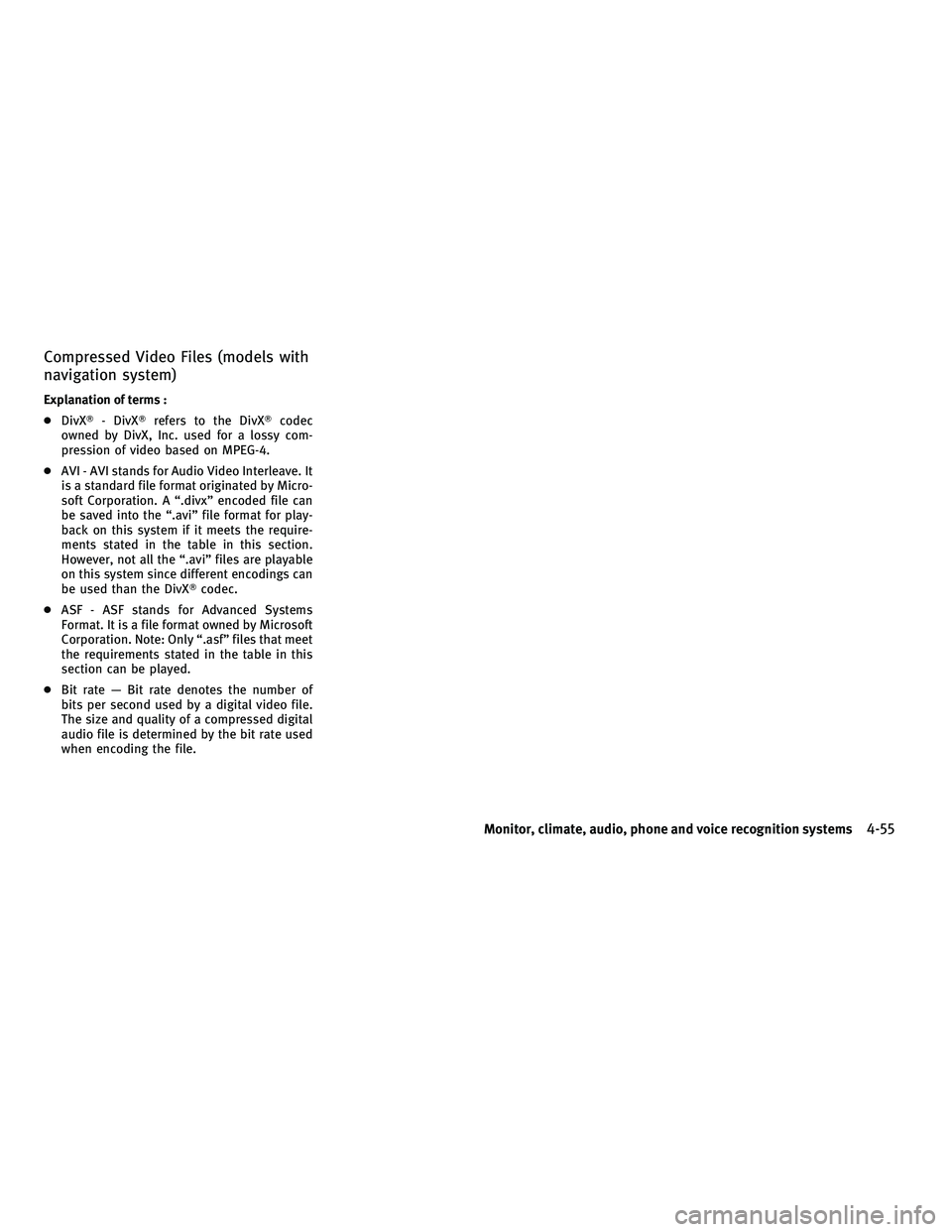

Compressed Video Files (models with
navigation system)
Explanation of terms :
●DivX - DivX refers to the DivX codec
owned by DivX, Inc. used for a lossy com-
pression of video based on MPEG-4.
● AVI - AVI stands for Audio Video Interleave. It
is a standard file format originated by Micro-
soft Corporation. A “.divx” encoded file can
be saved into the “.avi” file format for play-
back on this system if it meets the require-
ments stated in the table in this section.
However, not all the “.avi” files are playable
on this system since different encodings can
be used than the DivX codec.
● ASF - ASF stands for Advanced Systems
Format. It is a file format owned by Microsoft
Corporation. Note: Only “.asf” files that meet
the requirements stated in the table in this
section can be played.
● Bit rate — Bit rate denotes the number of
bits per second used by a digital video file.
The size and quality of a compressed digital
audio file is determined by the bit rate used
when encoding the file.
Monitor, climate, audio, phone and voice recognition systems4-55
—
—
07/15/10—tbrooks


Requirement for Supporting Video Playback:
MediaCD, CD-R, CD-RW, DVD, DVD±R, DVD±RW, DVD±RW DL, USB 2.0 Memory
File Systems CD, CD-R,
CD-RW,
DVD,
DVD±R,
DVD±RW,
DVD±RW DL ISO9660 LEVEL1, ISO9660 LEVEL2, Romeo, Joliet, UDF Bridge (UDF1.
02+ISO9660), UDF1.5, UDF2.0- ISO9660 Level 3 (packet writing) is not
supported.
- Files saved using the Live File System component (on a Windows Vista-
based computer) are not supported.
- VDF1.5/VDF2.0 (packet writing) is not supported.
USB Memory FAT16, FAT32
File Types .divx, .avi Video CodecsDivX3, DivX4, DivX5, DivX6
Audio Codecs MP3, MPEG2.5 Audio Layer3, AC3, LPCM
.asf Video Codec ISO-MPEG4
Audio Codec G.726
Bit Rates .divx, .avi Maximum Average4Mbps
Maximum Peak 8Mbps
Resolution .divx, .avi Minimum32 × 32
Maximum 720 × 480
.asf Minimum 32 × 32
Maximum 720 × 576
BluetoothAudio player (models with
navigation system)
● Some Bluetooth audio devices may not be
recognized by the in-vehicle audio system.
● It is necessary to set up the wireless connec-
tion between a compatible Bluetooth audio
device and the in-vehicle Bluetooth module
before using the Bluetooth audio player.
● Operating procedure of the Bluetooth audio
player will vary depending on the device.
Make sure it is understood how to operate
an audio device before using it with this
system.
● The Bluetooth audio player may be stopped
under the following conditions:
– Receiving a hands-free call.
– Checking the connection to the hands- free phone.
● Do not place a Bluetooth audio device in an
area surrounded by metal or far away from
the in-vehicle Bluetooth module to prevent
tone quality degradation and wireless con-
nection disruption.
● While an audio device is connected through
a Bluetooth wireless connection, the bat-
tery power of the device may discharge
quicker than usual.
4-56Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


●This system supports the Bluetooth Audio
Distribution Profile (A2DP, AVRCP).
● Bluetooth is a trademark owned by
Bluetooth SIG, Inc. and licensed to Clarion
Co., Ltd.Music Box hard drive (models with
navigation system)
Recording :
● Note that data that is lost and not stored to
the hard disk drive due to system damage,
improper operation or malfunction is not
under warranty.
● Vehicle owners are not permitted to record
music without permission of the owner of
the copyright except for personal use.
● Check if the music is appropriately recorded
to the hard disk drive after recording when
the compact disc cannot be rerecorded.
● Some music cannot be recorded depending
on the disc condition due to high-speed
recording.
● Jumping sounds may be recorded when a
compact disc is recorded while driving on
rough roads and excessive vibration occurs.
● A mark indicating jumping sounds is dis-
played if jumping sounds are recorded.
● No sounds may be recorded if jumping
sounds occurs or the disc is in poor condi-
tion.
● Tracks that include Serial Copy Management
System (SCMS) are not recorded. ●
If a compact disc is scratched or dirty, it may
not be recorded, jumping sounds may occur
or it may take a long time to record.
Automatic title download :
● The title information that is automatically
downloaded may differ from the actual title.
● When newly released compact discs are
recorded, their title information may not be
downloaded.
● The title information in the hard disk can be
updated. (See “Playing recorded songs”
later in this section.
Monitor, climate, audio, phone and voice recognition systems4-57
—
—
07/15/10—tbrooks


1. ON·OFF/VOLUME control knob
2. Radio CAT (category)/REW (rewind) buttonfor SEEK/TRACK
3. Radio CAT(category)/FF (fast forward) but- ton for SEEK/TRACK
4. AM·FM radio band select button 5. XM radio band select button
6. DISC·AUX selector button
7. RDM (random) RPT (repeat) play button
8. Radio SCAN (tuning) button
9. CD EJECT button10. Radio tuning / MP3/WMA/AAC folder se-
lector / AUDIO control knob
11. Radio station preset buttons
No satellite radio reception is available unless
an XM Satellite Radio subscription is active.
FM-AM-SAT RADIO WITH COMPACT
DISC (CD) PLAYER
For all operation precautions, see “AUDIO OP-
ERATION PRECAUTIONS” earlier in this section.
The satellite radio mode requires an active XM
Satellite Radio subscription. The satellite radio
is not available in Alaska, Hawaii and Guam.
It may take some time to receive the activation
signal after subscribing the XM Satellite Radio.
After receiving the activation signal, an avail-
able channel list will be automatically updated
in the radio. For XM, push the ignition switch
from LOCK to ACC to update the channel list.
Audio main operation
Head unit :
The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.
SAA2957
4-58Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


ON·OFF/Volume control :
Push the ignition switch to the ACC or ON
position, and then push the ON·OFF button
while the system is off to turn on the last audio
source (i.e. FM or CD), which was playing im-
mediately before the system was turned off.
While the system is on, pushing the ON·OFF
button turns the system off.
Turn the VOL control knob to adjust the volume.
Adjusting tone quality and speaker balance :
To adjust Bass, Treble, Balance and Fade, push
the Audio control knob. When the display
shows the setting you want to change (Bass,
Treble, Balance and Fade), rotate the Audio
control knob to set the desired setting. For the
other setting methods, see “HOW TO USE SET-
TING BUTTON” earlier in this section.
This vehicle has some sound effect functions as
follows:
●Speed Sensitive Vol.
● Precision Phased Audio (if so equipped)
● BOSE Centerpoint 2 (if so equipped)
● BOSE AudioPilot
TM2 (if so equipped)
For more details, see “VEHICLE INFORMATION
AND SETTINGS” earlier in this section. Switching the display :
Pushing the DISC·AUX button will switch the
displays as follows:
●
Models with navigation system
iPod/USB →CD/DVD →Music Box →
Bluetooth Audio→iPod/USB
● Models without navigation system
iPod/USB →CD →iPod/USB
Linking Intelligent Key (models with navigation
system) :
The audio settings can be memorized for each
Intelligent Key. For more details, see “SETTING
MEMORY FUNCTION” in the “3. Pre-driving
checks and adjustments” section.
FM-AM-SAT radio operation
When the radio band select button is pushed
while the ignition switch is in the ACC or ON
position, the radio will come on at the channel
last played.
The last channel played will also come on when
the ON·OFF button is pushed to ON.
If another audio source is playing when the
radio band select button is turned to ON, the
audio source will automatically be turned off
and the last radio channel played will come on. When the stereo broadcast signal is weak, the
radio will automatically change from stereo to
monaural reception.
radio (FM·AM) band select :
Pushing the XM radio band select button will
change the band as follows:
AM →FM1 →FM2 →AM
radio (XM) band select :
Pushing the XM radio band select button will
change the band as follows:
XM1 →XM2 →XM3 →XM1
The satellite radio is not available in Alaska,
Hawaii and Guam.
TUNE (Tuning) :
● For AM and FM radio
Turn the radio TUNE knob for manual tuning.
● For XM Satellite Radio
Turn the radio TUNE knob to seek channels
from all of the categories when any category
is not selected.
Monitor, climate, audio, phone and voice recognition systems4-59
—
—
07/15/10—tbrooks


SEEK tuning/CATEGORY (CAT) :
● For AM and FM radio
Push the SEEK button
orto
tune from low to high or high to low frequen-
cies and to stop at the next broadcasting
station.
● For XM Satellite Radio
Push the SEEK button
orto
tune to the first channel of the next or
previous category.
During satellite radio reception, the following
notices will be displayed under certain condi-
tions.
● NO SIGNAL (No signal is received while the
SAT tuner is connected.)
● OFF AIR (Broadcasting signed off)
● CHECK ANTENNA (Antenna connection error)
● LOADING (When the initial setting is per-
formed)
● UPDATING (When the satellite radio sub-
scription is not active)
SCAN tuning :
Push the SCAN tuning button to tune from low
to high frequencies and stop at each broadcast- ing station/channel for 5 seconds. Pushing the
button again during this 5 seconds period will
stop SCAN tuning and the radio will remain
tuned to that station/channel.
If the SCAN tuning button is not pushed within
5 seconds, SCAN tuning moves to the next
station/channel.
toStation memory operations :
12 stations/channels can be set for the FM band
(6 each for FM1 and FM2), 18 for XM radio (6
each for XM1, XM2 and XM3) and 6 stations can
be set for the AM band.
1. Choose the radio band using the radio band select button.
2. Tune to the desired station/channel using the
, SCAN button or the radio
TUNE knob.
3. Push and hold the desired station preset button
tountil the radio mutes.
4. The station indicator will then come on and the sound will resume. Memorizing is
now complete.
5. Other buttons can be set in the same manner.
If the battery cable is disconnected, or if the
fuse opens, the radio memory will be erased. In
that case, reset the desired stations/channels. Menu (XM Satellite Radio) (models with naviga-
tion system) :
When the “Menu” key on the display is selected
while the XM Satellite Radio is being played,
the menu list will be displayed.
The following items are available.
●
Preset List
Displays the preset channel list. If 1 of the 6
preset stations listed is touched and held,
the current station will be stored as the new
preset.
● Customize Channel List
Selects specific channels to skip while using
the TUNE, SEEK/CATEGORY or Menu-
Categories feature.
● Favorite Artists & Songs
Stores the current artist or song that is being
played. Touch the “Alert” key to be reminded
when the stored artist or song is playing on
a station while listening to XM.
● Categories
Selecting a category will go to the first
channel in that category as defined by XM
Radio.
4-60Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks
