REPEAT (RPT), RANDOM (RDM) :
To change the play mode, push the
button repeatedly and the mode changes as
follows.
Normal →Shuffle All Tracks →Shuffle Group →
Repeat 1 Track →Repeat All Tracks →Repeat
Group →Normal
Operation keys :
To operate a Bluetooth audio device, select a
key displayed on the operation screen using the
INFINITI controller.
Play
Select the “
” key to start playing when
pausing. Select this key again to pause the
audio play.
Pause
Select the “
” key to pause the Bluetooth
audio device. Select this key again to resume
playing. Play Mode :
The play mode setting display will appear when
the “Menu” key is selected.
Choose the preferred play mode from the fol-
lowing items.
●
Shuffle
Choose “Shuffle OFF”, “Shuffle All Tracks”
and “Shuffle Group”.
● Repeat
Choose from “Repeat OFF”, “Repeat 1 Track”,
“Repeat All Tracks” and “Repeat Group”.
Bluetooth settings
To set up the Bluetooth device system to the
preferred settings, push the SETTING button
and select the “Bluetooth” key.
Bluetooth :
If this setting is turned off, the connection
between the Bluetooth devices and the in-
vehicle Bluetooth module will be canceled.
Connect Bluetooth :
Connects to the Bluetooth device. See “Con-
necting procedure” earlier in this section. Up to
5 devices can be registered.
SAA2511
Monitor, climate, audio, phone and voice recognition systems4-73
—
—
07/15/10—tbrooks


Connected Devices :
Registered devices are shown on the list. Select
a Bluetoothdevice from the list, the following
options will be available.
● Select
Select “Select” to connect the selected de-
vice to the vehicle. If there is a different
device currently connected, the selected de-
vice will replace the current device.
● Edit
Rename the selected Bluetooth device us-
ing the keypad displayed on the screen. (See
“HOW TO USE TOUCH SCREEN (models with
navigation system)” earlier in this section.)
● Delete
Delete the selected Bluetooth device.
Edit Bluetooth Info :
Change the name broadcasted by this system
over Bluetooth. Change the PIN code that is
entered when connecting a hands free device to
this system. Replace Connected Phone :
Replace the Bluetooth
connection with a con-
nected Bluetooth cellular phone. For details
about Hands-Free Phone System, see
“BLUETOOTH HANDS-FREE PHONE SYSTEM
(models with navigation system)” later in this
section.
IPOD PLAYER OPERATION
Connecting iPod
Open the console lid and connect the iPod
cable to the USB connector. If compatible, the
battery of the iPod is charged while the con-
nection to the vehicle.
Depending on the version of the iPod, the
display on the iPod shows an INFINITI or
Accessory Attached screen when the connection
is completed. When the iPod is connected to
the vehicle, the iPod music library can only be
operated by the vehicle audio controls.
* iPod is a trademark of Apple Inc., registered
in the U.S. and other countries.
SAA2964
4-74Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


Compatibility
The following models are available:
Models with navigation system :
●Fifth generation iPod (version 1.2.3 or later)
● iPod Classic (version 1.1.1 or later)
● First generation iPod touch (version 2.0.0
or later)
● Second generation iPod touch (firmware
version 1.2.3 or later)
● First generation iPod nano (firmware ver-
sion 1.3.1 or later)
● Second generation iPod nano (firmware
version 1.1.3 or later)
● Third generation iPod nano (firmware ver-
sion 1.1 or later)
● Fourth generation iPod nano (firmware ver-
sion 1.0.2 or later)
Models without navigation system :
● Fifth generation iPod (firmware version 1.3)
● First generation iPod Classic (firmware ver-
sion 1.1.2 PC)
● Second generation iPod Classic (firmware
version 2.0 PC) ●
First generation iPod touch (firmware ver-
sion 2.1)
● Second generation iPod touch (firmware
version 2.1.1)
● First generation iPod nano (firmware ver-
sion 1.3.1)
● Second generation iPod nano (firmware
version 1.1.3)
● Third generation iPod nano (firmware ver-
sion 1.1 PC)
Make sure that the iPod version is updated.
Audio main operation
Push the ignition switch to the ACC or ON
position. Then, push the DISC·AUX button re-
peatedly to switch to the iPod mode.
If the system has been turned off while the
iPod was playing, pushing the ON·OFF button
will start the iPod.
PLAY :
When the DISC·AUX button is pushed with the
system off and the iPod connected, the system
will turn on. If another audio source is playing
and the iPod is connected, push the DISC·AUX
button repeatedly until the center display
changes to the iPod mode. Interface :
The interface for iPod
operation shown on the
vehicle center display is similar to the iPod
interface. Use the INFINITI controller and the
ENTER or BACK button to play the iPod with
your favorite settings.
The following items can be chosen from the
menu list screen. For further information about
each item, see the iPod Owner’s Manual.
● Now Playing
● Playlists
● Artists
● Albums
● Songs
● Podcasts
● Genres
● Composers
● Audiobooks
● Shuffle Songs
The following touch-panel buttons shown on
the screen are also available:
●
: returns to the previous screen.
●
: plays/pauses the music selected.
Monitor, climate, audio, phone and voice recognition systems4-75
—
—
07/15/10—tbrooks


Next/Previous Track and Fast
Forward/Rewind :
When the
orbutton is pushed for
more than 1.5 seconds while the iPod is play-
ing, the iPod will play while fast forwarding or
rewinding. When the button is released, the
iPod will return to the normal play speed.
When the
orbutton is pushed for
less than 1.5 seconds while the iPod is play-
ing, the next track or the beginning of the
current track on the iPod will be played.
The INFINITI controller can also be used to
select tracks when the iPod is playing.
REPEAT (RPT), RANDOM (RDM) :
When the RPT button is pushed while a track is
being played, the play pattern can be changed
as follows:
MUSIC BOX HARD DRIVE (models with
navigation system)
The Music Box hard drive audio system can
store songs from CDs being played. The system
has a 9.3 gigabyte (GB) storage capacity.
The following CDs can be recorded in the Music
Box hard drive audio system.
● CDs that contain uncompressed audio files
● Hybrid Compact Disc Digital Audio (Hybrid
CD-DA) specification in Super Audio CDs
● Compact Disc Digital Audio (CD-DA) specifi-
cation in CD-Extras
● First session of multisession disc
Extreme temperature conditions [below 4°F
(20°C) and above 158°F (70°C)] could affect the
performance of the hard drive.
NOTE:
If the hard drive needs to be replaced due to a
malfunction, all stored music data will be
erased.
Recording CDs
1. Operate the audio system to play a CD. For
the details of playing CDs, see “Compact
Disc (CD) player operation” earlier in this
section.
2. Select the “Start REC” key.
NOTE:
● The system starts playing and recording the
1st track on the CD when the “Start REC” key
is selected.
● The recording process can be stopped at any
time. All tracks that were played before the
CD was stopped are stored.
SAA2513
4-76Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks

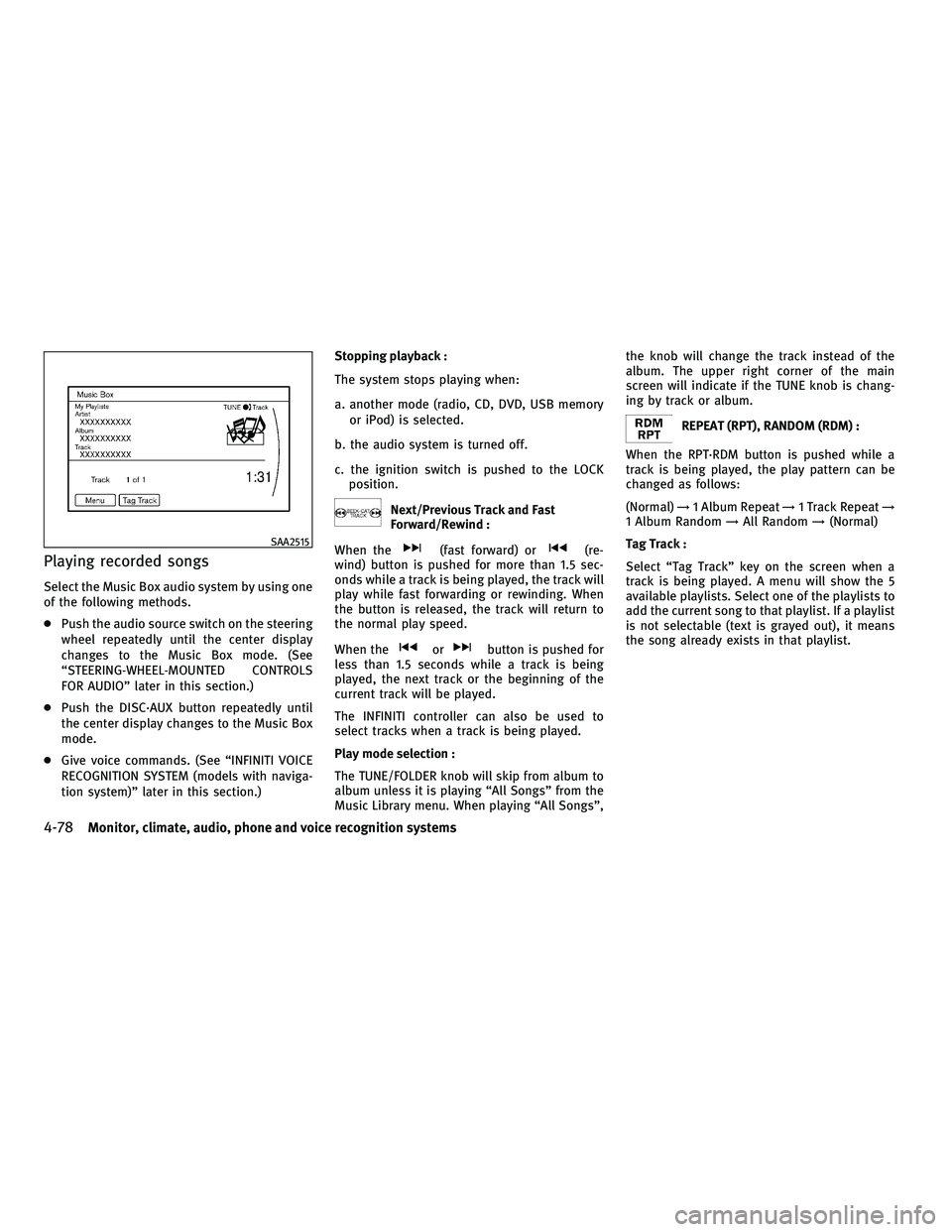

Playing recorded songs
Select the Music Box audio system by using one
of the following methods.
●Push the audio source switch on the steering
wheel repeatedly until the center display
changes to the Music Box mode. (See
“STEERING-WHEEL-MOUNTED CONTROLS
FOR AUDIO” later in this section.)
● Push the DISC·AUX button repeatedly until
the center display changes to the Music Box
mode.
● Give voice commands. (See “INFINITI VOICE
RECOGNITION SYSTEM (models with naviga-
tion system)” later in this section.) Stopping playback :
The system stops playing when:
a. another mode (radio, CD, DVD, USB memory
or iPod) is selected.
b. the audio system is turned off.
c. the ignition switch is pushed to the LOCK position.
Next/Previous Track and Fast
Forward/Rewind :
When the
(fast forward) or(re-
wind) button is pushed for more than 1.5 sec-
onds while a track is being played, the track will
play while fast forwarding or rewinding. When
the button is released, the track will return to
the normal play speed.
When the
orbutton is pushed for
less than 1.5 seconds while a track is being
played, the next track or the beginning of the
current track will be played.
The INFINITI controller can also be used to
select tracks when a track is being played.
Play mode selection :
The TUNE/FOLDER knob will skip from album to
album unless it is playing “All Songs” from the
Music Library menu. When playing “All Songs”, the knob will change the track instead of the
album. The upper right corner of the main
screen will indicate if the TUNE knob is chang-
ing by track or album.
REPEAT (RPT), RANDOM (RDM) :
When the RPT·RDM button is pushed while a
track is being played, the play pattern can be
changed as follows:
(Normal) →1 Album Repeat →1 Track Repeat →
1 Album Random →All Random →(Normal)
Tag Track :
Select “Tag Track” key on the screen when a
track is being played. A menu will show the 5
available playlists. Select one of the playlists to
add the current song to that playlist. If a playlist
is not selectable (text is grayed out), it means
the song already exists in that playlist.
SAA2515
4-78Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks

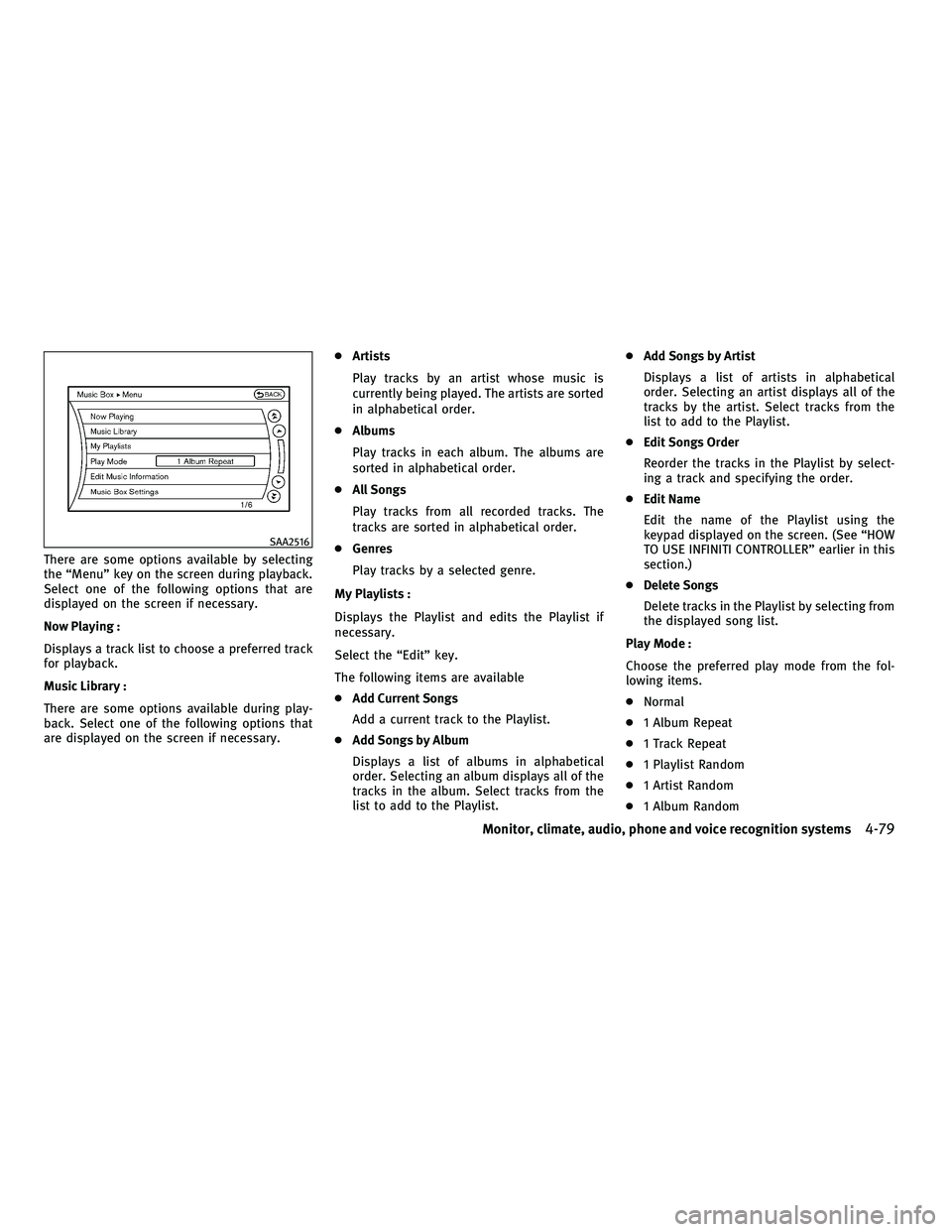

There are some options available by selecting
the “Menu” key on the screen during playback.
Select one of the following options that are
displayed on the screen if necessary.
Now Playing :
Displays a track list to choose a preferred track
for playback.
Music Library :
There are some options available during play-
back. Select one of the following options that
are displayed on the screen if necessary.●
Artists
Play tracks by an artist whose music is
currently being played. The artists are sorted
in alphabetical order.
● Albums
Play tracks in each album. The albums are
sorted in alphabetical order.
● All Songs
Play tracks from all recorded tracks. The
tracks are sorted in alphabetical order.
● Genres
Play tracks by a selected genre.
My Playlists :
Displays the Playlist and edits the Playlist if
necessary.
Select the “Edit” key.
The following items are available
● Add Current Songs
Add a current track to the Playlist.
● Add Songs by Album
Displays a list of albums in alphabetical
order. Selecting an album displays all of the
tracks in the album. Select tracks from the
list to add to the Playlist. ●
Add Songs by Artist
Displays a list of artists in alphabetical
order. Selecting an artist displays all of the
tracks by the artist. Select tracks from the
list to add to the Playlist.
● Edit Songs Order
Reorder the tracks in the Playlist by select-
ing a track and specifying the order.
● Edit Name
Edit the name of the Playlist using the
keypad displayed on the screen. (See “HOW
TO USE INFINITI CONTROLLER” earlier in this
section.)
● Delete Songs
Delete tracks in the Playlist by selecting from
the displayed song list.
Play Mode :
Choose the preferred play mode from the fol-
lowing items.
● Normal
● 1 Album Repeat
● 1 Track Repeat
● 1 Playlist Random
● 1 Artist Random
● 1 Album Random
SAA2516
Monitor, climate, audio, phone and voice recognition systems4-79
—
—
07/15/10—tbrooks


●1 All Track Random
● 1 All Random
Edit Music Information :
Displays the following information about the
Music Box hard drive to edit if necessary.
● Edit Information of Current Song
Edit the “Track”, “Artist” and “Genre” infor-
mation of the current track using the keypad
displayed on the screen. (See “HOW TO USE
TOUCH SCREEN (models with navigation sys-
tem)” earlier in this section.)
Edit the “Mode” information by selecting
from the list.
● Edit Information by Album
Edit the displayed name and of a selected
album and the track information in the al-
bum.
● Update Gracenote from USB Device
Update the in-vehicle Gracenote Database
using a USB memory. Search the title from a
information acquired on the Internet.
Visit www.InfinitiUSA.com/music-update/
for details. ●
Transfer Missing Titles to USB
Transfer the information of an album re-
corded without titles to a USB memory.
Visit www.InfinitiUSA.com/music-update/
for details.
● Update Gracenote from HDD
Search the title using the database in the
hard disk.
Music Box settings
To set the Music box hard drive to your pre-
ferred settings, select the “Menu” key during
playback, and the “Music Box Settings” key
with the INFINITI controller, and then push the
ENTER button.
Music Box Used/Free Space :
Information about “Saved Album”, “Saved
Track” and “Remaining Time” is displayed.
Automatic Recording :
When this item is turned to ON, the Music Box
hard drive automatically starts recording when
a CD is inserted.
SAA2517
4-80Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks

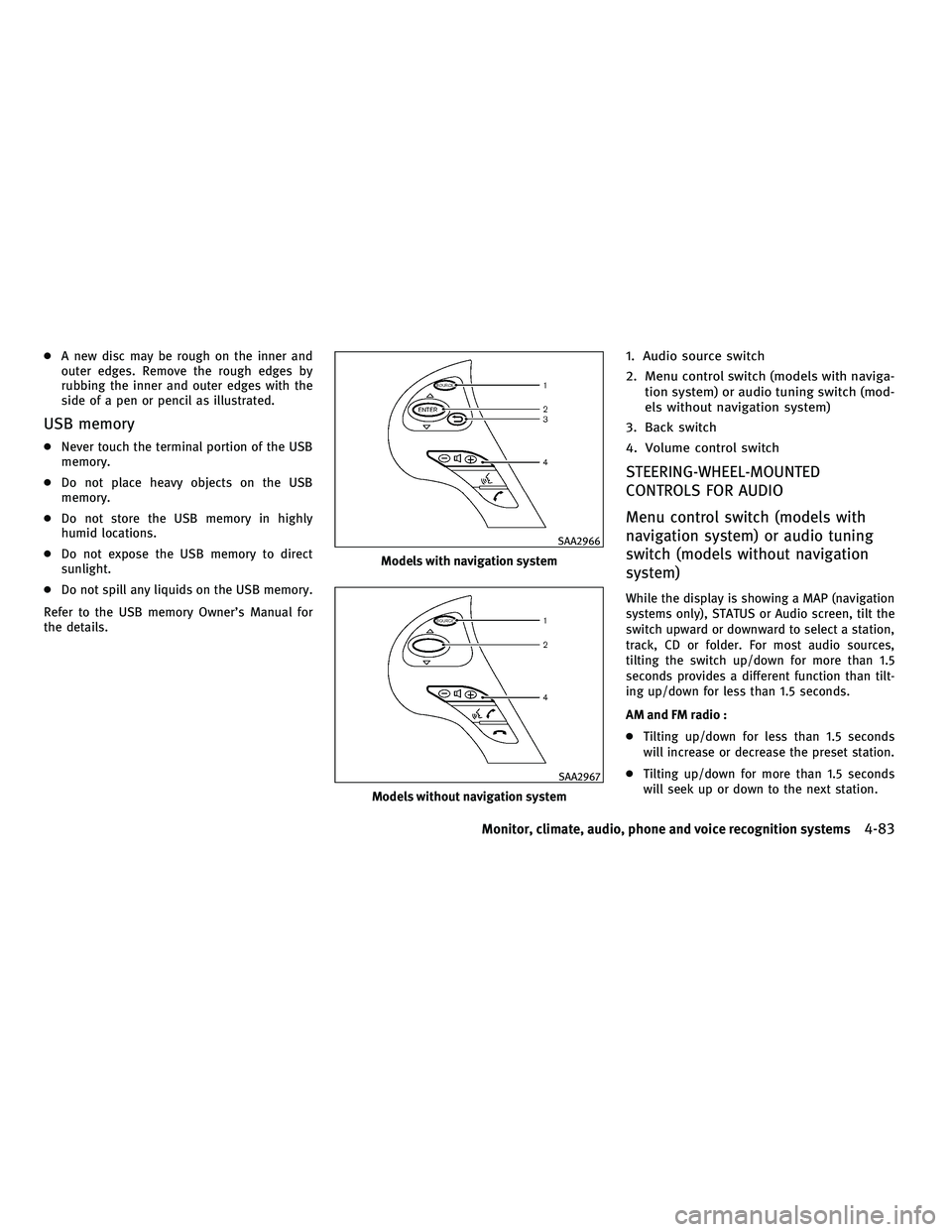

●A new disc may be rough on the inner and
outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.
USB memory
● Never touch the terminal portion of the USB
memory.
● Do not place heavy objects on the USB
memory.
● Do not store the USB memory in highly
humid locations.
● Do not expose the USB memory to direct
sunlight.
● Do not spill any liquids on the USB memory.
Refer to the USB memory Owner’s Manual for
the details.
1. Audio source switch
2. Menu control switch (models with naviga- tion system) or audio tuning switch (mod-
els without navigation system)
3. Back switch
4. Volume control switch
STEERING-WHEEL-MOUNTED
CONTROLS FOR AUDIO
Menu control switch (models with
navigation system) or audio tuning
switch (models without navigation
system)
While the display is showing a MAP (navigation
systems only), STATUS or Audio screen, tilt the
switch upward or downward to select a station,
track, CD or folder. For most audio sources,
tilting the switch up/down for more than 1.5
seconds provides a different function than tilt-
ing up/down for less than 1.5 seconds.
AM and FM radio :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the preset station.
● Tilting up/down for more than 1.5 seconds
will seek up or down to the next station.
Models with navigation system
SAA2966
Models without navigation system
SAA2967
Monitor, climate, audio, phone and voice recognition systems4-83
—
—
07/15/10—tbrooks

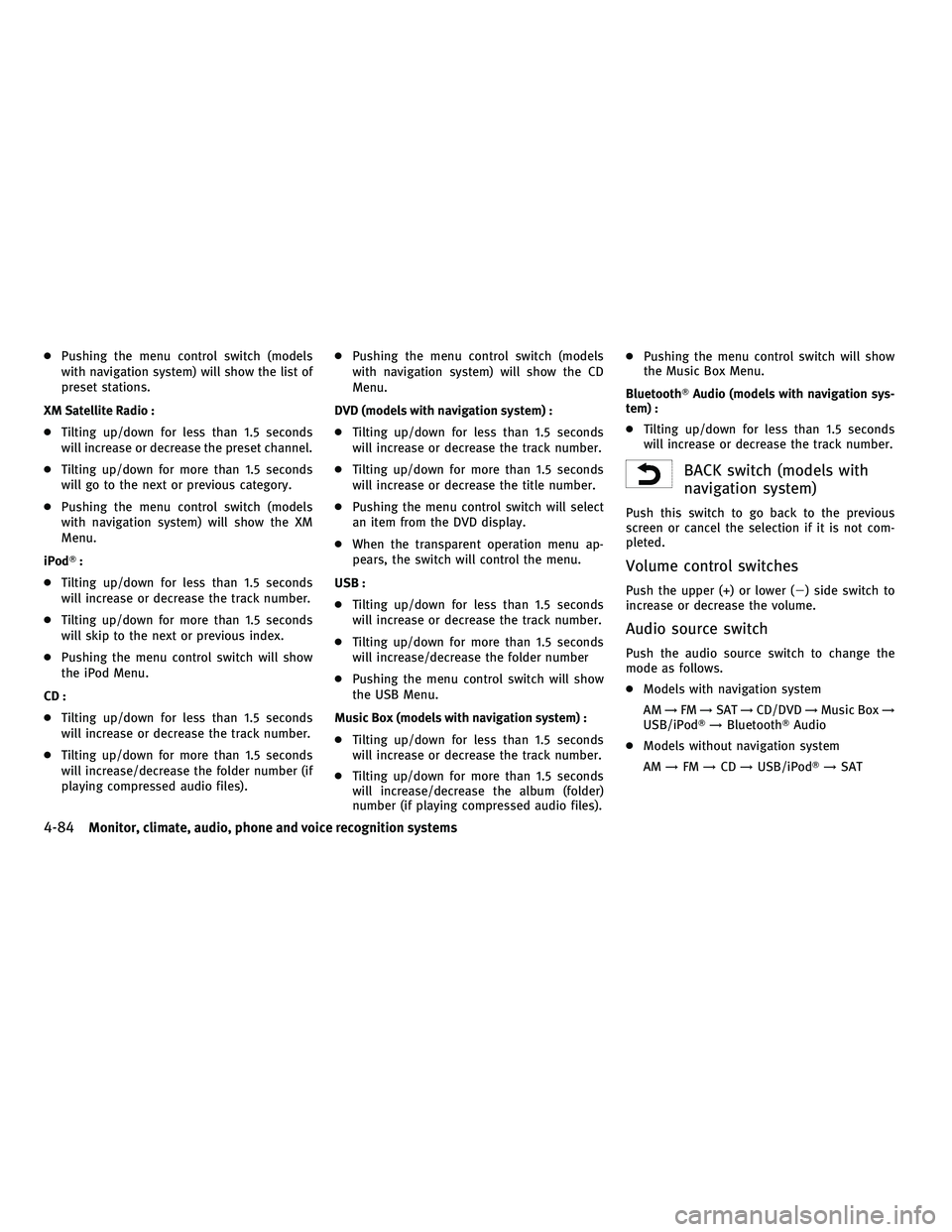

●Pushing the menu control switch (models
with navigation system) will show the list of
preset stations.
XM Satellite Radio :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the preset channel.
● Tilting up/down for more than 1.5 seconds
will go to the next or previous category.
● Pushing the menu control switch (models
with navigation system) will show the XM
Menu.
iPod :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
● Tilting up/down for more than 1.5 seconds
will skip to the next or previous index.
● Pushing the menu control switch will show
the iPod Menu.
CD :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
● Tilting up/down for more than 1.5 seconds
will increase/decrease the folder number (if
playing compressed audio files). ●
Pushing the menu control switch (models
with navigation system) will show the CD
Menu.
DVD (models with navigation system) :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
● Tilting up/down for more than 1.5 seconds
will increase or decrease the title number.
● Pushing the menu control switch will select
an item from the DVD display.
● When the transparent operation menu ap-
pears, the switch will control the menu.
USB :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
● Tilting up/down for more than 1.5 seconds
will increase/decrease the folder number
● Pushing the menu control switch will show
the USB Menu.
Music Box (models with navigation system) :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
● Tilting up/down for more than 1.5 seconds
will increase/decrease the album (folder)
number (if playing compressed audio files). ●
Pushing the menu control switch will show
the Music Box Menu.
Bluetooth Audio (models with navigation sys-
tem) :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
BACK switch (models with
navigation system)
Push this switch to go back to the previous
screen or cancel the selection if it is not com-
pleted.
Volume control switches
Push the upper (+) or lower () side switch to
increase or decrease the volume.
Audio source switch
Push the audio source switch to change the
mode as follows.
● Models with navigation system
AM →FM →SAT →CD/DVD →Music Box →
USB/iPod →Bluetooth Audio
● Models without navigation system
AM →FM →CD →USB/iPod →SAT
4-84Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks

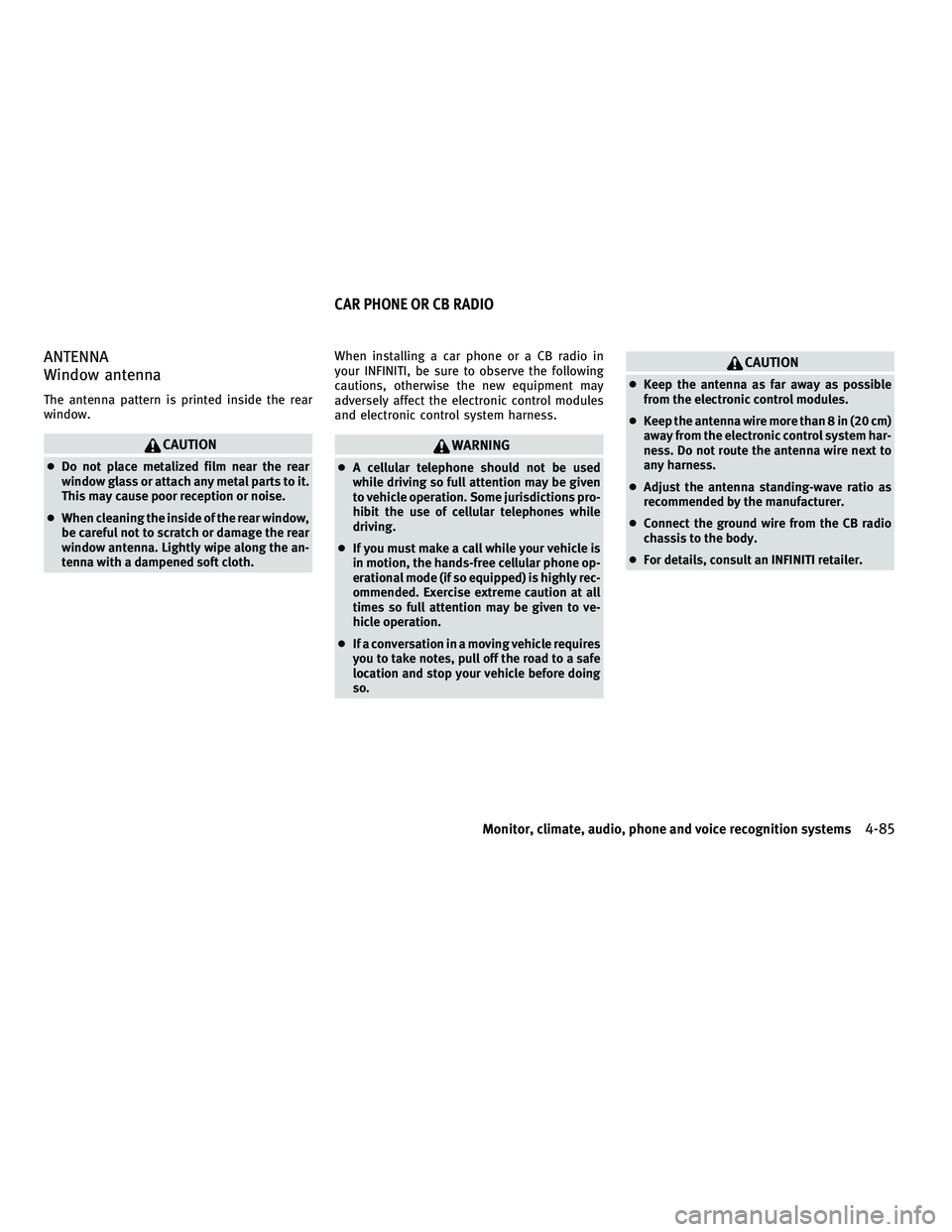

ANTENNA
Window antenna
The antenna pattern is printed inside the rear
window.
CAUTION
●Do not place metalized film near the rear
window glass or attach any metal parts to it.
This may cause poor reception or noise.
● When cleaning the inside of the rear window,
be careful not to scratch or damage the rear
window antenna. Lightly wipe along the an-
tenna with a dampened soft cloth. When installing a car phone or a CB radio in
your INFINITI, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.
WARNING
●
A cellular telephone should not be used
while driving so full attention may be given
to vehicle operation. Some jurisdictions pro-
hibit the use of cellular telephones while
driving.
● If you must make a call while your vehicle is
in motion, the hands-free cellular phone op-
erational mode (if so equipped) is highly rec-
ommended. Exercise extreme caution at all
times so full attention may be given to ve-
hicle operation.
● If a conversation in a moving vehicle requires
you to take notes, pull off the road to a safe
location and stop your vehicle before doing
so.
CAUTION
● Keep the antenna as far away as possible
from the electronic control modules.
● Keep the antenna wire more than 8 in (20 cm)
away from the electronic control system har-
ness. Do not route the antenna wire next to
any harness.
● Adjust the antenna standing-wave ratio as
recommended by the manufacturer.
● Connect the ground wire from the CB radio
chassis to the body.
● For details, consult an INFINITI retailer.
CAR PHONE OR CB RADIO
Monitor, climate, audio, phone and voice recognition systems4-85
—
—
07/15/10—tbrooks
