2 Instruments and controls
Cockpit........................................... 2-2
Instrument panel .................................. 2-4
Meters and gauges ................................ 2-5
Speedometer and odometer ..................... 2-6
Tachometer .................................... 2-7
Engine coolant temperature gauge ............... 2-7
Fuel gauge ..................................... 2-8
Warning/indicator lights and audible reminders ...... 2-9
Checking bulbs ............................... 2-10
Warning lights ................................ 2-10
Indicator lights ................................. 2-15
Audible reminders ............................. 2-18
Dot matrix liquid crystal display ...................2-19
Indicators for operation ........................ 2-21
Indicators for maintenance .....................2-23
Trip computer ................................. 2-24
Security systems ................................. 2-27
Vehicle security system ........................ 2-27
INFINITI Vehicle Immobilizer System ............2-29
Windshield wiper and washer switch ...............2-30
Rain-sensing auto wiper system ................2-31
Rear window and outside mirror defroster switch . . . 2-32
Headlight and turn signal switch ..................2-32Xenon headlights
............................. 2-32
Headlight switch .............................. 2-33
Turn signal switch ............................. 2-37
Fog light switch ............................... 2-37
Hazard warning flasher switch .....................2-37
Heated steering wheel (if so equipped) .............2-38
Horn ............................................ 2-39
Heated seats (if so equipped) .....................2-39
Climate controlled seats (if so equipped) ...........2-40
Warning systems switch (if so equipped) ...........2-41
Intelligent Brake Assist (IBA) OFF switch (if so
equipped) ....................................... 2-42
Vehicle Dynamic Control (VDC) OFF switch ..........2-43
Clock ............................................ 2-43
Adjusting the time ............................. 2-43
Power outlet ..................................... 2-44
Cigarette
lighter and ashtrays ..................... 2-44
Front ......................................... 2-44
Rear ......................................... 2-45
Storage ......................................... 2-45
Cup holders .................................. 2-45
Sunglasses holder ............................. 2-46
Glove box .................................... 2-47
—
—
07/15/10—tbrooks

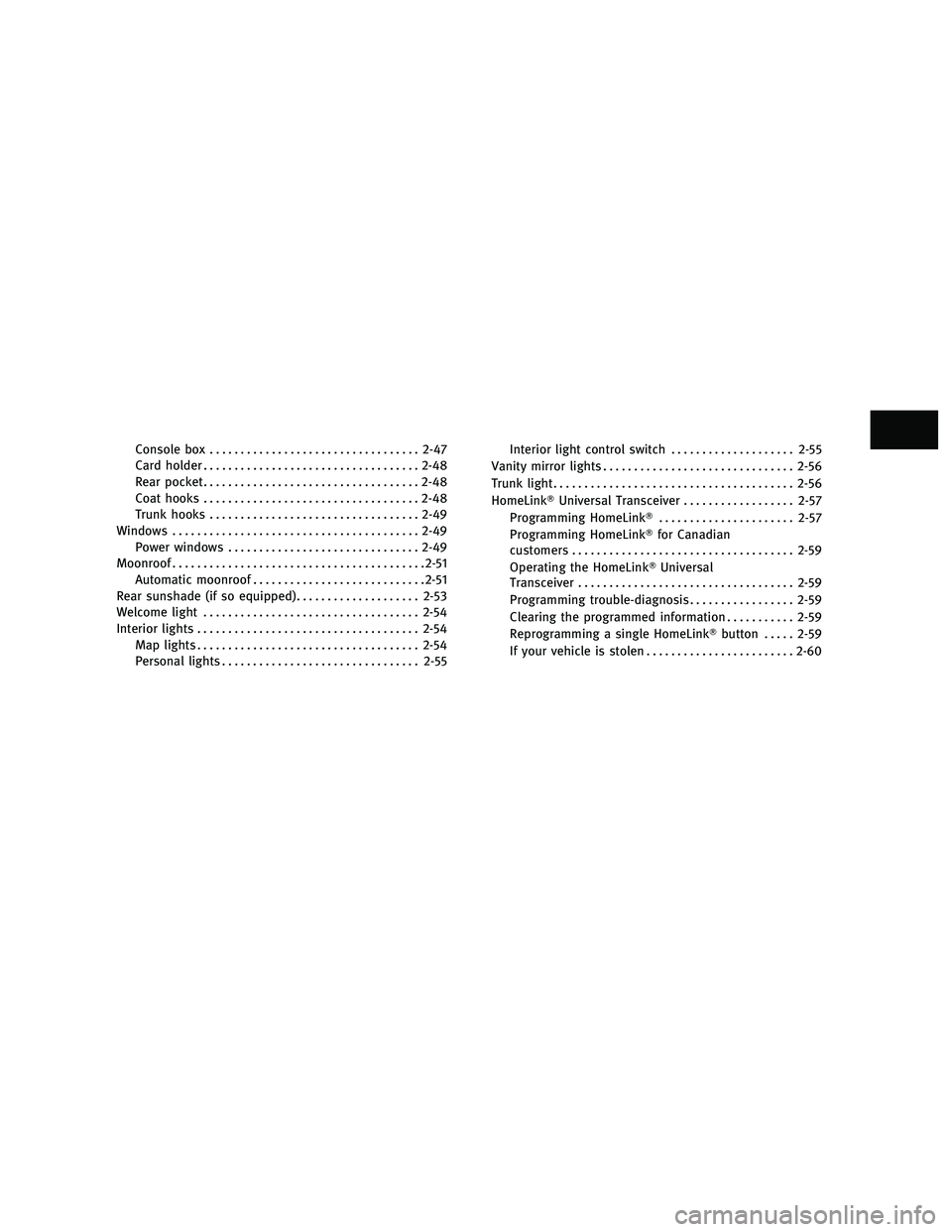

Console box.................................. 2-47
Card holder ................................... 2-48
Rear pocket ................................... 2-48
Coat hooks ................................... 2-48
Trunk hooks .................................. 2-49
Windows ........................................ 2-49
Power windows ............................... 2-49
Moonroof ......................................... 2-51
Automatic moonroof ............................ 2-51
Rear sunshade (if so equipped) ....................2-53
Welcome light ................................... 2-54
Interior lights .................................... 2-54
Map lights .................................... 2-54
Personal lights ................................ 2-55Interior light control switch
....................2-55
Vanity mirror lights ............................... 2-56
Trunk light ....................................... 2-56
HomeLink Universal Transceiver ..................2-57
Programming HomeLink ......................2-57
Programming HomeLink for Canadian
customers .................................... 2-59
Operating the HomeLink Universal
Transceiver ................................... 2-59
Programming trouble-diagnosis .................2-59
Clearing the programmed information ...........2-59
Reprogramming a single HomeLink button.....2-59
If your vehicle is stolen ........................ 2-60
—
—
07/15/10—tbrooks


1. Instrument brightness control switch(P. 2-36)
2. AFS switch (if so equipped) (P. 2-35)
3. Headlight, fog light and turn signal switch (P. 2-32) 4. Trip computer switch (P. 2-24)
5. TRIP/RESET switch for twin trip odometer
(P. 2-6)
6. Windshield wiper and washer switch (P. 2-30) 7. Vehicle Dynamic Control (VDC) OFF switch
(P. 5-89)
8. Rear sunshade switch (if so equipped) (P. 2-53)
9. Steering heater switch (if so equipped) (P. 2-38)
10. Trunk lid release switch (P. 3-17)
11. Warning systems switch (if so equipped) (P. 5-20, P. 5-28, P. 5-73)
12. IBA OFF switch (if so equipped) (P. 5-77)
13. Electric tilting/telescopic steering wheel lever (P. 3-21)
14. Steering-wheel-mounted controls (left side)
— Menu control switch (models with
navigation system)/Audio tuning switch
(models without navigation system)
(P. 4-83)
— BACK switch (models with navigation
system) (P. 4-83)
— TALK switch (if so equipped)
(P. 4-109)/Phone switch (if so equipped)
(P. 4-86)
— Volume control switch (P. 4-83)
— Audio source switch (P. 4-44)
SSI0689
COCKPIT
2-2Instruments and controls
—
—
07/15/10—tbrooks

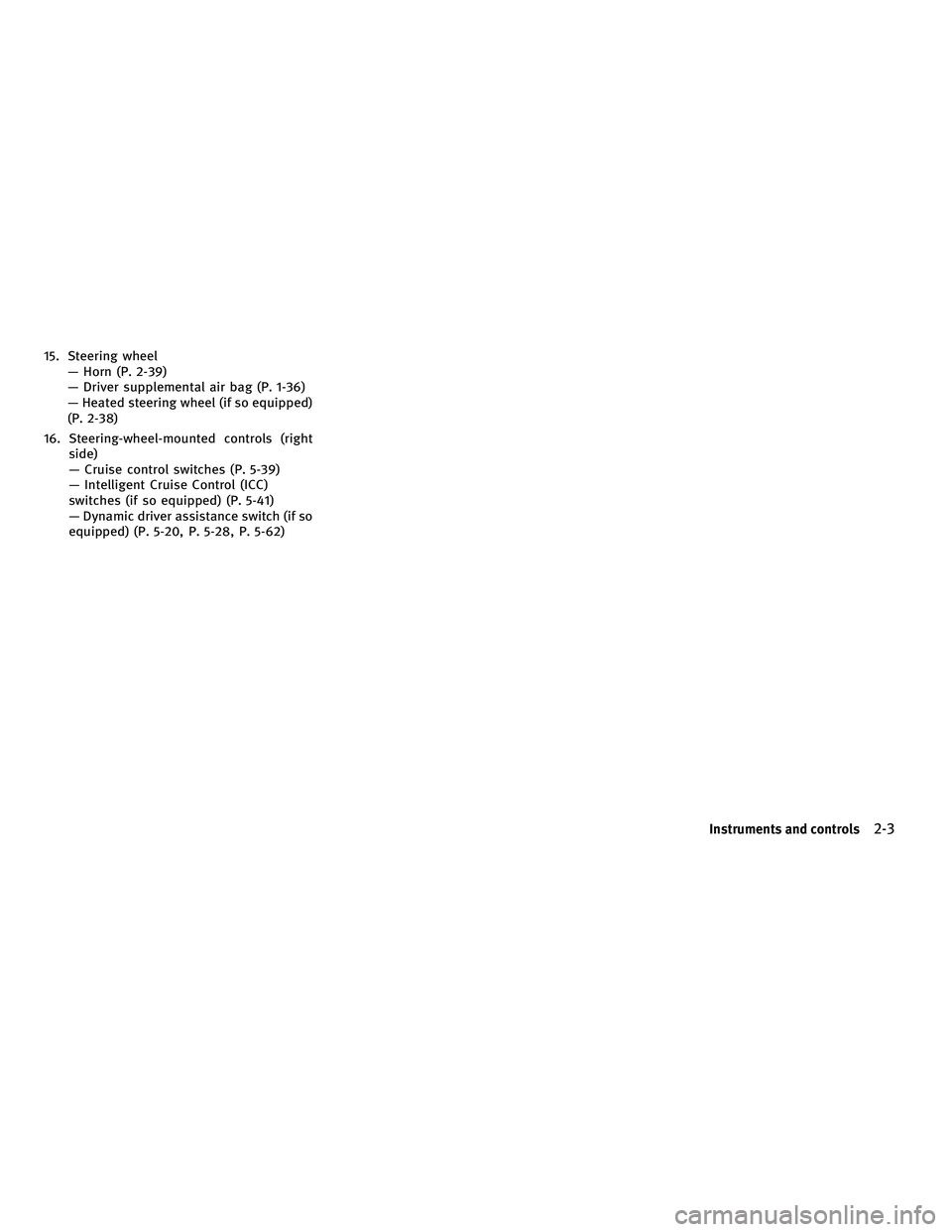

15. Steering wheel— Horn (P. 2-39)
— Driver supplemental air bag (P. 1-36)
— Heated steering wheel (if so equipped)
(P. 2-38)
16. Steering-wheel-mounted controls (right side)
— Cruise control switches (P. 5-39)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-41)
— Dynamic driver assistance switch (if so
equipped) (P. 5-20, P. 5-28, P. 5-62)
Instruments and controls2-3
—
—
07/15/10—tbrooks


1. Side ventilator (P. 4-30)
2. Paddle shifter (if so equipped) (P. 5-14)
3. Meters and gauges (P. 2-5)
4. Hazard warning flasher switch (P. 2-37)5. Rear window and outside mirror defroster
switch (P. 2-32)
6. Center display (P. 4-2)/Navigation system* (if so equipped)
7. Clock (P. 2-43) 8. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-8)
— Bluetooth Hands-Free Phone System
(P. 4-86)
— Audio system (P. 4-44)
9. Automatic climate control system (P. 4-30)/Forest Air™ system (P. 4-30)
10. Center ventilator (P. 4-30)
11. Audio system (P. 4-44)
12. Front passenger supplemental air bag (P. 1-36)
13. Hood release handle (P. 3-16)
14. Fuse box cover (P. 8-22)
15. Parking brake — Parking (P. 5-16)
16. Push-button ignition switch (P. 5-7)
17. Climate controlled seat switch (P. 2-40)/Seat heater switch (P. 2-39)
18. Drive mode select switch (P. 5-16)
19. Cigarette lighter and ashtray (P. 2-44)
20. Glove box lid release handle (P. 2-47)
21. Trunk release power cancel switch (P. 3-18)
*: Refer to the separate Navigation SystemOwner’s Manual.
SSI0690
INSTRUMENT PANEL
2-4Instruments and controls
—
—
07/15/10—tbrooks


1. Tachometer (P. 2-7)
2. Warning/Indicator lights (P. 2-9)
3. Speedometer (P. 2-6)
4. Engine coolant temperature gauge(P. 2-7) 5. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-19)
6. Fuel gauge (P. 2-8)
*: The needle indicators in the speedometer, ta- chometer, engine coolant temperature gauge
and fuel gauge may move slightly after the ignition switch is pushed to the LOCK posi-
tion. This is not a malfunction.
SIC4317
METERS AND GAUGES
Instruments and controls2-5
—
—
07/15/10—tbrooks


SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h).
Odometer/twin trip odometer
The odometer1and twin trip odometer2are
displayed on the dot matrix crystal display
when the ignition switch is in the ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips. Changing the display :
Pushing the TRIP RESET switch
3on the right
of the combination meter panel changes the
display as follows:
TRIP A →TRIP B →TRIP A
Resetting the trip odometer :
Pushing the TRIP RESET switch
3for more than
1 second resets the trip odometer to zero.
Average fuel economy and distance to empty
information is also available. (See “DOT MATRIX
LIQUID CRYSTAL DISPLAY” later in this section
and “HOW TO USE STATUS BUTTON” in the “4.
Monitor, climate, audio, phone and voice rec-
ognition systems” section.)
Speedometer
SIC4318
Odometer/twin trip odometer
SIC4319
2-6Instruments and controls
—
—
01/13/10—tbrooks


TACHOMETER
The tachometer indicates engine speed in revo-
lutions per minute (RPM).Do not rev the engine
into the red zone
1.
The scale length and the red zone vary with the
engine model.
CAUTION
When engine speed approaches the red zone,
shift to a higher gear or reduce engine speed.
Operating the engine in the red zone may cause
serious engine damage.
ENGINE COOLANT TEMPERATURE
GAUGE
The gauge indicates the engine coolant tem-
perature.
The engine coolant temperature is within the
normal range when the gauge needle points
within the zone
1shown in the illustration.
The engine coolant temperature varies with the
outside air temperature and driving conditions.
CAUTION
If the gauge indicates the engine coolant tem-
perature is near the hot (H) end of the normal
range, reduce vehicle speed to decrease the
temperature. If the gauge is over the normal
range, stop the vehicle as soon as safely pos-
sible and let the engine idle. If the engine is
overheated, continued operation of the vehicle
may seriously damage the engine. See “IF
YOUR VEHICLE OVERHEATS” in the “6. In case of
emergency” section for immediate action
required.
SIC4320SIC4321
Instruments and controls2-7
—
—
01/11/10—pattie


FUEL GAUGE
The gauge indicates theapproximatefuel level
in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
The gauge needle returns to “0” (Empty) after
the ignition switch is pushed to the OFF posi-
tion.
Refill the fuel tank before the gauge registers
“0” (Empty).
The low fuel warning
appears on the dot
matrix liquid crystal display when the fuel level
is getting low. Refuel as soon as it is conve-
nient, preferably before the gauge reaches “0”. There will be a small reserve of fuel in the tank
when the fuel gauge needle reaches “0”.
CAUTION
●
If the vehicle runs out of fuel, themalfunction indicator light (MIL) may come
on. Refuel as soon as possible. After a few
driving trips, the
light should turn off.
If the light remains on after a few driving
trips, have the vehicle inspected by an
INFINITI retailer.
● For additional information, see “Malfunction
Indicator Light (MIL)” later in this section.
SIC4322
2-8Instruments and controls
—
—
01/11/10—pattie


All-Wheel Drive (AWD) warning light*Intelligent Cruise Control (ICC) system
warning light (orange)*ECO drive indicator light
Anti-lock Braking System (ABS) warning
lightLane departure warning light
(orange)*Front fog light indicator light
Low tire pressure warning lightFront passenger air bag status light
Automatic transmission check warning
lightMaster warning lightHigh beam indicator light
Brake warning lightPreview Function warning light
(orange)*Intelligent Brake Assist (IBA) off indica-
tor light*
Seat belt warning light and chimeLane Departure Prevention (LDP) ON
indicator light (green)*
Blind Spot Warning (BSW)/Blind Spot
Intervention (BSI) system warning light
(orange)*Supplemental air bag warning lightMalfunction Indicator Light (MIL)
Charge warning lightVehicle Dynamic Control (VDC) warning
lightSecurity indicator light
Distance Control Assist (DCA) system
warning light (orange)*Adaptive Front lighting System (AFS) off
indicator light*Low beam indicator light
4 Wheel Active Steer (4WAS) warning
light*Automatic transmission (AT) position
indicator lightTurn signal/hazard indicator lights
Engine oil pressure warning lightBlind Spot Intervention (BSI) ON indica-
tor light (green)*Vehicle Dynamic Control (VDC) off indi-
cator light
*: if so equipped
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
Instruments and controls2-9
—
—
01/13/10—tbrooks
