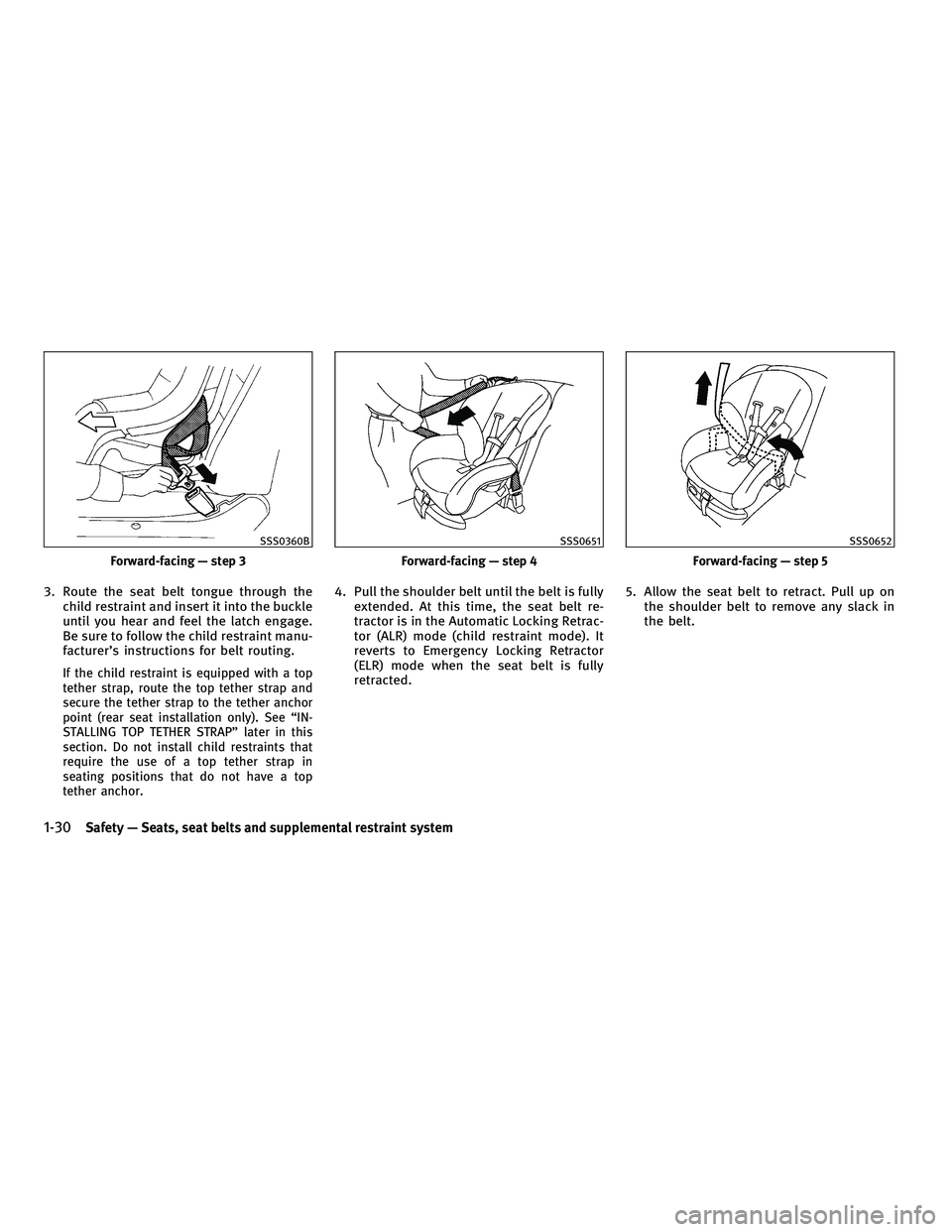

3. Route the seat belt tongue through thechild restraint and insert it into the buckle
until you hear and feel the latch engage.
Be sure to follow the child restraint manu-
facturer’s instructions for belt routing.
If the child restraint is equipped with a top
tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point (rear seat installation only). See “IN-
STALLING TOP TETHER STRAP” later in this
section. Do not install child restraints that
require the use of a top tether strap in
seating positions that do not have a top
tether anchor.
4. Pull the shoulder belt until the belt is fully extended. At this time, the seat belt re-
tractor is in the Automatic Locking Retrac-
tor (ALR) mode (child restraint mode). It
reverts to Emergency Locking Retractor
(ELR) mode when the seat belt is fully
retracted. 5. Allow the seat belt to retract. Pull up on
the shoulder belt to remove any slack in
the belt.
Forward-facing — step 3
SSS0360B
Forward-facing — step 4
SSS0651
Forward-facing — step 5
SSS0652
1-30Safety — Seats, seat belts and supplemental restraint system
—
—
01/11/10—pattie

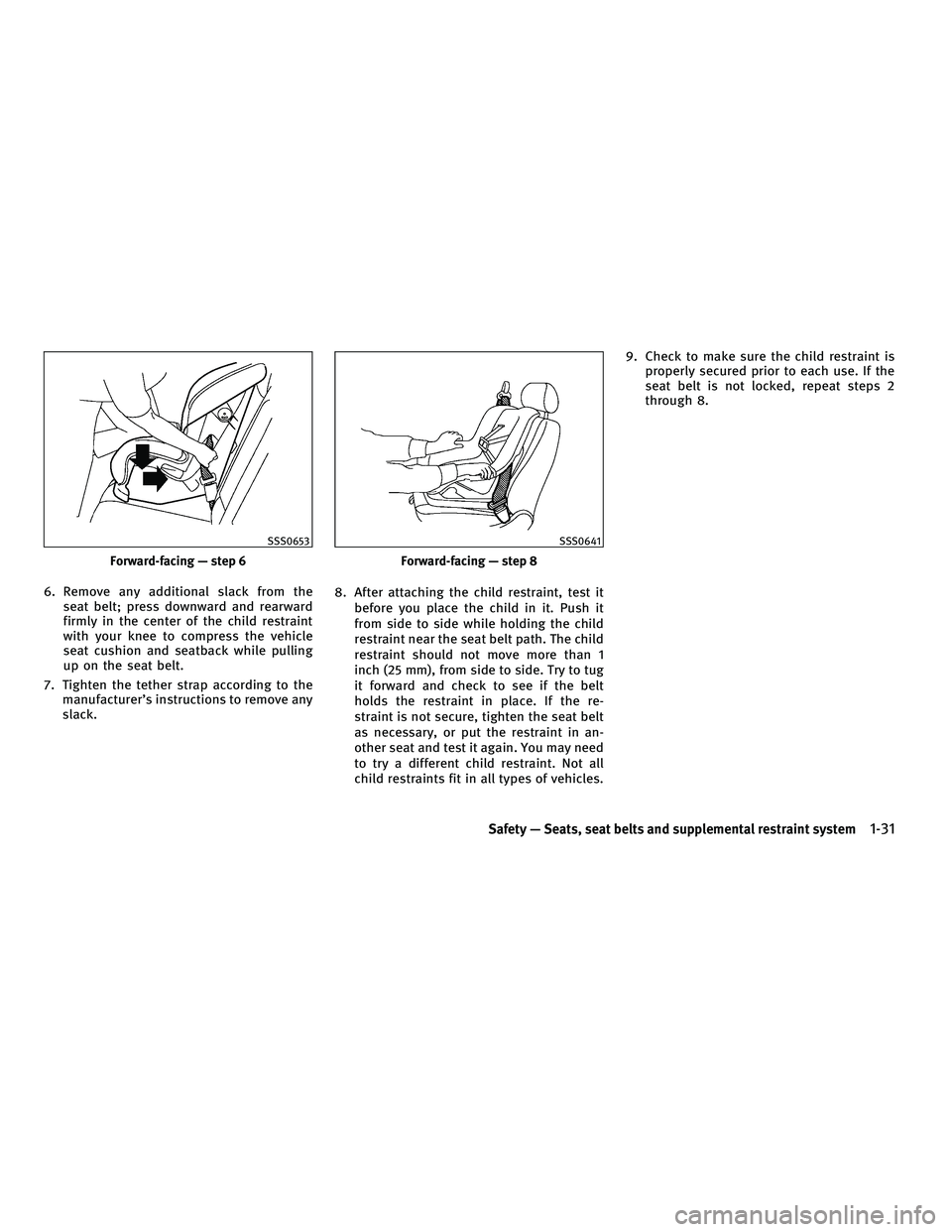

6. Remove any additional slack from theseat belt; press downward and rearward
firmly in the center of the child restraint
with your knee to compress the vehicle
seat cushion and seatback while pulling
up on the seat belt.
7. Tighten the tether strap according to the manufacturer’s instructions to remove any
slack. 8. After attaching the child restraint, test it
before you place the child in it. Push it
from side to side while holding the child
restraint near the seat belt path. The child
restraint should not move more than 1
inch (25 mm), from side to side. Try to tug
it forward and check to see if the belt
holds the restraint in place. If the re-
straint is not secure, tighten the seat belt
as necessary, or put the restraint in an-
other seat and test it again. You may need
to try a different child restraint. Not all
child restraints fit in all types of vehicles. 9. Check to make sure the child restraint is
properly secured prior to each use. If the
seat belt is not locked, repeat steps 2
through 8.
Forward-facing — step 6
SSS0653
Forward-facing — step 8
SSS0641
Safety — Seats, seat belts and supplemental restraint system1-31
—
—
01/11/10—pattie


10. If the child restraint is installed in thefront passenger seat, place the ignition
switch in the ON position. The front
passenger air bag status light
should illuminate. If this light is not
illuminated, see “Front passenger air
bag and status light” in this section.
Move the child restraint to another seat-
ing position. Have the system checked
by an INFINITI retailer.
After the child restraint is removed and the seat
belt is fully retracted, the ALR mode (child
restraint mode) is canceled.
INSTALLING TOP TETHER STRAP
First, secure the child restraint with the LATCH
lower anchors (rear outboard seat positions
only) or the seat belt, as applicable.
1. Flip up the anchor cover from the anchor
point which is located directly behind the
child seat. 2. If necessary, raise or remove the headrest
to position the top tether strap over the
top of the seatback. If the headrest is
removed, store it in a secure place. Be
sure to reinstall the headrest when the
child restraint is removed.
See “ADJUSTABLE HEADRESTS” earlier in
this section for headrest adjustment, re-
moval and installation information.
Position the top tether strap over the top of
the seatback.
3. Secure the tether strap to the tether an-chor point on the rear parcel shelf.
4. Refer to the appropriate child restraint installation procedure steps in this sec-
tion before tightening the tether strap.
If you have any questions when installing a top
tether strap, consult your INFINITI retailer for
details.
Forward-facing — step 10
SSS1085SSS0791
1-32Safety — Seats, seat belts and supplemental restraint system
—
—
03/02/10—pattie

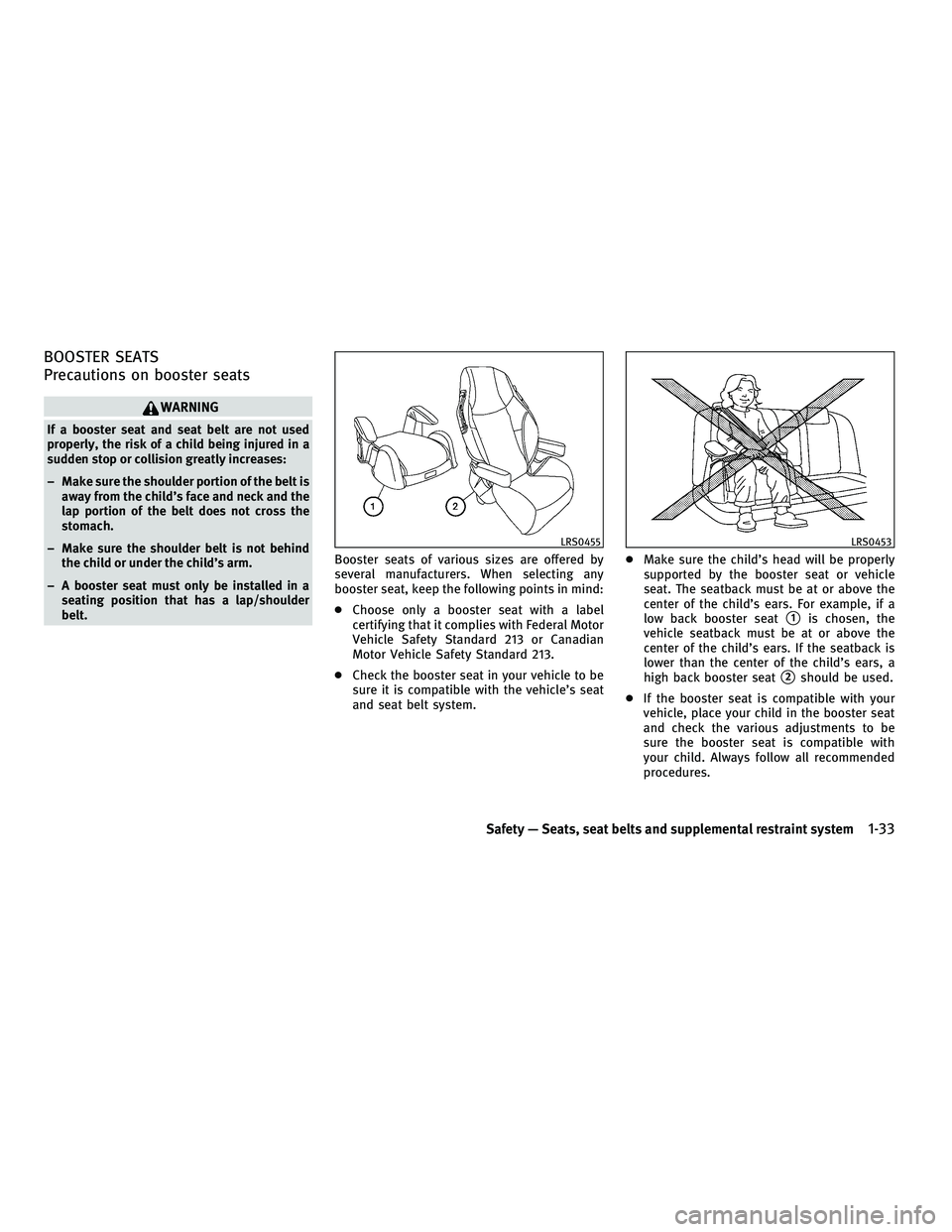

BOOSTER SEATS
Precautions on booster seats
WARNING
If a booster seat and seat belt are not used
properly, the risk of a child being injured in a
sudden stop or collision greatly increases:
− Make sure the shoulder portion of the belt isaway from the child’s face and neck and the
lap portion of the belt does not cross the
stomach.
− Make sure the shoulder belt is not behind the child or under the child’s arm.
− A booster seat must only be installed in a seating position that has a lap/shoulder
belt. Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:
●
Choose only a booster seat with a label
certifying that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.
● Check the booster seat in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system. ●
Make sure the child’s head will be properly
supported by the booster seat or vehicle
seat. The seatback must be at or above the
center of the child’s ears. For example, if a
low back booster seat
1is chosen, the
vehicle seatback must be at or above the
center of the child’s ears. If the seatback is
lower than the center of the child’s ears, a
high back booster seat
2should be used.
● If the booster seat is compatible with your
vehicle, place your child in the booster seat
and check the various adjustments to be
sure the booster seat is compatible with
your child. Always follow all recommended
procedures.
LRS0455LRS0453
Safety — Seats, seat belts and supplemental restraint system1-33
—
—
01/13/10—tbrooks

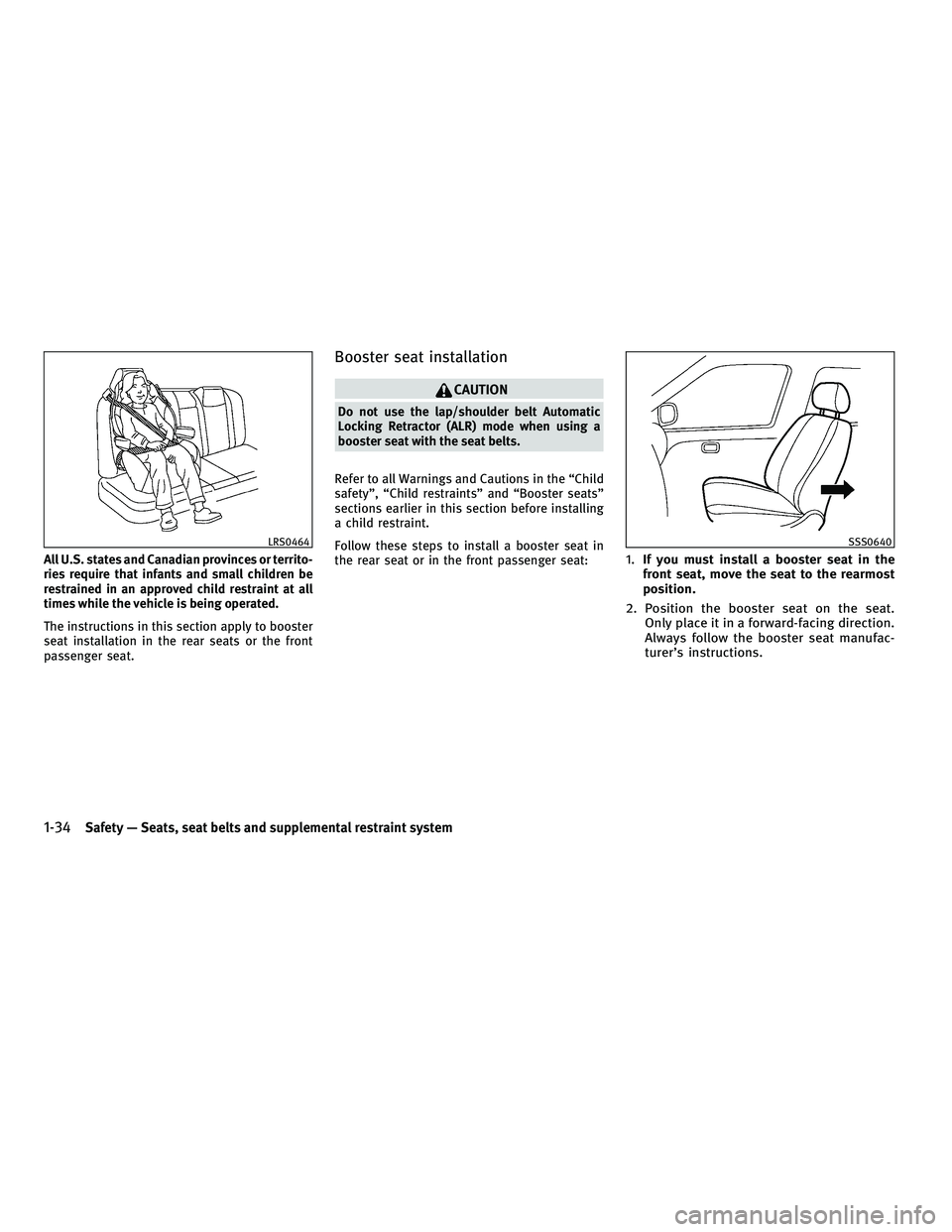

All U.S. states and Canadian provinces or territo-
ries require that infants and small children be
restrained in an approved child restraint at all
times while the vehicle is being operated.
The instructions in this section apply to booster
seat installation in the rear seats or the front
passenger seat.
Booster seat installation
CAUTION
Do not use the lap/shoulder belt Automatic
Locking Retractor (ALR) mode when using a
booster seat with the seat belts.
Refer to all Warnings and Cautions in the “Child
safety”, “Child restraints” and “Booster seats”
sections earlier in this section before installing
a child restraint.
Follow these steps to install a booster seat in
the rear seat or in the front passenger seat:
1. If you must install a booster seat in the
front seat, move the seat to the rearmost
position.
2. Position the booster seat on the seat. Only place it in a forward-facing direction.
Always follow the booster seat manufac-
turer’s instructions.
LRS0464SSS0640
1-34Safety — Seats, seat belts and supplemental restraint system
—
—
01/11/10—pattie


3. The booster seat should be positioned onthe vehicle seat so that it is stable.
If necessary, adjust or remove the head
restraint or headrest to obtain the correct
booster seat fit. If the head restraint or
headrest is removed, store it in a secure
place. Be sure to reinstall the head restraint
or headrest when the booster seat is re-
moved. See “HEAD RESTRAINTS” earlier in
this section or “ADJUSTABLE HEADRESTS”
earlier in this section for head restraint or
headrest adjustment, removal and installa-
tion information. If the seating position does not have an
adjustable head restraint or headrest and it
is interfering with the proper booster seat
fit, try another seating position or a different
booster seat.
4. Position the lap portion of the seat belt
low and snug on the child’s hips. Be sure
to follow the booster seat manufacturer’s
instructions for adjusting the seat belt
routing.
5. Pull the shoulder belt portion of the seat belt toward the retractor to take up extra
slack. Be sure the shoulder belt is posi-
tioned across the top, middle portion of
the child’s shoulder. Be sure to follow the
booster seat manufacturer’s instructions
for adjusting the seat belt routing.
6. Follow the warnings, cautions and in- structions for properly fastening a seat
belt shown in “SEAT BELTS” earlier in this
section. 7. If the booster seat is installed in the front
passenger seat, push the ignition switch
to the ON position. The front passenger
air bag status light
may or may not
illuminate depending on the size of the
child and the type of booster seat used.
See “Front passenger air bag and status
light” page 1-43.
Front passenger position
LRS0454SSS1085
Safety — Seats, seat belts and supplemental restraint system1-35
—
—
01/11/10—pattie


PRECAUTIONS ON SUPPLEMENTAL
RESTRAINT SYSTEM
This Supplemental Restraint System (SRS) sec-
tion contains important information concerning
the driver and passenger front impact supple-
mental air bags (INFINITI Advanced Air Bag
System), front seat-mounted side-impact
supplemental air bag system, roof-mounted
curtain side-impact supplemental air bag and
seat belt with pretensioners.
Supplemental front-impact air bag system:The
INFINITI Advanced Air Bag System can help
cushion the impact force to the head and chest
of the driver and front passenger in certain
frontal collisions.
Front seat-mounted side-impact supplemental
air bag system: This system can help cushion
the impact force to the chest and pelvis area of
the driver and front passenger in certain side
impact collisions. The side air bag is designed
to inflate on the side where the vehicle is
impacted.
Roof-mounted curtain side-impact supplemen-
tal air bag system: This system can help cushion
the impact force to the head of occupants in
front and rear outboard seating positions in
certain side impact collisions. The curtain air
bags are designed to inflate on the side where
the vehicle is impacted. These supplemental restraint systems are de-
signed to
supplement the crash protection pro-
vided by the driver and passenger seat belts
and are not a substitute for them. Seat belts
should always be correctly worn and the occu-
pant seated a suitable distance away from the
steering wheel, instrument panel and door fin-
ishers. (See “SEAT BELTS” earlier in this section
for instructions and precautions on seat belt
usage.)
The supplemental air bags operate only when
the ignition switch is in the ON position.
After pushing the ignition switch to the ON posi-
tion, the supplemental air bag warning light illu-
minates. The supplemental air bag warning light
will turn off after about 7 seconds if the systems
are operational.
SUPPLEMENTAL RESTRAINT SYSTEM
1-36Safety — Seats, seat belts and supplemental restraint system
—
—
01/11/10—pattie

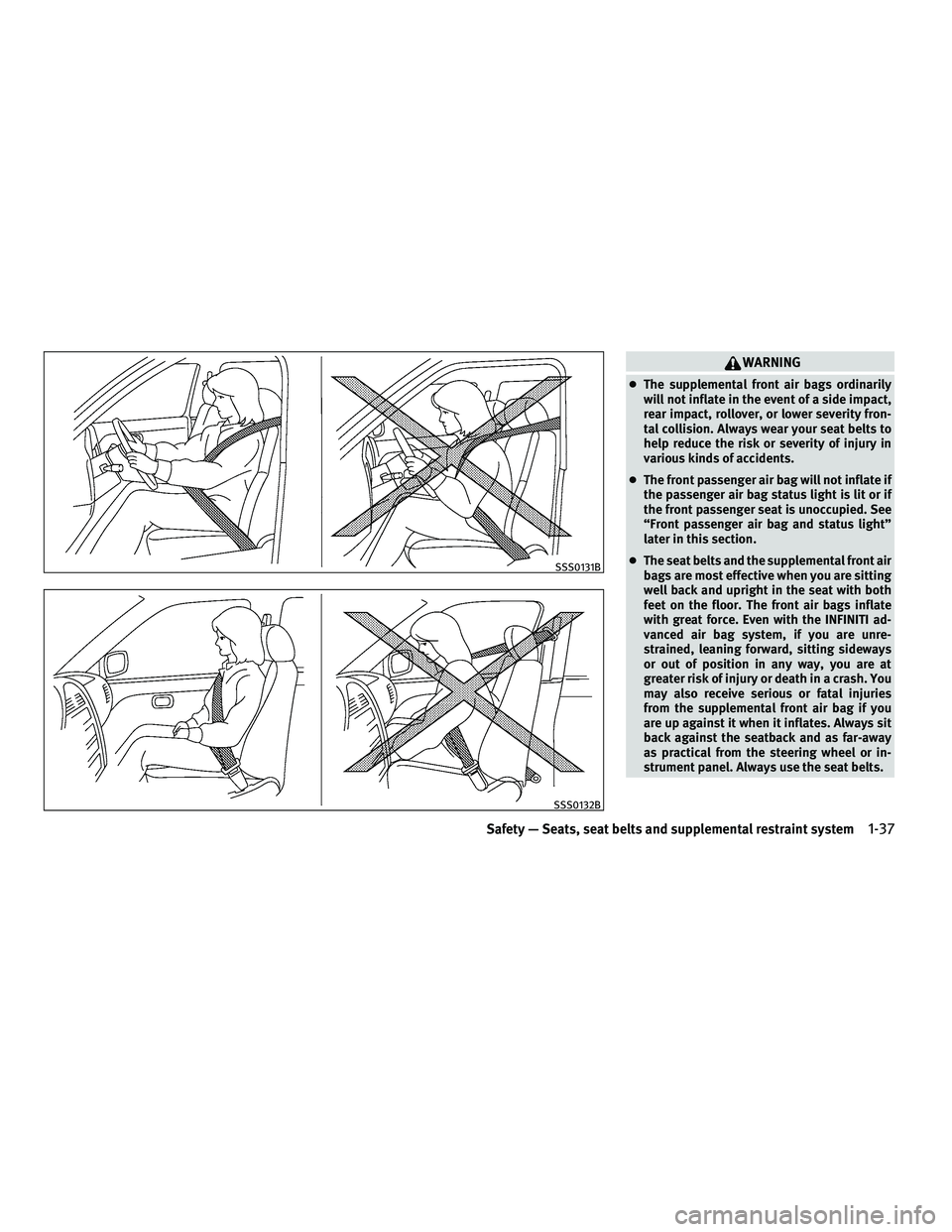

WARNING
●The supplemental front air bags ordinarily
will not inflate in the event of a side impact,
rear impact, rollover, or lower severity fron-
tal collision. Always wear your seat belts to
help reduce the risk or severity of injury in
various kinds of accidents.
● The front passenger air bag will not inflate if
the passenger air bag status light is lit or if
the front passenger seat is unoccupied. See
“Front passenger air bag and status light”
later in this section.
● The seat belts and the supplemental front air
bags are most effective when you are sitting
well back and upright in the seat with both
feet on the floor. The front air bags inflate
with great force. Even with the INFINITI ad-
vanced air bag system, if you are unre-
strained, leaning forward, sitting sideways
or out of position in any way, you are at
greater risk of injury or death in a crash. You
may also receive serious or fatal injuries
from the supplemental front air bag if you
are up against it when it inflates. Always sit
back against the seatback and as far-away
as practical from the steering wheel or in-
strument panel. Always use the seat belts.
SSS0131B
SSS0132B
Safety — Seats, seat belts and supplemental restraint system1-37
—
—
01/11/10—pattie


●The driver and front passenger seat belt
buckles are equipped with sensors that de-
tect if the seat belts are fastened. The Ad-
vanced Air Bag System monitors the severity
of a collision and seat belt usage then in-
flates the air bags. Failure to properly wear
seat belts can increase the risk or severity of
injury in an accident.
● The front passenger seat is equipped with an
occupant classification sensor (pattern sen-
sor) that turns the front passenger air bag
OFF under some conditions. This sensor is
only used in this seat. Failure to be properly
seated and wearing the seat belt can in-
crease the risk or severity of injury in an
accident. See “Front passenger air bag and
status light” later in this section.
● Keep hands on the outside of the steering
wheel. Placing them inside the steering
wheel rim could increase the risk of injury if
the front air bag inflates.
SSS0007
SSS0006
SSS0008
SSS0009
1-38Safety — Seats, seat belts and supplemental restraint system
—
—
01/11/10—pattie

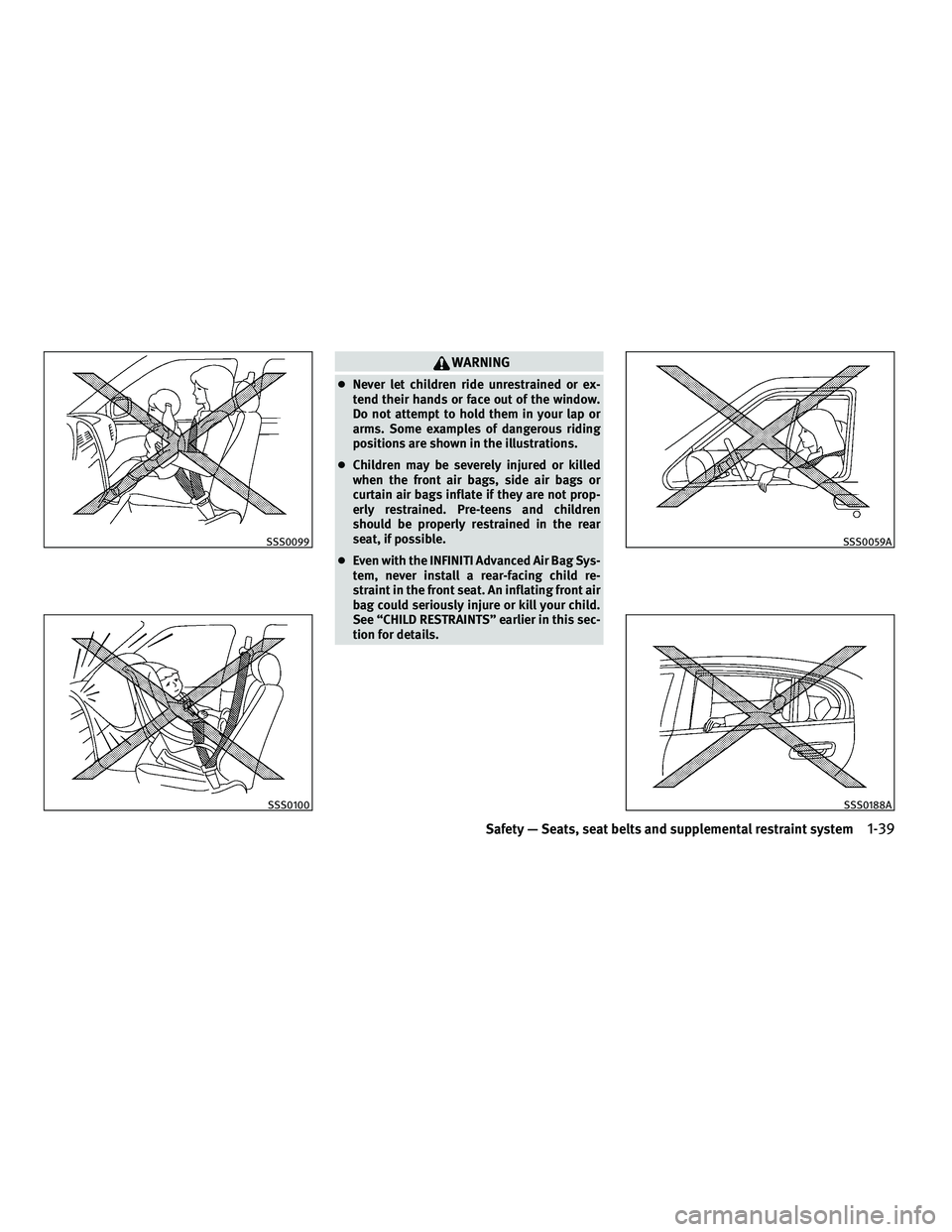

WARNING
●Never let children ride unrestrained or ex-
tend their hands or face out of the window.
Do not attempt to hold them in your lap or
arms. Some examples of dangerous riding
positions are shown in the illustrations.
● Children may be severely injured or killed
when the front air bags, side air bags or
curtain air bags inflate if they are not prop-
erly restrained. Pre-teens and children
should be properly restrained in the rear
seat, if possible.
● Even with the INFINITI Advanced Air Bag Sys-
tem, never install a rear-facing child re-
straint in the front seat. An inflating front air
bag could seriously injure or kill your child.
See “CHILD RESTRAINTS” earlier in this sec-
tion for details.
SSS0099
SSS0100
SSS0059A
SSS0188A
Safety — Seats, seat belts and supplemental restraint system1-39
—
—
01/11/10—pattie
