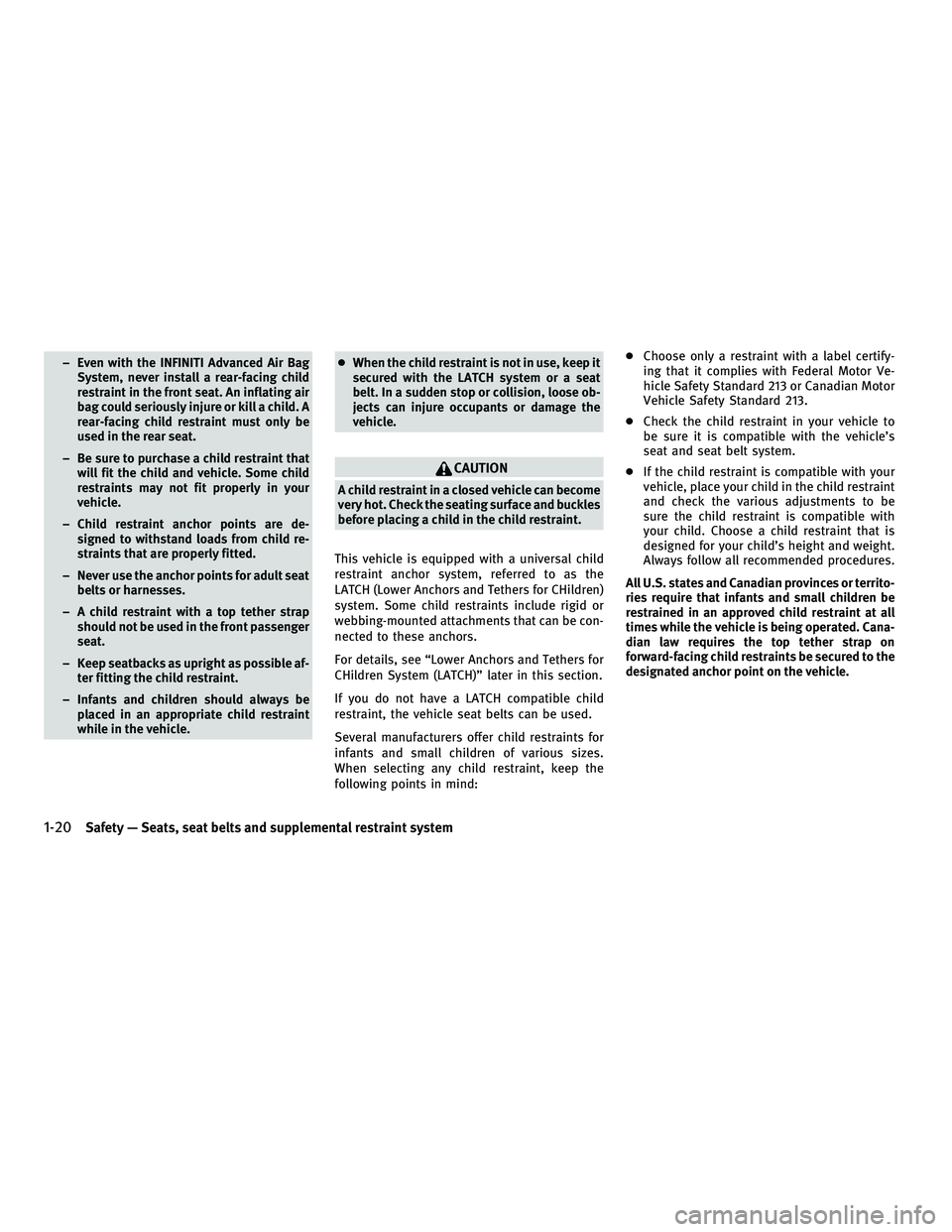

– Even with the INFINITI Advanced Air BagSystem, never install a rear-facing child
restraint in the front seat. An inflating air
bag could seriously injure or kill a child. A
rear-facing child restraint must only be
used in the rear seat.
– Be sure to purchase a child restraint that will fit the child and vehicle. Some child
restraints may not fit properly in your
vehicle.
– Child restraint anchor points are de- signed to withstand loads from child re-
straints that are properly fitted.
– Never use the anchor points for adult seat belts or harnesses.
– A child restraint with a top tether strap should not be used in the front passenger
seat.
– Keep seatbacks as upright as possible af- ter fitting the child restraint.
– Infants and children should always be placed in an appropriate child restraint
while in the vehicle. ●
When the child restraint is not in use, keep it
secured with the LATCH system or a seat
belt. In a sudden stop or collision, loose ob-
jects can injure occupants or damage the
vehicle.
CAUTION
A child restraint in a closed vehicle can become
very hot. Check the seating surface and buckles
before placing a child in the child restraint.
This vehicle is equipped with a universal child
restraint anchor system, referred to as the
LATCH (Lower Anchors and Tethers for CHildren)
system. Some child restraints include rigid or
webbing-mounted attachments that can be con-
nected to these anchors.
For details, see “Lower Anchors and Tethers for
CHildren System (LATCH)” later in this section.
If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.
Several manufacturers offer child restraints for
infants and small children of various sizes.
When selecting any child restraint, keep the
following points in mind: ●
Choose only a restraint with a label certify-
ing that it complies with Federal Motor Ve-
hicle Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.
● Check the child restraint in your vehicle to
be sure it is compatible with the vehicle’s
seat and seat belt system.
● If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.
All U.S. states and Canadian provinces or territo-
ries require that infants and small children be
restrained in an approved child restraint at all
times while the vehicle is being operated. Cana-
dian law requires the top tether strap on
forward-facing child restraints be secured to the
designated anchor point on the vehicle.
1-20Safety — Seats, seat belts and supplemental restraint system
—
—
01/11/10—pattie

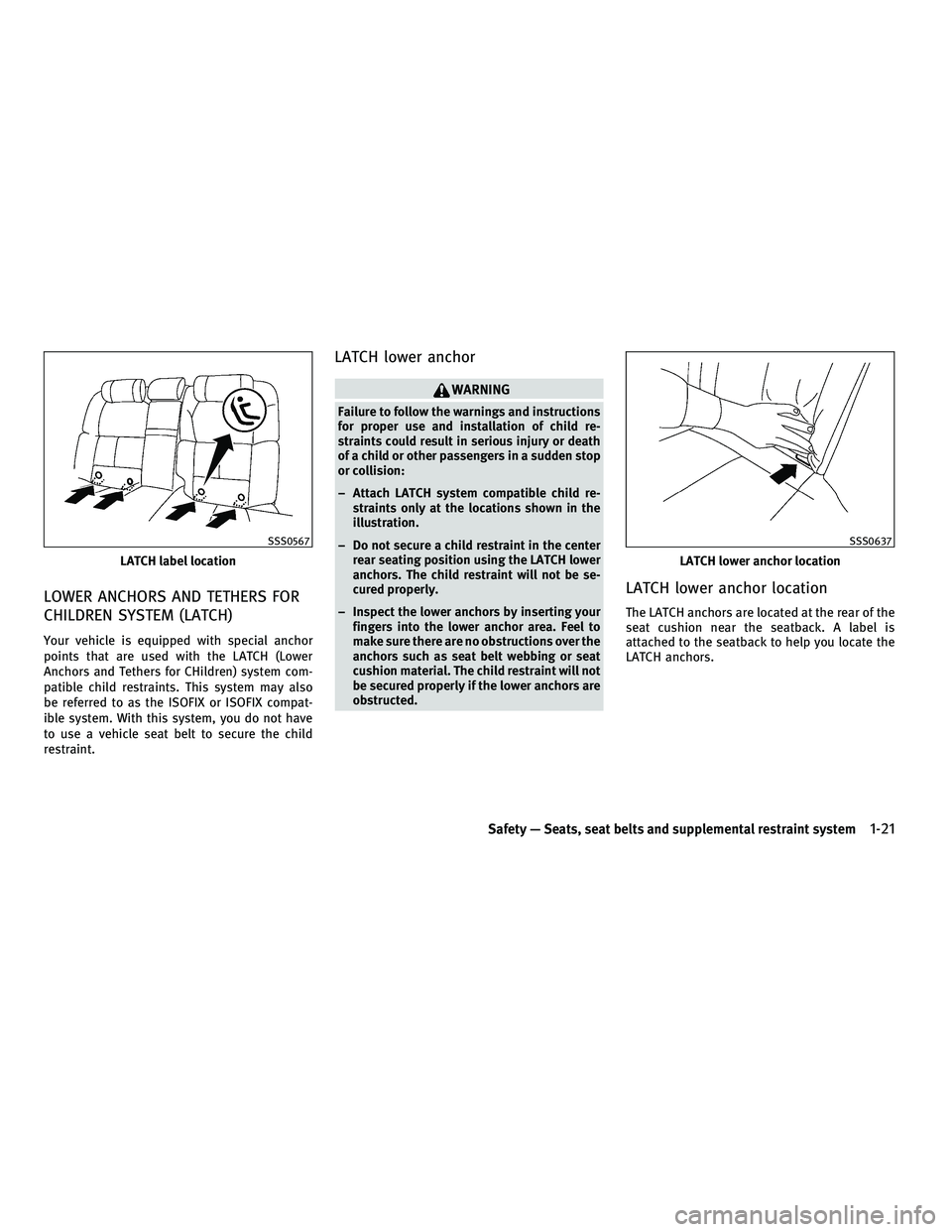

LOWER ANCHORS AND TETHERS FOR
CHILDREN SYSTEM (LATCH)
Your vehicle is equipped with special anchor
points that are used with the LATCH (Lower
Anchors and Tethers for CHildren) system com-
patible child restraints. This system may also
be referred to as the ISOFIX or ISOFIX compat-
ible system. With this system, you do not have
to use a vehicle seat belt to secure the child
restraint.
LATCH lower anchor
WARNING
Failure to follow the warnings and instructions
for proper use and installation of child re-
straints could result in serious injury or death
of a child or other passengers in a sudden stop
or collision:
− Attach LATCH system compatible child re-straints only at the locations shown in the
illustration.
− Do not secure a child restraint in the center rear seating position using the LATCH lower
anchors. The child restraint will not be se-
cured properly.
− Inspect the lower anchors by inserting your fingers into the lower anchor area. Feel to
make sure there are no obstructions over the
anchors such as seat belt webbing or seat
cushion material. The child restraint will not
be secured properly if the lower anchors are
obstructed.
LATCH lower anchor location
The LATCH anchors are located at the rear of the
seat cushion near the seatback. A label is
attached to the seatback to help you locate the
LATCH anchors.
LATCH label location
SSS0567
LATCH lower anchor location
SSS0637
Safety — Seats, seat belts and supplemental restraint system1-21
—
—
01/13/10—tbrooks

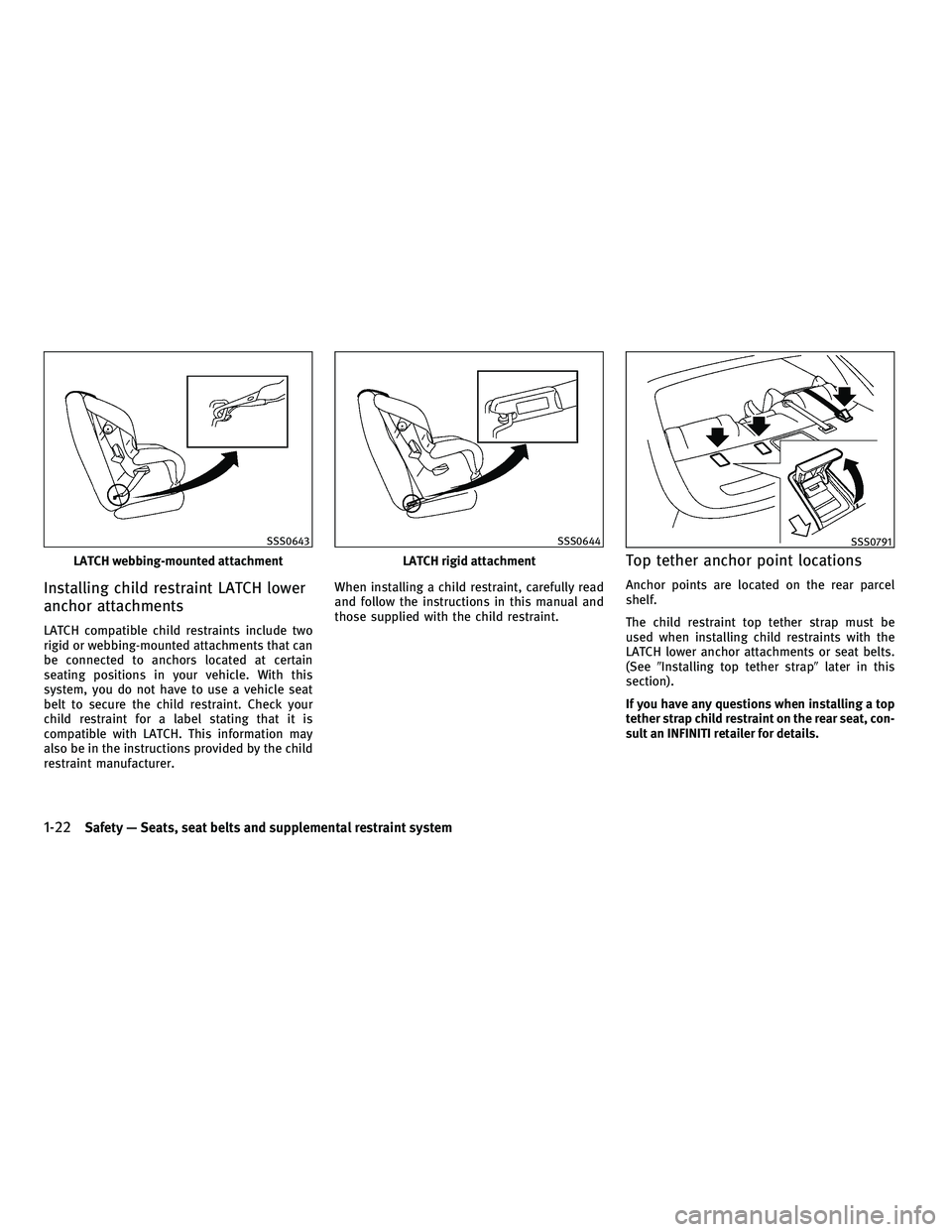

Installing child restraint LATCH lower
anchor attachments
LATCH compatible child restraints include two
rigid or webbing-mounted attachments that can
be connected to anchors located at certain
seating positions in your vehicle. With this
system, you do not have to use a vehicle seat
belt to secure the child restraint. Check your
child restraint for a label stating that it is
compatible with LATCH. This information may
also be in the instructions provided by the child
restraint manufacturer.When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint.
Top tether anchor point locations
Anchor points are located on the rear parcel
shelf.
The child restraint top tether strap must be
used when installing child restraints with the
LATCH lower anchor attachments or seat belts.
(See
Installing top tether strap later in this
section).
If you have any questions when installing a top
tether strap child restraint on the rear seat, con-
sult an INFINITI retailer for details.
LATCH webbing-mounted attachment
SSS0643
LATCH rigid attachment
SSS0644SSS0791
1-22Safety — Seats, seat belts and supplemental restraint system
—
—
03/02/10—pattie


REAR-FACING CHILD RESTRAINT
INSTALLATION USING LATCH
Refer to all Warnings and Cautions in the “Child
safety” and “Child restraints” sections before
installing a child restraint.
Follow these steps to install a rear-facing child
restraint using the LATCH system:
1. Position the child restraint on the seat.Always follow the child restraint manufac-
turer’s instructions.

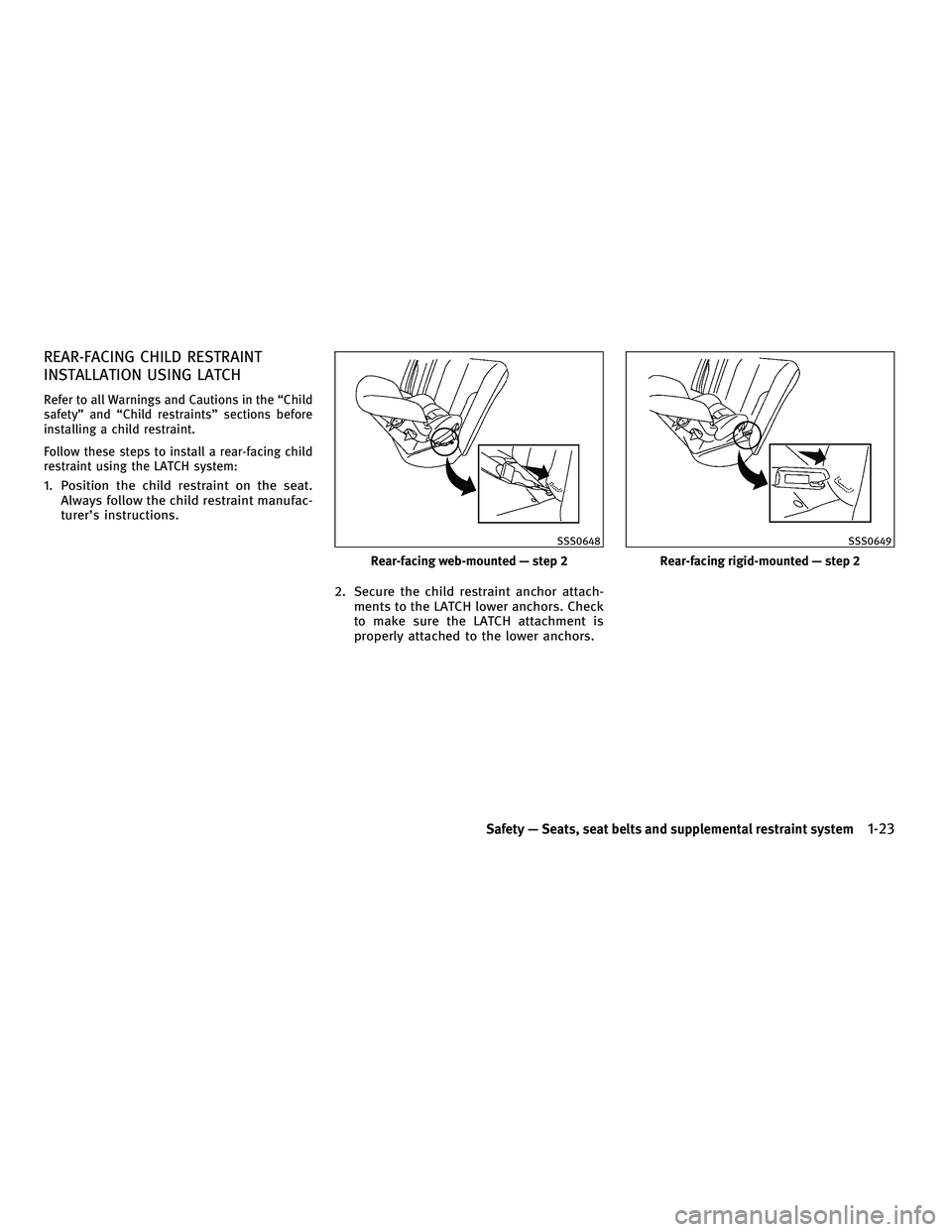

2. Secure the child restraint anchor attach-ments to the LATCH lower anchors. Check
to make sure the LATCH attachment is
properly attached to the lower anchors.
Rear-facing web-mounted — step 2
SSS0648
Rear-facing rigid-mounted — step 2
SSS0649
Safety — Seats, seat belts and supplemental restraint system1-23
—
—
01/11/10—pattie

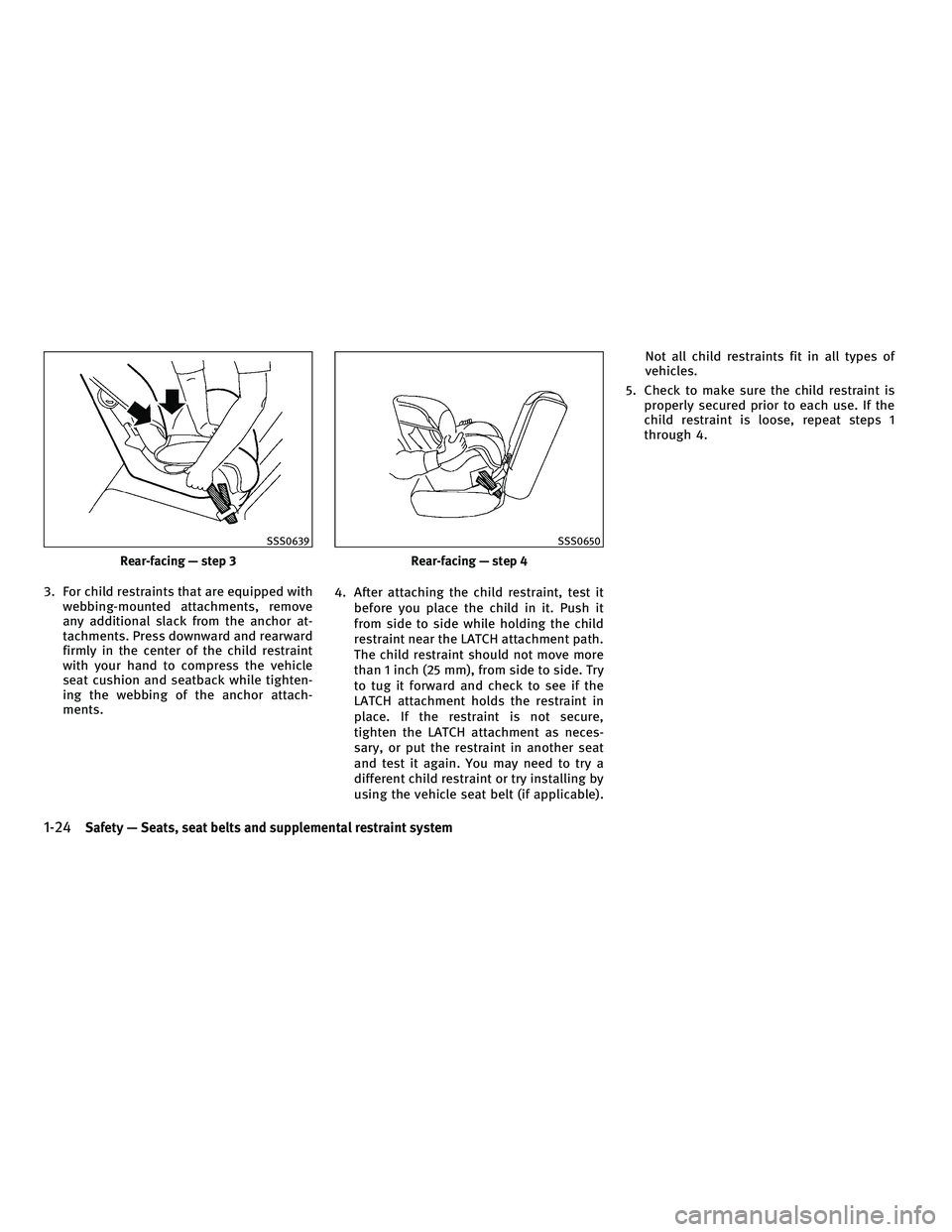

3. For child restraints that are equipped withwebbing-mounted attachments, remove
any additional slack from the anchor at-
tachments. Press downward and rearward
firmly in the center of the child restraint
with your hand to compress the vehicle
seat cushion and seatback while tighten-
ing the webbing of the anchor attach-
ments. 4. After attaching the child restraint, test it
before you place the child in it. Push it
from side to side while holding the child
restraint near the LATCH attachment path.
The child restraint should not move more
than 1 inch (25 mm), from side to side. Try
to tug it forward and check to see if the
LATCH attachment holds the restraint in
place. If the restraint is not secure,
tighten the LATCH attachment as neces-
sary, or put the restraint in another seat
and test it again. You may need to try a
different child restraint or try installing by
using the vehicle seat belt (if applicable). Not all child restraints fit in all types of
vehicles.
5. Check to make sure the child restraint is properly secured prior to each use. If the
child restraint is loose, repeat steps 1
through 4.
Rear-facing — step 3
SSS0639
Rear-facing — step 4
SSS0650
1-24Safety — Seats, seat belts and supplemental restraint system
—
—
01/11/10—pattie

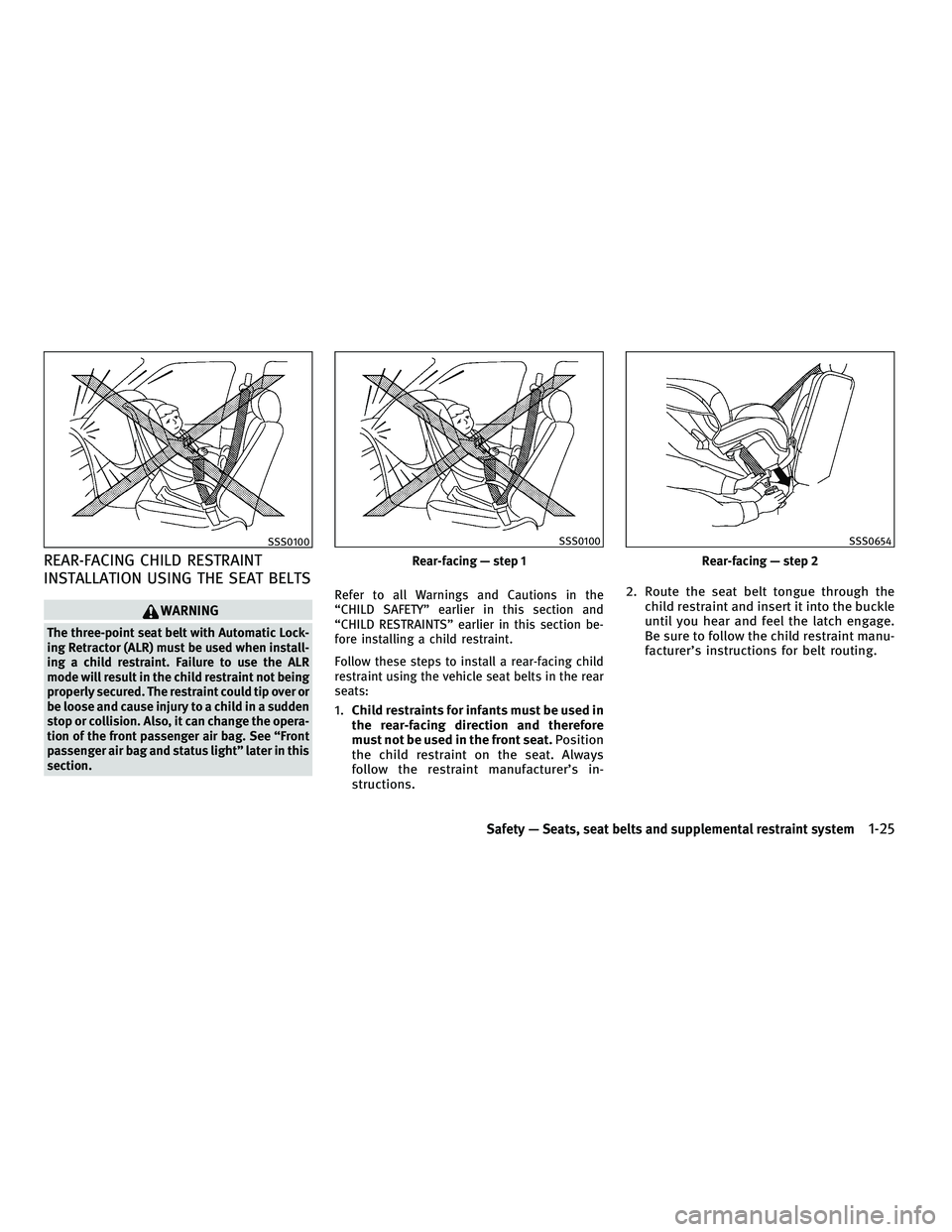

REAR-FACING CHILD RESTRAINT
INSTALLATION USING THE SEAT BELTS
WARNING
The three-point seat belt with Automatic Lock-
ing Retractor (ALR) must be used when install-
ing a child restraint. Failure to use the ALR
mode will result in the child restraint not being
properly secured. The restraint could tip over or
be loose and cause injury to a child in a sudden
stop or collision. Also, it can change the opera-
tion of the front passenger air bag. See “Front
passenger air bag and status light” later in this
section.Refer to all Warnings and Cautions in the
“CHILD SAFETY” earlier in this section and
“CHILD RESTRAINTS” earlier in this section be-
fore installing a child restraint.
Follow these steps to install a rear-facing child
restraint using the vehicle seat belts in the rear
seats:
1.
Child restraints for infants must be used in
the rear-facing direction and therefore
must not be used in the front seat. Position
the child restraint on the seat. Always
follow the restraint manufacturer’s in-
structions. 2. Route the seat belt tongue through the
child restraint and insert it into the buckle
until you hear and feel the latch engage.
Be sure to follow the child restraint manu-
facturer’s instructions for belt routing.
SSS0100
Rear-facing — step 1
SSS0100
Rear-facing — step 2
SSS0654
Safety — Seats, seat belts and supplemental restraint system1-25
—
—
01/11/10—pattie

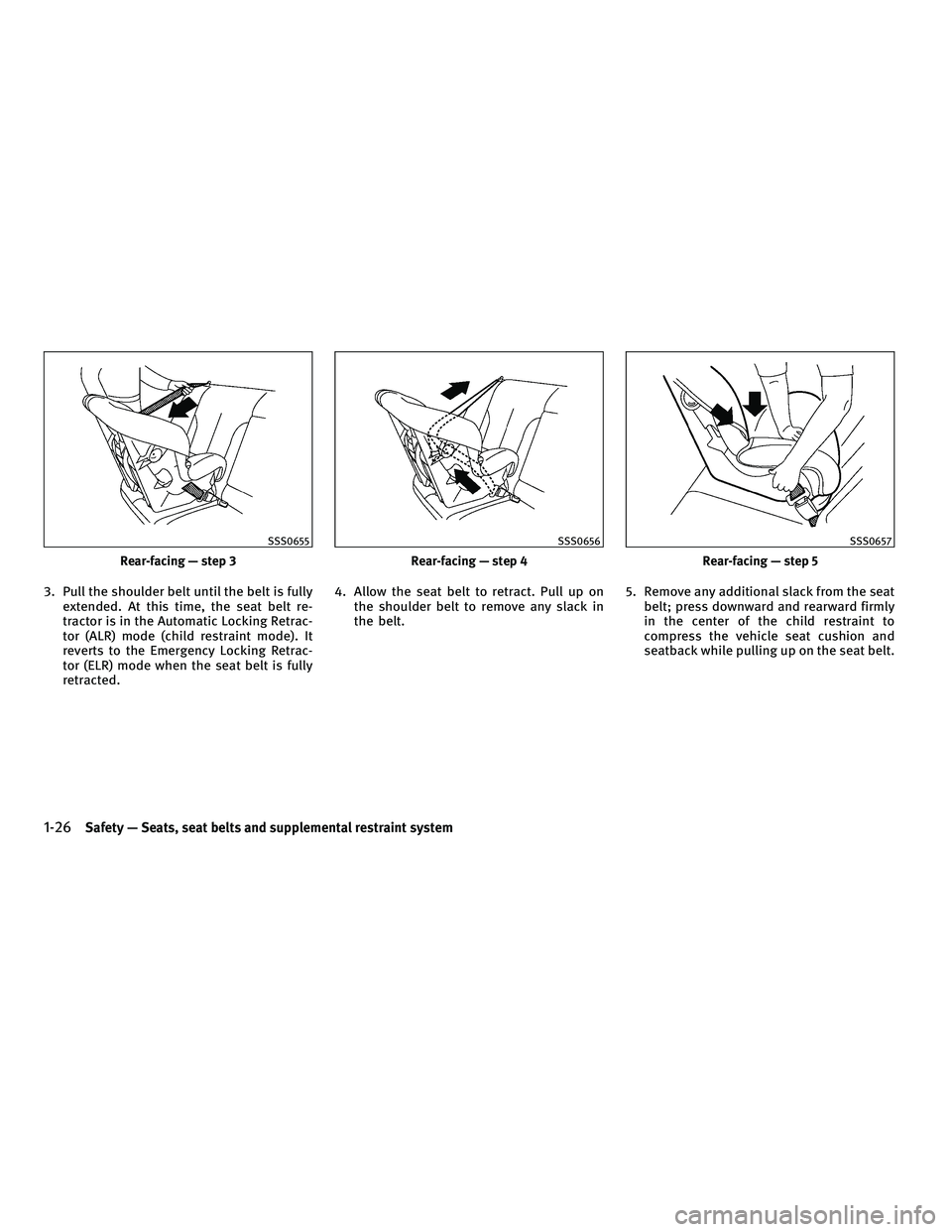

3. Pull the shoulder belt until the belt is fullyextended. At this time, the seat belt re-
tractor is in the Automatic Locking Retrac-
tor (ALR) mode (child restraint mode). It
reverts to the Emergency Locking Retrac-
tor (ELR) mode when the seat belt is fully
retracted. 4. Allow the seat belt to retract. Pull up on
the shoulder belt to remove any slack in
the belt. 5. Remove any additional slack from the seat
belt; press downward and rearward firmly
in the center of the child restraint to
compress the vehicle seat cushion and
seatback while pulling up on the seat belt.
Rear-facing — step 3
SSS0655
Rear-facing — step 4
SSS0656
Rear-facing — step 5
SSS0657
1-26Safety — Seats, seat belts and supplemental restraint system
—
—
01/11/10—pattie

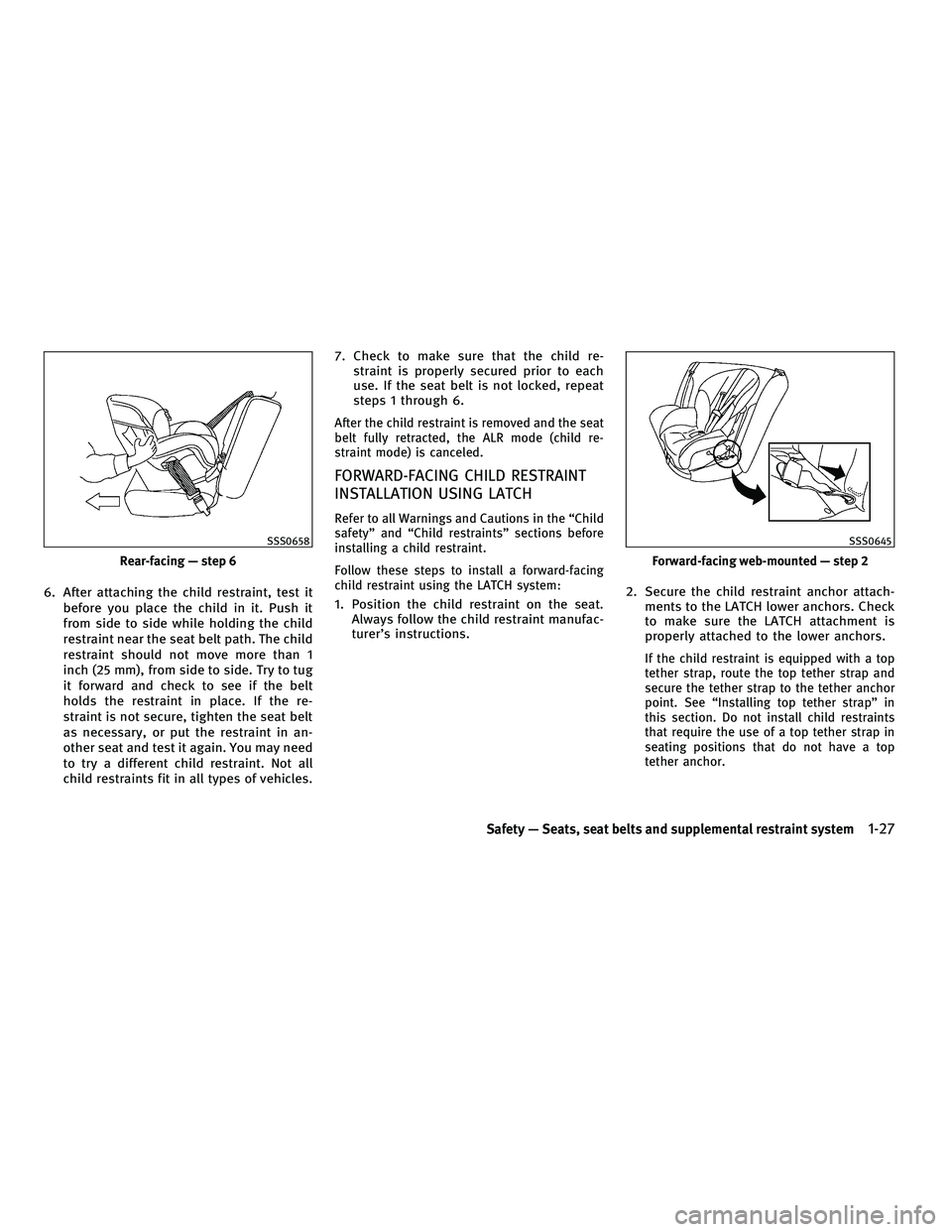

6. After attaching the child restraint, test itbefore you place the child in it. Push it
from side to side while holding the child
restraint near the seat belt path. The child
restraint should not move more than 1
inch (25 mm), from side to side. Try to tug
it forward and check to see if the belt
holds the restraint in place. If the re-
straint is not secure, tighten the seat belt
as necessary, or put the restraint in an-
other seat and test it again. You may need
to try a different child restraint. Not all
child restraints fit in all types of vehicles. 7. Check to make sure that the child re-
straint is properly secured prior to each
use. If the seat belt is not locked, repeat
steps 1 through 6.
After the child restraint is removed and the seat
belt fully retracted, the ALR mode (child re-
straint mode) is canceled.
FORWARD-FACING CHILD RESTRAINT
INSTALLATION USING LATCH
Refer to all Warnings and Cautions in the “Child
safety” and “Child restraints” sections before
installing a child restraint.
Follow these steps to install a forward-facing
child restraint using the LATCH system:
1. Position the child restraint on the seat.Always follow the child restraint manufac-
turer’s instructions. 2. Secure the child restraint anchor attach-
ments to the LATCH lower anchors. Check
to make sure the LATCH attachment is
properly attached to the lower anchors.
If the child restraint is equipped with a top
tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point. See “Installing top tether strap” in
this section. Do not install child restraints
that require the use of a top tether strap in
seating positions that do not have a top
tether anchor.
Rear-facing — step 6
SSS0658
Forward-facing web-mounted — step 2
SSS0645
Safety — Seats, seat belts and supplemental restraint system1-27
—
—
01/11/10—pattie


3. The back of the child restraint should besecured against the vehicle seatback.
If necessary, adjust or remove the headrest
to obtain the correct child restraint fit. If the
headrest is removed, store it in a secure
place. Be sure to reinstall the headrest when
the child restraint is removed. See “Adjust-
able headrest” in this section for headrest
adjustment information.
If the seating position does not have an
adjustable headrest and it is interfering with
the proper child restraint fit, try another
seating position or a different child re-
straint.
4. For child restraints that are equipped with webbing-mounted attachments, remove
any additional slack from the anchor at-
tachments. Press downward and rearward
firmly in the center of the child restraint
with your knee to compress the vehicle
seat cushion and seatback while tighten-
ing the webbing of the anchor attach-
ments.
5. Tighten the tether strap according to the manufacturer’s instructions to remove any
slack. 6. After attaching the child restraint, test it
before you place the child in it. Push it
from side to side while holding the child
restraint near the LATCH attachment path.
The child restraint should not move more
than 1 inch (25 mm), from side to side. Try
to tug it forward and check to see if the
LATCH attachment holds the restraint in
place. If the restraint is not secure,
tighten the LATCH attachment as neces-
sary, or put the restraint in another seat
and test it again. You may need to try a
different child restraint. Not all child re-
straints fit in all types of vehicles.
Forward-facing rigid-mounted — step 3
SSS0646
Forward-facing — step 4
SSS0647
Forward-facing — step 6
SSS0638
1-28Safety — Seats, seat belts and supplemental restraint system
—
—
01/11/10—pattie


7. Check to make sure the child restraint isproperly secured prior to each use. If the
child restraint is loose, repeat steps 1
through 6.
FORWARD-FACING CHILD RESTRAINT
INSTALLATION USING THE SEAT BELTS
WARNING
●The three-point seat belt with Automatic
Locking Retractor (ALR) must be used when
installing a child restraint. Failure to use the
ALR mode will result in the child restraint not
being properly secured. The restraint could
tip over or be loose and cause injury to a
child in a sudden stop or collision. Also, it
can change the operation of the front pas-
senger air bag. See “Front passenger air bag
and status light” later in this section.
● When installing a child restraint system in
the rear center position, both the center seat
belt connector tongue and buckle tongue
must be secured. See “Center of rear seat”
earlier in this section. Refer to all Warnings and Cautions in the “Child
safety” and “Child restraints” sections before
installing a child restraint.
Follow these steps to install a forward-facing
child restraint using the vehicle seat belt in the
rear seats or in the front passenger seat:
1.
If you must install a child restraint in the
front seat, it should be placed in a forward-
facing direction only. Move the seat to the
rearmost position. Child restraints for in-
fants must be used in the rear-facing direc-
tion and, therefore, must not be used in the
front seat. 2. Position the child restraint on the seat.
Always follow the child restraint manufac-
turer’s instructions.
The back of the child restraint should be
secured against the vehicle seatback.
If necessary, adjust or remove the head
restraint or headrest to obtain the correct
child restraint fit. If the head restraint or
headrest is removed, store it in a secure
place. Be sure to reinstall the head restraint
or headrest when the child restraint is re-
moved. See “HEAD RESTRAINTS” earlier in
this section or “ADJUSTABLE HEADRESTS”
earlier in this section for head restraint or
headrest adjustment, removal and installa-
tion information.
If the seating position does not have an
adjustable head restraint or headrest and it
is interfering with the proper child restraint
fit, try another seating position or a different
child restraint.
Forward-facing (front passenger seat) — step 1
SSS0640
Safety — Seats, seat belts and supplemental restraint system1-29
—
—
01/11/10—pattie
