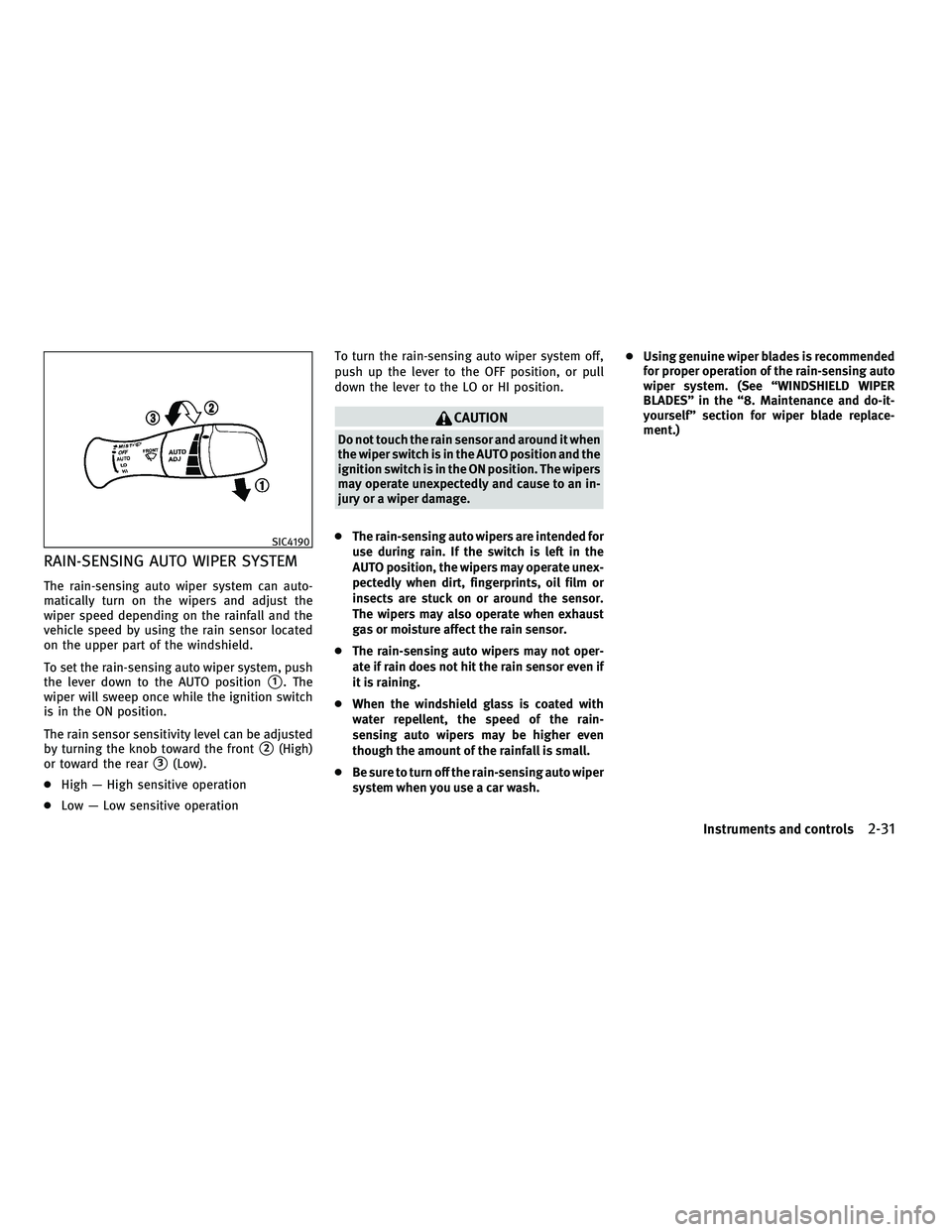

RAIN-SENSING AUTO WIPER SYSTEM
The rain-sensing auto wiper system can auto-
matically turn on the wipers and adjust the
wiper speed depending on the rainfall and the
vehicle speed by using the rain sensor located
on the upper part of the windshield.
To set the rain-sensing auto wiper system, push
the lever down to the AUTO position
1. The
wiper will sweep once while the ignition switch
is in the ON position.
The rain sensor sensitivity level can be adjusted
by turning the knob toward the front
2(High)
or toward the rear
3(Low).
● High — High sensitive operation
● Low — Low sensitive operation To turn the rain-sensing auto wiper system off,
push up the lever to the OFF position, or pull
down the lever to the LO or HI position.
CAUTION
Do not touch the rain sensor and around it when
the wiper switch is in the AUTO position and the
ignition switch is in the ON position. The wipers
may operate unexpectedly and cause to an in-
jury or a wiper damage.
● The rain-sensing auto wipers are intended for
use during rain. If the switch is left in the
AUTO position, the wipers may operate unex-
pectedly when dirt, fingerprints, oil film or
insects are stuck on or around the sensor.
The wipers may also operate when exhaust
gas or moisture affect the rain sensor.
● The rain-sensing auto wipers may not oper-
ate if rain does not hit the rain sensor even if
it is raining.
● When the windshield glass is coated with
water repellent, the speed of the rain-
sensing auto wipers may be higher even
though the amount of the rainfall is small.
● Be sure to turn off the rain-sensing auto wiper
system when you use a car wash. ●
Using genuine wiper blades is recommended
for proper operation of the rain-sensing auto
wiper system. (See “WINDSHIELD WIPER
BLADES” in the “8. Maintenance and do-it-
yourself” section for wiper blade replace-
ment.)
SIC4190
Instruments and controls2-31
—
—
07/15/10—tbrooks


WARNING
●As there is a performance limit to the dis-
tance control function, never rely solely on
the Intelligent Cruise Control system. This
system does not correct careless, inatten-
tive or absent-minded driving, or overcome
poor visibility in rain, fog, or other bad
weather. Decelerate the vehicle speed by de-
pressing the brake pedal, depending on the
distance to the vehicle ahead and the sur-
rounding circumstances in order to maintain
a safe distance between vehicles.
● If the vehicle ahead comes to a stop, the
vehicle decelerates to a standstill within the
limitations of the system. The system will
cancel once it judges that the vehicle has
come to a standstill and sound a warning
chime. To prevent the vehicle from moving,
the driver must depress the brake pedal.
● The system may not detect the vehicle in
front of you in certain road or weather condi-
tions. To avoid accidents, never use the In-
telligent Cruise Control system under the
following conditions:
– On roads where the traffic is heavy or there are sharp curves
– On slippery road surfaces such as on ice or snow, etc. – During bad weather (rain, fog, snow, etc.)
When the windshield wiper is operated at
the high speed (HI) position, the Intelli-
gent Cruise Control system is automati-
cally canceled. If the vehicle is equipped
with a rain sensing auto wiper, the system
may cancel when the wipers are set to the
AUTO position.
– When strong light (for example, at sun- rise or sunset) is directly shining on the
front of the vehicle
– When rain, snow or dirt adhere to the sys- tem sensor
– On steep downhill roads (the vehicle may go beyond the set vehicle speed and fre-
quent braking may result in overheating
the brakes)
– On repeated uphill and downhill roads
– When traffic conditions make it difficult to keep a proper distance between vehicles
because of frequent acceleration or
deceleration
● Do not use the Intelligent Cruise Control sys-
tem if you are towing a trailer. The system
may not detect a vehicle ahead. ●
In some road or traffic conditions, a vehicle
or object can unexpectedly come into the
sensor detection zone and cause automatic
braking. You may need to control the dis-
tance from other vehicles using the accelera-
tor pedal. Always stay alert and avoid using
the ICC system when it is not recommended
in this section.
5-44Starting and driving
—
—
01/12/10—pattie

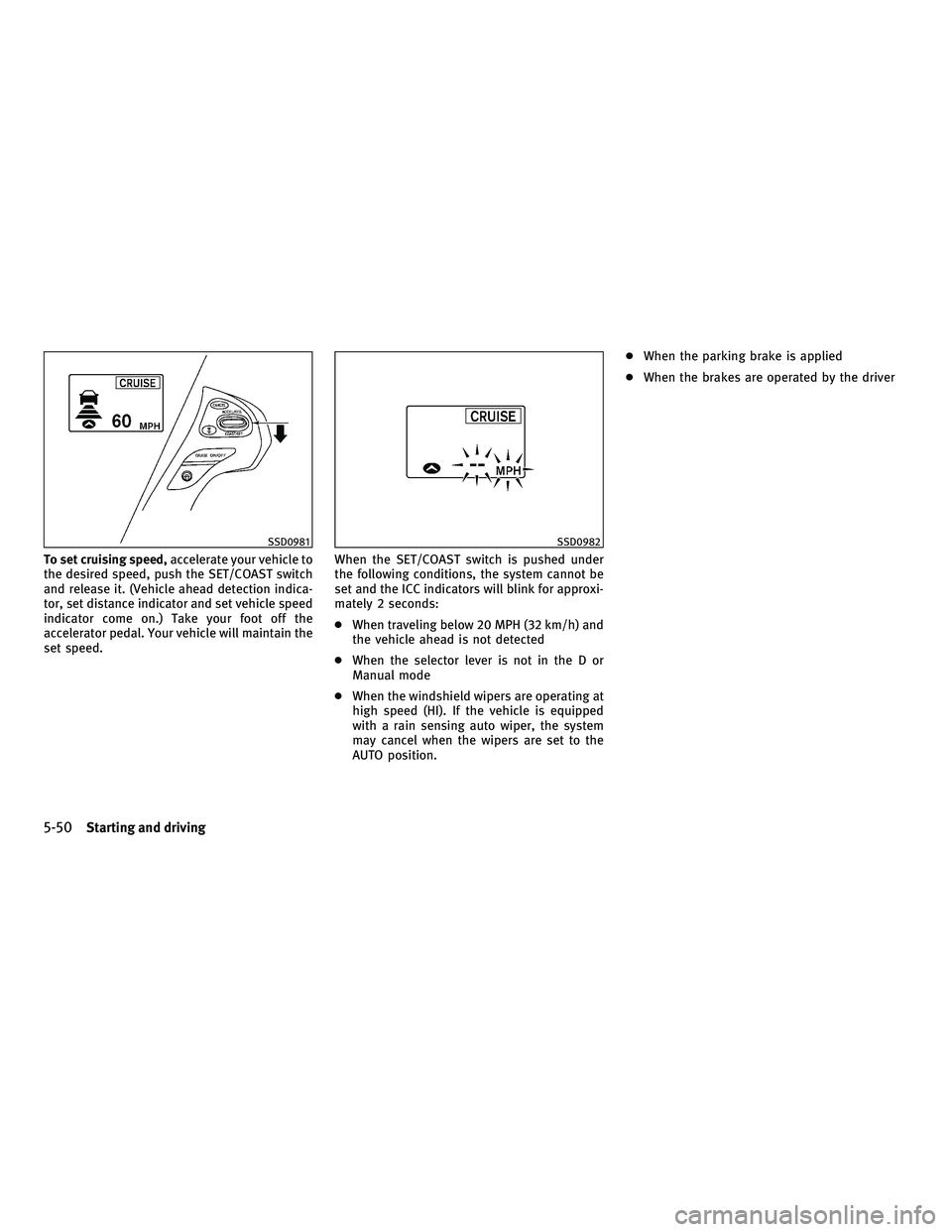

To set cruising speed,accelerate your vehicle to
the desired speed, push the SET/COAST switch
and release it. (Vehicle ahead detection indica-
tor, set distance indicator and set vehicle speed
indicator come on.) Take your foot off the
accelerator pedal. Your vehicle will maintain the
set speed. When the SET/COAST switch is pushed under
the following conditions, the system cannot be
set and the ICC indicators will blink for approxi-
mately 2 seconds:
●
When traveling below 20 MPH (32 km/h) and
the vehicle ahead is not detected
● When the selector lever is not in the D or
Manual mode
● When the windshield wipers are operating at
high speed (HI). If the vehicle is equipped
with a rain sensing auto wiper, the system
may cancel when the wipers are set to the
AUTO position. ●
When the parking brake is applied
● When the brakes are operated by the driver
SSD0981SSD0982
5-50Starting and driving
—
—
01/12/10—pattie


NOTE:
The approach warning chime may sound and the
system display may blink when the ICC sensor
detects some reflectors
Awhich are fitted on
vehicles in other lanes or on the side of the road.
This may cause the ICC system to decelerate or
accelerate the vehicle. The ICC sensor may de-
tect these reflectors when the vehicle is driven
on winding roads, hilly roads or when entering
or exiting a curve. The ICC sensor may also de-
tect reflectors on narrow roads or in road con-
struction zones. In these cases you will have to
manually control the proper distance ahead of
your vehicle.
Also, the sensor sensitivity can be affected by
vehicle operation (steering maneuver or driving position in the lane) or traffic or vehicle condi-
tion (for example, if a vehicle is being driven
with some damage).
Automatic cancellation
A chime sounds under the following conditions
and the control is automatically canceled.
●
When the vehicle ahead is not detected and
your vehicle is traveling below the speed of
15 MPH (24 km/h)
● When the system judges the vehicle is at
standstill
● When the selector lever is not in the D or
Manual mode
● When the windshield wipers are operating at
high speed (HI). If the vehicle is equipped
with a rain sensing auto-wiper, the system
may cancel when the wipers are set to the
AUTO position.
● When the parking brake is applied
● When the drive mode select switch is turned
to the SNOW mode
● When the VDC system is turned off
● When ABS or VDC (including the traction
control system) operates
● When driving into a strong light (i.e., sun-
light) ●
When distance measurement becomes im-
paired due to adhesion of dirt or obstruction
to the sensor
● When a wheel slips
SSD0284A
5-56Starting and driving
—
—
01/12/10—pattie

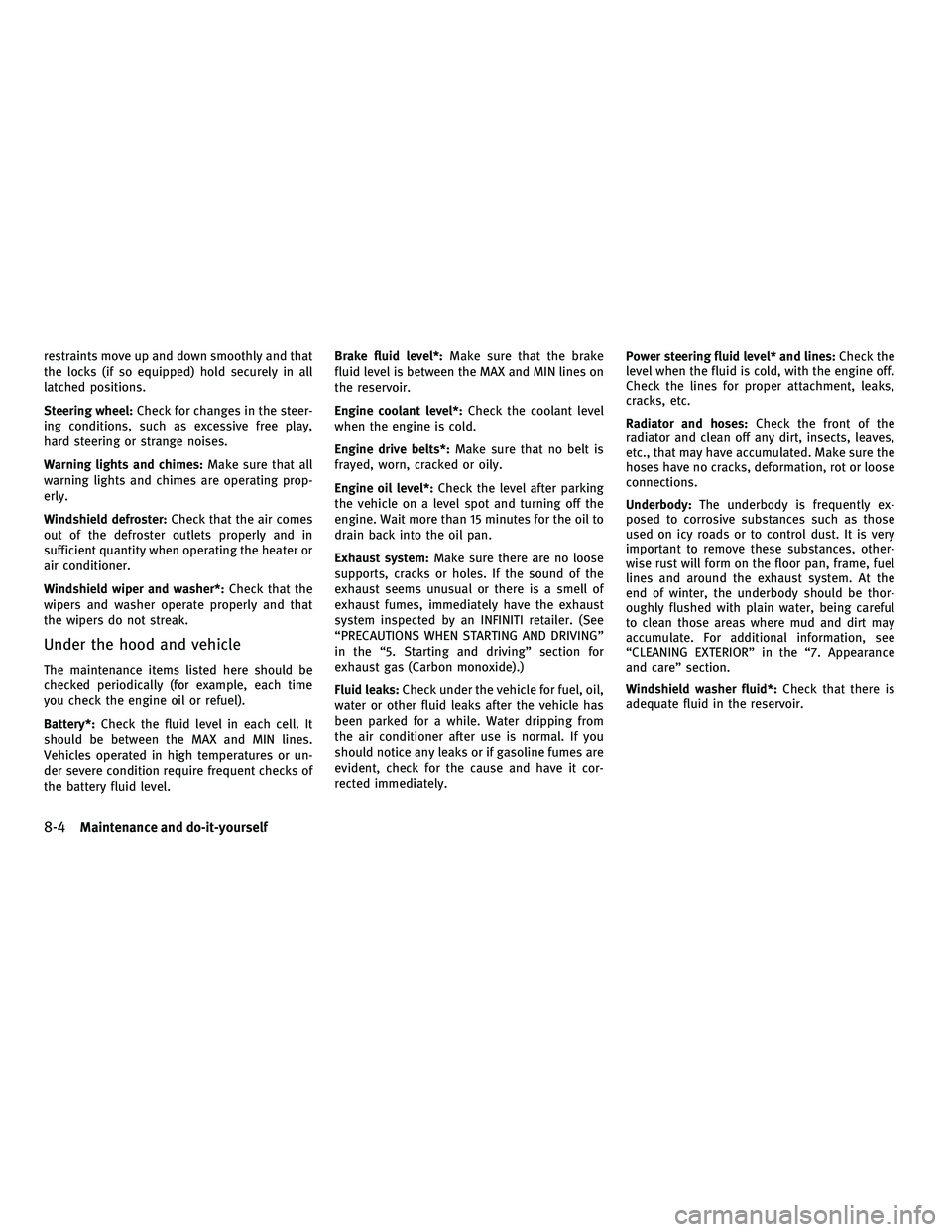

restraints move up and down smoothly and that
the locks (if so equipped) hold securely in all
latched positions.
Steering wheel:Check for changes in the steer-
ing conditions, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes: Make sure that all
warning lights and chimes are operating prop-
erly.
Windshield defroster: Check that the air comes
out of the defroster outlets properly and in
sufficient quantity when operating the heater or
air conditioner.
Windshield wiper and washer*: Check that the
wipers and washer operate properly and that
the wipers do not streak.
Under the hood and vehicle
The maintenance items listed here should be
checked periodically (for example, each time
you check the engine oil or refuel).
Battery*: Check the fluid level in each cell. It
should be between the MAX and MIN lines.
Vehicles operated in high temperatures or un-
der severe condition require frequent checks of
the battery fluid level. Brake fluid level*:
Make sure that the brake
fluid level is between the MAX and MIN lines on
the reservoir.
Engine coolant level*: Check the coolant level
when the engine is cold.
Engine drive belts*: Make sure that no belt is
frayed, worn, cracked or oily.
Engine oil level*: Check the level after parking
the vehicle on a level spot and turning off the
engine. Wait more than 15 minutes for the oil to
drain back into the oil pan.
Exhaust system: Make sure there are no loose
supports, cracks or holes. If the sound of the
exhaust seems unusual or there is a smell of
exhaust fumes, immediately have the exhaust
system inspected by an INFINITI retailer. (See
“PRECAUTIONS WHEN STARTING AND DRIVING”
in the “5. Starting and driving” section for
exhaust gas (Carbon monoxide).)
Fluid leaks: Check under the vehicle for fuel, oil,
water or other fluid leaks after the vehicle has
been parked for a while. Water dripping from
the air conditioner after use is normal. If you
should notice any leaks or if gasoline fumes are
evident, check for the cause and have it cor-
rected immediately. Power steering fluid level* and lines:
Check the
level when the fluid is cold, with the engine off.
Check the lines for proper attachment, leaks,
cracks, etc.
Radiator and hoses: Check the front of the
radiator and clean off any dirt, insects, leaves,
etc., that may have accumulated. Make sure the
hoses have no cracks, deformation, rot or loose
connections.
Underbody: The underbody is frequently ex-
posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances, other-
wise rust will form on the floor pan, frame, fuel
lines and around the exhaust system. At the
end of winter, the underbody should be thor-
oughly flushed with plain water, being careful
to clean those areas where mud and dirt may
accumulate. For additional information, see
“CLEANING EXTERIOR” in the “7. Appearance
and care” section.
Windshield washer fluid*: Check that there is
adequate fluid in the reservoir.
