1-52Safety—Seats, seat belts and supplemental restraint system
SSS1016
SUPPLEMENTAL AIR BAG WARNING
LABELS
Warning labels about the supplemental
front-impact air bag systems are placed in
the vehicle as shown in the illustration.
SRS air bag
The warning labels*1are located on the
surface of the sun visors.
SPA1097
SUPPLEMENTAL AIR BAG WARNING
LIGHT
The supplemental air bag warning light,
displaying
in the instrument panel,
monitors the circuits of the supplemental
front-impact air bag, front seat-mounted
side-impact supplemental air bag, roof-
mounted curtain side-impact supplemental
air bag, and seat belt pretensioner sys-
tems. The monitored circuits include the Air
bag Control Unit (ACU), satellite sensors,
crash zone sensor, occupant classification
system, front air bag modules, side air bag
modules, curtain air bag modules, preten- sioner, front passenger air bag status light
and all related wiring.
When the ignition switch is in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and
then turns off. This means the SRS air bag
systems are operational.
If any of the following conditions occur, the
front air bag, side air bag, curtain air bag
and/or pretensioner systems need servi-
cing:
.
The supplemental air bag warning light
remains on approximately 7 seconds
after the ignition switch is pushed to
the ON position.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light
does not come on at all.
Under these conditions, the front air bag,
side air bag, curtain air bag or pretensioner
systems may not operate properly. They
must be checked and repaired. Take your
vehicle to the nearest INFINITI retailer.
Page 72 of 522

WARNING
If the supplemental air bag warning light is
on, it could mean that the front air bag, side
air bag, curtain air bag and/or pretensioner
systems will not operate in an accident. To
help avoid injury to yourself or others, have
your vehicle checked by a retailer as soon as
possible.
REPAIR AND REPLACEMENT PROCE-
DURE
The front air bags, side air bags, curtain air
bags and pretensioners are designed to
activate on a one-time-only basis. As a
reminder, unless it is damaged, the sup-
plemental air bag warning light will remain
illuminated after inflation has occurred.
Repair and replacement of these systems
should be done only by an INFINITI retailer.
When maintenance work is required on the
vehicle, the front air bags, side air bags,
curtain air bags, pretensioners and related
parts should be pointed out to the person
conducting the maintenance. The ignition
switch should always be in the LOCK
position when working under the hood orinside the vehicle.
WARNING
.
Once a front air bag, side air bag, or
curtain air bag has inflated, the air bag
module will not function again and must
be replaced. Additionally, the activated
pretensioner must also be replaced. The
air bag module and pretensioner should
be replaced by an INFINITI retailer. The
air bag module and pretensioner system
cannot be repaired.
. The front air bag, side air bag, curtain air
bag and the pretensioner system should
be inspected by an INFINITI retailer if
there is any damage to the front end or
side portion of the vehicle.
. If you need to dispose of the supple-
mental air bag or pretensioner or scrap
the vehicle, contact an INFINITI retailer.
Correct supplemental air bag and seat
belt pretensioner system disposal pro-
cedures are set forth in the appropriate
INFINITI Service Manual. Incorrect dis-
posal procedures could cause personal
injury.
Safety —Seats, seat belts and supplemental restraint system1-53
Page 73 of 522

1-54Safety—Seats, seat belts and supplemental restraint system
MEMO
Page 74 of 522

2 Instruments and controls
Cockpit ................................................................ 2-3
Instrument panel ................................................. 2-5
Meters and gauges .............................................. 2-6Speedometer and odometer ............................ 2-6
Tachometer...................................................... 2-7
Engine coolant temperature gauge .................. 2-8
Fuel gauge ...................................................... 2-9
Warning/indicator lights and
audible reminders ............................................. 2-10 Checking bulbs.............................................. 2-10
Warning lights ............................................... 2-11
Indicator lights .............................................. 2-16
Audible reminders ......................................... 2-19
Dot matrix liquid crystal display ........................ 2-20 Indicators for operation ................................. 2-22
Indicators for maintenance ............................ 2-25
Trip computer ................................................ 2-26
Security systems ............................................... 2-29 Vehicle Security System ................................ 2-29
INFINITI Vehicle Immobilizer System .............. 2-30
Windshield wiper and washer switch ................. 2-31 Rain-sensing auto wiper system .................... 2-33
Rear window and outside mirror
defroster switch................................................. 2-34 Headlight and turn signal switch....................... 2-34
Xenon headlights......................................... 2-34
Headlight switch .......................................... 2-35
Turn signal switch........................................ 2-39
Fog light switch ........................................... 2-39
Hazard warning flasher switch .......................... 2-40
Heated steering wheel (if so equipped) ............. 2-40
Horn ................................................................. 2-41
Heated seats..................................................... 2-41
Climate controlled seats (if so equipped) .......... 2-43
Warning systems switch (if so equipped) .......... 2-44
Intelligent Brake Assist (IBA) OFF switch (if
so equipped)..................................................... 2-44
Vehicle Dynamic Control (VDC) OFF switch ......... 2-45
Clock................................................................. 2-46 Adjusting the time ....................................... 2-46
Power outlet ..................................................... 2-46
Cigarette lighter and ashtrays ........................... 2-47 Front............................................................ 2-47
Rear............................................................. 2-48
Storage ............................................................. 2-48 Cup holders ................................................. 2-48
Sunglasses holder ....................................... 2-49
Glove box .................................................... 2-50>
Page 75 of 522

Console box .................................................. 2-50
Card holder ................................................... 2-51
Rear pocket ................................................... 2-51
Coat hooks .................................................... 2-52
Trunk hooks .................................................. 2-52
Windows ........................................................... 2-53 Power windows ............................................. 2-53
Moonroof........................................................... 2-55
Automatic moonroof ...................................... 2-55
Rear sunshade (if so equipped) ......................... 2-57
Welcome light.................................................... 2-58
Battery saver system ..................................... 2-58
Interior lights..................................................... 2-59 Map lights..................................................... 2-59
Personal lights .............................................. 2-59 Interior light control switch .......................... 2-60
Vanity mirror lights ........................................... 2-61
Trunk light ........................................................ 2-61
HomeLink
®Universal Transceiver ...................... 2-61
Programming HomeLink®............................. 2-62
Programming HomeLink®for
Canadian customers .................................... 2-63
Operating the HomeLink
®
Universal Transceiver ................................... 2-64
Programming trouble-diagnosis ................... 2-64
Clearing the programmed information .......... 2-64
Reprogramming a single
HomeLink
®button ....................................... 2-64
If your vehicle is stolen ............................... 2-65
Page 76 of 522

SSI0689
1. Instrument brightness control switch(P.2-39)
2. AFS switch (if so equipped) (P.2-37)
3. Headlight, fog light and turn signal switch (P.2-34)
4. Trip computer switch (P.2-26) 5. TRIP/RESET switch for twin trip od-
ometer (P.2-7)
6. Windshield wiper and washer switch (P.2-31)
7. Vehicle Dynamic Control (VDC) OFF switch (P.5-98) 8. Rear sunshade switch (if so equipped)
(P.2-57)
9. Steering heater switch (if so equipped) (P.2-40)
10. Trunk lid release switch (P.3-19)
11. Warning systems switch (if so equipped) (P.5-22, P.5-31, P.5-82)
12. IBA OFF switch (if so equipped) (P.5-86)
13. Electric tilting/telescopic steering wheel lever (P.3-23)
14. Steering-wheel-mounted controls (left side)
—Menu control switch (models with
navigation system)/Audio tuning
switch (models without navigation
system) (P.4-87)
— BACK switch (models with naviga-
tion system) (P.4-87)
— TALK switch (P.4-114)
— Bluetooth
®Hands-Free Phone Sys-
tem (models with navigation system)
(P.4-89)
— Bluetooth
®Hands-Free Phone Sys-
tem (models without navigation sys-
tem) (P.4-100)
— Volume control switch (P.4-87)
— Audio source switch (P.4-48)
Instruments and controls2-3
COCKPIT
Page 77 of 522

2-4Instruments and controls

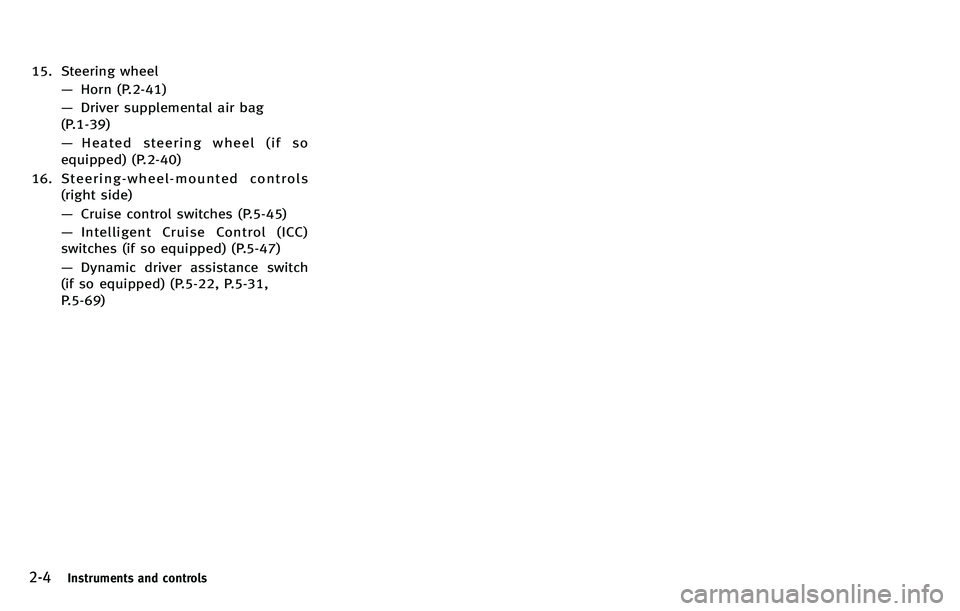

15. Steering wheel—Horn (P.2-41)

— Driver supplemental air bag
(P.1-39)
— Heated steering wheel (if so
equipped) (P.2-40)
16. Steering-wheel-mounted controls (right side)
—Cruise control switches (P.5-45)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P.5-47)
— Dynamic driver assistance switch
(if so equipped) (P.5-22, P.5-31,
P.5-69)
Page 78 of 522

SSI0690
1. Side ventilator (P.4-33)
2. Paddle shifter (if so equipped) (P.5-16)
3. Meters and gauges (P.2-6)
4. Hazard warning flasher switch (P.2-40)
5. Rear window and outside mirrordefroster switch (P.2-34) 6. Center display (P.4-4)/Navigation sys-
tem* (if so equipped)
7. Clock (P.2-46)
8. Center multi-function control panel —Navigation system* (if so
equipped) —
Vehicle information and setting
buttons (P.4-10)
— Audio system (P.4-48)
9. Automatic climate control system (P.4-33)/Forest Air
®system (P.4-33)
10. Center ventilator (P.4-33)
11. Audio system (P.4-48)
12. Front passenger supplemental air bag (P.1-39)
13. Hood release handle (P.3-18)
14. Fuse box cover (P.8-26)
15. Parking brake —Parking (P.5-18)
16. Push-button ignition switch (P.5-9)
17. Climate controlled seat switch (P.2-43) /Seat heater switch (P.2-41)
18. Drive mode select switch (P.5-19)
19. Cigarette lighter and ashtray (P.2-47)
20. Glove box lid release handle (P.2-50)
21. Trunk release power cancel switch (P.3-20)
*: Refer to the separate Navigation System
Owner ’s Manual.
Instruments and controls2-5
INSTRUMENT PANEL
Page 79 of 522

2-6Instruments and controls
SIC4317
1. Tachometer (P.2-7)
2. Warning/Indicator lights (P.2-10)
3. Speedometer (P.2-6)
4. Engine coolant temperature gauge(P.2-8)
5. Dot matrix liquid crystal display/ Odometer/twin trip odometer (P.2-20) 6. Fuel gauge (P.2-9)
*: The needle indicators in the speed-
ometer, tachometer, engine coolant tem-
perature gauge and fuel gauge may move
slightly after the ignition switch is pushed
to the LOCK position. This is not a
malfunction.
SIC4318
Speedometer
SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates vehicle speed
in miles per hour (MPH) and kilometers per
hour (km/h).
METERS AND GAUGES
Page 80 of 522

SIC4319
Odometer/twin trip odometer
Odometer/twin trip odometer
The odometer*1and twin trip odometer
*2are displayed on the dot matrix crystal
display when the ignition switch is in the
ON position.
The odometer records the total distance
the vehicle has been driven.
The twin trip odometer records the dis-
tance of individual trips.
Changing the display:
Pushing the TRIP RESET switch
*3on the
right of the combination meter panel
changes the display as follows: TRIP A
?TRIP B ?TRIP A
Resetting the trip odometer:
Pushing the TRIP RESET switch
*3for more
than 1 second resets the trip odometer to
zero.
Average fuel economy and distance to
empty information is also available. (See
“ Dot matrix liquid crystal display ”later in
this section and “How to use STATUS
button ”in the “4. Monitor, climate, audio,
phone and voice recognition systems ”
section.)
SIC4320
TACHOMETER
The tachometer indicates engine speed in
revolutions per minute (RPM). Do not rev
the engine into the red zone
*1.
The scale length and the red zone vary with
the engine model.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce engine
speed. Operating the engine in the red zone
may cause serious engine damage.
Instruments and controls2-7
