1. Hood (P.3-18)
2. Headlight and turn signal—Operation (P.2-39)
— Bulb replacement (P.8-29)
3. Windshield wiper and washer —Operation (P.2-36) —
Maintenance (P.8-21)
4. Moonroof (P.2-60)
5. Power windows (P.2-58)
6. Recovery hook (P.6-15)
7. Fog light (P.2-44)
8. Tires —
Wheel and tires (P.8-32, P.9-8)
— Flat tire (P.6-2)
— Tire pressure monitoring system
(TPMS) (P.2-15, P.5-4)
9. Outside mirrors (P.3-26)
10. Doors —Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-14)
— Welcome light (P.2-63)
Illustrated table of contents0-3
EXTERIOR FRONT

0-4Illustrated table of contents
JVC0258X
1. Trunk—Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-14)
— Trunk lid (P.3-18)
— 12-volt battery (P.8-18) 2. High-mounted stop light (bulb repla-
cement) (P.8-29)
3. Rear combination light (bulb replace- ment) (P.8-29)
4. Satellite antenna (P.4-49)
5. Rear window defroster (P.2-39) 6. Sonar system (if so equipped) (P.5-91)
7. Rear view camera (P.4-27)
8. Fuel-filler door
—Operation (P.3-22)
— Fuel recommendation (P.9-4)
9. Child safety rear door locks (P.3-6)
EXTERIOR REAR

0-8Illustrated table of contents
JVC0290X
1. Side ventilator (P.4-34)
2. Meters and gauges (P.2-6)
3. Hazard warning flasher switch (P.2-45)
4. Rear window and outside mirrordefroster switch (P.2-39)
5. Center display (P.4-4)/Navigation sys- tem* (if so equipped)
6. Clock (P.2-51)
7. Center multi-function control panel —Navigation system* (if so
equipped) —
Vehicle information and setting
buttons (P.4-10)
— Bluetooth
®Hands-Free Phone Sys-
tem (P.4-88, P.4-98)
— Audio system (P.4-49)
8. Automatic climate control system (P.4-34)/Forest Air
®system* (P.4-34)
9. Center ventilator (P.4-34)
10. Audio system (P.4-49)
11. Front passenger supplemental air bag (P.1-38)
12. Hood release handle (P.3-18)
13. Fuse box cover (P.8-24)
14. Parking brake —Parking (P.5-18)
15. Push-button ignition switch (P.5-9)
16. Front passenger air bag status light (P.1-45)
17. Climate controlled seat switch (if so equipped) (P.2-48)/Seat heater switch
(if so equipped) (P.2-46)
18. Drive mode select switch (P.5-19)
19. Cigarette lighter and ashtray (P.2-52)
20. Glove box lid release handle (P.2-55)
21. Trunk release power cancel switch (P.3-20)
*: Refer to the separate Navigation System Owner’s Manual.
INSTRUMENT PANEL

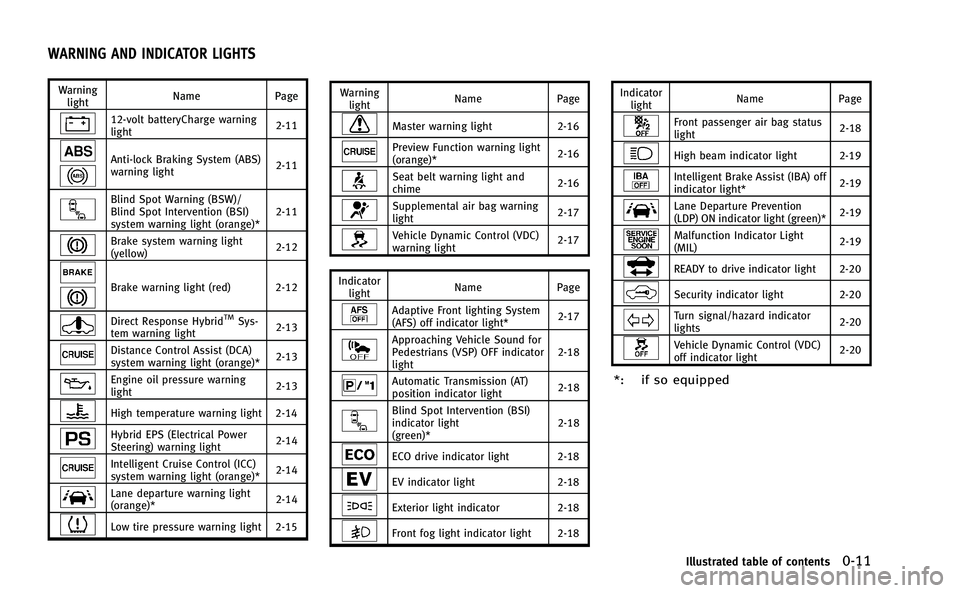

Warninglight Name
Page
12-volt batteryCharge warning
light 2-11
Anti-lock Braking System (ABS)
warning light2-11
Blind Spot Warning (BSW)/
Blind Spot Intervention (BSI)
system warning light (orange)*2-11
Brake system warning light
(yellow)
2-12
Brake warning light (red) 2-12
Direct Response HybridTMSys-
tem warning light 2-13
Distance Control Assist (DCA)
system warning light (orange)*
2-13
Engine oil pressure warning
light2-13
High temperature warning light 2-14
Hybrid EPS (Electrical Power
Steering) warning light2-14
Intelligent Cruise Control (ICC)
system warning light (orange)*2-14
Lane departure warning light
(orange)*
2-14
Low tire pressure warning light 2-15 Warning
light Name
Page
Master warning light 2-16
Preview Function warning light
(orange)* 2-16
Seat belt warning light and
chime2-16
Supplemental air bag warning
light
2-17
Vehicle Dynamic Control (VDC)
warning light2-17
Indicator light Name
Page
Adaptive Front lighting System
(AFS) off indicator light* 2-17
Approaching Vehicle Sound for
Pedestrians (VSP) OFF indicator
light2-18
Automatic Transmission (AT)
position indicator light
2-18
Blind Spot Intervention (BSI)
indicator light
(green)*2-18
ECO drive indicator light 2-18
EV indicator light
2-18
Exterior light indicator2-18
Front fog light indicator light 2-18 Indicator
light Name
Page
Front passenger air bag status
light 2-18
High beam indicator light 2-19
Intelligent Brake Assist (IBA) off
indicator light*2-19
Lane Departure Prevention
(LDP) ON indicator light (green)*
2-19
Malfunction Indicator Light
(MIL)2-19
READY to drive indicator light 2-20
Security indicator light 2-20
Turn signal/hazard indicator
lights2-20
Vehicle Dynamic Control (VDC)
off indicator light2-20
*: if so equipped
Illustrated table of contents0-11
WARNING AND INDICATOR LIGHTS

JVR0088X

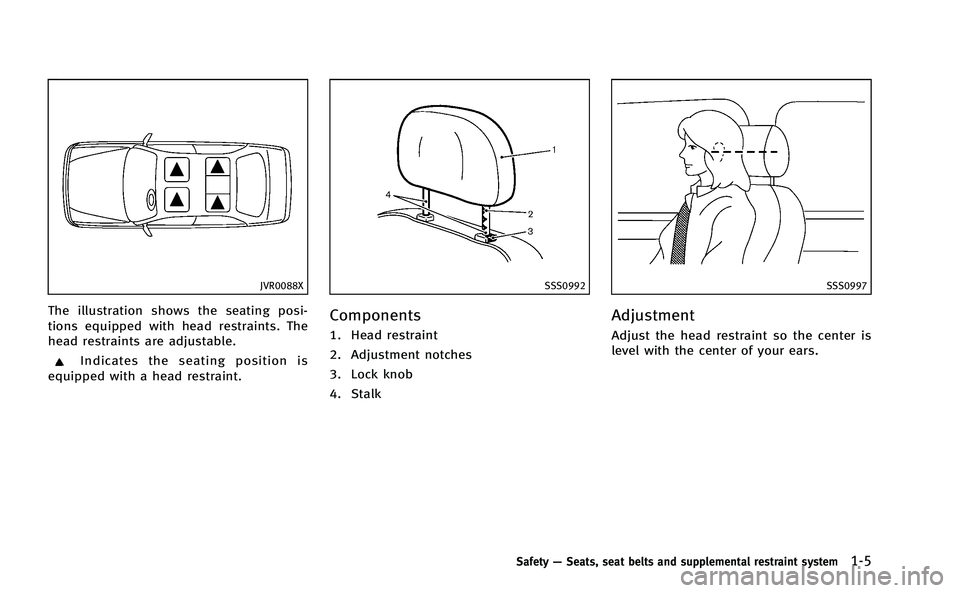

The illustration shows the seating posi-
tions equipped with head restraints. The
head restraints are adjustable.
Indicates the seating position is
equipped with a head restraint.
SSS0992
Components
1. Head restraint
2. Adjustment notches
3. Lock knob
4. Stalk
SSS0997
Adjustment
Adjust the head restraint so the center is
level with the center of your ears.
Safety —Seats, seat belts and supplemental restraint system1-5

1-6Safety—Seats, seat belts and supplemental restraint system
SSS0993

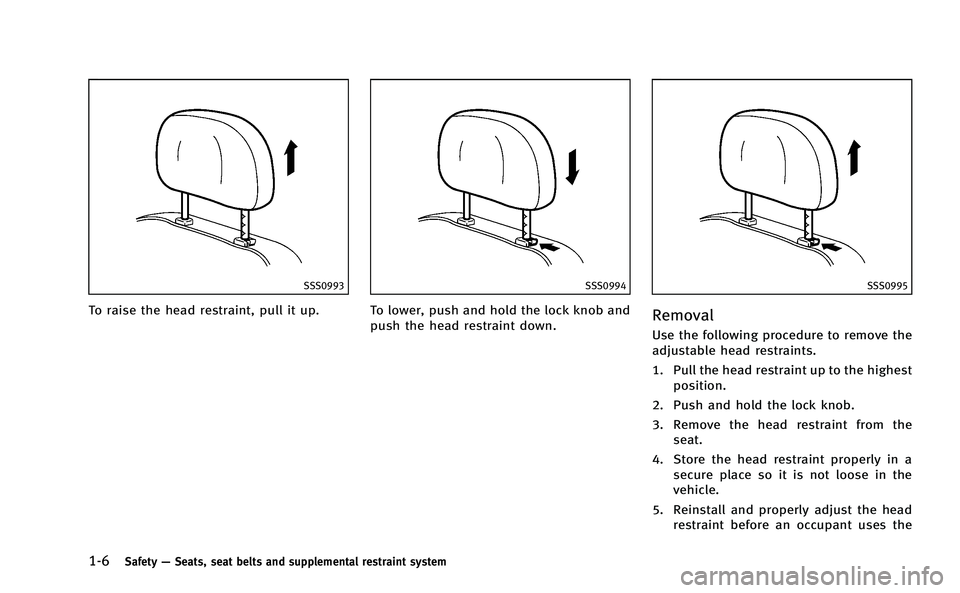

To raise the head restraint, pull it up.
SSS0994
To lower, push and hold the lock knob and
push the head restraint down.
SSS0995
Removal
Use the following procedure to remove the
adjustable head restraints.
1. Pull the head restraint up to the highest
position.
2. Push and hold the lock knob.
3. Remove the head restraint from the seat.
4. Store the head restraint properly in a secure place so it is not loose in the
vehicle.
5. Reinstall and properly adjust the head restraint before an occupant uses the

seating position.
SSS0996

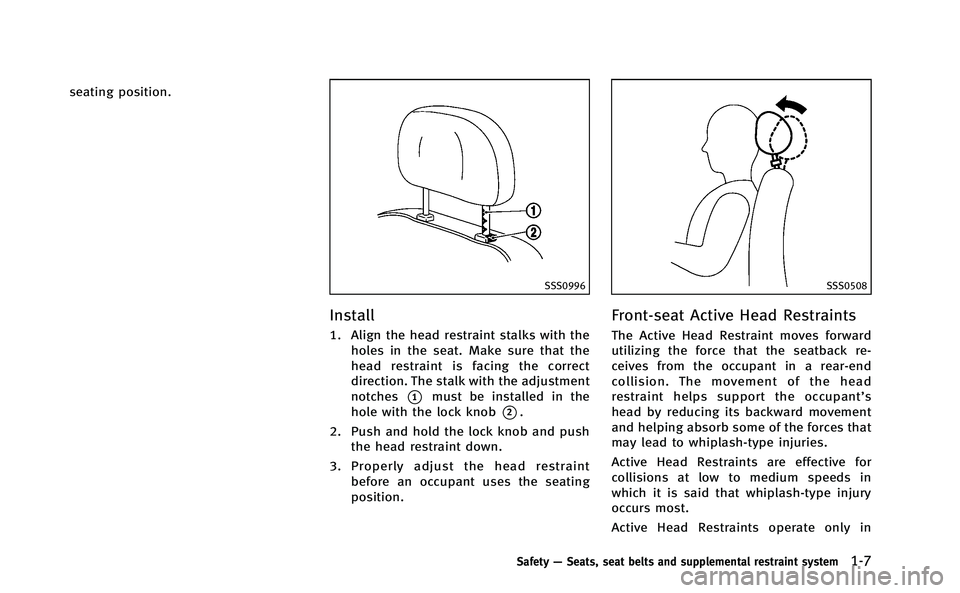

Install
1. Align the head restraint stalks with theholes in the seat. Make sure that the
head restraint is facing the correct
direction. The stalk with the adjustment
notches
*1must be installed in the
hole with the lock knob
*2.
2. Push and hold the lock knob and push the head restraint down.
3. Properly adjust the head restraint before an occupant uses the seating
position.
SSS0508
Front-seat Active Head Restraints
The Active Head Restraint moves forward
utilizing the force that the seatback re-
ceives from the occupant in a rear-end
collision. The movement of the head
restraint helps support the occupant’ s
head by reducing its backward movement
and helping absorb some of the forces that
may lead to whiplash-type injuries.
Active Head Restraints are effective for
collisions at low to medium speeds in
which it is said that whiplash-type injury
occurs most.
Active Head Restraints operate only in
Safety —Seats, seat belts and supplemental restraint system1-7

1-8Safety—Seats, seat belts and supplemental restraint system
certain rear-end collisions. After the colli-
sion, the head restraints return to their
original positions.
Adjust the Active Head Restraints properly
as described earlier in this section.
ADJUSTABLE HEADRESTS
WARNING
The adjustable headrests supplement the
other vehicle safety systems. They may
provide additional protection against injury
in certain rear end collisions. Adjust the
headrest properly, as specified in this
section. Check the adjustment after some-
one else uses the seat. Do not attach
anything to the adjustable headrest stalks
or remove the adjustable headrest. Do not
use the seat if the adjustable headrest has
been removed. If the adjustable headrest
was removed, reinstall and properly adjust
the headrest before an occupant uses the
seating position. Failure to follow these
instructions can reduce the effectiveness of
the adjustable headrests. This may increase
the risk of serious injury or death in a
collision.
JVR0089X
The illustration shows the seating posi-
tions equipped with adjustable headrests.
Indicates the seating position is
equipped with an adjustable headrest.
SSS0992
Components
1. Adjustable headrest
2. Adjustment notches
3. Lock knob
4. Stalks

SSS0997
Adjustment
Adjust the headrest so the center is level
with the center of your ears.
SSS0993
To raise the headrest, pull it up.
SSS0994
To lower, push and hold the lock knob and
push the headrest down.
Safety—Seats, seat belts and supplemental restraint system1-9

1-10Safety—Seats, seat belts and supplemental restraint system
SSS0995
Removal
Use the following procedure to remove the
adjustable headrests.
1. Pull the headrest up to the highest
position.
2. Push and hold the lock knob.
3. Remove the headrest from the seat.
4. Store the headrest properly in a secure place so it is not loose in the vehicle.
5. Install and properly adjust the headrest before an occupant uses the seating
position.
SSS0996
Install
1. Align the headrest stalks with the holesin the seat. Make sure that the head-
rest is facing the correct direction. The
stalk with the adjustment notches
*1
must be installed in the hole with the
lock knob
*2.
2. Push and hold the lock knob and push the headrest down.
3. Properly adjust the headrest before an occupant uses the seating position.
SSS1061
ARMREST
Rear armrest
Pull the armrest forward until it is hor-
izontal.
