INFINITI M35 2006 Factory Service Manual

AT-42
ON BOARD DIAGNOSTIC (OBD) SYSTEM
Revision: 2006 January2006 M35/M45
The following emission-related diagnostic information is cleared from the ECM memory when erasing DTC
related to OBD-II. For details, refer to EC-55, "
Emission-Related Diagnostic Information" (for VQ35DE
engine), EC-765, "
Emission-Related Diagnostic Information" (for VK45DE engine).
Diagnostic trouble codes (DTC)
1st trip diagnostic trouble codes (1st trip DTC)
Freeze frame data
1st trip freeze frame data
System readiness test (SRT) codes
Te s t v a l u e s
HOW TO ERASE DTC (WITH CONSULT-II)
If a DTC is displayed for both ECM and TCM, it is necessary to be erased for both ECM and TCM.
1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 10
seconds and then turn it ON (engine stopped) again.
2. Turn CONSULT-II ON and touch “A/T”.
3. Touch “SELF-DIAG RESULTS”.
4. Touch “ERASE”. (The DTC in the TCM will be erased.) Then touch “BACK” twice.
5. Touch “ENGINE”.
6. Touch “SELF-DIAG RESULTS”.
7. Touch “ERASE”. (The DTC in the ECM will be erased.)
SCIA5671E

ON BOARD DIAGNOSTIC (OBD) SYSTEM
AT-43
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
HOW TO ERASE DTC (WITH GST)
1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 10
seconds and then turn it ON (engine stopped) again.
2. Perform AT-103, "
OBD-II SELF-DIAGNOSTIC PROCEDURE (WITH GST)" . (The engine warm-up step
can be skipped when performing the diagnosis only to erase the DTC.)
3. Select Mode 4 with GST (Generic Scan Tool). For details, refer to EC-146, "
Generic Scan Tool (GST)
Function" (for VQ35DE engine), EC-859, "Generic Scan Tool (GST) Function" (for VK45DE engine).
HOW TO ERASE DTC (NO TOOLS)
The A/T CHECK indicator lamp is located on the instrument panel.
1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 10
seconds and then turn it ON (engine stopped) again.
2. Perform AT-103, "
TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)" . (The engine warm-up step
can be skipped when performing the diagnosis only to erase the DTC.)
3. Perform “OBD-II SELF-DIAGNOSTIC PROCEDURE (No tools)”. Refer to EC-67, "
How to Erase DTC"
(for VQ35DE engine), EC-778, "How to Erase DTC" (for VK45DE engine).
Malfunction Indicator Lamp (MIL)NCS001K1
DESCRIPTION
The MIL is located on the combination meters.
1. The MIL will light up when the ignition switch is turned ON with-
out the engine running. This is a bulb check.
If the MIL does not light up, refer to DI-40, "WARNING LAMPS" ,
or see EC-722, "
MIL AND DATA LINK CONNECTOR" (for
VQ35DE engine), EC-1459, "
MIL AND DATA LINK CONNEC-
TOR" (for VK45DE engine).
2. When the engine is started, the MIL should go off.
If the MIL remains on, the on board diagnostic system has
detected an engine system malfunction.
SEF217U

AT-44
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
TROUBLE DIAGNOSISPFP:00004
DTC Inspection Priority ChartNCS001K2
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
NOTE:
If DTC “U1000” is displayed with other DTC, first perform the trouble diagnosis for “DTC U1000 CAN
COMMUNICATION LINE”. Refer to AT- 1 0 5
.
Fail-safeNCS001K3
The TCM has an electrical fail-safe mode. This mode makes it possible to operate even if there is an error in a
main electronic control input/output signal circuit.
In fail-safe mode, even if the selector lever is “D” or “M” mode, the A/T is fixed in 2nd, 4th and 5th (depending
on the breakdown position), so the customer should feel “slipping” or “poor acceleration”.
Even when the electronic circuits are normal, under special conditions (for example, when slamming on the
brake with the wheels spinning drastically and stopping the tire rotation), the A/T can go into fail-safe mode. If
this happens, switch OFF the ignition switch for 10 seconds, then switch it ON again to return to the normal
shift pattern. Therefore, the customer's vehicle has returned to normal, so handle according to the “WORK
FLOW” (Refer to AT- 4 7
).
FAIL-SAFE FUNCTION
If any malfunction occurs in a sensor or solenoid, this function controls the A/T to mark driving possible.
Vehicle Speed Sensor
Signals are input from two systems - from vehicle speed sensor A/T (revolution sensor) installed on the A/
T and from combination meter so normal driving is possible even if there is a malfunction in one of the
systems. And if vehicle speed sensor A/T (revolution sensor) has unusual cases, 5th gear and manual
mode are prohibited.
Accelerator Pedal Position Sensor
If there is a malfunction in one of the systems, the accelerator opening angle is controlled by ECM accord-
ing to a pre-determined accelerator angle to make driving possible. And if there are malfunctions in tow
systems, the engine speed is fixed by ECM to a pre-determined engine speed to make driving possible.
Throttle Position Sensor
If there is a malfunction in one of the systems, the accelerator opening angle is controlled by ECM accord-
ing to a pre-determined accelerator angle to make driving possible. And if there are malfunctions in tow
systems, the accelerator opening angle is controlled by the idle signal sent from the ECM which is based
on input indicating either idle condition or off-idle condition (pre-determined accelerator opening) in order
to make driving possible.
PNP Switch
In the unlikely event that a malfunction signal enters the TCM, the position indicator is switched OFF, the
starter relay is switched OFF (starter starting is disabled), the back-up lamp relay switched OFF (back-up
lamp is OFF) and the position is fixed to the “D” position to make driving possible.
Starter Relay
The starter relay is switched OFF. (Starter starting is disabled.)
Priority Detected items (DTC)
1 U1000 CAN communication line
2 Except above

TROUBLE DIAGNOSIS
AT-45
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
A/T Interlock
If there is an A/T interlock judgment malfunction, the A/T is fixed in 2nd gear to make driving possible.
NOTE:
When the vehicle is driven fixed in 2nd gear, a turbine revolution sensor malfunction is displayed,
but this is not a turbine revolution sensor malfunction.
When the coupling pattern below is detected, the fail-safe action corresponding to the pattern is per-
formed.
A/T INTERLOCK COUPLING PATTERN TABLE
: NG X: OK
A/T 1st Engine Braking
When there is an A/T first gear engine brake judgment malfunction, the low coast brake solenoid is
switched OFF to avoid the engine brake operation.
Line Pressure Solenoid
The solenoid is switched OFF and the line pressure is set to the maximum hydraulic pressure to make
driving possible.
Torque Converter Clutch Solenoid
The solenoid is switched OFF to release the lock-up.
Low Coast Brake Solenoid
When a malfunction (electrical or functional) occurs, in order to make driving possible. If the solenoid is
ON, the A/T is held in 2nd gear. If the solenoid is OFF, the A/T is held in 4th gear. (Engine brake is not
applied in 1st and 2nd gear.)
Input Clutch Solenoid
If a malfunction (electrical or functional) occurs with the solenoid either ON or OFF, the A/T is held in 4th
gear to make driving possible.
Direct Clutch Solenoid
If a malfunction (electrical or functional) occurs with the solenoid either ON or OFF, the A/T is held in 4th
gear to make driving possible.
Front Brake Solenoid
If a malfunction (electrical or functional) occurs with the solenoid ON, in order to make driving possible.
The A/T is held in 5th gear. If the solenoid is OFF, the A/T is 4th gear.
High and Low Reverse Clutch Solenoid
If a (electrical or functional) malfunction occurs with the solenoid either ON or OFF, the A/T is held in 4th
gear to make driving possible.
Turbine Revolution Sensor 1 or 2
The control is the same as if there were no turbine revolution sensors, 5th gear and manual mode are pro-
hibited.
Gear positionATF pressure switch output
Fail-safe
functionClutch pressure output pattern after fail-safe func-
tion
SW3
(I/C)SW6
(HLR/
C)SW5
(D/C)SW1
(FR/B)SW2
(LC/B)I/C HLR/C D/C FR/B LC/B L/U
A/T inter-
lock cou-
pling pattern3rd – X X –
Held in
2nd gearOFF OFF ON OFF OFF OFF
4th – X X –
Held in
2nd gearOFF OFF ON OFF OFF OFF
5th X X – X
Held in
2nd gearOFF OFF ON OFF OFF OFF

AT-46
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
How to Perform Trouble Diagnosis for Quick and Accurate RepairNCS001K4
INTRODUCTION
The TCM receives a signal from the vehicle speed sensor, accelera-
tor pedal position sensor (throttle position sensor) or PNP switch and
provides shift control or lock-up control via A/T solenoid valves.
The TCM also communicates with the ECM by means of a signal
sent from sensing elements used with the OBD-related parts of the
A/T system for malfunction-diagnostic purposes. The TCM is capa-
ble of diagnosing malfunctioning parts while the ECM can store mal-
functions in its memory.
Input and output signals must always be correct and stable in the
operation of the A/T system. The A/T system must be in good oper-
ating condition and be free of valve seizure, solenoid valve malfunc-
tion, etc.
It is much more difficult to diagnose a error that occurs intermittently
rather than continuously. Most intermittent errors are caused by poor
electric connections or improper wiring. In this case, careful check-
ing of suspected circuits may help prevent the replacement of good
parts.
A visual check only may not find the cause of the errors. A road test
with CONSULT-II (or GST) or a circuit tester connected should be
performed. Follow the AT- 4 7 , "
WORK FLOW" .
Before undertaking actual checks, take a few minutes to talk with a
customer who approaches with a driveability complaint. The cus-
tomer can supply good information about such errors, especially
intermittent ones. Find out what symptoms are present and under
what conditions they occur. A “DIAGNOSTIC WORKSHEET” as
shown on the example (Refer to AT- 4 8
) should be used.
Start your diagnosis by looking for “conventional” errors first. This will
help troubleshoot driveability errors on an electronically controlled
engine vehicle.
Also check related Service bulletins.
SAT631IB
SAT632I
SEF234G

TROUBLE DIAGNOSIS
AT-47
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
WORK FLOW
A good understanding of the malfunction conditions can make troubleshooting faster and more accurate.
In general, each customer feels differently about a malfunction. It is important to fully understand the symp-
toms or conditions for a customer's complaint.
Make good use of the two sheets provided, AT- 4 8 , "
Information from Customer" and AT- 4 8 , "Diagnostic Work-
sheet Chart" , to perform the best troubleshooting possible.
Work Flow Chart
*1.AT- 4 8*2.AT- 4 8*3.AT- 4 4
*4.AT- 5 3*5.AT- 5 3, AT- 5 5*6.AT- 5 7
*7.AT- 9 0*8.AT- 4 0*9.AT- 4 4
*10.AT-105*11.AT- 1 7 8*12.AT- 1 8 7
*13.AT- 6 4*14.AT- 4 1*15.AT- 1 0 5
*16.AT-178*17.EC-55 (for VQ35DE engine), EC-765 (for VK45DE engine)
SCIA7037E

AT-48
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
DIAGNOSTIC WORKSHEET
Information from Customer
KEY POINTS
WHAT..... Vehicle and A/T model
WHEN..... Date, Frequencies
WHERE..... Road conditions
HOW..... Operating conditions, Symptoms
Diagnostic Worksheet Chart
Customer name MR/MS Model and Year VIN
Trans. Model Engine Mileage
Malfunction Date Manuf. Date In Service Date
Frequency
Continuous Intermittent ( times a day)
Symptoms
Vehicle does not move. ( Any position Particular position)
No up-shift ( 1st 2nd 2nd 3rd 3rd 4th 4th 5th)
No down-shift ( 5th 4th 4th 3rd 3rd 2nd 2nd 1st)
Lock-up malfunction
Shift point too high or too low.
Shift shock or slip ( N D N R Lock-up Any drive position)
Noise or vibration
No kick down
No pattern select
Others
()
A/T CHECK indicator lamp
Continuously lit Not lit
Malfunction indicator lamp (MIL)
Continuously lit Not lit
1 Read the item on cautions concerning fail-safe and understand the customer's complaint.AT- 4 4
2
A/T fluid inspectionAT- 5 3
Leak (Repair leak location.)
State
Amount
3
Stall test and line pressure testAT- 5 3, AT-
55 Stall test
Torque converter one-way clutch
Front brake
High and low reverse clutch
Low coast brake
Forward brake
Reverse brake
Forward one-way clutch
1st one-way clutch
3rd one-way clutch
Engine
Line pressure low
Except for input clutch and direct
clutch, clutches and brakes OK
Line pressure inspection - Suspected part:

TROUBLE DIAGNOSIS
AT-49
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
4
Perform all road tests and enter checks in required inspection items.AT- 5 7
4-1.Check before engine is started AT- 5 7
AT- 1 9 0 , "A/T CHECK Indicator Lamp Does Not Come On"
Perform self-diagnostics. Enter checks for detected items. AT- 9 2 ,AT-103
AT-105, "DTC U1000 CAN COMMUNICATION LINE"
AT-108, "DTC P0615 START SIGNAL CIRCUIT"
AT-112, "DTC P0700 TCM"
AT-113, "DTC P0705 PARK/NEUTRAL POSITION SWITCH"
AT-117, "DTC P0717 TURBINE REVOLUTION SENSOR"
AT-119, "DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)"
AT-124, "DTC P0725 ENGINE SPEED SIGNAL"
AT-126, "DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE"
AT-128, "DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)"
AT-130, "DTC P0745 LINE PRESSURE SOLENOID VALVE"
AT-132, "DTC P1705 THROTTLE POSITION SENSOR"
AT-135, "DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT"
AT-140, "DTC P1721 VEHICLE SPEED SENSOR MTR"
AT-142, "DTC P1730 A/T INTERLOCK"
AT-145, "DTC P1731 A/T 1ST ENGINE BRAKING"
AT-147, "DTC P1752 INPUT CLUTCH SOLENOID VALVE"
AT-149, "DTC P1754 INPUT CLUTCH SOLENOID VALVE FUNCTION"
AT-151, "DTC P1757 FRONT BRAKE SOLENOID VALVE"
AT-153, "DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION"
AT-155, "DTC P1762 DIRECT CLUTCH SOLENOID VALVE"
AT-157, "DTC P1764 DIRECT CLUTCH SOLENOID VALVE FUNCTION"
AT-159, "DTC P1767 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE"
AT-161, "DTC P1769 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE
FUNCTION"
AT-163, "DTC P1772 LOW COAST BRAKE SOLENOID VALVE"
AT-165, "DTC P1774 LOW COAST BRAKE SOLENOID VALVE FUNCTION"
AT-167, "DTC P1815 MANUAL MODE SWITCH"
AT-172, "DTC P1841 ATF PRESSURE SWITCH 1"
AT-174, "DTC P1843 ATF PRESSURE SWITCH 3"
AT-176, "DTC P1845 ATF PRESSURE SWITCH 5"
AT-178, "DTC P1846 ATF PRESSURE SWITCH 6"
4-2.Check at IdleAT- 5 7
AT- 1 9 0 , "Engine Cannot Be Started in “P” or “N” Position"
AT- 1 9 1 , "In “P” Position, Vehicle Moves When Pushed"
AT- 1 9 2 , "In “N” Position, Vehicle Moves"
AT- 1 9 3 , "Large Shock (“N” to “D” Position)"
AT- 1 9 5 , "Vehicle Does Not Creep Backward in “R” Position"
AT- 1 9 7 , "Vehicle Does Not Creep Forward in “D” Position"
4-3.Cruise TestAT- 5 9
Part 1
AT- 1 9 9 , "Vehicle Cannot Be Started from D1"
AT- 2 0 1 , "A/T Does Not Shift: D1 D2"
AT- 2 0 3 , "A/T Does Not Shift: D2 D3"
AT- 2 0 5 , "A/T Does Not Shift: D3 D4"
AT- 2 0 7 , "A/T Does Not Shift: D4 D5"
AT- 2 0 9 , "A/T Does Not Lock-Up"
AT- 2 1 0 , "A/T Does Not Hold Lock-Up Condition"
AT- 2 1 2 , "Lock-Up Is Not Released"
AT- 2 1 2 , "Engine Speed Does Not Return to Idle"

AT-50
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
44-3Part 2AT- 6 1
AT-199, "Vehicle Cannot Be Started from D1"
AT-201, "A/T Does Not Shift: D1 D2"
AT-203, "A/T Does Not Shift: D2 D3"
AT-205, "A/T Does Not Shift: D3 D4"
Part 3AT- 6 2
AT-213, "Cannot Be Changed to Manual Mode"
AT-214, "A/T Does Not Shift: 5th Gear 4th Gear"
AT-215, "A/T Does Not Shift: 4th Gear 3rd Gear"
AT-217, "A/T Does Not Shift: 3rd Gear 2nd Gear"
AT-218, "A/T Does Not Shift: 2nd Gear 1st Gear"
AT-220, "Vehicle Does Not Decelerate by Engine Brake"
Perform self-diagnostics. Enter checks for detected items. AT- 9 2 , AT-103
AT-105, "DTC U1000 CAN COMMUNICATION LINE"
AT-108, "DTC P0615 START SIGNAL CIRCUIT"
AT- 11 2 , "DTC P0700 TCM"
AT- 11 3 , "DTC P0705 PARK/NEUTRAL POSITION SWITCH"
AT- 11 7 , "DTC P0717 TURBINE REVOLUTION SENSOR"
AT- 11 9 , "DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)"
AT-124, "DTC P0725 ENGINE SPEED SIGNAL"
AT-126, "DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE"
AT-128, "DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)"
AT-130, "DTC P0745 LINE PRESSURE SOLENOID VALVE"
AT-132, "DTC P1705 THROTTLE POSITION SENSOR"
AT-135, "DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT"
AT-140, "DTC P1721 VEHICLE SPEED SENSOR MTR"
AT-142, "DTC P1730 A/T INTERLOCK"
AT-145, "DTC P1731 A/T 1ST ENGINE BRAKING"
AT-147, "DTC P1752 INPUT CLUTCH SOLENOID VALVE"
AT-149, "DTC P1754 INPUT CLUTCH SOLENOID VALVE FUNCTION"
AT-151, "DTC P1757 FRONT BRAKE SOLENOID VALVE"
AT-153, "DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION"
AT-155, "DTC P1762 DIRECT CLUTCH SOLENOID VALVE"
AT-157, "DTC P1764 DIRECT CLUTCH SOLENOID VALVE FUNCTION"
AT-159, "DTC P1767 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE"
AT-161, "DTC P1769 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE
FUNCTION"
AT-163, "DTC P1772 LOW COAST BRAKE SOLENOID VALVE"
AT-165, "DTC P1774 LOW COAST BRAKE SOLENOID VALVE FUNCTION"
AT-167, "DTC P1815 MANUAL MODE SWITCH"
AT-172, "DTC P1841 ATF PRESSURE SWITCH 1"
AT-174, "DTC P1843 ATF PRESSURE SWITCH 3"
AT-176, "DTC P1845 ATF PRESSURE SWITCH 5"
AT-178, "DTC P1846 ATF PRESSURE SWITCH 6"
5 Inspect each system for items found to be NG in the self-diagnostics and repair or replace the malfunctioning parts.
6
Perform all road tests and enter the checks again for the required items.AT- 5 7
7
For any remaining NG items, perform the “Diagnostics Procedure” and repair or replace the malfunctioning
parts. See the chart for diagnostics by symptoms. (This chart also contains other symptoms and inspection pro-
cedures.)AT- 6 4
8 Erase the results of the self-diagnostics from the TCM.AT- 9 6, AT-
104

TROUBLE DIAGNOSIS
AT-51
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45

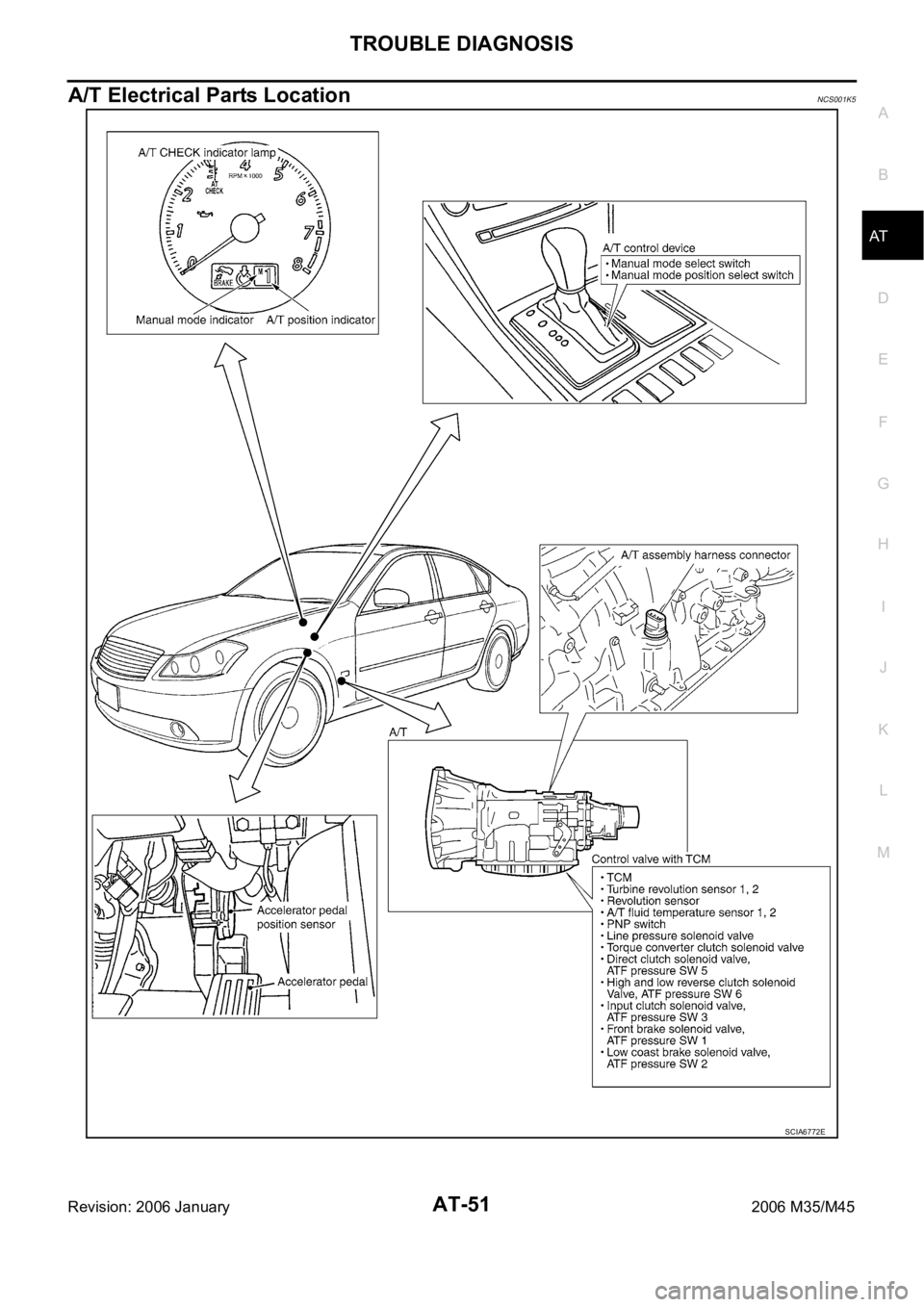

A/T Electrical Parts LocationNCS001K5
SCIA6772E
