REAR SEAT
SE-173
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45
1. Seat cushion trim 2. Seat cushion pad 3. Seatback pad
4. Seatback trim 5. Seat belt guide 6. Headrest holder (locked)
7. Headrest holder (free) 8. Headrest (left) 9. Headrest (center)
10. Headrest (right) 11. Armrest

REAR SEAT
SE-175
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45
1. Seat cushion side trim 2. Seat cushion center trim 3. Seat cushion side pad
4. Seat cushion center pad 5. Seatback trim 6. Seatback pad
7. Seatback center 8. Headrest (right) 9. Headrest (left)
10. Headrest (center) 11. Headrest holder (free) 12. Headrest holder (locked)
13. Seat belt guide 14. Rear seat frame 15. Rear seat control unit
16. Rear seat harness 17. Seatback hook 18. Seat cushion hook

SE-176
REAR SEAT
Revision: 2006 January2006 M35/M45
Removal and InstallationNIS0028K
CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
BENCH SEAT
Removal
1. Remove seat cushion.
Pull the lock lever at the front bottom of the seat cushion for-
ward (1 for each side), and pull the seat cushion upward to
release the wire from the seat cushion hook, then pull the seat
cushion forward to remove.
Remove the seat cushion from the vehicle.
2. Remove seat back.
Remove the nuts under seatback.
Lift up seatback assembly from underneath, and then remove
seatback assembly from seatback hook that is fixed to the
vehicle.
Remove the headrest.
Remove the seatback from the vehicle.
Installation
Install in the reverse order of removal. Be careful of the following one point.
Securely engage the upper wire on the back side of seatback with seat hook.
POWER SEAT
Removal
1. Remove seat cushion side.
Lift seat cushion side up, disengage the seat cushion hook,
and then remove the seat cushion side.
Remove the seat cushion side from the vehicle.
2. Remove the seat cushion center.
Disconnect the harness connector.
Remove the bolts, and then remove the seat cushion center from the vehicle.
3. Remove seatback side.
Access to the back side of seatback side from the lower, and
then pull the lock lever of seatback hook downward.
Pull seatback side, and then remove seatback side from the
seatback hook.
: Seatback hook
Lift up seatback side from underneath, and then remove seatback side from seatback hook.
PIIB3360J
PIIB4085J
PIIB3359J

REAR SEAT
SE-177
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45
Disconnect the harness connector.
Remove the headrest.
Remove the seatback side from the vehicle.
4. Remove seatback center.
Disconnect the harness connector.
Remove the seatback center mounting bolts and nuts.
Remove the seatback center from the vehicle.
5. Remove the rear seat frame.
Disconnect the harness connector.
Remove the bolts and nuts, and then remove the rear seat frame.
Installation
Install in the reverse order of removal.
Disassembly and AssemblyNIS0028L
BENCH SEAT
Disassembly of Seat Cushion
Remove the hog rings to separate the trim and pad.
Assembly of Seat Cushion
Assemble in the reverse order of disassembly. Be careful of the following one point.
Install hog rings of seat cushion trim in position, and then
securely connect the trim or trim code with the pad side wire.

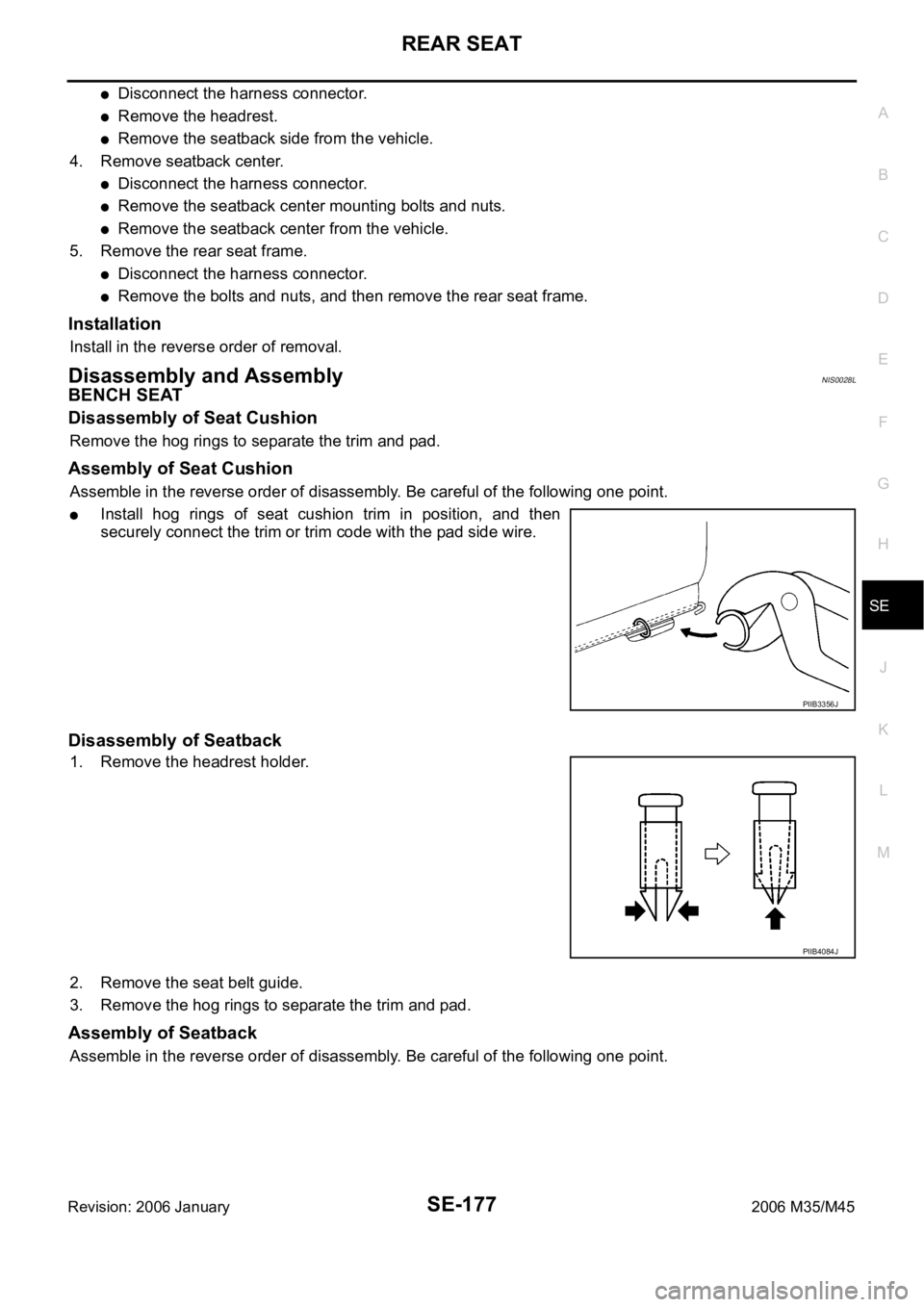

Disassembly of Seatback
1. Remove the headrest holder.
2. Remove the seat belt guide.
3. Remove the hog rings to separate the trim and pad.
Assembly of Seatback
Assemble in the reverse order of disassembly. Be careful of the following one point.
PIIB3356J
PIIB4084J

REAR SEAT
SE-179
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45
Pull the rear seat box rearward and lift up, and then remove
rear seat box from the armrest assembly.
CAUTION:
When removing, check that front tab is not damaged.
If the tab is damaged when removing the rear seat box,
replace rear seat box with a new one.
Assembly of Armrest
Assemble in the reverse order of disassembly.
POWER SEAT
Disassembly of Seat Cushion
Remove the hog rings to separate the trim and pad.
Assembly of Seat Cushion
Assemble in the reverse order of disassembly.
Disassembly of Seatback
1. Remove the headrest holder.
2. Remove the seat belt guide.
3. Remove the hog rings to separate the trim and pad.
Assembly of Seatback
Assemble in the reverse order of disassembly. Be careful of the following one point.
Install hog rings of seat cushion trim in position, and then
securely connect the trim or trim code with the pad side wire.
Disassembly of Seat Frame
1. Disconnect the harness connectors, remove the screws,and then remove the rear seat control unit.
2. Remove the seatback hook and seat cushion hook.
Assembly of Seat Frame
Assemble in the reverse order of removal.
Disassembly of Armrest
1. Remove the armrest from seatback center.
Remove the retainer from the side of armrest lid in the back.
Remove the armrest mounting nuts on the back of seatback.
PIIB4686J
PIIB4084J
PIIB3356J

SE-180
REAR SEAT
Revision: 2006 January2006 M35/M45
2. Disassemble the armrest.
Remove the screws, and then remove the armrest hinge cover.
Remove the screws, and then remove the armrest lid hinge.
Remove the armrest lid.
Remove the screws, and then remove the armrest lid lock assembly from the armrest lid.
Remove the rear seat box.
Remove all switches from the rear seat box.
Remove the screws, and then remove the A/C box assembly.
Remove the screws, and then remove the cup holder.
Remove the hog rings, and then remove the seat back center side trim.
Remove the headrest holder, and then remove the seatback center trim.
Assembly of Armrest
Assemble in the reverse order of removal.

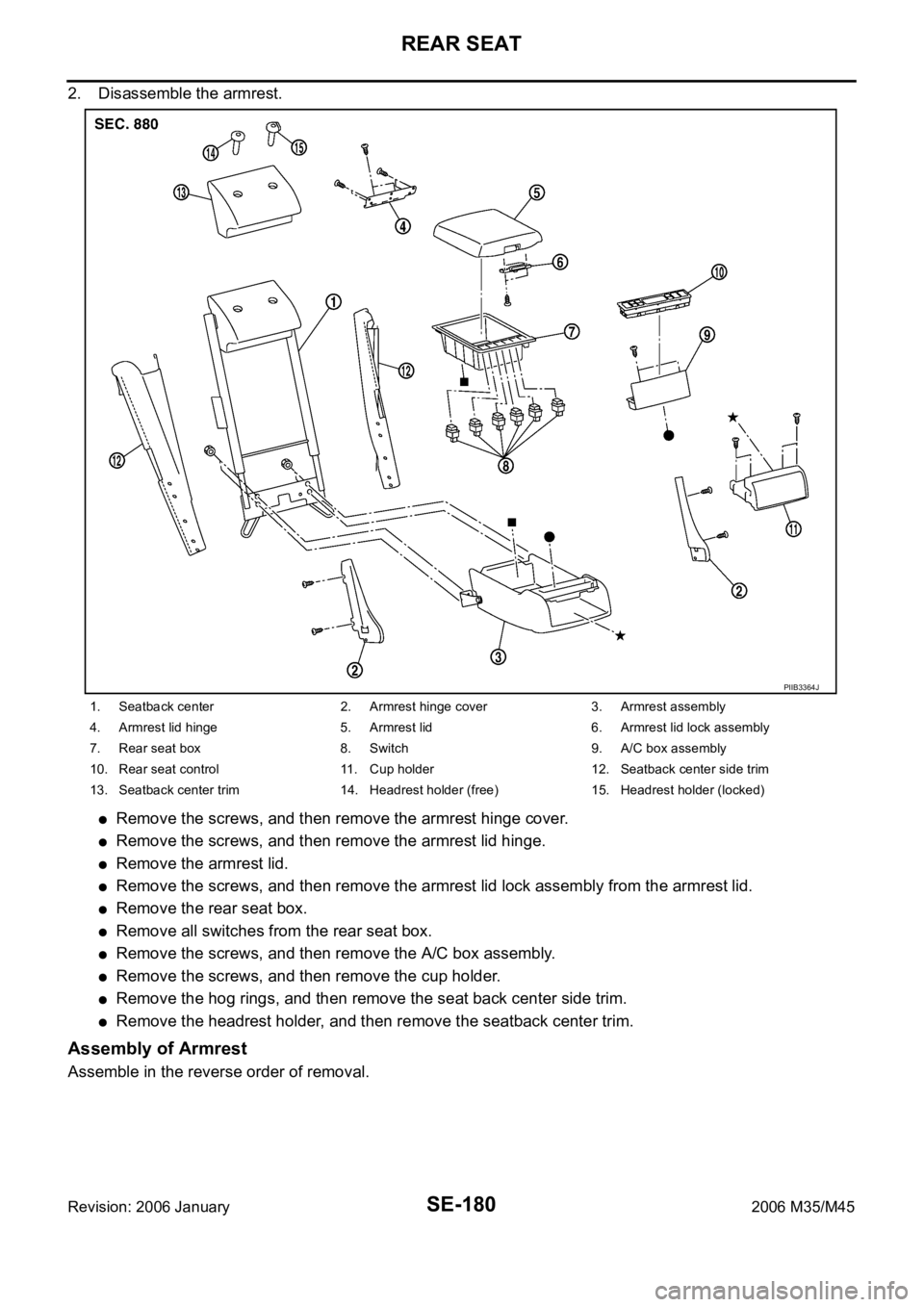

1. Seatback center 2. Armrest hinge cover 3. Armrest assembly
4. Armrest lid hinge 5. Armrest lid 6. Armrest lid lock assembly
7. Rear seat box 8. Switch 9. A/C box assembly
10. Rear seat control 11. Cup holder 12. Seatback center side trim
13. Seatback center trim 14. Headrest holder (free) 15. Headrest holder (locked)
PIIB3364J
