diagram INFINITI M35 2006 Factory Service Manual

EC-664
[VQ35DE]
DTC P2A00, P2A03 A/F SENSOR 1
Revision: 2006 January2006 M35/M45
8. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between A/F sensor 1 terminal and ECM terminal as follows.
Refer to Wiring Diagram.
4. Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.
5. Also check harness for short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK A/F SENSOR 1 HEATER
Refer to EC-188, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> GO TO 11.
10. CHECK INTERMITTENT INCIDENT
Perform EC-165, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 11.
NG >> Repair or replace.
A/F sensor 1 terminal ECM terminal
Bank1116
275
535
656
Bank 2176
277
557
658
Continuity should exist.
Bank 1 Bank 2
A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal
116176
275277
535557
656658
Continuity should not exist.

IGNITION SIGNAL
EC-667
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Wiring DiagramNBS0057P
TBWT0992E

EC-674
[VQ35DE]
IGNITION SIGNAL
Revision: 2006 January2006 M35/M45
5. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect condenser harness connector.
3. Turn ignition switch ON.
4. Check voltage between condenser terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 8.
NG >> GO TO 6.
6. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-III
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector E7.
3. Check harness continuity between IPDM E/R terminal 17 and condenser terminal 1.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> Go to EC-166, "POWER SUPPLY AND GROUND CIRCUIT" .
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E12, F3
Harness for open or short between IPDM E/R and condenser
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB1606E
Voltage: Battery voltage
PBIB0624E
Continuity should exist.

IGNITION SIGNAL
EC-675
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
8. CHECK CONDENSER GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between condenser terminal 2 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to power in harness or connectors.
9. CHECK CONDENSER
Refer to EC-677, "
Component Inspection"
OK or NG
OK >> GO TO 10.
NG >> Replace condenser.
10. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-V
1. Reconnect all harness connectors disconnected.
2. Disconnect ignition coil harness connector.
3. Turn ignition switch ON.
4. Check voltage between ignition coil terminal 3 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 12.
NG >> GO TO 11.
11 . DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F18, F201
Harness connector F3
Harness for open or short between ignition coil and harness connector F3
>> Repair or replace harness or connectors. Continuity should exist.
Voltage: Battery voltage
PBIB1560E
PBIB0138E

EC-676
[VQ35DE]
IGNITION SIGNAL
Revision: 2006 January2006 M35/M45
12. CHECK IGNITION COIL GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between ignition coil terminal 2 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F201, F18
Harness for open or short between ignition coil and ground
>> Repair open circuit or short to power in harness or connectors.
14. CHECK IGNITION COIL OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminals 60, 61, 62, 79, 80, 81 and ignition coil terminal 1. Refer
to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 16.
NG >> GO TO 15.
15. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F201, F18
Harness for open or short between ignition coil and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
16. CHECK IGNITION COIL WITH POWER TRANSISTOR
Refer to EC-677, "
Component Inspection" .
OK or NG
OK >> GO TO 17.
NG >> Replace ignition coil with power transistor.
17. CHECK INTERMITTENT INCIDENT
Refer to EC-165, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
Continuity should exist.

EC-680
[VQ35DE]
FUEL INJECTOR
Revision: 2006 January2006 M35/M45
Wiring DiagramNBS0057V
TBWT0996E

FUEL INJECTOR
EC-683
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
5. CHECK FUNCTION OF FUEL INJECTOR-II
Provide battery voltage between the following terminals, and then
interrupt it. Listen to each fuel injector operating sound.
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
6. CHECK SUB-HARNESS CIRCUIT FOR OPEN AND SHORT
1. Disconnect fuel injector harness connector (1).
2. Check harness continuity between the following terminals. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
CylinderHarness connector F221 terminal
(+) (–)
1
56
24
32
43
51
67
Operating sound should exist.
PBIB2497E
PBIB2792E
Harness connector F221 terminal Fuel injector terminal
1
2 2
3
4
6
7
51
Continuity should exist.

EC-686
[VQ35DE]
FUEL PUMP
Revision: 2006 January2006 M35/M45

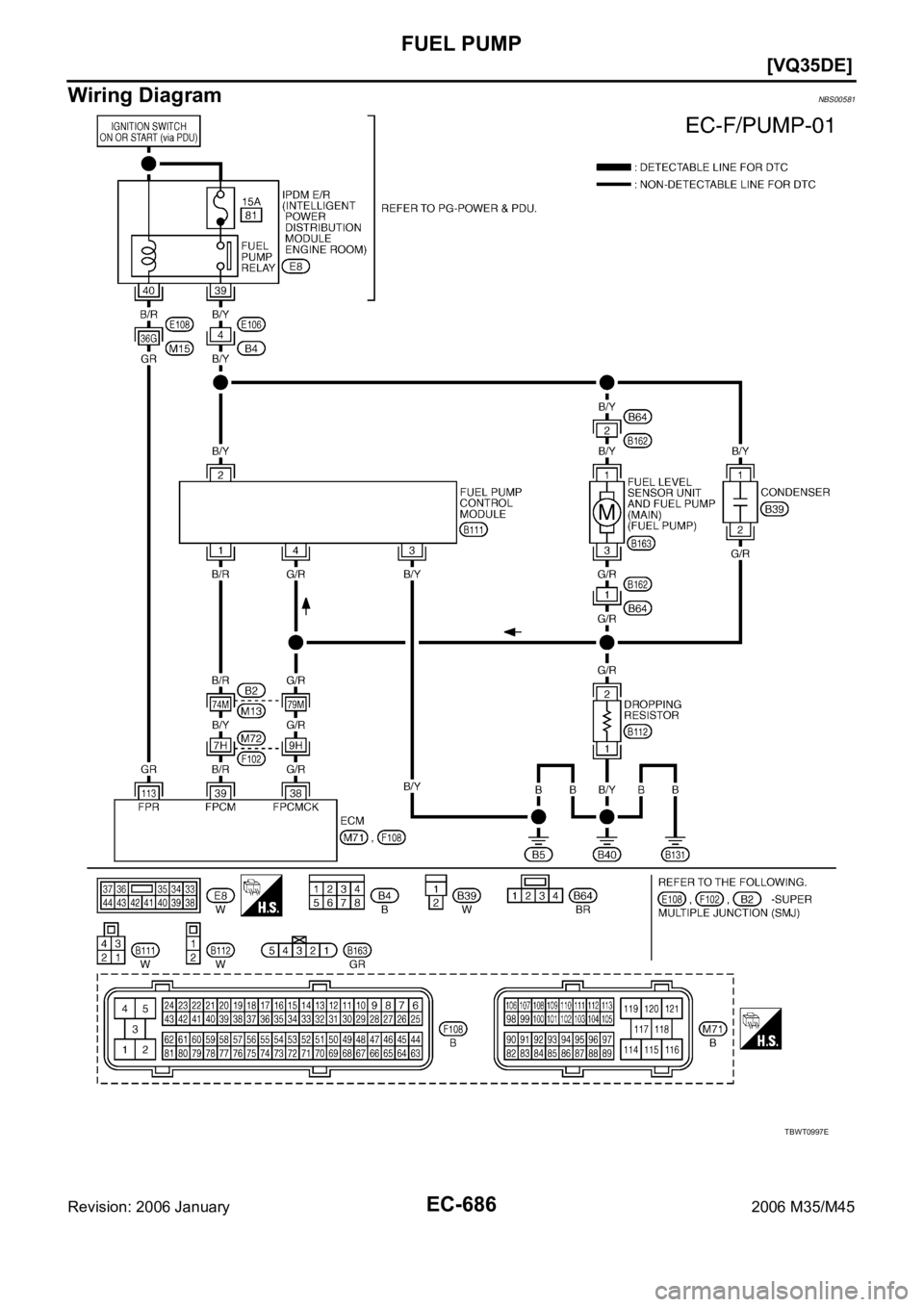

Wiring DiagramNBS00581
TBWT0997E

FUEL PUMP
EC-689
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
7. CHECK CONDENSER POWER SUPPLY CIRCUIT-II
1. Disconnect IPDM E/R harness connector E8.
2. Check harness continuity between IPDM E/R terminal 39 and condenser terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 15.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E106, B4
IPDM E/R connector E8
Harness for open or short between IPDM E/R and condenser
>> Repair open circuit or short to power in harness or connectors.
9. CHECK CONDENSER GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect dropping resistor harness connector.
3. Check harness continuity between condenser terminal 2 and dropping resistor terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 10.
NG >> Repair open circuit or short to power in harness or connectors.
10. CHECK CONDENSER
Refer to EC-691, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> Replace condenser.Continuity should exist.
: Vehicle front 1. FPCM 2. Dropping resistor
Continuity should exist.
PBIB2708E

EC-690
[VQ35DE]
FUEL PUMP
Revision: 2006 January2006 M35/M45
11 . CHECK FUEL PUMP POWER SUPPLY CIRCUIT-III
1. Turn ignition switch OFF.
2. Disconnect harness connectors E106, B4.
3. Disconnect “fuel level sensor unit and fuel pump” harness con-
nector (1).
–Illustration shows the view with rear seat cushion and inspection
hole cover (RH) removed.
–: Vehicle front
4. Check harness continuity between the following;
harness connector B4 terminal 4 and “fuel level sensor unit and fuel pump” terminal 1,
“fuel level sensor unit and fuel pump” terminal 3 and dropping resistor terminal 2,
dropping resister terminal 1 and ground.
Refer to Wiring Diagram.
OK or NG
OK >> GO TO 13.
NG >> GO TO 12.
12. DETECT MALFUNCTIONING PART
Check the following.
Harness connector B4
Harness connectors B64, B162
Harness for open or short between “fuel level sensor unit and fuel pump” and harness connector B4
Harness for open or short between “fuel level sensor unit and fuel pump” and dropping resistor
Harness for open or short between dropping resistor and ground
>> Repair open circuit or short to power in harness or connectors.
13. CHECK DROPPING RESISTOR
Refer to EC-691, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Replace dropping resistor.
14. CHECK FUEL PUMP
Refer to EC-691, "
Component Inspection" .
OK or NG
OK >> GO TO 15.
NG >> Replace fuel pump.
PBIB2706E
Continuity should exist.
