fuel pressure INFINITI M35 2007 Factory Owners Manual

TROUBLE DIAGNOSIS
EC-805
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Engine Control Component Parts LocationNBS005AI
1. IPDM E/R 2. ICC brake hold relay
(ICC models only)3. Battery current sensor
4. Cooling fan relay 5. Refrigerant pressure sensor 6. Intake valve timing control position
sensor (bank 2)
7. Vacuum tank 8. Cooling fan motor-2 9. Intake valve timing control solenoid
valve (bank 2)
10. Cooling fan control module 11. Electric throttle control actuator 12. Intake valve timing control solenoid
valve (bank 1)
13. Cooling fan motor-1 14. Intake valve timing control position
sensor (bank 1)15. Camshaft position sensor (PHASE)
16. Mass air flow sensor
(with intake air temperature sensor)17. Ignition coil (with power transistor)
and spark plug (bank 1)18. VIAS control solenoid valve
19. Fuel injector (bank 1) 20. Engine coolant temperature sensor 21. Power valve actuator
22. Knock sensor (bank 1) 23. Knock sensor (bank 2) 24. Fuel injector (bank 2)
25. EVAP canister purge volume control
solenoid valve26. EVAP service port 27. Ignition coil (with power transistor)
and spark plug (bank 2)
PBIB2674E

TROUBLE DIAGNOSIS
EC-813
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

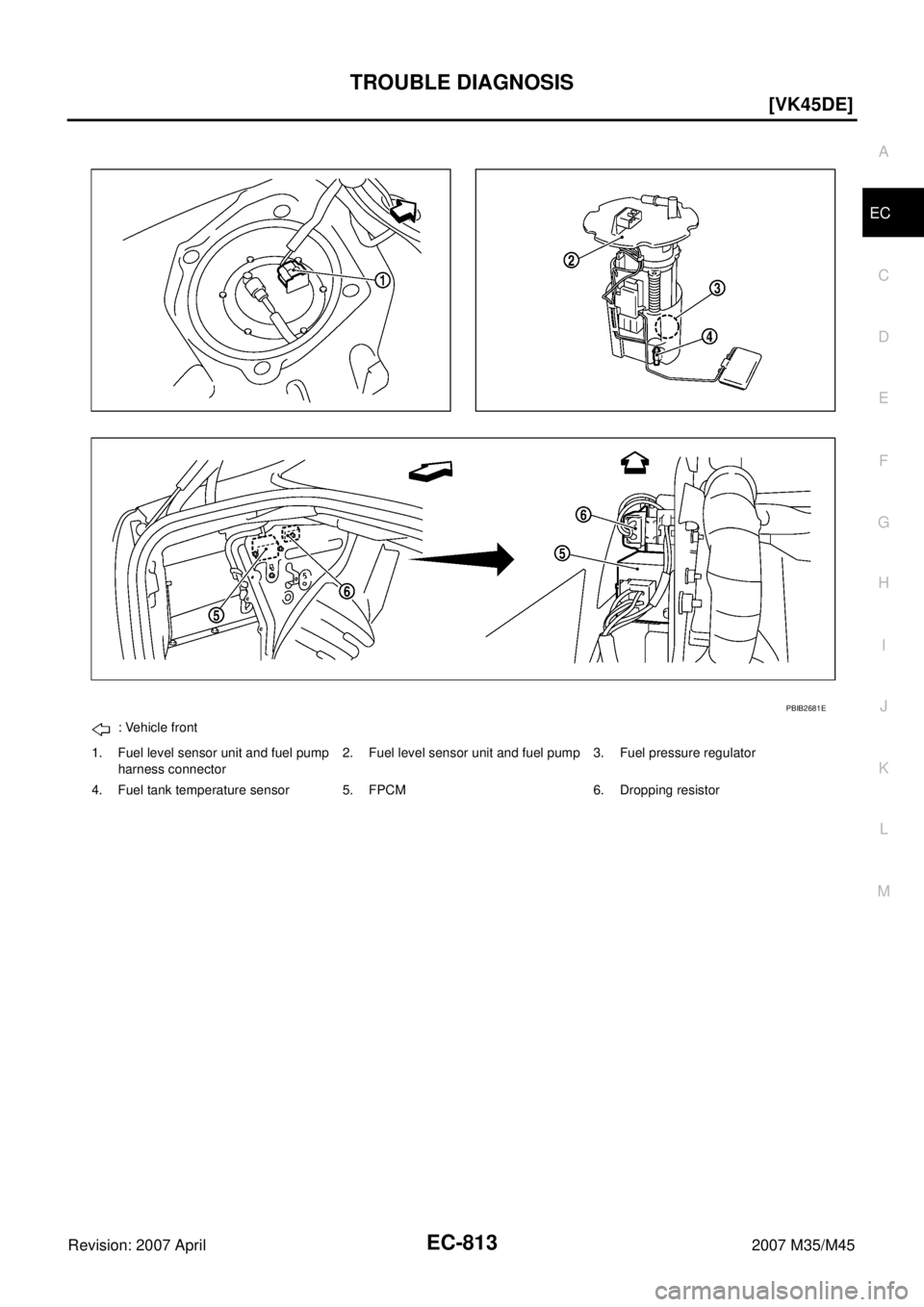

: Vehicle front
1. Fuel level sensor unit and fuel pump
harness connector2. Fuel level sensor unit and fuel pump 3. Fuel pressure regulator
4. Fuel tank temperature sensor 5. FPCM 6. Dropping resistor
PBIB2681E

TROUBLE DIAGNOSIS
EC-821
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M4538 G/BFuel pump control module
(FPCM) check[When cranking engine]Approximately 0V
[Engine is running]
Warm-up condition

Idle speed4 - 6V
39 B/RFuel pump control module
(FPCM)[When cranking engine]0 - 0.5V
[Engine is running]

Warm-up condition

Idle speed8 - 12V
45 VEVAP canister purge vol-
ume control solenoid valve[Engine is running]

Idle speed

Accelerator pedal: Not depressed even
slightly, after engine startingBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Engine speed: About 2,000 rpm (More than
100 seconds after starting engine)BATTERY VOLTAGE
(11 - 14V)
46
60
61
62
65
79
80
81L/O
V/W
P
Y/R
BR/R
GR/R
GR/B
G/RIgnition signal No. 7
Ignition signal No. 5
Ignition signal No. 3
Ignition signal No. 1
Ignition signal No. 8
Ignition signal No. 6
Ignition signal No. 4
Ignition signal No. 2[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle0 - 0.2V
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpm0.1 - 0.4V
47 GSensor power supply
(Throttle position sensor)[Ignition switch: ON]Approximately 5V
48 BRSensor power supply
(EVAP control system pres-
sure sensor)[Ignition switch: ON]Approximately 5V
49 B/YSensor power supply
(Refrigerant pressure sen-
sor, Battery current sensor)[Ignition switch: ON]Approximately 5V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
SEC990C
SEC991C
PBIB0044E
PBIB0045E

TROUBLE DIAGNOSIS
EC-827
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
ItemDIAGNOSTIC TEST MODE
WORK
SUP-
PORTSELF-DIAGNOS-
TIC RESULTS
DATA
MONI-
TORDATA
MONI-
TOR
(SPEC)ACTIVE
TESTDTC & SRT
CONFIRMATION
DTC*1FREEZE
FRAME
DATA*2SRT
STATUSDTC
WORK
SUP-
PORT
ENGINE CONTROL COMPONENT PARTS
INPUT
Crankshaft position sensor (POS)××××
Camshaft position sensor
(PHASE)××××
Mass air flow sensor×××
Engine coolant temperature sen-
sor×××××
Air fuel ratio (A/F) sensor 1×××××
Heated oxygen sensor 2×××××
Wheel sensor××××
Accelerator pedal position sensor×××
Throttle position sensor××××
Fuel tank temperature sensor××××
EVAP control system pressure
sensor×××
Intake air temperature sensor××××
Knock sensor×
Refrigerant pressure sensor××
Closed throttle position switch
(accelerator pedal position sensor
signal)××
Air conditioner switch××
Park/neutral position (PNP) switch×××
Stop lamp switch×××
Power steering pressure sensor×××
Battery voltage××
Load signal××
Intake valve timing control position
sensor×××
Fuel level sensor×××
Battery current sensor×××
ICC steering switch×××
ASCD steering switch×××
ICC brake switch×××
ASCD brake switch×××

EC-828
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
X: Applicable
*1: This item includes 1st trip DTCs.
*2: This mode includes 1st trip freeze frame data or freeze frame data. The items appear on CONSULT-II screen in freeze frame data
mode only if a 1st trip DTC or DTC is detected. For details, refer to EC-762, "
FREEZE FRAME DATA AND 1ST TRIP FREEZE FRAME
DATA" .
*3: Always “CMPLT” is displayed.
INSPECTION PROCEDURE
Refer to GI-38, "CONSULT-II Start Procedure" .
WORK SUPPORT MODE
Work Item
ENGINE CONTROL COMPONENT PARTS
OUTPUT
Fuel injector×× ×
Power transistor (Ignition timing)×× ×
Throttle control motor relay×××
Throttle control motor×
EVAP canister purge volume con-
trol solenoid valve×××××
FPCM××××
Air conditioner relay××
Fuel pump relay××××
Cooling fan control module××××
Air fuel ratio (A/F) sensor 1 heater×××
×*
3
Heated oxygen sensor 2 heater×××
×*3
EVAP canister vent control valve×× ×××
Intake valve timing control solenoid
valve××××
VIAS control solenoid valve××××
Alternator×× ×
Calculated load value××× ItemDIAGNOSTIC TEST MODE
WORK
SUP-
PORTSELF-DIAGNOS-
TIC RESULTS
DATA
MONI-
TORDATA
MONI-
TOR
(SPEC)ACTIVE
TESTDTC & SRT
CONFIRMATION
DTC*1FREEZE
FRAME
DATA*2SRT
STATUSDTC
WORK
SUP-
PORT
WORK ITEM CONDITION USAGE
FUEL PRESSURE RELEASE

FUEL PUMP WILL STOP BY TOUCHING “START” DUR-
ING IDLING.
CRANK A FEW TIMES AFTER ENGINE STALLS.When releasing fuel pressure
from fuel line
IDLE AIR VOL LEARN

THE IDLE AIR VOLUME THAT KEEPS THE ENGINE
WITHIN THE SPECIFIED RANGE IS MEMORIZED IN
ECM.When learning the idle air volume
SELF-LEARNING CONT

THE COEFFICIENT OF SELF-LEARNING CONTROL
MIXTURE RATIO RETURNS TO THE ORIGINAL COEF-
FICIENT.When clearing the coefficient of
self-learning control value

TROUBLE DIAGNOSIS
EC-829
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
*: This function is not necessary in the usual service procedure.
SELF-DIAG RESULTS MODE
Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, refer to EC-757, "Emission-Related Diagnostic Information" .
Freeze Frame Data and 1st Trip Freeze Frame Data
EVAP SYSTEM CLOSE CLOSE THE EVAP CANISTER VENT CONTROL VALVE IN
ORDER TO MAKE EVAP SYSTEM CLOSE UNDER THE
FOLLOWING CONDITIONS.

IGN SW ON

ENGINE NOT RUNNING

AMBIENT TEMPERATURE IS ABOVE 0°C (32°F).

NO VACUUM AND NO HIGH PRESSURE IN EVAP SYS-
TEM

FUEL TANK TEMP. IS MORE THAN 0°C (32°F).

WITHIN 10 MINUTES AFTER STARTING “EVAP SYS-
TEM CLOSE”

WHEN TRYING TO EXECUTE “EVAP SYSTEM CLOSE”
UNDER THE CONDITION EXCEPT ABOVE, CONSULT-
II WILL DISCONTINUE IT AND DISPLAY APPROPRI-
ATE INSTRUCTION.
NOTE:
WHEN STARTING ENGINE, CONSULT-II MAY DISPLAY
“BATTERY VOLTAGE IS LOW. CHARGE BATTERY”,
EVEN IN USING CHARGED BATTERY.When detecting EVAP vapor leak
point of EVAP system
VIN REGISTRATION

IN THIS MODE VIN IS REGISTERED IN ECM When registering VIN in ECM
TARGET IDLE RPM ADJ*

IDLE CONDITION When setting target idle speed
TARGET IGN TIM ADJ*

IDLE CONDITION When adjusting target ignition tim-
ing WORK ITEM CONDITION USAGE
Freeze frame data
item*Description
DIAG TROUBLE
CODE
[PXXXX]

The engine control component part/control system has a trouble code, it is displayed as PXXXX. (Refer to
EC-718, "
INDEX FOR DTC" .)
FUEL SYS-B1

“Fuel injection system status” at the moment a malfunction is detected is displayed.

One mode in the following is displayed.
Mode2: Open loop due to detected system malfunction
Mode3: Open loop due to driving conditions (power enrichment, deceleration enleanment)
Mode4: Closed loop - using oxygen sensor(s) as feedback for fuel control
Mode5: Open loop - has not yet satisfied condition to go to closed loop FUEL SYS-B2
CAL/LD VALUE [%]

The calculated load value at the moment a malfunction is detected is displayed.
COOLANT TEMP
[°C] or [°F]

The engine coolant temperature at the moment a malfunction is detected is displayed.
L-FUEL TRM-B1 [%]

“Long-term fuel trim” at the moment a malfunction is detected is displayed.

The long-term fuel trim indicates much more gradual feedback compensation to the base fuel schedule
than short-term fuel trim. L-FUEL TRM-B2 [%]
S-FUEL TRM-B1 [%]

“Short-term fuel trim” at the moment a malfunction is detected is displayed.

The short-term fuel trim indicates dynamic or instantaneous feedback compensation to the base fuel
schedule. S-FUEL TRM-B2 [%]
ENGINE SPEED
[rpm]

The engine speed at the moment a malfunction is detected is displayed.
VEHICL SPEED
[km/h] or [mph]

The vehicle speed at the moment a malfunction is detected is displayed.

TROUBLE DIAGNOSIS
EC-831
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45THRTL SEN 1 [V]××
The throttle position sensor signal voltage
is displayed.
THRTL SEN 2 signal is converted by
ECM internally. Thus, it differs from ECM
terminal voltage signal. THRTL SEN 2 [V]×
FUEL T/TMP SE
[°C] or [°F]×

The fuel temperature (determined by the
signal voltage of the fuel tank tempera-
ture sensor) is displayed.
INT/A TEMP SE
[°C] or [°F]××

The intake air temperature (determined
by the signal voltage of the intake air tem-
perature sensor) is indicated.
EVAP SYS PRES
[V]×

The signal voltage of EVAP control sys-
tem pressure sensor is displayed.
FPCM DR VOLT
[V]

The voltage between fuel pump and
FPCM is displayed.
FUEL LEVEL SE
[V]×

The signal voltage of the fuel level sensor
is displayed.
START SIGNAL
[ON/OFF]××

Indicates start signal status [ON/OFF]
computed by the ECM according to the
signals of engine speed and battery volt-
age.

After starting the engine, [OFF] is dis-
played regardless of the starter signal.
CLSD THL POS
[ON/OFF]××

Indicates idle position [ON/OFF] com-
puted by ECM according to the accelera-
tor pedal position sensor signal.
AIR COND SIG
[ON/OFF]××

Indicates [ON/OFF] condition of the air
conditioner switch as determined by the
air conditioner signal.
P/N POSI SW
[ON/OFF]××

Indicates [ON/OFF] condition from the
park/neutral position (PNP) switch signal.
PW/ST SIGNAL
[ON/OFF]××

[ON/OFF] condition of the power steering
system (determined by the signal voltage
of the power steering pressure sensor
signal) is indicated.
LOAD SIGNAL
[ON/OFF]××

Indicates [ON/OFF] condition from the
electrical load signal.
ON: Rear window defogger switch is ON
and/or lighting switch is in 2nd position.
OFF: Both rear window defogger switch
and lighting switch are OFF.
IGNITION SW
[ON/OFF]×

Indicates [ON/OFF] condition from igni-
tion switch signal.
HEATER FAN SW
[ON/OFF]×

Indicates [ON/OFF] condition from the
heater fan switch signal.
BRAKE SW
[ON/OFF]×

Indicates [ON/OFF] condition from the
stop lamp switch signal.
INJ PULSE-B1
[msec]×

Indicates the actual fuel injection pulse
width compensated by ECM according to
the input signals.
When the engine is stopped, a certain
computed value is indicated.
INJ PULSE-B2
[msec]
IGN TIMING
[BTDC]×

Indicates the ignition timing computed by
ECM according to the input signals.
When the engine is stopped, a certain
value is indicated.
CAL/LD VALUE [%]

“Calculated load value” indicates the
value of the current air flow divided by
peak air flow. Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSDescription Remarks

TROUBLE DIAGNOSIS
EC-833
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45VEHICLE SPEED
[km/h] or [MPH]
The vehicle speed computed from the
vehicle speed signal sent from TCM is
displayed.
IDL A/V LEARN
[YET/CMPLT]

Display the condition of idle air volume
learning
YET: Idle air volume learning has not
been performed yet.
CMPLT: Idle air volume learning has
already been performed successfully.
TRVL AFTER MIL
[km] or [mile]

Distance traveled while MIL is activated.
A/F S1 HTR (B1)
[%]

Air fuel ratio (A/F) sensor 1 heater control
value computed by ECM according to the
input signals.

The current flow to the heater becomes
larger as the value increases. A/F S1 HTR (B2)
[%]
AC PRESS SEN
[V]

The signal voltage from the refrigerant
pressure sensor is displayed.
VHCL SPEED SE
[km/h] or [mph]

The vehicle speed computed from the
vehicle speed signal sent from combina-
tion meter is displayed.
SET VHCL SPD
[km/h] or [mph]

The preset vehicle speed is displayed.
MAIN SW
[ON/OFF]

Indicates [ON/OFF] condition from MAIN
switch signal.
CANCEL SW
[ON/OFF]

Indicates [ON/OFF] condition from CAN-
CEL switch signal.
RESUME/ACC SW
[ON/OFF]

Indicates [ON/OFF] condition from
RESUME/ACCELERATE switch signal.
SET SW
[ON/OFF]

Indicates [ON/OFF] condition from SET/
COAST switch signal.
BRAKE SW1
[ON/OFF]

Indicates [ON/OFF] condition from ASCD
brake switch signal.
BRAKE SW2
[ON/OFF]

Indicates [ON/OFF] condition of stop
lamp switch signal.
DIST SW
[ON/OFF]

Indicates [ON/OFF] condition from DIS-
TANCE switch signal.
CRUISE LAMP
[ON/OFF]

Indicates [ON/OFF] condition of CRUISE
lamp determined by the ECM according
to the input signals.
SET LAMP
[ON/OFF]

Indicates [ON/OFF] condition of SET
lamp determined by the ECM according
to the input signals.
FAN DUTY
[%]

Indicates a command value for cooling
fan. The value is calculated by ECM
based on input signals.
AC EVA TEMP
[°C] or [°F]

Indicates A/C evaporator temperature
sent from “unified meter and A/C amp.”.
AC EVA TARGET
[°C] or [°F]

Indicates target A/C evaporator tempera-
ture sent from “unified meter and A/C
amp.”. Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSDescription Remarks

TROUBLE DIAGNOSIS
EC-839
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
FUNCTION
INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect GST to data link connector (1), which is located under
LH dash panel near the hood opener handle.
Diagnostic service Function
Service $01 READINESS TESTSThis diagnostic service gains access to current emission-related data values, including
analog inputs and outputs, digital inputs and outputs, and system status information.
Service $02 (FREEZE DATA)This diagnostic service gains access to emission-related data value which were stored by
ECM during the freeze frame. For details, refer to EC-762, "
FREEZE FRAME DATA AND
1ST TRIP FREEZE FRAME DATA" .
Service $03 DTCsThis diagnostic service gains access to emission-related power train trouble codes which
were stored by ECM.
Service $04 CLEAR DIAG INFOThis diagnostic service can clear all emission-related diagnostic information. This
includes:

Clear number of diagnostic trouble codes (Service $01)

Clear diagnostic trouble codes (Service $03)

Clear trouble code for freeze frame data (Service $01)

Clear freeze frame data (Service $02)

Reset status of system monitoring test (Service $01)

Clear on board monitoring test results (Service $06 and $07)
Service $06 (ON BOARD TESTS)This diagnostic service accesses the results of on board diagnostic monitoring tests of
specific components/systems that are not continuously monitored.
Service $07 (ON BOARD TESTS)This diagnostic service enables the off board test drive to obtain test results for emission-
related powertrain components/systems that are continuously monitored during normal
driving conditions.
Service $08 —This diagnostic service can close EVAP system in ignition switch ON position (Engine
stopped). When this diagnostic service is performed, EVAP canister vent control valve
can be closed.
In the following conditions, this diagnostic service cannot function.

Low ambient temperature

Low battery voltage

Engine running

Ignition switch OFF

Low fuel temperature

Too much pressure is applied to EVAP system
Service $09 (CALIBRATION ID)This diagnostic service enables the off-board test device to request specific vehicle infor-
mation such as Vehicle Identification Number (VIN) and Calibration IDs.
PBIB2712E

TROUBLE DIAGNOSIS - SPECIFICATION VALUE
EC-847
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
TROUBLE DIAGNOSIS - SPECIFICATION VALUEPFP:00031
DescriptionNBS005AR
The specification (SP) value indicates the tolerance of the value that is displayed in “DATA MONITOR (SPEC)”
mode of CONSULT-II during normal operation of the Engine Control System. When the value in “DATA MONI-
TOR (SPEC)” mode is within the SP value, the Engine Control System is confirmed OK. When the value in
“DATA MONITOR (SPEC)” mode is NOT within the SP value, the Engine Control System may have one or
more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not light the
MIL.
The SP value will be displayed for the following three items:

B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board cor-
rection)

A/F ALPHA-B1/B2 (The mean value of air-fuel ratio feedback correction factor per cycle)

MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)
Testing ConditionNBS005AS

Vehicle driven distance: More than 5,000 km (3,107 miles)

Barometric pressure: 98.3 - 104.3 kPa (1.003 - 1.064 kg/cm2 , 14.25 - 15.12 psi)

Atmospheric temperature: 20 - 30°C (68 - 86°F)

Engine coolant temperature: 75 - 95°C (167 - 203°F)

Engine speed: Idle

Transmission: Warmed-up
–After the engine is warmed up to normal operating temperature, drive vehicle until “ATF TEMP SE 1” (A/T
fluid temperature sensor signal) indicates more than 60°C (140°F).

Electrical load: Not applied
–Rear window defogger switch, air conditioner switch, lighting switch are OFF. Steering wheel is straight
ahead.
Inspection ProcedureNBS005AT
NOTE:
Perform “DATA MONITOR (SPEC)” mode in maximum scale display.
1. Perform EC-780, "
Basic Inspection" .
2. Confirm that the testing conditions indicated above are met.
3. Select “B/FUEL SCHDL”, “A/F ALPHA-B1”, “A/F ALPHA-B2”
and “MAS A/F SE-B1” in “DATA MONITOR (SPEC)” mode with
CONSULT-II.
4. Make sure that monitor items are within the SP value.
5. If NG, go to EC-848, "
Diagnostic Procedure" .
SEF601Z
