INFINITI M35 2007 Factory Service Manual

LAN-74
[CAN]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45

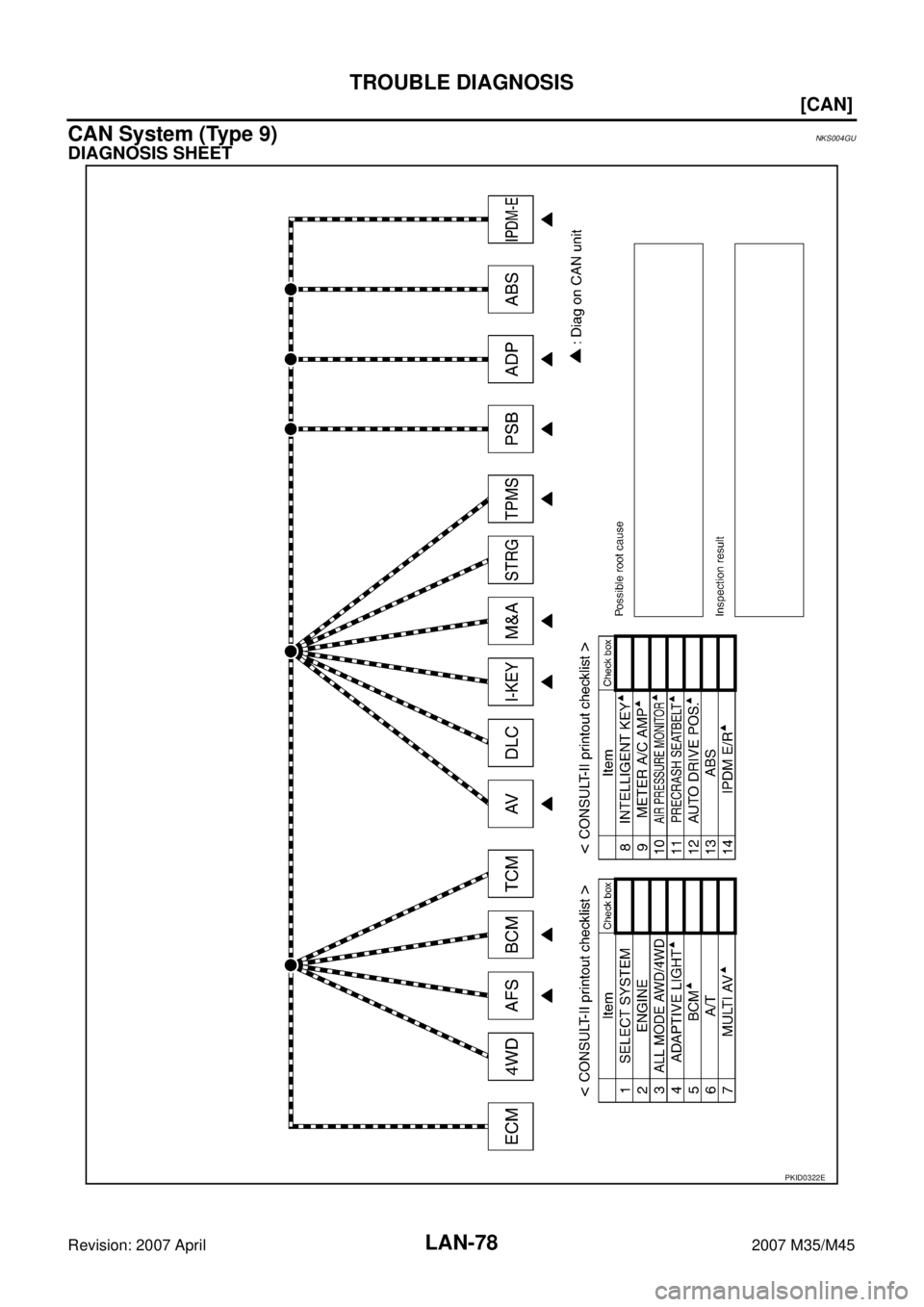

CAN System (Type 5)NKS004GQ
DIAGNOSIS SHEET
PKID0318E

TROUBLE DIAGNOSIS
LAN-75
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2007 April2007 M35/M45

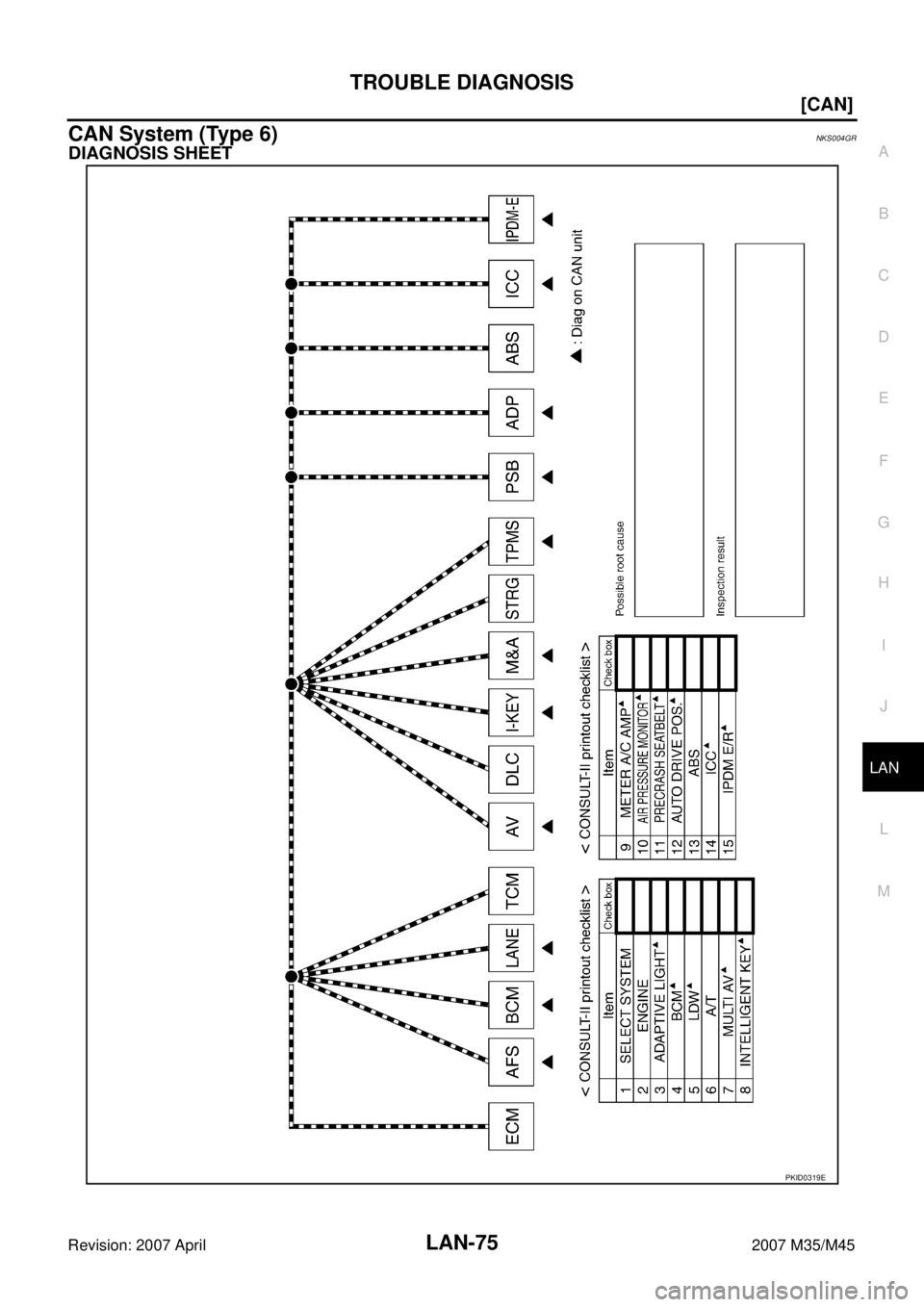

CAN System (Type 6)NKS004GR
DIAGNOSIS SHEET
PKID0319E

LAN-76
[CAN]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
CAN System (Type 7)NKS004GS
DIAGNOSIS SHEET
PKID0320E

TROUBLE DIAGNOSIS
LAN-77
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2007 April2007 M35/M45

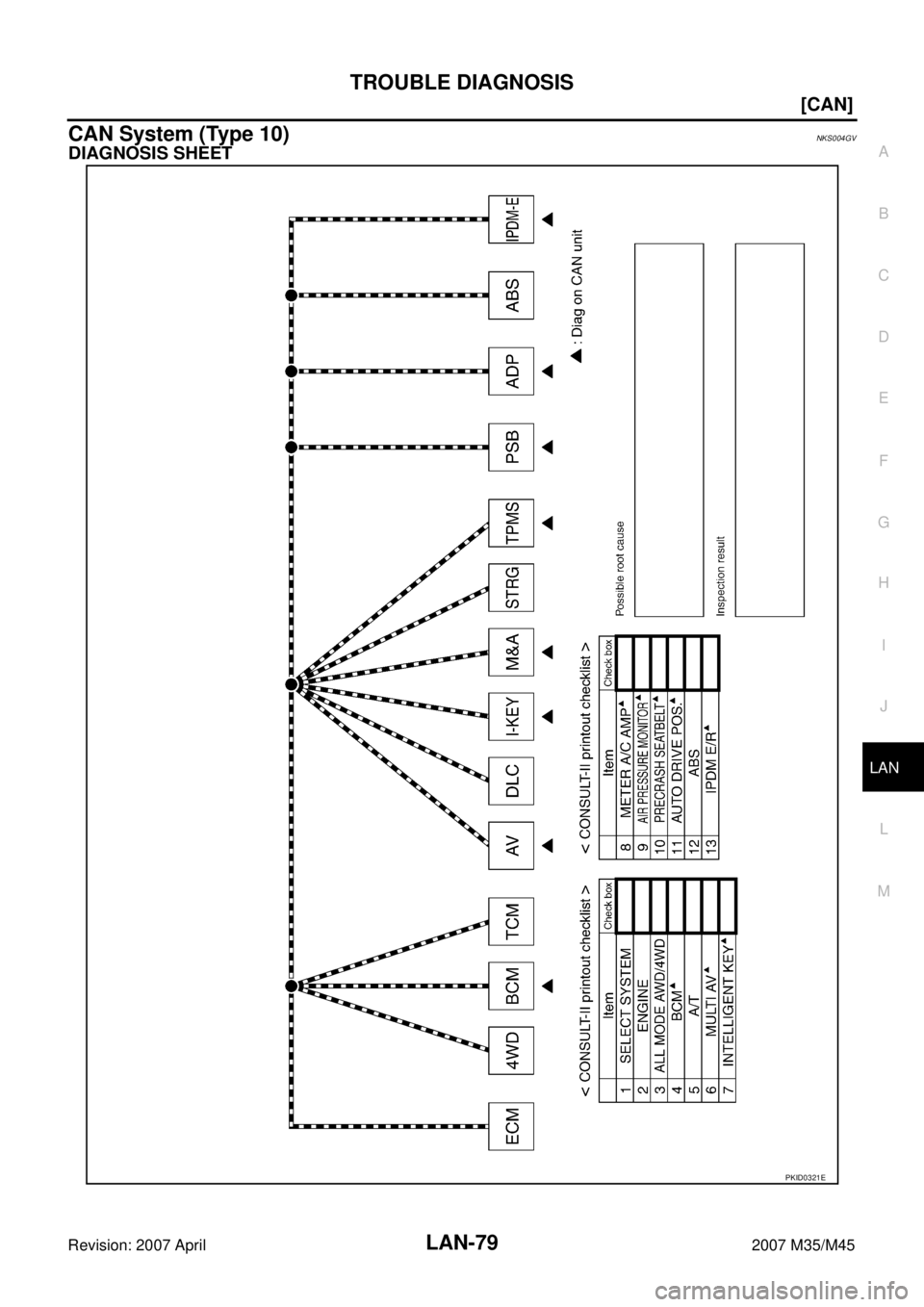

CAN System (Type 8)NKS004GT
DIAGNOSIS SHEET
PKID0321E

LAN-78
[CAN]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45

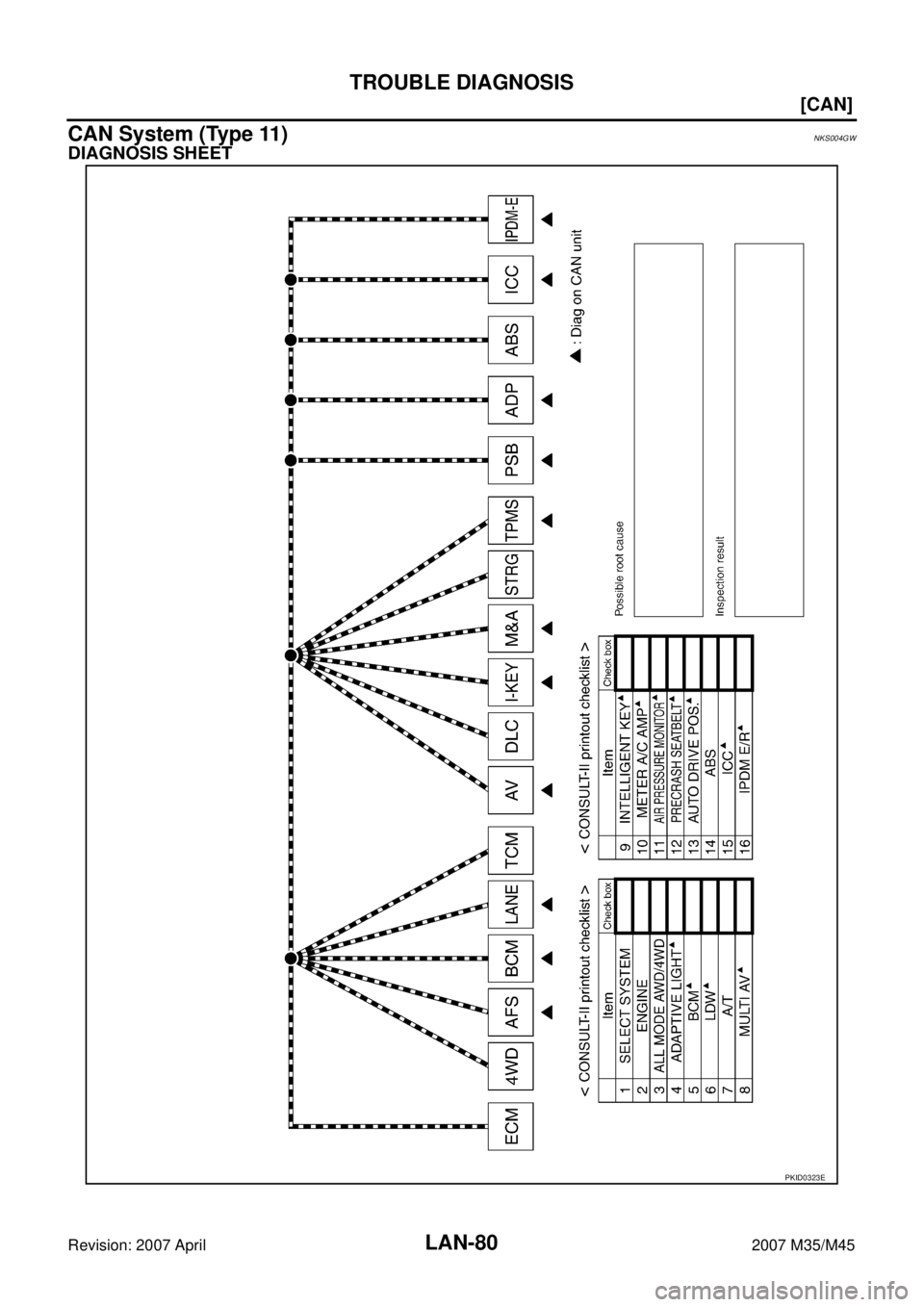

CAN System (Type 9)NKS004GU
DIAGNOSIS SHEET
PKID0322E

TROUBLE DIAGNOSIS
LAN-79
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2007 April2007 M35/M45
CAN System (Type 10)NKS004GV
DIAGNOSIS SHEET
PKID0321E

LAN-80
[CAN]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45

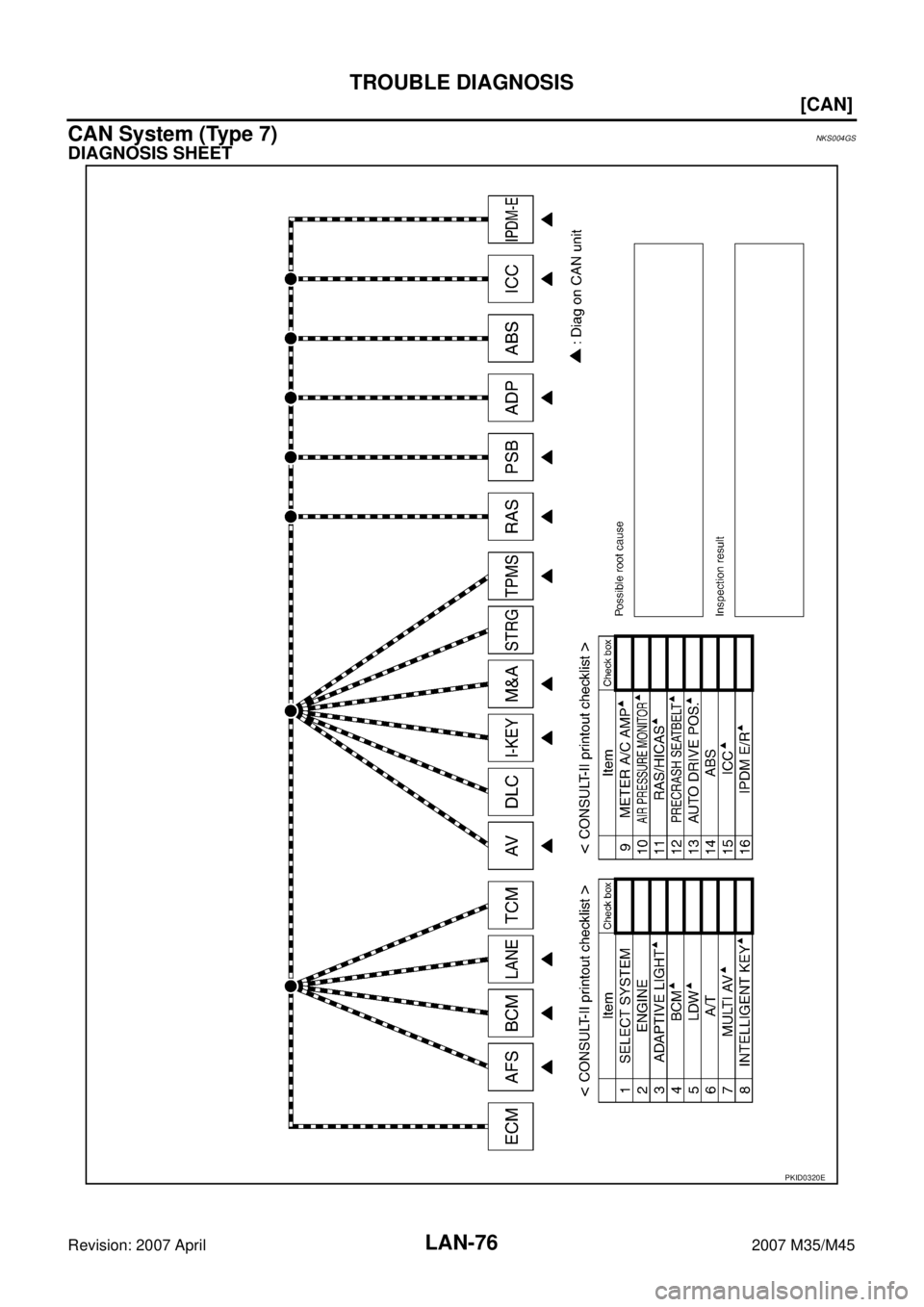

CAN System (Type 11)NKS004GW
DIAGNOSIS SHEET
PKID0323E

TROUBLE DIAGNOSIS
LAN-81
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2007 April2007 M35/M45
Component Parts LocationNKS004G4
Harness LayoutNKS004G5
Refer to PG-62, "Harness Layout" .
1. AWD control unit F109 2. AFS control unit F110 3. IPDM E/R E9
4. BCM M1 5. NAVI control unit M210: With
navigation system
AV control unit M210: Without
navigation system6. Unified meter and A/C amp. M65
7. ICC sensor integrated unit E61 8. ABS actuator and electric unit
(control unit) E309. Intelligent Key unit M32
10. Data link connector M60 11. Low tire pressure warning con-
trol unit M1912. Driver seat control unit B204
13. Steering angle sensor M47 14. TCM F42 15. Pre-crash seat belt control unit
B142
16. RAS control unit B476 17. LDW camera unit M182 18. ECM M71
PKID0344E

LAN-82
[CAN]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
Malfunction Area ChartNKS004G6
MAIN LINE
BRANCH LINE
SHORT CIRCUIT
Malfunction Area Reference
Main line between TCM and data link connectorLAN-83, "
Main Line Between TCM and Data Link Connector"
Main line between data link connector and pre-crash seat belt
control unitLAN-84, "Main Line Between Data Link Connector and Pre-
crash Seat Belt Control Unit"
Main line between data link connector and RAS control unitLAN-85, "Main Line Between Data Link Connector and RAS
Control Unit"
Main line between RAS control unit and pre-crash seat belt con-
trol unitLAN-86, "Main Line Between RAS Control Unit and Pre-crash
Seat Belt Control Unit"
Main line between pre-crash seat belt control unit and driver
seat control unitLAN-87, "Main Line Between Pre-crash Seat Belt Control Unit
and Driver Seat Control Unit"
Main line between driver seat control unit and ABS actuator and
electric unit (control unit)LAN-88, "Main Line Between Driver Seat Control Unit and ABS
Actuator and Electric Unit (Control Unit)"
Main line between ABS actuator and electric unit (control unit)
and ICC sensor integrated unitLAN-89, "Main Line Between ABS Actuator and Electric Unit
(Control Unit) and ICC Sensor Integrated Unit"
Malfunction Area Reference
ECM branch line circuitLAN-89, "
ECM Branch Line Circuit"
AWD control unit branch line circuitLAN-90, "AWD Control Unit Branch Line Circuit"
AFS control unit branch line circuitLAN-91, "AFS Control Unit Branch Line Circuit"
BCM branch line circuitLAN-91, "BCM Branch Line Circuit"
LDW camera unit branch line circuitLAN-92, "LDW Camera Unit Branch Line Circuit"
TCM branch line circuitLAN-93, "TCM Branch Line Circuit"
NAVI control unit branch line circuitLAN-93, "NAVI Control Unit Branch Line Circuit"
AV control unit branch line circuitLAN-94, "AV Control Unit Branch Line Circuit"
Data link connector branch line circuitLAN-95, "Data Link Connector Branch Line Circuit"
Intelligent Key unit branch line circuitLAN-95, "Intelligent Key Unit Branch Line Circuit"
Unified meter and A/C amp. branch line circuitLAN-96, "Unified Meter and A/C Amp. Branch Line Circuit"
Steering angle sensor branch line circuitLAN-97, "Steering Angle Sensor Branch Line Circuit"
Low tire pressure warning control unit branch line circuitLAN-97, "Low Tire Pressure Warning Control Unit Branch Line
Circuit"
RAS control unit branch line circuitLAN-98, "RAS Control Unit Branch Line Circuit"
Pre-crash seat belt control unit branch line circuitLAN-99, "Pre-Crash Seat Belt Control Unit Branch Line Circuit"
Driver seat control unit branch line circuitLAN-99, "Driver Seat Control Unit Branch Line Circuit"
ABS actuator and electric unit (control unit) branch line circuitLAN-100, "ABS Actuator and Electric Unit (Control Unit) Branch
Line Circuit"
ICC sensor integrated unit branch line circuitLAN-101, "ICC Sensor Integrated Unit Branch Line Circuit"
IPDM E/R branch line circuitLAN-101, "IPDM E/R Branch Line Circuit"
Malfunction Area Reference
CAN communication circuitLAN-102, "
CAN Communication Circuit"

TROUBLE DIAGNOSIS
LAN-83
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2007 April2007 M35/M45
Main Line Between TCM and Data Link ConnectorNKS004G7
INSPECTION PROCEDURE
1. CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check the following terminals and connectors for damage, bend and loose connection (connector side
and harness side).
–Harness connector M61
–Harness connector M62
OK or NG
OK >> GO TO 2.
NG >> Repair the terminal and connector.
2. CHECK HARNESS CONTINUITY (OPEN CIRCUIT)
1. Disconnect the following harness connectors.
–Harness connectors F102 and M72
–Harness connectors M61 and M62
2. Check the continuity between harness connectors.
OK or NG
OK >> GO TO 3.
NG >> Repair the main line between the harness connector M72 and M61.
3. CHECK HARNESS CONTINUITY (OPEN CIRCUIT)
Check the continuity between the harness connector and the data link connector.
OK or NG
OK >>
Present error: Check the following items again.
–Decision of CAN system type.
–Not received CONSULT-II data (SELECT SYSTEM, SELF-DIAG RESULTS, CAN DIAG SUP-
PORT MNTR).
–Procedure for detecting root cause.

Past error: Error was detected in the main line between the TCM and the data link connector.
NG >> Repair the main line between the harness connector M62 and the data link connector.
Harness connector Harness connector
Continuity
Connector No. Terminal No. Connector No. Terminal No.
M7243H
M611Yes
42H 2 Yes
Harness connector Data link connector
Continuity
Connector No. Terminal No. Connector No. Terminal No.
M621
M606Yes
214Yes
