DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
Revision: 2007 April2007 M35/M45
5. CHECK FPCM GROUND CIRCUIT-II FOR OPEN AND SHORT
1. Disconnect “fuel level sensor unit and fuel pump” harness con-
nector (1).
–Illustration shows the view with rear seat cushion and inspection
hole cover (RH) removed.
–: Vehicle front
2. Disconnect dropping resistor harness connector.
3. Check harness continuity between the following;
“fuel level sensor unit and fuel pump” terminal 3 and dropping resistor terminal 2,
FPCM terminal 4 and dropping resister terminal 2.
Refer to Wiring Diagram.
4. Check harness continuity between the following;
“fuel level sensor and fuel pump” terminal 3 and ground,
FPCM terminal 4 and ground.
Refer to Wiring Diagram.
5. Also check harness for short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors B434, B65

Harness for open or short between “fuel level sensor unit and fuel pump” and dropping resistor

Harness for open or short between FPCM and dropping resistor

Harness for open or short between “fuel level sensor unit and fuel pump” and ground

Harness for open or short between FPCM and ground
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2706E
: Vehicle front 1. FPCM 2. Dropping resistor
Continuity should exist.
Continuity should not exist.
PBIB2708E

DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
EC-1231
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
7. CHECK FPCM INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 38 and FPCM terminal 4.
Refer to Wiring Diagram.
3. Check harness continuity between ECM terminal 38 and ground.
Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors B2, M13

Harness connectors M72, F102

Harness for open or short between ECM and FPCM
>> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK FPCM OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 39 and FPCM terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors B2, M13

Harness connectors M72, F102

Harness for open or short between ECM and FPCM
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK FPCM
Refer to EC-1232, "
Component Inspection" .
OK or NG
OK >> GO TO 12.
NG >> Replace FPCM.Continuity should exist.
Continuity should not exist.
Continuity should exist.

DTC P1550 BATTERY CURRENT SENSOR
EC-1239
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

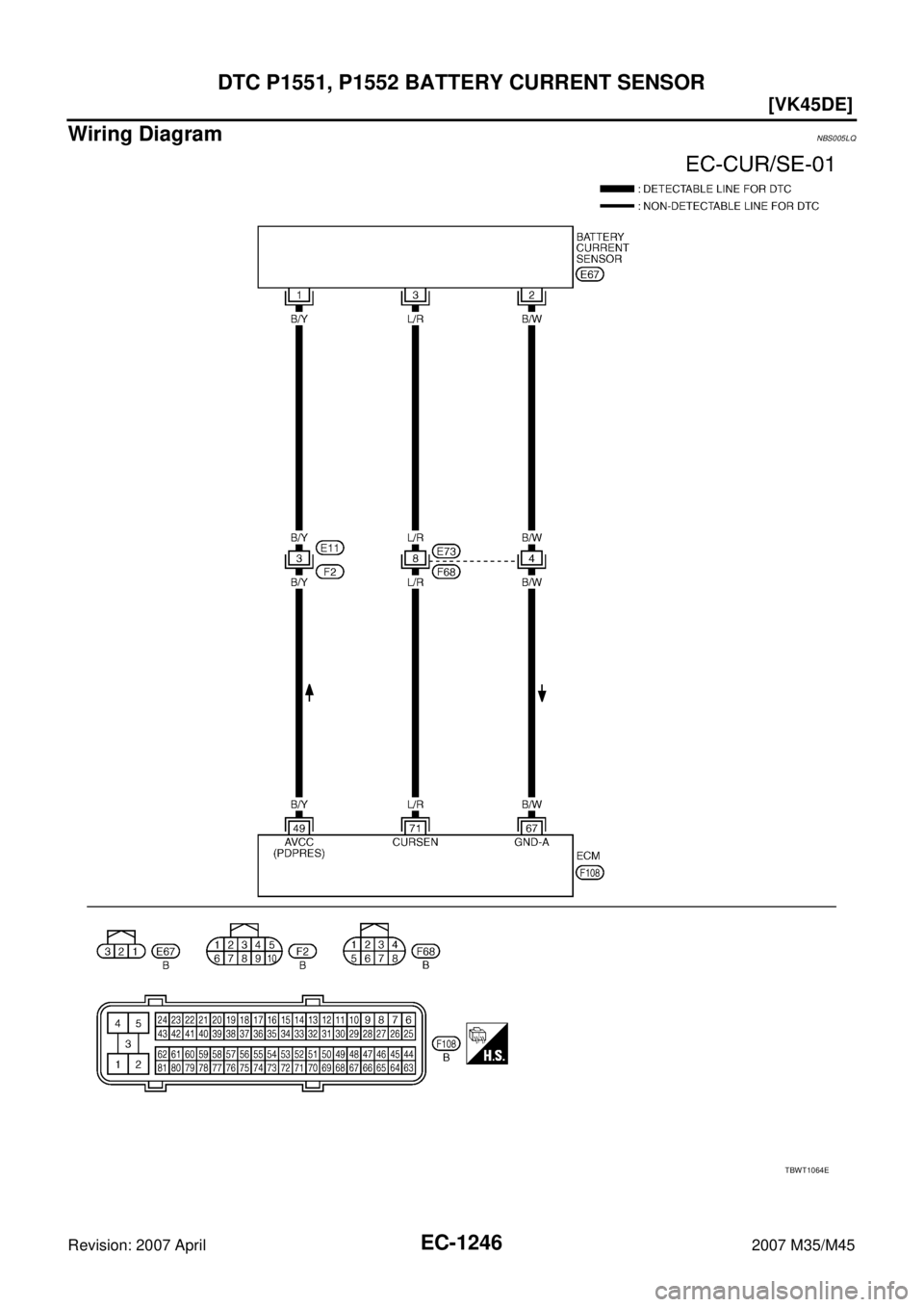

Wiring DiagramNBS005LJ
TBWT1064E

DTC P1550 BATTERY CURRENT SENSOR
EC-1241
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
2. CHECK BATTERY CURRENT SENSOR POWER SUPPLY CIRCUIT
1. Disconnect battery current sensor (1) harness connector.
2. Turn ignition switch ON.
3. Check voltage between battery current sensor terminal 1 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E11, F2

Harness for open or short between battery current sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK BATTERY CURRENT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between battery current sensor terminal 2 and ECM terminal 67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E73, F68

Harness for open or short between battery current sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2685E
Voltage: Approximately 5V
PBIA9891J
Continuity should exist.

EC-1242
[VK45DE]
DTC P1550 BATTERY CURRENT SENSOR
Revision: 2007 April2007 M35/M45
6. CHECK BATTERY CURRENT SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between battery current sensor terminal 3 and ECM terminal 71.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E73, F68

Harness for open or short between battery current sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK BATTERY CURRENT SENSOR
Refer to EC-1242, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Replace battery negative cable assembly.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-857, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionNBS005LL
BATTERY CURRENT SENSOR
1. Reconnect harness connectors disconnected.
2. Disconnect battery negative cable (1).

: To body ground
3. Install jumper cable A between battery negative terminal and
body ground.
4. Turn ignition switch ON.Continuity should exist.
PBIB2724E

EC-1246
[VK45DE]
DTC P1551, P1552 BATTERY CURRENT SENSOR
Revision: 2007 April2007 M35/M45
Wiring DiagramNBS005LQ
TBWT1064E

EC-1248
[VK45DE]
DTC P1551, P1552 BATTERY CURRENT SENSOR
Revision: 2007 April2007 M35/M45
2. CHECK BATTERY CURRENT SENSOR POWER SUPPLY CIRCUIT
1. Disconnect battery current sensor (1) harness connector.
2. Turn ignition switch ON.
3. Check voltage between battery current sensor terminal 1 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E11, F2

Harness for open or short between battery current sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK BATTERY CURRENT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between battery current sensor terminal 2 and ECM terminal 67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E73, F68

Harness for open or short between battery current sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2685E
Voltage: Approximately 5V
PBIA9891J
Continuity should exist.

DTC P1551, P1552 BATTERY CURRENT SENSOR
EC-1249
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
6. CHECK BATTERY CURRENT SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between battery current sensor terminal 3 and ECM terminal 71.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E73, F68

Harness for open or short between battery current sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK BATTERY CURRENT SENSOR
Refer to EC-1249, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Replace battery negative cable assembly.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-857, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionNBS005LS
BATTERY CURRENT SENSOR
1. Reconnect harness connectors disconnected.
2. Disconnect battery negative cable (1).

: To body ground
3. Install jumper cable A between battery negative terminal and
body ground.
4. Turn ignition switch ON.Continuity should exist.
PBIB2724E

DTC P1553 BATTERY CURRENT SENSOR
EC-1253
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Wiring DiagramNBS005LX
TBWT1064E

DTC P1553 BATTERY CURRENT SENSOR
EC-1255
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
2. CHECK BATTERY CURRENT SENSOR POWER SUPPLY CIRCUIT
1. Disconnect battery current sensor (1) harness connector.
2. Turn ignition switch ON.
3. Check voltage between battery current sensor terminal 1 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E11, F2

Harness for open or short between battery current sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK BATTERY CURRENT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between battery current sensor terminal 2 and ECM terminal 67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E73, F68

Harness for open or short between battery current sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2685E
Voltage: Approximately 5V
PBIA9891J
Continuity should exist.
