wiring INFINITI M35 2007 Factory Service Manual

INTERIOR ROOM LAMP
LT-273
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45

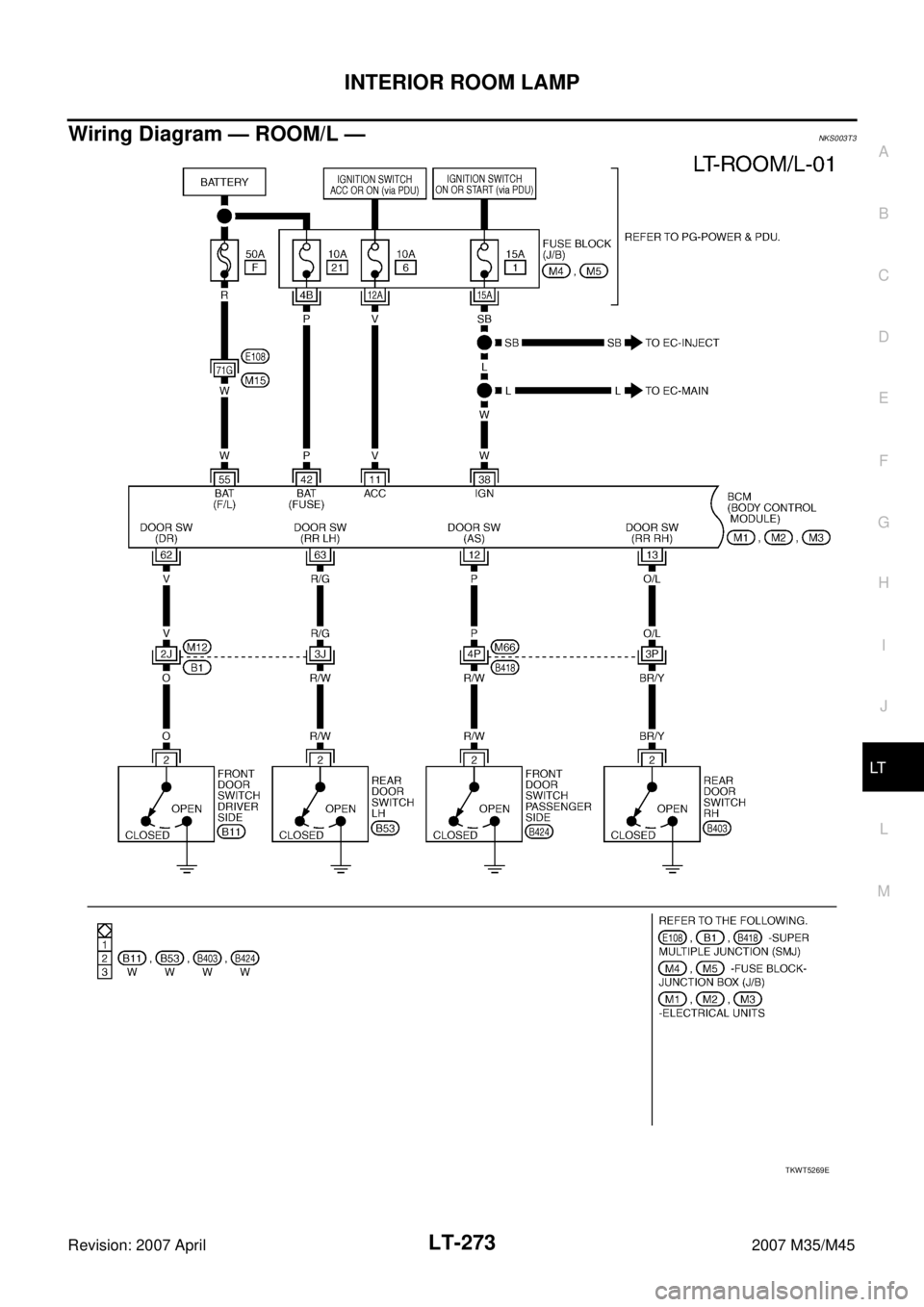

Wiring Diagram — ROOM/L —NKS003T3
TKWT5269E

LT-282
INTERIOR ROOM LAMP
Revision: 2007 April2007 M35/M45
Preliminary CheckNKS003T6
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES AND FUSIBLE LINK
Check for blown fuses and fusible link.
Refer to LT-273, "Wiring Diagram — ROOM/L —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse
or fusible link. Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
Unit Power source Fuse or fusible link No.
BCMBatteryF
21
Ignition switch ON or START position 1
Ignition switch ACC or ON position 6
Key slot Battery 22
Terminal Ignition switch position
(+)
(−)OFFACCON
BCM
connectorTerminal
M111
GroundApprox.
0VBattery
voltageBattery
voltage
38Approx.
0VApprox.
0VBattery
voltage
M242Battery
voltageBattery
voltageBattery
voltage
55Battery
voltageBattery
voltageBattery
voltage
PKIA5204E
BCM connector Terminal
GroundContinuity
M2 52 Yes
SKIB5125E

ILLUMINATION
LT-295
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45

to door mirror remote control switch (illumination) terminal 15

to AFS switch (illumination) terminal 6 (with AFS)

to rear sunshade front switch (illumination) terminal 6 (with rear control switch)

to A/T illumination terminal 2

to snow mode switch (illumination) terminal 6 (ADW models)

to rear control cancel switch (illumination) terminal 5 (with rear control switch)

to clock terminal 4

to multifunction switch terminal 4

to audio unit terminal 8

to DVD player terminal 17 (With DVD player)

to climate controlled seat switch driver side (illumination) terminal 8 (with climate controlled seat) and

to climate controlled seat switch passenger side (illumination) terminal 8 (with climate controlled seat)

through illumination control switch terminal 2

to illumination control switch terminal 3

through grounds M16 and M70,

to cigarette lighter socket (illumination) terminal 1

to map lamp (illumination) terminal 4

to power window main switch illumination terminal 2 and

to glove box lamp terminal 2

through grounds M16 and M70,

to ashtray illumination (rear RH) terminal 2

through grounds B402, B405,

to ashtray illumination (rear LH) terminal 2

to automatic return cancel switch (illumination) terminal 2 (With rear control switch)

to rear power seat switch LH (illumination) terminal 3 (With rear control switch)

to rear heated seat switch LH (illumination) terminal 8 (With rear control switch)

through grounds B5, B40 and B131,

through rear sunshade cancel relay terminal 7(With rear control switch)

to rear sunshade rear switch (illumination) terminal 7 (With rear control switch)

through grounds B5, B40, B131 and B559.

to rear control switch terminal 4

to rear power seat switch RH (illumination) terminal 3 (With rear control switch)

to rear heated seat switch RH (illumination) terminal 8 (With rear control switch)

through grounds B5, B40, B131 and B559.
With power and ground supplied, illumination lamps illuminate.
EXTERIOR LAMP BATTERY SAVER CONTROL
BCM activates the exterior lamp battery saver control function and turns off the exterior lamps to prevent bat-
tery from over discharge when the combination switch (lighting switch) is in 1ST or 2ND position and/or the
front fog lamp switch ON and the door lock operation is performed by keyless entry system.
CAN Communication System DescriptionNKS003TI
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNKS003TJ
Refer to LAN-50, "CAN System Specification Chart" .

LT-298
ILLUMINATION
Revision: 2007 April2007 M35/M45
Wiring Diagram — ILL —NKS003TL
TKWT5073E

PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION PG
A
B
PG
Revision: 2007 April2007 M35/M45
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
POWER SUPPLY ROUTING CIRCUIT ...................... 3
Schematic ................................................................ 3
Wiring Diagram — POWER — ................................. 5
BATTERY POWER SUPPLY — IGNITION SW.
IN ANY POSITION ................................................ 5
ACCESSORY POWER SUPPLY — IGNITION
SW. IN “ACC” OR “ON” ........................................ 11
IGNITION POWER SUPPLY — IGNITION SW.
IN “ON” AND/OR “START” .................................. 12
Fuse ....................................................................... 17
Fusible Link ............................................................ 17
Circuit Breaker ....................................................... 17
IPDM E/R (INTELLIGENT POWER DISTRIBUTION
MODULE ENGINE ROOM) ...................................... 18
System Description ................................................ 18
SYSTEMS CONTROLLED BY IPDM E/R ........... 18
CAN COMMUNICATION LINE CONTROL ......... 18
IPDM E/R STATUS CONTROL ........................... 19
CAN Communication System Description .............. 19
CAN Communication Unit ...................................... 19
Function of Detecting Ignition Relay Malfunction ... 19
CONSULT-II Function (IPDM E/R) ......................... 20
CONSULT-II BASIC OPERATION ....................... 20
SELF-DIAG RESULTS ........................................ 20
DATA MONITOR ................................................. 21
CAN DIAG SUPPORT MNTR ............................. 22
ACTIVE TEST ..................................................... 22
Auto Active Test ..................................................... 23
DESCRIPTION .................................................... 23
OPERATION PROCEDURE ............................... 23
INSPECTION IN AUTO ACTIVE TEST MODE ... 24
Schematic .............................................................. 27
IPDM E/R Terminal Arrangement ........................... 28
Check IPDM E/R Power Supply and Ground Circuit ... 29
Inspection with CONSULT-II (Self-Diagnosis) ........ 30
Removal and Installation of IPDM E/R ................... 31
REMOVAL ........................................................... 31
INSTALLATION ................................................... 31
PDU (POWER DISTRIBUTION UNIT) ...................... 32
Component Parts and Harness Connector Location ... 32System Description ................................................. 32
PUSH-BUTTON IGNITION SWITCH OPERAT-
ING PROCEDURE .............................................. 32
Wiring Diagram — PDU — ..................................... 34
Terminals and Reference Value for Intelligent Key
Unit ......................................................................... 36
Terminals and Reference Value for PDU ................ 37
Work Flow ............................................................... 37
Trouble Diagnosis Symptom Chart ......................... 38
Check CAN Communication System ...................... 38
Check PDU Power Supply and Ground Circuit ...... 39
Check Push-Button Ignition Switch (Ignition Switch)
System .................................................................... 39
Check Push-Button Ignition Switch (Indicator Cir-
cuit) System ............................................................ 41
PDU Communication Circuit System 1 ................... 42
PDU Communication Circuit System 2 ................... 43
Removal and Installation of PDU ............................ 44
REMOVAL ........................................................... 44
INSTALLATION ................................................... 44
GROUND ................................................................... 45
Ground Distribution ................................................. 45
MAIN HARNESS ................................................. 45
ENGINE ROOM HARNESS ................................ 50
ENGINE CONTROL HARNESS/VQ ENGINE
MODELS ............................................................. 54
ENGINE CONTROL HARNESS/VK ENGINE
MODELS ............................................................. 55
BODY HARNESS ................................................ 56
BODY NO. 2 HARNESS ..................................... 60
HARNESS ................................................................. 62
Harness Layout ...................................................... 62
HOW TO READ HARNESS LAYOUT ................. 62
OUTLINE ............................................................. 63
MAIN HARNESS ................................................. 64
NAVIGATION SUB-HARNESS & A/C HARNESS ... 69
ENGINE ROOM HARNESS ................................ 70
ENGINE CONTROL HARNESS (VQ ENGINE) ... 77
ENGINE CONTROL HARNESS (VK ENGINE) ... 80
BODY HARNESS ................................................ 83

PG-2Revision: 2007 April2007 M35/M45 BODY NO. 2 HARNESS ...................................... 87
TAIL HARNESS ................................................... 91
ROOM LAMP HARNESS .................................... 92
FRONT DOOR HARNESS .................................. 93
REAR DOOR HARNESS .................................... 94
Wiring Diagram Codes (Cell Codes) ....................... 95
ELECTRICAL UNITS LOCATION ............................. 98
Electrical Units Location ......................................... 98
ENGINE COMPARTMENT .................................. 98
PASSENGER COMPARTMENT ........................100
LUGGAGE COMPARTMENT ............................103
HARNESS CONNECTOR .......................................104
Description ............................................................104
HARNESS CONNECTOR (TAB-LOCKING
TYPE) ................................................................104
HARNESS CONNECTOR (SLIDE-LOCKING TYPE) ................................................................105
HARNESS CONNECTOR (LEVER LOCKING
TYPE) ................................................................106
ELECTRICAL UNITS ..............................................107
Terminal Arrangement ...........................................107
SMJ (SUPER MULTIPLE JUNCTION) ....................109
Terminal Arrangement ...........................................109
STANDARDIZED RELAY ........................................112
Description ............................................................112
NORMAL OPEN, NORMAL CLOSED AND
MIXED TYPE RELAYS ......................................112
TYPE OF STANDARDIZED RELAYS ................112
FUSE BLOCK - JUNCTION BOX (J/B) ..................114
Terminal Arrangement ...........................................114
FUSE, FUSIBLE LINK AND RELAY BOX ..............115
Terminal Arrangement ...........................................115

POWER SUPPLY ROUTING CIRCUIT
PG-5
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2007 April2007 M35/M45

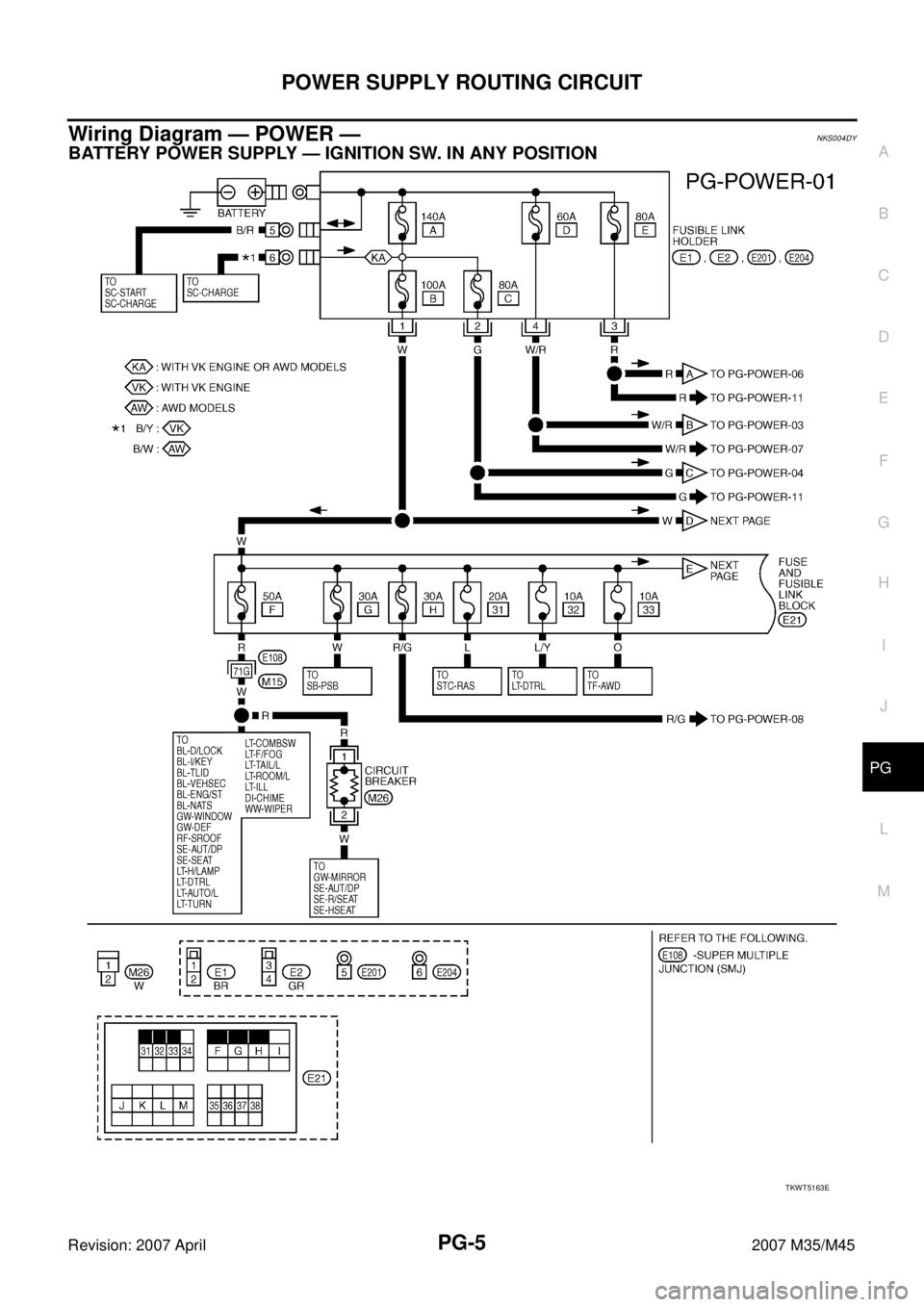

Wiring Diagram — POWER —NKS004DY
BATTERY POWER SUPPLY — IGNITION SW. IN ANY POSITION
TKWT5163E

POWER SUPPLY ROUTING CIRCUIT
PG-17
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2007 April2007 M35/M45
Fuse NKS004DZ

If fuse is blown, be sure to eliminate cause of malfunction before
installing new fuse.

Use fuse of specified rating. Never use fuse of more than speci-
fied rating.

Do not partially install fuse; always insert it into fuse holder prop-
erly.

Remove fuse for “ELECTRICAL PARTS (BAT)” if vehicle is not
used for a long period of time.
Fusible Link NKS004E0
A melted fusible link can be detected either by visual inspection or by
feeling with finger tip. If its condition is questionable, use circuit
tester or test lamp.
CAUTION:

If fusible link should melt, it is possible that critical circuit
(power supply or large current carrying circuit) is shorted.
In such a case, carefully check and eliminate cause of mal-
function.

Never wrap outside of fusible link with vinyl tape. Important:
Never let fusible link touch any other wiring harness, vinyl
or rubber parts.
Circuit Breaker NKS004E1
The PTC thermistor generates heat in response to current flow. The
temperature (and resistance) of the thermistor element varies with
current flow. Excessive current flow will cause the element's temper-
ature to rise. When the temperature reaches a specified level, the
electrical resistance will rise sharply to control the circuit current.
Reduced current flow will cause the element to cool. Resistance falls
accordingly and normal circuit current flow is allowed to resume.
CEL083
CKIT0163E
SEL109W

PG-18
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
Revision: 2007 April2007 M35/M45
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PFP:284B7
System DescriptionNKS004E2

IPDM E/R (Intelligent Power Distribution Module Engine Room) integrates the relay box and fuse block
which were originally placed in engine compartment. It controls integrated relay via IPDM E/R control cir-
cuit.

IPDM E/R-integrated control circuit performs ON-OFF operation of relay, CAN communication control and
oil pressure switch signal reception, etc.

It controls operation of each electrical part via ECM, BCM and CAN communication lines.
CAUTION:
None of the IPDM E/R-integrated relays can be removed.
SYSTEMS CONTROLLED BY IPDM E/R
1. Lamp control
Using CAN communication, it receives signal from BCM and controls the following lamps:

Headlamps (HI, LO)

Tail, parking and license plate lamps

Front fog lamps
2. Daytime light relay control (for Canada models)
Using CAN communication, it receives signals from BCM and controls the daytime light relay.
3. Wiper control
Using CAN communication, it receives signals from BCM and controls the front wipers.
4. Rear window defogger relay control
Using CAN communication, it receives signals from BCM and controls the rear window defogger relay.
5. A/C compressor control
Using CAN communication, it receives signals from ECM and controls the A/C relay.
6. Cooling fan control
Using CAN communication, it receives signals from ECM and controls cooling fan via cooling fan control
module.
7. Horn control
Using CAN communication, it receives signals from BCM and controls horn relay.
8. Starter motor relay control
Using CAN communication, it receives signals from BCM and controls starter motor relay.
9. Alternator control
Using CAN communication, it receives signal from ECM and controls power generation voltage.
CAN COMMUNICATION LINE CONTROL
With CAN communication, by connecting each control unit using two communication lines (CAN L-line, CAN
H-line), it is possible to transmit maximum amount of information with minimum wiring. Each control unit can
transmit and receive data, and reads necessary information only.
1. Fail-safe control

When CAN communication with other control units is impossible, IPDM E/R performs fail-safe control.
After CAN communication recovers normally, it also returns to normal control.

Operation of control parts by IPDM E/R during fail-safe mode is as follows:
Controlled system Fail-safe mode
Headlamps

With the ignition switch ON, the headlamp low relay is ON.

With the ignition switch OFF, the headlamp low relay is OFF.
Tail, parking and
license plate lamps

With the ignition switch ON, the tail lamp relay is ON.

With the ignition switch OFF, the tail lamp relay is OFF.
Cooling fan

With the ignition switch ON, the cooling fan HI operates.

With the ignition switch OFF, the cooling fan stops.
Front wiperUntil the ignition switch is turned off, the front wiper LO and HI remains in the same status it was in just
before fail−safe control was initiated.

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PG-19
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2007 April2007 M35/M45
IPDM E/R STATUS CONTROL
In order to save power, IPDM E/R switches status by itself based on each operating condition.
1. CAN communication status

CAN communication is normally performed with other control units.

Individual unit control by IPDM E/R is normally performed.

When sleep request signal is received from BCM, mode is switched to sleep transient status.
2. Sleep transient status

Process to stop CAN communication is activated.

All systems controlled by IPDM E/R are stopped. When 3 seconds have elapsed after CAN communi-
cation with other control units is stopped, mode switches to sleep status.
3. Sleep status

IPDM E/R operates in low power mode.

CAN communication is stopped.

When a change in CAN communication line is detected, mode switches to CAN communication status.

When a change hood switch or ignition switch signal is detected, mode switches to CAN communica-
tion status.
CAN Communication System DescriptionNKS004E3
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Modern
vehicles are equipped with many electronic control units and each control unit shares information and links
with other control units during operation (not independent). In CAN communication, control units are con-
nected with 2 communication lines (CAN H line, CAN L line) allowing a high rate of information transmission
with less wiring. Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNKS004E4
Refer to LAN-50, "CAN System Specification Chart" .
Function of Detecting Ignition Relay MalfunctionNKS004E5

When contact point of integrated ignition relay is stuck and cannot be turned OFF, IPDM E/R turns ON tail
and parking lamps for 10 minutes to indicate ignition relay malfunction.

When a state of ignition relay having built-in does not agree with a state of Ignition switch signal input by a
CAN communication from BCM, IPDM E/R lets tail lamp relay operate.
NOTE:
When the ignition switch is turned ON, the tail lamps are OFF.
Rear window defogger Rear window defogger relay OFF
A/C compressor A/C relay OFF
Front fog lamps Front fog lamp relay OFF Controlled system Fail-safe mode
Ignition switch signal Ignition relay status Tail lamp relay
ON ON —
OFF OFF —
ON OFF —
OFF ON ON (10 minutes)
