INFINITI M35 2007  Factory Manual Online LT-192
ACTIVE AFS
Revision: 2007 April2007 M35/M45
Removal and Installation of AFS Control UnitNKS003QZ
REMOVAL
1. Remove dash side finisher RH. Refer to EI-37, "BODY SIDE TRIM" .
2. Remove screw (A).

Page 3681 of 4647

INFINITI M35 2007  Factory Manual Online LT-230
LIGHTING AND TURN SIGNAL SWITCH
Revision: 2007 April2007 M35/M45
LIGHTING AND TURN SIGNAL SWITCHPFP:25540
Removal and InstallationNKS003S2
REMOVAL
1. Remove steering column lower cover. Refer t

Page 3762 of 4647

INFINITI M35 2007  Factory Manual Online ILLUMINATION
LT-311
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
Glove Box LampNKS003TM
BULB REPLACEMENT, REMOVAL AND INSTALLATION
Removal
1. Remove glove box cover. Refer to IP-10, "INS

Page 3846 of 4647

INFINITI M35 2007  Factory Manual Online PARKING BRAKE CONTROL
PB-5
C
D
E
G
H
I
J
K
L
MA
B
PB
Revision: 2007 April2007 M35/M45
Removal and InstallationNFS000SU
REMOVAL
1. Release parking brake.
2. Remove rear tires from vehicle with power to

Page 3913 of 4647

INFINITI M35 2007  Factory Manual Online PG-62
HARNESS
Revision: 2007 April2007 M35/M45
HARNESS PFP:00011
Harness Layout NKS004ES
HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate
connectors on the

Page 3915 of 4647

INFINITI M35 2007  Factory Manual Online PG-64
HARNESS
Revision: 2007 April2007 M35/M45

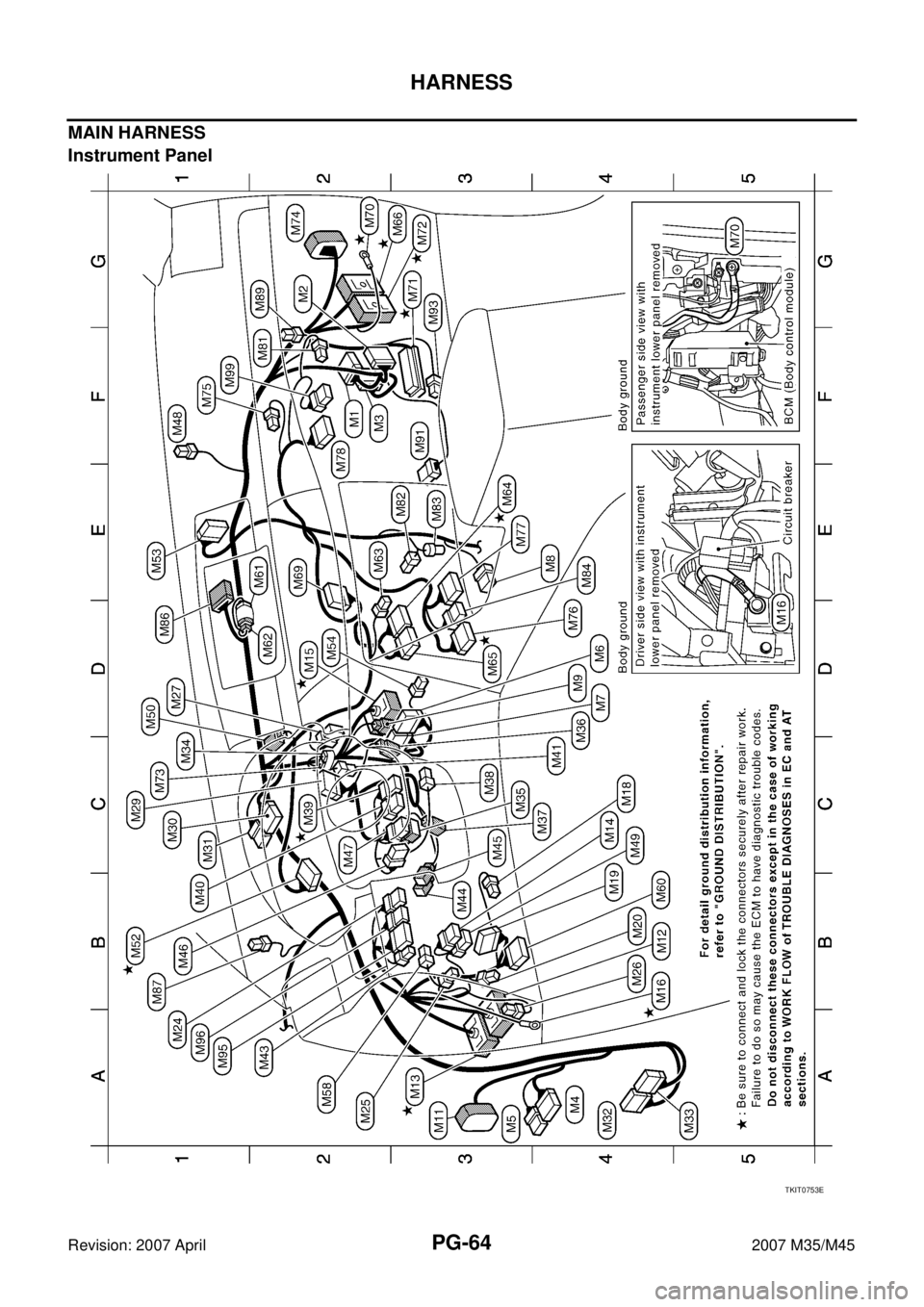

MAIN HARNESS
Instrument Panel
TKIT0753E

Page 3996 of 4647

INFINITI M35 2007  Factory Manual Online STEERING COLUMN
PS-15
C
D
E
F
H
I
J
K
L
MA
B
PS
Revision: 2007 April2007 M35/M45
–Align rear cover cap projection (A) with the marking position (B)
of gear housing assembly.
–Install slit part of

Page 4042 of 4647

INFINITI M35 2007  Factory Manual Online RF-1
ROOF
I  BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION RF
A
B
RF
Revision: 2007 April2007 M35/M45
ROOF
PRECAUTIONS .......................................................... 2
Precautions for Suppleme

Page 4047 of 4647

INFINITI M35 2007  Factory Manual Online RF-6
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: 2007 April2007 M35/M45
INSULATOR (Light foam block)
80845-71L00: 30 mm (1.18 in) thick, 30×50 mm (1.18×1.97 in)
FELT CLOTHTAPE
Used to insulate whe

Page 4128 of 4647

INFINITI M35 2007  Factory Manual Online PRE-CRASH SEAT BELT
SB-3
C
D
E
F
G
I
J
K
L
MA
B
SB
Revision: 2007 April2007 M35/M45
PRE-CRASH SEAT BELTPFP:98845
Component Parts and Harness Connector LocationNHS0007X
System DescriptionNHS0007Y
Pre-
