INFINITI Q50 HYBRID 2014  Dismantling Guide 2-2 High Voltage-Related and 12V-Related Component Locations andDescriptions
NOTE: Components with white number in black background are high voltage components.
5
1
34
6
7
2
AAYIA0181ZZ
DG–11

Page 12 of 54

INFINITI Q50 HYBRID 2014  Dismantling Guide No. Component Location Description� Traction Motor Inverter
Engine compartment
(rear passengerside)Converts the DC power stored in the Li-ion
battery to three-phase AC power and controls
motor torque

Page 13 of 54

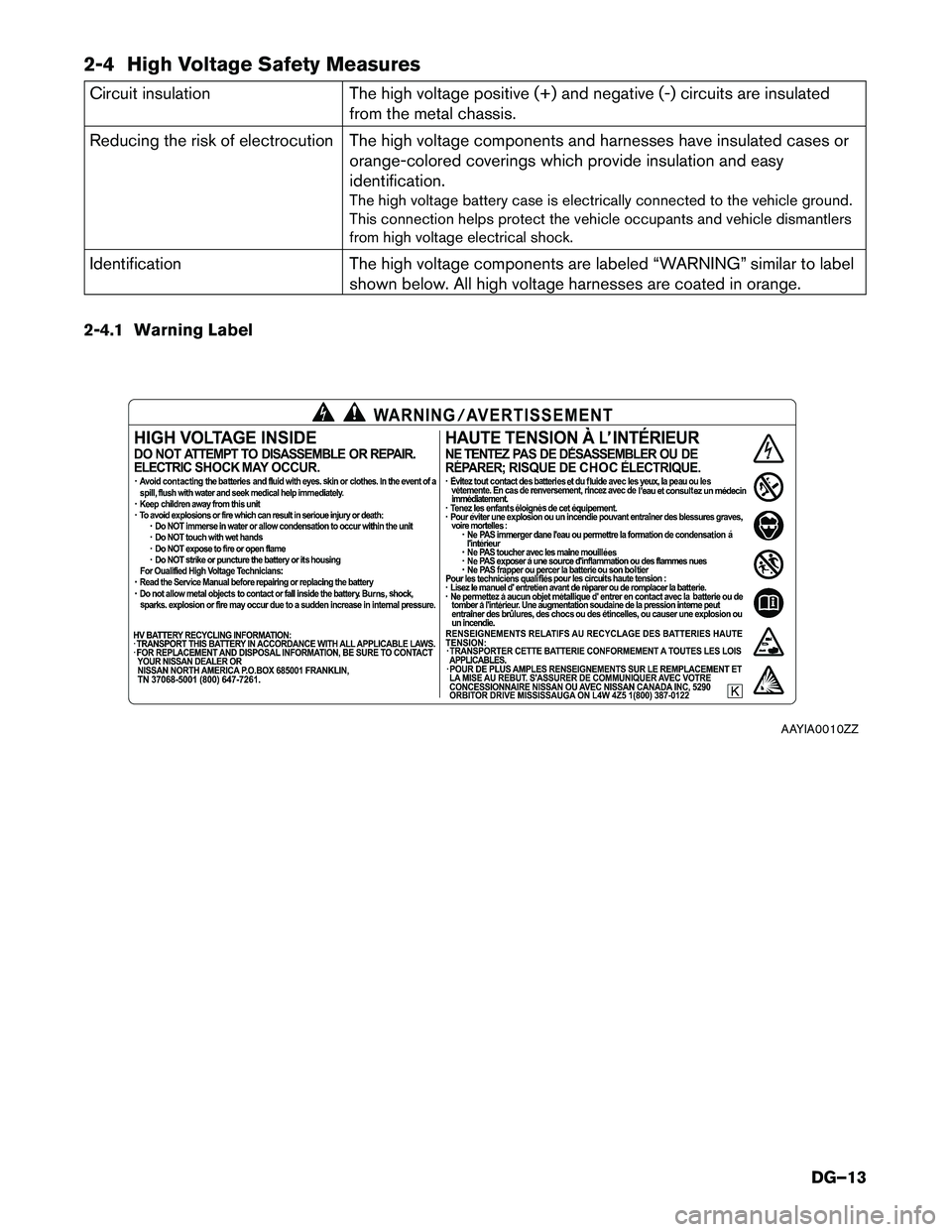

INFINITI Q50 HYBRID 2014  Dismantling Guide 2-4 High Voltage Safety Measures
Circuit insulation The high voltage positive (+) and negative (-) circuits are insulatedfrom the metal chassis.
Reducing the risk of electrocution The high voltage com

Page 14 of 54

INFINITI Q50 HYBRID 2014  Dismantling Guide 2-5 High Voltage Safety System
The high voltage safety system is intended to help keep vehicle occupants and emergency responders safe
from high voltage electricity.• A high voltage fuse provides

Page 15 of 54

INFINITI Q50 HYBRID 2014  Dismantling Guide 2-6 High Voltage Circuit Shut-Off System
This vehicle is equipped with a system to shut off the current from the Li-ion battery by the following methods:
Service plug Positioned in the center area of

Page 16 of 54

INFINITI Q50 HYBRID 2014  Dismantling Guide 3. Preparation for Dismantling
•Failure to properly shut down the high voltage electrical system before the
Dismantling Procedures are performed will result in serious injury or death from
electric

Page 17 of 54

INFINITI Q50 HYBRID 2014  Dismantling Guide 3-1 Preparation Items
Preparation Items Specification Purpose
PPE (personal protective equipment):
Insulated gloves
Up to 1,000V For protection from high voltage
electrical shock
Insulated shoes
–

Page 18 of 54

INFINITI Q50 HYBRID 2014  Dismantling Guide 3-2 Personal Protective Equipment (PPE) and Insulated Tools
3-2.1 Personal Protective Equipment (PPE) Protective Wear Control
Perform an inspection of the Personal Protective Equipment (PPE) items b

Page 19 of 54

INFINITI Q50 HYBRID 2014  Dismantling Guide 6. Remove the shift lock cover (A) using a suitable tool.
7. Push down the shift lock (B) using mechanical keyas shown in the illustration.
8. Push the shift selector button (C) and move the shift se

Page 20 of 54

INFINITI Q50 HYBRID 2014  Dismantling Guide 3-3 How to Handle a Damaged Vehicle
3-3.1 High Voltage System Shut-Down Procedure
Any of the following procedures can shut down the high voltage system. The dismantling operation can only
begin aft
