8-18Maintenance and do-it-yourself
for at least 15 minutes and seek medical
attention.
. The hybrid vehicle uses a special bat-
tery. If the 12-volt battery needs to be
replaced, use a 12-volt battery of the
same design. Using the wrong battery
can cause hydrogen gas to build up in
the vehicle, which could lead to an
explosion and personal injury.
. When working on or near a 12-volt
battery, always wear suitable eye pro-
tection and remove all jewelry.
. Battery posts, terminals and related
accessories contain lead and lead com-
pounds. Wash hands after handling.
. Keep the 12-volt battery out of the reach
of children.
JVM0064M
A: Indicated in blue
B: Indicated in red
C: Indicated in white
CHECKING BATTERY FLUID LEVEL
.*Aindicates that the 12-volt battery is
OK.
.
*Bindicates that the 12-volt battery
replacing is necessary.
.
*Cindicates that the 12-volt battery
charging is necessary.
If it is necessary to replace, contact an
INFINITI retailer.
JUMP STARTING
If jump starting is necessary, see “Jump
starting” (P.6-5). If the INFINITI Direct
Response Hybrid
®System does not start
by jump starting, the 12-volt battery may
have to be replaced. Contact an INFINITI
retailer.

WARNING
Be sure the engine and the ignition switch
are off and that the parking brake is
engaged securely.
CAUTION
Be sure to use the correct socket to remove
the spark plugs. An incorrect socket can
damage the spark plugs.
SDI2020
REPLACING SPARK PLUGS
If replacement is required, see an INFINITI
retailer for servicing.
Iridium-tipped spark plugs
It is not necessary to replace the iridium-
tipped spark plugs as frequently as the
conventional type spark plugs since they
will last much longer. Follow the main-
tenance schedule in“INFINITI Service and
Maintenance Guide” , but do not reuse
them by cleaning or regapping. Always replace spark plugs with recom-
mended or equivalent ones.
Maintenance and do-it-yourself8-19
SPARK PLUGS

8-20Maintenance and do-it-yourself
JVM0254X
Remove the retainers*1as illustrated and
pull out the filter element
*2.
The filter element should not be cleaned
and reused. Replace it according to the
maintenance intervals. See “INFINITI Ser-
vice and Maintenance Guide” for mainte-
nance intervals. When replacing the filter, wipe the inside of the air cleaner housing
and the cover with a damp cloth.
WARNING
.
Operating the engine with the air
cleaner removed can cause you or others
to be burned. The air cleaner not only
cleans the air, it stops flame if the
engine backfires. If it isn’t there, and the
engine backfires, you could be burned.
Do not drive with the air cleaner
removed, and be careful when working
on the engine with the air cleaner
removed.
. Never pour fuel into the throttle body or
attempt to start the engine with the air
cleaner removed. Doing so could result
in serious injury.
AIR CLEANER

CLEANING

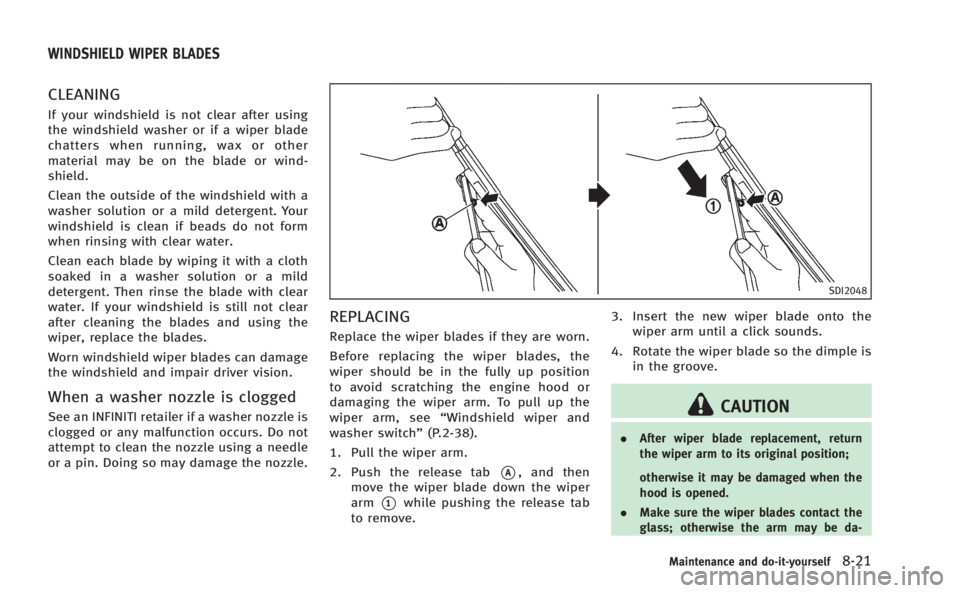

If your windshield is not clear after using
the windshield washer or if a wiper blade
chatters when running, wax or other
material may be on the blade or wind-
shield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your
windshield is clean if beads do not form
when rinsing with clear water.
Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild
detergent. Then rinse the blade with clear
water. If your windshield is still not clear
after cleaning the blades and using the
wiper, replace the blades.
Worn windshield wiper blades can damage
the windshield and impair driver vision.
When a washer nozzle is clogged
See an INFINITI retailer if a washer nozzle is
clogged or any malfunction occurs. Do not
attempt to clean the nozzle using a needle
or a pin. Doing so may damage the nozzle.
SDI2048
REPLACING
Replace the wiper blades if they are worn.
Before replacing the wiper blades, the
wiper should be in the fully up position
to avoid scratching the engine hood or
damaging the wiper arm. To pull up the
wiper arm, see“Windshield wiper and
washer switch” (P.2-38).
1. Pull the wiper arm.
2. Push the release tab
*A, and then
move the wiper blade down the wiper
arm
*1while pushing the release tab
to remove. 3. Insert the new wiper blade onto the
wiper arm until a click sounds.
4. Rotate the wiper blade so the dimple is in the groove.
CAUTION
. After wiper blade replacement, return
the wiper arm to its original position;
otherwise it may be damaged when the
hood is opened.
. Make sure the wiper blades contact the
glass; otherwise the arm may be da-
Maintenance and do-it-yourself8-21
WINDSHIELD WIPER BLADES

8-22Maintenance and do-it-yourself
maged from wind pressure.If the brakes do not operate properly, have
the brakes checked by an INFINITI retailer.
SELF-ADJUSTING BRAKES
Your vehicle is equipped with self-adjust-
ing brakes.
The disc-type brakes self-adjust every time
the brake pedal is applied.
WARNING
See an INFINITI retailer for a brake system
check if the brake pedal height does not
return to normal.
BRAKE PAD WEAR WARNING
The disc brake pads have audible wear
warnings. When a brake pad requires
replacement, it will make a high pitched
scraping sound when the vehicle is in
motion. This scraping sound will first occur
only when the brake pedal is depressed.
After more wear of the brake pad, the
sound will always be heard even if the
brake pedal is not depressed. Have the
brakes checked as soon as possible if the
wear warning sound is heard.
Under some driving or climate conditions,occasional brake squeak, squeal or other
noise may be heard. Occasional brake
noise during light to moderate stops is
normal and does not affect the function or
performance of the brake system.
Proper brake inspection intervals should
be followed.
For additional information,
see the maintenance log section of your
“INFINITI Service and Maintenance Guide”
for maintenance intervals.
BRAKES

JVM0255X
Engine compartment
JVM0322X
Trunk
ENGINE COMPARTMENT AND TRUNK
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipment does not
operate, check for an open fuse.
1. Be sure the ignition switch is pushed tothe OFF or LOCK position and the
headlight switch is turned to OFF.
2. Open the engine hood or trunk lid and to access the cover on the fuse/fusible
link holder.
3. Remove the fuse/fusible link holder cover.
4. Remove the fuse with the fuse puller.
SDI1754
5. If the fuse is open*A, replace it with a
new fuse
*B. Spare fuses are stored in
the passenger compartment fuse box.
6. If a new fuse also opens, have the electrical system checked and repaired
by an INFINITI retailer.
Fusible links
If any electrical equipment does not
operate and fuses are in good condition,
check the fusible links. If any of these
fusible links are melted, replace only with
genuine INFINITI parts.
Maintenance and do-it-yourself8-23
FUSES

8-24Maintenance and do-it-yourself
JVM0256X
PASSENGER COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipment does not
operate, check for an open fuse.
1. Be sure the ignition switch is pushed tothe OFF or LOCK position and the
headlight switch is turned to OFF. 2. Open the fuse box lid.
3. Remove the fuse with the fuse puller
*A.
4. If the fuse is open, replace it with a new fuse.
5. If a new fuse also opens, have the electrical system checked and repaired
by an INFINITI retailer. Spare fuses are
stored in the fuse box.
JVM0257X
Extended storage fuse switch (if so
equipped)
To reduce 12-volt battery drain, the ex-
tended storage fuse switch comes from the
factory switched off. Prior to delivery of
your vehicle, the switch is pushed in
(switched on) and should always remain
on.
If the extended storage fuse switch is not
pushed in (switched on), the “Shipping
Mode On, Push Storage Fuse” warning may
appear in the vehicle information display.
See “22. Extended storage fuse warning”
(P.2-27).

If any electrical equipment does not
operate, remove the extended storage fuse
switch and check for an open fuse.
NOTE:
If the extended storage fuse switch mal-
functions or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storage fuse
switch and replace it with a new fuse of
the same rating.
How to remove the extended storage fuse
switch:
1. To remove the extended storage fuseswitch, be sure the ignition switch is in
the OFF or LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs
*1found on
each side of the storage fuse switch.
5. Pull the storage fuse switch straight out from the fuse box
*2.
CAUTION
Be careful not to allow children to swallow
the battery and removed parts.
JVM0317X
To replace the battery:
1. Release the lock knob at the back of theIntelligent Key and remove the mechan-
ical key.
2. Insert a flat-blade screwdriver wrapped with a cloth into the slit of the corner
and twist it to separate the upper part
Maintenance and do-it-yourself8-25
INTELLIGENT KEY BATTERY REPLACEMENT

8-26Maintenance and do-it-yourself
from the lower part.
3. Replace the battery with a new one.
Recommended battery:
CR2025 or equivalent
.Do not touch the internal circuit andelectric terminals as it could cause a
malfunction.
.Hold the battery by the edges.
Holding the battery across the con-
tact points will seriously deplete the
storage capacity.
.Make sure that the + side faces thebottom of the case.SDI2452
4. Align the tips of the upper and lower
parts
*1, and then push them together
*2until it is securely closed.
5. Operate the buttons to check its operation.
See an INFINITI retailer if you need any
assistance for replacement.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer- ence received, including interference that
may cause undesired operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.

JVM0272X
1. Headlight (high-beam)
2. Headlight (low-beam)
3. Map light
4. Front side marker light
5. Rear personal light
6. Side turn signal light
7. Front turn signal light
8. Fog light
9. Parking light
10. Step light
11. Courtesy light
12. High-mounted stop light
13. Back-up light
14. Rear turn signal light
15. Stop/tail light
16 Rear side marker light
17 License plate light
18 Trunk light
Maintenance and do-it-yourself8-27
LIGHTS
