sensor INFINITI Q50-HYBRID 2014 Owner's Manual

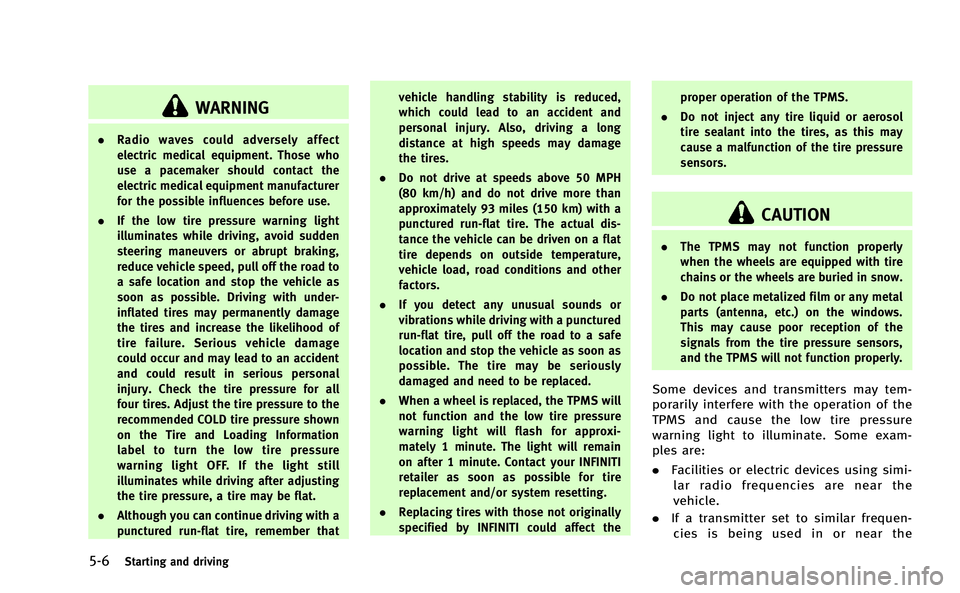

5-6Starting and driving
WARNING
.Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufacturer
for the possible influences before use.
. If the low tire pressure warning light
illuminates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damage
the tires and increase the likelihood of
tire failure. Serious vehicle damage
could occur and may lead to an accident
and could result in serious personal
injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the
recommended COLD tire pressure shown
on the Tire and Loading Information
label to turn the low tire pressure
warning light OFF. If the light still
illuminates while driving after adjusting
the tire pressure, a tire may be flat.
. Although you can continue driving with a
punctured run-flat tire, remember that vehicle handling stability is reduced,
which could lead to an accident and
personal injury. Also, driving a long
distance at high speeds may damage
the tires.
. Do not drive at speeds above 50 MPH
(80 km/h) and do not drive more than
approximately 93 miles (150 km) with a
punctured run-flat tire. The actual dis-
tance the vehicle can be driven on a flat
tire depends on outside temperature,
vehicle load, road conditions and other
factors.
. If you detect any unusual sounds or
vibrations while driving with a punctured
run-flat tire, pull off the road to a safe
location and stop the vehicle as soon as
possible. The tire may be seriously
damaged and need to be replaced.
. When a wheel is replaced, the TPMS will
not function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will remain
on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire
replacement and/or system resetting.
. Replacing tires with those not originally
specified by INFINITI could affect the proper operation of the TPMS.
. Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pressure
sensors.
CAUTION
.The TPMS may not function properly
when the wheels are equipped with tire
chains or the wheels are buried in snow.
. Do not place metalized film or any metal
parts (antenna, etc.) on the windows.
This may cause poor reception of the
signals from the tire pressure sensors,
and the TPMS will not function properly.
Some devices and transmitters may tem-
porarily interfere with the operation of the
TPMS and cause the low tire pressure
warning light to illuminate. Some exam-
ples are:
.Facilities or electric devices using simi-
lar radio frequencies are near the
vehicle.
. If a transmitter set to similar frequen-
cies is being used in or near the

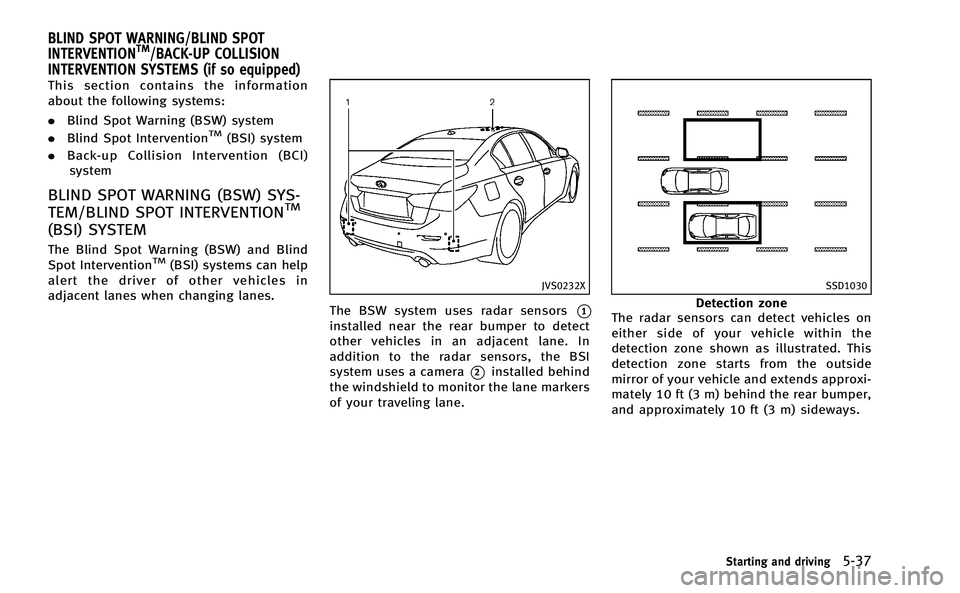

This section contains the information
about the following systems:
.Blind Spot Warning (BSW) system
. Blind Spot Intervention
TM(BSI) system
. Back-up Collision Intervention (BCI)
system
BLIND SPOT WARNING (BSW) SYS-
TEM/BLIND SPOT INTERVENTIONTM
(BSI) SYSTEM
The Blind Spot Warning (BSW) and Blind
Spot InterventionTM(BSI) systems can help
alert the driver of other vehicles in
adjacent lanes when changing lanes.
JVS0232X
The BSW system uses radar sensors*1
installed near the rear bumper to detect
other vehicles in an adjacent lane. In
addition to the radar sensors, the BSI
system uses a camera
*2installed behind
the windshield to monitor the lane markers
of your traveling lane.
SSD1030
Detection zone
The radar sensors can detect vehicles on
either side of your vehicle within the
detection zone shown as illustrated. This
detection zone starts from the outside
mirror of your vehicle and extends approxi-
mately 10 ft (3 m) behind the rear bumper,
and approximately 10 ft (3 m) sideways.
Starting and driving5-37
BLIND SPOT WARNING/BLIND SPOT
INTERVENTIONTM/BACK-UP COLLISION
INTERVENTION SYSTEMS (if so equipped)

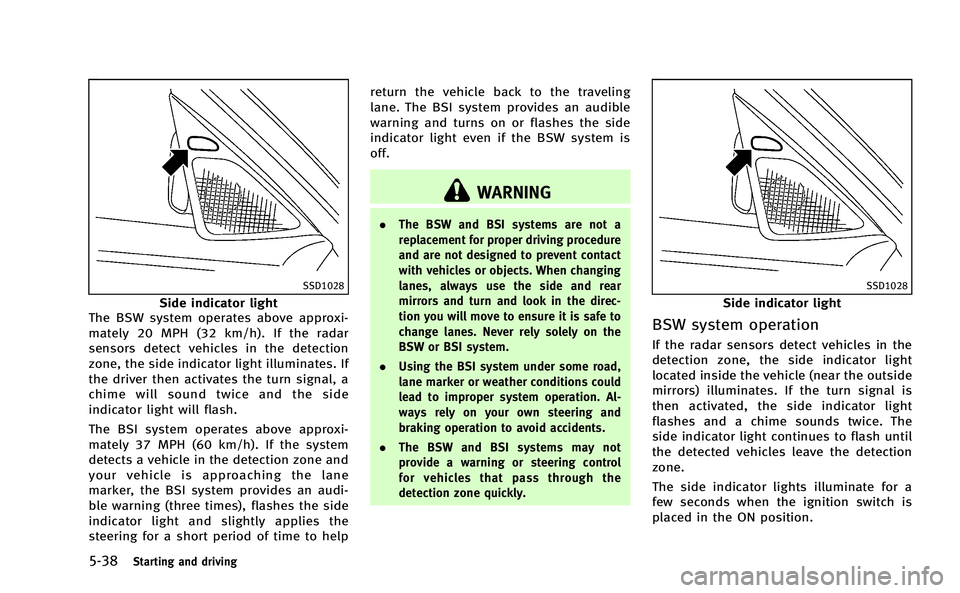

5-38Starting and driving
SSD1028
Side indicator light
The BSW system operates above approxi-
mately 20 MPH (32 km/h). If the radar
sensors detect vehicles in the detection
zone, the side indicator light illuminates. If
the driver then activates the turn signal, a
chime will sound twice and the side
indicator light will flash.
The BSI system operates above approxi-
mately 37 MPH (60 km/h). If the system
detects a vehicle in the detection zone and
your vehicle is approaching the lane
marker, the BSI system provides an audi-
ble warning (three times), flashes the side
indicator light and slightly applies the
steering for a short period of time to help return the vehicle back to the traveling
lane. The BSI system provides an audible
warning and turns on or flashes the side
indicator light even if the BSW system is
off.
WARNING
.
The BSW and BSI systems are not a
replacement for proper driving procedure
and are not designed to prevent contact
with vehicles or objects. When changing
lanes, always use the side and rear
mirrors and turn and look in the direc-
tion you will move to ensure it is safe to
change lanes. Never rely solely on the
BSW or BSI system.
. Using the BSI system under some road,
lane marker or weather conditions could
lead to improper system operation. Al-
ways rely on your own steering and
braking operation to avoid accidents.
. The BSW and BSI systems may not
provide a warning or steering control
for vehicles that pass through the
detection zone quickly.
SSD1028
Side indicator light
BSW system operation
If the radar sensors detect vehicles in the
detection zone, the side indicator light
located inside the vehicle (near the outside
mirrors) illuminates. If the turn signal is
then activated, the side indicator light
flashes and a chime sounds twice. The
side indicator light continues to flash until
the detected vehicles leave the detection
zone.
The side indicator lights illuminate for a
few seconds when the ignition switch is
placed in the ON position.

The brightness of the side indicator lights
is adjusted automatically depending on the
brightness of the ambient light.
A chime sounds if the radar sensors have
already detected vehicles when the driver
activates the turn signal. If a vehicle comes
into the detection zone after the driver
activates the turn signal, then only the side
indicator light flashes and no chime
sounds. (See“BSW/BSI driving situations”
(P.5-43).)
JVS0246X
Turning the BSW system ON/OFF:
Perform the following steps to turn the
BSW system on or off.
1. Push the MENU button
*1and touch
[Driver Assistance] on the lower dis-
play.
2. Touch [Blind Spot Assist].
3. Touch [Blind Spot Warning] to turn the system ON/OFF.
Setting the side indicator light brightness:
The brightness of the side indicator lights
can be changed in the following steps:
1. Push the MENU button
*1and touch [Driver Assistance] on the lower dis-
play.
2. Touch [Blind Spot Assist].
3. Touch [Side Indicator Brightness] and select [Bright], [Standard] or [Dark].
When the brightness setting is changed,
the side indicator lights illuminate for a
few seconds.
Starting and driving5-39

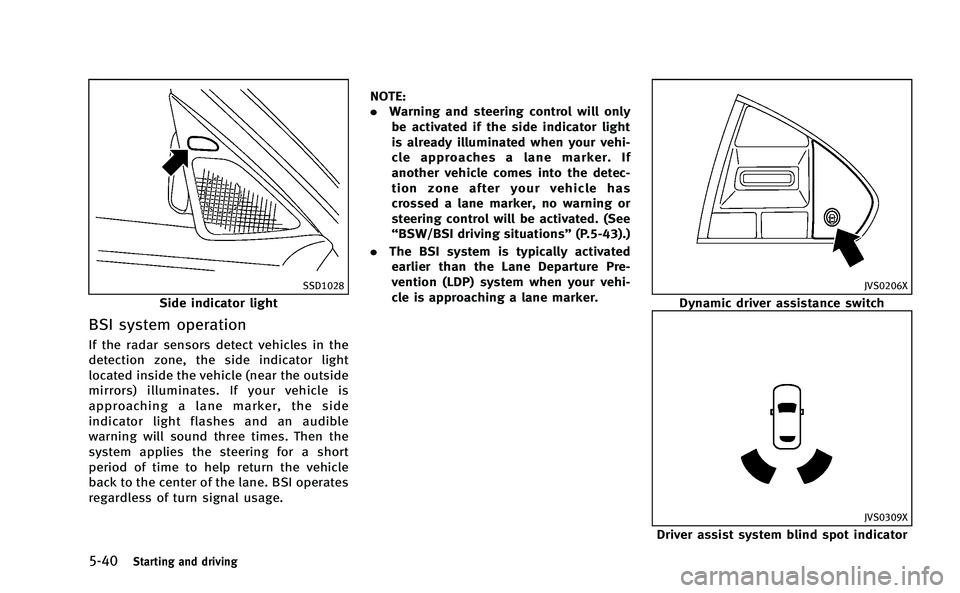

5-40Starting and driving
SSD1028
Side indicator light
BSI system operation
If the radar sensors detect vehicles in the
detection zone, the side indicator light
located inside the vehicle (near the outside
mirrors) illuminates. If your vehicle is
approaching a lane marker, the side
indicator light flashes and an audible
warning will sound three times. Then the
system applies the steering for a short
period of time to help return the vehicle
back to the center of the lane. BSI operates
regardless of turn signal usage.NOTE:
.
Warning and steering control will only
be activated if the side indicator light
is already illuminated when your vehi-
cle approaches a lane marker. If
another vehicle comes into the detec-
tion zone after your vehicle has
crossed a lane marker, no warning or
steering control will be activated. (See
“BSW/BSI driving situations” (P.5-43).)
. The BSI system is typically activated
earlier than the Lane Departure Pre-
vention (LDP) system when your vehi-
cle is approaching a lane marker.
JVS0206X
Dynamic driver assistance switch
JVS0309X
Driver assist system blind spot indicator

5-42Starting and driving
.The radar sensors may not be able to
detect and activate BSI/BSW when
certain objects are present such as:
— Pedestrians, bicycles, animals
— Several types of vehicles such as
motorcycles
— Oncoming vehicles
— Vehicles remaining in the detection
zone when you accelerate from a
stop
— A vehicle merging into an adjacent
lane at a speed approximately the
same as your vehicle
— A vehicle approaching rapidly from
behind.
— A vehicle which your vehicle over-
takes rapidly.
See also “BSW/BSI driving situations”
(P.5-43) for the situations in which the
radar sensors may not be able to detect
vehicle(s).
. Severe weather or road spray condi-
tions may reduce the ability of the
radar to detect other vehicles.
. The radar sensors’ detection zone is
designed based on a standard lane
width. When driving in a wider lane, the
radar sensors may not detect vehicles in an adjacent lane. When driving in a
narrow lane, the radar sensors may
detect vehicles driving two lanes away.
. The radar sensors are designed to
ignore most stationary objects, how-
ever objects such as guardrails, walls,
foliage and parked vehicles may occa-
sionally be detected. This is a normal
operating condition.
. The camera may not detect lane mar-
kers in the following situations and the
BSI system may not operate properly.
— On roads where there are multiple
parallel lane markers; lane markers
that are faded or not painted clearly;
yellow painted lane markers; non-
standard lane markers; lane mar-
kers covered with water, dirt, snow,
etc.
— On roads where discontinued lane
markers are still detectable.
— On roads where there are sharp
curves.
— On roads where there are sharply
contrasting objects, such as sha-
dows, snow, water, wheel ruts,
seams or lines remaining after road
repairs. —
On roads where the traveling lane
merges or separates.
— When the vehicle’s traveling direc-
tion does not align with the lane
markers.
— When traveling close to the vehicle
in front of you, which obstructs the
lane camera unit detection range.
— When rain, snow or dirt adheres to
the windshield in front of a lane
camera unit.
— When the headlights are not bright
due to dirt on the lens or if aiming is
not adjusted properly.
— When strong light enters a lane
camera unit. (For example, light
directly shines on the front of the
vehicle at sunrise or sunset.)
— When
a sudden change in bright-
ness
occurs. (For example, when the
vehicle enters or exits a tunnel or
under a bridge.)

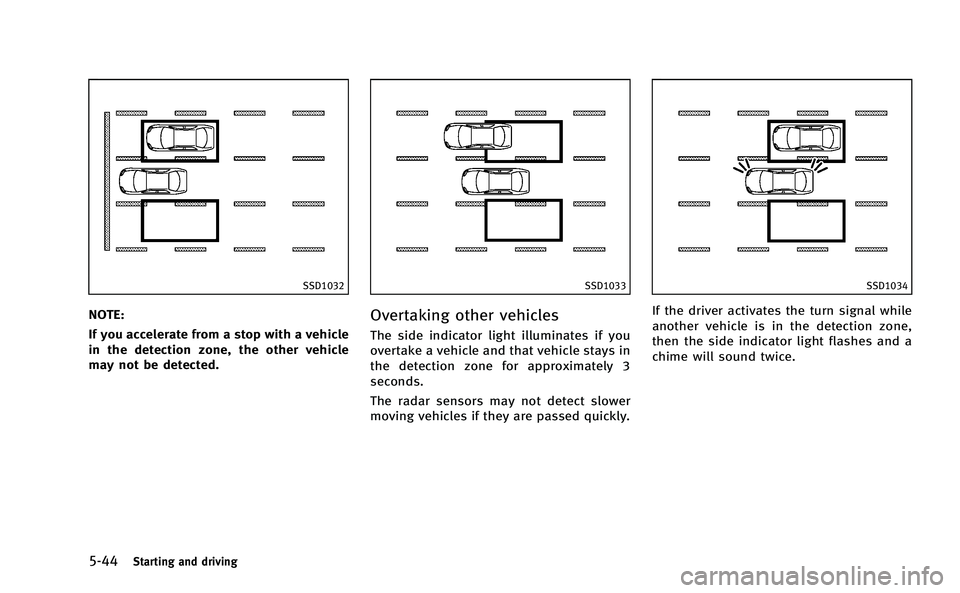

5-44Starting and driving
SSD1032
NOTE:
If you accelerate from a stop with a vehicle
in the detection zone, the other vehicle
may not be detected.
SSD1033
Overtaking other vehicles
The side indicator light illuminates if you
overtake a vehicle and that vehicle stays in
the detection zone for approximately 3
seconds.
The radar sensors may not detect slower
moving vehicles if they are passed quickly.
SSD1034
If the driver activates the turn signal while
another vehicle is in the detection zone,
then the side indicator light flashes and a
chime will sound twice.

5-46Starting and driving

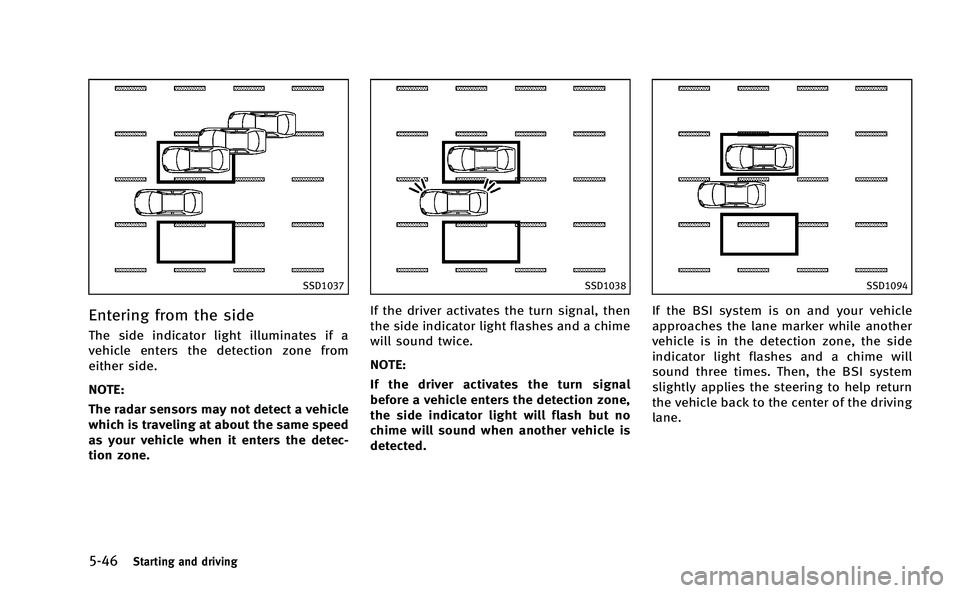

SSD1037
Entering from the side
The side indicator light illuminates if a
vehicle enters the detection zone from
either side.
NOTE:
The radar sensors may not detect a vehicle
which is traveling at about the same speed
as your vehicle when it enters the detec-
tion zone.
SSD1038
If the driver activates the turn signal, then
the side indicator light flashes and a chime
will sound twice.
NOTE:
If the driver activates the turn signal
before a vehicle enters the detection zone,
the side indicator light will flash but no
chime will sound when another vehicle is
detected.
SSD1094
If the BSI system is on and your vehicle
approaches the lane marker while another
vehicle is in the detection zone, the side
indicator light flashes and a chime will
sound three times. Then, the BSI system
slightly applies the steering to help return
the vehicle back to the center of the driving
lane.

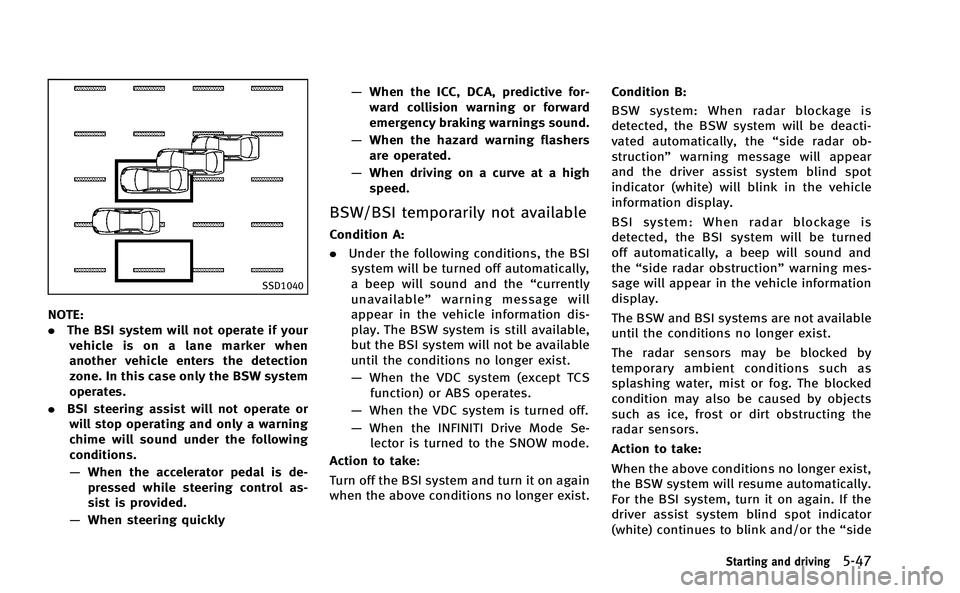

SSD1040
NOTE:
.The BSI system will not operate if your
vehicle is on a lane marker when
another vehicle enters the detection
zone. In this case only the BSW system
operates.
. BSI steering assist will not operate or
will stop operating and only a warning
chime will sound under the following
conditions.
— When the accelerator pedal is de-
pressed while steering control as-
sist is provided.
— When steering quickly —
When the ICC, DCA, predictive for-
ward collision warning or forward
emergency braking warnings sound.
— When the hazard warning flashers
are operated.
— When driving on a curve at a high
speed.
BSW/BSI temporarily not available
Condition A:
. Under the following conditions, the BSI
system will be turned off automatically,
a beep will sound and the “currently
unavailable” warning message will
appear in the vehicle information dis-
play. The BSW system is still available,
but the BSI system will not be available
until the conditions no longer exist.
— When the VDC system (except TCS
function) or ABS operates.
— When the VDC system is turned off.
— When the INFINITI Drive Mode Se-
lector is turned to the SNOW mode.
Action to take:
Turn off the BSI system and turn it on again
when the above conditions no longer exist. Condition B:
BSW system: When radar blockage is
detected, the BSW system will be deacti-
vated automatically, the
“side radar ob-
struction” warning message will appear
and the driver assist system blind spot
indicator (white) will blink in the vehicle
information display.
BSI system: When radar blockage is
detected, the BSI system will be turned
off automatically, a beep will sound and
the “side radar obstruction” warning mes-
sage will appear in the vehicle information
display.
The BSW and BSI systems are not available
until the conditions no longer exist.
The radar sensors may be blocked by
temporary ambient conditions such as
splashing water, mist or fog. The blocked
condition may also be caused by objects
such as ice, frost or dirt obstructing the
radar sensors.
Action to take:
When the above conditions no longer exist,
the BSW system will resume automatically.
For the BSI system, turn it on again. If the
driver assist system blind spot indicator
(white) continues to blink and/or the “side
Starting and driving5-47

5-48Starting and driving
radar obstruction”warning message ap-
pears even after the BSI system is turned
on again, stop the vehicle in a safe location
and turn the INFINITI Direct Response
Hybrid
®System off. Check for and remove
objects obscuring the radar sensors on the
rear bumper, and restart the hybrid sys-
tem.
Condition C:
If the vehicle is parked in direct sunlight
under high temperature conditions (over
approximately 1048F (408C)) and then the
BSI system is turned on, the BSI system
may be deactivated automatically. The
“high cabin temperature” warning mes-
sage will appear in the vehicle information
display.
Action to take:
When the above conditions no longer exist,
push the dynamic driver assistance switch
again to turn the BSI system back on.
BSW/BSI malfunction
When the BSW/BSI systems malfunction,
they will be turned off automatically, a
beep will sound, the and the system
“malfunction” warning message with the
driver assist system blind spot indicator
(orange) will appear in the vehicle informa- tion display.
Action to take:
Stop the vehicle in a safe location, turn the
hybrid system off and restart the hybrid
system.
If the system malfunction warning message
with the driver assist system blind spot
indicator (orange) continues to be dis-
played, have the BSW/BSI systems
checked by an INFINITI retailer.
BACK-UP COLLISION INTERVENTION
(BCI) SYSTEM
The Back-up Collision Intervention (BCI)
system can help alert the driver of
approaching vehicles or rear objects when
the driver is backing out of a parking
space.
When the shift lever is in the R (Reverse)
position and the vehicle speed is less than
approximately 5 MPH (8 km/h), the BCI
system operates.
JVS0233X
JVS0173X
