5-88Starting and driving
structed, making it impossible to detect a
vehicle ahead, the DCA system is auto-
matically canceled.
The chime will sound, the driver assist
system forward indicator (orange) and the
“front radar obstruction”warning message
will appear in the vehicle information
display.
Action to take:
If the driver assist system forward indicator
(orange) and the warning message appear,
park the vehicle in a safe place, turn the
hybrid system off. When the radar signal is
temporarily interrupted, clean the sensor
area of the front bumper and restart the
hybrid system. If the warning message
continues to be displayed, have the DCA
system checked by an INFINITI retailer.
Condition C:
When the DCA system is not operating
properly, the chime sounds, the driver
assist system forward indicator (orange)
and the system “malfunction” warning
message will appear in the vehicle infor-
mation display. Action to take:
If the driver assist system forward indicator
(orange) and the warning message appear,
park the vehicle in a safe place. Turn the
hybrid system off, restart the hybrid
system, and turn on the DCA system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the
vehicle is still driveable under normal
conditions, have the vehicle checked at
an INFINITI retailer.
Sensor maintenance
The radar sensor for the DCA system is
common with the Intelligent Cruise Control
(ICC) system and is located behind the
lower grille of the front bumper.
For the radar sensor maintenance, see
“Sensor maintenance
”(P.5-74).
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful
interference, and 2.
This device must accept any interfer-
ence received, including interference
that may cause undesired operation.
FCC Warning
Changes or modification not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions:
1. This device may not cause interference,
and
2. This device must accept any interfer-
ence, including interference that may
cause undesired operation of the de-
vice.

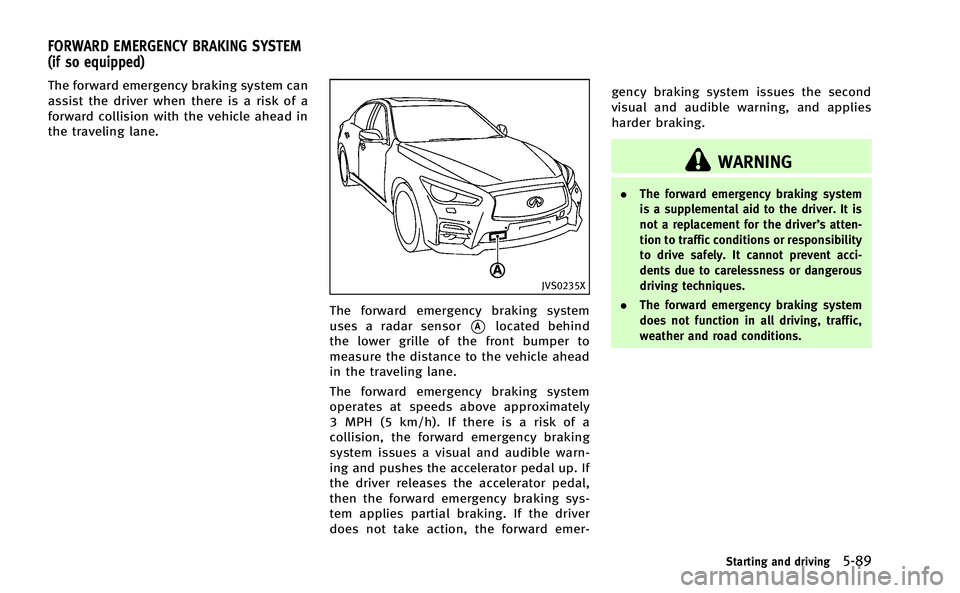

The forward emergency braking system can
assist the driver when there is a risk of a
forward collision with the vehicle ahead in
the traveling lane.
JVS0235X
The forward emergency braking system
uses a radar sensor
*Alocated behind
the lower grille of the front bumper to
measure the distance to the vehicle ahead
in the traveling lane.
The forward emergency braking system
operates at speeds above approximately
3 MPH (5 km/h). If there is a risk of a
collision, the forward emergency braking
system issues a visual and audible warn-
ing and pushes the accelerator pedal up. If
the driver releases the accelerator pedal,
then the forward emergency braking sys-
tem applies partial braking. If the driver
does not take action, the forward emer- gency braking system issues the second
visual and audible warning, and applies
harder braking.
WARNING
.
The forward emergency braking system
is a supplemental aid to the driver. It is
not a replacement for the driver’s atten-
tion to traffic conditions or responsibility
to drive safely. It cannot prevent acci-
dents due to carelessness or dangerous
driving techniques.
. The forward emergency braking system
does not function in all driving, traffic,
weather and road conditions.
Starting and driving5-89
FORWARD EMERGENCY BRAKING SYSTEM
(if so equipped)

WARNING
.The radar sensor does not detect the
following objects:
—Pedestrians, animals or obstacles in
the roadway
—Oncoming vehicles
—Crossing vehicles
. The radar sensor has some performance
limitations. For stationary vehicles, the
forward emergency braking system will
not function when the vehicle is driven
at speeds over approximately 45 MPH
(70 km/h).
. The radar sensor may not detect a
vehicle ahead in the following condi-
tions:
—Dirt, ice, snow or other material
covering the radar sensor.
—Interference by other radar sources.
—Snow or road spray from traveling
vehicles.
—If the vehicle ahead is narrow (e.g.motorcycle)
—When driving on a steep downhillslope or roads with sharp curves.
. In some road or traffic conditions, the
forward emergency braking system may
unexpectedly push the accelerator pedal
up or apply partial braking. When accel-
eration is necessary, continue to depress
the accelerator pedal to override the
system.
. Braking distances increase on slippery
surfaces.
. Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.

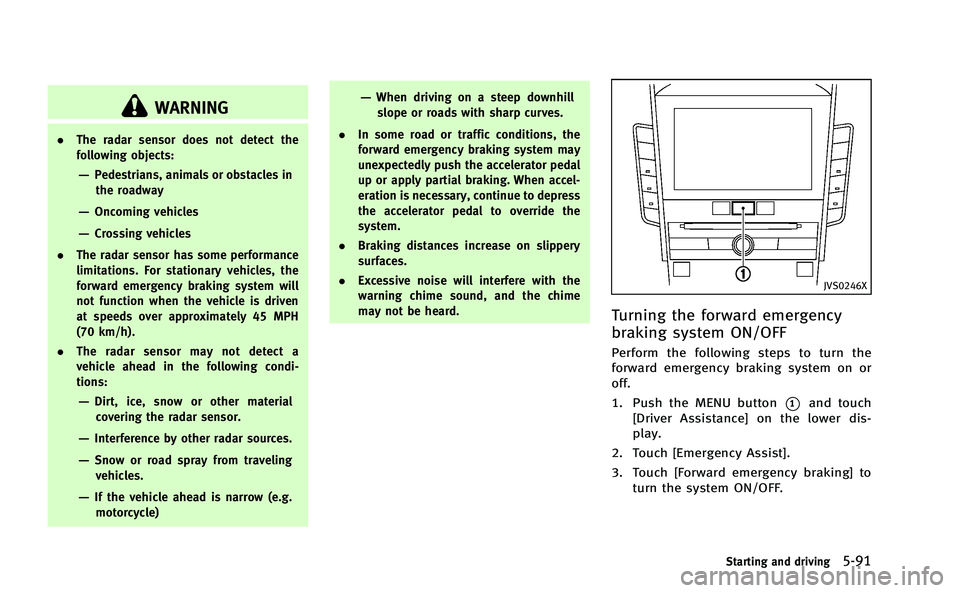

JVS0246X
Turning the forward emergency
braking system ON/OFF
Perform the following steps to turn the
forward emergency braking system on or
off.
1. Push the MENU button
*1and touch
[Driver Assistance] on the lower dis-
play.
2. Touch [Emergency Assist].
3. Touch [Forward emergency braking] to turn the system ON/OFF.
Starting and driving5-91

5-92Starting and driving

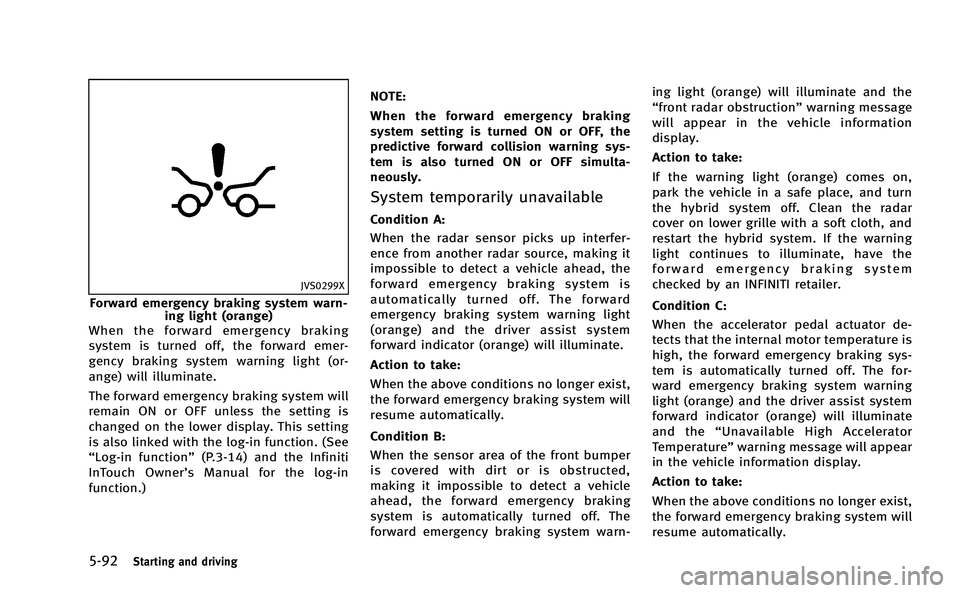

JVS0299X
Forward emergency braking system warn-ing light (orange)
When the forward emergency braking
system is turned off, the forward emer-
gency braking system warning light (or-
ange) will illuminate.
The forward emergency braking system will
remain ON or OFF unless the setting is
changed on the lower display. This setting
is also linked with the log-in function. (See
“Log-in function” (P.3-14) and the Infiniti
InTouch Owner’ s Manual for the log-in
function.) NOTE:
When the forward emergency braking
system setting is turned ON or OFF, the
predictive forward collision warning sys-
tem is also turned ON or OFF simulta-
neously.
System temporarily unavailable
Condition A:
When the radar sensor picks up interfer-
ence from another radar source, making it
impossible to detect a vehicle ahead, the
forward emergency braking system is
automatically turned off. The forward
emergency braking system warning light
(orange) and the driver assist system
forward indicator (orange) will illuminate.
Action to take:
When the above conditions no longer exist,
the forward emergency braking system will
resume automatically.
Condition B:
When the sensor area of the front bumper
is covered with dirt or is obstructed,
making it impossible to detect a vehicle
ahead, the forward emergency braking
system is automatically turned off. The
forward emergency braking system warn-ing light (orange) will illuminate and the
“front radar obstruction”
warning message
will appear in the vehicle information
display.
Action to take:
If the warning light (orange) comes on,
park the vehicle in a safe place, and turn
the hybrid system off. Clean the radar
cover on lower grille with a soft cloth, and
restart the hybrid system. If the warning
light continues to illuminate, have the
forward emergency braking system
checked by an INFINITI retailer.
Condition C:
When the accelerator pedal actuator de-
tects that the internal motor temperature is
high, the forward emergency braking sys-
tem is automatically turned off. The for-
ward emergency braking system warning
light (orange) and the driver assist system
forward indicator (orange) will illuminate
and the “Unavailable High Accelerator
Temperature” warning message will appear
in the vehicle information display.
Action to take:
When the above conditions no longer exist,
the forward emergency braking system will
resume automatically.

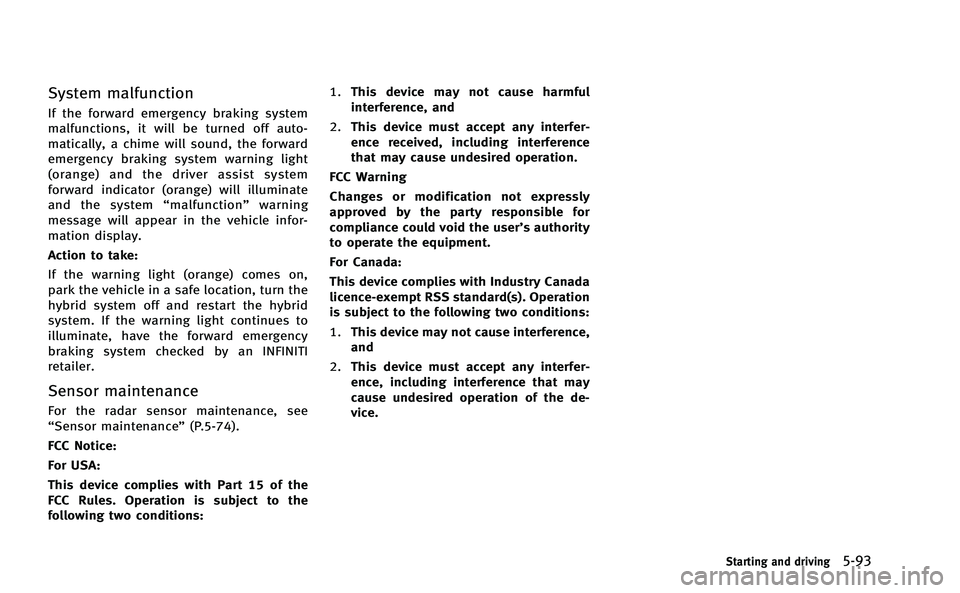

System malfunction
If the forward emergency braking system
malfunctions, it will be turned off auto-
matically, a chime will sound, the forward
emergency braking system warning light
(orange) and the driver assist system
forward indicator (orange) will illuminate
and the system“malfunction” warning
message will appear in the vehicle infor-
mation display.
Action to take:
If the warning light (orange) comes on,
park the vehicle in a safe location, turn the
hybrid system off and restart the hybrid
system. If the warning light continues to
illuminate, have the forward emergency
braking system checked by an INFINITI
retailer.
Sensor maintenance
For the radar sensor maintenance, see
“Sensor maintenance ”(P.5-74).
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: 1.
This device may not cause harmful
interference, and
2. This device must accept any interfer-
ence received, including interference
that may cause undesired operation.
FCC Warning
Changes or modification not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions:
1. This device may not cause interference,
and
2. This device must accept any interfer-
ence, including interference that may
cause undesired operation of the de-
vice.
Starting and driving5-93

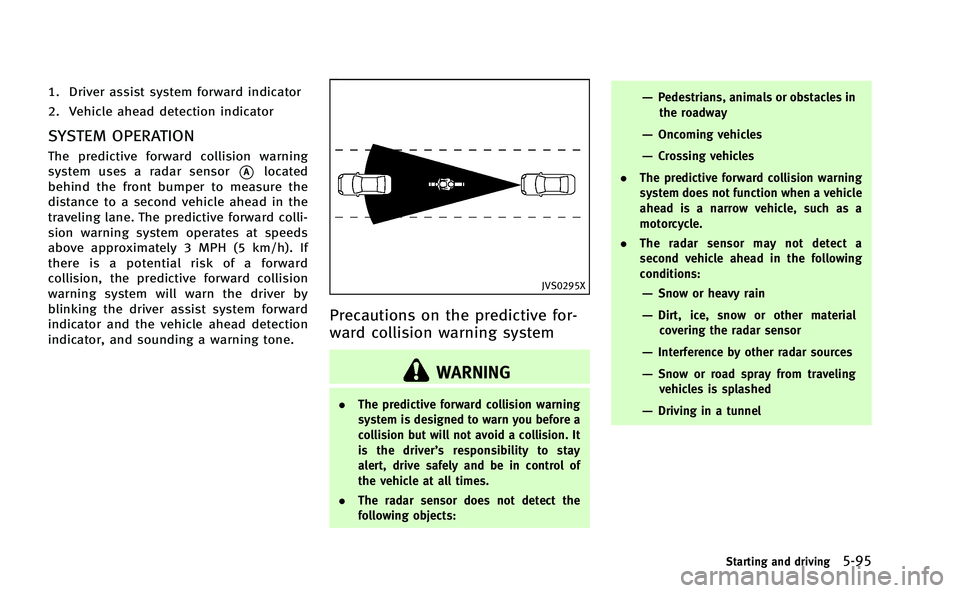

1. Driver assist system forward indicator
2. Vehicle ahead detection indicator
SYSTEM OPERATION
The predictive forward collision warning
system uses a radar sensor
*Alocated
behind the front bumper to measure the
distance to a second vehicle ahead in the
traveling lane. The predictive forward colli-
sion warning system operates at speeds
above approximately 3 MPH (5 km/h). If
there is a potential risk of a forward
collision, the predictive forward collision
warning system will warn the driver by
blinking the driver assist system forward
indicator and the vehicle ahead detection
indicator, and sounding a warning tone.
JVS0295X
Precautions on the predictive for-
ward collision warning system
WARNING
. The predictive forward collision warning
system is designed to warn you before a
collision but will not avoid a collision. It
is the driver’ s responsibility to stay
alert, drive safely and be in control of
the vehicle at all times.
. The radar sensor does not detect the
following objects:
—Pedestrians, animals or obstacles in
the roadway
—Oncoming vehicles
—Crossing vehicles
. The predictive forward collision warning
system does not function when a vehicle
ahead is a narrow vehicle, such as a
motorcycle.
. The radar sensor may not detect a
second vehicle ahead in the following
conditions:
—Snow or heavy rain
—Dirt, ice, snow or other material
covering the radar sensor
—Interference by other radar sources
—Snow or road spray from travelingvehicles is splashed
—Driving in a tunnel
Starting and driving5-95

5-96Starting and driving

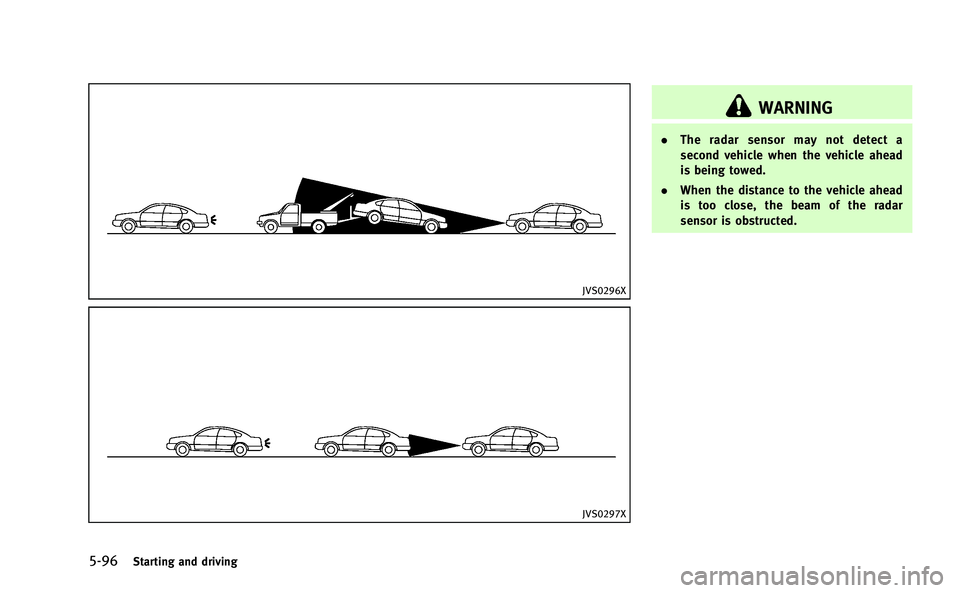

JVS0296X
JVS0297X
WARNING
.The radar sensor may not detect a
second vehicle when the vehicle ahead
is being towed.
. When the distance to the vehicle ahead
is too close, the beam of the radar
sensor is obstructed.

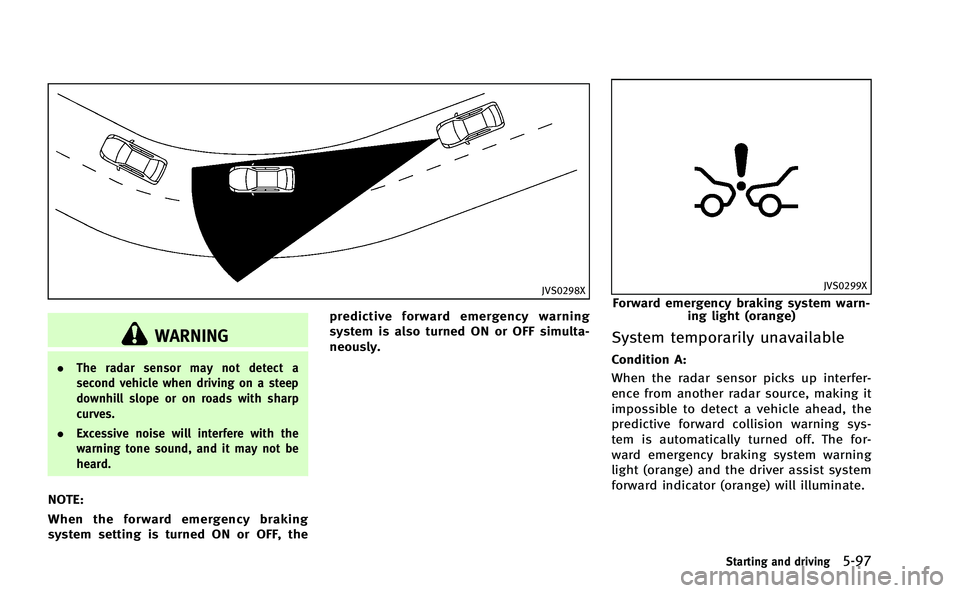

JVS0298X
WARNING
.The radar sensor may not detect a
second vehicle when driving on a steep
downhill slope or on roads with sharp
curves.
. Excessive noise will interfere with the
warning tone sound, and it may not be
heard.
NOTE:
When the forward emergency braking
system setting is turned ON or OFF, the predictive forward emergency warning
system is also turned ON or OFF simulta-
neously.
JVS0299X
Forward emergency braking system warn-
ing light (orange)
System temporarily unavailable
Condition A:
When the radar sensor picks up interfer-
ence from another radar source, making it
impossible to detect a vehicle ahead, the
predictive forward collision warning sys-
tem is automatically turned off. The for-
ward emergency braking system warning
light (orange) and the driver assist system
forward indicator (orange) will illuminate.
Starting and driving5-97

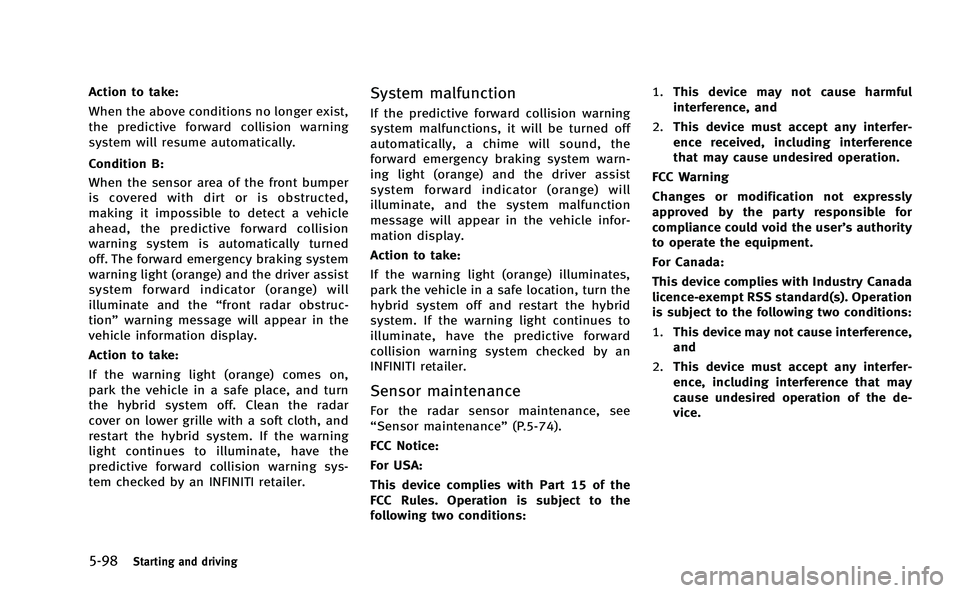

5-98Starting and driving
Action to take:
When the above conditions no longer exist,
the predictive forward collision warning
system will resume automatically.
Condition B:
When the sensor area of the front bumper
is covered with dirt or is obstructed,
making it impossible to detect a vehicle
ahead, the predictive forward collision
warning system is automatically turned
off. The forward emergency braking system
warning light (orange) and the driver assist
system forward indicator (orange) will
illuminate and the“front radar obstruc-
tion” warning message will appear in the
vehicle information display.
Action to take:
If the warning light (orange) comes on,
park the vehicle in a safe place, and turn
the hybrid system off. Clean the radar
cover on lower grille with a soft cloth, and
restart the hybrid system. If the warning
light continues to illuminate, have the
predictive forward collision warning sys-
tem checked by an INFINITI retailer.System malfunction
If the predictive forward collision warning
system malfunctions, it will be turned off
automatically, a chime will sound, the
forward emergency braking system warn-
ing light (orange) and the driver assist
system forward indicator (orange) will
illuminate, and the system malfunction
message will appear in the vehicle infor-
mation display.
Action to take:
If the warning light (orange) illuminates,
park the vehicle in a safe location, turn the
hybrid system off and restart the hybrid
system. If the warning light continues to
illuminate, have the predictive forward
collision warning system checked by an
INFINITI retailer.
Sensor maintenance
For the radar sensor maintenance, see
“Sensor maintenance ”(P.5-74).
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: 1.
This device may not cause harmful
interference, and
2. This device must accept any interfer-
ence received, including interference
that may cause undesired operation.
FCC Warning
Changes or modification not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions:
1. This device may not cause interference,
and
2. This device must accept any interfer-
ence, including interference that may
cause undesired operation of the de-
vice.

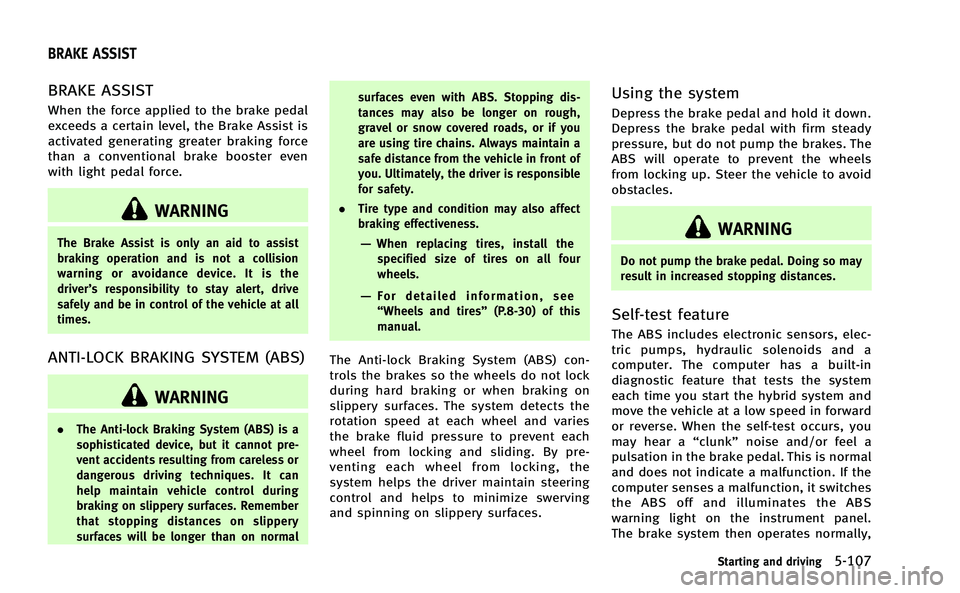

BRAKE ASSIST
When the force applied to the brake pedal
exceeds a certain level, the Brake Assist is
activated generating greater braking force
than a conventional brake booster even
with light pedal force.
WARNING
The Brake Assist is only an aid to assist
braking operation and is not a collision
warning or avoidance device. It is the
driver’s responsibility to stay alert, drive
safely and be in control of the vehicle at all
times.
ANTI-LOCK BRAKING SYSTEM (ABS)
WARNING
.The Anti-lock Braking System (ABS) is a
sophisticated device, but it cannot pre-
vent accidents resulting from careless or
dangerous driving techniques. It can
help maintain vehicle control during
braking on slippery surfaces. Remember
that stopping distances on slippery
surfaces will be longer than on normal surfaces even with ABS. Stopping dis-
tances may also be longer on rough,
gravel or snow covered roads, or if you
are using tire chains. Always maintain a
safe distance from the vehicle in front of
you. Ultimately, the driver is responsible
for safety.
. Tire type and condition may also affect
braking effectiveness.
—When replacing tires, install the
specified size of tires on all four
wheels.
—For detailed information, see“Wheels and tires” (P.8-30) of this
manual.
The Anti-lock Braking System (ABS) con-
trols the brakes so the wheels do not lock
during hard braking or when braking on
slippery surfaces. The system detects the
rotation speed at each wheel and varies
the brake fluid pressure to prevent each
wheel from locking and sliding. By pre-
venting each wheel from locking, the
system helps the driver maintain steering
control and helps to minimize swerving
and spinning on slippery surfaces.
Using the system
Depress the brake pedal and hold it down.
Depress the brake pedal with firm steady
pressure, but do not pump the brakes. The
ABS will operate to prevent the wheels
from locking up. Steer the vehicle to avoid
obstacles.
WARNING
Do not pump the brake pedal. Doing so may
result in increased stopping distances.
Self-test feature
The ABS includes electronic sensors, elec-
tric pumps, hydraulic solenoids and a
computer. The computer has a built-in
diagnostic feature that tests the system
each time you start the hybrid system and
move the vehicle at a low speed in forward
or reverse. When the self-test occurs, you
may hear a “clunk”noise and/or feel a
pulsation in the brake pedal. This is normal
and does not indicate a malfunction. If the
computer senses a malfunction, it switches
the ABS off and illuminates the ABS
warning light on the instrument panel.
The brake system then operates normally,
Starting and driving5-107
BRAKE ASSIST
