technical data INFINITI Q50-HYBRID 2018 Owners Manual

10 Technical and consumer information
Capacities and recommended fluids/lubricants ..... 10-2Fuel information ........................................................ 10-4
Engine oil and oil filter recommendation ............ 10-6
Air conditioning system refrigerant and
lubricant recommendations ..................................... 10-7
Specifications .................................................................. 10-8
Engine ........................................................................\
.. 10-8
Wheels and tires ........................................................ 10-9
Dimensions ................................................................... 10-9
When traveling or registering in
another country ............................................................ 10-10
Vehicle identification ................................................... 10-10 Vehicle Identification Number (VIN) plate ....... 10-10
Vehicle identification number
(chassis number) ...................................................... 10-10
Engine serial number .............................................. 10-11
F.M.V.S.S./C.M.V.S.S. certification label .......... 10-11
Emission control information label ..................... 10-11
Tire and loading information label ..................... 10-12
Air conditioner specification label ...................... 10-12 Installing front license plate ..................................... 10-13
Removing air deflectors ............................................. 10-14
Vehicle loading information ...................................... 10-15
Terms ........................................................................\
10-15
Vehicle load capacity ........................................... 10-16
Loading tips ............................................................. 10-17
Measurement of weights .................................... 10-17
Towing a trailer ............................................................ 10-18 Flat towing ............................................................. 10-18
Uniform tire quality grading ..................................... 10-18
Treadwear ............................................................... 10-18
Traction AA, A, B and C ..................................... 10-19
Temperature A, B and C ..................................... 10-19
Emission control system warranty ......................... 10-19
Reporting safety defects ........................................... 10-20
Readiness for Inspection/Maintenance (I/M)
test (US only) ................................................................ 10-21
Event Data Recorders (EDR) ................................... 10-21
Owner’s Manual/Service Manual
order information ......................................................... 10-22

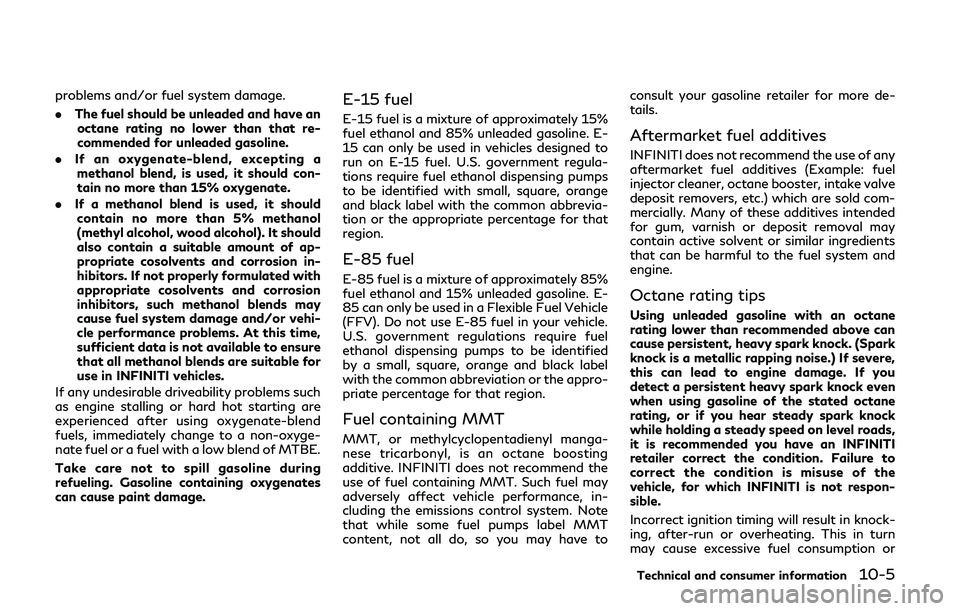

problems and/or fuel system damage.
.The fuel should be unleaded and have an
octane rating no lower than that re-
commended for unleaded gasoline.
. If an oxygenate-blend, excepting a
methanol blend, is used, it should con-
tain no more than 15% oxygenate.
. If a methanol blend is used, it should
contain no more than 5% methanol
(methyl alcohol, wood alcohol). It should
also contain a suitable amount of ap-
propriate cosolvents and corrosion in-
hibitors. If not properly formulated with
appropriate cosolvents and corrosion
inhibitors, such methanol blends may
cause fuel system damage and/or vehi-
cle performance problems. At this time,
sufficient data is not available to ensure
that all methanol blends are suitable for
use in INFINITI vehicles.
If any undesirable driveability problems such
as engine stalling or hard hot starting are
experienced after using oxygenate-blend
fuels, immediately change to a non-oxyge-
nate fuel or a fuel with a low blend of MTBE.
Take care not to spill gasoline during
refueling. Gasoline containing oxygenates
can cause paint damage.E-15 fuel
E-15 fuel is a mixture of approximately 15%
fuel ethanol and 85% unleaded gasoline. E-
15 can only be used in vehicles designed to
run on E-15 fuel. U.S. government regula-
tions require fuel ethanol dispensing pumps
to be identified with small, square, orange
and black label with the common abbrevia-
tion or the appropriate percentage for that
region.
E-85 fuel
E-85 fuel is a mixture of approximately 85%
fuel ethanol and 15% unleaded gasoline. E-
85 can only be used in a Flexible Fuel Vehicle
(FFV). Do not use E-85 fuel in your vehicle.
U.S. government regulations require fuel
ethanol dispensing pumps to be identified
by a small, square, orange and black label
with the common abbreviation or the appro-
priate percentage for that region.
Fuel containing MMT
MMT, or methylcyclopentadienyl manga-
nese tricarbonyl, is an octane boosting
additive. INFINITI does not recommend the
use of fuel containing MMT. Such fuel may
adversely affect vehicle performance, in-
cluding the emissions control system. Note
that while some fuel pumps label MMT
content, not all do, so you may have to consult your gasoline retailer for more de-
tails.
Aftermarket fuel additives
INFINITI does not recommend the use of any
aftermarket fuel additives (Example: fuel
injector cleaner, octane booster, intake valve
deposit removers, etc.) which are sold com-
mercially. Many of these additives intended
for gum, varnish or deposit removal may
contain active solvent or similar ingredients
that can be harmful to the fuel system and
engine.
Octane rating tips
Using unleaded gasoline with an octane
rating lower than recommended above can
cause persistent, heavy spark knock. (Spark
knock is a metallic rapping noise.) If severe,
this can lead to engine damage. If you
detect a persistent heavy spark knock even
when using gasoline of the stated octane
rating, or if you hear steady spark knock
while holding a steady speed on level roads,
it is recommended you have an INFINITI
retailer correct the condition. Failure to
correct the condition is misuse of the
vehicle, for which INFINITI is not respon-
sible.
Incorrect ignition timing will result in knock-
ing, after-run or overheating. This in turn
may cause excessive fuel consumption or
Technical and consumer information10-5

WARNING
A vehicle equipped with Intelligent All-
Wheel Drive (AWD) should never be
tested using a two wheel dynamometer
(such as the dynamometers used by
some states for emissions testing), or
similar equipment. Make sure you inform
test facility personnel that your vehicle
is equipped with AWD before it is placed
on a dynamometer. Using the wrong test
equipment may result in transmission
damage or unexpected vehicle move-
ment which could result in serious vehicle
damage or personal injury.
Due to legal requirements in some states/
areas, your vehicle may be required to be in
what is called the “ready condition” for an
Inspection/Maintenance (I/M) test of the
emission control system.
The vehicle is set to the “ready condition”
when it is driven through certain driving
patterns. Usually, the “ready condition” can
be obtained by ordinary usage of the vehicle.
If a powertrain system component is re-
paired or the 12-volt battery is discon-
nected, the vehicle may be reset to a “not
ready condition”. Before taking the I/M test,
check the vehicle’s inspection/maintenance test readiness condition. Place the ignition
switch in the ON position without starting
the engine. If the Malfunction Indicator
Light (MIL) comes on steady for 20 seconds
and then blinks for 10 seconds, the I/M test
condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condi-
tion is “ready”.
It is recommended you visit an INFINITI
retailer to set the “ready condition” or to
prepare the vehicle for testing.
This vehicle is equipped with an Event Data
Recorder (EDR). The main purpose of an
EDR is to record, in certain crash or near
crash-like situations, such as an air bag
deployment or hitting a road obstacle, data
that will assist in understanding how a
vehicle’s systems performed. The EDR is
designed to record data related to vehicle
dynamics and safety systems for a short
period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record
such data as:
.
How various systems in your vehicle were
operating;
. Whether or not the driver and passenger
safety belts were buckled/fastened;
. How far (if at all) the driver was depres-
sing the accelerator and/or brake pedal;
and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which
crashes and injuries occur.
NOTE: EDR data are recorded by your
vehicle only if a nontrivial crash situation
occurs; no data are recorded by the EDR
under normal driving conditions and no
personal data (e.g. name, gender, age and
crash location) are recorded. However, other
parties, such as law enforcement, could
combine the EDR data with the type of
Technical and consumer information10-21
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST (US only)EVENT DATA RECORDERS (EDR)

10-22Technical and consumer information

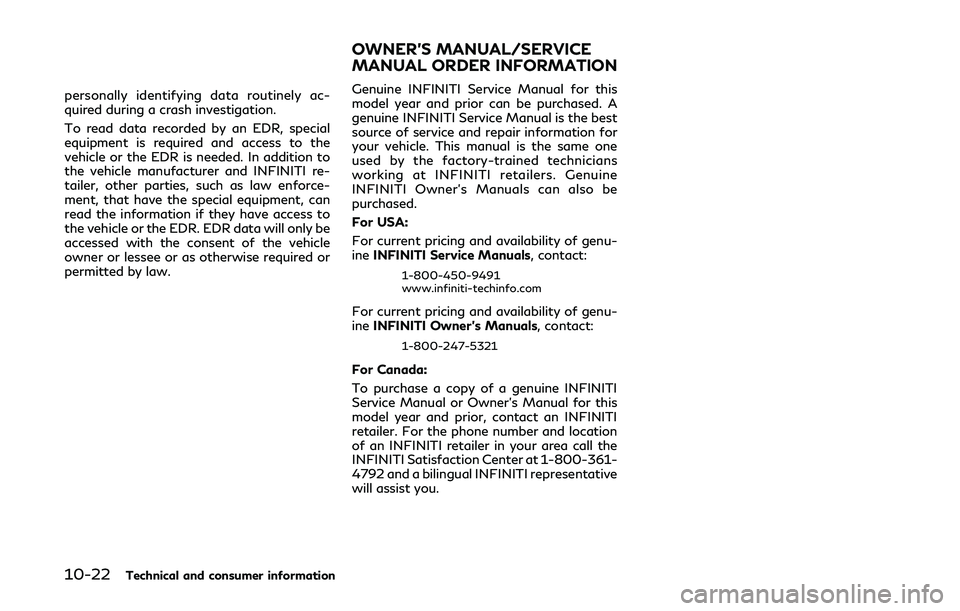

personally identifying data routinely ac-
quired during a crash investigation.
To read data recorded by an EDR, special
equipment is required and access to the
vehicle or the EDR is needed. In addition to
the vehicle manufacturer and INFINITI re-
tailer, other parties, such as law enforce-
ment, that have the special equipment, can
read the information if they have access to
the vehicle or the EDR. EDR data will only be
accessed with the consent of the vehicle
owner or lessee or as otherwise required or
permitted by law.Genuine INFINITI Service Manual for this
model year and prior can be purchased. A
genuine INFINITI Service Manual is the best
source of service and repair information for
your vehicle. This manual is the same one
used by the factory-trained technicians
working at INFINITI retailers. Genuine
INFINITI Owner’s Manuals can also be
purchased.
For USA:
For current pricing and availability of genu-
ine
INFINITI Service Manuals, contact:
1-800-450-9491
www.infiniti-techinfo.com
For current pricing and availability of genu-
ineINFINITI Owner’s Manuals, contact:
1-800-247-5321
For Canada:
To purchase a copy of a genuine INFINITI
Service Manual or Owner’s Manual for this
model year and prior, contact an INFINITI
retailer. For the phone number and location
of an INFINITI retailer in your area call the
INFINITI Satisfaction Center at 1-800-361-
4792 and a bilingual INFINITI representative
will assist you.
OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
