warning light INFINITI Q50-HYBRID 2018 Owners Manual

The Approaching Vehicle Sound for Pedes-
trians (VSP) system is a function that uses
sound to help alert pedestrians of the
presence of the vehicle when it is being
driven at a low speed in the electric drive
mode under the following conditions:
.The sound starts when the vehicle starts
accelerating.
. The sound stops when the vehicle speed
is more than 19 MPH (30 km/h) while
accelerating.
. The sound starts when the vehicle speed
is less than 16 MPH (25 km/h) while
decelerating.
. The sound stops when the vehicle stops.
. The sound does not stop with the vehicle
in the R (Reverse) position even if the
vehicle stops.
The VSP system is automatically turned on
when the vehicle is in the READY to drive
mode.
If there is a malfunction in the VSP system,
the VSP OFF indicator light in the meter
illuminates. See “Approaching Vehicle Sound
for Pedestrians (VSP) OFF indicator light”
(P.2-15).
WARNING
. If the sound from the VSP system is
not heard while driving, stop the
vehicle in a safe and quiet location.
Open a window, and then place the
vehicle in the R (Reverse) position
with the brake pedal firmly de-
pressed. Check that the operating
sound can be heard from the front
side of the vehicle.
. If the sound cannot be heard, have
the system immediately inspected. It
is recommended you visit an INFINITI
retailer for this service.
Hybrid System OverviewHybrid System-9
APPROACHING VEHICLE SOUND
FOR PEDESTRIANS (VSP) SYSTEM

HYBRID VEHICLE CHARACTER-
ISTICS
WARNING
.When you leave your vehicle, be sure
to place the ignition switch in the
OFF position.
. Be sure to put the transmission in the
P (Park) position because the vehicle
can move when the READY to drive
indicator light is on even if the gaso-
line engine is not running. When the
READY to drive indicator light is on,
do not leave your vehicle in a shift
position other than the P (Park)
position. The vehicle will creep and
start abruptly if the accelerator pedal
is depressed by mistake. This may
cause serious injury or death.
CAUTION
If the vehicle is parked for a long period
of time, the battery discharges gradu-
ally. To avoid this occurrence, drive the
vehicle for approximately 30 minutes at
least once every two to three months.
Otherwise, the Lithium ion (Li-ion) bat- tery may be damaged. If the Li-ion
battery is completely discharged and
the hybrid system cannot be activated,
it is recommended that you contact an
INFINITI retailer.
High voltage parts and harnesses on the
hybrid vehicles emit approximately the same
amount of electromagnetic waves as the
conventional gasoline-powered vehicles or
home electronic appliances despite of their
electromagnetic shieldings. Unwanted noise
may occur in the reception of a mobile two-
way radio.
Charging the Li-ion battery while driving is
important. The vehicle cannot run if the Li-
ion battery is discharged. When in the N
(Neutral), D (Drive) or R (Reverse) position,
and while the accelerator pedal or the brake
pedal is not depressed, the Li-ion battery
does not recharge. Leaving the transmission
in the N (Neutral), D (Drive) or R (Reverse)
position, and while the accelerator pedal or
the brake pedal is not depressed for an
extended period of time (for example, when
the shift lever is in the D (Drive) position and
the vehicle is stopped only by the parking
brake), may discharge the Li-ion battery and
the hybrid system may automatically be
turned off.
JVO0114X
An air ventis located on the right and left
sides between the rear seat and rear door to
cool the Li-ion battery and DC/DC conver-
ter. If the vent is covered, the Li-ion battery
or DC/DC converter will overheat resulting
in reduced output performance of the hybrid
system. See “Lithium-ion (Li-ion) battery
and DC/DC converter air vent” (P.7-5).
Hybrid System OverviewHybrid System-11

0 Illustrated table of contents
Seats, seat belts and Supplemental Restraint
System (SRS) ...................................................................... 0-2
Exterior front ...................................................................... 0-3
Exterior rear ........................................................................\
0-4
Passenger compartment ................................................. 0-5
Cockpit ........................................................................\
......... 0-6Instrument panel ............................................................... 0-7
Meters and gauges .......................................................... 0-8
Engine compartment ....................................................... 0-9
VQ35HR engine ......................................................... 0-9
Warning and indicator lights ...................................... 0-10

0-6Illustrated table of contents
JVC1106X
1. Side ventilator (P.4-2)
2. Headlight, fog light and turn signalswitch (P.2-36)
3. Steering wheel — Horn (P.2-43)
— Driver supplemental air bag (P.1-37) — Heated steering wheel (P.2-45)
— Power steering (P.5-126)
4. Windshield wiper and washer switch (P.2-34)
5. Hazard warning flasher switch (P.6-2)
6. Shift lever (P.5-15) 7. INFINITI controller*
8. Vehicle Dynamic Control (VDC) OFF
switch (P.2-43, P.5-130)
9. Trunk lid release switch (P.3-22)
10. Instrument brightness control switch (P.2-42)
11. TRIP/RESET switch for twin trip od- ometer (P.2-6)
12. Electric tilting/telescopic steering wheel switch (P.3-27)
13. Steering-wheel-mounted controls (left side)
— Audio control steering switch*
— Hands-Free Phone System switch*
— Voice recognition system switch*
14. Steering-wheel-mounted controls (right side)
— Trip computer switches (P.2-27)
— Cruise control switches (if so
equipped) (P.5-70)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P.5-72)
— Dynamic driver assistance switch (if
so equipped) (P.5-24, P.5-32, P.5-47,
P.5-93)
15. INFINITI Drive Mode Selector (P.5-21)
*: Refer to the Infiniti InTouch Owner’s Manual.
COCKPIT

0-8Illustrated table of contents
JVC0473X
1. Tachometer (P.2-7)
2. Warning and indicator lights (P.2-9)
3. Speedometer (P.2-6)
4. Assist charge gauge(P.Hybrid System-6, P.2-7)
5. Vehicle information display (P.2-18)/ Odometer/twin trip odometer (P.2-6)
6. Fuel gauge (P.2-7)
METERS AND GAUGES

0-10Illustrated table of contents
Warninglight Name
Page
12-volt battery charge
warning light 2-9
Anti-lock Braking System
(ABS) warning light2-10
Brake system warning light
(yellow)
2-10
Brake warning light (red) 2-10
Direct Response Hybrid®
System warning light 2-11
Forward Emergency Braking
(FEB) system warning light2-11
Low fuel warning light 2-12
Low tire pressure warning
light
2-12
Master warning light 2-13
Power steering warning light 2-14
Seat belt warning light 2-14
Supplemental air bag warn-
ing light2-14
Vehicle Dynamic Control
(VDC) warning light 2-15Indicator
light Name
Page
Approaching Vehicle Sound
for Pedestrians (VSP) OFF
indicator light 2-15
ECO drive indicator light 2-15
EV indicator light
2-15
Exterior light indicator 2-16
Front fog light indicator light 2-16
Front passenger air bag sta-
tus light2-16
High beam assist indicator
light (if so equipped)
2-16
High beam indicator light 2-16
Malfunction Indicator Light
(MIL)2-16
READY to drive indicator
light 2-17
Security indicator light 2-17
Turn signal/hazard indicator
lights2-17
Vehicle Dynamic Control
(VDC) off indicator light
2-17
WARNING AND INDICATOR LIGHTS

1 Safety — Seats, seat belts and supplementalrestraint system
Seats ........................................................................\
.............. 1-2
Front seats ...................................................................... 1-3
Armrest ........................................................................\
... 1-4
Head restraints/headrests .............................................. 1-5 Adjustable head
restraint/headrest components ................................ 1-6
Non-adjustable head
restraint/headrest components ................................ 1-6
Remove ........................................................................\
.... 1-6
Install ........................................................................\
........ 1-7
Adjust ........................................................................\
....... 1-7
Seat belts ........................................................................\
...... 1-9 Precautions on seat belt usage ................................ 1-9
Pregnant women ........................................................ 1-11
Injured persons ............................................................ 1-11
Pre-crash seat belts with comfort function
(front seats) (if so equipped) ................................... 1-11
Three-point type seat belt ...................................... 1-12
Seat belt extenders ................................................... 1-15
Seat belt maintenance .............................................. 1-15
Child safety ....................................................................... 1-16 Infants ........................................................................\
... 1-16
Small children .............................................................. 1-17
Larger children ............................................................ 1-17 Child restraints ................................................................ 1-18
Precautions on child restraints ............................ 1-18
Lower Anchors and Tethers for CHildren
System (LATCH) ...................................................... 1-20
Rear-facing child restraint installation
using LATCH ............................................................. 1-22
Rear-facing child restraint installation using
the seat belts ............................................................ 1-24
Forward-facing child restraint installation
using LATCH ............................................................. 1-27
Forward-facing child restraint installation
using the seat belts ................................................. 1-29
Booster seats ............................................................ 1-33
Supplemental restraint system ................................... 1-37 Precautions on supplemental
restraint system ........................................................ 1-37
INFINITI Advanced Air Bag System
(front seats) ............................................................... 1-43
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
and rollover supplemental air bag systems ...... 1-51
Seat belts with pretensioners (front seats) ...... 1-53
Supplemental air bag warning labels ................. 1-54
Supplemental air bag warning light ................... 1-54
Repair and replacement procedure .................... 1-55

1-10Safety — Seats, seat belts and supplemental restraint system

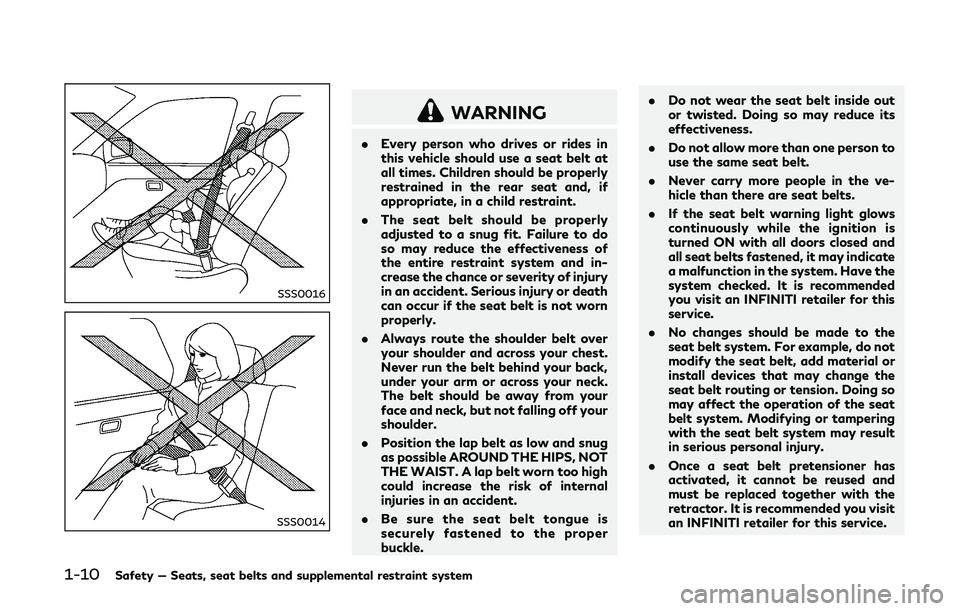

SSS0016
SSS0014
WARNING
.Every person who drives or rides in
this vehicle should use a seat belt at
all times. Children should be properly
restrained in the rear seat and, if
appropriate, in a child restraint.
. The seat belt should be properly
adjusted to a snug fit. Failure to do
so may reduce the effectiveness of
the entire restraint system and in-
crease the chance or severity of injury
in an accident. Serious injury or death
can occur if the seat belt is not worn
properly.
. Always route the shoulder belt over
your shoulder and across your chest.
Never run the belt behind your back,
under your arm or across your neck.
The belt should be away from your
face and neck, but not falling off your
shoulder.
. Position the lap belt as low and snug
as possible AROUND THE HIPS, NOT
THE WAIST. A lap belt worn too high
could increase the risk of internal
injuries in an accident.
. Be sure the seat belt tongue is
securely fastened to the proper
buckle. .
Do not wear the seat belt inside out
or twisted. Doing so may reduce its
effectiveness.
. Do not allow more than one person to
use the same seat belt.
. Never carry more people in the ve-
hicle than there are seat belts.
. If the seat belt warning light glows
continuously while the ignition is
turned ON with all doors closed and
all seat belts fastened, it may indicate
a malfunction in the system. Have the
system checked. It is recommended
you visit an INFINITI retailer for this
service.
. No changes should be made to the
seat belt system. For example, do not
modify the seat belt, add material or
install devices that may change the
seat belt routing or tension. Doing so
may affect the operation of the seat
belt system. Modifying or tampering
with the seat belt system may result
in serious personal injury.
. Once a seat belt pretensioner has
activated, it cannot be reused and
must be replaced together with the
retractor. It is recommended you visit
an INFINITI retailer for this service.

1-24Safety — Seats, seat belts and supplemental restraint system
SSS0650
Rear-facing — step 4
4. After attaching the child restraint, test it
before you place the child in it. Push it
from side to side while holding the child
restraint near the LATCH attachment
path. The child restraint should not move
more than 1 inch (25 mm), from side to
side. Try to tug it forward and check to
see if the LATCH attachment holds the
restraint in place. If the restraint is not
secure, tighten the LATCH attachment
as necessary, or put the restraint in
another seat and test it again. You may
need to try a different child restraint or
try installing by using the vehicle seat
belt (if applicable). Not all child restraints
fit in all types of vehicles. 5. Check to make sure the child restraint is
properly secured prior to each use. If the
child restraint is loose, repeat steps 1
through 4.
REAR-FACING CHILD RE-
STRAINT INSTALLATION USING
THE SEAT BELTS
WARNING
The three-point seat belt with Auto-
matic Locking Retractor (ALR) must be
used when installing a child restraint.
Failure to use the ALR mode will result in
the child restraint not being properly
secured. The restraint could tip over or
be loose and cause injury to a child in a
sudden stop or collision. Also, it can
change the operation of the front pas-
senger air bag. See “Front passenger air
bag and status light” (P.1-45).
For additional information, refer to all
Warnings and Cautions in the “Child safety”
(P.1-16) and “Child restraints” (P.1-18) be-
fore installing a child restraint.
Do not use the lower anchors if the com-
bined weight of the child and the child
restraint exceeds 65 lbs (29.5 kg). If the combined weight of the child and the child
restraint is greater than 65 lbs (29.5 kg), use
the vehicle’s seat belt (not the lower an-
chors) to install the child restraint. Be sure to
follow the child restraint manufacturer’s
instructions for installation.
Follow these steps to install a rear-facing
child restraint using the vehicle seat belts in
the rear seats:

JVR0258X
Installing top tether strap
WARNING
Child restraint anchorages are designed
to withstand only those loads imposed
by correctly fitted child restraints. Under
no circumstances are they to be used to
attach adult seat belts, or other items or
equipment to the vehicle. Doing so could
damage the child restraint anchorages.
The child restraint will not be properly
installed using the damaged anchorage,
and a child could be seriously injured or
killed in a collision.The child restraint top tether strap must be
used when installing the child restraint with
the LATCH lower anchor attachments.
First, secure the child restraint with the
LATCH lower anchors (rear outboard seat-
ing positions only).
1. Flip up the anchor cover from the anchor
point which is located directly behind the
child restraint.
2. If necessary, raise or remove the head restraint or headrest to position the top
tether strap over the top of the seatback.
If the head restraint or headrest is
removed, store it in a secure place. Be
sure to reinstall the head restraint or
headrest when the child restraint is
removed.
See “Head restraints/headrests” (P.1-
5) for head restraint or headrest adjust-
ment, removal and installation informa-
tion.
Position the top tether strap over the top
of the seatback.
3. Secure the tether strap to the tether anchor point on the rear parcel shelf.
4. Refer to the appropriate child restraint installation procedure steps in this sec-
tion before tightening the tether strap. If you have any questions when installing a
top tether strap, it is recommended you
visit an INFINITI retailer for this service.
FORWARD-FACING CHILD RE-
STRAINT INSTALLATION USING
THE SEAT BELTS
WARNING
The three-point seat belt with Auto-
matic Locking Retractor (ALR) must be
used when installing a child restraint.
Failure to use the ALR mode will result in
the child restraint not being properly
secured. The restraint could tip over or
be loose and cause injury to a child in a
sudden stop or collision. Also, it can
change the operation of the front pas-
senger air bag. See “Front passenger air
bag and status light” (P.1-45).
Safety — Seats, seat belts and supplemental restraint system1-29
