WARNING
Be sure the engine and the ignition
switch are off and that the parking
brake is engaged securely.
CAUTION
Be sure to use the correct socket to
remove the spark plugs. An incorrect
socket can damage the spark plugs.
SDI2020
REPLACING SPARK PLUGS
If replacement is required, it is recommended
you visit an INFINITI retailer for this service.
Iridium-tipped spark plugs
It is not necessary to replace the iridium-
tipped spark plugs as frequently as the
conventional type spark plugs since they will
last much longer. Follow the maintenance
schedule shown in the “9. Maintenance and
schedules” section, but do not reuse them by
cleaning or regapping.
Always replace spark plugs with recom-
mended or equivalent ones.
WARNING
.Operating the engine with the air
cleaner removed can cause you or
others to be burned. The air cleaner
not only cleans the air, it stops flame
if the engine backfires. If it is not
there, and the engine backfires, you
could be burned. Do not drive with
the air cleaner removed, and be care-
ful when working on the engine with
the air cleaner removed.
.Never pour fuel into the throttle body
or attempt to start the engine with
the air cleaner removed. Doing so
could result in serious injury.
The filter element should not be cleaned and
reused. Replace it according to the main-
tenance schedule shown in the “9. Main-
tenance and schedules” section. When
replacing the filter, wipe the inside of the
air cleaner housing and the cover with a
damp cloth.
When maintenance is required, it is recom-
mended you contact an INFINITI retailer for
servicing.
Do-it-yourself8-21
SPARK PLUGS AIR CLEANER

8-22Do-it-yourself
CLEANING
If your windshield is not clear after using the
windshield washer or if a wiper blade
chatters when running, wax or other materi-
al may be on the blade or windshield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your
windshield is clean if beads do not form
when rinsing with clear water.
Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild
detergent. Then rinse the blade with clear
water. If your windshield is still not clear
after cleaning the blades and using the
wiper, replace the blades.
Worn windshield wiper blades can damage
the windshield and impair driver vision.
When a washer nozzle is clogged
If a washer nozzle is clogged or any
malfunction occurs, have it checked. It is
recommended you visit an INFINITI retailer
for this service. Do not attempt to clean the
nozzle using a needle or a pin. Doing so may
damage the nozzle.
SDI2048
REPLACING
Replace the wiper blades if they are worn.
Before replacing the wiper blades, the wiper
should be in the fully up position to avoid
scratching the engine hood or damaging the
wiper arm. To pull up the wiper arm, see
“Wiper and washer switch” (P.2-35).
1. Pull the wiper arm.
2. Push the release tab
, and then move
the wiper blade down the wiper arm
while pushing the release tab to remove.
3. Insert the new wiper blade onto the
wiper arm until a click sounds.
4. Rotate the wiper blade so the dimple is in
the groove.
CAUTION
.After wiper blade replacement, re-
turn the wiper arm to its original
position;
otherwise it may be damaged when
the hood is opened.
.Make sure the wiper blades contact
the glass; otherwise the arm may be
damaged from wind pressure.
WINDSHIELD WIPER BLADES

If the brakes do not operate properly, have
the brakes checked. It is recommended you
visit an INFINITI retailer for this service.
SELF-ADJUSTING BRAKES
Your vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time
the brake pedal is applied.
WARNING
Have your brake system checked if the
brake pedal height does not return to
normal. It is recommended you visit an
INFINITI retailer for this service.
BRAKE PAD WEAR WARNING
The disc brake pads have audible wear
warnings. When a brake pad requires repla-
cement, it will make a high pitched scraping
sound when the vehicle is in motion. This
scraping sound will first occur only when the
brake pedal is depressed. After more wear of
the brake pad, the sound will always be
heard even if the brake pedal is not
depressed. Have the brakes checked as soon
as possible if the wear warning sound is
heard.
Under some driving or climate conditions,occasional brake squeak, squeal or other
noise may be heard. Occasional brake noise
during light to moderate stops is normal and
does not affect the function or performance
of the brake system.
Proper brake inspection intervals should be
followed.For additional information, see the
maintenance schedule shown in the “9.
Maintenance and schedules” section.
JVM0255X
VR30DDTT engine model
JVM0734X
VR30DDTT engine model
Do-it-yourself8-23
BRAKES FUSES

8-24Do-it-yourself
JVM0305X
2.0L turbo gasoline engine model
JVM0331X
2.0L turbo gasoline engine model
JVM0732X
2.0L turbo gasoline engine model (trunk)
ENGINE COMPARTMENT
WARNING
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is placed in
the OFF or LOCK position and theheadlight switch is turned to OFF.
2. Open the engine hood.
3. Remove the fuse/fusible link holder
cover.
4. Remove the fuse with the fuse puller.

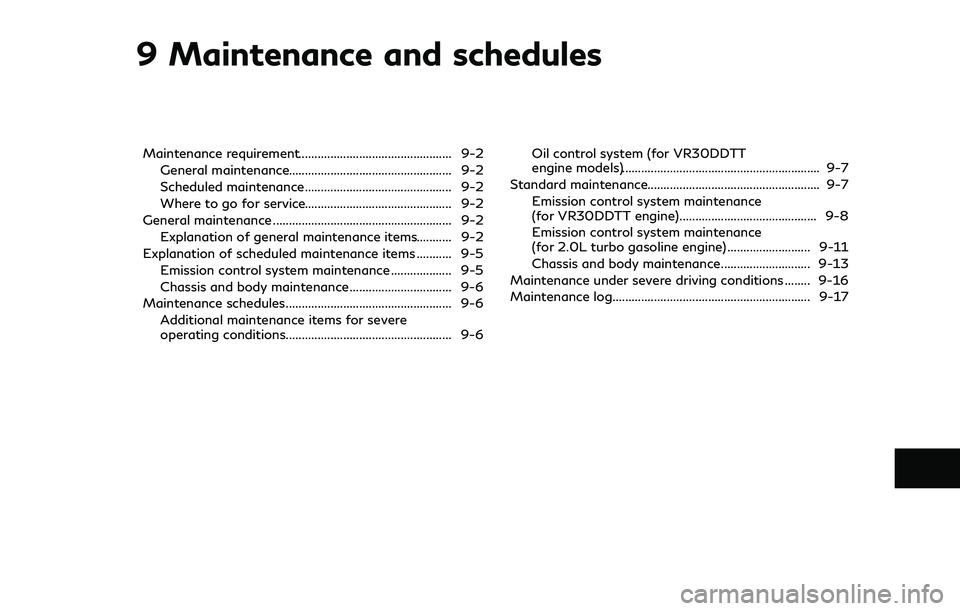

9 Maintenance and schedules
Maintenance requirement................................................ 9-2
General maintenance................................................... 9-2
Scheduled maintenance.............................................. 9-2
Where to go for service.............................................. 9-2
General maintenance ........................................................ 9-2
Explanation of general maintenance items........... 9-2
Explanation of scheduled maintenance items ........... 9-5
Emission control system maintenance ................... 9-5
Chassis and body maintenance................................ 9-6
Maintenance schedules.................................................... 9-6
Additional maintenance items for severe
operating conditions.................................................... 9-6Oil control system (for VR30DDTT
engine models).............................................................. 9-7
Standard maintenance...................................................... 9-7
Emission control system maintenance
(for VR30DDTT engine)........................................... 9-8
Emission control system maintenance
(for 2.0L turbo gasoline engine) .......................... 9-11
Chassis and body maintenance............................ 9-13
Maintenance under severe driving conditions ........ 9-16
Maintenance log.............................................................. 9-17

9-2Maintenance and schedules
Some day-to-day and regular maintenance
is essential to maintain your vehicle in good
mechanical condition, as well as its emission
and engine performance.
It is the owner’s responsibility to make sure
that the scheduled maintenance, as well as
general maintenance, is performed.
As the vehicle owner, you are the only one
who can ensure that your vehicle receives
the proper maintenance. You are a vital link
in the maintenance chain.
GENERAL MAINTENANCE
General maintenance includes those items
which should be checked during normal day-
to-day operation. They are essential for
proper vehicle operation. It is your respon-
sibility to perform these procedures regularly
as prescribed.
Performing general maintenance checks re-
quires minimal mechanical skill and only a
few general automotive tools.
These checks or inspections can be done by
yourself, a qualified technician or, if you
prefer, an INFINITI retailer.
SCHEDULED MAINTENANCE
The maintenance items listed in this section
are required to be serviced at regular inter-
vals. However, under severe driving condi-
tions, additional or more frequent
maintenance will be required.
WHERE TO GO FOR SERVICE
If maintenance service is required or your
vehicle appears to malfunction, have the
systems checked and serviced. It is recom-
mended you visit an INFINITI retailer for this
service.
INFINITI technicians are well-trained spe-
cialists and are kept up to date with the
latest service information through technical
bulletins, service tips and training programs.
They are completely qualified to work on
INFINITI vehiclesbeforework begins.
You can be confident that an INFINITI
retailer’s service department can perform
the service needed to meet the maintenance
requirements on your vehicle.During the normal day-to-day operation of
the vehicle, general maintenance should be
performed regularly as prescribed in this
section. If you detect any unusual sounds,
vibrations or smells, be sure to check for the
cause and have it checked promptly. In
addition, it is recommended you visit an
INFINITI retailer if you think that repairs are
required.
When performing any checks or mainte-
nance work, closely observe “Maintenance
precautions” (P.8-3) of this manual.
EXPLANATION OF GENERAL
MAINTENANCE ITEMS
Additional information on the following
items with “*” is found in the “8. Do-it-
yourself” section of this manual.
Outside the vehicle
The maintenance items listed here should be
performed from time to time, unless other-
wise specified.
Doors and engine hood:Check that all doors
and the engine hood, operate properly. Also
ensure that all latches lock securely. Lubri-
cate hinges, latches, latch pins, rollers and
links if necessary. Make sure that the
secondary latch keeps the hood from open-
ing when the primary latch is released.
When driving in areas using road salt or
MAINTENANCE REQUIREMENT GENERAL MAINTENANCE

9-4Maintenance and schedules
Warning lights and chimes:Make sure that
all warning lights and chimes are operating
properly.
Windshield defroster:Check that the air
comes out of the defroster outlets properly
and in sufficient quantity when operating
the heater or air conditioner.
Windshield wiper and washer*:Check that
the wipers and washer operate properly and
that the wipers do not streak.
Under the hood and vehicle
The maintenance items listed here should be
checked periodically (for example, each time
you check the engine oil or refuel).
Battery*:Check the fluid level in each cell. It
should be between the MAX and MIN lines.
Vehicles operated in high temperatures or
under severe condition require frequent
checks of the battery fluid level.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1.Installation or extended use of electro-
nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)2.Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
Brake fluid level*:Make sure that the brake
fluid level is between the MAX and MIN lines
on the reservoir.
Engine coolant level*:Check the coolant
level when the engine is cold.
Intercooler coolant level*:Check the coolant
level when the engine is cold.
Engine drive belts*:Make sure that no belt is
frayed, worn, cracked or oily.
Engine oil level*:Check the level after
parking the vehicle on a level spot and
turning off the engine. Wait more than 15
minutes for the oil to drain back into the oil
pan.
Exhaust system:Make sure there are no
loose supports, cracks or holes. If the sound
of the exhaust seems unusual or there is a
smell of exhaust fumes, immediately have
the exhaust system inspected. It is recom-
mended you visit an INFINITI retailer for this
service. (See “Precautions when starting and
driving” (P.5-4).)
Fluid leaks:Check under the vehicle for fuel,
oil, water or other fluid leaks after the
vehicle has been parked for a while. Water
dripping from the air conditioner after use isnormal. If you should notice any leaks or if
gasoline fumes are evident, check for the
cause and have it corrected immediately.
Power steering fluid level* and lines:Check
the level when the fluid is cold, with the
engine off. Check the lines for proper
attachment, leaks, cracks, etc.
Radiator and hoses:Check the front of the
radiator and clean off any dirt, insects,
leaves, etc., that may have accumulated.
Make sure the hoses have no cracks, defor-
mation, rot or loose connections.
Underbody:The underbody is frequently
exposed to corrosive substances such as
those used on icy roads or to control dust. It
is very important to remove these sub-
stances, otherwise rust will form on the
floor pan, frame, fuel lines and around the
exhaust system. At the end of winter, the
underbody should be thoroughly flushed
with plain water, being careful to clean
those areas where mud and dirt may accu-
mulate. For additional information, see
“Cleaning exterior” (P.7-2).
Windshield washer fluid*:Check that there
is adequate fluid in the reservoir.

The following descriptions are provided to
give you a better understanding of the
scheduled maintenance items that should
be regularly checked or replaced. The main-
tenance schedule indicates at which mile-
age/time intervals each item requires
service.
In addition to scheduled maintenance, your
vehicle requires that some items be checked
during normal day-to-day operation. Refer
to “General maintenance” (P.9-2).
Items marked with “*” are recommended by
INFINITI for reliable vehicle operation. You
are not required to perform maintenance on
these items in order to maintain the warran-
ties which come with your vehicle. Other
maintenance items and intervals are re-
quired.
When applicable, additional information can
be found in the “8. Do-it yourself” section of
this manual.
NOTE:
INFINITI does not advocate the use of non-
OEM approved aftermarket flushing sys-
tems and strongly advises against perform-
ing these services on an INFINITI product.
Many of the aftermarket flushing systems
use non-OEM approved chemicals or sol-
vents, the use of which has not been
validated by INFINITI.For recommended fuel, lubricants, fluids,
grease, and refrigerant, refer to “Capacities
and recommended fluids/lubricants” (P.10-
2) of this manual.
EMISSION CONTROL SYSTEM
MAINTENANCE
Drive belts*:
Check engine drive belts for wear, fraying or
cracking and for proper tension. Replace any
damaged drive belts.
Engine air filter:
Replace at specified intervals. When driving
for prolonged periods in dusty conditions,
check/replace the filter more frequently.
Engine coolant* (for VR30DDTT engine
models):
Replace coolant at the specified interval.
When adding or replacing coolant, be sure to
use only Genuine NISSAN Long Life Anti-
freeze/Coolant (blue) or equivalent with the
proper mixture. (Refer to “Engine cooling
system (for VR30DDTT engine models)”
(P.8-6) to determine the proper mixture for
your area.)
NOTE:
Mixing any other type of coolant or the use
of non-distilled water may reduce the
recommended service interval of the cool-
ant.Engine coolant* (for 2.0L turbo gasoline
engine models):
Replace coolant at the specified interval.
When adding or replacing coolant, be sure to
use only BASF Glysantin
®G48®or equiva-
lent with the proper mixture. (Refer to
“Engine cooling system (for 2.0L turbo
gasoline engine models)” (P.8-8) to deter-
mine the proper mixture for your area.)
NOTE:
Mixing any other type of coolant or the use
of non-distilled water may reduce the
recommended service interval of the cool-
ant.
Intercooler coolant (for VR30DDTT engine
models):
Intercooler coolant is maintenance-free.
Engine oil and oil filter:
Replace engine oil and oil filter at the
specified intervals. For recommended oil
grade and viscosity refer to “Capacities and
recommended fluids/lubricants” (P.10-2).
Engine valve clearance*:
Inspect only if valve noise increases. Adjust
valve clearance if necessary.
Evaporative emissions control vapor lines*:
Check vapor lines for leaks or looseness.
Tighten connections or replace parts as
necessary.
Maintenance and schedules9-5
EXPLANATION OF SCHEDULED
MAINTENANCE ITEMS

.Operating in hot weather in stop-and-go
“rush hour” traffic.
.Extensive idling and/or low speed driving
for long distances, such as police, taxi or
door-to-door delivery use.
.Driving in dusty conditions.
.Driving on rough, muddy or salt spread
roads.
.Using a car-top carrier.
NOTE:
For vehicles operated in Canada, both
standard and severe maintenance items
should be performed at every interval.
OIL CONTROL SYSTEM (for
VR30DDTT engine models)
Your vehicle is equipped with oil control
system. It calculates engine oil and filter
change interval based on driving conditions.
Driving in severe conditions will shorten the
engine oil and filter change interval. When
the oil replacement indicator appears in the
vehicle information display, the engine oil
and filter need to be replaced.The following tables show the standard
maintenance schedule. Depending upon
weather and atmospheric conditions, vary-
ing road surfaces, individual driving habits
and vehicle usage, additional or more fre-
quent maintenance may be required.
After 120,000 miles (192,000 km)/144
months, continue maintenance at the same
mileage/time intervals.
Maintenance and schedules9-7
STANDARD MAINTENANCE

9-8Maintenance and schedules
EMISSION CONTROL SYSTEM MAINTENANCE (for VR30DDTT engine)
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OP-
ERATION
Perform at number of
miles, kilometers or
months, whichever
comes first.Miles × 1,000
(km × 1,000)
MonthsMAINTENANCE INTERVAL
5
(8)
610
(16)
1215
(24)
1820
(32)
2425
(40)
3030
(48)
3635
(56)
4240
(64)
4845
(72)
5450
(80)
6055
(88)
6660
(96)
72
Drive belts See NOTE (1)I* I* I*
Air cleaner filter See NOTE (2) R R
EVAP vapor lines I* I* I*
Fuel lines I* I* I*
Fuel filter See NOTE (3)
Engine coolant* See NOTE (4)
(5)
Engine oil See NOTE (6) R R R R R R
Engine oil filter See NOTE (6) R R R R R R
Spark plugs See NOTE (7) Replace every 105,000 miles (168,000 km)
Intake and exhaust valve
clearance*See NOTE (8)
