INFINITI Q60 COUPE 2014 User Guide
Manufacturer: INFINITI, Model Year: 2014, Model line: Q60 COUPE, Model: INFINITI Q60 COUPE 2014Pages: 458, PDF Size: 4.27 MB
Page 11 of 458
0-4Illustrated table of contents
SSI0685
1. High-mounted stop light (model witha rear spoiler) (Bulb replacement)
(P.8-27)
2. High-mounted stop light (model with- out a rear spoiler) (Bulb replacement)
(P.8-27) 3. Rear window defroster (P.2-34)
4. Satellite antenna (P.4-40)
5. Rear view camera (if so equipped)
(P.4-23)
6. Trunk —Intelligent Key system (P.3-6) —
Remote keyless entry system
(P.3-14)
— Trunk lid (P.3-18)
7. Sonar system (if so equipped) (P.5-51)
8. Rear combination light (Bulb replace- ment) (P.8-27)
9. Fuel-filler door —Operation (P.3-21)
— Fuel recommendation (P.9-4)
EXTERIOR REAR
Page 12 of 458

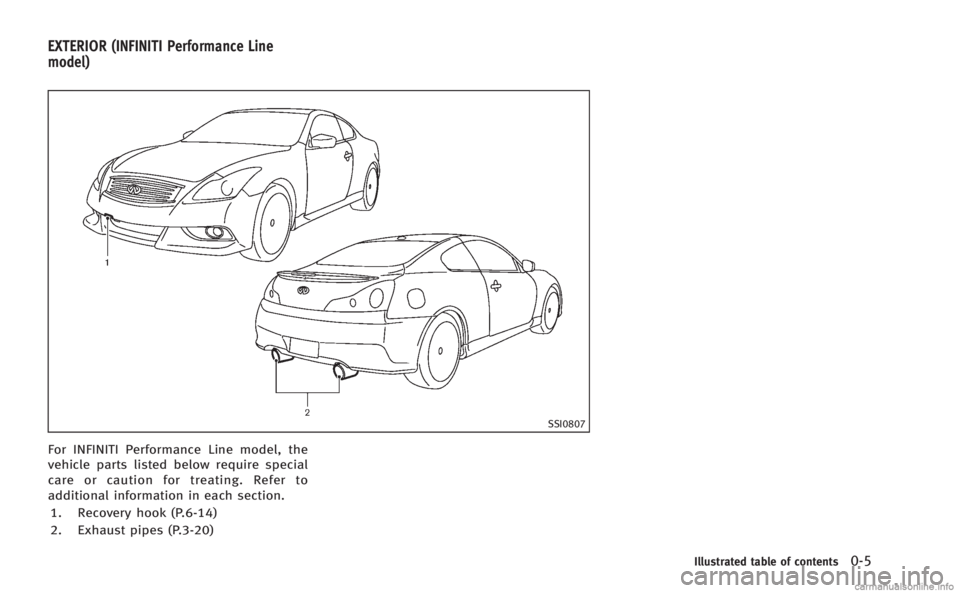

SSI0807
For INFINITI Performance Line model, the
vehicle parts listed below require special
care or caution for treating. Refer to
additional information in each section.1. Recovery hook (P.6-14)
2. Exhaust pipes (P.3-20)
Illustrated table of contents0-5
EXTERIOR (INFINITI Performance Line
model)
Page 13 of 458
0-6Illustrated table of contents
SSI0669
1. Coat hooks (P.2-49)
2. Power windows (P.2-50)
3. Outside mirror remote control switch(P.3-26)
4. Automatic drive positioner switch (if so equipped) (P.3-28) 5. Sun visors (P.3-24)
6. Moonroof switch (if so equipped)
(P.2-52)
7. Map light (P.2-54)
8. Sunglasses holder (P.2-46)
9. Inside rearview mirror —
Operation (P.3-25)
— HomeLink
®(P.2-56)
— Compass (if so equipped) (P.2-9)
10. Rear cup holders (P.2-44)
11. Console box —Power outlet (P.2-42)
— USB input operation (if so
equipped) (P.4-61)
— iPod
®player operation (if so
equipped) (P.4-71)
12. Front cup holders (P.2-44)
PASSENGER COMPARTMENT
Page 14 of 458
SIC4683
1. Vehicle Dynamic Control (VDC) OFFswitch (P.5-58)
2. Trunk lid release switch (P.3-18)
3. Sonar system off switch (if so equipped) (P.5-53) 4. Instrument brightness control switch
(P.2-38)
5. TRIP/RESET switch for twin trip od- ometer (P.2-7)
6. Headlight, fog light and turn signal switch (P.2-34) 7. Paddle shifter (if so equipped) (P.5-16)
8. Steering-wheel-mounted controls (left
side)
—ENTER or tuning switch (P.4-74)
— BACK switch (P.4-74)
— TALK switch (if so equipped)
(P.4-101)/Phone switch (if so
equipped) (P.4-77, P.4-87)
— Volume control switches (P.4-74)
— Source select switch (P.4-74)
9. Trip computer switch (P.2-26)
10. Windshield wiper and washer switch (P.2-31)
11. Steering-wheel-mounted controls (right side)
—Cruise control switches (P.5-22)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P.5-24)
12. Hood release handle (P.3-17)
13. Intelligent Key port (P.5-12)
14. Electric tilting/telescopic steering wheel lever (if so equipped) (P.3-23)
15. Manual tilting/telescopic steering wheel lever (if so equipped) (P.3-23)
16. Steering wheel —Horn (P.2-39)
— Driver supplemental air bag
(P.1-38)
Illustrated table of contents0-7
COCKPIT
Page 15 of 458
0-8Illustrated table of contents
SSI0671
1. Side ventilator (P.4-30)
2. Meters and gauges (P.2-6)
3. Center ventilator (P.4-30)
4. Audio system (P.4-39)
5. Clock (P.2-42)6. Center multi-function control panel
(P.4-3)
—Navigation system* (if so
equipped)
— Vehicle information and setting
buttons (P.4-9) —
Bluetooth
®Hands-Free Phone Sys-
tem (P.4-77, P.4-87)
— Audio system (P.4-39)
7. Center display (P.4-3)/Navigation sys- tem* (if so equipped)
8. Hazard warning flasher switch (P.6-2)
9. Front passenger supplemental air bag (P.1-38)
10. Fuse box cover (P.8-23)
11. Parking brake (for Automatic Trans- mission models)
—Parking (P.5-21)
12. Push-button ignition switch (P.5-9)
13. Automatic climate control system (P.4-31)
14. Cigarette lighter and ashtray (if so equipped) (P.2-43) or storage box (if
so equipped) (P.2-49)
—Power outlet (if so equipped)
(P.2-42)
15. Parking brake (for Manual Transmis- sion models)
—Parking (P.5-21)
16. Heated seat switch (P.2-39)
17. SNOW mode switch (if so equipped) (P.2-41)
18. Rear window and outside mirror (if so equipped) defroster switch (P.2-34)
INSTRUMENT PANEL
Page 16 of 458
19. Glove box lid release handle (P.2-46)
20. Trunk release power cancel switch(P.3-19)
*: Refer to the separate Navigation System Owner’s Manual.
Illustrated table of contents0-9
Page 17 of 458
0-10Illustrated table of contents
SIC4288
1. Tachometer (P.2-8)
2. Warning/Indicator lights (P.2-12)
3. Speedometer (P.2-7)
4. Engine coolant temperature gauge(P.2-8) 5. Dot matrix liquid crystal display
(P.2-20)/Odometer/twin trip odometer
(P.2-7)
6. Fuel gauge (P.2-9)
METERS AND GAUGES
Page 18 of 458
JVC0332X
VQ37VHR ENGINE
1. Fuse/fusible link holder (P.8-23)
2. Battery (P.8-15)
3. Engine oil filler cap (P.8-10)
4. Brake fluid reservoir (P.8-13)
5. Clutch fluid reservoir (Manual Trans-mission models) (P.8-13)
6. Window washer fluid reservoir (P.8-14)
7. Power steering fluid reservoir (P.8-13)
8. Air cleaner (P.8-20)
9. Radiator filler cap (P.8-8) 10. Drive belts (P.8-18)
11. Coolant reservoir (P.8-8)
12. Engine oil dipstick (P.8-10)
Illustrated table of contents0-11
ENGINE COMPARTMENT
Page 19 of 458
0-12Illustrated table of contents
Warninglight Name
Page
All-Wheel Drive (AWD) warning
light (AWD models)* 2-12
Anti-lock Braking System (ABS)
warning light2-13
Automatic Transmission check
warning light*
2-13
Brake warning light
2-13
Charge warning light2-14
Engine oil pressure warning
light 2-14
Intelligent Cruise Control (ICC)
system warning light (orange)*
2-14
Intelligent Key warning light 2-15
Low tire pressure warning light 2-15
Master warning light
2-16
Preview Function warning light
(orange)* 2-16
Seat belt warning light 2-16
Supplemental air bag warning
light2-17
Vehicle Dynamic Control (VDC)
warning light2-17Indicator
light Name
Page
Automatic Transmission posi-
tion indicator light* 2-17
Exterior light indicator
2-18
Front fog light indicator light 2-18
Front passenger air bag status
light 2-18
High beam indicator light 2-18
Malfunction Indicator Light
(MIL)2-18
Security indicator light 2-19
Turn signal/hazard indicator
lights2-19
Vehicle Dynamic Control (VDC)
off indicator light2-19
*: if so equipped
WARNING AND INDICATOR LIGHTS
Page 20 of 458
1 Safety—Seats, seat belts and supplemental
restraint system
Seats ................................................................... 1-2
Front seats ...................................................... 1-3
Rear seats ....................................................... 1-7
Head restraints (front seats) ............................ 1-9
Head restraints (rear seats) ........................... 1-13
Seat belts .......................................................... 1-13
Precautions on seat belt usage ..................... 1-13
Pregnant women ........................................... 1-16
Injured persons ............................................. 1-16
Pre-crash seat belts (front seats) (if
so equipped) ................................................. 1-16
Three-point type seat belt ............................. 1-16
Seat belt extenders ....................................... 1-19
Seat belt maintenance................................... 1-19
Child safety ....................................................... 1-20 Infants........................................................... 1-20
Small children ............................................... 1-21
Larger children .............................................. 1-21
Child restraints .................................................. 1-22
Precautions on child restraints ...................... 1-22
Lower Anchors and Tethers for CHildren
System (LATCH) ............................................. 1-23 Rear-facing child restraint installation
using LATCH................................................. 1-25
Rear-facing child restraint installation using
the seat belts .............................................. 1-27
Forward-facing child restraint installation
using LATCH................................................. 1-29
Forward-facing child restraint installation
using the seat belts ..................................... 1-31
Installing top tether strap ............................ 1-34
Booster seats .............................................. 1-35
Supplemental restraint system .......................... 1-38 Precautions on supplemental
restraint system........................................... 1-38
INFINITI Advanced Air Bag System
(front seats) ................................................. 1-43
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ..................... 1-48
Seat belts with pretensioners (front seats).... 1-50
Supplemental air bag warning labels ........... 1-51
Supplemental air bag warning light ............. 1-51
Repair and replacement procedure............... 1-52
