cruise control INFINITI Q70 2014 User Guide

Black plate (304,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
Precautions on vehicle-to-vehicle distance
control mode...
................................................. 5-51
Vehicle-to-vehicle distance control
mode operation ...
............................................. 5-52
Conventional (fixed speed) cruise
control mode ...
................................................. 5-67
Preview function (for Intelligent Cruise Control
system equipped models) ...
............................. 5-70
Distance Control Assist (DCA) system (if
so equipped) ...
..................................................... 5-71
Precautions on Distance Control
Assist system ...
................................................ 5-71
Distance Control Assist operation ...
.................. 5-73
Forward Collision Warning (FCW) system (if
so equipped) ...
..................................................... 5-83
Precautions on FCW system ...
........................... 5-84
Intelligent Brake Assist (IBA) system (if
so equipped) ...
..................................................... 5-87
Precautions on IBA system ...
............................ 5-88
Break-in schedule ...
.............................................. 5-91
Fuel efficient driving tips ...
................................... 5-91
Increasing fuel economy ...
.................................... 5-92
Intelligent All-Wheel Drive (AWD) (if
so equipped) ...
..................................................... 5-93
Parking/parking on hills ...
.................................... 5-94
Sonar system (if so equipped) ...
........................... 5-95
Sonar indicator ...
.............................................. 5-96 Sonar system OFF switch
...
............................. 5-97
Power steering ...
.................................................. 5-97
Brake system ...
.................................................... 5-98
Braking precautions ...
..................................... 5-98
Parking brake break-in ...
................................. 5-98
Brake assist ...
...................................................... 5-99
Brake assist ...
................................................. 5-99
Preview function (Intelligent Cruise Control
system equipped models) ...
............................ 5-99
Anti-lock Braking System (ABS) ...
.................. 5-101
Vehicle Dynamic Control (VDC) system ...
............ 5-102
Active trace control (if so equipped) ...
........... 5-103
Rise-up and build-up ...
................................. 5-103
Brake force distribution ...
............................. 5-103
Hill Start Assist system ...
................................... 5-104
Cold weather driving ...
....................................... 5-105
Freeing a frozen door lock ...
......................... 5-105
Antifreeze ...
.................................................. 5-105
Battery ...
....................................................... 5-105
Draining of coolant water ...
........................... 5-105
Tire equipment ...
.......................................... 5-105
Special winter equipment ...
.......................... 5-106
Driving on snow or ice ...
............................... 5-106
Engine block heater (if so equipped) ...
.......... 5-106
Active noise control ...
......................................... 5-107
Condition:

Black plate (323,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
.When the vehicle speed is below 3 MPH
(4.8 km/h) or over 90 MPH (144 km/h).
. When the Intelligent Cruise Control (ICC)
system is operated.
ECO pedal system (if so equipped)Y51D-V-E01-B5B27020-9063-4D1B-930D-616910390508Helps assist the driver to improve fuel
economy by increasing the reaction force
of the accelerator pedal. When the ECO
drive indicator light is blinking or turns
orange, the ECO pedal system increases
the reaction force of the accelerator pedal.
SSD1041
When the ECO drive indicator illuminates in
green, the accelerator reaction force is
normal. When the ECO drive indicator light is blinking or turns orange, the ECO pedal
system increases the reaction force of the
accelerator pedal.
The ECO pedal system may not vary
accelerator reaction force under the follow-
ing conditions:
.
When the shift lever is in the N (Neutral)
or R (Reverse) position.
. When Intelligent Cruise Control (ICC) is
being operated.
If the ECO pedal system malfunctions, it
will cancel automatically. The ECO pedal
system will not vary the reaction force of
the accelerator pedal.
When the drive mode select switch is
rotated from the ECO mode to another
mode (STANDARD, SPORT or SNOW) while
the ECO pedal system is operating, the ECO
pedal system continues to operate until
the pedal is released.
If the accelerator pedal is depressed
quickly, the ECO pedal system will not
increase the reaction force of the accelera-
tion pedal. The ECO pedal system is not
designed to prevent the vehicle from
accelerating. Adjusting the ECO pedal system reaction
force:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The ECO pedal system reaction force can
be adjusted. The reaction force setting will
be maintained until the setting is changed
even if the engine is turned off.
Starting and driving5-21
Condition:

Black plate (333,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]

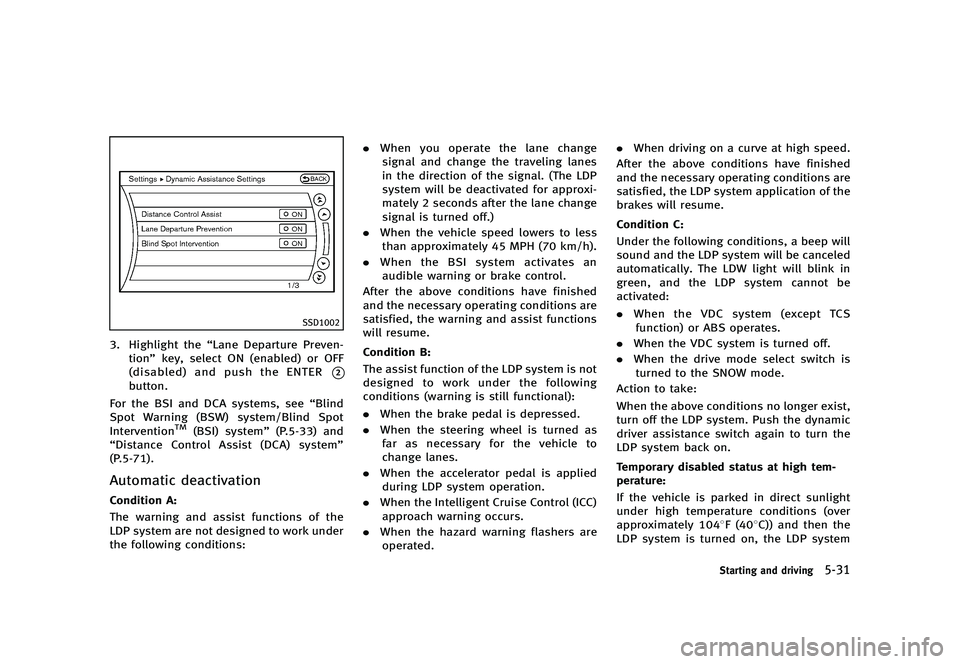

SSD1002
3. Highlight the“Lane Departure Preven-
tion” key, select ON (enabled) or OFF
(disabled) and push the ENTER
*2
button.
For the BSI and DCA systems, see “Blind
Spot Warning (BSW) system/Blind Spot
Intervention
TM(BSI) system” (P.5-33) and
“Distance Control Assist (DCA) system”
(P.5-71).
Automatic deactivationY51D-V-E01-D441AB27-19FC-4F77-8D18-677D5B5D52DE
Condition A:GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The warning and assist functions of the
LDP system are not designed to work under
the following conditions: .
When you operate the lane change
signal and change the traveling lanes
in the direction of the signal. (The LDP
system will be deactivated for approxi-
mately 2 seconds after the lane change
signal is turned off.)
. When the vehicle speed lowers to less
than approximately 45 MPH (70 km/h).
. When the BSI system activates an
audible warning or brake control.
After the above conditions have finished
and the necessary operating conditions are
satisfied, the warning and assist functions
will resume.
Condition B:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The assist function of the LDP system is not
designed to work under the following
conditions (warning is still functional):
. When the brake pedal is depressed.
. When the steering wheel is turned as
far as necessary for the vehicle to
change lanes.
. When the accelerator pedal is applied
during LDP system operation.
. When the Intelligent Cruise Control (ICC)
approach warning occurs.
. When the hazard warning flashers are
operated. .
When driving on a curve at high speed.
After the above conditions have finished
and the necessary operating conditions are
satisfied, the LDP system application of the
brakes will resume.
Condition C:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0Under the following conditions, a beep will
sound and the LDP system will be canceled
automatically. The LDW light will blink in
green, and the LDP system cannot be
activated:
. When the VDC system (except TCS
function) or ABS operates.
. When the VDC system is turned off.
. When the drive mode select switch is
turned to the SNOW mode.
Action to take:
When the above conditions no longer exist,
turn off the LDP system. Push the dynamic
driver assistance switch again to turn the
LDP system back on.
Temporary disabled status at high tem-
perature:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0If the vehicle is parked in direct sunlight
under high temperature conditions (over
approximately 1048F (408C)) and then the
LDP system is turned on, the LDP system
Starting and driving5-31
Condition:

Black plate (349,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
Y51D-V-E01-23AAF2E8-96D4-4088-8FC4-E0EA618F6140
PRECAUTIONS ON CRUISE CONTROLY51D-V-E01-C80C843B-C941-4617-9A6B-8ACA08B59C74.If the cruise control system malfunc-
tions, it will cancel automatically. The
SET indicator on the dot matrix crystal
display will then blink to warn the
driver.
. If the engine coolant temperature be-
comes excessively high, the cruise
control system will be canceled auto-
matically.
. If the SET indicator blinks, turn the
cruise control main switch off and have
the system checked by your INFINITI
retailer.
. The SET indicator may sometimes blink
when the cruise control main switch is
turned ON while pushing the COAST/
SET, ACCELERATE/RESUME or CANCEL
switch. To properly set the cruise
control system, perform the steps
below in the order indicated.
WARNING
Do not use the cruise control when driving
under the following conditions:
. when it is not possible to keep the
vehicle at a set speed .
in heavy traffic or in traffic that varies in
speed
. on winding or hilly roads
. on slippery roads (rain, snow, ice, etc.)
. in very windy areas
Doing so could cause a loss of vehicle
control and result in an accident.
SSD0941
1. ACCELERATE/RESUME switch
2. COAST/SET switch
3. CANCEL switch
4. MAIN (ON·OFF) switch
CRUISE CONTROL OPERATIONSY51D-V-E01-FB0B9100-C99C-4A9C-A4E2-8F0F55B5FB3CThe cruise control allows driving at a speed
between 25 to 90 MPH (40 to 144 km/h)
without keeping your foot on the accel-
erator pedal.
To turn on the cruise control, push the
MAIN switch on. The CRUISE indicator will
come on.
To set cruising speed, accelerate your
vehicle to the desired speed, push the
Starting and driving5-47
CRUISE CONTROL
Condition:

Black plate (350,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]

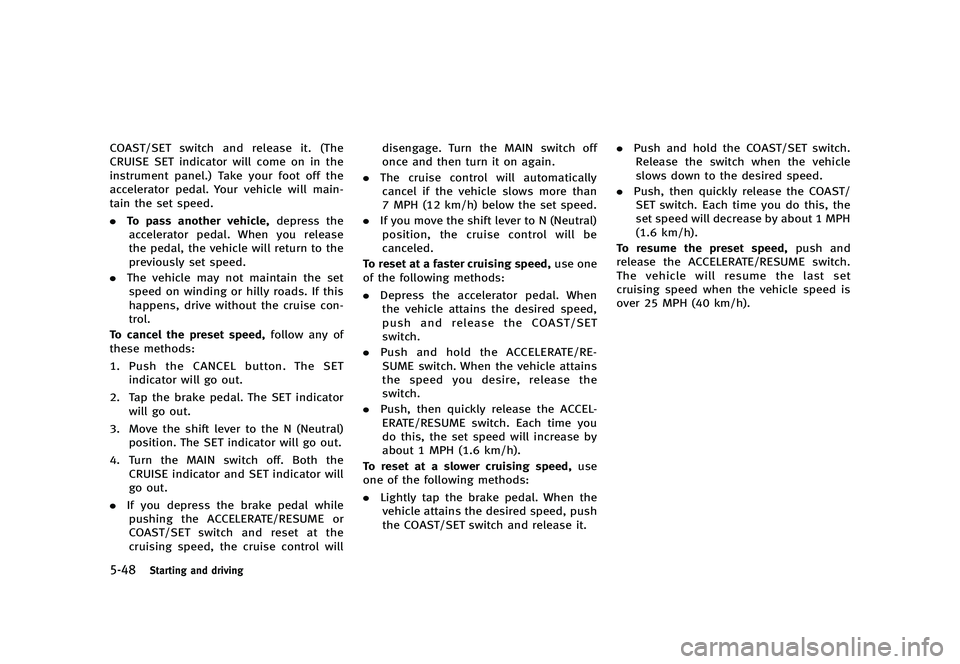

5-48Starting and driving
COAST/SET switch and release it. (The
CRUISE SET indicator will come on in the
instrument panel.) Take your foot off the
accelerator pedal. Your vehicle will main-
tain the set speed.
.To pass another vehicle, depress the
accelerator pedal. When you release
the pedal, the vehicle will return to the
previously set speed.
. The vehicle may not maintain the set
speed on winding or hilly roads. If this
happens, drive without the cruise con-
trol.
To cancel the preset speed, follow any of
these methods:
1. Push the CANCEL button. The SET
indicator will go out.
2. Tap the brake pedal. The SET indicator will go out.
3. Move the shift lever to the N (Neutral) position. The SET indicator will go out.
4. Turn the MAIN switch off. Both the CRUISE indicator and SET indicator will
go out.
. If you depress the brake pedal while
pushing the ACCELERATE/RESUME or
COAST/SET switch and reset at the
cruising speed, the cruise control will disengage. Turn the MAIN switch off
once and then turn it on again.
. The cruise control will automatically
cancel if the vehicle slows more than
7 MPH (12 km/h) below the set speed.
. If you move the shift lever to N (Neutral)
position, the cruise control will be
canceled.
To reset at a faster cruising speed, use one
of the following methods:
. Depress the accelerator pedal. When
the vehicle attains the desired speed,
push and release the COAST/SET
switch.
. Push and hold the ACCELERATE/RE-
SUME switch. When the vehicle attains
the speed you desire, release the
switch.
. Push, then quickly release the ACCEL-
ERATE/RESUME switch. Each time you
do this, the set speed will increase by
about 1 MPH (1.6 km/h).
To reset at a slower cruising speed, use
one of the following methods:
. Lightly tap the brake pedal. When the
vehicle attains the desired speed, push
the COAST/SET switch and release it. .
Push and hold the COAST/SET switch.
Release the switch when the vehicle
slows down to the desired speed.
. Push, then quickly release the COAST/
SET switch. Each time you do this, the
set speed will decrease by about 1 MPH
(1.6 km/h).
To resume the preset speed, push and
release the ACCELERATE/RESUME switch.
The vehicle will resume the last set
cruising speed when the vehicle speed is
over 25 MPH (40 km/h).
Condition:

Black plate (351,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]

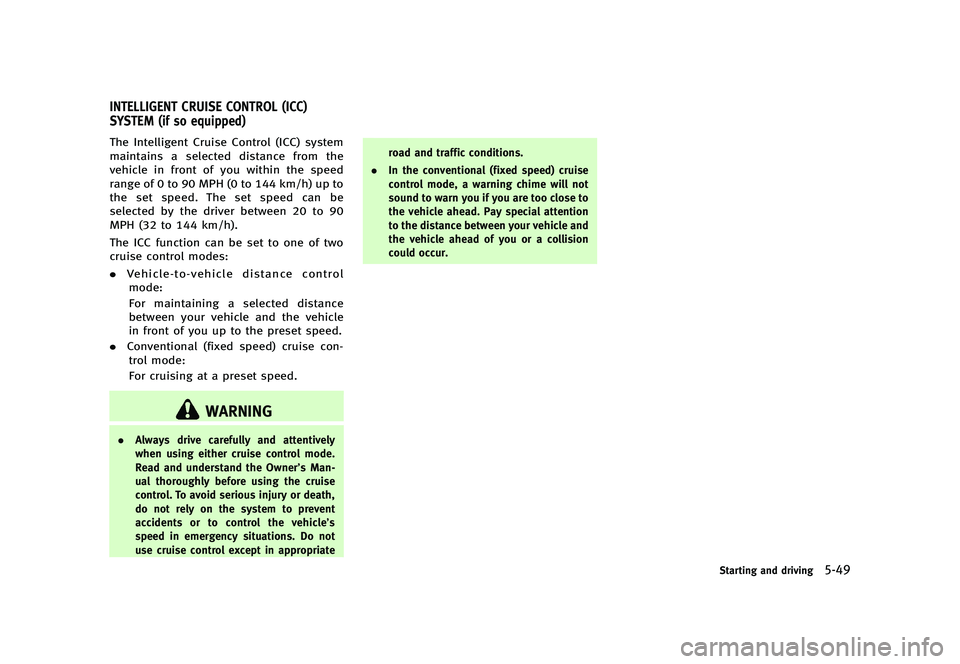

Y51D-V-E01-E12DEF9F-F1BA-4CEB-86DE-36755D88029AThe Intelligent Cruise Control (ICC) system
maintains a selected distance from the
vehicle in front of you within the speed
range of 0 to 90 MPH (0 to 144 km/h) up to
the set speed. The set speed can be
selected by the driver between 20 to 90
MPH (32 to 144 km/h).
The ICC function can be set to one of two
cruise control modes:
.Vehicle-to-vehicle distance control
mode:
For maintaining a selected distance
between your vehicle and the vehicle
in front of you up to the preset speed.
. Conventional (fixed speed) cruise con-
trol mode:
For cruising at a preset speed.
WARNING
. Always drive carefully and attentively
when using either cruise control mode.
Read and understand the Owner’s Man-
ual thoroughly before using the cruise
control. To avoid serious injury or death,
do not rely on the system to prevent
accidents or to control the vehicle’s
speed in emergency situations. Do not
use cruise control except in appropriate road and traffic conditions.
. In the conventional (fixed speed) cruise
control mode, a warning chime will not
sound to warn you if you are too close to
the vehicle ahead. Pay special attention
to the distance between your vehicle and
the vehicle ahead of you or a collision
could occur.
Starting and driving5-49
INTELLIGENT CRUISE CONTROL (ICC)
SYSTEM (if so equipped)
Condition:

Black plate (352,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
5-50Starting and driving
SSD0976
1.Vehicle-to-vehicle distance control
mode
2. Conventional (fixed speed) cruise con- trol mode
Push the MAIN switch
*Ato choose the
cruise control mode between the vehicle-
to-vehicle distance control mode
*1and
the conventional (fixed speed) cruise con-
trol mode
*2.
To choose the vehicle-to-vehicle distance
control mode
*1, quickly push and release
the MAIN switch
*A. To choose the
conventional (fixed speed) cruise control
mode
*2, push and hold the MAIN switch
*Afor longer than approximately 1.5 seconds.
Once a control mode is activated, it cannot
be changed to the other cruise control
mode. To change the mode, push the MAIN
switch once to turn the system off. Then
push the MAIN switch again to turn the
system back on and select the desired
cruise control mode.
Always confirm the setting in the Intelligent
Cruise Control system display.
For the vehicle-to-vehicle distance control
mode, see the following description. For
the conventional (fixed speed) cruise con-
trol mode, see
“Conventional (fixed speed) cruise control switch”
(P.5-67).
SELECTING THE VEHICLE-TO-VEHI-
CLE DISTANCE CONTROL MODE
Y51D-V-E01-A118E9F7-859B-4F56-99C3-0CC1D7D06EF6To choose the vehicle-to-vehicle distance
control mode
*1, quickly push and release
the MAIN switch
*A.
VEHICLE-TO-VEHICLE DISTANCE
CONTROL MODE
Y51D-V-E01-8FBC4AFD-22C3-46CC-855D-F92C37DF0F5CIn the vehicle-to-vehicle distance control
mode, the Intelligent Cruise Control (ICC)
system automatically maintains a selected
distance from the vehicle traveling in front
of you according to that vehicle’s speed
(up to the set speed), or at the set speed
when the road ahead is clear.
With ICC, the driver can maintain the same
speed as other vehicles without the con-
stant need to adjust the set speed as you
would with a normal cruise control system.
Condition:

Black plate (353,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
SSD0943
PRECAUTIONS ON VEHICLE-TO-VE-
HICLE DISTANCE CONTROL MODE
Y51D-V-E01-C783084C-2815-4955-98EF-A68E28DCDCF8The system is intended to enhance the
operation of the vehicle when following a
vehicle traveling in the same lane and
direction.
If the distance sensor
*Adetects a slower
moving vehicle ahead, the system will
reduce the vehicle speed so that your
vehicle follows the vehicle in front at the
selected distance.
The system automatically controls the
throttle and applies the brakes (up to
25% of vehicle braking power) if neces- sary.
The detection range of the sensor is
approximately 390 ft (120 m) ahead.
WARNING
.
This system is only an aid to assist the
driver and is not a collision warning or
avoidance device. It is the driver’s
responsibility to stay alert, drive safely
and be in control of the vehicle at all
times.
. The system is primarily intended for use
on straight, dry, open roads with light
traffic. It is not advisable to use the
system in city traffic or congested areas.
. This system will not adapt automatically
to road conditions. This system should
be used in evenly flowing traffic. Do not
use the system on roads with sharp
curves, or on icy roads, in heavy rain or
in fog.
The distance sensor will not detect under
most conditions:
.Stationary and slow moving vehicles
. Pedestrians or objects in the roadway .
Oncoming vehicles in the same lane
. Motorcycles traveling offset in the travel
lane
WARNING
. As there is a performance limit to the
distance control function, never rely
solely on the Intelligent Cruise Control
system. This system does not correct
careless, inattentive or absent-minded
driving, or overcome poor visibility in
rain, fog, or other bad weather. Decele-
rate the vehicle speed by depressing the
brake pedal, depending on the distance
to the vehicle ahead and the surround-
ing circumstances in order to maintain a
safe distance between vehicles.
. If the vehicle ahead comes to a stop, the
vehicle decelerates to a standstill within
the limitations of the system. The
system will cancel once it judges that
the vehicle has come to a standstill and
sound a warning chime. To prevent the
vehicle from moving, the driver must
depress the brake pedal.
. The system may not detect the vehicle in
front of you in certain road or weather
Starting and driving5-51
Condition:

Black plate (354,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
5-52Starting and driving
conditions. To avoid accidents, never use
the Intelligent Cruise Control system
under the following conditions:
—On roads where the traffic is heavyor there are sharp curves
—On slippery road surfaces such as
on ice or snow, etc.
—During bad weather (rain, fog, snow,etc.)
When the windshield wiper is oper-
ated at the high speed (HI) position,
the Intelligent Cruise Control system
is automatically canceled. If the
vehicle is equipped with a rain
sensing auto wiper, the system may
cancel when the wipers are set to the
AUTO position.
—When strong light (for example, at
sunrise or sunset) is directly shining
on the front of the vehicle
—When rain, snow or dirt adhere tothe system sensor
—On steep downhill roads (the vehi-cle may go beyond the set vehicle
speed and frequent braking may
result in overheating the brakes)
—On repeated uphill and downhillroads
—When traffic conditions make itdifficult to keep a proper distance
between vehicles because of fre-
quent acceleration or deceleration
. In some road or traffic conditions, a
vehicle or object can unexpectedly come
into the sensor detection zone and cause
automatic braking. You may need to
control the distance from other vehicles
using the accelerator pedal. Always stay
alert and avoid using the ICC system
when it is not recommended in this
section.
SSD0943
VEHICLE-TO-VEHICLE DISTANCE
CONTROL MODE OPERATION
Y51D-V-E01-C712CA46-F1DA-4C8D-AA1F-94E1C58C147FAlways pay attention to the operation of
the vehicle and be ready to manually
control the proper following distance. The
vehicle-to-vehicle distance control mode of
the Intelligent Cruise Control (ICC) system
may not be able to maintain the selected
distance between vehicles (following dis-
tance) or selected vehicle speed under
some circumstances.
The vehicle-to-vehicle distance control
mode uses a sensor
*Alocated on the
front of the vehicle to detect vehicles
Condition:

Black plate (358,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
5-56Starting and driving
SSD0977
Intelligent cruise control switchY51D-V-E01-3C61E979-EEE0-480F-8EF4-A69230D7B716The system is operated by a MAIN switch
and four control switches, all mounted on
the steering wheel.
1. ACCELERATE/RESUME switch:Resumes set speed or increases speed
incrementally.
2. COAST/SET switch: Sets desired cruise speed, reduces
speed incrementally.
3. CANCEL switch:
Deactivates the system without erasing
the set speed. 4. DISTANCE switch:
Changes the vehicle’s following dis-
tance:
.Long.Middle.Short
5. MAIN switch:
Master switch to activate the system
SSD0978
Intelligent cruise control system
display and indicators
Y51D-V-E01-3D4E4E23-512E-40D3-9C13-5A43F40028C3The display is located between the speed-
ometer and tachometer.
1. MAIN switch indicator:Indicates that the MAIN switch is ON.
2. Vehicle ahead detection indicator: Indicates whether it detects a vehicle in
front of you.
3. Set distance indicator: Displays the selected distance between
vehicles set with the DISTANCE switch.
Condition:
