INFINITI Q70 HYBRID 2017 Dismantling Guide
Manufacturer: INFINITI, Model Year: 2017, Model line: Q70 HYBRID, Model: INFINITI Q70 HYBRID 2017Pages: 52, PDF Size: 6.18 MB
Page 21 of 52

Primary Procedure
NOTE:Before disconnecting the 12-volt battery terminal, if necessary, lower the windows, adjust
the steering column, adjust the seats, unlock the doors, etc. Once 12-volt battery is
disconnected, power controls will not operate.
1. Check the READY indicator (A) status in the instrument cluster. If it is on, the high voltage systemis active.
2. Place the shift selector in the Park (P) position.
3. Push the ignition switch (B) once to turn OFF the high voltage system. Then verify whether the READY indicator (A) is off.
If the READY indicator (A) does not turn off, refer to
Alternate Procedure 1 (Remove Fuses)
(DG–24)
4. If possible, keep the Infiniti Intelligent Key at least 5 meters (16 feet) away from the vehicle (except as
noted below) .
AAYIA0062ZZ
AAYIA0068ZZ
DG–21
Page 22 of 52

5. Open the trunk using any of the following:a. push-button switch (C) on the lower LH side of the instrument panel.
b. trunk button (D) on the Infiniti Intelligent Key [press for longer than one (1) second].
c. trunk open request switch (E) (located above license plate)*.
d. with the mechanical key (F) housed inside the Infiniti Intelligent Key.
Method Shift Selector Position Ignition Switch Status
a P or N Any
b P OFF
c* Any Any d Any Any
* You must have the Infiniti Intelligent Key within approximately 1 meter (3 feet) range of trunk request switch
to use the trunk open request switch function. DG–22
Page 23 of 52

6. Open the 12-volt battery service access cover (G) .
7. Disconnect negative (-) battery cable (H) and cover it with insulated tape.
8. Wait approximately ten (10) minutes for complete discharge of the high voltage capacitor afterthe battery cable has been disconnected.
9. Perform the dismantling operation. Refer to
6. Dismantling Information (DG–39).
HOLD
C
D
E
F
GH
AAYIA0359ZZ
DG–23
Page 24 of 52

Alternate Procedure 1 (Remove Fuses)
NOTE:Before removing any fuses, if necessary, lower the windows, adjust the steering column,
adjust the seats, unlock the doors, etc. Once fuses are removed, power controls will notoperate.
1. Pull release handle (A) to open the hood.
2. Remove fuse box cover (B) .
3. Remove 80A fuse (C) (black) .
4. If you cannot identify the fuse (C) , remove all fuses in the fuse box.
To avoid unintended reinstallation and risk of electrical shock and severe personal
injury or death, the dismantler should carry the fuse or fuses on his/her person and cover
the fuse box with insulated tape.
A
A
B
BC80A Fuse (Black)
Front
AAYIA0125GB
DG–24
Page 25 of 52

5. Open the trunk. The trunk can be opened with the push-button switch (D) on the lower LH side ofthe instrument panel or with the mechanical key (E) housed inside the Infiniti Intelligent Key.
6. Open the 12-volt battery service access cover (F) .
7. Disconnect negative (-) battery cable (G) and cover it with insulated tape.
8. Wait approximately ten (10) minutes for complete discharge of the high voltage capacitor after the fuse is pulled and battery cable has been disconnected.
9. Perform the dismantling operation. Refer to
6. Dismantling Information (DG–39).
Or
D
E
D
G
F
AAYIA0126GB
DG–25
Page 26 of 52

Alternate Procedure 2 (Remove Service Plug)
DANGER
•Do not remove the service plug without always wearing appropriate Personal
Protective Equipment (PPE) to help protect the dismantler from serious injury or death
by electrical shock.
•
Immediately cover the service plug socket with insulated tape. The high-voltage
battery retains high-voltage power even when the service plug is removed. To avoid
electric shock, NEVER touch the terminals inside the socket.
To avoid unintended reinstallation and risk of electrical shock and severe personal injury
or death, the dismantler should carry the service plug on his/her person while work is in progress.
NOTE: Before disconnecting the 12-volt battery terminal, if necessary, lower the windows, adjust
the steering column, adjust the seats, unlock the doors, etc. Once 12-volt battery is
disconnected, power controls will not operate.
1. Check the READY indicator (A) status in the instrument cluster. If it is on, the high voltage systemis active.
2. Place the shift selector in the Park (P) position.
3. Push the ignition switch (B) once to turn OFF the high voltage system. Then verify whether the READY indicator (A) is off.
If the READY indicator (A) does not turn off, continue to step 5 to open the trunk for 12-volt
battery negative cable access.
AAYIA0062ZZ
DG–26
Page 27 of 52

4. If possible, keep the Infiniti Intelligent Key at least5 meters (16 feet) away from the vehicle (except as
noted below) .
5. Open the trunk using any of the following: a. push-button switch (C) on the lower LH side of the instrument panel.
b. trunk button (D) on the Infiniti Intelligent Key [press for longer than one (1) second].
c. trunk open request switch (E) (located above license plate)*.
d. with the mechanical key (F) housed inside the Infiniti Intelligent Key.
Method Shift Selector Position Ignition Switch Status
a P or N Any
b P OFF
c* Any Any d Any Any
* You must have the Infiniti Intelligent Key within approximately 1 meter (3 feet) range of trunk request switch
to use the trunk open request switch function.
AAYIA0068ZZ
DG–27
Page 28 of 52

6. Open the 12-volt battery service access cover (G) .
7. Disconnect negative (-) battery cable (H) and cover it with insulated tape.
8. Open service plug access cover (J) .
9. Remove the service plug (K) by pressing the locking tab (L) and rotating the handle (M) fullyoutward (N) . Using the handle, pull the service plug (P) completely out of its socket.
10. Cover the service plug socket with insulated tape.
AAYIA0035ZZ
DG–28
Page 29 of 52

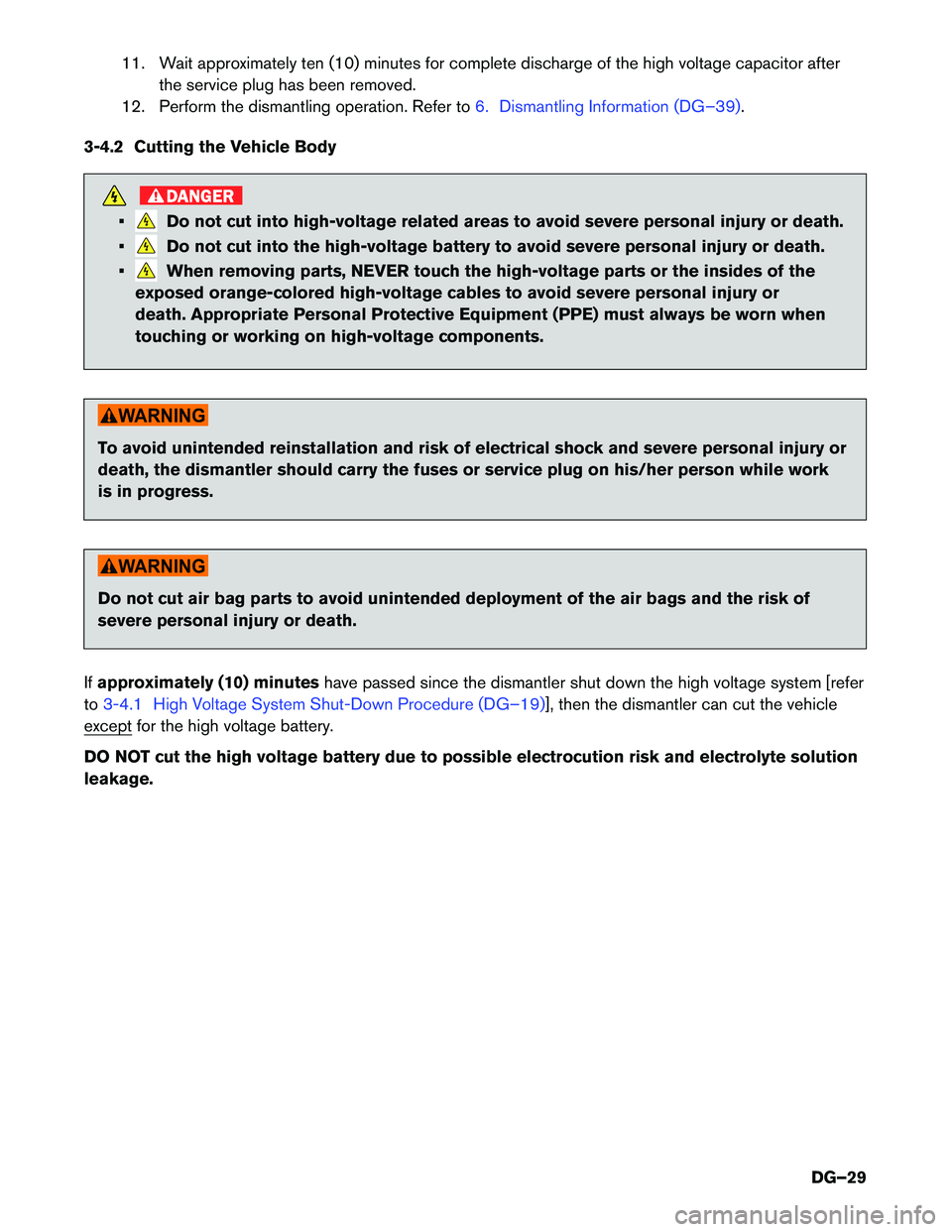

11. Wait approximately ten (10) minutes for complete discharge of the high voltage capacitor afterthe service plug has been removed.
12. Perform the dismantling operation. Refer to
6. Dismantling Information (DG–39).
3-4.2 Cutting the Vehicle Body
DANGER
•Do not cut into high-voltage related areas to avoid severe personal injury or death.
•
Do not cut into the high-voltage battery to avoid severe personal injury or death.
•
When removing parts, NEVER touch the high-voltage parts or the insides of the
exposed orange-colored high-voltage cables to avoid severe personal injury or
death. Appropriate Personal Protective Equipment (PPE) must always be worn when
touching or working on high-voltage components.
To avoid unintended reinstallation and risk of electrical shock and severe personal injury or
death, the dismantler should carry the fuses or service plug on his/her person while work
is in progress.
Do not cut air bag parts to avoid unintended deployment of the air bags and the risk of
severe personal injury or death.
If approximately (10) minutes have passed since the dismantler shut down the high voltage system [refer
to
3-4.1 High Voltage System Shut-Down Procedure (DG–19)], then the dismantler can cut the vehicle
except for the high voltage battery.
DO NOT cut the high voltage battery due to possible electrocution risk and electrolyte solution leakage.
DG–29
Page 30 of 52

SRS Air Bag System Components Location
The SRS air bag system must not be cut as there is a risk of short circuit and unintentional deployment of
the SRS However, the vehicle can be cut (except inflators) under the following conditions:• The front, side and curtain air bags have deployed.
• At least three (3) minutes have passed after the 12-volt battery negative (-) cable has beendisconnected and the high voltage system has been shut down.
1. Crash zone sensor 2. Supplemental front air bag modules (Infiniti Advanced Air Bags)3. Front seat-mounted side-
impact supplemental air bags
4. Occupant classification sensor
(pattern sensor) 5. Occupant classification system
control unit6. RH seat belt with pretensioner
7. Roof-mounted curtain side-
impact supplemental air bags 8. Roof-mounted curtain side-
impact supplemental air bag infla-tors9. RH satellite sensor
10. Air bag control unit (ACU) 11. LH seat belt with pretensioner 12. LH Satellite sensor
13. Lap outer pretensioner (if so equipped) 14. Front door satellite sensor LH
(RH similar)
AAYIA0020ZZ
DG–30
