INFINITI Q70 HYBRID 2017 Dismantling Guide

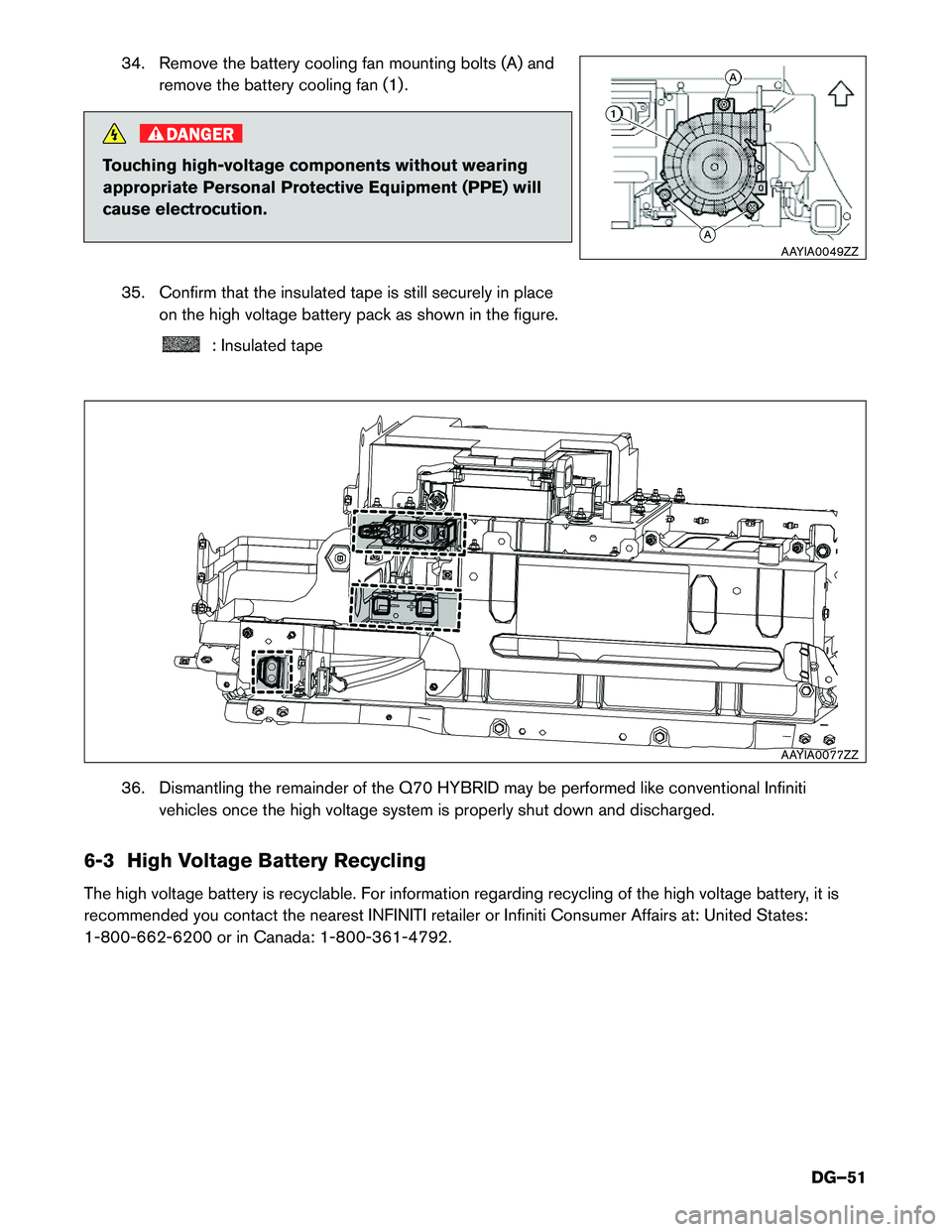

34. Remove the battery cooling fan mounting bolts (A) andremove the battery cooling fan (1) .
DANGER
Touching high-voltage components without wearing
appropriate Personal Protective Equipment (PPE) will
cause electrocution.
35. Confirm that the insulated tape is still securely in place on the high voltage battery pack as shown in the figure.
: Insulated tape
36. Dismantling the remainder of the Q70 HYBRID may be performed like conventional Infiniti vehicles once the high voltage system is properly shut down and discharged.
6-3 High Voltage Battery Recycling
The high voltage battery is recyclable. For information regarding recycling of the high voltage battery, it is
recommended you contact the nearest INFINITI retailer or Infiniti Consumer Affairs at: United States:
1-800-662-6200 or in Canada: 1-800-361-4792.
AAYIA0049ZZ
AAYIA0077ZZ
DG–51
