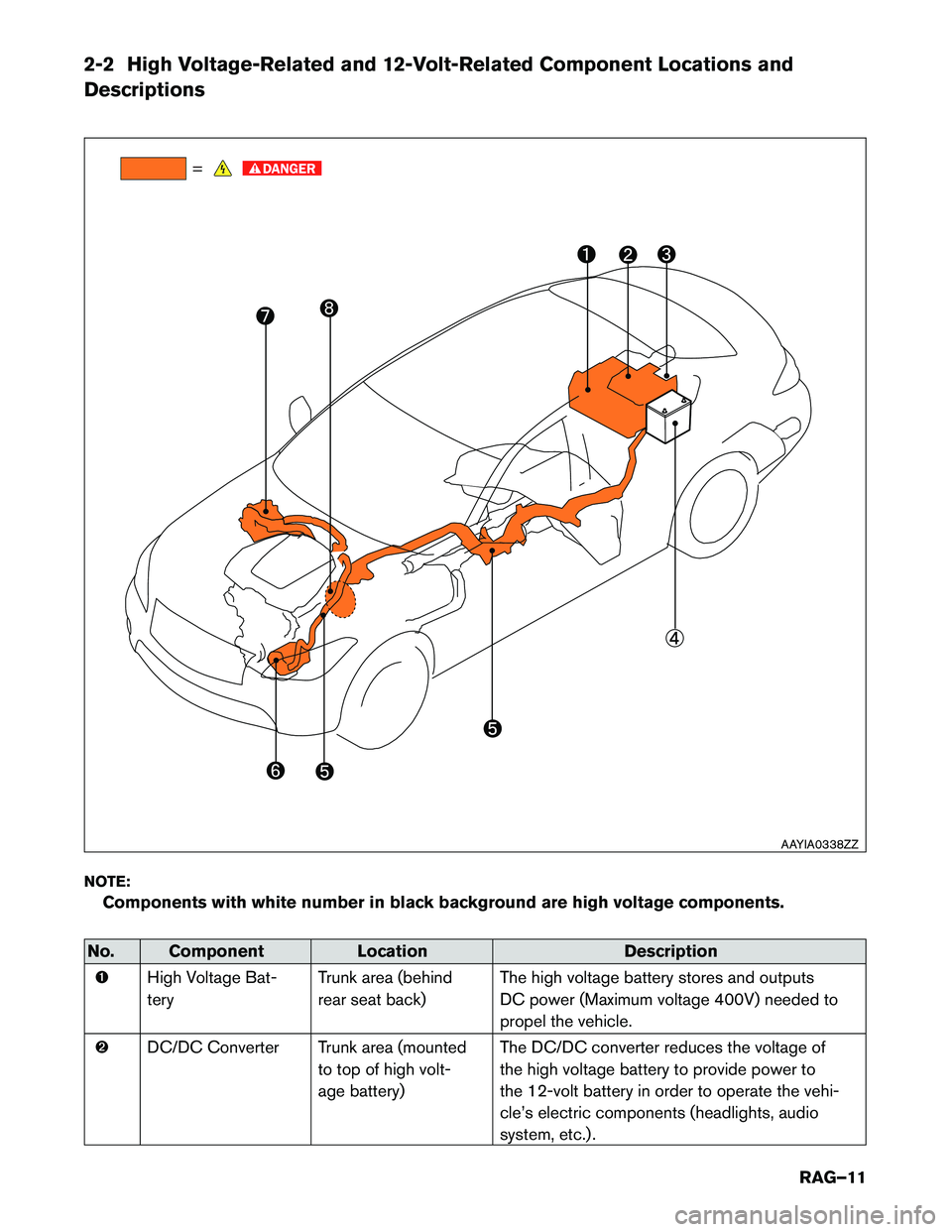

2-2 High Voltage-Related and 12-Volt-Related Component Locations and Descriptions
NOTE:Components with white number in black background are high voltage components.
No. Component Location Description
High Voltage Bat- tery Trunk area (behind
rear seat back) The high voltage battery stores and outputs
DC power (Maximum voltage 400V) needed to
propel the vehicle.
DC/DC Converter Trunk area (mounted
to top of high volt-
age battery) The DC/DC converter reduces the voltage of
the high voltage battery to provide power to
the 12-volt battery in order to operate the vehi-
cle’s electric components (headlights, audio
system, etc.) .
