INFINITI Q70 HYBRID 2018 Quick Reference Guide

8
5 6
Cruise Control (if so equipped)
3
2
1
3
2 1
CONVENTIONAL CRUISE CONTROL (if so equipped)
SETTING A CRUISING SPEED
•


Press the MAIN (ON-OFF)
1 to turn on the system.
•


With the

vehicle at the desired speed, push down the switch
2 to COAST/SET to
enable cruise control.
•


The cruising speed c

an be adjusted to a higher or lower speed by toggling the control
switch
2 up or down.
CANCELING THE PRESET SPEED
•


Push the CANCEL switch
3 or tap the brake pedal.
INTELLIGENT CRUISE CONTROL (ICC) (if so equipped)
The ICC system is designed to maintain a selected distance from the vehicle in front of
you and reduce the speed to match a slower vehicle ahead.
•


T

o increase the distance to the vehicle ahead to be maintained by the ICC system,
press the DISTANCE switch
4 until the display shows the desired set distance,
which is shown by the number of lines on the set distance indicator
5.
•


When a

vehicle is detected ahead, a car icon will illuminate on the vehicle ahead
detection indicator
6 and your vehicle will reduce the speed to match the
slower vehicle.
To use Conventional (fixed speed) Cruise Control mode (if so equipped):
•


While cruise c

ontrol is off, push and hold the MAIN (ON-OFF) switch
1 for more
than 1.5 seconds. The CRUISE indicator light will illuminate.
•


A

ccelerate to the desired speed.
•


Push the swit

ch
2 down toward COAST/SET and release it. The SET indicator light
will illuminate.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
INTELLIGENT CRUISE CONTROL (ICC) (if so equipped)
4

9
Navigation System (if so equipped)
Use the Infiniti controller 1 and ENTER button 2 to navigate through the center display screen.
•


Press the
BACK button 3 to return to the previous screen.
•


Press the MAP button
4 to display the map.
SETTING A ROUTE
To set a route, first ensure that the correct region is selected on the touch-screen.
1.



Pr

ess the NAVI button
5 on the Infiniti controller.
2.



T

ouch the “Destination Menu” key
6 on the display.
3

.

Select the pr

eferred destination setting method.
4.



E

nter the address number, street name, and city as prompted by the screen.
CANCELING A ROUTE
1. Pr

ess the NAVI button
5 on the Infiniti controller.
2.



T

ouch the “Cancel Route” key
7.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and feature information.
6
7
1 2
3
5
4

10
Infiniti Intelligent Key System
POWER SEAT ADJUSTMENTS
•

T
o slide the seat forward
or backward, push the

switch 1 forward
or backward.
•


T

o recline the seatback, push
the
switch
2 forward
or backward.
SEAT LIFTER
•


T

o adjust the angle of the front portion or height of the seat,
push the front or rear end of the
switch
1 up or down.
POWER LUMBAR SUPPORT
•


T

o adjust the seat lumbar support, push the front or back end of
the
switch
3.
AUTOMATIC ENTRY/EXIT FUNCTION
•


T

o turn on and off the
automatic entry/exit
function, press and hold
the SET switch
4 for more
than 10 seconds.
Please see your Owner’s Manual for
important safety information, system limitations, and additional operating and
feature information.
Seat Adjustments
3 2 1
ROLL DOWN FEATURE
The windows can be opened remotely using your
Infiniti Intelligent Key.


•
Pr

ess and hold the unlock button
1 to
open the windows remotely.
•


I

f the unlock button
1 is released, the
windows will stop. To resume the roll down
feature, press and hold the unlock
button
1 again.Please see your Owner’s Manual for important safety
information, system limitations, and additional operating and
feature information.
1
Fuel-filler Door
To open the fuel-filler door, unlock the
vehicle and gently push the front side of
the fuel-filler door.
Please see your Owner’s Manual for important
safety information, system limitations, and additional
operating and feature information.
4

11
To use the door handles to lock and
unlock your vehicle, make sure the
Intelligent Key is with you (that is, in
your pocket or purse).
•
Push the door
handle request
switch
1 to unlock the
corresponding door.
•


Push the door

handle request switch
1 again within 1 minute to
unlock the rest of the doors.
•


T

o lock the vehicle, push either door handle request switch
1 once.
USB Connection Port
• The USB ports 1 are
located in the center
console under the
armrest. Compatible
audio and video files
stored on a USB device
can be played through the
vehicle’s audio system and
front display.
Please see your Owner’s Manual for important safety information, system limitations,
and additional operating and feature information.
Locking and Unlocking your Vehicle
via the Door Handle
To change the settings for the door locking
and unlocking system, press the SETTING
button
2, select the “Others” key, and
select the “Comfort” key.
•


T

o unlock all doors by touching the
inside of the door handle, select
“Selective Door Unlock”.
•


T

o disable unlocking by touching the
inside of the door handle, select “Touch Sensitive Door Sensor”.
Please see your Owner’s Manual for important safety information, system limitations, and
additional operating and feature information.
2
Use these switches to adjust
the brightness of the vehicle
information display.
•


T
o increase the brightness, push
the upper switch
1.
•


T

o decrease the brightness, push
the lower switch
2.
Please see your Owner’s Manual for important
safety information, system limitations, and
additional operating and feature information.
Brightness Control Switches
1
2
1
1

12
Windows
All power windows can be operated through the main
switch on the driver’s door.
1 Power windows open/close
2 Disable rear passenger window operation by
rear passengers
POWER WINDOW CONVENIENCE OPENING/
CLOSING FEATURE
The vehicle can be unlocked and the power windows
can be opened simultaneously from outside the
vehicle using the Intelligent Key as follows:
To unlock the vehicle and open the windows
simultaneously, press and hold the
button on the
Intelligent Key until the windows have reached the
desired position.
Please see your Owner’s Manual for important safety information, system
limitations, and additional operating and feature information.
1 2
6
7
Exterior Light Operation
3
5 1
2
1 Side lights, license plate lights and combination meter lighting ON position
2 Headlight ON position
3 Automatic headlight mode ON position (headlights switch on/off
automatically depending on ambient light conditions/daytime running
light system)
4 OFF position
5 Front fog light switch
6 Push the headlight switch forward for the high beams
7 Pull the headlight switch rearward to flash the high beams
For normal headlight operation, leave the exterior light switch in the
AUTO position
3.
Please see your Owner’s Manual for important safety information, system limitations, and additional
operating and feature information.

4

13
Trip Computer
When the button 1 is
pressed, the following modes will
appear on the vehicle information
display
2:
3
1
2
• ENERGY MONITOR
•

EV ODOMETER
•

FUEL ECONOMY
•

TIME/MILES
•

RANGE • COOLANT TEMP
•

OUTSIDE TEMP
•

SETTING
•

WARNING
To reset the elapsed time/miles, press and hold the
button 3 for more than 1 second. Both elapsed
time/miles will reset at the same time.
Please see your Owner’s Manual for important safety information,
system limitations, and additional operating and feature information.
3
DIGITAL CLOCK WITH NAVIGATION (if so equipped)
To adjust the time and the appearance of the clock on the display:
Pr

ess the SETTINGS button
1 on the control panel.
Locate and touch the “Clock” key to adjust “On-Screen Clock”, “Daylight Savings Time”,
“Clock Format (24h)”, and “Time Zone”.
The time can be adjusted through “Offset Adjustment”
2 by adjusting the minutes
and/or hours forward or backward. The current clock time can be set up to a
difference of 12 hours and 59 minutes.
ANALOG CLOCK
To set the clock forward, press the button
3.
To set the clock backward, press the button
4.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
Clock Set/Adjustment

2
1
4

14
Wiper and Washer Switch
Move the lever 1 up or down to one
of the following positions to operate the
windshield wipers:
MIST One sweep operation
OFF Wipers are OFF
AUTO Rain-sensing automatic wipe
LO Continuous wipe, slow
HI Continuous wipe, fast
To adjust the wiper sensitivity for the AUTO
setting, twist the control ring
2.
Pull the lever
1 toward you operate the
windshield washer.
To turn the rain-sensing automatic wiper
system off, push up the lever to the OFF
position, or pull down the lever to the LO or
HI position.
1
2
PULLING UP THE WIPER ARM
The wiper arm should be in the UP
position when replacing the wiper.
• With the shift lever in the
P (PARK) position, place
the ignition switch in the
OFF position.
• Within 1 minute, push the wiper switch to the MIST position
twice. The wiper operation
stops in mid-operation and the
wiper arm can be pulled up.
• To return the wiper arm, place the wiper arm in the DOWN
position and operate the wiper
switch once.
Voice Recognition
SYSTEM OPERATING TIPS
• The interior of the vehicle should be as quiet as possible.
• Speak naturally. Speaking too fast, too slow, too soft, or too loud makes voice recognition
more difficult.
• Confirm that the correct voice commands are being used. Glance at the screen to see the currently
available commands.
USING THE VOICE RECOGNITION SYSTEM
• Press the
button 1 on the steering wheel, and a
list of commands will appear on the screen.
• After the tone sounds, speak the command.
• To skip the voice prompt and give the command immediately, press the
button 1 on the steering
wheel to interrupt the system. Speak the next
command after the tone sounds.
• To cancel the command, press and hold the
button 1 on the steering wheel.
Please see your Owner’s Manual for important safety information, system
limitations, and additional operating and feature information.
1
Please see your Owner’s Manual for important safety information, system limitations, and additional operating
and feature information.

15
Infiniti InTouch™ Services (if so equipped)
Infiniti InTouch ™ Services combine personalized convenience settings and personal
security features to compliment the Total Ownership Experience®. For more details on
Infiniti InTouch Services or to enroll your vehicle, please visit usa.infinitiintouch.com or
call 1-855-444-7244. Available services include, but are not limited to: •
A utomatic Collision Notification
•

Alarm Notification
•

Maintenance Alert
•


Scheduled Main
tenance Notification
•

Report Stolen Vehicle
•

Emergency Call
•

Enhanced Roadside Assistance
•

My Schedule
•

Infiniti Personal Assistant
•

Destination Send-to-Vehicle
•

Connected Search
•

Drive Zone
•

Maximum Speed Alert
•

Mobile Information Service
•

Valet Alert
INFINITI INTOUCH SERVICES ENROLLMENT
1.


Cr
eate an Infiniti Owner Portal account.
(https://owners.infinitiusa.com/iowners/)
2.


F
rom within your Infiniti Owner Portal account,
enroll in Infiniti InTouch Services.
3

.


Do
wnload the Infiniti InTouch Services companion
app from the App store and login using your Infiniti
Owner Portal ID and Password.
To access Infiniti InTouch Services:

1 Press the INFO button on the Infiniti controller.
2 Select the “InTouch Services” key on the display.
2
In case of an emergency,
press the in-vehicle
telematics SOS button
3,
located above and in front
of the rearview mirror.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
3
1

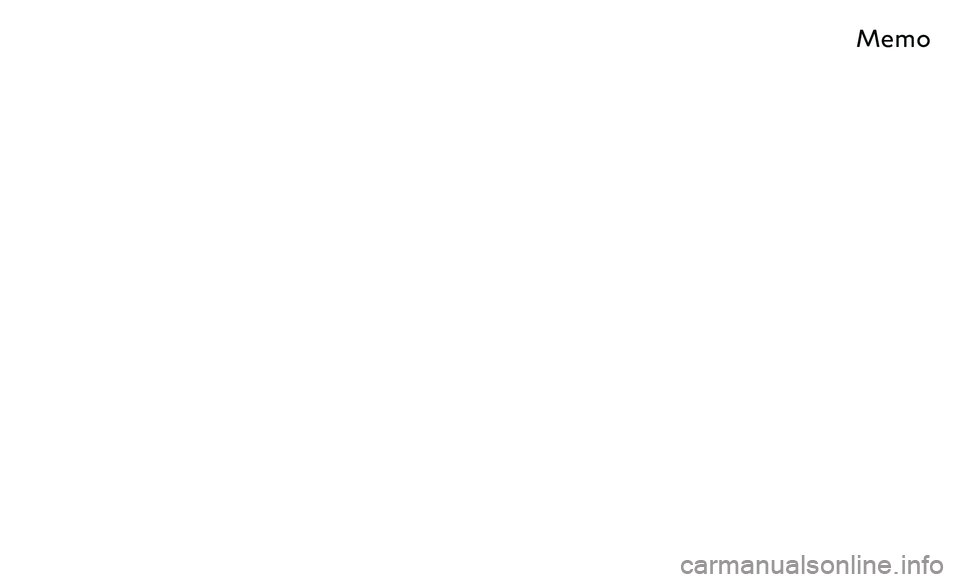

Memo

This Quick Reference Guide is intended to provide an overview of some of the unique features of your new vehicle. Please see your Owner’s Manual
for important safety information and system operation limitations. Features and equipment in your vehicle may vary depending on model,
trim level, options selected, order, date of production, region or availability.
Therefore, you may find information about features or equipment that are not included or installed on your vehicle.
All information, specifications and illustrations in this Quick Reference Guide are those in effect at the time of printing. INFINITI reserves the right to change specifications, performance, design or component
suppliers without notice and without obligation. From time to time, INFINITI may update or revise this Quick Reference Guide to provide
owners with the most accurate information currently available. Please
carefully read and retain, with this Quick Reference Guide, all revision updates sent to you by INFINITI to ensure you have access to accurate
and up-to-date information regarding your vehicle. Current versions of vehicle Quick Reference Guides, Owner’s Manuals and any updates
can also be found in the Owner section of the INFINITI website at
https://owners.infinitiusa.com/iowners/navigation/manualsAndGuides.
If you have questions concerning any information in your Owner’s Manual,
contact INFINITI Client Support (see contact information listed above).
Printing June 2017
QR18EA HY51U0
Printed in USA
To view detailed instructional videos,
go to www.infinitiownersinfo.mobi/2018/q70 or
snap this barcode with an appropriate barcode reader.
