Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light to
moderate stops is normal and does not affect
the function or performance of the brake sys-
tem.
Proper brake inspection intervals should be fol-
lowed.For additional information, see the main-
tenance log section of your “INFINITI Service
and Maintenance Guide” for maintenance inter-
vals.
BRAKE BOOSTER
Check the brake booster function as follows:
1. With the engine off, depress and release the foot brake pedal more than 20 times.
When the foot brake pedal movement
(distance of travel) remains the same from
one pedal application to the next, con-
tinue on to the next step.
2. While depressing the foot brake pedal, start the engine.
3. With the foot brake pedal depressed, stop the engine. Keep the pedal depressed for
about 30 seconds. 4. Run the engine for 1 minute without de-
pressing the foot brake pedal, then turn it
off. Depress the foot brake pedal several
times. The pedal travel distance will de-
crease gradually with each depression as
the hydraulic pressure decreases.
If the brakes do not operate properly, have the
brakes checked by an INFINITI retailer.
SDI2518
SDI2532
FUSES
Maintenance and do-it-yourself8-21

ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower amperage
rating than that specified on the fuse box cover.
This could damage the electrical system or
cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the head-
light switch is turned to OFF.
2. Open the engine hood and remove the cover on the battery.
3. Remove the fuse/fusible link holder cover
1,2or3.
4. Remove the fuse with the fuse puller. 5. If the fuse is open
A, replace it with a
new fuse
B. Spare fuses are stored in the
passenger compartment fuse box.
6. If a new fuse also opens, have the elec- trical system checked and repaired by an
INFINITI retailer.
Fusible links
If any electrical equipment does not operate
and fuses are in good condition, check the
fusible links. If any of these fusible links are
melted, replace only with genuine INFINITI
parts.
SDI1754
8-22Maintenance and do-it-yourself

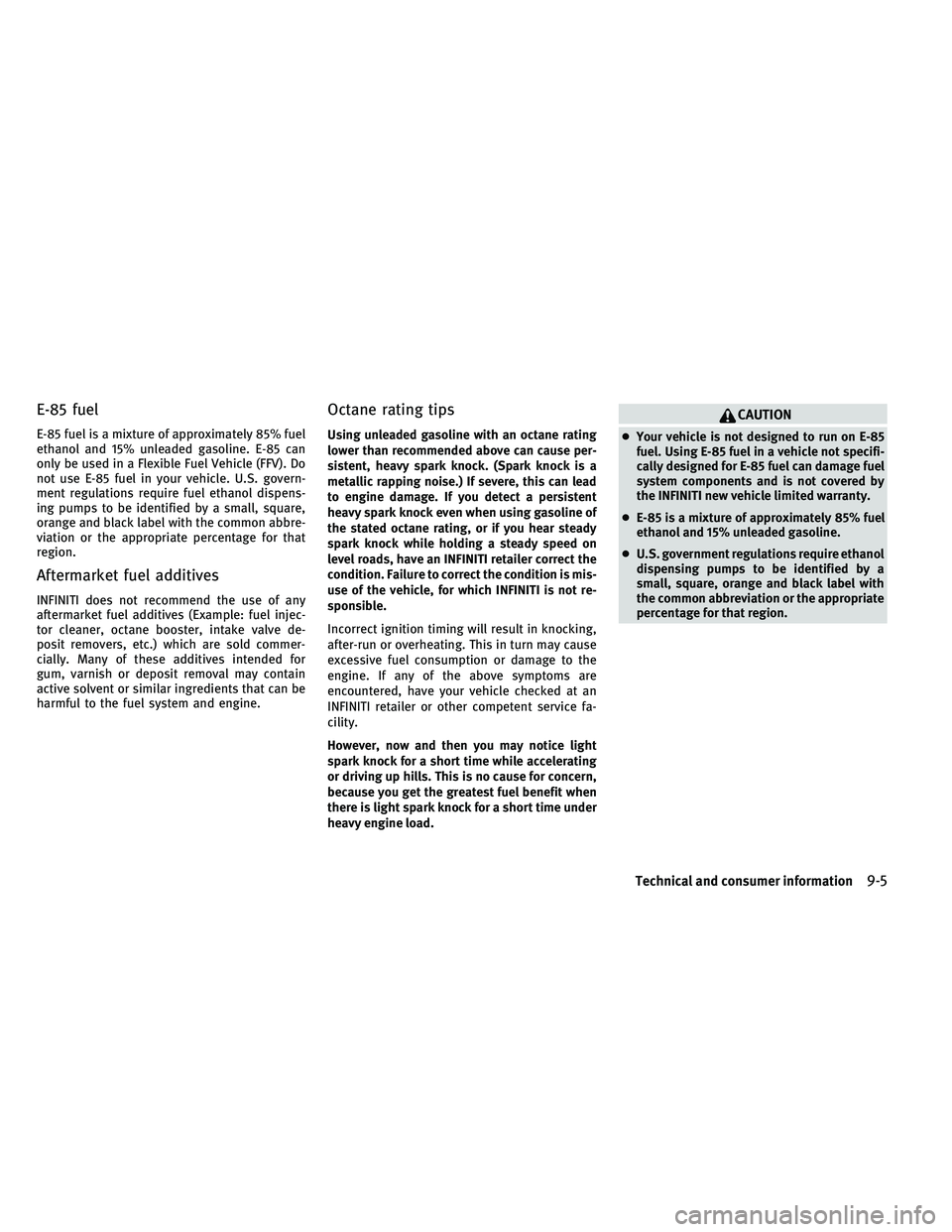

E-85 fuel
E-85 fuel is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline. E-85 can
only be used in a Flexible Fuel Vehicle (FFV). Do
not use E-85 fuel in your vehicle. U.S. govern-
ment regulations require fuel ethanol dispens-
ing pumps to be identified by a small, square,
orange and black label with the common abbre-
viation or the appropriate percentage for that
region.
Aftermarket fuel additives
INFINITI does not recommend the use of any
aftermarket fuel additives (Example: fuel injec-
tor cleaner, octane booster, intake valve de-
posit removers, etc.) which are sold commer-
cially. Many of these additives intended for
gum, varnish or deposit removal may contain
active solvent or similar ingredients that can be
harmful to the fuel system and engine.
Octane rating tips
Using unleaded gasoline with an octane rating
lower than recommended above can cause per-
sistent, heavy spark knock. (Spark knock is a
metallic rapping noise.) If severe, this can lead
to engine damage. If you detect a persistent
heavy spark knock even when using gasoline of
the stated octane rating, or if you hear steady
spark knock while holding a steady speed on
level roads, have an INFINITI retailer correct the
condition. Failure to correct the condition is mis-
use of the vehicle, for which INFINITI is not re-
sponsible.
Incorrect ignition timing will result in knocking,
after-run or overheating. This in turn may cause
excessive fuel consumption or damage to the
engine. If any of the above symptoms are
encountered, have your vehicle checked at an
INFINITI retailer or other competent service fa-
cility.
However, now and then you may notice light
spark knock for a short time while accelerating
or driving up hills. This is no cause for concern,
because you get the greatest fuel benefit when
there is light spark knock for a short time under
heavy engine load.
CAUTION
●Your vehicle is not designed to run on E-85
fuel. Using E-85 fuel in a vehicle not specifi-
cally designed for E-85 fuel can damage fuel
system components and is not covered by
the INFINITI new vehicle limited warranty.
● E-85 is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline.
● U.S. government regulations require ethanol
dispensing pumps to be identified by a
small, square, orange and black label with
the common abbreviation or the appropriate
percentage for that region.
Technical and consumer information9-5

3. Try to rearrange the trailer load so it isbalanced as described earlier in this sec-
tion.
●Be careful when passing other vehicles.
Passing while towing a trailer requires con-
siderably more distance than normal pass-
ing. Remember the length of the trailer must
also pass the other vehicle before you can
safely change lanes.
● Use the Tow mode or downshift the trans-
mission to a lower gear for engine braking
when driving down steep or long hills. This
will help slow the vehicle without applying
the brakes.
● Avoid holding the brake pedal down too long
or too frequently. This could cause the
brakes to overheat, resulting in reduced
braking efficiency.
● Increase your following distance to allow for
greater stopping distances while towing a
trailer. Anticipate stops and brake gradually.
● INFINITI recommends that the cruise control
not be used while towing a trailer. ●
While towing a trailer, do not use the follow-
ing systems (if so equipped):
– the Lane Departure Prevention (LDP) sys- tem
– the Blind Spot Warning (BSW) system
– the Intelligent Cruise Control (ICC) system
– the Distance Control Assist (DCA) system
– Intelligent Brake Assist ( IBA) system
● Some states or provinces have specific regu-
lations and speed limits for vehicles that are
towing trailers. Obey the local speed limits.
● Check your hitch, trailer wiring harness con-
nections, and trailer wheel lug nuts after 50
miles (80 km) of travel and at every break.
● When launching a boat, do not allow the
water level to go over the exhaust tail pipe or
rear bumper.
● Make sure you disconnect the trailer lights
before backing the trailer into the water or
the trailer lights may burn out.
When towing a trailer, the transmission fluid
should be changed more frequently. For addi-
tional information, see the INFINITI Service and
Maintenance Guide.
TOW mode
Using TOW mode is recommended when pulling
a heavy trailer or hauling a heavy load. Push the
TOW MODE switch to activate tow mode. The
TOW MODE indicator light in the meter illumi-
nates when TOW mode is selected. Push the
TOW MODE switch again to turn TOW mode off.
TOW mode is automatically cancelled when the
ignition switch is placed in the OFF position.
TOW mode includes the following features:
● Grade logic — Adjusts transmission shifts
when pulling a trailer or hauling a load up a
grade.
● Downhill Speed Control (DSC) — automati-
cally downshifts when driving down a grade
with a trailer or heavy load to help control
vehicle speed.
Driving the vehicle in the TOW mode with no
trailer/load or light trailer/light load will not
cause any damage. However, fuel economy may
be reduced and the transmission/engine driv-
ing characteristics may feel unusual.
When towing a trailer, final drive gear oil should
be replaced and transmission oil/fluid should be
changed more frequently. For additional infor-
mation, see the 9. “Technical and consumer in-
formation” section later in this manual.
Technical and consumer information9-27

Additional information concerning motor
vehicle safety may be obtained from
Transport Canada’s Road Safety Informa-
tion Centre at 1-800-333-0371 or online at
www.tc.gc.ca/roadsafety (English speak-
ers) or www.tc.gc.ca/securiteroutiere
(French speakers).
To notify INFINITI of any safety concerns
please contact our Consumer Informa-
tion Centre toll free at 1-800-361-4792.
A vehicle equipped with Four-Wheel Drive (4WD)
should never be tested using a two wheel
dynamometer (such as the dynamometers used
by some states for emissions testing), or similar
equipment. Make sure you inform test facility
personnel that your vehicle is equipped with
4WD before it is placed on a dynamometer.
Using the wrong test equipment may result in
transmission damage or unexpected vehicle
movement which could result in serious vehicle
damage or personal injury.
Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready
condition” for an Inspection/Maintenance (I/M)
test of the emission control system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking
the I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Place the ignition switch in the ON position
without starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for 20
seconds and then blinks for 10 seconds, the I/M
test condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”.
Contact an INFINITI retailer to set “ready condi-
tion” or to prepare the vehicle for testing.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
Technical and consumer information9-31

10 Index
A
ABS (Anti-lock Braking System) .......5-97
Adaptive front lighting system (AFS) ....2-40
Advanced air bag system ...........1-55
Aiming control Adaptive front lighting system (AFS) . . 2-40
Headlights ................. 2-39
Air bag system Advanced air bag system .........1-55
Front passenger air bag and status
light ..................... 1-57
Front-seat mounted side-impact
supplemental air bag system ......1-60
Roof-mounted curtain side-impact and
rollover supplemental air bag system . . 1-60
Air bag warning labels ............1-63
Air bag warning light ..........1-63, 2-16
Air cleaner housing filter ...........8-18
Air conditioner Advanced Climate Control System
(ACCS) ................... 4-35
Air conditioner service ..........4-40
Air conditioner specification label ....9-12
Air conditioning system refrigerant and
lubricant recommendations .....4-40, 9-7
Automatic climate control .....4-31, 4-34
In-cabin microfilter ............4-39
Alarm, How to stop alarm
(see vehicle security system) .........2-31
Alcohol, drugs and driving ...........5-8
Antenna .................... 4-82Anti-lock Braking System (ABS)
.......5-97
Anti-lock braking system (ABS) warning
light ....................... 2-11
Appearance care Exterior appearance care ..........7-2
Interior appearance care ..........7-4
Armrest ..................... 1-16
Around View™ Monitor ............4-19
Audible reminders ............... 2-20
Audio operation precautions .........4-40
Audio system ................. 4-40
Steering wheel audio controls ......4-81
Auto closure .................. 3-23
Autolight system ................ 2-37
Automatic Automatic transmission fluid (ATF) ....8-11
Climate control ........... 4-31,
4-34
Door locks ..................3-5
Drive positioner .............. 3-30
Driving with automatic transmission . . . 5-15
Moonroof .................. 2-64
Seat positioner .............. 3-30
Average fuel consumption and speed ....2-27
Avoiding collision and rollover ........5-6
B
Back door (See lift gate) ...........3-19
Battery ..................... 8-15
Battery saver system ........2-39, 2-66
Intelligent Key ............... 8-24
Variable voltage control system .....8-16 Before starting the engine
..........5-13
Belts (See drive belts) .............8-17
Blind Spot Warning (BSW) system . . . . . . 5-29
Blind Spot Warning (BSW) system warning
light ....................... 2-12
Bluetooth Hands-Free Phone System . . . 4-96
Booster seats ................. 1-47
Brake Anti-lock Braking System (ABS) . ....5-97
Brake booster ............... 8-21
Brake fluid .............. 8-12, 8-13
Brake system ............... 5-94
Parking brake operation .........5-19
Warning light ................ 2-12
Break-in schedule ............... 5-83
Brightness control Display ON/OFF button ...........4-7
Instrument panel .............. 2-41
Bulb check/instrument panel .........2-11
Bulb replacement ............... 8-26
C
Cabin air filter ................. 4-39
Capacities and recommended
fuel/lubricants .................9-2
Car phone or CB radio ............4-95
Cargo floor box ................ 2-60
Cargo light ................... 2-68
Catalytic converter, Three way catalyst ....5-2
CD/CF/USB memory care and cleaning . . . 4-80
Center
multi-function control panel . . ....4-3

Child restraints................. 1-30
Booster seats ................ 1-47
LATCH system ................ 1-32
Precautions on child restraints ......1-30
Top tether strap ............... 1-34
Child safety ................... 1-28
Child safety rear door lock ...........3-6
Chimes Audible reminders ............. 2-20
Seat belt warning light and chime ....2-16
Circuit breaker, Fusible link ..........8-22
Cleaning exterior and interior .......7-2, 7-4
Climate control Automatic climate control ......4-31, 4-34
Clock ....................... 2-51
Coat hooks ................... 2-59
Cockpit ......................2-2
Cold weather driving .............5-101
Compact Disc (CD) player
(See audio system) ............... 4-57
Console box ................... 2-57
Controller, Center multi-function control
panel .......................4-3
Controls Control panel button ............4-3
INFINITI Controller ..............4-3
Coolant Capacities and recommended
fuel/lubricants ................9-2
Changing engine coolant ..........8-8
Checking engine coolant level .......8-8
Corrosion protection ...............7-6
Cruise control .................. 5-37
Fixed speed cruise control
(on ICC system) ............... 5-58
Intelligent cruise control (ICC) system . . 5-39 Cup holders
................... 2-54
D
Daytime running light system .........2-39
Dimensions ....................9-9
Distance Control Assist (DCA) system ....5-62
Distance Control Assist (DCA) system warning
light ....................... 2-13
Dot matrix liquid crystal display .......2-21
Drive belts .................... 8-17
Drive positioner ................. 3-30
Driving Cold
weather driving ........... 5-101
Driving with automatic transmission . . . 5-15
On-pavement and off-road driving .....5-6
Precautions when starting and driving . . 5-2
Safety precautions ..............5-8
Dual head restraint DVD system .......4-83
E
Economy, Fuel ................. 5-83
Elapsed time .................. 2-27
Emission control information label ......9-11
Emission control system warranty ......9-29
Engine Before starting the engine .........5-13
Break-in schedule ............. 5-83
Capacities and recommended
fuel/lubricants ................9-2
Changing engine coolant ..........8-8
Changing engine oil and filter .......8-9
Checking engine coolant level .......8-8Checking engine oil level
..........8-9
Coolant temperature gauge . . .......2-7
Emergency engine shut off .........5-12
Engine block heater ............5-102
Engine compartment check locations . . . 8-6
Engine cooling system ...........8-7
Engine oil ...................8-9
Engine oil and oil filter
recommendation ...............9-6
Engine oil replacement indicator .....2-25
Engine oil viscosity .............9-6
Engine serial number ............9-10
Engine specifications ............9-8
Engine start operation indicator .....2-23
If your vehicle overheats ..........6-13
Oil pressure gauge .............2-8
Protection mode ............... 5-14
Starting the engine ............. 5-13
Entry/exit function, Automatic drive
positioner .................... 3-30
Event Data Recorders (EDR) ..........9-32
Exhaust gas (carbon monoxide) ........5-2
Extended storage switch ............8-23
F
F.M.V.S.S./C.M.V.S.S. certification label . . . 9-11
Filter Air cleaner housing filter ..........8-18
Changing engine oil and filter . . .....8-9
Flashers
(See hazard warning flasher switch) . ....2-43
Flat tire ......................
6-2
Flat towing ................... 9-28
Flexible seating ................. 1-16
10-2

N
New vehicle break-in .............. 5-83
O
Odometer .....................2-6
Off-road recovery .................5-7
Oil Capacities and recommended
fuel/lubricants ................9-2
Changing engine oil and filter .......8-9
Checking engine oil level ..........8-9
Engine oil ...................8-9
Engine oil pressure gauge .........2-8
Engine oil viscosity .............9-6
Oil filter replacement indicator ......2-25
Operation, Indicators for operation ......2-23
Outside air temperature ............2-28
Outside mirrors ................. 3-28
Overheat, If your vehicle overheats ......6-13
Owner’s Manual/Service Manual order
information ................... 9-32
P
Panic alarm ................... 3-16
Parking Brake break-in ............... 5-94
Parking brake operation ..........5-19
Parking on hills ............... 5-92
Phone Bluetooth Hands-Free Phone System . . 4-96
Car phone or CB radio ...........4-95Pocket
...................... 2-58
Power Front seat adjustment ............1-2
Power door lock ...............3-4
Power outlet ................. 2-52
Power steering fluid ............8-12
Power steering system ...........5-94
Power windows ............... 2-61
Precautions Audio operation .............. 4-40
Braking precautions ............5-94
Child restraints ............... 1-30
Cruise control ................ 5-37
Driving safety .................5-8
Lane departure warning (LDW) system . . 5-20
Maintenance .................8-5
On-pavement and off-road driving .....5-6
Seat belt usage ............... 1-18
Supplemental

restraint system ......1-50
When starting and driving .........5-2
Preview function ................ 5-95
Preview Function warning light ........2-16
Push starting .................. 6-13
Push-button ignition switch ..........5-10
R
Radio ...................... 4-40
Car phone or CB radio ...........4-95
FM-AM-SAT radio with Compact Disc (CD)
player .................... 4-54
Rain-sensing auto wiper system .......2-33
Rapid air pressure loss .............5-7
Readiness for inspection/maintenance (I/M)
test........................ 9-31Rear door lock, Child safety rear door lock . . 3-6
Rear personal lights
.............. 2-66
Rear window wiper and washer switch . . . 2-34
Rear window wiper blades ..........8-20
Recorders, Event data .............9-32
Registering your vehicle in another
country ......................9-9
Remote controller (DVD) ............4-92
Remote keyless entry system .........3-15
Reporting safety defects ............9-30
Roadside assistance program . . . . . . . . . 6-2
Rollover ......................5-6
Roof Moonroof .................. 2-64
Roof rack .................. 2-60
S
Safety Child seat belts ............... 1-28
Towing safety ................ 9-21
Satellite radio operation ............4-55
Seat adjustment Front power seat adjustment ........1-2
Front seats ............... 1-2, 1-16
Seat belt(s) Child safety ................. 1-28
Infants .................... 1-29
Injured persons ............... 1-21
Larger children ............... 1-29
Precautions on seat belt usage . . ....1-18
Pregnant women .............. 1-21
Seat

belt cleaning ..............7-6
Seat belt extenders ............. 1-27
Seat belt maintenance ...........1-28
10-5
