INFINITI QX 2013 Owner's Guide

1-10Safety—seats, seat belts and supplemental restraint system
tion. If they are not completely secured,
passengers may be injured in an acci-
dent or sudden stop.
. Properly secure all cargo to help prevent
it from sliding or shifting. Do not place
cargo higher than the seatbacks. In a
sudden stop or collision, unsecured
cargo could cause personal injury.
HEAD RESTRAINTS
WARNING
Head restraints supplement the other vehi-
cle safety systems. They may provide addi-
tional protection against injury in certain
rear end collisions. Adjust the head re-
straints properly, as specified in this sec-
tion. Check the adjustment after someone
else uses the seat. Do not attach anything
to the head restraint stalks or remove the
head restraint. Do not use the seat if the
head restraint has been removed. If the
head restraint was removed, reinstall and
properly adjust the head restraint before an
occupant uses the seating position. Failure
to follow these instructions can reduce the
effectiveness of the head restraints. This may increase the risk of serious injury or
death in a collision.

JVR0201X
The illustration shows the seating posi-
tions equipped with head restraints. The
head restraints are adjustable.
Indicates the seating position is
equipped with a head restraint.
SSS0992
Front seats and 2nd row outboard seats
SSS1128
3rd row seats
Safety —seats, seat belts and supplemental restraint system1-11

1-12Safety—seats, seat belts and supplemental restraint system
Components
1. Head restraint
2. Adjustment notch (es)
3. Lock knob
4. Stalks
SSS0997
Adjustment (front seats and 2nd
row outboard seats)
Adjust the head restraint so the center is
level with the center of your ears.
SSS0993
To raise the head restraint, pull it up.

SSS0994
To lower, push and hold the lock knob and
push the head restraint down.
SSS0995
Removal (front seats and 2nd row
outboard seats)
Use the following procedure to remove the
adjustable head restraints.
1. Pull the head restraint up to the highestposition.
2. Push and hold the lock knob.
3. Remove the head restraint from the seat.
4. Store the head restraint properly in a secure place so it is not loose in the
vehicle.
5. Reinstall and properly adjust the head restraint before an occupant uses the
seating position.
Safety
—seats, seat belts and supplemental restraint system1-13

1-14Safety—seats, seat belts and supplemental restraint system
SSS0996
Install (front seats and 2nd row
outboard seats)
1. Align the head restraint stalks with the
holes in the seat. Make sure that the
head restraint is facing the correct
direction. The stalk with the adjustment
notches
*1must be installed in the
hole with the lock knob
*2.
2. Push and hold the lock knob and push the head restraint down.
3. Properly adjust the head restraint before an occupant uses the seating
position.
CAUTION
Models with a head restraint display (if so
equipped) are designed so that the head
restraint cannot be removed. The head
restraint display may be damaged if the
head restraint is forcibly pulled out.
SSS1123
Adjustment (3rd row seats)
To raise the head restraint, pull it up to the
lock position.

SSS1124
To lower, push and hold the lock knob and
push the head restraint down.
SSS1125
Removal (3rd row seats)
Use the following procedure to remove the
head restraints.
1. Pull the head restraint up to the highestposition.
2. Push and hold the lock knob.
3. Remove the head restraint from the seat.
4. Store the head restraint properly in a secure place so it is not loose in the
vehicle.
5. Install and properly adjust the head restraint before an occupant uses the seating position.
Safety
—seats, seat belts and supplemental restraint system1-15

1-16Safety—seats, seat belts and supplemental restraint system
SSS1126
Install (3rd row seats)
1. Align the head restraint stalks with the
holes in the seat. Make sure that the
head restraint is facing the correct
direction. The stalk with the adjustment
notch must be installed in the hole with
the lock knob
*1.
2. Push and hold the lock knob and push the head restraint down.
3. Properly adjust the head restraint before an occupant uses the seating
position.
SSS0508
Front-seat Active Head Restraint
The Active Head Restraint moves forward
utilizing the force that the seatback re-
ceives from the occupant in a rear-end
collision. The movement of the head
restraint helps support the occupant’ s
head by reducing its backward movement
and helping absorb some of the forces that
may lead to whiplash-type injuries.
Active Head Restraints are effective for
collisions at low to medium speeds in
which it is said that whiplash injury occurs
most.
Active Head Restraints operate only in certain rear-end collisions. After the colli-
sion, the head restraints return to their
original position.
Adjust the Active Head Restraints properly
as described earlier in this section.
HEADREST
WARNING
Headrests supplement the other vehicle
safety systems. They may provide additional
protection against injury in certain rear end
collisions. Adjust the headrests properly, as
specified in this section. Check the adjust-
ment after someone else uses the seat. Do
not attach anything to the headrest stalks
or remove the headrests. Do not use the
seat if the headrests have been removed. If
the headrest was removed, reinstall and
properly adjust the headrest before an
occupant uses the seating position. Failure
to follow these instructions can reduce the
effectiveness of the headrests. This may
increase the risk of serious injury or death
in a collision.

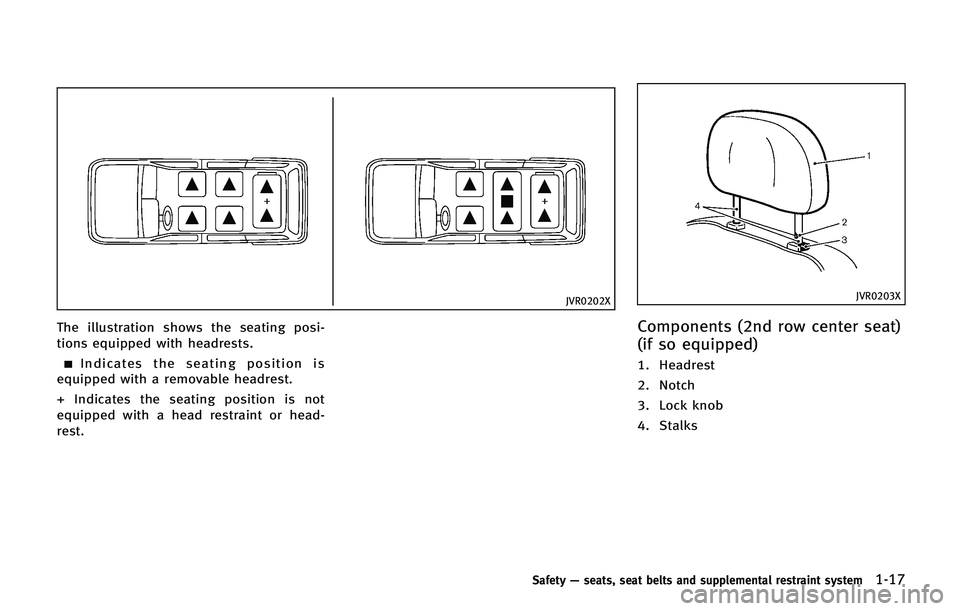

JVR0202X
The illustration shows the seating posi-
tions equipped with headrests.
Indicates the seating position is
equipped with a removable headrest.
+ Indicates the seating position is not
equipped with a head restraint or head-
rest.
JVR0203X
Components (2nd row center seat)
(if so equipped)
1. Headrest
2. Notch
3. Lock knob
4. Stalks
Safety —seats, seat belts and supplemental restraint system1-17

1-18Safety—seats, seat belts and supplemental restraint system
SSS0969
Removal and attachment (2nd row
center seat) (if so equipped)
To remove the headrest, push and hold the
lock knob
*1and pull the headrest up.
If the headrest is removed, store it in a
secure place. Reinstall the headrest before
an occupant uses the seating position.
To attach the headrest, push and hold the
lock knob
*1and insert the headrest
stalks into the holes.
SSS1111
Front seats
ARMREST (if so equipped)
Front seats
The console box lid can be used as an
armrest.
Slide the box lid forward or backward to
the desired position (if so equipped).
SSS1070
2nd row seat
2nd row seat
Pull and draw the armrest forward until it is
horizontal.
FLEXIBLE SEATING
WARNING
. Never allow anyone to ride in the cargo
area or on the rear seats when they are
in the fold-down position. In a collision,
people riding in these areas without
proper restraints are more likely to be
seriously injured or killed.

.Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and seat belts. Be sure everyone in
your vehicle is in a seat and using a seat
belt properly.
. Do not fold down the rear seats when
occupants are in the rear seat area or
any cargo is on the rear seats.
. Head restraints should be adjusted
properly as they may provide significant
protection against injury in an accident.
Always replace and adjust them properly
if they have been removed for any
reason.
. If the head restraints are removed for
any reason, they should be securely
stored to prevent them from causing
injury to passengers or damage to the
vehicle in case of sudden braking or an
accident.
. When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched posi-
tion. If they are not completely secured,
passengers may be injured in an acci-
dent or sudden stop.
. Properly secure all cargo to help prevent
it from sliding or shifting. Do not place cargo higher than the seatbacks. In a
sudden stop or collision, unsecured
cargo could cause personal injury.
. When folding the bench seat seatback
down for maximum storage, make sure
the seat base is in the latched position
by rocking the seat base. If the seat base
is not properly secured, cargo stored on
top of a folded seatback may become a
projectile causing personal injury or
vehicle damage.
CAUTION
.When folding the 2nd row seat for
maximum cargo hauling, be sure that
cargo does not contact the center con-
sole of the captain’ s seat (if so
equipped) to avoid possible damage to
the console.
. When folding or returning the seat(s) to
the upright position, to avoid injury to
yourself and others:
—Make sure that the seat path is
clear before moving the seat.
—Be careful not to allow hands or feet to get caught or pinched in the seat.
Stowing 2nd and 3rd row seats
To stow 2nd and 3rd row seats for
maximum cargo capacity:
