Page 21 of 556
1. Speedometer (P. 2-4)
2. Vehicle information display (P. 2-15)— Odometer/twin trip odometer (P. 2-15)
3. Upper information display (P. 2-15) 4. Tachometer (P. 2-5)
5. Engine coolant temperature gauge (P. 2-6)
6. Fuel gauge (P. 2-6)
NIC2651
METERS AND GAUGES
0-8Illustrated table of contents
Page 22 of 556
2.0L GASOLINE ENGINE
1. Engine coolant reservoir (P. 8-3)
2. Engine oil dipstick (P. 8-5)
3. Engine oil filler cap (P. 8-5)
4. Brake fluid reservoir (P. 8-7)5. Engine air cleaner filter (P. 8-13)
6. Battery (P. 8-9)
7. Fuse box (P. 8-17)
8. Window washer fluid reservoir (P. 8-8)
NIC2833
ENGINE COMPARTMENT
Illustrated table of contents0-9
Page 23 of 556
NOTE
0-10Illustrated table of contents
Page 24 of 556
1 Safety — seats, seat belts and supplemental
restraint system
Seats............................. .1-2
Front seats .........................1-3
Seat heater (if equipped) .................1-5
Rear seats ..........................1-5
Armrest (if equipped) .................. .1-7
Head restraints/Headrests ..................1-7
Adjustable head restraint components ........1-8
Remove .......................... .1-8
Install ........................... .1-9
Adjust ........................... .1-9
Rear seat head restraints/headrests .........1-10
Seat belts .......................... .1-11
Precautions on seat belt usage ............1-11
Pregnant women .................... .1-13
Injured persons ..................... .1-13
Seat belt warning light .................1-14
Three-point type seat belt with retractor .......1-14
Seat belt extenders .................. .1-17
Seat belt maintenance ..................1-17
Child safety ..........................1-18
Infants .......................... .1-18Small children
..................... .1-19
Larger children ..................... .1-19
Child restraints ....................... .1-20
Precautions on child restraints ............1-20
Rear-facing child restraint installation using
LATCH .......................... .1-23
Rear-facing child restraint installation using
the seat belts ...................... .1-25
Forward-facing child restraint installation using
LATCH .......................... .1-28
Forward-facing child restraint installation
using the seat belts .................. .1-31
Booster seats ...................... .1-35
Supplemental Restraint System (SRS) ..........1-38
Precautions on Supplemental Restraint System
(SRS) ........................... .1-38
Supplemental air bag systems .............1-45
Supplemental air bag warning labels ........
.1-55
Supplemental air
bag warning light ..........1-55
Repair and replacement procedure ..........1-56
Page 25 of 556
WARNING
•The seatback should not be reclined any
more than needed for comfort. Seat belts
are most effective when the passenger sits
well back and straight up in the seat. If the
seat back is reclined, the risk of sliding un-
der the lap belt and being injured is in-
creased.
•For the most effective protection when the
vehicle is in motion, the seat should be up-
right. Always sit well back and upright in the
seat with both feet on the floor and adjust
the seat properly. (SeeSeat beltslater in
this section.)
•After adjustment, gently rock in the seat to
make sure it is securely locked.
•To help avoid risk of injury or death through
unintended operation of the vehicle and/or
its systems, do not leave children, people
who require the assistance of others, or
pets unattended in your vehicle. Addition-
ally, the temperature inside a closed vehicle
on a warm day can quickly become high
enough to cause a significant risk of injury
or death to people and pets.
•Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents.
•Do not adjust the driver’s seat while driving
so full attention may be given to vehicle
operation. The seat may move suddenly and
could cause loss of control of the vehicle.
CAUTION
When adjusting the seat positions, be sure not
to contact any moving parts to avoid possible
injuries and/or damage.
SSS0133AZ
SEATS
1-2Safety — seats, seat belts and supplemental restraint system
Page 26 of 556
FRONT SEATS
Manual seat adjustment
Forward and backward:
Pull the lever1up and hold it while sliding the
seat forward or backward to the preferred posi-
tion. Release the lever to lock the seat in
position.
Seat cushion angle (if equipped)
:
Adjust the angles so that your thighs are lightly
supported. Turn handwheel
2forwards or
backwards. Seat lifter (if equipped)
:
Repeatedly pull up or push down the adjusting
lever
3, to adjust the seat height to the
desired position.
Seatback angle
:
Relieve the pressure on the seatback and turn
handwheel
4forwards or backwards.
The reclining feature allows the adjustment of
the seatback for occupants of different sizes to
help obtain the proper seat belt fit. (See Seat
belts later in this section.)
The seatback may be reclined to allow occu-
pants to rest when the vehicle is parked. Lumbar support
:
The lumbar support feature provides lower back
support to the driver.
Push each side of the adjusting switch to adjust
the seat lumbar area until the desired position
is achieved.
1To raise the seatback contour
2To soften the seatback contour
3To lower the seatback contour
4To harden the seatback contour
NIC2605NIC2607
Safety — seats, seat belts and supplemental restraint system1-3
Page 27 of 556
Power seat adjustment
Operating tips:
•The power seat motor has an auto-reset
overload protection circuit. If the motor stops
during the seat adjustment, wait 30 seconds,
then reactivate the switch.
•To avoid discharge of the battery, do not
operate the power seats for a long period of
time when the engine is not running.
NOTE
You can store the seat settings using the
memory function (see Memory function (if
equipped) in the3. Pre-driving checks and ad-
justments section). Forward and backward
:
Move forward or backward the adjusting switch
1to the desired position.
Reclining
:
Move forward or backward the adjusting switch
2to the desired position.
The reclining feature allows the adjustment of
the seatback for occupants of different sizes to
help obtain the proper seat belt fit. (See Seat
belts later in this section.)
The seatback may be reclined to allow occu-
pants to rest when the vehicle is parked. Seat lifter (if equipped)
:
1. Pull up or push down the adjusting switch
3to adjust the seat height until the desired
position is achieved.
2. Tilt up or down the adjusting switch
4to
adjust the front angle of the seat until the
desired position is achieved.
NIC2606
1-4Safety — seats, seat belts and supplemental restraint system
Page 28 of 556
Lumbar support:
The lumbar support feature provides lower back
support to the driver.
Push each side of the adjusting switch to adjust
the seat lumbar area until the desired position
is achieved.
1To raise the seatback contour
2To soften the seatback contour
3To lower the seatback contour
4To harden the seatback contour
SEAT HEATER (IF EQUIPPED)
The seats can be warmed by built-in heaters.
The switches are located on the center console
(for front seats) and can be operated indepen-
dently of each other. For more information on
the seat heater, seeSeat heating (if
equipped) in the2. Instruments and controls
section.
REAR SEATS
WARNING
•Never allow anyone to ride in the cargo area
or on the rear seat when it is in the fold-
down position. Use of these areas by pas-
sengers without proper restraints could re-
sult in serious injury or deathin an accident
or sudden stop.
•Properly secure all cargo with ropes or straps
to help prevent it from sliding or shifting. Do
not place cargo higher than the seatbacks. In
a sudden stop or collision, unsecured cargo
could cause personal injury.
•Do not allow people to ride in any area of
your vehicle that is not equipped with seats
and seat belts. Be sure everyone in your
vehicle is in a seat and using a seat belt
properly.
•Do not allow more than one person to use
the same seat belt.
•Do not fold down the rear seats when occu-
pants are in the rear seat area or any lug-
gage is on the rear seats. – Make sure that the seat path is clear
before moving the seat.
– Be careful not to allow hands or feet to
get caught or pinched in the seat.
•Head restraints/headrests should be ad-
justed properly as they may provide signifi-
cant protection against injury in an acci-
dent. Always replace and adjust them
properly if they have been removed for any
reason.
•If the head restraints/headrests are re-
moved for any reason, they should be se-
curely stored to prevent them from causing
injury to passengers or damage to the ve-
hicle in case of sudden braking or an acci-
dent.
•When returning the seatbacks to the up-
right position, be certain they are com-
pletely secured in the latched position. If
they are not completely secured, passen-
gers may be injured in an accident or sud-
den stop.
NIC2607
Safety — seats, seat belts and supplemental restraint system1-5
Page 29 of 556

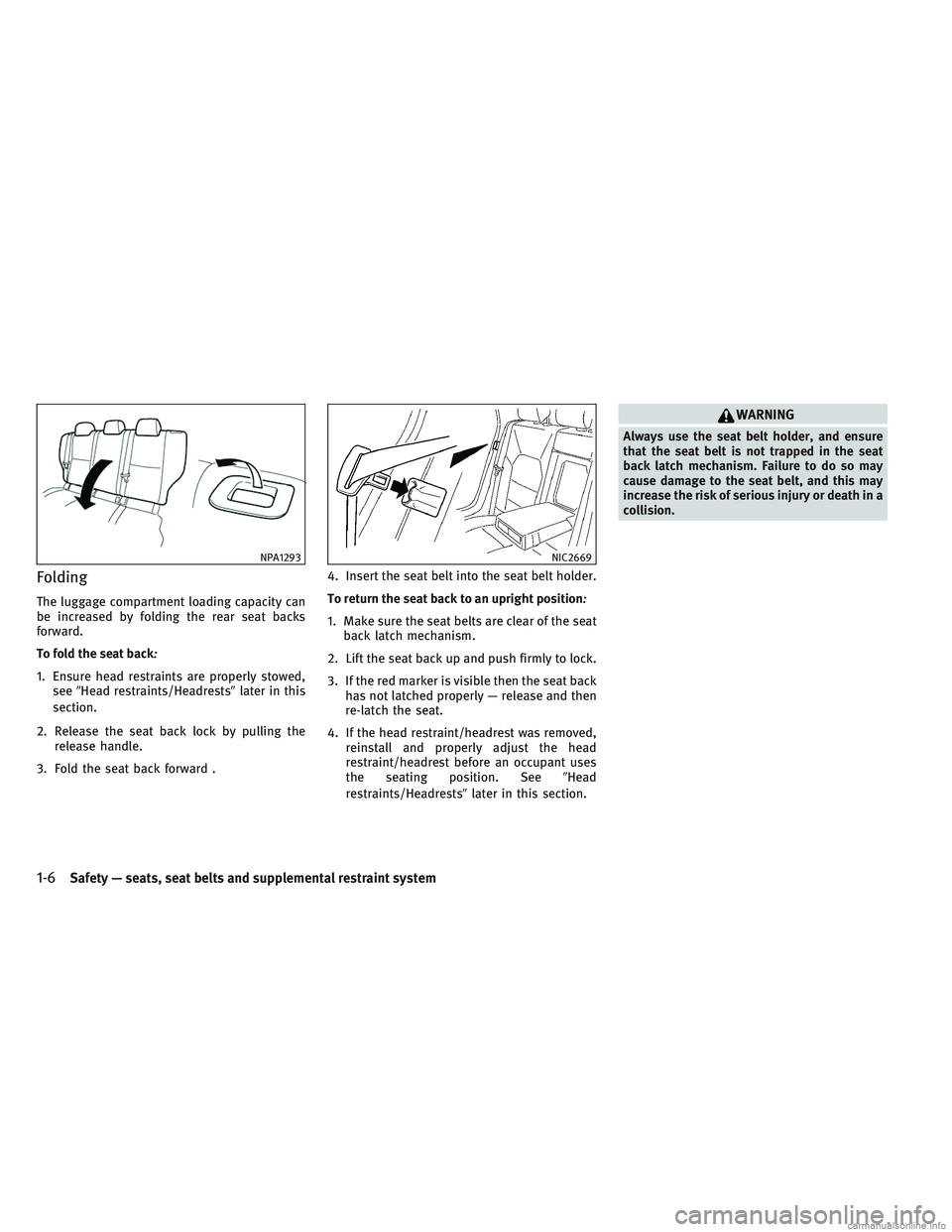

Folding
The luggage compartment loading capacity can
be increased by folding the rear seat backs
forward.
To fold the seat back
:
1. Ensure head restraints are properly stowed,see Head restraints/Headrests later in this
section.
2. Release the seat back lock by pulling the release handle.
3. Fold the seat back forward . 4. Insert the seat belt into the seat belt holder.
To return the seat back to an upright position
:
1. Make sure the seat belts are clear of the seat
back latch mechanism.
2. Lift the seat back up and push firmly to lock.
3. If the red marker is visible then the seat back has not latched properly — release and then
re-latch the seat.
4. If the head restraint/headrest was removed, reinstall and properly adjust the head
restraint/headrest before an occupant uses
the seating position. See Head
restraints/Headrests later in this section.
WARNING
Always use the seat belt holder, and ensure
that the seat belt is not trapped in the seat
back latch mechanism. Failure to do so may
cause damage to the seat belt, and this may
increase the risk of serious injury or death in a
collision.
NPA1293NIC2669
1-6Safety — seats, seat belts and supplemental restraint system
Page 30 of 556
ARMREST (IF EQUIPPED)
Rear
Pull the tab and draw the armrest1forward
until it is horizontal.
Indicates that the seating position is
equipped with a head restraint.
Indicates that the seating position is
equipped with a non-removable head rest.
WARNING
Head restraints/headrests supplement the
other vehicle safety systems. They may pro-
vide additional protection against injury in cer-
tain rear end collisions. Adjustable head
restraints/headrests must be adjusted prop-
erly, as specified in this section. Check the
adjustment after someone else uses the seat.
Do not attach anything to the head restraint/
headrest stalks or remove the head restraint/
headrest. Do not use the seat if the head
restraint/headrest has been removed. If the
head restraint/headrest was removed, rein- stall and properly adjust the head restraint/
headrest before an occupant uses the seating
position. Failure to follow these instructions
can reduce the effectiveness of the head
restraints/headrests. This may increase the
risk of serious injury or death in a collision.
•Your vehicle is equipped with head
restraints/headrests that may be integrated,
adjustable or non-adjustable.
•Adjustable head restraints/headrests have
multiple notches along the stalk to lock them
in a desired adjustment position.
•The non-adjustable head restraints/
headrests have a single locking notch to
secure them to the seat frame.
•Proper Adjustment:
– For the adjustable type, align the head restraint/headrest so the center of your
ear is approximately level with the center
of the head restraint/headrest.
– If your ear position is still higher than the recommended alignment, place the head
restraint/headrest at the highest
position.
NIC2611NPA1500
HEAD RESTRAINTS/HEADRESTS
Safety — seats, seat belts and supplemental restraint system1-7
