2 Instruments and controls
Cockpit............................ .2-2
Instrument panel ...................... .2-3
Meters and gauges ..................... .2-4
Speedometer and odometer ...............2-4
Outside temperature display ..............2-5
Tachometer .........................2-5
Engine coolant temperature gauge ..........2-6
Fuel gauge .........................2-6
Warning lights, indicator lights and audible
reminders .......................... .2-8
Checking lights ..................... .2-8
Warning lights ...................... .2-8
Indicator lights ..................... .2-13
Audible reminders ................... .2-14
Vehicle information display ................2-15
Menus and submenus ..................2-16
Display Messages ................... .2-29
Security system ...................... .2-58
Immobiliser ....................... .2-58
Anti-theft alarm system (if equipped) ........2-58
Wiper and washer switch .................2-59
Switching the windshield wipers on/off .......2-60
Switching the rear window wiper on/off .......2-61
Rear window and outside mirror defroster switch . . .2-61
Windshield de-icer switch (if equipped) .........2-62Headlight and turn signal switches
...........2-63
Headlight switch .................... .2-63
Combination switch .................. .2-65
Adaptive front lighting system (LED headlight
only) (if equipped) ................... .2-65
High beam assist (LED headlight only) .......2-67
Headlights misted up on the inside .........2-68
Instrument brightness control .............2-69
Fog light switch (If so equipped) .............2-69
Front fog lights .................... .2-69
Rear fog light ...................... .2-69
Horn .............................
.2-70
Seat heating

(if equipped) .................2-70
Windows .......................... .2-72
Power windows .................... .2-72
Fixed glass roof (if equipped) ...............2-75
Sunshade operation .................. .2-75
Clock ............................. .2-76
Adjusting time ..................... .2-76
Power outlet .........................2-76
Storage ........................... .2-77
Glove box .........................2-78
Front console compartment ..............2-78
Console box ...................... .2-78
Card holder ....................... .2-79

Cup holders....................... .2-79
Coat hooks ....................... .2-80
Cargo tie-down hooks .................2-80
Luggage hooks ..................... .2-81
Front seat storage boxes (if equipped) .......2-82
Map pocket (if equipped) ...............2-82
Storage nets (if equipped) ...............2-82
Parcel shelf ....................... .2-82
Roof rack (if equipped) .................2-83
Ski hatch (if equipped) .................2-84
Compartment under trunk floor ............2-84Interior lights
.........................2-85
Front overhead control panel .............2-85
Rear reading lights (if equipped) ...........2-86
Rear room light (if equipped) .............2-86
Vanity mirror lights .................. .2-86
Luggage compartment light ..............2-86
Battery saver system ..................2-86
HomeLink® Universal Transceiver (if equipped) . . . .2-86 Programming HomeLink® ...............2-87
Programming trouble diagnosis ............2-89
Operating the HomeLink® Universal
Transceiver ....................... .2-89
Clearing the programmed information ........2-90
If your vehicle is stolen ................2-90

1. Turn signal, wiper, washer, and high beamswitch (P. 2-65, 2-59)
2. Steering-wheel-mounted controls (left side) (P. 2-15)
3. Ignition switch (P. 3-16) 4. Steering-wheel-mounted controls (right
side) (P. 4-3)
5. Light switch — Headlight (P. 2-63)
— Fog light (P. 2-69)
6. Parking brake (P. 3-25) 7. Cruise Control switch
— Cruise Control (P. 5-44)
— Intelligent Cruise Control (P. 2-47)
8. USB connection ports (P. 4-3)
9. Shift lever (P. 5-18)
10. Front cup holders (P. 2-79)
11. INFINITI controller (P. 4-2)
NIC2649
COCKPIT
2-2Instruments and controls

1. Ventilators (P. 4-41)
2. Center display* (P. 4-5)
3. Meters and gauges (P. 2-4)
4. Light switch (P. 2-63)
5. Parking brake (P. 3-25)6. Steering wheel
— Power steering system (P. 5-86)
— Horn (P. 2-70)
— Driver’s supplemental front-impact air bag
(P. 1-38)
7. Audio system (P. 4-52) 8. Ignition switch (P. 3-16)
9. Heater and air conditioner (P. 4-42)
10. Switch panel
— Seat heater switches* (P. 2-70)
— Hazard indicator flasher switch (P. 6-2)
— Idle Stop/Start system on/off switch
(P. 6-28)
— Front passenger air bag status light
(P. 6-47)
11. Vehicle Information Display (P. 2-15)
12. Glove box (P. 2-78)
13. Front passenger supplemental air bag (P. 1-38)
*: if equipped
NIC2898
INSTRUMENT PANEL
Instruments and controls2-3

1. Speedometer (P. 2-4)
2. Vehicle information display (P. 2-15)— Odometer/twin trip odometer (P. 2-15)
3. Upper information display (P. 2-15)
4. Tachometer (P. 2-5)
5. Engine coolant temperature gauge (P. 2-6) 6. Fuel gauge (P. 2-6)
NOTE
The needle indicators may move slightly after
the ignition switch is put in the “OFF” position.
This is not a malfunction.
CAUTION
•For cleaning, use a soft cloth, dampened
with water. Never use a rough cloth, alco-
hol, thinner or any kind of solvent or paper
towel with a chemical cleaning agent. They
will scratch or cause discoloration to the
lens.
•Do not spray any liquid such as water on the
meter lens. Spraying liquid may cause the
system to malfunction.
SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedometer
and odometer. The speedometer is located on
the right side of the meter cluster. The odom-
eter is located below the vehicle information
display.
NIC2651
METERS AND GAUGES
2-4Instruments and controls

ENGINE COOLANT TEMPERATURE
GAUGE
The gauge indicates the engine coolant tem-
perature. The engine coolant temperature is
within the normal range
1when the gauge
needle points within the zone shown in the
illustration. The engine coolant temperature
varies with the outside air temperature and
driving conditions.
CAUTION
If the gauge indicates coolant temperature
near the hot (H) end of the normal range, re-
duce vehicle speed to decrease temperature. If
the gauge is over the normal range, stop the
vehicle as soon as safely possible. If the en-
gine is overheated, continued operation of the
vehicle may seriously damage the engine. For
additional information, refer to If your vehicle
overheats in the6. In case of emergency
section for immediate action required.
FUEL GAUGE
The fuel gauge indicates the approximatefuel
level in the tank when the ignition switch is in
the ON position.
The gauge may move slightly during braking,
turning, accelerating, or going up and down
hills due to movement of fuel in the tank.
The gauge needle returns to 0 (Empty) after the
ignition switch is placed in the OFF position.
The low fuel warning
appears on the
vehicle information display when the fuel level
in the tank is getting low.
Refill the fuel tank before the gauge registers
0 (Empty).
The arrow,
, indicates that the fuel-filler
lid is located on the left side of the vehicle.
NIC2829NIC2831NIC2653
2-6Instruments and controls

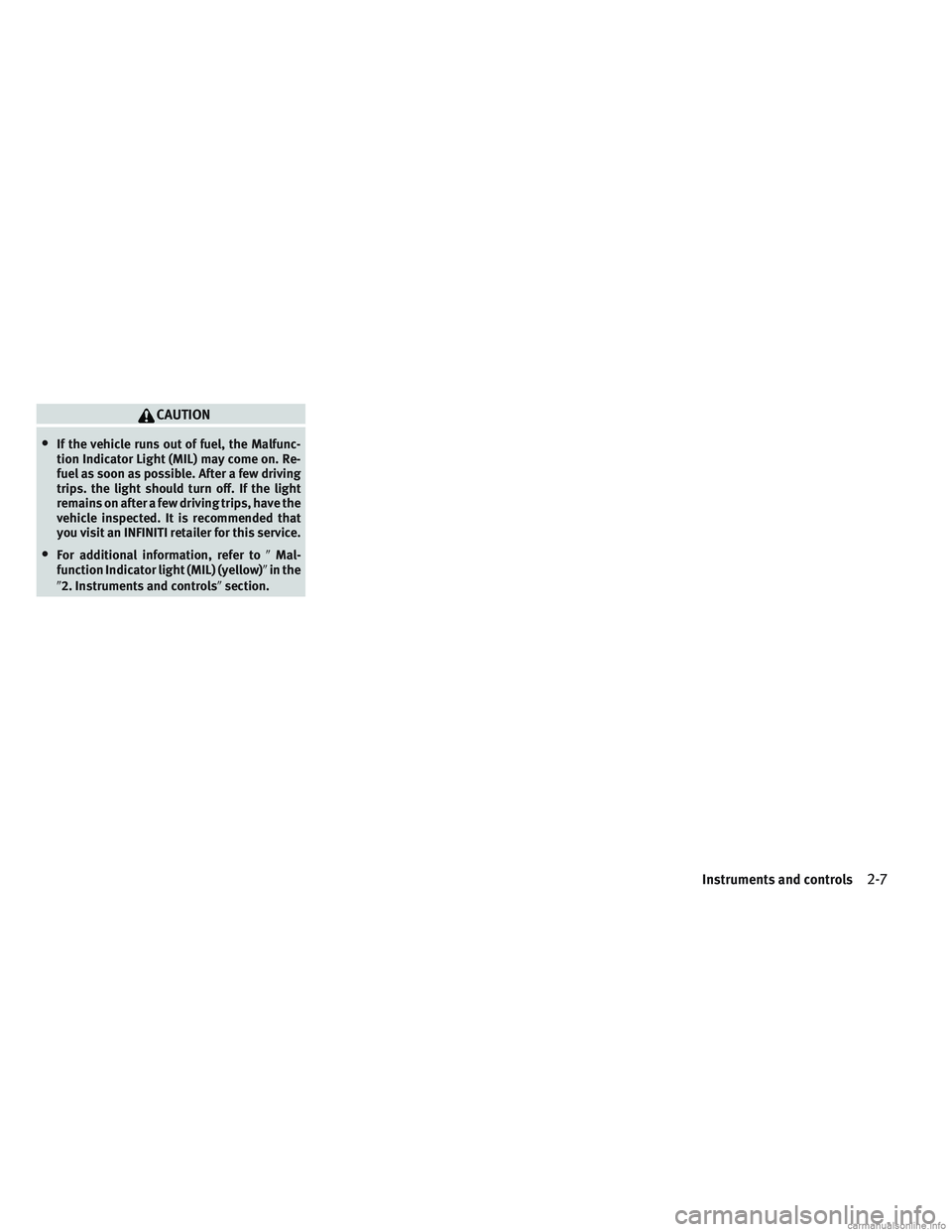

CAUTION
•If the vehicle runs out of fuel, the Malfunc-
tion Indicator Light (MIL) may come on. Re-
fuel as soon as possible. After a few driving
trips. the light should turn off. If the light
remains on after a few driving trips, have the
vehicle inspected. It is recommended that
you visit an INFINITI retailer for this service.
•For additional information, refer toMal-
function Indicator light (MIL) (yellow) in the
2. Instruments and controls section.
Instruments and controls2-7

Anti-lock Braking System (ABS) warning
lightSeat belt (driver and front passenger)
warning lightHigh beam indicator light
Brake warning light (red)Supplemental Restraint System (SRS) air
bag warning lightRear fog light indicator light
Low tire pressure warning light*Low fuel warning lightSide light indicator light
Malfunction indicator light (yellow)Turn signal/hazard indicator lightsVehicle Dynamic Control (VDC) warning
light
Distance warning light*Low beam indicator lightFront passenger air bag status light**
Parking brake warning light (red)Vehicle Dynamic Control (VDC) OFF indica-
tor light
Parking brake warning light (yellow)Front fog light indicator light*
Coolant warning lightHigh beam assist indicator light * *: if equipped**: located above heater and air conditioner controls
Some indicators and warnings are also dis-
played in the vehicle information display be-
tween the speedometer and tachometer see
Vehicle information displayin the
2. Instruments and controls section.CHECKING LIGHTS
With all doors closed, apply the parking brake,
fasten the seat belts and place the ignition
switch in the ON position without starting the
engine. The following lights (if so equipped) will
come on, ,
,,,,
,,,,. These lights
should go out within a few seconds after start-
ing the engine. If any light fails to come on or
operates in a way other than described, it may indicate a burned out bulb and/or a system
malfunction. Have the system checked. It is
recommended you visit an INFINITI retailer for
this service.
WARNING LIGHTS
Also see
Vehicle information display later in
this section.
WARNING LIGHTS, INDICATOR LIGHTS AND
AUDIBLE REMINDERS
2-8Instruments and controls

Anti-lock Braking System
(ABS) warning light
When the ignition switch is in the ON position,
the ABS warning light illuminates to indicate
that the ABS is operational. The light then turns
off within a few seconds after the engine is
started.
If the ABS light comes on while the engine is
running, it may indicate the anti-lock braking
system is not functioning properly. Have the
system checked. It is recommended that you
visit an INFINITI retailer for this service.
If the ABS warning light comes on while driving,
it may indicate the ABS is not functioning
properly. Observe the additional display mes-
sages (if any) in the vehicle information display.
Have the system checked by an INFINITI retailer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
tance (seeBrake system in the5. Starting and
driving section).
BRAKE warning light (red)
WARNING
•Your brake system may not be working
properly if the warning light is on. Driving
could be dangerous. If you judge it to be
safe, drive carefully to the nearest service
station for repairs. Otherwise, have your ve-
hicle towed because driving it could be dan-
gerous.
•Pressing the brake pedal when the ignition
switch is not in the ON position and/or when
the brake fluid level is low may increase the
stopping distance and braking will require
greater pedal effort as well as pedal travel.
•If the brake fluid level is below the minimum
or MIN mark on the brake fluid reservoir, do
not drive until the brake system has been
checked. It is recommended that you visit
an INFINITI retailer for this service.
When the ignition switch is placed in the ON
position, the light remains illuminated and
turns off when the engine is started. If the light
illuminates at any other time, it may indicate
that the brake system is not functioning prop-
erly. If the BRAKE warning light illuminates, stop the vehicle immediately and contact an
INFINITI retailer.
This light functions for both the parking brake
and the foot brake systems.
Low tire pressure warning
light (if equipped)
Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the
tire pressure of all its tires.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
When the ignition switch is in the ON position,
the Low tire pressure warming light illuminates
to indicate that the system is operational. The
light then tuns off within a few seconds after
the engine is started.
Low tire pressure warning
:
If the vehicle is being driven with low tire pres-
sure, the warning light will illuminate. A tire
pressure warning message also appears in the
vehicle information display.
When the low tire pressure warning light illumi-
nates, you should stop and adjust the tire pres-
sure of all 4 tires to the recommended COLD tire
Instruments and controls2-9

pressure shown on the Tire and Loading Infor-
mation label located in the driver’s door open-
ing, seeTire and loading information label in
the 9. Maintenance and Schedules section.
The low tire pressure warning light does not
automatically turn off when the tire pressure is
adjusted. After the tire is inflated to the recom-
mended pressure, the vehicle must be driven at
speeds above 16 MPH (25 km/h) to activate the
TPMS and turn off the low tire pressure warning
light. Use a tire pressure gauge to check the tire
pressure.
The low tire pressure warning message appears
each time the ignition switch is placed in the ON
position as long as the low tire pressure warn-
ing light remains illuminated.
For additional information, see Vehicle infor-
mation display later in this section and Tire
Pressure Monitoring System (TPMS) in the
5. Starting and driving section.
TPMS malfunction
:
If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
placed in the ON position. The light will remain
on after 1 minute. Have the system checked. It is
recommended that you visit an INFINITI retailer for this service. The low tire pressure warning
does not appear if the low tire pressure warning
light illuminates to indicate a TPMS malfunc-
tion.
For additional information, see
Tire Pressure
Monitoring System (TPMS) in the5. Starting
and driving section.
WARNING
•Radio waves could adversely affect electric
medical equipment. Those who use a pace-
maker should contact the electric medical
equipment manufacturer for the possible in-
fluences before use.
•If the light does not illuminate with the ig-
nition switch pushed ON, have the vehicle
checked. It is recommended you visit an
INFINITI retailer for this service.
•If the light illuminates while driving, avoid
sudden steering maneuvers or abrupt brak-
ing, reduce vehicle speed, pull off the road
to a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damage the
tires and increase the likelihood of tire fail-
ure. Serious vehicle damage could occur
and may lead to an accident and could result
in serious personal injury or death. Check the tire pressure for all four tires. Adjust the
tire pressure to the recommended COLD tire
pressure shown on the tire placard, located
in the driver’s door opening, to turn the low
tire pressure warning light off. If the light
still illuminates while driving after adjust-
ing the tire pressure, a tire may be flat. If you
have a flat tire, replace it with a replacement
tire as soon as possible.
•If a replacement tire is mounted or a wheel
is replaced without a TPMS sensor tire pres-
sure will not be indicated, the TPMS will not
function and the low tire pressure warning
light will flash for approximately 1 minute.
The light will remain on after 1 minute. Have
your vehicle’s tires replaced and/or TPMS
system reset as soon as possible. It is rec-
ommended you visit an INFINITI retailer for
these services.
•Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
CAUTION
•The TPMS is not a substitute for the regular
tire pressure check. Be sure to check the tire
pressure regularly.
2-10Instruments and controls
