INFINITI QX30 2017 Owner's Manual

ARS1041ARS1042ARS1043

ARS1044ARS1045ARS1046

WRS0431WRS0365SSS0162

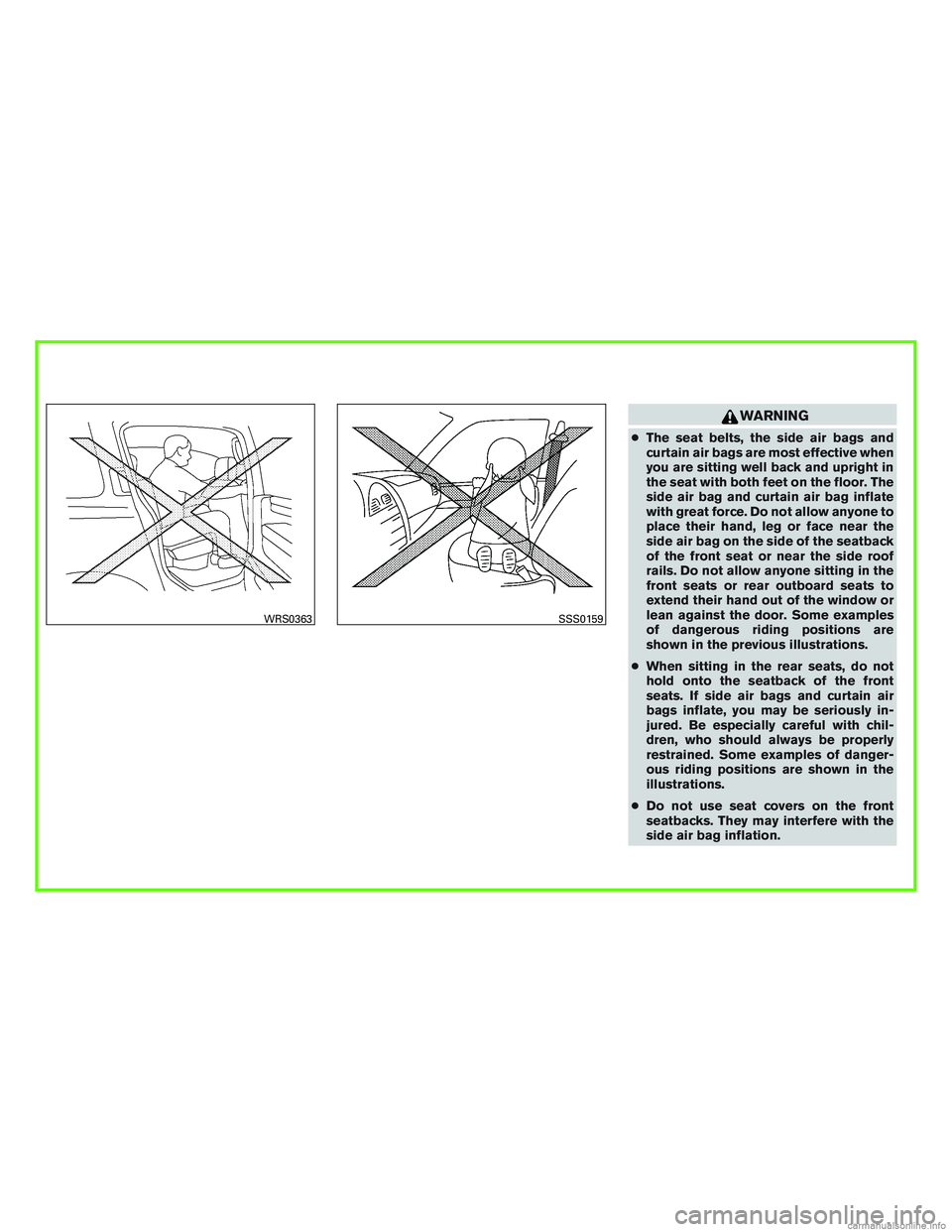

WARNING
●The seat belts, the side air bags and
curtain air bags are most effective when
you are sitting well back and upright in
the seat with both feet on the floor. The
side air bag and curtain air bag inflate
with great force. Do not allow anyone to
place their hand, leg or face near the
side air bag on the side of the seatback
of the front seat or near the side roof
rails. Do not allow anyone sitting in the
front seats or rear outboard seats to
extend their hand out of the window or
lean against the door. Some examples
of dangerous riding positions are
shown in the previous illustrations.
● When sitting in the rear seats, do not
hold onto the seatback of the front
seats. If side air bags and curtain air
bags inflate, you may be seriously in-
jured. Be especially careful with chil-
dren, who should always be properly
restrained. Some examples of danger-
ous riding positions are shown in the
illustrations.
● Do not use seat covers on the front
seatbacks. They may interfere with the
side air bag inflation.
WRS0363SSS0159

SUPPLEMENTAL AIR BAG SYSTEMS
1. Crash zone sensor
2. Supplemental front-impact air bag modules
3. Front seat-mounted side-impact supple-mental air bag modules
4. Roof-mounted curtain side-impact and roll- over supplemental air bag inflators
5. Roof-mounted curtain side-impact and roll- over supplemental air bag modules
6. Driver and passenger supplemental knee air bags
7. Front door pressure sensors
8. Front seat belt with pretensioners
9. Satellite sensors
10. Air bag Control Unit (ACU)
11. Rear seat belt with pretensioners
LRS2887

INFINITI Advanced Air Bag System
(front seats)
WARNING
To ensure proper operation of the passen-
ger’s INFINITI Advanced Air Bag System,
please observe the following items:
●If a forward-facing child restraint is in-
stalled in the front passenger seat, do
not position the front passenger seat so
the child restraint contacts the instru-
ment panel. If the child restraint does
contact the instrument panel, the sys-
tem may determine the seat is occupied
and the passenger air bag may deploy
in a collision. For additional informa-
tion about installing and using child re-
straints, refer to “Child restraints” in the
“1. Safety — seats, seat belts and
supplemental restraint system” section.
● Confirm the operating condition with
the front passenger air bag status light.
● If you notice that the front passenger air
bag status light is not operating as de-
scribed in this section, get the occupant
classification system checked. It is rec-
ommended that you visit an INFINITI
retailer for this service. ●
Until you have confirmed with a retailer
that your passenger seat occupant clas-
sification system is working properly,
position the occupants in the rear seat-
ing positions.
This vehicle is equipped with the INFINITI Ad-
vanced Air Bag System for the driver and front
passenger seats. This system is designed to
meet certification requirements under U.S. regu-
lations. It is also permitted in Canada.
All of the information, cautions and warn-
ings in this manual still apply and must be
followed. The driver supplemental front-impact
air bag is located in the center of the steering
wheel. The front passenger supplemental front-
impact air bag is mounted in the dashboard
above the glove box. The front air bags are de-
signed to inflate in higher severity frontal colli-
sions, although they may inflate if the forces in
another type of collision are similar to those of a
higher severity frontal impact. They may not in-
flate in certain frontal collisions. Vehicle damage
(or lack of it) is not always an indication of proper
front air bag system operation.
The INFINITI Advanced Air Bag System monitors
information from the crash zone sensor, the Air
bag Control Unit (ACU) , seat belt buckle sensor
and occupant classification sensor (pressure
sensor) . Inflator operation is based on the sever- ity of a collision and seat belt usage for the driver.
For the front passenger, the occupant classifica-
tion sensor is also monitored. Based on informa-
tion from the sensor, only one front air bag may
inflate in a crash, depending on the crash severity
and whether the front occupants are belted or
unbelted. Additionally, the front passenger air
bag may be automatically turned off under some
conditions, depending on the information pro-
vided by the Occupant Classification System
Sensor. If the front passenger air bag is OFF, the

indicator
light will be illuminated. For additional informa-
tion, refer to “Front passenger air bag and status
light” in the “1. Safety — seats, seat belts and
supplemental restraint system” section. One
front air bag inflating does not indicate improper
performance of the system.
If a crash occurs in which the vehicle’s air bags
deploy, by design the vehicle may not restart. If
this occurs, it is recommended that you visit an
INFINITI retailer for repair.
If you have any questions about your air bag
system, it is recommended that you visit an
INFINITI retailer to obtain information about the
system. If you are considering modification of
your vehicle due to a disability, you may also
contact INFINITI. Contact information is con-
tained in the front of this Owner’s Manual.

When a front air bag inflates, a fairly loud noise
may be heard, followed by the release of smoke.
This smoke is not harmful and does not indicate a
fire. Care should be taken to not inhale it, as it may
cause irritation and choking. Those with a history
of a breathing condition should get fresh air
promptly.
Front air bags, along with the use of seat belts,
help to cushion the impact force on the face and
chest of the front occupants. They can help save
lives and reduce serious injuries. However, an
inflating front air bag may cause facial abrasions
or other injuries. Front air bags do not provide
restraint to the lower body.
Even with INFINITI Advanced Air Bags, seat belts
should be correctly worn and the driver and pas-
senger seated upright as far as practical away
from the steering wheel or instrument panel. The
front air bags inflate quickly in order to help
protect the front occupants. Because of this, the
force of the front air bag inflating can increase the
risk of injury if the occupant is too close to, or is
against, the front air bag module during inflation.
The front air bags deflate quickly after a collision.The front air bags operate only when the
ignition switch is placed in the ON position.
After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off a few seconds
after the engine starts if the system is op-
erational.
Front passenger air bag and status
light
WARNING
The front passenger air bag is designed to
automatically turn OFF under some condi-
tions. Read this section carefully to learn
how it operates. Proper use of the seat,
seat belt and child restraints is necessary
for most effective protection. Failure to
follow all instructions in this manual con-
cerning the use of seats, seat belts and
child restraints can increase the risk or
severity of injury in an accident.
1indi-
cator light
2indi-
cator light
Status light
The front passenger seat is equipped with an
occupant classification sensor (pressure sensor)
that turns the front passenger air bag on or off
depending on the weight applied to the front
passenger seat. The indicator lights inform you
whether the front passenger front air bag is dis-
abled or enabled.
LRS2885

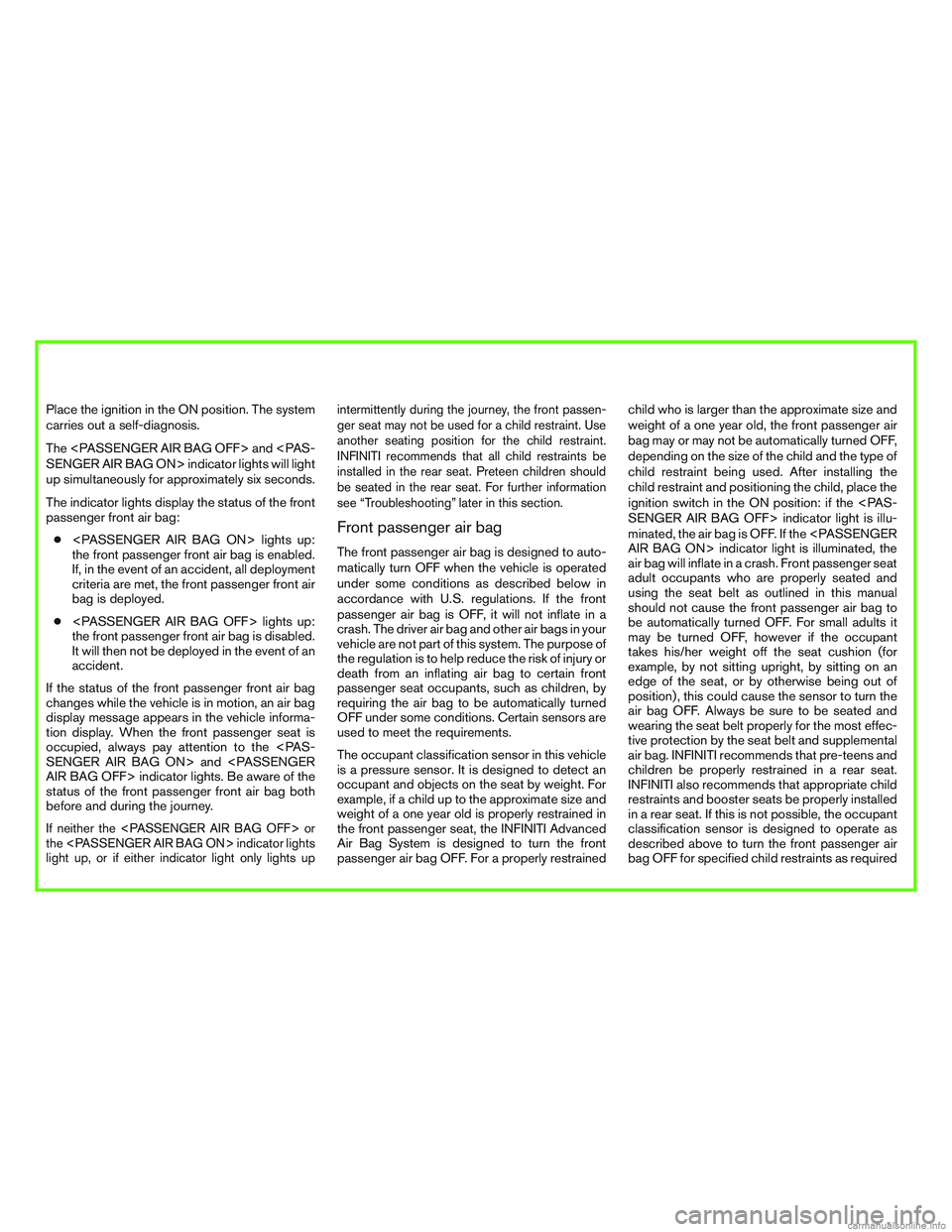

Place the ignition in the ON position. The system
carries out a self-diagnosis.
The and SENGER AIR BAG ON> indicator lights will light
up simultaneously for approximately six seconds.
The indicator lights display the status of the front
passenger front air bag:● lights up:
the front passenger front air bag is enabled.
If, in the event of an accident, all deployment
criteria are met, the front passenger front air
bag is deployed.
● lights up:
the front passenger front air bag is disabled.
It will then not be deployed in the event of an
accident.
If the status of the front passenger front air bag
changes while the vehicle is in motion, an air bag
display message appears in the vehicle informa-
tion display. When the front passenger seat is
occupied, always pay attention to the SENGER AIR BAG ON> and AIR BAG OFF> indicator lights. Be aware of the
status of the front passenger front air bag both
before and during the journey.
If neither the or
the indicator lights
light up, or if either indicator light only lights up intermittently during the journey, the front passen-
ger seat may not be used for a child restraint. Use
another seating position for the child restraint.
INFINITI recommends that all child restraints be
installed in the rear seat. Preteen children should
be seated in the rear seat. For further information
see “Troubleshooting” later in this section.
Front passenger air bag
The front passenger air bag is designed to auto-
matically turn OFF when the vehicle is operated
under some conditions as described below in
accordance with U.S. regulations. If the front
passenger air bag is OFF, it will not inflate in a
crash. The driver air bag and other air bags in your
vehicle are not part of this system. The purpose of
the regulation is to help reduce the risk of injury or
death from an inflating air bag to certain front
passenger seat occupants, such as children, by
requiring the air bag to be automatically turned
OFF under some conditions. Certain sensors are
used to meet the requirements.
The occupant classification sensor in this vehicle
is a pressure sensor. It is designed to detect an
occupant and objects on the seat by weight. For
example, if a child up to the approximate size and
weight of a one year old is properly restrained in
the front passenger seat, the INFINITI Advanced
Air Bag System is designed to turn the front
passenger air bag OFF. For a properly restrainedchild who is larger than the approximate size and
weight of a one year old, the front passenger air
bag may or may not be automatically turned OFF,
depending on the size of the child and the type of
child restraint being used. After installing the
child restraint and positioning the child, place the
ignition switch in the ON position: if the SENGER AIR BAG OFF> indicator light is illu-
minated, the air bag is OFF. If the AIR BAG ON> indicator light is illuminated, the
air bag will inflate in a crash. Front passenger seat
adult occupants who are properly seated and
using the seat belt as outlined in this manual
should not cause the front passenger air bag to
be automatically turned OFF. For small adults it
may be turned OFF, however if the occupant
takes his/her weight off the seat cushion (for
example, by not sitting upright, by sitting on an
edge of the seat, or by otherwise being out of
position) , this could cause the sensor to turn the
air bag OFF. Always be sure to be seated and
wearing the seat belt properly for the most effec-
tive protection by the seat belt and supplemental
air bag. INFINITI recommends that pre-teens and
children be properly restrained in a rear seat.
INFINITI also recommends that appropriate child
restraints and booster seats be properly installed
in a rear seat. If this is not possible, the occupant
classification sensor is designed to operate as
described above to turn the front passenger air
bag OFF for specified child restraints as required

by the regulations. Failing to properly secure
child restraints and to use the ALR mode may
allow the restraint to tip or move in a collision or
sudden stop. This can also result in the passen-
ger air bag inflating in a crash instead of being
OFF. For additional information about proper use
and installation, refer to “Child restraints” in the
“1. Safety — seats, seat belts and supplemental
restraint system” section.
If the front passenger seat is not occupied, the
front passenger air bag is designed not to inflate
in a crash. However, heavy objects placed on the
seat could result in air bag inflation, because of
the object’s weight detected by the occupant
classification sensor. Other conditions could also
result in air bag inflation, such as if a child is
standing on the seat, or if two children are on the
seat, contrary to the instructions in this manual.
Always be sure that you and all vehicle occupants
are seated and restrained properly.
If the automatic front passenger air bag deactiva-
tion system detects that:● The front passenger seat is unoccupied, the
indicator
light lights up after the system self-test and
remains lit. This indicates that the front pas-
senger front air bag is disabled. ●
The front passenger seat is occupied by a
properly restrained child up to the approxi-
mate size and weight of a one year old, the
indicator
light lights up after the system self-test and
remains lit. This indicates that the front pas-
senger front air bag is disabled.
If neither the OFF> or the ON> indicator lights light up, or if either
indicator light only lights up intermittently
during the journey, the front passenger seat
may not be used for a child restraint. Use
another seating position for the child re-
straint. For further information see “Trouble-
shooting” later in this section.
●
The front passenger seat is occupied by a
properly restrained child who is larger than the
approximate size and weight of a one year old,
either the or
indicator
light lights up and remains lit after the system
self-test depending on the result of the clas-
sification. The result of the classification is
dependent on, among other factors, the child
restraint system and the child’s build.
Move the front passenger seat as far back as
possible. See “Child restraints” earlier in this
section. ●
The front passenger seat is occupied by a
person with a smaller build (e.g. a teenager
or small adult) , either the AIR BAG ON> or OFF> indicator light lights up and remains lit
after the system self-test depending on the
result of the classification.
– If the in- dicator light lights up, move the front pas-
senger seat as far back as possible. Al-
ternatively, a person with a small build can
sit on a rear seat.
– If the indicator light is lit, a person with a smaller
build should not use the front passenger
seat.
● The front passenger seat is occupied by an
adult or a person with a build corresponding
to that of an adult, the BAG ON> indicator light lights up after the
system self-test and remains lit. This indi-
cates that the front passenger front air bag is
enabled.

If the automatic front passenger front air bag deac-
tivation system is malfunctioning, the
red
restraint system warning light in the
combination meter and the BAG OFF> indicator light light up simultaneously.
The front passenger front air bag is disabled in this
case and does not deploy during an accident. Have
the system checked as soon as possible by quali-
fied technicians. It is recommended that you visit an
INFINITI retailer for this service.
Troubleshooting
Problem Possible causes/consequences and solutions
The
indicator lamp lights up and remains
lit, even though the front passenger
seat is occupied by an adult or a per-
son with a build corresponding to that
of an adult. ●
Make sure the conditions for a correct classification of the person on the front passenger seat are met (see “Front passenger air bag” earlier
in this section) .
● If the indicator light remains lit, the front passenger seat may not be used.
● Have the automatic front passenger front air bag deactivation system checked as soon as possible. It is recommended that you visit an
INFINITI retailer for this service.
The
indicator lamp does not light up
and/or does not stay on. ●
Make sure there is nothing between the seat and the child restraint system.
● Make sure that the entire base of the child restraint system rests on the seat cushion of the front passenger seat.
● When installing the child restraint system, make sure that the seat belt is tight. Do not pull the seat belt tight with the front passenger seat
adjustment. This could result in the seat belt and the child restraint system being pulled too tightly.
● Check that the child restraint system is installed correctly.
● Make sure that no objects are applying additional weight to the seat.
● Have the automatic front passenger front air bag deactivation system checked as soon as possible. It is recommended that you visit an
INFINITI retailer for this service.
