Page 3 of 556

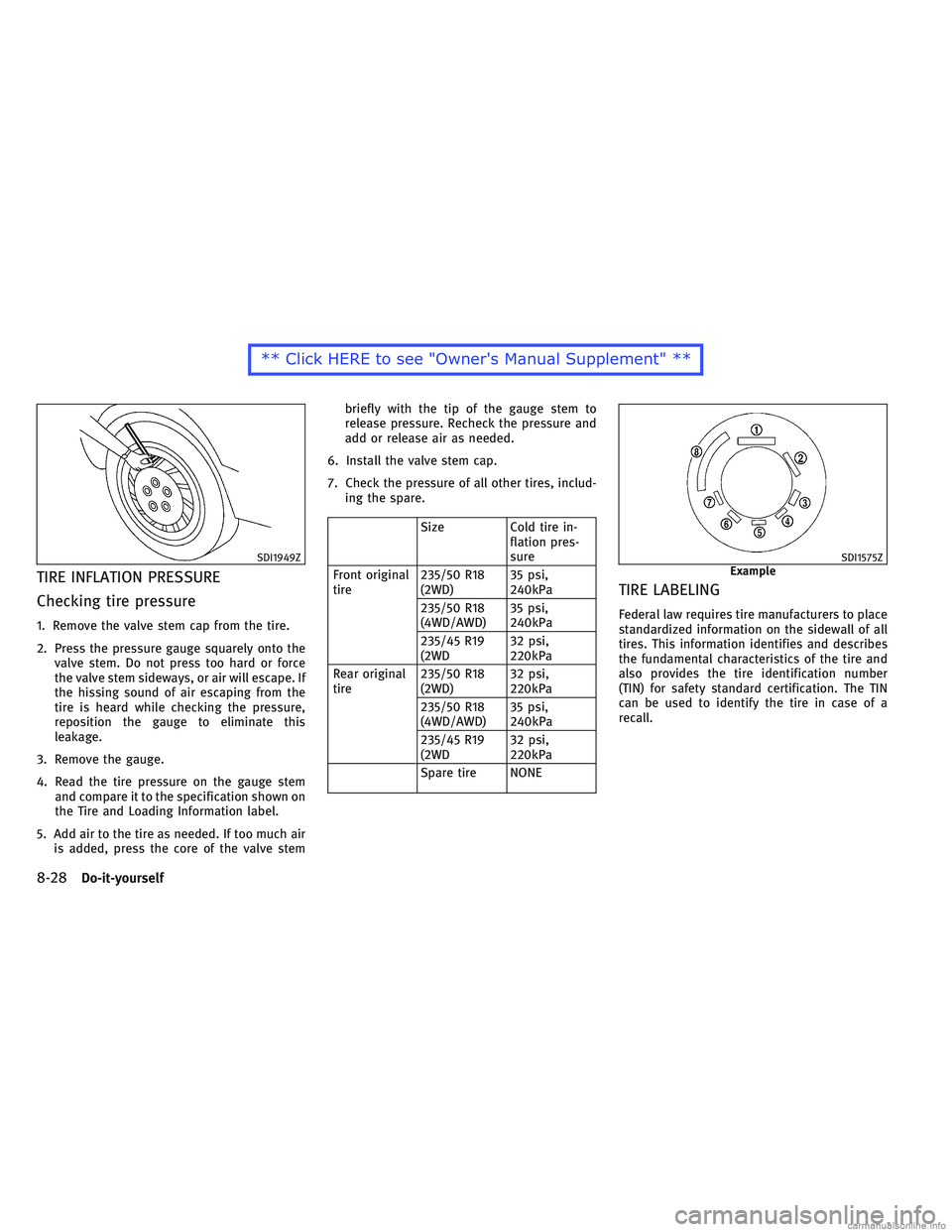

CHECKING TIRE PRESSURE
1. Remove the valve stem cap from the tire.
2. Press the pressure gauge squarely onto thevalve stem. Do not press too hard or force
the valve stem sideways, or air will escape. If
the hissing sound of air escaping from the
tire is heard while checking the pressure,
reposition the gauge to eliminate this leak-
age.
3. Remove the gauge. 4. Read the tire pressure on the gauge stem
and compare it to the specification shown
on the Tire and Loading Information label.
5. Add air to the tire as needed. If too much air is added, press the core of the valve stem
briefly with the tip of the gauge stem to
release pressure. Recheck the pressure and
add or release air as needed.
6. Install the valve stem cap.
7. Check the pressure of all other tires, includ- ing the spare.
Tire Size Cold Tire Inflation Pressure
Front Rear
235/
50R18 (2WD)
35psi
(240kPa) 35psi
(240kPa)
(4WD/
AWD) 35psi
(240kPa) 29psi
(200kPa)
235/45R19 32psi
(220kPa) 32psi
(220kPa)
Spare Tire NONELDI0393
Page 135 of 556
MessagePossible causes/consequences and solutions
[Only Shift to ’P’ when
Vehicle is Stationary] The vehicle is moving.
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions.
2. Shift the shift lever to position P.
[Reversing Not Possible Ser-
vice Required] The automatic transmission is malfunctioning. You cannot drive in reverse.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Transmission Malfunction] The automatic transmission is malfunctioning. Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Transmission Malfunction
Stop] The automatic transmission is malfunctioning.
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions, and switch off the engine.
2. Secure the vehicle against rolling away
3. It is recommended you consult an INFINITI retailer.
[Stop vehicle Shift to P Leave
Engine Running] The automatic transmission has overheated.
Drive on carefully. If the display message disappears, the automatic transmission is available again.
If the display message continues to be displayed:
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions, and switch off the engine.
2. Secure the vehicle against rolling away
3. Wait until the automatic transmission has cooled down and the display message goes out.
[Auxiliary Battery Malfunc-
tion] The auxiliary battery for the automatic transmission is no longer being charged.
1. It is recommended you visit an INFINITI retailer at the next opportunity.
2. Until then, press the P (Park) button before you switch off the engine.
3. Before leaving the vehicle, apply the electric parking brake.
[Trans. Oil Overheated Drive
On With Care] Manual drive program M and the temporarily active manual drive program are no longer available. Engine power output is reduced
Allow the vehicle to cool down.
[4WD System Currently Un-
available] The 4WD system has overheated. The vehicle is only driven by the front wheels.
Drive on, the airflow cools the 4WD system more quickly.
When the display message goes out, the 4WD system is available again and the vehicle is driven by all four wheels.
[4WD system Inoperative] The 4WD system is malfunctioning. The vehicle is only driven by the front wheels. Have the system checked. It is recommended you visit an INFINITI retailer for this service.
2-54Instruments and controls
Page 333 of 556
Intelligent Cruise Control (ICC) system (Full speed range)
(if equipped).........................5-47
ICC system operation ..................5-48
ICC switch (cruise control lever) ...........5-49
ICC system display and indicators ..........5-49
Operating ICC ...................... .5-50
ICC Limitations ..................... .5-54
Tips for driving with the ICC system .........5-56
System temporarily unavailable ............5-59
System maintenance ..................5-60
Forward emergency braking (FEB) system (if
equipped) .......................... .5-60
FEB system operation ..................5-61
Turning the FEB system on/off ............5-64
FEB system limitations .................5-65
System temporarily unavailable ............5-65
System maintenance ..................5-66
FCC Notice ....................... .5-67
Active sound enhancement ................5-67
Active sound enhancement ..............5-68
Intelligent Parking Assist (IPA) (if equipped) ......5-68
Important safety notes .................5-68
Detecting parking spaces ...............5-69
Parking ..........................5-70
Exiting a parking space .................5-71
Canceling IPA ...................... .5-73Parking sensor system (if equipped)
...........5-73
Parking sensor overview ................5-75
Range of the sensors ..................5-79
Parking sensor system OFF switch ..........5-79
Parking sensor function settings ...........5-80
Problems with parking sensor system ........5-81
Break-in schedule ..................... .5-81
Fuel efficient driving tips ..................5-82
Increasing fuel economy ..................5-83
Four-Wheel Drive (4WD) (if equipped) ..........5-83
Parking ........................... .5-84
Switching off
the engine ................5-86
Extended parking ................... .5-86
Electric power steering system ..............5-86
Brake system .........................5-87
Brake precautions ................... .5-87
Anti-lock Braking System (ABS) ............5-88
Vehicle Dynamic Control (VDC) system .........5-90
Traction Control System (TCS) .............5-91
Characteristics of VDC ..................5-91
EBD (electronic brake force distribution) ......5-92
Steer Control ...................... .5-92
Hill Start Assist (HSA) ................... .5-93
Page 414 of 556
6.Avoid Idling
•Shutting off your engine when safe for
stops exceeding 30 seconds saves fuel
and reduces emissions.
7. Buy an Automated Pass for Toll Roads
•Automated passes permit drivers to use
special lanes to maintain cruising speed
through the toll and avoid stopping and
starting.
8. Winter Warm Up
•Limit idling time to minimize impact to
fuel economy.
•Vehicles typically need no more than 30
seconds of idling at start-up to effectively
circulate the engine oil before driving.
•Your vehicle will reach its ideal operating
temperature more quickly while driving
versus idling.
9. Keeping your Vehicle Cool
•Park your vehicle in a covered parking
area or in the shade whenever possible.
•When entering a hot vehicle, opening the
windows will help to reduce the inside
temperature faster, resulting in reduced
demand on your A/C system.
•Keep your engine tuned up.
•Follow the recommended scheduled mainte-
nance.
•Keep the tires inflated to the correct pres-
sure. Low tire pressure increases tire wear
and lowers fuel economy.
•Keep all the wheels in correct alignment.
Improper alignment increases tire wear and
lowers fuel economy.
•Use the recommended viscosity engine oil.
For additional information, see Recom-
mended fluids/lubricants and capacities in
the 10. Technical information section
WARNING
•Do not drive beyond the performance capa-
bility of the tires, even with 4WD engaged.
Accelerating quickly, sharp steering ma-
neuvers or sudden braking may cause loss
of control.
•Always use tires of the same type, size,
brand, construction (bias, bias-belted or ra-
dial), and tread pattern on all four wheels.
•This vehicle is not designed for off-road
(rough road) use. Do not drive on sandy or
muddy roads that tires may get stuck in.
•For 4WD equipped vehicles, do not attempt
to raise two wheels off the ground and shift
the transmission to any drive or reverse po-
sition with the engine running. Doing so
may result in drivetrain damage or unex-
pected vehicle movement which could re-
sult in serious vehicle damage or personal
injury.
•Do not attempt to test a 4WD equipped ve-
hicle on a 2-wheel dynamometer (such as
the dynamometers used by some states for
emissions testing) or similar equipment
even if the other two wheels are raised off
the ground. Make sure that you inform the
test facility personnel that your vehicle is
INCREASING FUEL ECONOMY FOUR-WHEEL DRIVE (4WD) (IF EQUIPPED)
Starting and driving5-83
Page 415 of 556
equipped with 4WD before it is placed on a
dynamometer. Using the wrong test equip-
ment may result in drivetrain damage or un-
expected vehicle movement which could re-
sult in serious vehicle damage or personal
injury.
•When a wheel is off the ground due to an
uneven surface, do not spin the wheel
excessively.
CAUTION
Never tow the vehicle with one axle raised. This
may damage the differential. Damage of this
sort is not covered by the warranty. All wheels
must be fully raised (seeFour-Wheel Drive
(4WD) models in the6. In case of emergency
section)
4WD, together with VDC, improves the traction
of your vehicle whenever a drive wheel spins
due to insufficient grip.
If you fail to adapt your driving style, 4WD can
neither reduce the risk of an accident nor
override the laws of physics. 4WD cannot take
account of road, weather, and traffic conditions.
4WD is only an aid. You are responsible for the
distance to the vehicle in front, for vehicle speed, for braking in good time, and for staying
in lane.
If a drive wheel spins due to insufficient grip
•When pulling away, only depress the accel-
erator pedal as far as is necessary.
•Accelerate less when driving.
NOTE
In wintry driving conditions, the maximum effec-
tiveness of 4WD can only be achieved if you use
winter tires (M+S tires), with snow chains if nec-
essary.
WARNING
•Do not stop or park the vehicle over flam-
mable materials such as dry grass, waste
paper or rags. They may ignite and cause a
fire.
•Safe parking procedures require that both
the parking brake be applied and the P
(Park) position engaged. Failure to do so
could cause the vehicle to move unexpect-
edly or roll away and result in an accident.
•When parking the vehicle, make sure the P
(Park) position is engaged. The shift lever
cannot be moved out of the P (Park) position
without depressing the brake pedal.
•Never leave the engine running while the
vehicle is unattended.
•To help avoid risk of injury or death through
unintended operation of the vehicle and/or
its systems, do not leave children, people
who require the assistance of others, or
pets unattended in your vehicle. Addition-
ally, the temperature inside a closed vehicle
on a warm day can quickly become high
enough to cause a significant risk of injury
or death to people and pets.
PARKING
5-84Starting and driving
Page 440 of 556
Two-Wheel Drive (FWD) models
CAUTION
NEVER tow automatic transmission (DCT) mod-
els with the front wheels on the ground or with
all four wheels on the ground (forwards or
backwards), as this may cause serious and ex-
pensive damage to the transmission. If it is
necessary to tow the vehicle with the rear
wheels raised, always use towing dollies un-
der the front wheels.
Four-Wheel Drive (4WD) models
INFINITI recommends that towing dollies be
used under the front or rear wheels when
towing your vehicle or the vehicle be placed on
a flatbed tow truck as illustrated.
CAUTION
Never tow 4WD models with any of the wheels
on the ground. Doing so will cause serious and
expensive damage to the drivetrain.
Vehicle recovery (freeing a stuck
vehicle)
WARNING
To avoid vehicle damage, serious personal in-
jury or death when recovering a stuck vehicle:
•Contact a professional towing service to re-
cover the vehicle if you have any questions
regarding the recovery procedure.
•Tow chains or cables must be attached only
to the vehicle recovery hooks or main struc-
tural members of the vehicle.
•Do not use the vehicle tie downs to tow or
free a stuck vehicle.
•Only use devices specifically designed for
vehicle recovery and follow the manufactur-
er’s instructions.
•Always pull the recovery device straight out
from the front of the vehicle. Never pull at an
angle.
•Route recovery devices so they do not touch
any part of the vehicle except the attach-
ment point.
If your vehicle is stuck in sand, snow, or mud,
and the vehicle is unable to free itself without
NCE4504WD models
In case of emergency6-15
Page 477 of 556
TIRE INFLATION PRESSURE
Checking tire pressure
1. Remove the valve stem cap from the tire.
2. Press the pressure gauge squarely onto thevalve stem. Do not press too hard or force
the valve stem sideways, or air will escape. If
the hissing sound of air escaping from the
tire is heard while checking the pressure,
reposition the gauge to eliminate this
leakage.
3. Remove the gauge.
4. Read the tire pressure on the gauge stem and compare it to the specification shown on
the Tire and Loading Information label.
5. Add air to the tire as needed. If too much air is added, press the core of the valve stem briefly with the tip of the gauge stem to
release pressure. Recheck the pressure and
add or release air as needed.
6. Install the valve stem cap.
7. Check the pressure of all other tires, includ- ing the spare.
Size Cold tire in- flation pres-
sure
Front original
tire 235/50 R18
(2WD) 35 psi,
240kPa
235/50 R18
(4WD/AWD) 35 psi,
240kPa
235/45 R19
(2WD 32 psi,
220kPa
Rear original
tire 235/50 R18
(2WD) 32 psi,
220kPa
235/50 R18
(4WD/AWD) 35 psi,
240kPa
235/45 R19
(2WD 32 psi,
220kPa
Spare tire NONE
TIRE LABELING
Federal law requires tire manufacturers to place
standardized information on the sidewall of all
tires. This information identifies and describes
the fundamental characteristics of the tire and
also provides the tire identification number
(TIN) for safety standard certification. The TIN
can be used to identify the tire in case of a
recall.
SDI1949ZSDI1575ZExample
8-28Do-it-yourself
** Click HERE to see "Owner's Manual Supplement" **
Page 480 of 556
For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires. Skid and traction capa-
bilities of studded snow tires on wet or dry
surfaces may be poorer than that of non-
studded snow tires.
Four-Wheel Drive (4WD) models
If excessive tire wear is found, it is recom-
mended that all four tires be replaced with tires
of the same size, brand, construction and tread
pattern. The tire pressure and wheel alignment
should also be checked and corrected as nec-
essary. It is recommended that you visit an
INFINITI retailer.
TIRE CHAINS
CAUTION
Tire chains/cables should not be installed on
235/45 R19 or 235/50 R18 size tires. Installa-
tion of the tire chains/cables on 235/45 R19 or
235/50 R18 size tires will cause damage to the
vehicle. If you plan to use tire chains/cables,
you should install 215/60 R17 size tires on your
vehicle.Use of tire chains may be prohibited according
to location. Check the local laws before install-
ing tire chains. When installing tire chains,
make sure that they are of proper size for the
tires on your vehicle and are installed according
to the chain manufacturer’s instructions.
Use chain tensioners when recommended by
the tire chain manufacturer to ensure a tight fit.
Loose end links of the tire chains must be
secured or removed to prevent the possibility of
whipping action damage to the fenders or un-
derbody. If possible, avoid fully loading your
vehicle when using tire chains. In addition,
drive at a reduced speed. Otherwise, your ve-
hicle may be damaged and/or vehicle handling
and performance may be adversely affected.
Tire chains must be installed only on the front
wheels and not on the rear wheels.
Never install tire chains on a T-type spare tire
(TEMPORARY USE ONLY).
Do not drive with tire chains on paved roads
which are clear of snow. Driving with chains in
such conditions can cause damage to the vari-
ous mechanisms of the vehicle due to some
overstress.
1: Wear indicator
2: Location mark
TIRE WEAR AND DAMAGE
WARNING
•Tires should be periodically inspected for
wear, cracking, bulging or objects caught in
the tread. If excessive wear, cracks, bulging
or deep cuts are found, the tire should be
replaced immediately.
•The original tires have a built-in tread wear
indicator. When the wear indicator is vis-
ible, the tire should be replaced.
•Tires degrade with age and use. Have tires,
including the spare, over 6 years old
checked by a qualified technician because
SDI1663Z
Do-it-yourself8-31
Page 489 of 556
For recommended fuel, lubricants, fluids,
grease, and refrigerant, refer toRecommended
fluids/lubricants and capacities in the
10. Technical information section.
EMISSION CONTROL SYSTEM
MAINTENANCE
Drive belts*:
Check engine drive belts for wear, fraying or
cracking and for proper tension. Replace any
damaged drive belts
Engine air filter*:
Replace at specified intervals. When driving for
prolonged periods in dusty conditions, check/
replace the filter more frequently.
Engine coolant*:
Replace coolant at the specified interval. When
adding or replacing coolant, be sure to use only
Genuine INFINITI Engine Coolant or equivalent
in its quality (BASF Glysantin® G40®). (For
additional information, refer to Engine cooling
system in the9. Maintenance and Schedules
section.) NOTE
Mixing any other type of coolant or the use of
non-distilled water may reduce the recom-
mended service interval of the coolant.
Engine oil and oil filter:
Replace engine oil and oil filter at the specified
intervals. For recommended oil grade and vis-
cosity refer to
Recommended fluids/lubricants
and capacities in the10. Technical informa-
tion section.
Fuel filter:
Replace the fuel filter and drain the water at the
specified intervals.
Fuel lines*:
Check the fuel hoses, piping and connections
for leaks, looseness, or deterioration. Tighten
connections or replace parts as necessary.
Spark plugs:
Replace at specified intervals. Install new plugs
of the type as originally equipped.
CHASSIS AND BODY MAINTENANCE
Brake lines and cables:
Visually inspect for proper installation. Check
for chafing, cracks, deterioration, and signs of
leaking. Replace any deteriorated or damaged
parts immediately.
Brake pads, rotors, drums, & linings:
Check for wear, deterioration and fluid leaks.
Replace any deteriorated or damaged parts
immediately.
Exhaust system:
Visually inspect the exhaust pipes, muffler and
hangers for leaks, cracks, deterioration, and
damage. Tighten connections or replace parts
as necessary.
In-cabin microfilter:
Replace at specified intervals. When driving for
prolonged periods in dusty conditions, replace
the filter more frequently.
Propeller shaft(s):
Check for damage, looseness, and grease leak-
age. (4WD/AWD).
9-6Maintenance and Schedules
Page 490 of 556
Steering gear and linkage, axle and suspension
parts, drive shaft boots:
Check for damage, looseness, and leakage of
oil or grease. Under severe driving conditions,
inspect more frequently
Tire rotation:
Tires should be rotated every 6,000 miles
(10,000 km) for 2WD, every 3000 miles (5000
km) for 4WD/AWD according to the instructions
underTire rotation* earlier in this section“Ge-
neral maintenance” in this section. When rotat-
ing tires, check for damage and uneven wear.
Replace if necessary.
Transmission fluid/oil, differential oil, transfer
case oil:
Visually inspect for signs of leakage at specified
intervals. To ensure smooth, trouble-free, safe and eco-
nomical driving, INFINITI provides two mainte-
nance schedules that may be used, depending
upon the conditions in which you usually drive.
These schedules contain both distance and
time intervals, up to 120,000 miles (192,000
km)/144 months. For most people, the odom-
eter reading will indicate when service is
needed. However, if you drive very little, your
vehicle should be serviced at the regular time
intervals shown in the schedule.
After 120,000 miles (192,000 km)/144 months,
continue maintenance at the same mileage/time
intervals.
ADDITIONAL MAINTENANCE ITEMS
FOR SEVERE OPERATING SYSTEMS
Additional maintenance items for severe oper-
ating conditions; should be performed on ve-
hicles that are driven under especially demand-
ing conditions. Additional maintenance items
should be performed if you primarily operate
your vehicle under the following conditions:
•Repeated short trips of less than 5 miles in
normal temperatures or less than 10 miles in
freezing temperatures.
•Stop-and-go traffic in hot weather or low
speed driving for long distances.
•Driving in dusty conditions or on rough,
muddy or salt-spread roads.
•Towing a trailer, or using a camper or car-top
carrier.
OIL CHANGE MONITOR
This vehicle is equipped with oil change moni-
tor. It calculates engine oil and filter change
interval base on driving conditions. Driving in
severe conditions will shorten the engine oil
and filter change interval. When the Engine Oil
– Service Due Now warning appears in the
vehicle information display, the engine oil and
filter need to be replaced.
NOTE
For vehicles operated in Canada, both standard
and severe maintenance items should be per-
formed at every interval.
MAINTENANCE SERVICE MESSAGES
The maintenance service interval display in-
forms you of the next service due date.
NOTE
The maintenance service interval display does
not show any information on the engine oil level.
MAINTENANCE SCHEDULES
Maintenance and Schedules9-7
