Voice command examples
As examples, some additional basic operations
that can be performed by voice commands are
described here.
Example 1- Placing call from handsfree phone-
book
:
1. Push<>located on the steering wheel.
2. Wait for the indicator to change to
and
speak “Phone”.
You can also speak “Phone” and then “Call
” successively.
3. Speak “Call ”.
When options (Home, Work, etc.) are regis-
tered to a name in the contact list of a
cellular phone, the option can be com-
manded directly.
Example, “Call Steve Brown Work” or “Call
Steve Brown Other”4. The system prompts you to speak or select
an item number from the displayed list. To
select a displayed matching item speak a
number from between 1 and 6.
If the selected number has more than one
phone number registered to it, the phone
number list screen is displayed.
Example 2 - Playing radio
:
1. Push<>located on the steering wheel.
2. Wait for the indicator to change to
and
speak “Audio”.
3. Speak “Play FM” to turn on the FM radio.5GE0022XZExample
Display screen, heater and air conditioner, and audio system4-109

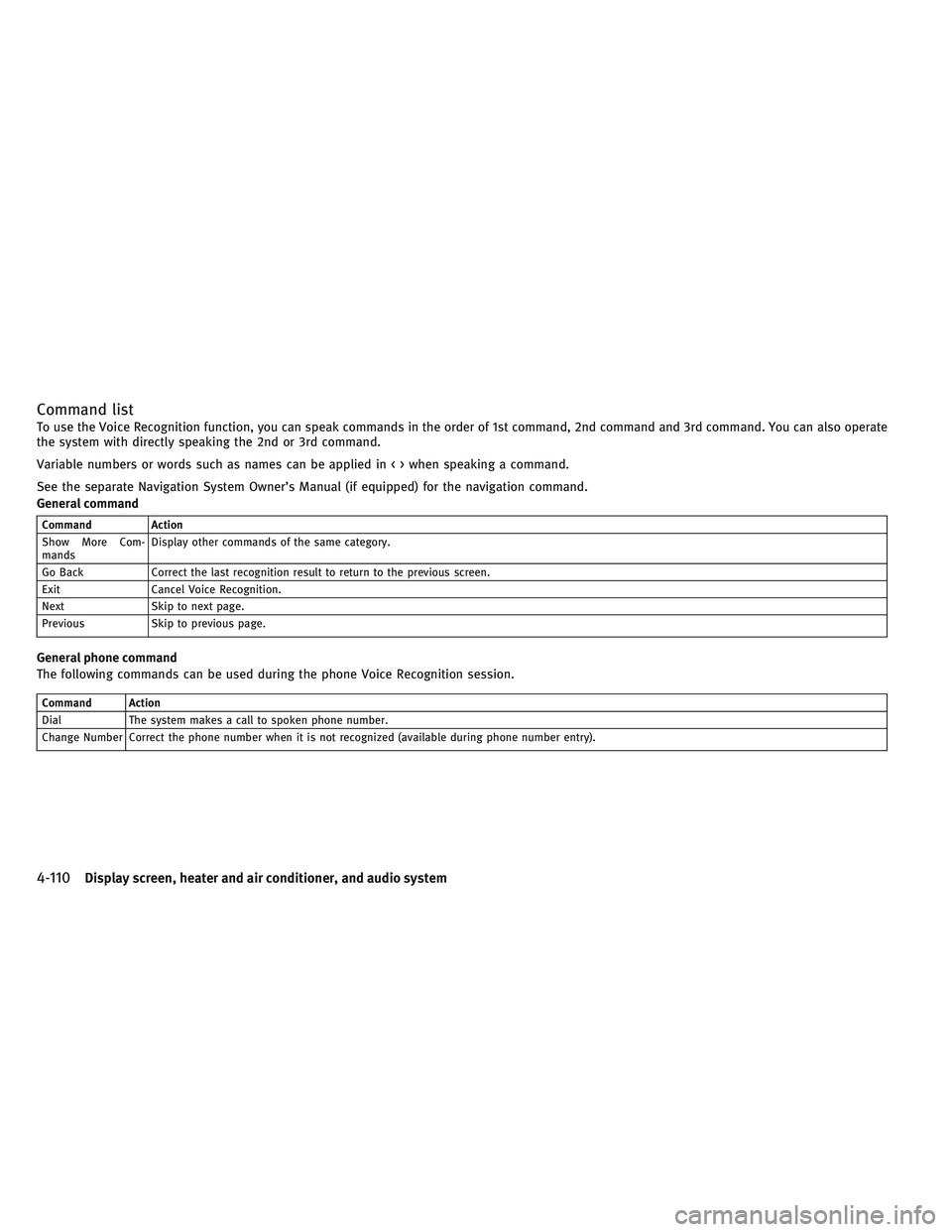

Command list
To use the Voice Recognition function, you can speak commands in the order of 1st command, 2nd command and 3rd command. You can also operate
the system with directly speaking the 2nd or 3rd command.
Variable numbers or words such as names can be applied in < > when speaking a command.
See the separate Navigation System Owner’s Manual (if equipped) for the navigation command.
General command
Command Action
Show More Com-
mandsDisplay other commands of the same category.
Go Back Correct the last recognition result to return to the previous screen.
Exit Cancel Voice Recognition.
Next Skip to next page.
Previous Skip to previous page.
General phone command
The following commands can be used during the phone Voice Recognition session.
Command Action
Dial The system makes a call to spoken phone number.
Change Number Correct the phone number when it is not recognized (available during phone number entry).
4-110Display screen, heater and air conditioner, and audio system

Phone command
1st command 2nd command 3rd command 4th command Action
Phone Call <1 - 6> Make a call to a contact that is stored on the cellular phone.
Select from the list of displayed on the right side screen.
Call Make a call to a contact that is stored on the cellular phone.
Make a call to a contact that is stored on the cellular phone. You can select type from
, , or .
Dial <#> Dial Make a call to a spoken phone number.
Change Number Change the number to call.
Dial Make a call to a spoken phone number.
Speak “3 columns or 4 columns (1–****)”
Make a call to a spoken phone number.
Speak “7 columns or 10 columns or 11 columns or 3 columns” (“911” or “411” or “611”).
Recent Calls <1 - 6> Make a call to the recent incoming, outgoing or missed call number.
Read Text <1 - 6> Play Listen to recent text messages received.
Reply Reply to received message.
Call Call the sender of the message.
Send Text Select a text message from the list and send it a contact name. You can select type
from , , or .

Phonebook Make a call to a contact that is stored on the cellular phone. You can select type from
“Work”, “Mobile”, “Home” or “Other”.
Select “Reply” to reply by message. Select “Call” to call the sender.
Display screen, heater and air conditioner, and audio system4-111

Phone command
1st command 2nd command 3rd command 4th command Action
Phone Favorites
<1-6>Access frequently called contacts by storing into them in the favorite list.


Redial Make a call to the last outgoing phone number.
International Call Makes an international call by allowing more than 11 digits to be spoken.
You may need to include the international call prefixes and country codes.
Add Phone Use this command to connect a compatible Bluetooth® device to the system. Follow
the on screen instructions to complete the pairing process from your handset.
Call Work <1 - 6> To call someone’s work place, say the person’s name stored in the phonebook on your
cellular phone between “Call” and “Work”.
Call Cellular <1 - 6> To call someone’s cellular phone, say the person’s name stored in the phonebook on
your cellular phone between “Call” and “Mobile”.
Call Home <1 - 6> To call someone’s home, say the person’s name stored in the phonebook on your
cellular phone between “Call” and “Home”.
Call Other <1 - 6> To call someone at a place categorized as “Other”, say the person’s name stored in the
phonebook on your cellular phone between “Call” and “Other”.
NOTE
The system can read out SMS text messages in
voice. However, it cannot always read the text
correctly.
4-112Display screen, heater and air conditioner, and audio system

Audio command
1st command 2nd command 3rd command Action
Audio AM Switches to the AM band, selecting the station last played.
FM Switches to the FM band, selecting the station last played.
FM ,87.9–107.9. Switches to the FM band, selecting the station of the preferred frequency.
SXM ,channel #> Switches to the SiriusXM Satellite Radio band, selecting the preferred channel.
SXM Switches to the SiriusXM Satellite Radio band, selecting the channel last played.
USB Play Artist
<1 - 6> Turns on the USB mode, selecting the artist.
iPod Play Artist
<1 - 6> Turns on the iPod mode, selecting the artist.
USB Play Artist Turns on the USB mode, selecting the artist.
iPod Play Artist Turns on the iPod mode, selecting the artist.
USB Turns on the USB mode, selecting the last played mode.
iPod Turns on the iPod mode, selecting the last played mode.
USB Play Album
<1 - 6> Turns on the USB mode selecting the album.
iPod Play Album
<1 - 6> Turns on the iPod mode selecting the album.
USB Play Album Turns on the USB mode, selecting the album.
iPod Play Album Turns on the iPod mode, selecting the album.
AM <530–1710> Switches to the AM band, selecting the preferred station
FM <87.7–107.9> HD <#> Switches to the FM HD band, selecting the preferred station
CD Track <#> Turns on the CD, selecting the track number.
Display screen, heater and air conditioner, and audio system4-113

1st command 2nd command 3rd command Action
Audio USB Play Song

iPod Play Song
Switches to the USB or iPod, selecting the track. You can speak the commands successively.
USB Play Song
iPod Play SongSwitches to the USB or iPod, selecting the track. You can speak the commands successively.
Play Plays the spoken audio source.
Play AM Switches to the AM band, selecting the station last played.
FM Switches to the FM band, selecting the station last played.
SXM SiriusXM Satellite Radio band, selecting the channel last played
USB Turns on the USB, selecting the last played mode.
iPod Turns on the iPod, selecting the last played mode.
CD Turns on the CD, selecting the last played mode.
Bluetooth Audio Turns on the Bluetooth Audio, selecting the last played mode.
iPod Playlist
<1 — 6> Turns on the iPod, playing the spoken playlist.
iPod Play Playlist Turns on the iPod, playing the spoken playlist.
USB All Artists Displays the USB all artists list.
USB All Albums Displays the USB all albums list.
USB All Folders Displays the USB all folders list.
iPod All Artists Displays the iPod all artists list.
iPod All Albums Displays the iPod all albums list.
iPod All Songs Displays the iPod all songs list.
4-114Display screen, heater and air conditioner, and audio system

Notes on operating audio by voice recognition:
•An audio device connected via Bluetooth®
cannot be operated with the Voice Recogni-
tion system. Source change is only available
for Bluetooth® streaming Audio.
•Song title and Artist name information will
be overwritten when another iPod
R/iPhone
Ris connected after song titles and artist
names in the previously connected iPod
R/
iPhon
Re have been installed.
•If two USB devices are connected at the same
time, voice operation will only be available for
use with one registered and selected device.When selecting “YES” in the pop-up screen that
displays after a new USB audio device is con-
nected, the USB audio device is registered in
the voice recognition system and is selected
automatically. One iPod and one USB device
can be registered in the system. If a USB audio
device is newly registered, old data is overwrit-
ten. It may take a few moments to register an
audio device. If you want to enable voice opera-
tion for music stored on a previously registered
audio device, select the device you want to use
in advance.
Voice recognition settingsin the5. Starting
and drivingsection
Even when a device has been previously
registered, simply connecting the device will
not result in it being selected automatically.
•The Voice Recognition system may not func-
tion when the song information is too long
(artist names, album titles, song titles and
playlists, etc.).
•The SXM function will not operate without a
subscription to SiriusXM Satellite Radio.
Information command
1st command 2nd command Action
Information Voice Menu Connects to the INFINITI InTouchTMServices Response Specialists. Refer to the Navigation Owner’s Manual for details.
Operator Connects to the INFINITI InTouchTMServices Response Specialists. Refer to the Navigation Owner’s Manual for details.
Where am I?* Displays the information of the current position.
Fuel Prices Displays the fuel prices.
Weather Forecast Displays the weather forecast.
Current Weather Displays the nearby weather (current weather).
Sports Scores Displays the sports scores.
Traffic Information* Turns the traffic information system on or off.
Route Information* Displays the route information.
*: Models with navigation system only.
Display screen, heater and air conditioner, and audio system4-115

NOTE
The Fuel Prices, Weather Forecast, Current
Weather, Sports Scores and Traffic Information
will not operate without a subscription to
SiriusXM Radio.
VOICE RECOGNITION SETTINGS
Voice recognition functions can be set.
1. Push

The information screen sets or displays various information that is helpful for using the vehicle. Available items include vehicle information, traffic
information, current location information and navigation software version (if equipped).
1. Push

SIRIUSXM TRAVEL LINKR
SiriusXM Travel Link Information is a subscrip-
tion service offered by SiriusXM Satellite Radio.
It is necessary to subscribe to use the SiriusXM
Travel Link information.
This service provides real-time information re-
garding current weather, fuel prices, sports
scores, stock tickers and movie times where
available. The SiriusXM Travel Link is broadcast
to the vehicle by SiriusXM Satellite Radio.
The service enables you to view detailed infor-
mation and forecasts of an area of interest.
WARNING
SiriusXM Travel Link information is not a sub-
stitute for attentive driving. Weather condi-
tions change constantly and emergency situa-
tions can arise without warning. Relying only
on SiriusXM Travel Link information could re-
sult in serious personal injury.
Viewing SiriusXM Travel LinkR
SiriusXM Travel Link information is available in
limited markets. To subscribe to or check if this
service is available in the area, call 1–866–635–
2349 or access www.siriusxm.com/travellink.
NOTE
•If a contract is not completed for the
SiriusXM Travel Link information service, a
message appears.
•The weather information is available only for
areas that provide weather information to
SiriusXM Travel Link.To access the SiriusXM Information menu:
1. Push
