heater INFINITI QX30 2017 Owners Manual

Automotive Weather information
Menu item Action
[Automotive
Weather][Current Weather] Display default setting city current weather condition information. Touch [Selected City] to change the city.
[5–DAY Forecast] Display the five-day weather forecast information for the default setting city. Touch [Selected City] to change the city.
[Graphical Map]* Display a graphical map of the weather information on the display. Refer to the Navigation Owner’s Manual for details.
[Alert Map]* Show Alert Map information on the display. Refer to the Navigation Owner’s Manual for details.
[Alert List]* Display the list of weather alerts. Refer to the Navigation Owner’s Manual for details.
*: Models with navigation system only.
Fuel Prices information
Menu item Action
[Fuel Prices] Display fuel prices. Select Gas station from the fuel prices list to display detail information or call a
selected gas station from the list.
Touch [Select Fuel Type] to select fuel type information, touch [Prices] to display the fuel price list.
Sports Score information
Menu item Action
[Sports
Scores]Select from list Display current event state (scheduled game, during the game, match results)
Select from
listXM channels to display information Select to listen to the radio.
[Select
League][Add League] Add favorite sports genre for the list. When the number of registration is 10, it will be grayed out.
[Delete
League][Multi Select] Delete multiple selected sports scores.
[Delete All] Delete all sports scores.
Select from list Delete a selected sports score.
Select from list Display the detail of a score.
Display screen, heater and air conditioner, and audio system4-119

Stock Tickers information
Menu itemAction
[StockTicker]Display stock names, stock prices, fluctuation contents, vari-
able stock prices, and the receiving date/time.
[Add Stock] Add displaying stock
[Delete Stock] [Delete All] Delete all stocks.
[Multi Select] Delete multiple selected stock.
Select from list Delete a selected stock.
Movie Times information
Menu itemAction
[Movie Listings] [Select City] Select from list Select the city.
[Theater] [Movies] Select from list Display detailed movie information.
[Theater Info] Display theater information.
[GO]* Set a destination selected from the list of theaters.
[Near Destination]* Display the theater near the vehicle’s destination.
[Near Current Loc.]* Display the theater near the vehicle’s current location.
[Selected City] Change the city.
[Movie] Select from list Display information for the movie theater selected from the list.
[Details] Display movie title, rating and run time.
*: Models with navigation system only.
4-120Display screen, heater and air conditioner, and audio system

SXM Info Settings information
Menu item Action
[SXM Info Settings] [Weather Alert] Set weather alert on/off.
Default City Settings information
Menu item Action
[Default City] State list City list Set the current location. This setting is necessary to display weather information
and movie information.
[Change Country] Select country.
Display screen, heater and air conditioner, and audio system4-121

SETTINGS MENU
The Infiniti InTouch system can be customised to make it easier for you to use by adjusting various settings.
Push

Setting item Result
[Navigation]* Display the Navigation setting screen.
Refer to the Navigation Owner’s Manual for details.
[Audio]Display the Audio settings screen.
SeeAudio settingsearlier in this section
[Screen] Set the screen display to the preferred settings.
SeeScreen settingsearlier in this section
[Volume Adjustment] Set the volume for each item.
SeeVolume settingsearlier in this section
[Clock]Set the Clock to your preferred settings.
SeeClock settingsearlier in this section
[InTouch Services] Set INFINITI InTouch
TMServices.
Refer to the Navigation Owner’s Manual for details.
[Voice recognition] Set Minimize Voice Feedback to on/off and the audio setting for voice recognition use.
[Camera/Sonar] Set the camera and parking sensor (sonar) to the preferred settings.
SeeAround View Monitor settingearlier in this section
[Other] [Language] Set the language to the preferred settings.
SeeLanguage settingsearlier in this section
[Keyboard Type] Set the Keyboard Type to [QWERTY] or [ABC].
[Low on Fuel Alert] Set the fuel low notification to on/off.
[Software information] Display the software information.
* : Models with navigation system.
NOTE
•The displayed items vary depending on the
vehicle model and equipped options.
•The order of displayed items can be sorted.
Display screen, heater and air conditioner, and audio system4-123

CUSTOMER ASSISTANCE
For assistance or inquiries about Infiniti InTouch, or to order updated map data for the navigation system (if equipped), it is recommended you contact
an INFINITI retailer.
TROUBLESHOOTING GUIDE
4-124Display screen, heater and air conditioner, and audio system

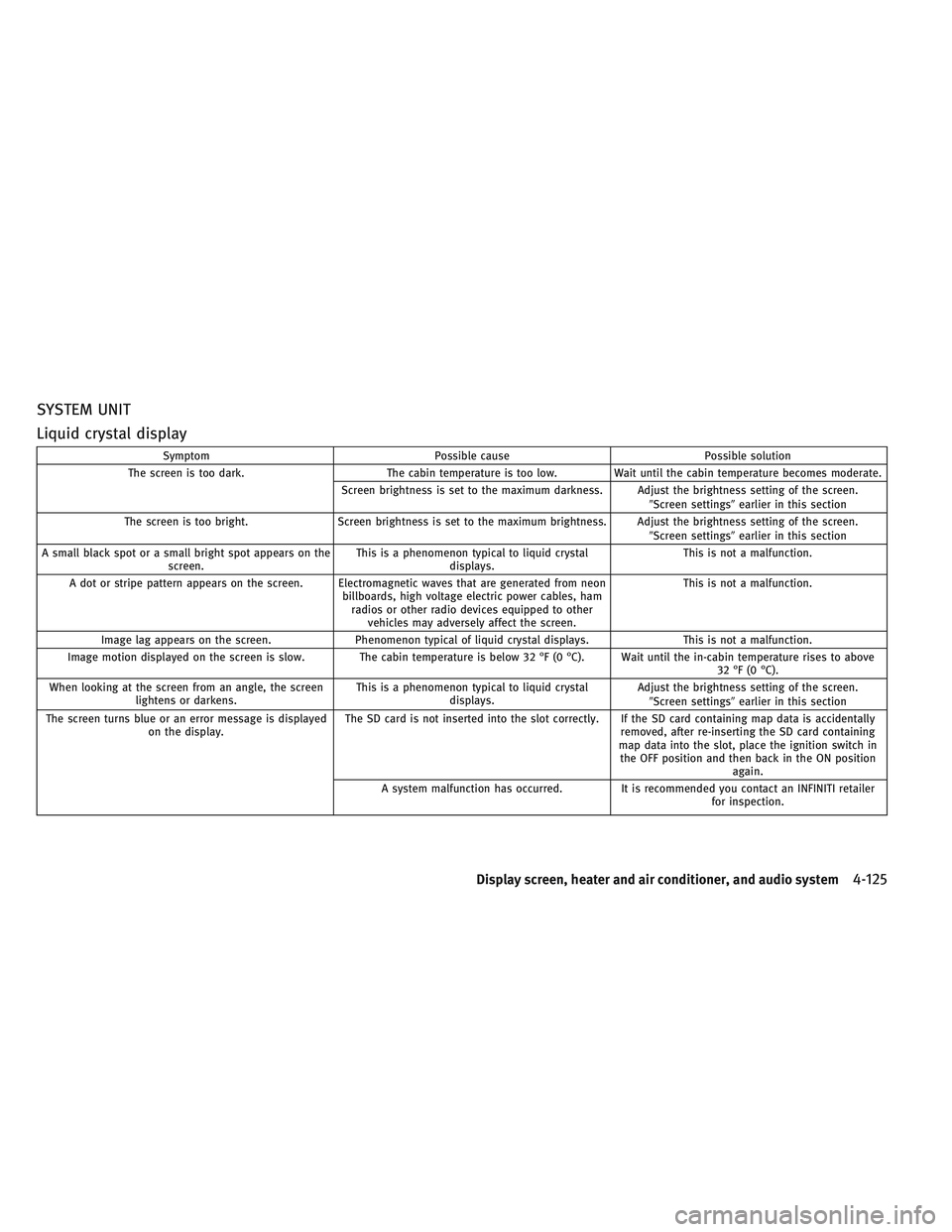

SYSTEM UNIT
Liquid crystal display
Symptom Possible cause Possible solution
The screen is too dark. The cabin temperature is too low. Wait until the cabin temperature becomes moderate.
Screen brightness is set to the maximum darkness. Adjust the brightness setting of the screen.
Screen settingsearlier in this section
The screen is too bright. Screen brightness is set to the maximum brightness. Adjust the brightness setting of the screen.
Screen settingsearlier in this section
A small black spot or a small bright spot appears on the
screen.This is a phenomenon typical to liquid crystal
displays.This is not a malfunction.
A dot or stripe pattern appears on the screen. Electromagnetic waves that are generated from neon
billboards, high voltage electric power cables, ham
radios or other radio devices equipped to other
vehicles may adversely affect the screen.This is not a malfunction.
Image lag appears on the screen. Phenomenon typical of liquid crystal displays. This is not a malfunction.
Image motion displayed on the screen is slow. The cabin temperature is below 32
oF(0oC). Wait until the in-cabin temperature rises to above
32oF(0oC).
When looking at the screen from an angle, the screen
lightens or darkens.This is a phenomenon typical to liquid crystal
displays.Adjust the brightness setting of the screen.
Screen settingsearlier in this section
The screen turns blue or an error message is displayed
on the display.The SD card is not inserted into the slot correctly. If the SD card containing map data is accidentally
removed, after re-inserting the SD card containing
map data into the slot, place the ignition switch in
the OFF position and then back in the ON position
again.
A system malfunction has occurred. It is recommended you contact an INFINITI retailer
for inspection.
Display screen, heater and air conditioner, and audio system4-125

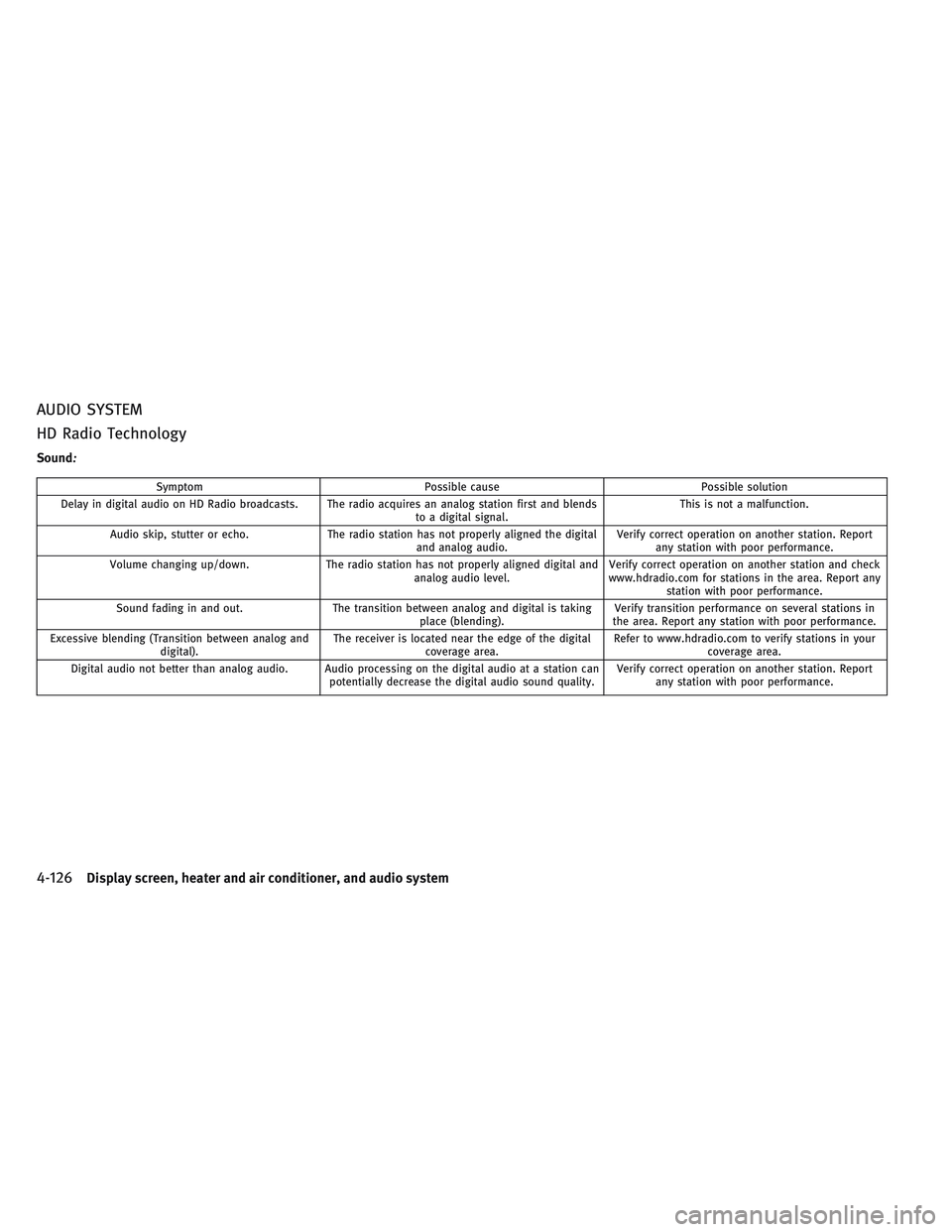

AUDIO SYSTEM
HD Radio Technology
Sound:
Symptom Possible cause Possible solution
Delay in digital audio on HD Radio broadcasts. The radio acquires an analog station first and blends
to a digital signal.This is not a malfunction.
Audio skip, stutter or echo. The radio station has not properly aligned the digital
and analog audio.Verify correct operation on another station. Report
any station with poor performance.
Volume changing up/down. The radio station has not properly aligned digital and
analog audio level.Verify correct operation on another station and check
www.hdradio.com for stations in the area. Report any
station with poor performance.
Sound fading in and out. The transition between analog and digital is taking
place (blending).Verify transition performance on several stations in
the area. Report any station with poor performance.
Excessive blending (Transition between analog and
digital).The receiver is located near the edge of the digital
coverage area.Refer to www.hdradio.com to verify stations in your
coverage area.
Digital audio not better than analog audio. Audio processing on the digital audio at a station can
potentially decrease the digital audio sound quality.Verify correct operation on another station. Report
any station with poor performance.
4-126Display screen, heater and air conditioner, and audio system

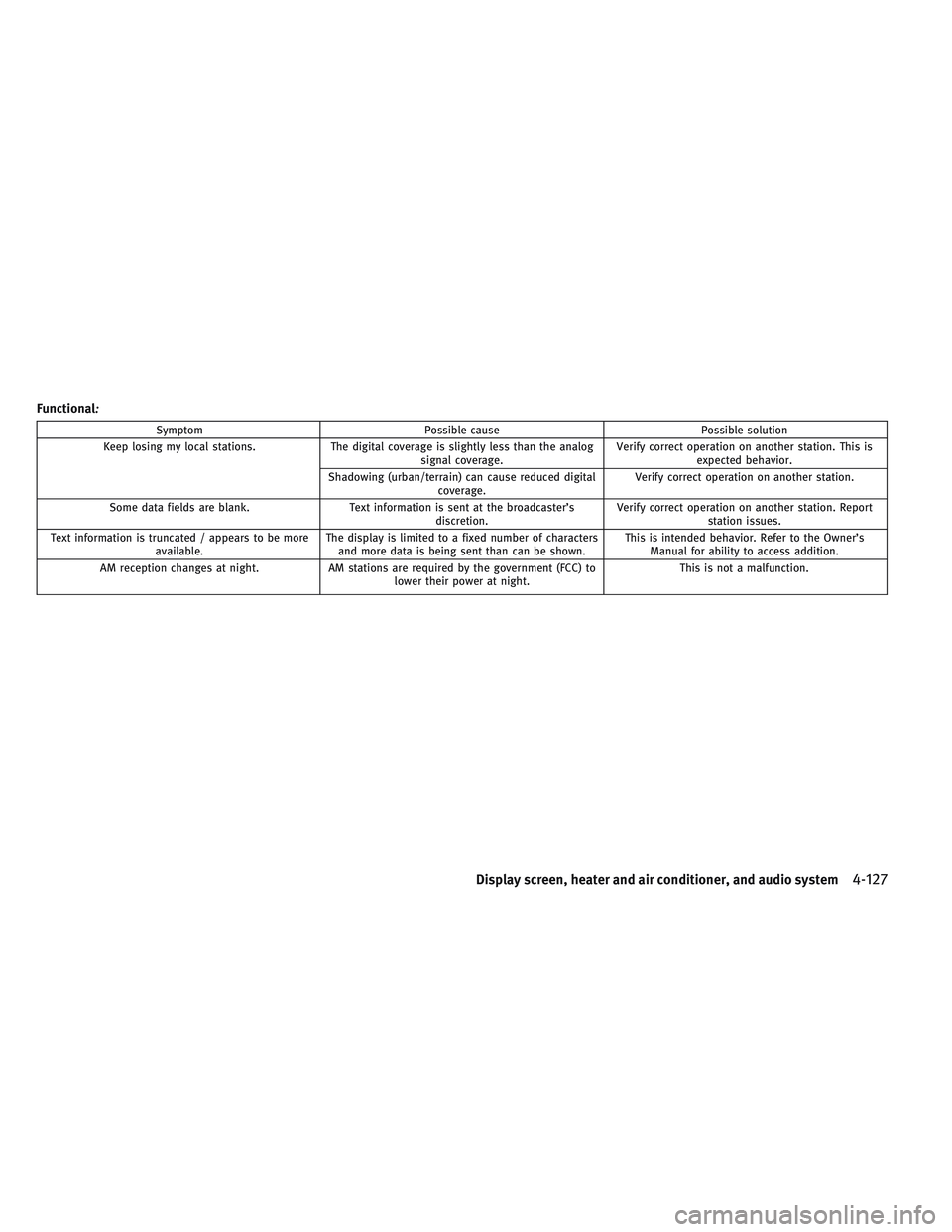

Functional:
Symptom Possible cause Possible solution
Keep losing my local stations. The digital coverage is slightly less than the analog
signal coverage.Verify correct operation on another station. This is
expected behavior.
Shadowing (urban/terrain) can cause reduced digital
coverage.Verify correct operation on another station.
Some data fields are blank. Text information is sent at the broadcaster’s
discretion.Verify correct operation on another station. Report
station issues.
Text information is truncated / appears to be more
available.The display is limited to a fixed number of characters
and more data is being sent than can be shown.This is intended behavior. Refer to the Owner’s
Manual for ability to access addition.
AM reception changes at night. AM stations are required by the government (FCC) to
lower their power at night.This is not a malfunction.
Display screen, heater and air conditioner, and audio system4-127

Compact Disc (CD) player
Symptom Possible cause Possible solution
Music cannot be played back. The disc is inserted upside down. Insert a CD with the label side facing up.
Moisture has accumulated inside the unit. Wait until the moisture evaporates.
(approximately 1 hour)
The cabin temperature is too high. Wait until the cabin temperature becomes moderate.
The disc is scratched or dirty. Wipe off any dirt from the disc.
Scratched discs cannot be recovered.
Replace the disc.
Depending on the condition in which they are stored,
discs may become unreadable due to deterioration
(for example, keeping the discs in the passenger
compartment, etc.).Replace the disc with a deterioration-free disc. Do not
use a deteriorated disc. The label surface of the disc
may crack or chip, and the layer of the label surface
may eventually peel off.
Compressed audio files cannot be played back. If both music CD files (CD-DA data) and compressed
audio files (MP3 data, etc.) are mixed on one disc, the
compressed audio files cannot be played back.Prepare a disc that contains compressed audio files
only.
The files are not named using characters that are
compliant with the specifications.Use the character codes and the number of
characters that are compliant with the specifications
for folder names and file names. In addition, always
use “.MP3”, “.WMA”, “.mp3” or “.wma” file
extensions.
It takes a long time before the music starts playing. The disc contains a large amount of data. Some time may be required to check the files. It is
recommended that unnecessary folders or any files
other than compressed audio files should not be
recorded on a disc.
The sound quality is poor. The disc is dirty. Wipe off any dirt from the disc.
4-128Display screen, heater and air conditioner, and audio system
