INFINITI QX30 2017 Owners Manual

MAINTENANCE SERVICE MESSAGES
The maintenance service interval display in-
forms you of the next service due date.
NOTE
The maintenance service interval display does
not show any information on the engine oil level.
The vehicle information display shows a service
message for a few seconds, e g:
•[Service A In .. days]
•[Service A Due]
•[Service A Exceeded by .. days]
Depending on the operating conditions of the
vehicle, the remaining time or distance until the
next service due date is displayed.
The letter indicates which service is due. A
stands for a minor service and B for a major
service. A number or another letter may be
displayed after the letter.
Only for certain countries: the position after the
letter A or B indicates any necessary additional
maintenance work. If you notify an INFINITI
retailer of this display, you will receive a state-
ment on the associated costs.The maintenance service interval display does
not take into account any periods of time during
which the battery is disconnected.
Maintaining the time-dependent service sched-
ule:
Note down the service due date displayed in the
vehicle information display before disconnect-
ing the battery.
or
After reconnecting the battery, subtract the
battery disconnection periods from the service
date shown on the display.Hiding service messages
Press the orbutton on the steering
wheel.
Displaying service messages
1. Switch the ignition on.
2. Press the
orbutton on the
steering wheel to select the [Serv.] menu.
3. Press the
orbutton to select
[Maintenance] submenu and confirm by
pressing the OK button.
The service due date appears in the vehicle
information display.
Information about service
Resetting the maintenance service interval dis-
play:
CAUTION
If the maintenance service interval display has
been inadvertently reset, this setting can be
corrected at an INFINITI retailer.
Have service work carried out as described in
the Maintenance Schedule. This may other-
wise lead to increased wear and damage to the
major assemblies or the vehicle.
An INFINITI retailer will reset the maintenance
service interval display after the service work
has been carried out. You can also obtain
further information on maintenance work, for
example.
Special service requirements
:
The prescribed service interval is based on
normal operation of the vehicle. Service work
will need to be performed more often if the
vehicle is operated under arduous conditions or
increased loads, for example:
•Regular city driving with frequent intermedi-
ate stops
•If the vehicle is primarily used to travel short
distance
9-8Maintenance and Schedules

•For frequent operation in mountainous ter-
rain or on poor road surfaces
•If the engine is often left idling for long
periods
In these or similar operating conditions, have,
for example, the air filter, engine oil and oil
filter changed more frequently. The tires must
be checked more frequently if the vehicle is
operated under increased loads. Further infor-
mation can be obtained at an INFINITI retailer.
Maintenance and Schedules9-9

The following tables show the standard maintenance schedule. Depending upon weather and atmospheric conditions, varying road surfaces, individual
driving habits and vehicle usage, additional or more frequent maintenance may be required. After 120,000 miles (192,000 km)/144 months, continue
maintenance at the same mileage/time intervals.
EMISSION CONTROL SYSTEM MAINTENANCE (FOR 2.0L TURBO GASOLINE ENGINE)
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OPERATIONmiles x 1,000MAINTENANCE INTERVAL
Perform at number of miles,
kilometers or months, whichever
comes first.51015202530354045505560
(km x 1,000) (8) (16) (24) (32) (40) (48) (56) (64) (72) (80) (88) (96)
months 6 12 18 24 30 36 42 48 54 60 66 72
Engine compartment See NOTE (1)
V-belt See NOTE (2) I* I* I*
Replace every 155,000 miles or 180 months
Air cleaner filter Replace every 45,000 miles or 48 months
Fuel lines I* I* I*
Fuel filter See NOTE (3)
Engine coolant* Replace every 155,000 miles or 180 months
Engine oil R R R R R R
Engine oil filter R R R R R R
Spark plugs Replace every 45,000 miles or 48 months
NOTE:
(1) All visible parts checked for leaks and damage.
(2) In visible area only.
(3) Maintenance-free item.
* Maintenance items and intervals with ”*” are recommended by INFINITI for reliable vehicle operation. The owner need not perform such maintenance
in order to maintain the emission warranty or manufacturer recall liability. Other maintenance items and intervals are required
STANDARD MAINTENANCE
9-10Maintenance and Schedules

Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OPERATIONmiles x 1,000MAINTENANCE INTERVAL
Perform at number of miles, kilome-
ters or months, whichever comes
first.65 70 75 80 85 90 95 100 105 110 115 120
(km x 1,000) (104) (112) (120) (128) (136) (144) (152) (160) (168) (176) (184) (192)
months 78 84 90 96 102 108 114 120 126 132 138 144
Engine compartment See NOTE (1)
V-belt See NOTE (2) I* I* I*
Replace every 155,000 miles or 180 months
Air cleaner filter Replace every 45,000 miles or 48 months
Fuel lines I* I* I*
Fuel filter See NOTE (3)
Engine coolant* Replace every 155,000 miles or 180 months
Engine oil R R R R R R
Engine oil filter R R R R R R
Spark plugs Replace every 45,000 miles or 48 months
NOTE:
(1) All visible parts checked for leaks and damage.
(2) In visible area only.
(3) Maintenance-free item.
* Maintenance items and intervals with ”*” are recommended by INFINITI for reliable vehicle operation. The owner need not perform such maintenance
in order to maintain the emission warranty or manufacturer recall liability. Other maintenance items and intervals are required
Maintenance and Schedules9-11

CHASSIS & BODY MAINTENANCE
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OPERATIONmiles x 1,000MAINTENANCE INTERVAL
Perform at number of miles,
kilometers or months, whichever
comes first.51015202530354045505560
(km x 1,000) (8) (16) (24) (32) (40) (48) (56) (64) (72) (80) (88) (96)
months 6 12 18 24 30 36 42 48 54 60 66 72
Brake lines and cables I I I I I I
Brake pads and rotors* I I I I I I
Brake fluid * R R R
Automatic transmission fluid I I I
Automatic transmission fluid and
filterReplace every 60,000 miles or 60 months
Differential gear oil I I I I I I
Steering gear and linkage, axle and
suspension parts*III
Tire rotation See NOTE (1)
Propeller shaft & drive shaft boots
(4WD models)*IIIIII
Exhaust system* I I I
In-cabin microfilter R R R
I-key battery R R R R
NOTE:
(1) Refer toTire rotation*earlier in this section.
9-12Maintenance and Schedules

Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OPERATIONmiles x
1,000MAINTENANCE INTERVAL
Perform at number of miles, kilome-
ters or months, whichever comes first.65 70 75 80 85 90 95 100 105 110 115 120
(km x 1,000) (104) (112) (120) (128) (136) (144) (152) (160) (168) (176) (184) (192)
months 78 84 90 96 102 108 114 120 126 132 138 144
Brake lines and cables I I I I I I
Brake pads and rotors* I I I I I I
Brake fluid* R R R
Automatic transmission fluid I I I
Automatic transmission fluid and
filterReplace every 60,000 miles or 60 months
Differential gear oil I I I I I I
Steering gear and linkage, axle and
suspension parts*II I
Tire rotation See NOTE (1)
Propeller shaft & drive shaft boots
(4WD models)*IIII I I
Exhaust system* I I I
In-cabin microfilter R R R
I-key battery R R R R
NOTE:
(1) Refer toTire rotation*earlier in this section.
* Maintenance items with “*” should be performed more frequently according toMaintenance under severe driving conditionslater in this section
Maintenance and Schedules9-13

The maintenance intervals shown on the pre-
ceding pages are for normal operating condi-
tions. If the vehicle is mainly operated under
severe driving conditions as shown below, more
frequent maintenance must be performed on
the following items as shown in the table.
Severe driving conditions:
•Repeated short trips of less than 5 miles
(8 km).
•Repeated short trips of less than 10 miles (16
km) with outside temperatures remaining
below freezing.
•Operating in hot weather in stop-and-go
“rush hour” traffic.
•Extensive idling and/or low speed driving for
long distances, such as police, taxi or door-
to-door delivery use.
•Driving in dusty conditions.
•Driving on rough, muddy, or salt spread
roads.
•Using a car-top carrier.
Maintenance operation: Inspect = Inspect and
correct or replace as necessary.
MAINTENANCE UNDER SEVERE DRIVING
CONDITIONS
9-14Maintenance and Schedules

5,000 Miles or 6 Months 10,000 Miles or 12 Months 15,000 Miles or 18 Months
Retailer Name: Retailer Name: Retailer Name:
Date: Date: Date:
Mileage: Mileage: Mileage:
Retailer
Stamp:Retailer
Stamp:Retailer
Stamp:
20,000 Miles or 24 Months 25,000 Miles or 30 Months 30,000 Miles or 36 Months
Retailer Name: Retailer Name: Retailer Name:
Date: Date: Date:
Mileage: Mileage: Mileage:
Retailer
Stamp:Retailer
Stamp:Retailer
Stamp:
35,000 Miles or 42 Months 40,000 Miles or 48 Months 45,000 Miles or 54 Months
Retailer Name: Retailer Name: Retailer Name:
Date: Date: Date:
Mileage: Mileage: Mileage:
Retailer
Stamp:Retailer
Stamp:Retailer
Stamp:
MAINTENANCE LOG
Maintenance and Schedules9-15

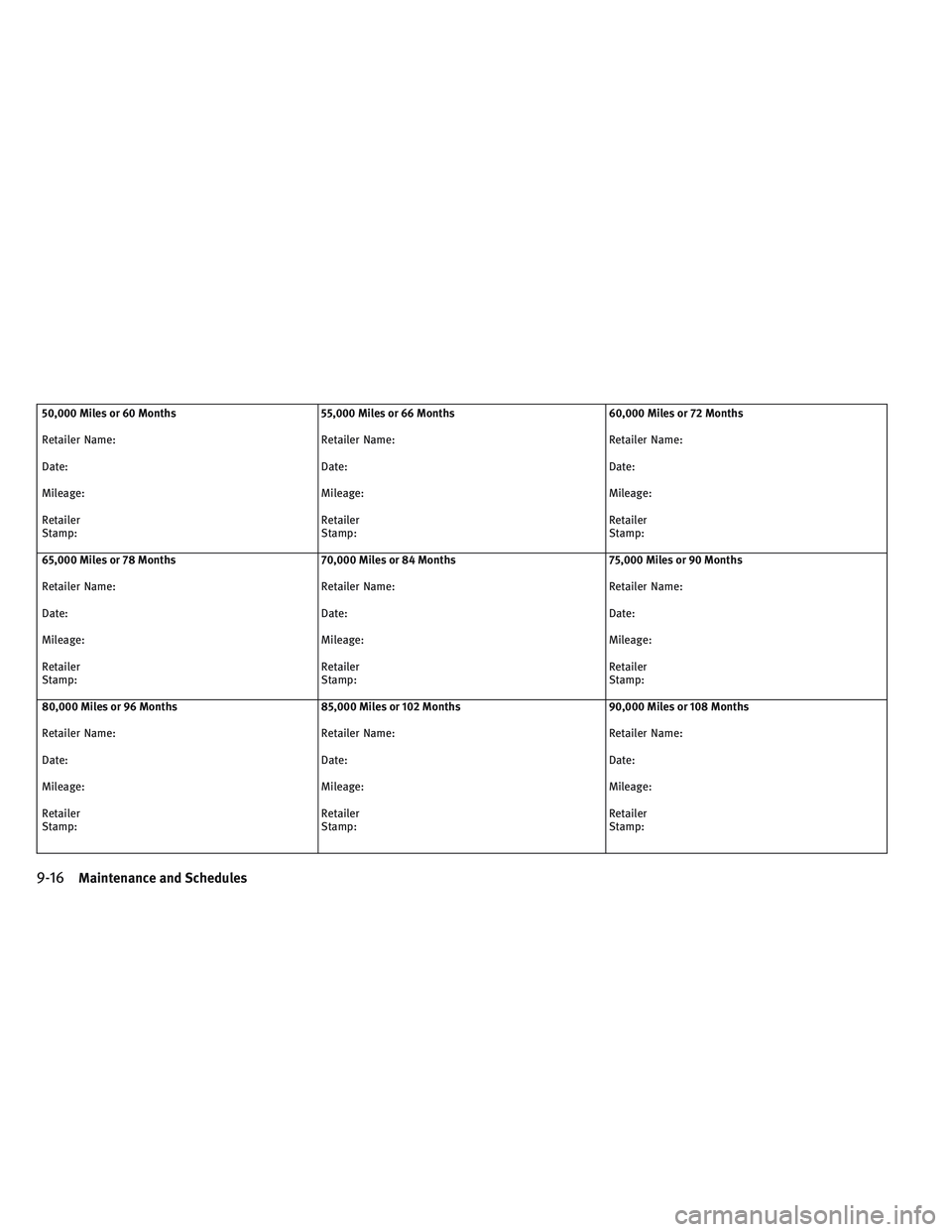

50,000 Miles or 60 Months 55,000 Miles or 66 Months 60,000 Miles or 72 Months
Retailer Name: Retailer Name: Retailer Name:
Date: Date: Date:
Mileage: Mileage: Mileage:
Retailer
Stamp:Retailer
Stamp:Retailer
Stamp:
65,000 Miles or 78 Months 70,000 Miles or 84 Months 75,000 Miles or 90 Months
Retailer Name: Retailer Name: Retailer Name:
Date: Date: Date:
Mileage: Mileage: Mileage:
Retailer
Stamp:Retailer
Stamp:Retailer
Stamp:
80,000 Miles or 96 Months 85,000 Miles or 102 Months 90,000 Miles or 108 Months
Retailer Name: Retailer Name: Retailer Name:
Date: Date: Date:
Mileage: Mileage: Mileage:
Retailer
Stamp:Retailer
Stamp:Retailer
Stamp:
9-16Maintenance and Schedules

95,000 Miles or 114 Months 100,000 Miles or 120 Months 105,000 Miles or 126 Months
Retailer Name: Retailer Name: Retailer Name:
Date: Date: Date:
Mileage: Mileage: Mileage:
Retailer
Stamp:Retailer
Stamp:Retailer
Stamp:
110,000 Miles or 132 Months 115,000 Miles or 138 Months 120,000 Miles or 144 Months
Retailer Name: Retailer Name: Retailer Name:
Date: Date: Date:
Mileage: Mileage: Mileage:
Retailer
Stamp:Retailer
Stamp:Retailer
Stamp:
Maintenance and Schedules9-17
