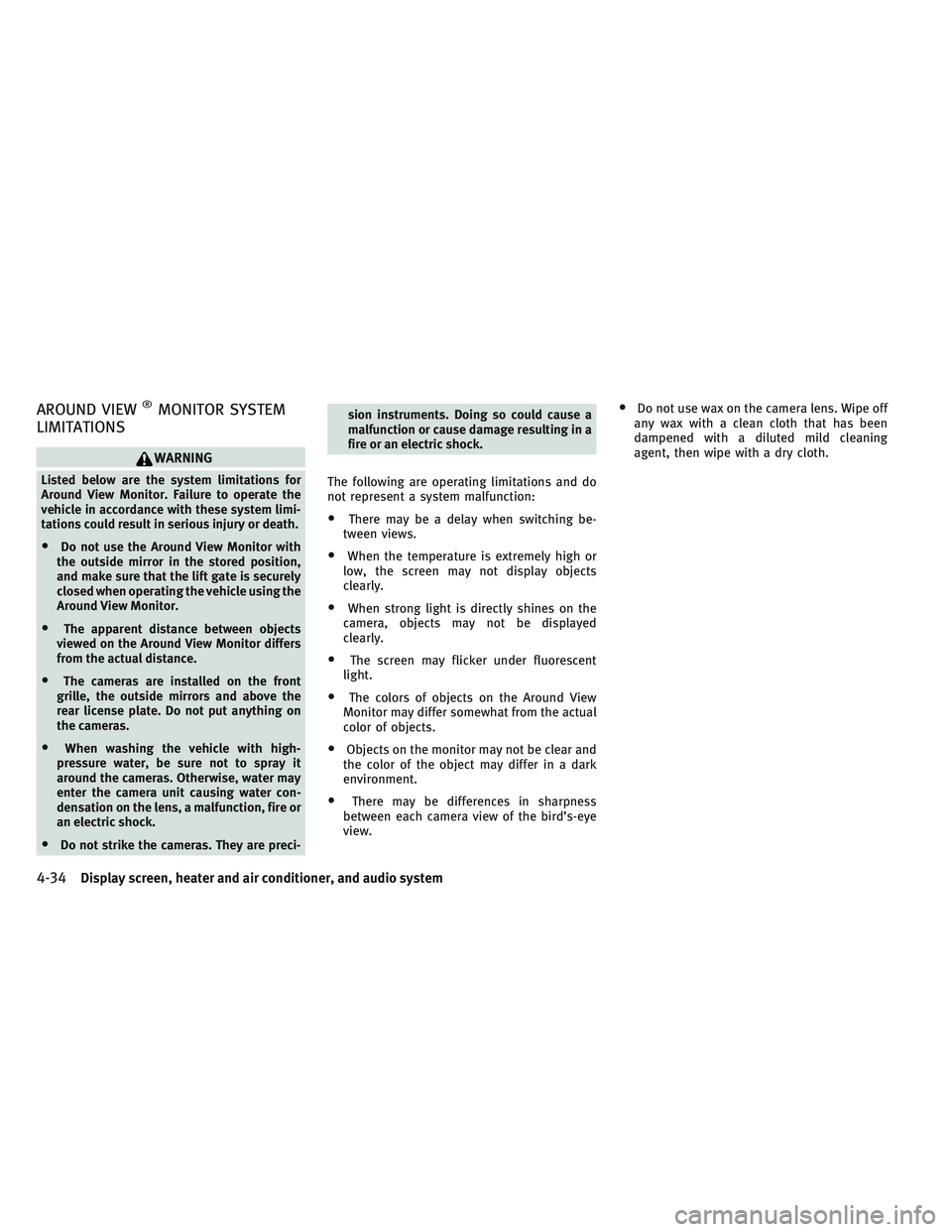

AROUND VIEW®MONITOR SYSTEM
LIMITATIONS
WARNING
Listed below are the system limitations for
Around View Monitor. Failure to operate the
vehicle in accordance with these system limi-
tations could result in serious injury or death.
•Do not use the Around View Monitor with
the outside mirror in the stored position,
and make sure that the lift gate is securely
closed when operating the vehicle using the
Around View Monitor.
•The apparent distance between objects
viewed on the Around View Monitor differs
from the actual distance.
•The cameras are installed on the front
grille, the outside mirrors and above the
rear license plate. Do not put anything on
the cameras.
•When washing the vehicle with high-
pressure water, be sure not to spray it
around the cameras. Otherwise, water may
enter the camera unit causing water con-
densation on the lens, a malfunction, fire or
an electric shock.
•Do not strike the cameras. They are preci-sion instruments. Doing so could cause a
malfunction or cause damage resulting in a
fire or an electric shock.
The following are operating limitations and do
not represent a system malfunction:
•There may be a delay when switching be-
tween views.
•When the temperature is extremely high or
low, the screen may not display objects
clearly.
•When strong light is directly shines on the
camera, objects may not be displayed
clearly.
•The screen may flicker under fluorescent
light.
•The colors of objects on the Around View
Monitor may differ somewhat from the actual
color of objects.
•Objects on the monitor may not be clear and
the color of the object may differ in a dark
environment.
•There may be differences in sharpness
between each camera view of the bird’s-eye
view.
•Do not use wax on the camera lens. Wipe off
any wax with a clean cloth that has been
dampened with a diluted mild cleaning
agent, then wipe with a dry cloth.
4-34Display screen, heater and air conditioner, and audio system

GIVING VOICE COMMANDS
1. Push<>located on the steering wheel.
2. A list of commands appears on the screen,
and the system provides a voice menu
prompt.
When this screen is displayed, almost all of
the commands can be recognized. Available
commands for each categories can be shown
on the right side of the screen. Highlight a
category listed in the left side of the screen
with the INFINITI controller to find your pre-
ferred command.
Selecting a category by touching the screen
or pushing<
/OK>will execute the
command. After executing the category com-
mand, only the commands related to the
selected category can be recognized.
Command listin the5. Starting and driv-
ingsection3. After the tone sounds and the icon on the
screen changes from
to, speak a
command. You can also select a command
by directly touching the screen.
The Voice Recognition system will pause
operation when the INFINITI controller is
moved. To resume operation, push<
>
on the steering wheel.
4. Continue to follow the voice menu prompts
and speak after the tone sounds until the
preferred operation is completed.
To cancel the voice command, push and hold<
>.
You can interrupt the voice prompt at any time
by pushing<
>.
Operating tips
•Speak a command after the tone.
•If the command is not accepted, the system
announces, “Please say again”. Repeat the
command in a clear voice.
•Push<>on the steering-wheel switch
once to return to the previous screen.
•Voice commands spoken from the passen-
ger seat cannot be recognized.
NAA1732
4-106Display screen, heater and air conditioner, and audio system

•When the<>on the steering wheel is
pressed while the air conditioner is set to the
Auto mode, the system controls the air con-
ditioner fan speed in order to improve voice
recognition performance. When the fan
speed is set higher than the 4th speed
position, the fan speed is decreased to 4th
speed. When the air conditioner is set to the
manual mode, the fan speed does not
change. The accuracy of voice recognition
may be affected depending on the fan speed
and the air direction.
•To skip the voice guidance function and give
the command immediately, push<>on
the steering-wheel to interrupt the system.
Remember to speak after the tone.
•To cancel the command, push and hold<>or<>on the steering-wheel.
•Push<>on the steering-wheel to stop
the voice prompt and give the command at
once. Remember to wait for the tone before
speaking.
•To adjust the volume of the system feed-
back, push the volume switch on the steering
wheel or use the audio system >while the system is making an announce-
ment.
•For searching with Street Address, Point of
Interest and City Center, the searching area
is automatically set to the state where your
vehicle is located. Use Change State/
Province to change the search area to an-
other state if necessary.
How to see voice command screen
1. Push<>to display the first screen of
the voice command list.
2. Speak a command or select an item from
the voice command list. The second screen
is displayed.
3. Speak a command. The list screen is dis-
played.
4. Speak the preferred number from the list to
perform operation.
The voice commands can be spoken one at a
time following prompts step by step or the
command can be spoken successively in one
step.
1Shows available command list. It is also
available to select a command from this
list by touching or using the INFINITI
controller.
2Shows available command list. Dis-
played commands are only available to
execute through voice recognition. You
can say commands from the left screen
and the right screen continuously.
5GD0015XZFirst screen
Display screen, heater and air conditioner, and audio system4-107

WARNING
•Never leave children or adults who would
normally require the support of others alone
in your vehicle. Pets should not be left alone
either. They could unknowingly activate
switches or controls and inadvertently be-
come involved in a serious accident and in-
jure themselves. On hot, sunny days, tem-
peratures in a closed vehicle could quickly
become high enough to cause severe or
possibly fatal illness to people or animals.
•Properly secure all cargo to help prevent it
from sliding or shifting. Do not place cargo
higher than the seatbacks. In a sudden stop
or collision, unsecured cargo could cause
personal injury.
•To avoid raising the center of gravity exces-
sively, do not exceed the rated capacity of
the roof rack (if so equipped) and evenly
distribute the load.
EXHAUST GAS (CARBON MONOXIDE)
WARNING
•Do not breathe exhaust gas; it contains
colorless and odorless carbon monoxide.
Carbon monoxide is dangerous. It can cause
unconsciousness or death.
•If you suspect that exhaust fumes are entering
the vehicle, drive with all windows fully open,
and have the vehicle inspected immediately.
•Do not run the engine in closed spaces such
as a garage.
•Do not park the vehicle with the engine
running for an extended period of time.
•Keep the lift gate closed while driving, other-
wise exhaust gas could be drawn into the pas-
senger compartment. If you must drive with
the lift gate open, follow these precautions:
–Open all the windows.
–Turn the air recirculation switch off and
set the fan control to the highest level to
circulate the air.
•If electrical wiring or other cable connec-
tions must pass to a trailer through the seal
ion the lift gate or body, follow the manufac-
turer’s recommendations to prevent carbon
monoxide entry into the vehicle.
•The exhaust system and body should be
inspected by a qualified mechanic when-
ever:
–You suspect that exhaust fumes are en-
tering into the passenger compartment.
–You notice a change in the sound of the
exhaust system.
–You have had an accident involving dam-
age to the exhaust system, underbody,
or rear of the vehicle.
THREE-WAY CATALYST (IF EQUIPPED)
The three-way catalyst is an emission control
device installed in the exhaust system. Exhaust
gas in the three-way catalyst is burned at high
temperatures to help reduce pollutants.
WARNING
•The exhaust gas and the exhaust system
are very hot. Keep people, animals and
flammable materials away from the exhaust
system components.
•Do not stop or park the vehicle over flam-
mable materials such as dry grass, waste-
paper or rags. They may ignite and cause a
fire.
PRECAUTIONS WHEN STARTING AND
DRIVING
5-4Starting and driving

•Do not drive across steep slopes. Instead
drive either straight up or straight down the
slopes. Off-road vehicles can tip over side-
ways much more easily than they can for-
ward or backward.
•Many hills are too steep for any vehicle. If
you drive up them, you may stall. If you drive
down them, you may not be able to control
your speed. If you drive across them, you
may roll over.
•Do not shift gears while driving on downhill
grades as this could cause loss of control of
the vehicle.
•Stay alert when driving to the top of a hill.
At the top there could be a drop-off or other
hazard that could cause an accident.
•If your engine stalls or you cannot make it to
the top of a steep hill, never attempt to turn
around. Your vehicle could tip or roll over.
Always back straight down in R (Reverse)
gear and apply brakes to control your
speed.
•Heavy braking going down a hill could
cause your brakes to overheat and fade, re-
sulting in loss of control and an accident.
Apply brakes lightly and use a low gear to
control your speed.
•Unsecured cargo can be thrown around
when driving over rough terrain. Properly
secure all cargo so it will not be thrown
forward and cause injury to you or your pas-
sengers.
•Secure heavy loads in the cargo area as far
forward and as low as possible. Do not
equip the vehicle with tires larger than
specified in this manual. This could cause
your vehicle to roll over.
•Do not grip the inside or spokes of the
steering wheel when driving off-road. The
steering wheel could move suddenly and
injure your hands. Instead drive with your
fingers and thumbs on the outside of the
rim.
•Before operating the vehicle, ensure that
the driver and all passengers have their seat
belts fastened.
•Always drive with the floor mats in place as
the floor may become hot.
•Lower your speed when encountering
strong crosswinds. With a higher center of
gravity, your INFINITI is more affected by
strong side winds. Slower speeds ensure
better vehicle control.
•Do not drive beyond the performance capa-
bility of the tires, even with AWD engaged.
•For AWD equipped vehicles, do not attempt to
raise two wheels off the ground and shift the
transmission to any drive or reverse position
with the engine running. Doing so may result
in drivetrain damage or unexpected vehicle
movement which could result in serious ve-
hicle damage or personal injury.
•Do not attempt to test an AWD equipped
vehicle on a 2-wheel dynamometer (such as
the dynamometers used by some states for
emissions testing), or similar equipment
even if the other two wheels are raised off
the ground. Make sure you inform test facil-
ity personnel that your vehicle is equipped
with AWD before it is placed on a dynamom-
eter. Using the wrong test equipment may
result in drivetrain damage or unexpected
vehicle movement which could result in se-
rious vehicle damage or personal injury.
•When a wheel is off the ground due to an
unlevel surface, do not spin the wheel ex-
cessively.
•Accelerating quickly, sharp steering ma-
neuvers or sudden braking may cause loss
of control.
5-12Starting and driving

WARNING
Apply the parking brake if the shift lever is in
any position while the engine is not running.
Failure to do so could cause the vehicle to move
unexpectedly or roll away and result in serious
personal injury or property damage.
CAUTION
Use the P (Park) or R (Reverse) position only
when the vehicle is completely stopped.
P (Park)
:
CAUTION
To prevent transmission damage, use the P
(Park) position only when the vehicle is com-
pletely stopped.
Use this position when the vehicle is parked or
when starting the engine. Always make sure
that the vehicle is completely stopped before
pressing button
1to engage the P (Park)
position. For maximum safety, the brake pedal
must be depressed before engaging the P (Park)
position. Use this position together with the
parking brake. When parking on a hill, first
depress the brake pedal, apply the parking
brake and then engage the P (Park) position.
The parking lock should not be used as a brake
when parking. In order to secure the vehicle,always apply the electric parking brake in addi-
tion to the parking lock.
In the event of a malfunction of the vehicle’s
electronics, the transmission may lock in posi-
tion P (Park). Have the vehicle electronics
checked immediately. It is recommended you
visit an INFINITI retailer for this service.
Park position P is automatically engaged if:
•You switch off the engine using the key and
remove the key.
•You open the driver’s door when the vehicle
is stationary or driving at very low speed and
the transmission is in position D (Drive) or R
(Reverse).
R (Reverse)
:
CAUTION
To prevent transmission damage, use the R
(Reverse) position only when the vehicle is
completely stopped.
Use this position to back up the vehicle.
Make sure the vehicle is completely stopped
before selecting the R (Reverse) position.The
brake pedal must be depressed and the shift
lever button pushed in to move the shift lever
from P (Park), N (Neutral) or any drive position to
R (Reverse).
NSD586
Starting and driving5-19

WARNING
•Be sure the parking brake is fully released
before driving. Failure to do so can cause
brake failure and lead to an accident.
•Do not release the parking brake from out-
side the vehicle.
•Do not use the shift lever in place of the
parking brake. When parking, be sure the
parking brake is fully engaged.
•To help avoid risk of injury or death through
unintended operation of the vehicle and/or
its systems, do not leave children, people
who require the assistance of others, or
pets unattended in your vehicle. Addition-
ally, the temperature inside a closed vehicle
on a warm day can quickly become high
enough to cause a significant risk of injury
or death to people and pets.The function of the electric parking brake is
dependent on the on-board voltage. If the on-
board voltage is low or if there is a malfunction
in the system, it may not be possible to apply
the released parking brake. If this is the case:
•Only park the vehicle on level ground and
secure it to prevent it from rolling away.
•Shift the automatic transmission to position
P (Park).
•It is recommended you contact an INFINITI
retailer.
It may not be possible to release an applied
parking brake if the on-board voltage is low or
if there is a malfunction in the system. It is
recommended you contact an INFINITI retailer.
The electric parking brake carries out a function
check at regular intervals when the engine is
switched off. Noises that occur are normal.APPLYING/RELEASING MANUALLY
The electric parking brake can be applied or
released by operating the parking brake handle
1.
To apply:Push handle
1.
When the electric parking brake is applied, the
red
indicator lamp lights up in the
combination meter.
The electric parking brake can also be applied
when the ignition switch is in the OFF position
or the key is removed.
To release:With the ignition switch in the ON
position, pull handle
1.
NPA1485
PARKING BRAKE
Starting and driving5-25

The Idle Stop/Start function switches the en-
gine off automatically if the vehicle is stopped
under certain conditions.
When pulling away again, the engine starts
automatically. The Idle Stop/Start function
thereby helps you to reduce the fuel consump-
tion and emissions of your vehicle.
WARNING
If the engine is switched off automatically and
you exit the vehicle, the engine is restarted
automatically. The vehicle may begin moving
There is a risk of accident and injury.
If you wish to exit the vehicle, always turn off
the ignition and secure the vehicle against roll-
ing away.If the
Idle Stop/Start symbol is shown in
green in the vehicle information display, the
Idle Stop/Start function switches the engine off
automatically once the vehicle stops moving.
The Idle Stop/Start function is automatically
activated each time you start the engine with
the ignition key.
If the Idle Stop/Start function has been manu-
ally deactivated (seeDeactivating/activating
the Idle Stop/Start functionlater in this sec-
tion) or a malfunction has caused the system to
be deactivated, the
Idle Stop/Start sym-
bol is not displayed.
AUTOMATIC ENGINE SWITCH-OFF
The Idle Stop/Start function is operational and
theIdle Stop/Start symbol is displayed
in green in the vehicle information display, if:
•The indicator lamp in the ECO button is lit
green.
•The outside temperature is within the range
that is suitable for the system.
•The engine is at normal operating tempera-
ture.
•The set temperature for the vehicle interior
has been reached.
•The battery is sufficiently charged.
•The system detects that the windshield is
not misted up when the air-conditioning sys-
tem is switched on.
•The hood is closed.
•The driver’s door is closed and the driver’s
seat belt is fastened.
If the conditions for automatic engine switch-off
are not all fulfilled, the
Idle Stop/Start
symbol is shown in yellow.
All of the vehicle’s systems remain active when
the engine is switched off automatically.
NSD620Idle Stop/Start symbol
IDLE STOP/START SYSTEM (IF EQUIPPED)
Starting and driving5-27

Storing the current speed or calling up the last
stored speed:
WARNING
If you call up a stored speed and this is differ-
ent from the current speed, the vehicle accel-
erates or brakes. If you do not know what the
stored speed is, the vehicle may accelerate or
brake unexpectedly. There is a risk of an acci-
dent.
Take the traffic conditions into account before
calling up the stored speed. If you do not know
what the stored speed is, store the desired
speed again.
1. Briefly pull the cruise control lever towards
you
2.
2. Remove your foot from the accelerator
pedal. The first time cruise control is acti-
vated, it stores the current speed or if a
speed has previously been stored, it regu-
lates the speed of the vehicle to the previ-
ously stored speed.
Setting a speed
Bear in mind that it may take a brief moment
until the vehicle has accelerated or braked to
the set speed.
1. Press the cruise control lever up
1for a
higher speed or down
3for a lower speed.
2. Keep the cruise control lever pressed until
the desired speed is reached.
3. Release the cruise control lever, The new
speed is stored.
4. To adjust the set speed in 1 MPH (1 km/h)
increments: briefly press the cruise control
lever up
1or down3to the pressure
point. The last stored speed increases or
decreases in 1 MPH (1 km/h) increments.
5. To adjust the set speed in 10 MPH (10 km/h)
increments: briefly press the cruise control
lever up
1or down3beyond the pressure
point. The last stored speed increases or
decreases in 10 MPH (10 km/h) increments.
NOTE
Cruise control is not deactivated if you depress
the accelerator pedal. For example, if you accel-
erate briefly to overtake, cruise control adjusts
the vehicle’s speed to the last speed stored after
you have finished overtaking.
Deactivating cruise control
There are several ways to deactivate cruise
control:
•Briefly press the cruise control lever forward
4.
or
•Brake.
Cruise control is automatically deactivated if:
•The vehicle is secured with the electric
parking brake.
•You are driving at less than 20 MPH (30
km/h).
•VDC intervenes or you deactivate VDC.
If cruise control is deactivated, you will hear a
warning tone. You will see the [Cruise Control
Off] message in the vehicle information display
for approximately five seconds.
NOTE
The last speed stored is cleared when you switch
off the engine.
5-46Starting and driving

For further information on deactivating the ICC
system, seeICC switch (cruise control lever)
earlier in this section
If the ICC system detects that the vehicle in
front is stopping, it brakes your vehicle until it
is stationary (within the braking limitations of
the system).
Once your vehicle is stationary, it remains sta-
tionary and you do not need to depress the brake.
NOTE
•After a short period, the vehicle is secured
by the electric parking brake, thus relieving
the service brake.
•Depending on the specified minimum dis-
tance, your vehicle will come to a standstill
at a sufficient distance behind the vehicle in
front. The specified minimum distance is set
using the control on the cruise control lever.
The electric parking brake secures the vehicle
automatically if the ICC system is activated
when the vehicle is stationary and:
•A system fault occurs.
•The power supply is insufficient.
If a malfunction in the electric parking brake
occurs, then the transmission may also be
shifted into position P (Park) automatically.
How to change the set distance to
the vehicle ahead
The distance to the vehicle ahead can be se-
lected at any time depending on the traffic
conditions.
To increase the distance to the vehicle ahead,
turn the knob
3toward the rear2.Tode-
crease the distance to the vehicle ahead, turn
the knob
3toward the front1.
You can see this distance in the vehicle infor-
mation display.
The distance to the vehicle ahead will change
according to the vehicle speed. The higher the
vehicle speed, the longer the distance.
Approach warning
If your vehicle comes closer to the vehicle
ahead due to rapid deceleration of that vehicle
or if another vehicle cuts in, the system warns
the driver with the chime and distance warning
light. Decelerate by depressing the brake pedal
to maintain a safe vehicle distance if:
•The chime sounds.
•The distance warning light is illuminated.
The warning chime may not sound and the
distance warning light may not illuminate in
some cases when there is a short distance
between vehicles. Some examples are:
•When the vehicles are traveling at the same
speed and the distance between vehicles is
not changing. In this case, the distance
warning light will be on.
•When the vehicle ahead is traveling faster
and the distance between vehicles is increas-
ing.
•When a vehicle cuts in near your vehicle
NSD583A
Starting and driving5-53
