•The system is designed to automatically
check the sensor’s functionality, within
certain limitations. The system may not
detect some forms of obstruction of the
sensor area such as ice, snow, stickers,
for example. In these cases, the system
may not be able to warn the driver prop-
erly. Be sure that you check, clean and
clear the sensor area regularly.
•Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.
SYSTEM TEMPORARILY
UNAVAILABLE
If the FEB stops working due to a malfunc-
tion or some other reason, one of the follow-
ing three messages will be displayed in the
vehicle information display.
•[Emergency Brake Currently Unavailable
See Operator's Manual]
•[Emergency Brake Inoperative]
•[Radar Sensors Dirty See Operator's
Manual]
For each of these messages, possible causes
and solutions are listed below. [Emergency Brake Currently Unavailable
See Operator's Manual]:
The FEB system is
temporarily inoperative. Possible causes:
•The radar sensor system is temporarily in-
operative, for example, due to electro-
magnetic radiation emitted by nearby TV
or radio stations or other sources of elec-
tromagnetic radiation.
•The system is outside the operating tem-
perature range.
•The on-board voltage is too low.
Once the causes listed above no longer apply,
the display message goes out. The FEB sys-
tem is operative again.
If the display message does not disappear:
•Pull over and stop the vehicle safely as
soon as possible, paying attention to road
and traffic conditions.
•Secure the vehicle against rolling away.
•Switch off the engine.
[Emergency Brake Inoperative]: The FEB
system is temporarily inoperative due to a
malfunction. The adaptive brake assist func-
tion may also have failed.
It is recommended you visit an INFINITI re-
tailer. [Radar Sensors Dirty See Operator's
Manual]:
The FEB system is temporarily re-
stricted or inoperative. Possible causes:
•The sensor behind the INFINITI logo is
dirty.
•The function of the FEB system is im-
paired due to heavy rain or snow.
A warning tone also sounds.
Once the causes listed above no longer apply,
the display message goes out. The FEB sys-
tem is operative again.
If the display message does not disappear:
•Pull over and stop the vehicle safely as
soon as possible, paying attention to road
and traffic conditions.
•Secure the vehicle against rolling away.
•Switch off the engine.
•Clean the area around the sensors.
•Restart the engine. The display message
disappears.
5-68Starting and driving

IPA is an electronic parking aid with ultra-
sound. It detects vehicles and open spaces on
both sides of the vehicle. A parking symbol
indicates a suitable parking space. Active
steering intervention can assist you during
parking and when exiting a parking space.
The driver controls the accelerator, brake and
gear shift. You may also use the Camera Aid-
ing Sonar (parking sensor) function (see "
Camera Aiding Sonar (parking sensor) func-
tion (if equipped)" later in this section).
IMPORTANT SAFETY NOTES
WARNING
•IPA is only an aid. It is not a substitute
for your attention to the immediate sur-
roundings. The responsibility for safe
maneuvering and parking remains with
you.
•Make sure that no persons, animals or
objects are in the maneuvering range
•When the sonar (parking sensor) func-
tion is deactivated, IPA is also unavail-
able.
•While parking or pulling out of a parking
space, the vehicle swings out and can
drive onto areas of the oncoming lane.
This could cause you to collide with other road users. There is a risk of an
accident.
•Pay attention to other road users. Stop
the vehicle if necessary or cancel the IPA
parking procedure
•This system is not designed to prevent
contact with small or moving objects.
•If your vehicle sustains damage to the
bumper fascia, leaving it misaligned or
bent, the sensing zone may be altered
causing inaccurate measurement of ob-
stacles or false alarms.
•This system is not designed to prevent
contact with small or moving objects.
•If your vehicle sustains damage to the
bumper fascia, leaving it misaligned or
bent, the sensing zone may be altered
causing inaccurate measurement of ob-
stacles or false alarms.
CAUTION
Do not drive over obstacles such as curbs,
as you may damage the wheels or tires.
IPA may also display spaces not suitable for
parking, for example:
•Parking or stopping prohibition.
•In front of driveways or entrances and
exits.
•Unsuitable surfaces.
Parking tips:
•On narrow roads, drive as closely as pos-
sible past the parking space.
•Parking spaces that are littered or over-
grown might be identified or measured
incorrectly.
•Parking spaces that are partly occupied by
trailer towing bars might not be identified
as such or be measured incorrectly.
•Snowfall or heavy rain may lead to a park-
ing space being measured inaccurately.
•Pay attention to the sonar function warn-
ing messages during the parking proce-
dure.
•You can intervene in the steering proce-
dure to correct it at any time. IPA will then
be canceled.
•When transporting a load which protrudes
from your vehicle, you should not use IPA.
•Never use IPA when snow chains are fit-
ted.
•Make sure that the tire pressures are al-
ways correct. This has a direct influence on
the parking characteristics of the vehicle.
INTELLIGENT PARKING ASSIST (IPA)
(IF EQUIPPED)
Starting and driving5-71

Use IPA for parking spaces that are:
•Parallel or at right angles to the direction
of travel.
•On straight roads, not bends.
•On the same level as the road, e. g. not on
the sidewalk.
For vehicles with the towbar folded out, the
minimum length for parking spaces is slightly
longer.
If you have attached a trailer to your vehicle,
you may not use IPA. Once the electrical
connection is established between your ve-
hicle and the trailer, IPA is no longer available.
The sonar function is deactivated for the rear
area
DETECTING PARKING SPACES
The IPA system can only be used to park in
spaces that have vehicles directly on either
side of the parking space.
Objects located above the height range of
IPA will not be detected when the parking
space is measured. These are not taken into
account when the parking procedure is calcu-
lated, e. g. overhanging loads, tail sections or
loading ramps of goods vehicles.
WARNING
If there are objects above the detection
range, IPA may steer too early. This could
cause a collision. There is a risk of an acci-
dent.
If objects are located above the detection
range, stop and switch off the IPA.
For further information on the detection
range see "Range of the sensors" later in this
section.
IPA does not assist you parking in spaces at
right angles to the direction of travel if:
•Two parking spaces are located directly
next to one another.
•The parking space is directly next to a low
obstacle such as a low curb.
•You forward park.
IPA does not assist you parking in spaces that
are parallel or at right angles to the direction
of travel if:
•The parking space is on a curb.
•The system reads the parking space as
being blocked, for example, by foliage or
grass paving blocks.
•The area is too small for the vehicle to
maneuver into.
•The parking space is bordered by an ob-
stacle, e.g. a tree, a post or a trailer.
5-72Starting and driving

7. Stop as soon as the sonar function soundsthe continuous warning tone, if not be-
fore. Maneuvering may be required in
tight parking spaces.
The [Park Assist active Select D Observe
surroundings] message appears in the ve-
hicle information display.
8. Select transmission position D (Drive) while the vehicle is stationary.
IPA immediately steers in the other direc-
tion.
The [Park Assist Observe surroundings]
message appears in the vehicle informa-
tion display.
NOTE
You will achieve the best results by wait-
ing for the steering procedure to com-
plete before pulling away.
9. Drive forwards and be ready to brake at all times.
Maneuvering may be required in tight
parking spaces. Drive forward and back
up as prompted by the IPA and sonar
function warning displays, several times if
necessary. 10. Stop as soon as the sonar function
sounds the continuous warning tone, if
not before.
The [Park Assist active Select R] [Ob-
serve surroundings] message appears in
the vehicle information display.
As soon as the parking procedure is
complete the [Park Assist switched off]
message appears and a warning tone
sounds. The vehicle is now parked.
11. Before leaving the vehicle, secure the ve- hicle against rolling away unintentionally:
•The electric parking brake must be ap-
plied.
•The transmission must be in position P
(Park) and the transmission position
display must show P in the vehicle
information display.
•The key must be removed from the
ignition switch.
•On uphill or downhill gradients, the
front wheels must be turned towards
the curb.
IPA no longer supports you with steering in-
terventions. When IPA is finished, you must
steer again yourself. The sonar function is still
available. Parking tips:
•The way your vehicle is positioned in the
parking space after parking is dependent
on various factors. These include the posi-
tion and shape of the vehicles parked in
front and behind it and the conditions of
the location. It may be the case that IPA
guides you too far into a parking space, or
not far enough into it. In some cases, it
may also lead you across or onto the curb.
If necessary you should cancel the parking
procedure with IPA.
•During the parking maneuver, the system
will indicate when you should shift to R
(Reverse) or D (Drive). However, you can
freely choose to shift gear whenever you
feel you need to. Should the transmission
change take place too early, the parking
procedure will be canceled. A sensible
parking position can no longer be achieved
from this position.
EXITING A PARKING SPACE
In order that IPA can support when exiting
the parking space:
•You need to have parked using IPA.
•The border of the parking space must be
high enough at the front and the rear. A
curb stone is too small, for example.
5-74Starting and driving

•The border of the parking space must not
be too wide, as the position of the vehicle
must not exceed an angle of 45 degrees to
the starting position as it is manoeuvred
into the parking space.
•A total front and back maneuvering dis-
tance of at least 1.0 m must be available.
IPA can only assist you with exiting a parking
space if you have parked the vehicle parallel
to the direction of travel using IPA.
WARNING
•IPA is only an aid. It is not a substitute
for your attention to the immediate sur-
roundings. The responsibility for safe
maneuvering and parking remains with
you.
•Make sure that no persons, animals or
objects are in the maneuvering range.
•When the sonar function is deactivated,
IPA is also unavailable.
•While parking or pulling out of a parking
space, the vehicle swings out and can
drive onto areas of the oncoming lane.
This could cause you to collide with
other road users. There is a risk of an
accident.
•Pay attention to other road users. Stop
the vehicle if necessary or cancel the IPA
parking procedure.
1. Start the engine.
2. Release the electric parking brake.
3. Switch on the turn signal in the direction you are pulling away.
4. Vehicles with automatic transmission:
shift the transmission to position D or R
The [Start Park Assist? Yes: OK No:]
message appears in the vehicle informa-
tion display.
5. To cancel the procedure: press the
button on the steering wheel or pull away
or
6. To exit a parking space using IPA: press the button on the steering wheel
The Park Assist [Observe surroundings]
message appears in the display.
7. Release the steering wheel.
8. Pull away, being ready to brake at all times Do not exceed a maximum speed of
approximately 5 MPH (10 km/h) when
exiting a parking space. Otherwise, IPA
will be canceled.
WARNING
While parking or pulling out of a parking
space, the vehicle swings out and can drive
onto areas of the oncoming lane. This could
cause you to collide with other road users.
There is a risk of an accident.
9. Depending on the message or as required, shift the transmission to position D or R.
IPA immediately steers in the other direc-
tion. The [Observe surroundings] mes-
sage appears in the display.
NOTE
You will achieve the best results by wait-
ing for the steering procedure to com-
plete before pulling away.
If you back up after activation, the steer-
ing wheel is moved to the straight-ahead
position.
10. Drive forward and back up as prompted by the IPA and sonar function warning
displays, several times if necessary.
Once you have exited the parking space com-
pletely, the steering wheel is moved to the
straight-ahead position. You hear a tone and
the [Park Assist switched off] message ap-
pears in the display. You will then have to
steer and merge into traffic on your own. The
Starting and driving5-75

sonar function is still available. You can take
over the steering before the vehicle has ex-
ited the parking space completely. This is use-
ful, for example when you recognize that it is
already possible to pull out of the parking
space.
CANCELING IPA
Stop the movement of the steering wheel or
steer yourself. IPA will be immediately can-
celed. The [Park Assist canceled] message
appears in the vehicle information display.
or
Press the sonar function OFF switch. The
sonar function is switched off and IPA is
immediately canceled The [Park Assist can-
celed] message appears in the vehicle infor-
mation display.
IPA is canceled automatically if:
•The electric parking brake is applied
•Parking using IPA is no longer possible
•You are driving faster than 5 MPH (10
km/h)
•A wheel spins and VDC intervenes or fails.
Thewarning light lights up in the
combination meter. A warning tone sounds. The parking symbol
disappears and the vehicle information dis-
play shows the [Park Assist canceled] mes-
sage.
When IPA is canceled, you must steer again
yourself.
WARNING
•The sonar function is a convenience but
it is not a substitute for proper parking.
Always look around and check that it is
safe to do so before parking. Always
move slowly.
•Read and understand the limitations of
the sonar function as contained in this
section. Inclement weather may affect
the function of the sonar function; this
may include reduced performance or a
false activation.
•The driver is always responsible for
safety during parking and other maneu-
vers.
•The system is designed as an aid to the
driver in detecting large stationary ob-
jects to help avoid damaging the vehicle.
The system will not detect small objects
below the bumper, and may not detect
objects that are too close to the bumper
or on the ground.
•Always look around and check that it is
safe to move before parking.
CAMERA AIDING SONAR (PARKING
SENSOR) FUNCTION (IF EQUIPPED)
5-76Starting and driving

CAUTION
•Keep the interior of the vehicle as quiet
as possible to hear the tone clearly.
•Keep the sensors (located on the bumper
fascia) free from snow, ice and large ac-
cumulations of dirt. Do not clean the
sensors with sharp objects. If the sen-
sors are covered, the accuracy of the
sensor function will be diminished.
WARNING
INFINITI recommends only to use frame-
less type license plate holders.
The sonar sensors may not function cor-
rectly if the license plate is placed in a frame
as illustrated.
Please contact an INFINITI retailer for
advice.
NSD642
No frame/frameless
NSD643
Frame type
Starting and driving5-77

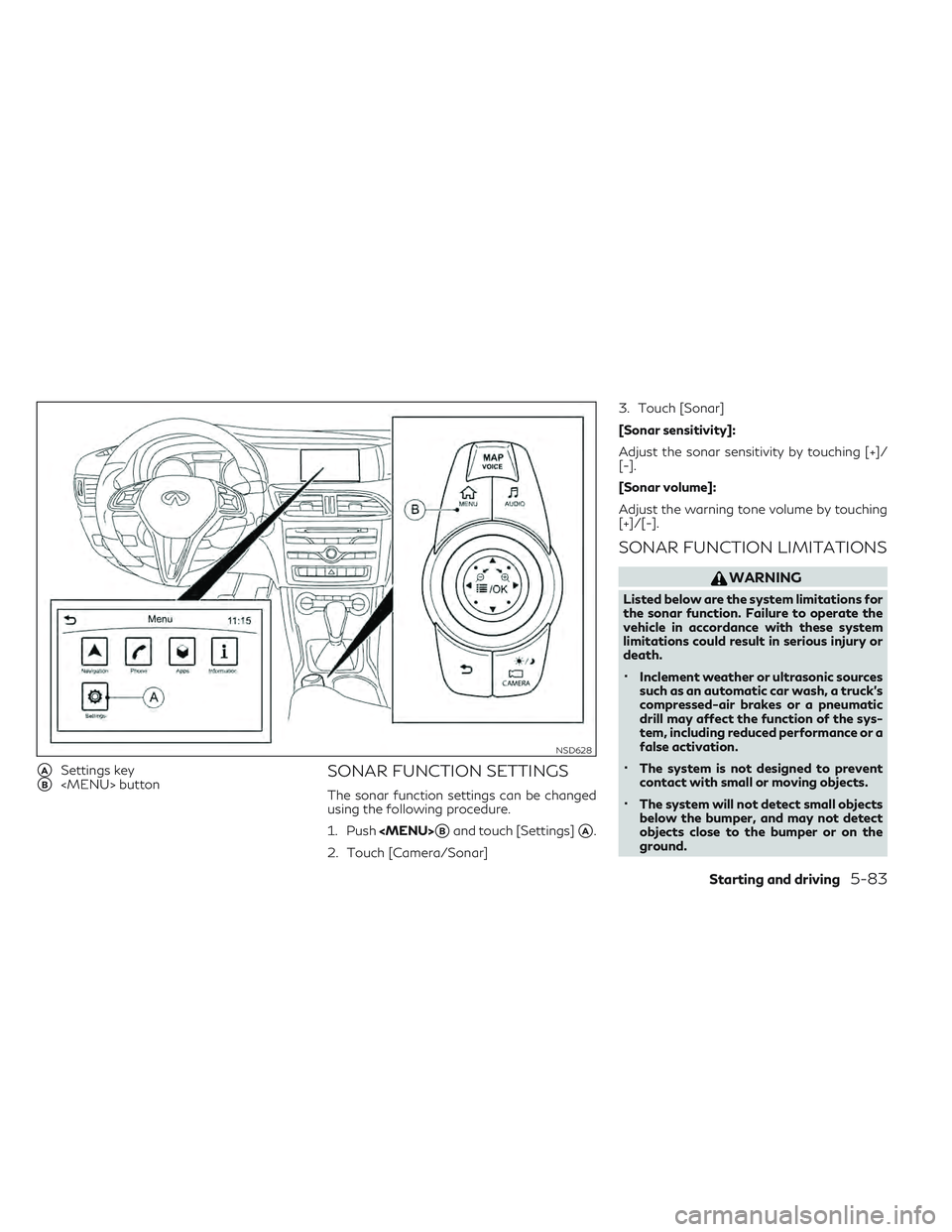

ASettings key
B

•The system may not detect the follow-
ing objects: – Fluffy objects such as snow, cloth,
cotton, grass or wool.
– Thin objects such as rope, wire or
chain.
– Wedge-shaped objects.
•If your vehicle sustains damage to the
bumper fascia, leaving it misaligned or
bent, the sensing zone may be altered
causing inaccurate measurement of ob-
jects or false alarms.
CAUTION
Excessive noise (such as audio system vol-
ume or an open vehicle window) will inter-
fere with the tone and it may not be heard.
PROBLEMS WITH SONAR FUNCTION
Problem Possible causes/consequences and solutions
Only the red segments in the sonar function displays
are lit. You also hear a warning tone for approximately
two seconds.
The sonar function is then deactivated and the
indicator light on the sonar function OFF switch lights
up. The sonar function has malfunctioned and has been deactivated.
If problems persist, have the sonar function checked. It is recommended you visit an INFINITI retailer for
this service.
Only the red segments in the sonar function displays
are lit. The sonar function is then deactivated. The sonar sensors are dirty or there is interference.
•Clean the sensors.•Switch the ignition back on.
The problem may be caused by an external source of radio or ultrasound waves.
See if the sonar system functions in a different location.
5-84Starting and driving

•Keep your engine tuned up.
•Follow the recommended scheduled
maintenance.
•Keep the tires inflated to the correct pres-
sure. Low tire pressure increases tire wear
and lowers fuel economy.
•Keep all the wheels in correct alignment.
Improper alignment increases tire wear
and lowers fuel economy.
•Use the recommended viscosity engine oil.
For additional information, see "Recom-
mended fluids/lubricants and capacities"
in the "10. Technical information" section
WARNING
•Do not drive beyond the performance
capability of the tires, even with 4WD
engaged. Accelerating quickly, sharp
steering maneuvers or sudden braking
may cause loss of control.
•Always use tires of the same type, size,
brand, construction (bias, bias-belted or
radial), and tread pattern on all four
wheels.
•This vehicle is not designed for off-road
(rough road) use. Do not drive on sandy
or muddy roads that tires may get stuck
in.
•For 4WD equipped vehicles, do not at-
tempt to raise two wheels off the
ground and shift the transmission to any
drive or reverse position with the engine
running. Doing so may result in drive-
train damage or unexpected vehicle
movement which could result in serious
vehicle damage or personal injury.
•Do not attempt to test a 4WD equipped
vehicle on a 2-wheel dynamometer
(such as the dynamometers used by
some states for emissions testing) or
similar equipment even if the other two
wheels are raised off the ground. Make sure that you inform the test facility
personnel that your vehicle is equipped
with 4WD before it is placed on a dyna-
mometer. Using the wrong test equip-
ment may result in drivetrain damage or
unexpected vehicle movement which
could result in serious vehicle damage or
personal injury.
•When a wheel is off the ground due to an
uneven surface, do not spin the wheel
excessively.
INCREASING FUEL ECONOMY FOUR-WHEEL DRIVE (4WD) (IF EQUIPPED)
Starting and driving5-87
