INFINITI QX30 2018 Owners Manual

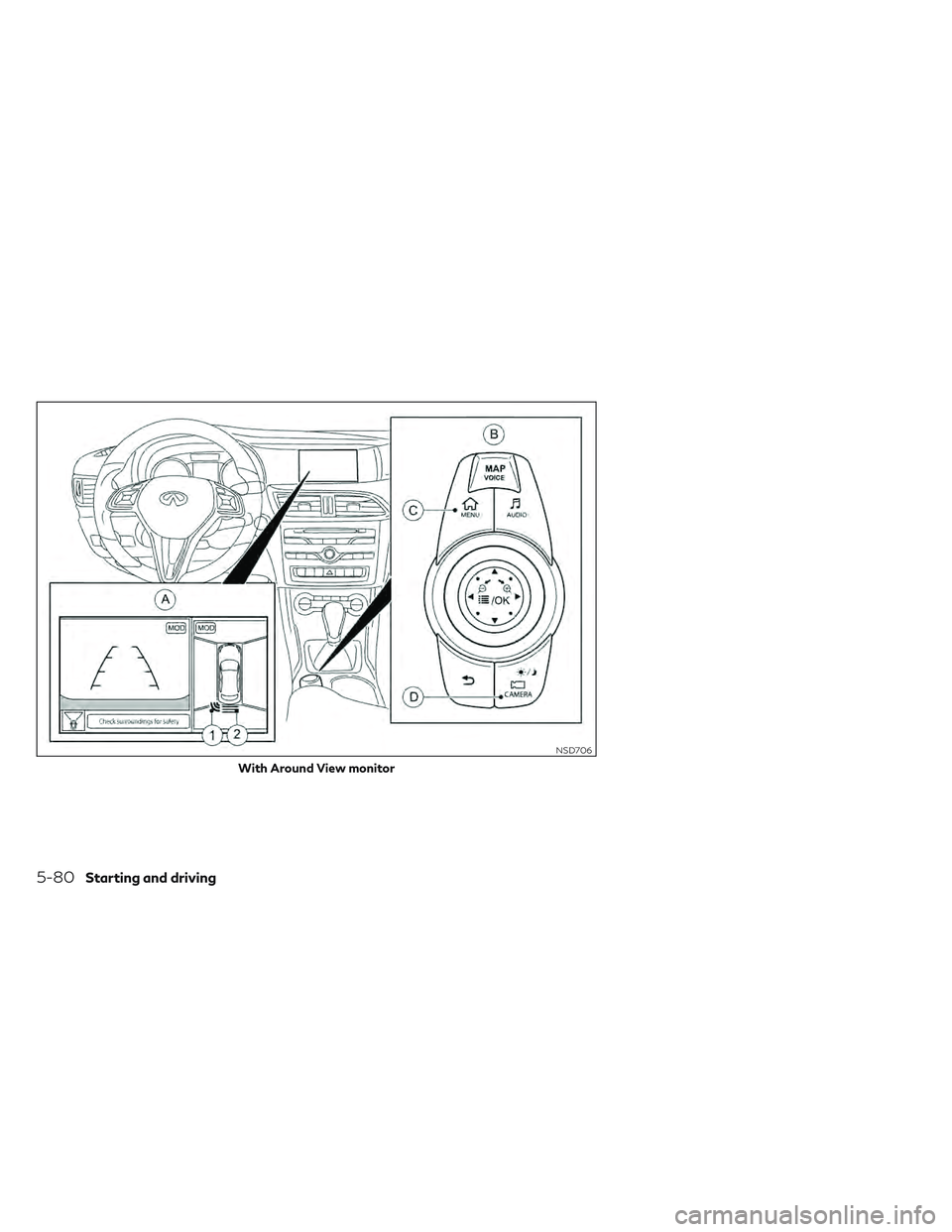

NSD706
With Around View monitor
5-80Starting and driving

ARearView/Around View monitor display
BINFINITI controller
C

The sonar function is deactivated for the rear
area when you establish an electrical connec-
tion between your vehicle and a trailer.
RANGE OF THE SENSORS
The sonar function does not take into ac-
count obstacles located:
•Below the detection range, e.g. persons,
animals or objects.
•Above the detection range, e.g. overhang-
ing loads, tail sections or loading ramps of
goods vehicles.
SONAR FUNCTION OFF SWITCH
The sonar function OFF switch2on the
lower side of the instrument panel allows the
driver to turn the sonar function on and off.
To turn the sonar function system on and off,
the ignition switch must be in the ON posi-
tion. The indicator light
1on the switch will
illuminate when the system is turned off.
The sonar function will turn on automatically
when the ignition switch is turned from the
OFF position to the ON position.
NIC2635
5-82Starting and driving

ASettings key
B

•The system may not detect the follow-
ing objects: – Fluffy objects such as snow, cloth,
cotton, grass or wool.
– Thin objects such as rope, wire or
chain.
– Wedge-shaped objects.
•If your vehicle sustains damage to the
bumper fascia, leaving it misaligned or
bent, the sensing zone may be altered
causing inaccurate measurement of ob-
jects or false alarms.
CAUTION
Excessive noise (such as audio system vol-
ume or an open vehicle window) will inter-
fere with the tone and it may not be heard.
PROBLEMS WITH SONAR FUNCTION
Problem Possible causes/consequences and solutions
Only the red segments in the sonar function displays
are lit. You also hear a warning tone for approximately
two seconds.
The sonar function is then deactivated and the
indicator light on the sonar function OFF switch lights
up. The sonar function has malfunctioned and has been deactivated.
If problems persist, have the sonar function checked. It is recommended you visit an INFINITI retailer for
this service.
Only the red segments in the sonar function displays
are lit. The sonar function is then deactivated. The sonar sensors are dirty or there is interference.
•Clean the sensors.•Switch the ignition back on.
The problem may be caused by an external source of radio or ultrasound waves.
See if the sonar system functions in a different location.
5-84Starting and driving

SYSTEM MAINTENANCE
CAUTION
Keep the surface of the sonar sensors (if
equipped) (located on the front and rear
bumper fascia) free from accumulations of
snow, ice and dirt. Do not scratch the sur-
face of the sonar sensors when cleaning. If
the sensors are covered, the accuracy of
the sonar function will be diminished.During the first 1,200 miles (2,000 km), fol-
low these recommendations to obtain maxi-
mum engine performance and ensure the fu-
ture reliability and economy of your new
vehicle. Failure to follow these recommenda-
tions may result in shortened engine life and
reduced engine performance.
•Avoid driving for long periods at constant
speed, either fast or slow, and do not run
the engine over 4,000 RPM.
•Do not accelerate at full throttle in any
gear.
•Avoid quick starts.
•Avoid hard braking as much as possible.
•Do not tow a trailer for the first 500 mi
(805 km). Your engine, axle or other parts
could be damaged.
You should also observe these notes on
break-in if the engine or parts of the drive
train on your vehicle have been replaced.
CAUTION
In certain driving and driving safety sys-
tems, the sensors adjust automatically
while a certain distance is being driven af-
ter the vehicle has been delivered or after
repairs. Full system effectiveness is not
reached until the end of this teach-in pro-
cess.
Brake pads/linings and rotors that are ei-
ther new or have been replaced only
achieve optimum braking effect after sev-
eral hundred miles of driving. Compensate
for the reduced braking effect by applying
greater force to the brake pedal
BREAK-IN SCHEDULE
Starting and driving5-85

Follow these easy-to-use Fuel Efficient Driv-
ing Tips to help you achieve the most fuel
economy from your vehicle.
1.Use Smooth Accelerator and Brake Pedal
Application
•Avoid rapid starts and stops.
•Use smooth, gentle accelerator and
brake application whenever possible.
•Maintain constant speed while com-
muting and coast whenever possible.
2. Maintain Constant Speed
•Look ahead to try and anticipate and
minimize stops.
•Synchronizing your speed with traffic
lights allows you to reduce your num-
ber of stops.
•Maintaining a steady speed can mini-
mize red light stops and improve fuel
efficiency.
3. Use Air Conditioning (A/C) at Higher Ve-
hicle Speeds
•Below 40 MPH (64 km/h), it is more
efficient to open windows to cool the
vehicle due to reduced engine load.
•Above 40 MPH (64 km/h), it is more
efficient to use A/C to cool the vehicle
due to increased aerodynamic drag.
•Recirculating the cool air in the cabin
when the A/C is on reduces cooling
load.
4. Drive at Economical Speeds and Dis-
tances
•Observing the speed limit and not ex-
ceeding 60 MPH (97 km/h) (where le-
gally allowed) can improve fuel effi-
ciency due to reduced aerodynamic
drag.
•Maintaining a safe following distance
behind other vehicles reduces unneces-
sary braking.
•Safely monitoring traffic to anticipate
changes in speed permits reduced
braking and smooth acceleration
changes.
•Select a gear range suitable to road
conditions.
5. Use Cruise Control
•Using cruise control during highway
driving helps maintain a steady speed.
•Cruise control is particularly effective in
providing fuel savings when driving on
flat terrains.
Utilize a map or navigation system to deter-
mine the best route to save time. 6.
Avoid Idling
•Shutting off your engine when safe for
stops exceeding 30 seconds saves fuel
and reduces emissions.
7. Buy an Automated Pass for Toll Roads
•Automated passes permit drivers to
use special lanes to maintain cruising
speed through the toll and avoid stop-
ping and starting.
8. Winter Warm Up
•Limit idling time to minimize impact to
fuel economy.
•Vehicles typically need no more than
30 seconds of idling at start-up to ef-
fectively circulate the engine oil before
driving.
•Your vehicle will reach its ideal operat-
ing temperature more quickly while
driving versus idling.
9. Keeping your Vehicle Cool
•Park your vehicle in a covered parking
area or in the shade whenever possible.
•When entering a hot vehicle, opening
the windows will help to reduce the
inside temperature faster, resulting in
reduced demand on your A/C system.
FUEL EFFICIENT DRIVING TIPS
5-86Starting and driving

•Keep your engine tuned up.
•Follow the recommended scheduled
maintenance.
•Keep the tires inflated to the correct pres-
sure. Low tire pressure increases tire wear
and lowers fuel economy.
•Keep all the wheels in correct alignment.
Improper alignment increases tire wear
and lowers fuel economy.
•Use the recommended viscosity engine oil.
For additional information, see "Recom-
mended fluids/lubricants and capacities"
in the "10. Technical information" section
WARNING
•Do not drive beyond the performance
capability of the tires, even with 4WD
engaged. Accelerating quickly, sharp
steering maneuvers or sudden braking
may cause loss of control.
•Always use tires of the same type, size,
brand, construction (bias, bias-belted or
radial), and tread pattern on all four
wheels.
•This vehicle is not designed for off-road
(rough road) use. Do not drive on sandy
or muddy roads that tires may get stuck
in.
•For 4WD equipped vehicles, do not at-
tempt to raise two wheels off the
ground and shift the transmission to any
drive or reverse position with the engine
running. Doing so may result in drive-
train damage or unexpected vehicle
movement which could result in serious
vehicle damage or personal injury.
•Do not attempt to test a 4WD equipped
vehicle on a 2-wheel dynamometer
(such as the dynamometers used by
some states for emissions testing) or
similar equipment even if the other two
wheels are raised off the ground. Make sure that you inform the test facility
personnel that your vehicle is equipped
with 4WD before it is placed on a dyna-
mometer. Using the wrong test equip-
ment may result in drivetrain damage or
unexpected vehicle movement which
could result in serious vehicle damage or
personal injury.
•When a wheel is off the ground due to an
uneven surface, do not spin the wheel
excessively.
INCREASING FUEL ECONOMY FOUR-WHEEL DRIVE (4WD) (IF EQUIPPED)
Starting and driving5-87

CAUTION
Never tow the vehicle with one axle raised.
This may damage the differential. Damage
of this sort is not covered by the warranty.
All wheels must be fully raised (see "Four-
Wheel Drive (4WD) models" in the "6. In
case of emergency" section)
4WD, together with VDC, improves the trac-
tion of your vehicle whenever a drive wheel
spins due to insufficient grip.
If you fail to adapt your driving style, 4WD
can neither reduce the risk of an accident nor
override the laws of physics. 4WD cannot
take account of road, weather, and traffic
conditions. 4WD is only an aid. You are re-
sponsible for the distance to the vehicle in
front, for vehicle speed, for braking in good
time, and for staying in lane.
If a drive wheel spins due to insufficient grip
•When pulling away, only depress the ac-
celerator pedal as far as is necessary.
•Accelerate less when driving.
NOTE
In wintry driving conditions, the maximum
effectiveness of 4WD can only be achieved if
you use winter tires (M+S tires), with snow
chains if necessary.
WARNING
•Do not stop or park the vehicle over
flammable materials such as dry grass,
waste paper or rags. They may ignite
and cause a fire.
•Safe parking procedures require that
both the parking brake be applied and
the P (Park) position engaged. Failure to
do so could cause the vehicle to move
unexpectedly or roll away and result in
an accident.
•When parking the vehicle, make sure the
P (Park) position is engaged. The shift
lever cannot be moved out of the P
(Park) position without depressing the
brake pedal.
•Never leave the engine running while the
vehicle is unattended.
•Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls or move the
vehicle. Unattended children could be-
come involved in serious accidents.
•To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not leave
children, people who require the assis-
tance of others, or pets unattended in your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm
day can quickly become high enough to
cause a significant risk of injury or death
to people and pets.
CAUTION
Always secure the vehicle correctly against
rolling away. Otherwise, the vehicle or its
drive train could be damaged.
To ensure that the vehicle is secured against
rolling away unintentionally:
•The electric parking brake must be applied.
•The transmission must be in position P
(Park) and the transmission position dis-
play must show P in the vehicle informa-
tion display.
•The key must be removed from the ignition
switch.
•On uphill or downhill gradients, the front
wheels must be turned towards the curb.
PARKING
5-88Starting and driving

1. Firmly apply the parking brake.
2. Press the P (Park) button.
3. To help prevent the vehicle from movinginto traffic when parked on an incline, it is
a good practice to turn the wheels as
illustrated.
HEADED DOWNHILL WITH CURB
1
Turn the wheels into the curb and move
the vehicle forward until the curb side
wheel gently touches the curb. Then apply
the parking brake.
HEADED UPHILL WITH CURB
2
Turn the wheels away from the curb and
allow the vehicle to move back until the
curb side wheel gently touches the curb.
Then apply the parking brake. HEADED UPHILL OR DOWNHILL,
WITHOUT CURB
3
Turn the wheels toward the side of the
road so the vehicle will move away from
the center of the road if the vehicle moves.
Then apply the parking brake.
4.
Put the ignition switch in the OFF position.
SWITCHING OFF THE ENGINE
WARNING
The automatic transmission switches to
position N (Neutral) when you switch off
the engine. The vehicle may roll away.
There is a risk of an accident.
After switching off the engine, always
switch to position P (Park). Prevent the
parked vehicle from rolling away by apply-
ing the parking brake.
Procedure
1. Apply the electric parking brake.
2. Shift the transmission to position P (Park).
3. With the key: turn the key to the position
OFF in the ignition switch and remove it
The immobilizer is activated.
If you switch the engine off with the trans-
mission in position R (Reverse) or D (Drive),
the automatic transmission shifts to N (Neu-
tral) automatically.
With the key: if you then open the driver's
door or the front-passenger door or remove
the key from the ignition, the automatic
transmission shifts to P (Park) automatically.
If you want the automatic transmission to
remain in neutral N (Neutral), e.g. when hav-
ing the vehicle cleaned in an automatic car
wash with a towing system:
With the key:
1. Switch the ignition on.
2. Depress the brake pedal and keep it de- pressed.
3. Shift to N (Neutral).
SSD0488Z
Starting and driving5-89
