The exterior lighting (except the side lights/
parking lights) switches off automatically if
you:
•Remove the key from the ignition switch (if
equipped).
•Open the driver's door with the ignition
switch in the OFF position.
CAUTION
Use the headlights with the engine running
to avoid discharging the vehicle battery.
Automatic headlight mode
is the preferred light switch setting.
The light setting is automatically selected ac-
cording to the brightness of the ambient light (exception: poor visibility due to weather con-
ditions such as fog, snow or spray):
•Ignition switch in ACC or ON position: the
side lights are switched on or off auto-
matically depending on the brightness of
the ambient light.
•With the engine running: if you have
switched on the daytime driving lights
function in the vehicle information display,
the side lights and low beam headlights
are switched on or off automatically de-
pending on the brightness of the ambient
light.
To switch on automatic headlight mode: turn
the light switch to .
WARNING
When the light switch is set to , the
low-beam headlights may not be switched
on automatically if there is fog, snow or
other causes of poor visibility due to the
weather conditions such as spray. There is
a risk of an accident
In such situations, turn the light switch to
.
The automatic headlight feature is only an
aid. The driver is responsible for the vehicle
lighting at all times. The daytime driving lights improve the de-
tectability of your vehicle during the day.
WARNING
When the daytime running light system is
active, tail lights on your vehicle are not on.
It is necessary at dusk to turn on your
headlights. Failure to do so could cause an
accident injuring yourself and others.
When the side lights and low-beam head-
lights are switched on, the green
(side
lights) and(low-beam headlights) indi-
cator lights in the combination meter light up.
Low-beam headlights
When the ignition is switched on and the light
switch is in theposition, the side lights
and low-beam headlights are switched on
even if the light sensor does not sense dark
ambient light conditions. This is advanta-
geous when there is fog or rain.
To switch on the low-beam headlights:
•Switch the ignition switch to the ON posi-
tion, or start the engine.
•Turn the light switch to. The greenindicator light in the combination
meter lights up.
NIC2697
Halogen headlights
Instruments and controls2-65

ADAPTIVE FRONT LIGHTING
SYSTEM (LED HEADLIGHT
ONLY) (IF EQUIPPED)
The Adaptive Front Lighting System is a sys-
tem that adjusts the headlights automatically
to suit the prevailing driving and weather
conditions. It offers advanced functions for
improved illumination of the road surface,
e.g. depending on the vehicle speed or
weather conditions. The system includes the
active light function, cornering light function
and freeway mode. The system is only active
when it is dark.
You can activate or deactivate the “Adaptive
Front Lighting System” function using the
vehicle information display (see "Switching
the Adaptive Front Lighting System on/off"
earlier in this section)
Active light function
The active light function is a system that
moves the headlights according to the steer-
ing movements of the front wheels. In this
way relevant areas remain illuminated while
you are driving. This helps you to recognize
pedestrians, cyclists and animals. It is active
when the lights are switched on.
Cornering light function
The cornering light function improves the il-
lumination of the road over a wide angle in
the direction you are turning, enabling better
visibility in tight bends, for example. It can
only be activated when the low-beam head-
lights are switched on. It is active if you are
driving at speeds below 25 MPH (40 km/h)
and switch on the turn signal or turn the
steering wheel.
The cornering light function may remain lit for
a short time, but is automatically switched off
after no longer than three minutes.
NSD593NSD592
Instruments and controls2-67

indicator light in the combination meter also
lights up.
If you are driving at speeds below approxi-
mately 28 MPH (45 km/h) or other road
users are detected or the roads are ad-
equately lit The high beam headlights are
switched off automatically. The
indica-
tor light in the combination meter goes out.
The
indicator light in the vehicle infor-
mation display remains lit.
To deactivate:
Move the combination switch back to its nor-
mal position The
indicator light in the
vehicle information display goes out.
HEADLIGHTS MISTED UP ON
THE INSIDE
Certain climatic and physical conditions may
cause moisture to form in the headlight. This
moisture does not affect the functionality of
the headlight.
INSTRUMENT BRIGHTNESS
CONTROL
The light sensor in the combination meter
automatically controls the brightness of the
instrument panel
In daylight, the displays in the combination
meter are not illuminated
The lighting in the combination meter, dis-
plays and controls in the vehicle interior can
be adjusted using the brightness control
knob.
The brightness control knob
1is located
behind the steering wheel.
Turn the brightness control knob clockwise or
counterclockwise. If the light switch is set to
orthe brightness is dependent
upon the brightness of the ambient light.
FRONT FOG LIGHTS
In conditions where visibility is poor due to
fog, snow or rain, the fog lights improve vis-
ibility as well as making it easier for other
road users to see you. They can be operated
together with the side lights or together with
the side lights and low beam headlights.
To switch on the fog lights:
•Turn the ignition switch to the ON position
or start the engine.
•Turn the light switch toor .
•Press thebutton. The greenindicator light in the combination meter
lights up
NIC2615NIC2699
FOG LIGHT SWITCH (IF SO
EQUIPPED)
2-70Instruments and controls

WARNING
To avoid personal injury, keep your hands,
fingers and head away from the sunshade
arm, the arm rail and sunshade inlet port.
NOTE
The following notes cover situations where
strong sun shining on the roof of the vehicle
causes the area around the sunshade motor
to reach high temperatures:
•If the temperature of the sunshade motor
reaches a value between 185 °F (85 °C)
and 212 °F (100 °C), “restricted mode” is
enabled, and the sunshade will only be
allowed to CLOSE.
•If the temperature of the sunshade motor
exceeds 212 °F (100 °C), the sunshade will
not operate.
Opening and closing
Manual control:
To close the sunshade, press and hold the
“CLOSE” side of the switch
1To stop the
sunshade from closing fully, release the
switch. To open the sunshade press and hold the
“OPEN” side of the switch
2To stop the
sunshade from opening fully, release the
switch.
Automatic operation:
To fully open or close the sunshade auto-
matically, press briefly on the open or close
side of the switch and then release. To stop
the sunshade from opening or closing, press
either side of the switch.
Auto-reverse function:
When the control unit detects something
caught by the sunshade, the sunshade will
open automatically.
NOTE
The auto-reverse function remains active
whether the sunshade is being closed manu-
ally or automatically. If the battery cable is disconnected, the clock
will need to be re-adjusted to the correct
time.
ADJUSTING TIME
Set the time using the INFINITI controller and
the [Settings] menu available in the central
display (see "Clock settings" in the "4. Display
screen, heater and air conditioner, and audio
system" section).
NOTE
On vehicles fitted with a navigation system,
the clock is automatically updated via GPS.
The initial clock setting may be incorrect.
NSD659
CLOCK
Instruments and controls2-77

1Locks the vehicle.
2Unlocks the vehicle.
3Panic button.
WARNING
•Radio waves could adversely affect elec-
tric medical equipment. Those who use a
pacemaker should contact the electric
medical equipment manufacturer for the
possible influences before use.
•The Intelligent Key transmits radio
waves when the buttons are pushed.
The FAA advises that the radio waves
may affect aircraft navigation and com-
munication systems. Do not operate the
Intelligent Key while on an airplane.
Make sure that the buttons are not op-
erated unintentionally when the unit is
stored for a flight. The Intelligent Key system can operate all the
door locks using the remote control function
or touching the request switch on the vehicle
without taking the key out from a pocket or
purse. The operating environment and/or
conditions may affect the Intelligent Key sys-
tem operation.
Be sure to read the following before using the
Intelligent Key system.
CAUTION
•Be sure to carry the Intelligent Key with
you when operating the vehicle.
•Never leave the Intelligent Key in the
vehicle when you leave the vehicle.
The Intelligent Key is always communicating
with the vehicle as it receives radio waves.
The Intelligent Key system transmits weak
radio waves. Environmental conditions may
interfere with the operation of the Intelligent
Key system under the following operating
conditions:
•When operating near a location where
strong radio waves are transmitted, such
as a TV tower, power station and broad-
casting station.
•When in possession of wireless equip-
ment, such as a cellular telephone, trans-
ceiver or a CB radio.
•When the Intelligent Key is in contact with
or covered by metallic materials.
•When any type of radio wave remote con-
trol is used nearby.
•When the Intelligent Key is placed near an
electric appliance such as a personal com-
puter.
•When the vehicle is parked near a parking
meter.
In such cases, correct the operating condi-
tions before using the Intelligent Key function
or use the mechanical key.
Although the life of the battery varies de-
pending on the operating conditions, the bat-
tery's life is approximately two years. If the
battery is discharged, replace it with a new
one.
When the Intelligent Key battery is low, an
indicator illuminates in the vehicle informa-
tion display. For additional information, refer
to "Safety systems" in the "2. Instruments and
controls" section.
NPA1493
INFINITI INTELLIGENT KEY SYSTEM
3-8Pre-driving checks and adjustments

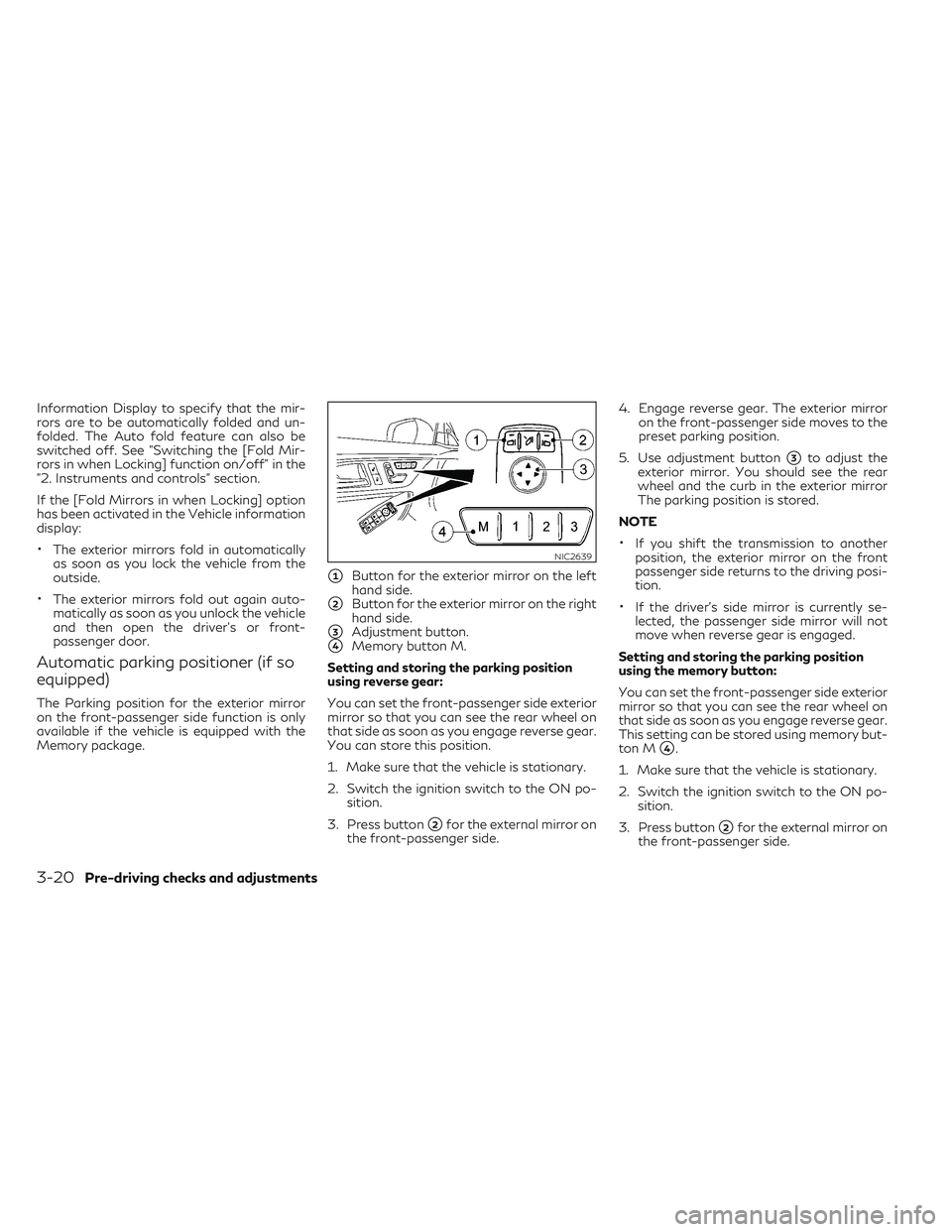

Information Display to specify that the mir-
rors are to be automatically folded and un-
folded. The Auto fold feature can also be
switched off. See "Switching the [Fold Mir-
rors in when Locking] function on/off" in the
"2. Instruments and controls" section.
If the [Fold Mirrors in when Locking] option
has been activated in the Vehicle information
display:
•The exterior mirrors fold in automatically
as soon as you lock the vehicle from the
outside.
•The exterior mirrors fold out again auto-
matically as soon as you unlock the vehicle
and then open the driver's or front-
passenger door.
Automatic parking positioner (if so
equipped)
The Parking position for the exterior mirror
on the front-passenger side function is only
available if the vehicle is equipped with the
Memory package.
1Button for the exterior mirror on the left
hand side.
2Button for the exterior mirror on the right
hand side.
3Adjustment button.
4Memory button M.
Setting and storing the parking position
using reverse gear:
You can set the front-passenger side exterior
mirror so that you can see the rear wheel on
that side as soon as you engage reverse gear.
You can store this position.
1. Make sure that the vehicle is stationary.
2. Switch the ignition switch to the ON po- sition.
3. Press button
2for the external mirror on
the front-passenger side. 4. Engage reverse gear. The exterior mirror
on the front-passenger side moves to the
preset parking position.
5. Use adjustment button
3to adjust the
exterior mirror. You should see the rear
wheel and the curb in the exterior mirror
The parking position is stored.
NOTE
•If you shift the transmission to another
position, the exterior mirror on the front
passenger side returns to the driving posi-
tion.
•If the driver's side mirror is currently se-
lected, the passenger side mirror will not
move when reverse gear is engaged.
Setting and storing the parking position
using the memory button:
You can set the front-passenger side exterior
mirror so that you can see the rear wheel on
that side as soon as you engage reverse gear.
This setting can be stored using memory but-
ton M
4.
1. Make sure that the vehicle is stationary.
2. Switch the ignition switch to the ON po- sition.
3. Press button
2for the external mirror on
the front-passenger side.
NIC2639
3-20Pre-driving checks and adjustments

4 Display screen, heater and air
conditioner, and audio system
Safety precautions.................... .4-2
Center multi function control panel ...........4-2
INFINITI Controller .................. .4-2
Steering wheel mounted controls ..........4-3
USB connection ports ................ .4-4
Starting system .................... .4-4
Touch panel operation ................ .4-4
Operating menu screen ................4-6
Scrolling message or list ................4-7
Selecting item ..................... .4-7
Adjusting volume and settings ............4-7
How to input letters and numbers .........4-8
How to operate display ................4-9
Menu button operation ...............4-10
System status screen ................ .4-11
Items to be set initially ................4-11
Additional system information ...........4-16
RearView monitor (if so equipped) ..........4-17
RearView Monitor system operation .......4-18
How to read the displayed lines ..........4-19
Difference between predicted and actual
distances ....................... .4-19
How to park with predicted course lines .....4-21
Adjusting the screen ................ .4-22
RearView Monitor setting .............4-23
RearView Monitor system limitations ......4-24
System maintenance ................ .4-25Around View Monitor (if so equipped)
.......4-25
Around View Monitor system operation .....4-26
Difference between predicted and actual
distances ....................... .4-30
How to park with predicted course lines .....4-31
How to switch the display .............4-33
Adjusting the screen ................ .4-33
Around View Monitor setting ...........4-34
Around View
®Monitor system limitations . . .4-34
System maintenance ................ .4-37
Sonar function settings (if so equipped) .....4-37
Moving Object Detection (if so equipped) .....4-38
MOD system operation ...............4-39
MOD setting ..................... .4-40
MOD system limitations ...............4-41
MOD malfunction .................. .4-41
System maintenance ................ .4-41
Ventilators ........................ .4-42
Center ventilators .................. .4-42
Side ventilators ................... .4-42
Rear ventilators (if equipped) ............4-42
Heater and air conditioner ...............4-43
Air conditioning system ...............4-44
Automatic climate control (2–zone) .......4-48
Servicing air conditioner ...............4-52
Audio system (if equipped).............. .4-53
Audio operation precautions ............4-53

WARNING
•Do not adjust the heater and air condi-
tioner controls or audio controls while
driving so that full attention may be
given to vehicle operation.
•Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the sys-
tem may result in accident, fire or elec-
tric shock.
•If you noticed any foreign objects enter-
ing the system hardware, spilled liquid
on the system, or noticed smoke or
fumes coming out from the system, or
any other unusual operation is ob-
served, stop using the system immedi-
ately. It is recommended that you con-
tact the nearest INFINITI retailer.
Ignoring such conditions may lead to an
accident, fire or electric shock.
•Do not disassemble or modify this sys-
tem. If you do, it may lead to an accident,
fire, or electric shock.
•Park the vehicle in a safe location and
apply the parking brake to view the im-
ages on the front center display screen.
CAUTION
Do not use the system when the engine is
not running for extended periods of time to
prevent battery discharge.
INFINITI CONTROLLER
1

Push again to display the Display View Bar
and the display views.
Push and hold to hear the current guidance
for a programmed route.
<
>(models without navigation system).
Push to display the hands-free phone opera-
tion screen.
When you receive a phone call, push this
switch to answer the call.
2

USB CONNECTION PORTS
The front console compartment contains the
USB connection ports.
1USB/iPod connection port:
Connect to play media from an iPod®,
iPhone® or a USB memory device. When
using INFINITI InTouch Apps with an
iPhone®, connect via a USB cable. Refer
to the device manufacturer’s owner in-
formation regarding the proper use and
care of the device.
CAUTION
•Depending on the size and shape of USB
device, the console lid may not fully
close. Do not force the console lid closed
as this may damage the USB device. NOTE
•Even when iPods® or iPhones® are con-
nected to both of the two USB/iPod ®
connection ports, the system recognizes
only one of the connected iPods® or iP-
hones® at a time.
•Only one of the two connected USB de-
vices can be operated by the voice recog-
nition system.
STARTING SYSTEM
The system starts when the ignition switch is
placed in the ACC or ON position.
Start-up warning (models with
navigation system)
For this system, when the ignition switch is
placed in the ACC or ON position, the
start-up screen is displayed.
Touch [OK] after reading and agreeing to the
message. If you do not agree to the message,
some of Infiniti InTouch
TMfunctions will be
disabled.
NOTE
•Do not keep the INFINITI InTouch system
turned on with the engine stopped. Doing
so may discharge the vehicle battery.
When you use INFINITI InTouch, always
keep the engine running.
•Once you select [Decline] on the start-up
screen, the [OK]/[Decline] screen will not
be displayed for 30 days.
TOUCH PANEL OPERATION
CAUTION
•The glass screen on the liquid crystal dis-
play may break if it is hit with a hard or
sharp object. If the glass screen breaks,
do not touch it. Doing so could result in
an injury.
•To clean the display, use a soft, dry
cloth. If additional cleaning is necessary,
use a small amount of neutral detergent
with a soft cloth. Never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
•Do not splash any liquid such as water or
car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
NAA1628
4-4Display screen, heater and air conditioner, and audio system
