Settings menu
Depending on the equipment fitted in the
vehicle, in the [Settings] menu you have the
following options:
•Changing the instrument cluster settings.
•Changing the light setting.
•Changing the vehicle setting.
•Changing the convenience setting.
•Restoring the factory setting.
Instrument cluster:
Unit of measurement for distance: The Dis-
play unit Speed-/odometer function allows
you to choose whether certain displays ap-
pear in kilometers or miles in the vehicle infor-
mation display. 1. Press the
orbutton on the
steering wheel to select the [Settings]
menu.
2. Press the
orbutton to select
[Instrument Cluster] submenu.
3. Press to confirm.
4. Press the
orbutton to select
the [Display Unit Speed-/Odometer]
function.
You will see the selected setting: [miles] or
[km].
5. Press the button to change the set- ting.
The selected unit of measurement for dis-
tance applies to:
•Digital speedometer in the [Trip] menu.
•Total distance recorder and the trip meter.
•Trip computer.
•Current fuel consumption and approxi-
mate range.
•Navigation instructions in the [Navi] menu.
•Cruise control.
•Speed limiter.
•Intelligent cruise control (ICC).
•Maintenance service interval display.
Switching the additional speedometer on/
off.
The [Speedometer (mph)] or [Speedometer
(km/h)] function allows you to choose
whether the vehicle information display in the
status area shows the speed in MPH or in
km/h instead of the outside temperature.
1. Press the
orbutton on the
steering wheel to select the [Settings]
menu.
2. Press the
orbutton to select
[Instrument Cluster] submenu.
3. Press to confirm.
4. Press the
orbutton to select
the [Speedometer (mph)] or [Speedom-
eter (km/h)] function.
You will see the selected setting: [On] or
[off].
5. Press the button to change the set- ting.
Selecting the permanent display function.
You can determine whether the vehicle infor-
mation display permanently shows the out-
side temperature or the speed in MPH.
NIC2731
Instruments and controls2-25

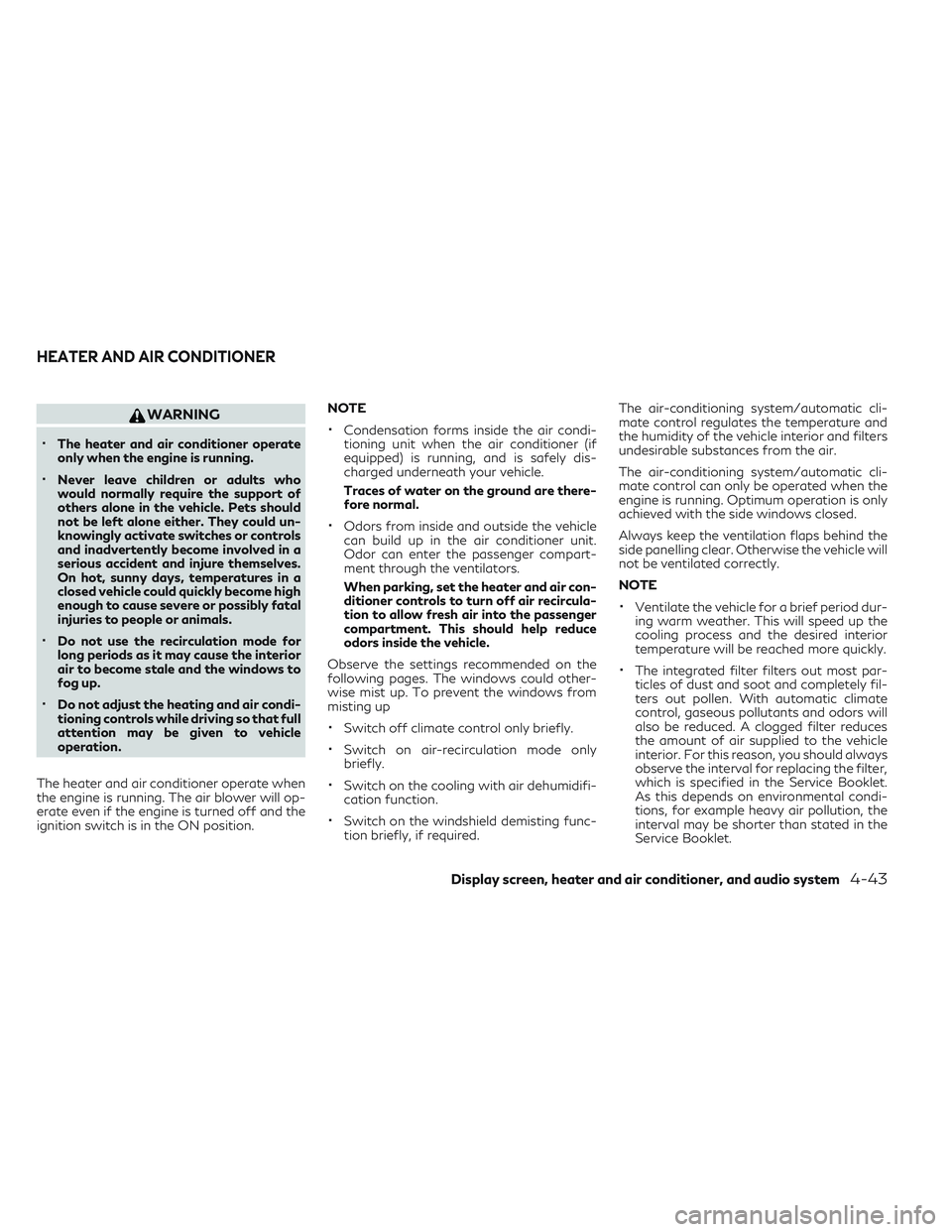

WARNING
•The heater and air conditioner operate
only when the engine is running.
•Never leave children or adults who
would normally require the support of
others alone in the vehicle. Pets should
not be left alone either. They could un-
knowingly activate switches or controls
and inadvertently become involved in a
serious accident and injure themselves.
On hot, sunny days, temperatures in a
closed vehicle could quickly become high
enough to cause severe or possibly fatal
injuries to people or animals.
•Do not use the recirculation mode for
long periods as it may cause the interior
air to become stale and the windows to
fog up.
•Do not adjust the heating and air condi-
tioning controls while driving so that full
attention may be given to vehicle
operation.
The heater and air conditioner operate when
the engine is running. The air blower will op-
erate even if the engine is turned off and the
ignition switch is in the ON position. NOTE
•Condensation forms inside the air condi-
tioning unit when the air conditioner (if
equipped) is running, and is safely dis-
charged underneath your vehicle.
Traces of water on the ground are there-
fore normal.
•Odors from inside and outside the vehicle
can build up in the air conditioner unit.
Odor can enter the passenger compart-
ment through the ventilators.
When parking, set the heater and air con-
ditioner controls to turn off air recircula-
tion to allow fresh air into the passenger
compartment. This should help reduce
odors inside the vehicle.
Observe the settings recommended on the
following pages. The windows could other-
wise mist up. To prevent the windows from
misting up
•Switch off climate control only briefly.
•Switch on air-recirculation mode only
briefly.
•Switch on the cooling with air dehumidifi-
cation function.
•Switch on the windshield demisting func-
tion briefly, if required. The air-conditioning system/automatic cli-
mate control regulates the temperature and
the humidity of the vehicle interior and filters
undesirable substances from the air.
The air-conditioning system/automatic cli-
mate control can only be operated when the
engine is running. Optimum operation is only
achieved with the side windows closed.
Always keep the ventilation flaps behind the
side panelling clear. Otherwise the vehicle will
not be ventilated correctly.
NOTE
•Ventilate the vehicle for a brief period dur-
ing warm weather. This will speed up the
cooling process and the desired interior
temperature will be reached more quickly.
•The integrated filter filters out most par-
ticles of dust and soot and completely fil-
ters out pollen. With automatic climate
control, gaseous pollutants and odors will
also be reduced. A clogged filter reduces
the amount of air supplied to the vehicle
interior. For this reason, you should always
observe the interval for replacing the filter,
which is specified in the Service Booklet.
As this depends on environmental condi-
tions, for example heavy air pollution, the
interval may be shorter than stated in the
Service Booklet.
HEATER AND AIR CONDITIONER
Display screen, heater and air conditioner, and audio system4-43

NOTE
You should only select this setting until the
windshield is clear again.
Windows misted up on the outside:
1. Activate the windshield wipers.
2. Set the air distribution to
or.
NOTE
You should only select this setting until the
windows are clear again.
Air recirculation mode
You can deactivate the flow of fresh air if
unpleasant odors are entering the vehicle
from outside. The air already inside the ve-
hicle will then be recirculated.
If you activate air-recirculation mode, the
windows can mist up more quickly, in particu-
lar at low temperatures. Only use air recircu-
lation mode briefly to prevent the windows
misting up.
Activating air recirculation mode:
Make sure the ignition switch is in the ON
position.
Press the
button. The indicator light in
thebutton lights up.
Air-recirculation mode is activated automati-
cally at high outside temperatures or high levels of pollution. When air-recirculation
mode is activated automatically, the indicator
light in the
button is not lit. Outside air
is added after about 30 minutes.
Deactivating air recirculation mode:
Press the
button. The indicator light in
thebutton goes out.
NOTE
Air-recirculation mode is deactivated auto-
matically:
•After approximately five minutes at out-
side temperatures below approximately
45°F(7°C).
•After approximately five minutes if the
"Cooling with air dehumidification" func-
tion is deactivated.
•After approximately 30 minutes at outside
temperatures above approximately 45 ° F
(7 °C) if the cooling with air dehumidifica-
tion function is activated.
SERVICING AIR CONDITIONER
WARNING
The air conditioner system contains refrig-
erant under high pressure. To avoid per-
sonal injury, any air conditioner service should be done only by an experienced
technician with the proper equipment.
The air conditioner system in your vehicle is
charged with a refrigerant designed with the
environment in mind.
This refrigerant will not harm the earth’s
ozone layer.
Special charging equipment and lubricant are
required when servicing your vehicle’s air
conditioner. Using improper refrigerants or
lubricants will cause severe damage to the air
conditioner system. (See "Air conditioner sys-
tem refrigerant and oil recommendations" in
the "9. Maintenance and Schedules" section.)
An INFINITI retailer will be able to service
your environmentally friendly air conditioner
system.
Air conditioner filter
The air conditioner system is equipped with
an air conditioner filter. To make sure the air
conditioner heats, defogs, and ventilates ef-
ficiently, replace the filter in accordance with
the specified maintenance intervals listed in
the separate maintenance booklet. It is rec-
ommended you visit an INFINITI retailer for
this service.
4-52Display screen, heater and air conditioner, and audio system

Some day-to-day and regular maintenance is
essential to maintain your vehicle’s good me-
chanical condition, as well as its emission and
engine performance.
It is the owner’s responsibility to make sure
that the specified maintenance, as well as
general maintenance, is performed.
As the vehicle owner, you are the only one
who can ensure that your vehicle receives the
proper maintenance care. You are a vital link
in the maintenance chain.
GENERAL MAINTENANCE
General maintenance includes those items
which should be checked during normal day-
to-day operation of the vehicle. They are es-
sential if your vehicle is to continue to operate
properly. It is your responsibility to perform
these procedures regularly as prescribed.
Performing general maintenance checks re-
quires minimal mechanical skill and only a few
general automotive tools.
These checks and inspections can be done by
yourself, a qualified technician, or if you pre-
fer, an INFINITI retailer.
SCHEDULED MAINTENANCE
The maintenance items listed under "Mainte-
nance schedules" later in this section are re-
quired to be serviced at regular intervals.
However under severe driving conditions, ad-
ditional or more frequent maintenance will be
required.
WHERE TO GO FOR SERVICE
If maintenance service is required or your
vehicle appears to malfunction, have the sys-
tems checked and serviced. It is recom-
mended you visit an INFINITI retailer for this
service.
INFINITI technicians are well-trained spe-
cialists and are kept up to date with the latest
service information through technical bulle-
tins, service tips and training programs. They
are completely qualified to work on INFINITI
vehiclesbeforework begins.
You can be confident that an INFINITI retail-
er’s service department can perform the ser-
vice needed to meet the maintenance re-
quirements on your vehicle. During normal day-to-day operation of the
vehicle, general maintenance should be per-
formed regularly as prescribed in this section.
If you detect any unusual sounds, vibrations
or smells, be sure to check for the cause or
have an INFINITI retailer do it promptly. In
addition, it is recommended you notify an
INFINITI retailer if you think that repairs are
required.
When performing any checks or maintenance
work, closely observe "Explanation of general
maintenance items" later in this section.
EXPLANATION OF GENERAL
MAINTENANCE ITEMS
Additional information on the following
items with “*” is found later in the “Do-it-
yourself” section of this manual.
Outside the vehicle
The maintenance items listed here should be
performed from time to time, unless other-
wise specified.
Doors and engine hood:
Check that all doors, the lift gate and the
engine hood operate smoothly. Also make
sure that all latches lock securely. Lubricate if
necessary. Make sure that the secondary
latch keeps the hood from opening when the
MAINTENANCE REQUIREMENTS
GENERAL MAINTENANCE
9-2Maintenance and Schedules

INFINITI retailer for this service. See "Precau-
tions when starting and driving" in the "5.
Starting and driving" section.
Fluid leaks:
Check under the vehicle for fuel, oil, water or
other fluid leaks after the vehicle has been
parked for a while. Water dripping from the
air conditioner after use is normal. If you
should notice any leaks or if gasoline fumes
are evident, check for the cause and have it
corrected immediately.
Radiator and hoses:
Check the front of the radiator and clean off
any dirt, insects, leaves, etc., that may have
accumulated. Make sure the hoses have no
cracks, deformation, rot or loose connec-
tions.Underbody:
The underbody is frequently exposed to cor-
rosive substances such as those used on icy
roads or to control dust. It is very important to
remove these substances, otherwise rust will
form on the floor pan, frame, fuel lines and
around the exhaust system. At the end of
winter, the underbody should be thoroughly
flushed with plain water, being careful to
clean those areas where mud and dirt may
accumulate. For additional information, see
"Cleaning exterior" in the "7. Appearance and
care" section.
Windshield washer fluid*:
Check that there is adequate fluid in the res-
ervoir.
The following descriptions are provided to
give you a better understanding of the sched-
uled maintenance items that should be regu-
larly checked or replaced. The maintenance
schedule indicates at which mileage/time in-
tervals each item requires service.
In addition to scheduled maintenance, your
vehicle requires that some items be checked
during normal day-to-day operation. Refer to
"General maintenance" in this section.
Items marked with “*” are recommended by
INFINITI for reliable vehicle operation. You
are not required to perform maintenance on
these items in order to maintain the warran-
ties which come with your vehicle. Other
maintenance items and intervals are required.
When applicable, additional information can
be found in the “Do-it-yourself” section in
Chapter 8.
NOTE
INFINITI does not advocate the use of non-
OEM approved aftermarket flushing sys-
tems and strongly advises against perform-
ing these services on an INFINITI product.
Many of the aftermarket flushing systems
use non-OEM approved chemicals or sol-
vents, the use of which has not been vali-
dated by INFINITI.
EXPLANATION OF GENERAL
MAINTENANCE ITEMS
Maintenance and Schedules9-5

For recommended fuel, lubricants, fluids,
grease, and refrigerant, refer to "Recom-
mended fluids/lubricants and capacities" in
the "10. Technical information" section.
EMISSION CONTROL SYSTEM
MAINTENANCE
Drive belts*:
Check engine drive belts for wear, fraying or
cracking and for proper tension. Replace any
damaged drive belts
Engine air filter*:
Replace at specified intervals. When driving
for prolonged periods in dusty conditions,
check/replace the filter more frequently.
Engine coolant*:
Replace coolant at the specified interval.
When adding or replacing coolant, be sure to
use only Genuine INFINITI Engine Coolant or
equivalent in its quality (BASF Glysantin®
G40®). (For additional information, refer to
"Engine cooling system" in the "9. Mainte-
nance and Schedules" sectionnanceand
SchedulesMaintenance and Schedules" sec-
tion nanceand SchedulesMaintenance and
Schedules" section nanceand Schedules-
Maintenance and Schedules" section nance-
and SchedulesMaintenance and Schedules"
section nanceand SchedulesMaintenanceand Schedules" section nanceand Schedules-
Maintenance and Schedules" section nance-
and SchedulesMaintenance and Schedules"
section nanceand SchedulesMaintenance
and Schedules" section nanceand Schedules-
Maintenance and Schedules" section nance-
and SchedulesMaintenance and Schedules"
section nanceand SchedulesMaintenance
and Schedules" section.)
NOTE
Mixing any other type of coolant or the use
of non-distilled water may reduce the rec-
ommended service interval of the coolant.
Engine oil and oil filter:
Replace engine oil and oil filter at the speci-
fied intervals. For recommended oil grade
and viscosity refer to "Recommended fluids/
lubricants and capacities" in the "10. Techni-
cal information" section calinformationTech-
nical information" section information"
section.
Fuel filter:
Replace the fuel filter and drain the water at
the specified intervals.
Fuel lines*:
Check the fuel hoses, piping and connections
for leaks, looseness, or deterioration. Tighten
connections or replace parts as necessary.
Spark plugs:
Replace at specified intervals. Install new
plugs of the type as originally equipped.
CHASSIS AND BODY
MAINTENANCE
Brake lines and cables:
Visually inspect for proper installation. Check
for chafing, cracks, deterioration, and signs
of leaking. Replace any deteriorated or dam-
aged parts immediately.
Brake pads, rotors, drums, & linings:
Check for wear, deterioration and fluid leaks.
Replace any deteriorated or damaged parts
immediately.
Exhaust system:
Visually inspect the exhaust pipes, muffler
and hangers for leaks, cracks, deterioration,
and damage. Tighten connections or replace
parts as necessary.
In-cabin microfilter:
Replace at specified intervals. When driving
for prolonged periods in dusty conditions, re-
place the filter more frequently.
9-6Maintenance and Schedules

Propeller shaft(s):
Check for damage, looseness, and grease
leakage. (4WD/AWD).
Steering gear and linkage, axle and suspen-
sion parts, drive shaft boots:
Check for damage, looseness, and leakage of
oil or grease. Under severe driving conditions,
inspect more frequently
Tire rotation:
Tires should be rotated every 5,000 miles
(8,000 km) according to the instructions un-
der "Tire rotation*" earlier in this section.
When rotating tires, check for damage and
uneven wear. Replace if necessary.
Transmission fluid/oil, differential oil,
transfer case oil:
Visually inspect for signs of leakage at speci-
fied intervals.To ensure smooth, trouble-free, safe and
economical driving, INFINITI provides two
maintenance schedules that may be used,
depending upon the conditions in which you
usually drive. These schedules contain both
distance and time intervals, up to 120,000
miles (192,000 km)/144 months. For most
people, the odometer reading will indicate
when service is needed. However, if you drive
very little, your vehicle should be serviced at
the regular time intervals shown in the sched-
ule.
After 120,000 miles (192,000 km)/144
months, continue maintenance at the same
mileage/time intervals.
ADDITIONAL MAINTENANCE
ITEMS FOR SEVERE OPERATING
SYSTEMS
Additional maintenance items for severe op-
erating conditions; should be performed on
vehicles that are driven under especially de-
manding conditions. Additional maintenance
items should be performed if you primarily
operate your vehicle under the following con-
ditions:
•Repeated short trips of less than 5 miles in
normal temperatures or less than 10 miles
in freezing temperatures.
•Stop-and-go traffic in hot weather or low
speed driving for long distances.
•Driving in dusty conditions or on rough,
muddy or salt-spread roads.
•Towing a trailer, or using a camper or car-
top carrier.
OIL CHANGE MONITOR
This vehicle is equipped with oil change moni-
tor. It calculates engine oil and filter change
interval base on driving conditions. Driving in
severe conditions will shorten the engine oil
and filter change interval. When the Engine
Oil – Service Due Now warning appears in
the vehicle information display, the engine oil
and filter need to be replaced.
NOTE
For vehicles operated in Canada, both stan-
dard and severe maintenance items should
be performed at every interval.
MAINTENANCE SERVICE
MESSAGES
The maintenance service interval display in-
forms you of the next service due date.
NOTE
The maintenance service interval display
does not show any information on the engine
oil level.
MAINTENANCE SCHEDULES
Maintenance and Schedules9-7

The vehicle information display shows a ser-
vice message for a few seconds, for example:
•[Service A In .. days]
•[Service A Due]
•[Service A Exceeded by .. days]
Depending on the operating conditions of the
vehicle, the remaining time or distance until
the next service due date is displayed.
The letter indicates which service is due. A
stands for a minor service and B for a major
service. A number or another letter may be
displayed after the letter.
Only for certain countries: the position after
the letter A or B indicates any necessary ad-
ditional maintenance work. If you notify an
INFINITI retailer of this display, you will re-
ceive a statement on the associated costs.
The maintenance service interval display
does not take into account any periods of
time during which the battery is discon-
nected. Maintaining the time-dependent service
schedule:
Note down the service due date displayed in
the vehicle information display before dis-
connecting the battery.
or
After reconnecting the battery, subtract the
battery disconnection periods from the ser-
vice date shown on the display.
Hiding service messages
Press the orbutton on the steer-
ing wheel.
Displaying service messages
1. Switch the ignition on.
2. Press the
orbutton on the
steering wheel to select the [Serv.] menu.
3. Press the
orbutton to select
[Maintenance] submenu and confirm by
pressing the OK button.
The service due date appears in the vehicle
information display.
Information about service
Resetting the maintenance service interval
display:
CAUTION
If the maintenance service interval display
has been inadvertently reset, this setting
can be corrected at an INFINITI retailer.
Have service work carried out as described
in the Maintenance Schedule. This may
otherwise lead to increased wear and dam-
age to the major assemblies or the vehicle.
An INFINITI retailer will reset the mainte-
nance service interval display after the service
work has been carried out. You can also ob-
tain further information on maintenance
work, for example.
Special service requirements:
The prescribed service interval is based on
normal operation of the vehicle. Service work
will need to be performed more often if the
vehicle is operated under arduous conditions
or increased loads, for example:
•Regular city driving with frequent interme-
diate stops
•If the vehicle is primarily used to travel
short distance
9-8Maintenance and Schedules

based on the temperatures at which the ve-
hicle will be operated before the next oil
change. Choosing an oil viscosity other than
that recommended could cause serious en-
gine damage.
Outside Temperature Range
Anticipated Before Next Oil Change
GASOLINE ENGINE OIL
JVT0428X
Selecting the correct oil filter
Your new vehicle is equipped with a high—
quality genuine INFINITI oil filter. When re-
placing, it is recommended you use the genu-
ine oil filter or its equivalent for the reason
described in “Change intervals”.
Change intervals
The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Using engine oil and
filters that are not of the specified quality, or
exceeding recommended oil and filter change
intervals could reduce engine life. Damage to
engines caused by improper maintenance or
use of incorrect oil and filter quality and/or
viscosity is not covered by the new INFINITI
New Vehicle Limited Warranty.
Your engine was filled with a high quality
engine oil when it was built. You do not have
to change the oil before the first recom-
mended change interval. Oil and filter change
intervals depend upon how you use your
vehicle.Operation under the following conditions
may require more frequent oil and filter
changes:
•Repeated short distance driving at cold
outside temperatures
•Driving in dusty conditions
•Extensive idling
•Stop and go “rush hour” traffic
Refer to the “INFINITI Service and Mainte-
nance Guide” for the maintenance schedule.
AIR CONDITIONER SYSTEM
REFRIGERANT AND OIL
RECOMMENDATIONS
The air conditioner system of your vehicle
must be charged with the refrigerant HFC-
134a and the lubricant INFINITI A/C System
Oil Type S or the exact equivalents.
10-6Technical information
