•If dirt builds up in the shoulder belt guide
of the seat belt anchors, the seat belts may
retract slowly. Wipe the shoulder belt
guide with a clean, dry cloth.
•Periodically check to see that the seat belt
and the metal components, such as buck-
les, tongues, retractors, flexible wires and
anchors, work properly. If loose parts, de-
terioration, cuts or other damage on the
webbing is found, the entire seat belt as-
sembly should be replaced.
WARNING
Do not allow children to play with the seat
belts. Most seating positions are equipped
with Automatic Locking Retractor (ALR)
mode seat belts. If the seat belt becomes
wrapped around a child’s neck with the
ALR mode activated, the child can be seri-
ously injured or killed if the seat belt re-
tracts and becomes tight. This can occur
even if the vehicle is parked. Unbuckle the
seat belt to release the child. If the seat belt
can not be unbuckled or is already unbuck-
led, release the child by cutting the seat
belt with a suitable tool (such as a knife or
scissors) to release the seat belt.
Children need adults to help protect them.
They need to be properly restrained.
In addition to the general information in this
manual, child safety information is available
from many other sources, including doctors,
teachers, government traffic safety offices,
and community organizations. Every child is
different, so be sure to learn the best way to
transport your child. There are three basic types of child restraint
systems:•Rear-facing child restraint
•Forward-facing child restraint
•Booster seat
The proper restraint depends on the child’s
size. Generally, infants up to about 1 year and
less than 20 lb (9 kg) should be placed in
rear-facing child restraints. Forward-facing
child restraints are available for children who
outgrow rear-facing child restraints and are
at least 1 year old. Booster seats are used to
help position a vehicle lap/ shoulder belt on a
child who can no longer use a forward-facing
child restraint.
WARNING
Infants and children need special protec-
tion. The vehicle’s seat belts may not fit
them properly. The shoulder belt may come
too close to the face or neck. The lap belt
may not fit over their small hip bones. In an
accident, an improperly fitting seat belt
could cause serious or fatal injury. Always
use appropriate child restraints.
CHILD SAFETY
Safety — seats, seat belts and supplemental restraint system1-17

A booster seat should be used until the child
can pass the seat belt fit test below:
•Are the child’s back and hips against the
vehicle seatback?
•Is the child able to sit without slouching?
•Do the child’s knees bend easily over the
front edge of the seat with feet flat on the
floor?
•Can the child safely wear the seat belt (lap
belt low and snug across the hips and
shoulder belt across mid-chest and shoul-
der)?
•Is the child able to use the properly ad-
justed head restraint/headrest?
•Will the child be able to stay in position for
the entire ride?
If you answered no to any of these questions,
the child should remain in a booster seat us-
ing a three-point type seat belt.
NOTE
Laws in some communities may follow dif-
ferent guidelines. Check local and state
regulations to confirm your child is using the
correct restraint system before traveling.
WARNING
Never let a child stand or kneel on any seat
and do not allow a child in the cargo area.
The child could be seriously injured or killed
in a sudden stop or collision.
SSS0099Z
WRS0256Z
CHILD RESTRAINTS
Safety — seats, seat belts and supplemental restraint system1-19

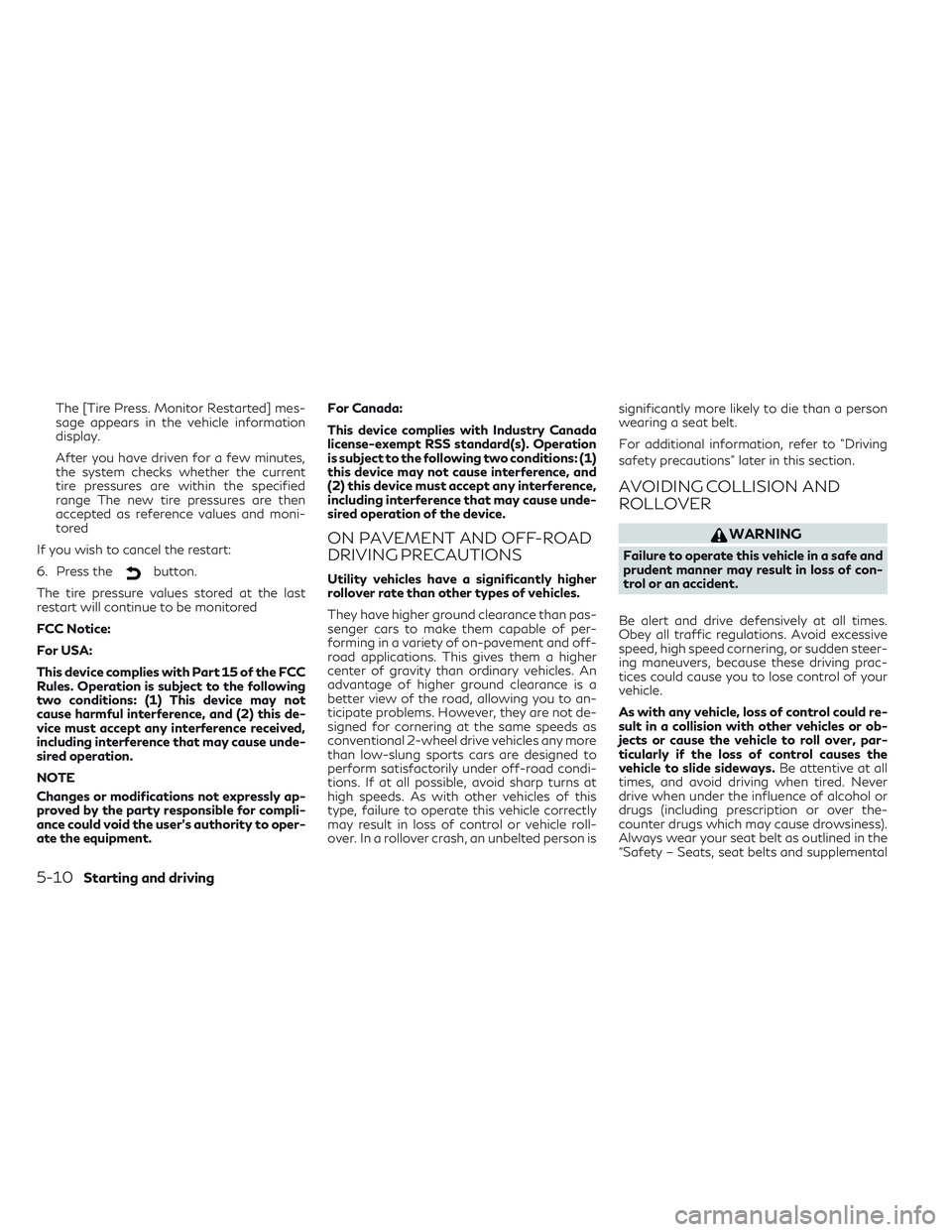

The [Tire Press. Monitor Restarted] mes-
sage appears in the vehicle information
display.
After you have driven for a few minutes,
the system checks whether the current
tire pressures are within the specified
range The new tire pressures are then
accepted as reference values and moni-
tored
If you wish to cancel the restart:
6. Press the
button.
The tire pressure values stored at the last
restart will continue to be monitored
FCC Notice:
For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this de-
vice must accept any interference received,
including interference that may cause unde-
sired operation.
NOTE
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment. For Canada:
This device complies with Industry Canada
license-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device.
ON PAVEMENT AND OFF-ROAD
DRIVING PRECAUTIONS
Utility vehicles have a significantly higher
rollover rate than other types of vehicles.
They have higher ground clearance than pas-
senger cars to make them capable of per-
forming in a variety of on-pavement and off-
road applications. This gives them a higher
center of gravity than ordinary vehicles. An
advantage of higher ground clearance is a
better view of the road, allowing you to an-
ticipate problems. However, they are not de-
signed for cornering at the same speeds as
conventional 2-wheel drive vehicles any more
than low-slung sports cars are designed to
perform satisfactorily under off-road condi-
tions. If at all possible, avoid sharp turns at
high speeds. As with other vehicles of this
type, failure to operate this vehicle correctly
may result in loss of control or vehicle roll-
over. In a rollover crash, an unbelted person issignificantly more likely to die than a person
wearing a seat belt.
For additional information, refer to "Driving
safety precautions" later in this section.
AVOIDING COLLISION AND
ROLLOVER
WARNING
Failure to operate this vehicle in a safe and
prudent manner may result in loss of con-
trol or an accident.
Be alert and drive defensively at all times.
Obey all traffic regulations. Avoid excessive
speed, high speed cornering, or sudden steer-
ing maneuvers, because these driving prac-
tices could cause you to lose control of your
vehicle.
As with any vehicle, loss of control could re-
sult in a collision with other vehicles or ob-
jects or cause the vehicle to roll over, par-
ticularly if the loss of control causes the
vehicle to slide sideways. Be attentive at all
times, and avoid driving when tired. Never
drive when under the influence of alcohol or
drugs (including prescription or over the-
counter drugs which may cause drowsiness).
Always wear your seat belt as outlined in the
“Safety – Seats, seat belts and supplemental
5-10Starting and driving

•Heavy braking going down a hill could
cause your brakes to overheat and fade,
resulting in loss of control and an acci-
dent. Apply brakes lightly and use a low
gear to control your speed.
•Unsecured cargo can be thrown around
when driving over rough terrain. Prop-
erly secure all cargo so it will not be
thrown forward and cause injury to you
or your passengers.
•Secure heavy loads in the cargo area as
far forward and as low as possible. Do
not equip the vehicle with tires larger
than specified in this manual. This could
cause your vehicle to roll over.
•Do not grip the inside or spokes of the
steering wheel when driving off-road.
The steering wheel could move suddenly
and injure your hands. Instead drive with
your fingers and thumbs on the outside
of the rim.
•Before operating the vehicle, ensure
that the driver and all passengers have
their seat belts fastened.
•Always drive with the floor mats in place
as the floor may become hot.
•Lower your speed when encountering
strong crosswinds. With a higher center of gravity, your INFINITI is more af-
fected by strong side winds. Slower
speeds ensure better vehicle control.
•Do not drive beyond the performance
capability of the tires, even with AWD
engaged.
•For AWD equipped vehicles, do not at-
tempt to raise two wheels off the
ground and shift the transmission to any
drive or reverse position with the engine
running. Doing so may result in drive-
train damage or unexpected vehicle
movement which could result in serious
vehicle damage or personal injury.
•Do not attempt to test an AWD
equipped vehicle on a 2-wheel dyna-
mometer (such as the dynamometers
used by some states for emissions test-
ing), or similar equipment even if the
other two wheels are raised off the
ground. Make sure you inform test facil-
ity personnel that your vehicle is
equipped with AWD before it is placed
on a dynamometer. Using the wrong
test equipment may result in drivetrain
damage or unexpected vehicle move-
ment which could result in serious ve-
hicle damage or personal injury.
•When a wheel is off the ground due to an
unlevel surface, do not spin the wheel
excessively.
•Accelerating quickly, sharp steering ma-
neuvers or sudden braking may cause
loss of control.
•If at all possible, avoid sharp turning ma-
neuvers, particularly at high speeds.
Your INFINITI vehicle has a higher cen-
ter of gravity than a passenger car. The
vehicle is not designed for cornering at
the same speeds as passenger cars. Fail-
ure to operate this vehicle correctly
could result in loss of control and/or a
rollover accident.
•Always use tires of the same type, size,
brand, construction (bias, bias-belted,
or radial), and tread pattern on all four
wheels. Install tire chains on the front
wheels when driving on slippery roads
and drive carefully.
•Be sure to check the brakes immediately
after driving in mud or water. .
•Avoid parking your vehicle on steep hills.
If you get out of the vehicle and it rolls
forward, backward or sideways, you
could be injured.
Starting and driving5-13

•Whenever you drive off-road through
sand, mud or water as deep as the wheel
hub, more frequent maintenance may be
required. For additional information, re-
fer to "Maintenance schedules" in the
"9. Maintenance and Schedules"
section.
ALL-WHEEL DRIVE (AWD)
DRIVING SAFETY PRECAUTIONS
(IF SO EQUIPPED)
WARNING
•Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
•Always use tires of the same type, size,
brand, construction (bias, bias-belted or
radial), and tread pattern on all four
wheels. Install tire chains on the front
wheels when driving on slippery roads
and drive carefully.
•This vehicle is not designed for off-road
(rough road) use. Do not drive on sandy
or muddy roads that tires may get stuck
in.
•For AWD equipped vehicles, do not at-
tempt to raise two wheels off the
ground and shift the transmission to any
D (Drive) or R (Reverse) position with
the engine running. Doing so may result
in drivetrain damage or unexpected ve-
hicle movement which could result in se-
rious vehicle damage or personal injury
•Do not attempt to test an AWD
equipped vehicle on a 2-wheel dyna-
mometer, (such as the dynamometers
used by some states for emissions test-
ing), or similar equipment even if the
other two wheels are raised off the
ground. Make sure you inform test facil-
ity personnel that your vehicle is
equipped with AWD before it is placed
on a dynamometer. Using the wrong
test equipment may result in drivetrain
damage or unexpected vehicle move-
ment which could result in serious ve-
hicle damage or personal injury.
•When a wheel is off the ground due to an
unlevel surface, do not spin the wheel
excessively. The INFINITI Vehicle Immobilizer System will
not allow the engine to start without the use
of the registered key.
If the engine fails to start using the registered
key, it may be due to interference caused by
another registered key, an automated toll
road device or automated payment device on
the key ring. Restart the engine using the
following procedures:
1. Leave the ignition switch in the ON posi-
tion for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK position and wait approximately 5
seconds.
3. Repeat Step 1 and 2 again.
4. Restart the engine while holding the de- vice (which may have caused the interfer-
ence) separate from the registered key.
If the no start condition re-occurs, INFINITI
recommends placing the registered key on a
separate key ring to avoid interference from
other devices.
INFINITI VEHICLE IMMOBILIZER
SYSTEM
5-14Starting and driving

•Keep your engine tuned up.
•Follow the recommended scheduled
maintenance.
•Keep the tires inflated to the correct pres-
sure. Low tire pressure increases tire wear
and lowers fuel economy.
•Keep all the wheels in correct alignment.
Improper alignment increases tire wear
and lowers fuel economy.
•Use the recommended viscosity engine oil.
For additional information, see "Recom-
mended fluids/lubricants and capacities"
in the "10. Technical information" section
WARNING
•Do not drive beyond the performance
capability of the tires, even with 4WD
engaged. Accelerating quickly, sharp
steering maneuvers or sudden braking
may cause loss of control.
•Always use tires of the same type, size,
brand, construction (bias, bias-belted or
radial), and tread pattern on all four
wheels.
•This vehicle is not designed for off-road
(rough road) use. Do not drive on sandy
or muddy roads that tires may get stuck
in.
•For 4WD equipped vehicles, do not at-
tempt to raise two wheels off the
ground and shift the transmission to any
drive or reverse position with the engine
running. Doing so may result in drive-
train damage or unexpected vehicle
movement which could result in serious
vehicle damage or personal injury.
•Do not attempt to test a 4WD equipped
vehicle on a 2-wheel dynamometer
(such as the dynamometers used by
some states for emissions testing) or
similar equipment even if the other two
wheels are raised off the ground. Make sure that you inform the test facility
personnel that your vehicle is equipped
with 4WD before it is placed on a dyna-
mometer. Using the wrong test equip-
ment may result in drivetrain damage or
unexpected vehicle movement which
could result in serious vehicle damage or
personal injury.
•When a wheel is off the ground due to an
uneven surface, do not spin the wheel
excessively.
INCREASING FUEL ECONOMY FOUR-WHEEL DRIVE (4WD) (IF EQUIPPED)
Starting and driving5-87

vehicle at high speeds until the brakes func-
tion correctly.
Driving uphill
When starting on a steep gradient, it is some-
times difficult to operate the brake. Use the
parking brake to hold the vehicle. When ready
to start, make sure that the shift lever is in an
appropriate forward or reverse driving posi-
tion, release the parking brake while depress-
ing the accelerator pedal. If your vehicle has
an electric parking brake, this will automati-
cally release when you depress the accelera-
tor pedal (DCT models).
Driving downhill
The engine braking action is effective for
controlling the vehicle while descending hills.
A low gear position in the manual shift mode,
low enough to obtain sufficient engine brak-
ing, should be selected.
Parking brake break-in
Break in the parking brake shoes whenever
the stopping effect of the parking brake is
weakened or whenever the parking brake
shoes and/or drums/rotors are replaced, in
order to assure the best braking perfor-
mance.This procedure is described in the vehicle ser-
vice manual and can be performed by an
INFINITI retailer.
ANTI-LOCK BRAKING SYSTEM
(ABS)
WARNING
The Anti-lock Braking System (ABS) is a
sophisticated device, but it cannot prevent
accidents resulting from careless or dan-
gerous driving techniques. It can help
maintain vehicle control during braking on
slippery surfaces. Remember that stopping
distances on slippery surfaces will be lon-
ger than on normal surfaces even with
ABS. Stopping distances may also be lon-
ger on rough, gravel or snow covered
roads, or if you are using tire chains. Al-
ways maintain a safe distance from the ve-
hicle in front of you. Ultimately, the driver
is responsible for safety.
Tire type and condition may also affect
braking effectiveness.
– When replacing tires, install the specified
size of tires on all four wheels.
– When installing a replacement tire, make
sure that it is the proper size and type as
specified on the tire and loading informa- tion label. (See "Wheels and Tires" in the
"9. Maintenance and Schedules" section.)
– For detailed information, see "Wheels and
tires" in the "8. Do-it-yourself" section.
The Anti-lock Braking System (ABS) controls
the brakes so the wheels do not lock during
hard braking or when braking on slippery sur-
faces. The system detects the rotation speed
at each wheel and varies the brake fluid pres-
sure to prevent each wheel from locking and
sliding. By preventing each wheel from lock-
ing, the system helps the driver maintain
steering control and helps to minimize swerv-
ing and spinning on slippery surfaces.
Using system
Depress the brake pedal and hold it down.
Depress the brake pedal with firm steady
pressure, but do not pump the brakes. The
ABS will operate to prevent the wheels from
locking up. Steer the vehicle to avoid ob-
stacles.
WARNING
Do not pump the brake pedal. Doing so may
result in increased stopping distances.
5-92Starting and driving

When the VDC system operates, the VDC
warning light in the instrument panel flashes
so note the following:
•The road may be slippery or the system
may determine some action is required to
help keep the vehicle on the steered path.
•You may feel a pulsation in the brake pedal
and hear a noise or vibration from under
the hood. This is normal and indicates that
the VDC system is working properly.
•Adjust your speed and driving to the road
conditions.
See " Vehicle Dynamic Control (VDC) warning
light" in the "2. Instruments and controls" sec-
tion.
If a malfunction occurs in the system, the
VDC warning light
illuminates in the
instrument panel. The VDC system automati-
cally turns off.
WARNING
•The VDC system is designed to help the
driver maintain stability but does not pre-
vent accidents due to abrupt steering op-
eration at high speeds or by careless or
dangerous driving techniques. Reduce ve-
hicle speed and be especially careful when driving and cornering on slippery surfaces
and always drive carefully.
•Do not modify the vehicle’s suspension.
If suspension parts such as shock ab-
sorbers, struts, springs, stabilizer bars,
bushings and wheels are not INFINITI
recommended for your vehicle or are ex-
tremely deteriorated, the VDC system
may not operate properly. This could
adversely affect vehicle handling per-
formance, and the VDC warning light
may illuminate.
•If brake related parts such as brake
pads, rotors and calipers are not
INFINITI recommended or are extremely
deteriorated, the VDC system may not
operate properly and the VDC warning
light
may illuminate.
•If engine control related parts are not
INFINITI recommended or are extremely
deteriorated, the VDC warning light
may illuminate.
•When driving on extremely inclined sur-
faces such as higher banked corners, the
VDC system may not operate properly
and the VDC warning light
may illu-
minate. Do not drive on these types of
roads.
•When driving on an unstable surface
such as a turntable, ferry, elevator or
ramp, the VDC warning light
may
illuminate. This is not a malfunction. Re-
start the engine after driving onto a
stable surface.
•If wheels or tires other than the INFINITI
recommended ones are used, the VDC
system may not operate properly and
the VDC warning light
may illumi-
nate.
•The VDC system is not a substitute for
winter tires or tire chains on a snow cov-
ered road.
•If VDC is malfunctioning, VDC is unable
to stabilize the vehicle. In addition,
other driving safety systems are
switched off. This increases the risk of
skidding and an accident. Drive on care-
fully. Have VDC checked. It is recom-
mended you visit an INFINITI retailer for
this service.
CAUTION
•When VDC is deactivated, theVDC OFF warning light lights up con-
tinuously.
5-94Starting and driving

roll away There is a risk of an accident
and injury. Therefore, quickly move your
foot from the brake pedal to the accel-
erator pedal. Never leave the vehicle
when it is held by hill start assist.
Hill start assist helps you when pulling away
forwards or in reverse on an uphill gradient. It
holds the vehicle for a short time after you
have removed your foot from the brake
pedal. This gives you enough time to move
your foot from the brake pedal to the accel-
erator pedal and depress it before the vehicle
begins to roll.
Hill start assist is not active if
•You are pulling away on a level road or a
downhill gradient.
•On vehicles with automatic transmission,
the transmission is in position N.
•The electric parking brake is applied.
•VDC is malfunctioning.
FREEING A FROZEN DOOR LOCK
To prevent a door lock from freezing, apply
deicer through the key hole. If the lock be-
comes frozen, heat the key before inserting it
into the key hole, or use the INFINITI Intelli-
gent Key.
ANTIFREEZE
In the winter when it is anticipated that the
temperature will drop below 32°F (0°C),
check the antifreeze to assure proper winter
protection. For additional information, see
"Engine cooling system" in the "8. Do-it-
yourself" section.
BATTERY
If the battery is not fully charged during ex-
tremely cold weather conditions, the battery
fluid may freeze and damage the battery. To
maintain maximum efficiency, the battery
should be checked regularly. For details, see
"Battery" in the "8. Do-it-yourself" section of
this manual.
DRAINING OF ENGINE COOLANT
If the vehicle is to be left outside without
antifreeze, drain the cooling system, including
the engine block. Refill before operating the
vehicle. For details, see "Changing engine
coolant" in the "8. Do-it-yourself" section of
this manual.
TIRE EQUIPMENT
1. SUMMER tires have a tread designed to provide superior performance on dry
pavement. However, the performance of
these tires will be substantially reduced in
snowy and icy conditions. If you operate
your vehicle on snowy or icy roads,
INFINITI recommends the use of MUD &
SNOW or ALL SEASON TIRES on all four
wheels. It is recommended that you visit
an INFINITI retailer for the tire type, size,
speed rating and availability information.
2. For additional traction on icy roads, stud- ded tires may be used. However, some
U.S. states and Canadian provinces pro-
hibit their use. Check local, state and pro-
vincial laws before installing studded tires.
Skid and traction capabilities of studded
snow tires, on wet or dry surfaces, may be
poorer than that of non-studded snow tires.
3. Tire chains may be used if desired. Make sure they are the proper size for the tires
on your vehicle and are installed according
to the chain manufacturer’s instructions.
Use chain tensioners when recommended
by the tire chain manufacturer to ensure a
tight fit. Loose end links of the tire chains
must be secured or removed to prevent
the possibility of whipping action damage
to the fenders or underbody. In addition,
COLD WEATHER DRIVING
Starting and driving5-97

In addition to the vehicle load, the driving
distance possible depends upon:
•Vehicle speed.
•Road condition.
•Outside temperature.
The driving distance possible in run-flat mode
may be reduced by extreme driving
conditions/maneuvers, or it can be increased
through a moderate style of driving.
The driving distance possible in run-flat mode
is counted from the moment the tire pressure
loss warning appears in the vehicle informa-
tion display.
You must not exceed a maximum speed of 50
MPH (80 km/h).
When replacing one or all tires, observe the
following specifications for your vehicle's
tires:
•Size
•Type
•Run-flat mark
If a tire has gone flat and cannot be replaced
with a run flat tire, a standard tire may be
used as a temporary measure. Make sure that
you use the proper size and type (summer or
winter tire).
WARNING
Do not exceed the stated maximum speed.
Avoid abrupt steering and driving maneu-
vers, and driving over obstacles (curbs, pot
holes, off road). This applies in particular to
a laden vehicle.
Stop driving in emergency mode if:
•You hear banging noises.
•The vehicle starts to shake.
•You see smoke and smell rubber.
•VDC is intervening constantly.
•There are tears in the sidewalls of the
tire.
After driving in emergency mode, have the
wheel rims checked with regard to their
further use. It is recommended you visit an
INFINITI retailer for this service. The faulty
tire must be replaced.
REMOVING AND FITTING
WHEELS
NOTE
A spare wheel is not provided with your ve-
hicle.
Blocking the wheels
WARNING
Make sure to block the appropriate wheel
to prevent the vehicle from moving, which
may cause personal injury.
Place suitable blocks
1in front of and be-
hind the wheel diagonally opposite the flat
tire
Ato prevent the vehicle from moving
when it is on the jack.
MCE0001DZ
In case of emergency6-5
