EM-72Revision: October 2005
ENGINE ASSEMBLY
2005 QX56
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:

When replacing an engine or transmission you must make sure the dowels are installed correctly
during re-assembly.

Improper alignment caused by missing dowels may cause vibration, oil leaks or breakage of driv-
etrain components.
INSPECTION AFTER INSTALLATION

Before starting the engine, check oil/fluid levels including engine coolant and engine oil. If the levels are
lower than required quantity, fill to the specified level. Refer to MA-11, "
RECOMMENDED FLUIDS AND
LUBRICANTS" .

Use procedure below to check for fuel leakage.

Turn ignition switch ON (with engine stopped). With fuel pressure applied to the fuel piping, check for fuel
leakage at the connection points.

Start engine. With engine speed increased, check again for fuel leakage at connection points.

Run engine to check for unusual noise and vibration.

Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gas, or any oils/fluids includ-
ing engine oil and engine coolant.

Bleed air from passages in lines and hoses, such as in cooling system.

After cooling down the engine, again check oil/fluid levels including engine oil and engine coolant. Refill to
specified level if necessary.

Summary of the inspection items:
*Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluids* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gas — Leakage —

EM-74Revision: October 2005
CYLINDER BLOCK
2005 QX56
* Refer to GI-45, "Recommended Chemical Products and Sealants" .
DISASSEMBLY
NOTE:
Explained here is how to disassemble with engine stand supporting transmission surface. When using differ-
ent type of engine stand, note steps may be different.
1. Remove engine assembly and mount to engine stand. Refer to EM-69, "
REMOVAL" .
CAUTION:
Before removing the hanging chains, make sure engine stand is stable and there is no risk of over-
turning.
2. Drain engine oil. Refer to LU-8, "
Changing Engine Oil" .
3. Drain engine coolant by removing the cylinder block drain plugs
“A”, “B”, “C” and “D” as shown.
4. Remove the following components and associated parts (The parts referred to in step 1 are not included
here.)

Oil pan and oil strainer. Refer to EM-22, "REMOVAL" .

Crankshaft pulley, front cover and timing chain. Refer to EM-36, "REMOVAL" .

Camshaft. Refer to EM-43, "REMOVAL" .

Cylinder head. Refer to EM-59, "REMOVAL" .
5. Remove knock sensor.
CAUTION:
Carefully handle sensor, avoiding shocks.
6. Check connecting rod side clearance. Refer to EM-89, "
CONNECTING ROD SIDE CLEARANCE" .
7. Remove piston and connecting rod assembly as follows.
a. Position the crankshaft pin corresponding to the connecting rod to be removed onto bottom dead center.
b. Remove connecting rod cap.
1. Knock sensor sub-harness 2. Knock sensor 3. Cylinder block
4. Main bearing 5. Top ring 6. Second ring
7. Oil ring 8. Crankshaft key 9. Piston
10. Connecting rod 11. Snap ring 12. Piston pin
13. Connecting rod bearing 14. Connecting rod bearing cap 15. Main bearing cap
16. Thrust bearing 17. Main bearing 18. Crankshaft
19. Pilot converter 20. Thrust bearing 21. Side bolt
22. Drive plate 23. Reinforcement plate 24. Rear oil seal retainer
25. Rear oil seal 26. Transmission 27. O-ring
28. Crankshaft position sensor (POS) 29. Gasket 30. Cylinder block heater
31. Connector cap
WBIA0419E

EM-78Revision: October 2005
CYLINDER BLOCK
2005 QX56
6. Install main bearing caps.

Align the identification number to the journal position to install.

Install it with the front mark (indicated by the arrow) facing the
front of engine.

Tap caps lightly to seat them in the installation position.
7. Follow the steps below to tighten each main bearing cap bolt.
a. Apply engine oil to threads and seating surfaces of bolts, and
tighten all bolts temporarily.
b. Measure tightening angle using Tool.
CAUTION:
Measure tightening angle using Tool. Do not measure visu-
ally.

Rotate crankshaft by hand after bolts are tightened. Check if it rotates smoothly.

Check crankshaft side clearance. Refer to EM-89, "CRANKSHAFT END PLAY" .
8. Install rear oil seal to the oil seal retainer.
CAUTION:
Do not damage or scratch outer circumference of oil seal.

Install new rear oil seal in the direction shown.
KBIA2533E
Main bearing cap bolts
in order of 1 to 10: 39.2 N·m (4.0 kg-m, 29 ft.-lb)
Main bearing cap sub
bolts in order of 11 to 20: 29.4 N·m (3.0 kg-m, 22 ft-lb)
PBIC0090E
Tool number : KV10112100 (BT-8653-A)
Main bearing cap bolts in
order of 1 to 10: 40°
Main bearing cap sub
bolts in order of 11 to 20: 30°
Side bolts in order of 21 to
30: 49 N·m (5.0 kg-m, 36 ft-lb)
WBIA0597E
SEM 71 5A

EM-80Revision: October 2005
CYLINDER BLOCK
2005 QX56
12. Install the connecting rod bearings to the connecting rod and
connecting rod cap.

When installing the connecting rod bearings, apply engine oil
to the bearing surface (inside). Do not apply oil to the back
surface, but thoroughly clean it.

When installing, align the connecting rod bearing stopper pro-
trusion with the cutout of the connecting rod to install.

Check that the oil holes on the connecting rod and those on
the corresponding bearing are aligned.
13. Install the piston and connecting rod assembly to the crankshaft
using Tool.

Position the crankshaft pin corresponding to the connecting
rod to be installed onto bottom dead center.

Apply engine oil sufficiently to the cylinder bore, piston, and
crankshaft pin.

Match the cylinder position with the cylinder No. on the con-
necting rod to install.

Install the piston with the front mark on the piston crown fac-
ing the front of the engine.
CAUTION:
Be careful not to damage the crankshaft pin, resulting from an interference of the connecting
rod big end.
14. Install connecting rod cap.

Match the stamped cylinder number marks on the connecting
rod with those on the cylinder cap to install.
15. Tighten connecting rod bolts using Tool.

Apply engine oil to threads and seats of connecting rod bolts.

After tightening bolts, make sure the crankshaft rotates
smoothly.

Check connecting rod side clearance. Refer to EM-89, "CON-
NECTING ROD SIDE CLEARANCE"
PBIC0266E
Tool number : EM03470000 (J-8037)
WBIA0626E
KBIA2536E
Tool number : KV10112100 (BT-8653-A
Connecting rod bolts
Step 1 : 19.6 N·m (1.5 kg-m, 11 ft-lb)
Step 2 : 90° clockwise
WBIA0627E

EM-90Revision: October 2005
CYLINDER BLOCK
2005 QX56
Piston and Piston Pin Clearance
(Piston pin clearance) = (Piston pin hole diameter) – (Piston pin
diameter)

If clearance exceeds specification, replace either or both the pis-
ton/piston pin assembly and the connecting rod assembly with
reference to the specification of each part.

Refer to the piston selection table to replace piston/piston pin
assembly. Refer to EM-83, "
HOW TO SELECT PISTON" .

Refer to the connecting rod bearing selection table to replace
connecting rod. Refer to EM-84, "
HOW TO SELECT CON-
NECTING ROD BEARING" .
NOTE:
The connecting rod small end grade and piston pin hole (piston
pin) grade are provided only for the parts installed at the plant.
For service parts, no grades can be selected (only 0 grade is
available).

Refer to EM-92, "Connecting Rod Bushing Oil Clearance (Small
End)" for the values for each grade at the plant.
PISTON RING SIDE CLEARANCE

Measure side clearance of the piston ring and piston ring groove
using suitable tool.

If out of specification, replace piston and/or piston ring assembly.
PISTON RING END GAP

Check if the diameter of the cylinder bore is within specification.
Refer to EM-94, "
Piston to Cylinder Bore Clearance" .

Insert the piston ring into the middle of the cylinder using the pis-
ton, and measure gap.Standard : 0.002 - 0.006 mm (0.0001 - 0.0002 in)
KBIA2496E
KBIA2536E
Standard:
Top ring : 0.035 - 0.085 mm (0.0014 - 0.0033 in)
2nd ring : 0.030 - 0.070 mm (0.0012 - 0.0028 in)
Oil ring : 0.015 - 0.050 mm (0.0006 - 0.0020 in)
Limit:
Top ring : 0.11 mm (0.0043 in)
2nd ring : 0.10 mm (0.0039 in)
SEM 02 4AA
Standard
Top ring : 0.23 - 0.33 mm (0.0091 - 0.0130 in)
2nd ring : 0.25 - 0.40 mm (0.0098 - 0.0157 in)
Oil ring : 0.20 - 0.60 mm (0.0079 - 0.0236 in)
Limit:
Top ring : 0.56 mm (0.0220 in)
2nd ring : 0.52 mm (0.0205 in)
Oil ring : 0.96 mm (0.0378 in)
PBIC0 118 E

CYLINDER BLOCK
EM-91
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: October 20052005 QX56

If out of specification, replace piston ring. If the gap still exceeds the limit even with a new ring, re-bore the
cylinder and use oversized piston and piston ring.
CONNECTING ROD BEND AND TORSION

Check connecting rod alignment using suitable tool.

If measurement exceeds the limit, replace connecting rod
assembly.
CONNECTING ROD BEARING (BIG END)

Install the connecting rod cap without the connecting rod bearing
installed. After tightening the connecting rod bolt to the specified
torque, measure the connecting rod large end inside diameter.
Refer to EM-77, "
ASSEMBLY" .

If measurement exceeds the standard, replace connecting rod.
CONNECTING ROD BUSHING OIL CLEARANCE (SMALL END)
Connecting Rod Inside Diameter (Small End)

Measure inside diameter of bushing using suitable tool.Limit:
Bend
: 0.15 mm (0.0059 in) per 100 mm (3.94 in) length
To r s i o n
: 0.30 mm (0.0118 in) per 100 mm (3.94 in) length
SEM 00 3F
SEM 03 8F
Standard : 57.000 - 57.013 mm (2.2441 - 2.2446 in)
PBIC1641E
Standard : 22.000 - 22.006 mm (0.8661 - 0.8664 in)
PBIC0120E

CYLINDER BLOCK
EM-97
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: October 20052005 QX56
Method of Using Plastigage

Remove oil and dust on the crankshaft journal and surfaces of
each bearing completely.

Cut a plastigage slightly shorter than the bearing width, and
place it in crankshaft axial direction, avoiding oil holes.

Install the main bearings to the cylinder block and main bearing
cap, and tighten the main bearing bolts to the specified torque.
CAUTION:
Do not rotate crankshaft with plastigage installed.

Remove bearing cap and bearings. Measure plastigage width
using the scale on the plastigage bag.
NOTE:
The procedure when the measured value exceeds the repair limit is the same as that described in
“Method of Measurement”.
CRUSH HEIGHT OF MAIN BEARING

When the bearing cap is removed after being tightened to the
specified torque with main bearings installed, the tip end of the
bearing must protrude. Refer to EM-77, "
ASSEMBLY" for the
tightening procedure.

If standard is not met, replace main bearings.
CRUSH HEIGHT OF CONNECTING ROD BEARING

When connecting rod bearing cap is removed after being tight-
ened to the specified torque with the connecting rod bearings
installed, the tip end of the bearing must protrude. Refer to EM-
77, "ASSEMBLY" for the tightening procedure.

If standard is not met, replace connecting rod bearings.
MAIN BEARING CAP BOLT DIAMETER

Check for bolts (M9 and M12) installed from lower side using the
following procedure.
NOTE:

Side bolt (M10) is outside the target.

Figure shows M12 bolt.

Measure bolt diameter "d1" from tip of the bolt to dimension "a".

Measure bolt diameter "d"2 from the dimension between tip of
the bolt and dimension "b" as base station to dimension "c".
NOTE:
If a narrower part in the threads is determined by visual check,
measure ″d2″ at that point.

Calculate the difference between "d1" and "d2".
KBIA2551E
Standard : There must be crush height
SEM 50 2G
Standard : There must be crush height.
PBIC1646E
KBIA2497E

DRIVE SHAFT
FAX-7
C
E
F
G
H
I
J
K
L
MA
B
FA X
Revision: October 20052005 QX56
DRIVE SHAFTPFP:39100
Removal and InstallationEDS001XF
REMOVAL
1. Remove wheel and tire using power tool.
2. Remove engine under cover using power tool.
3. Remove ABS sensor harness from mount on knuckle.
CAUTION:
Do not pull on ABS sensor harness.
4. Without disassembling the hydraulic lines, remove brake caliper using power tool. Reposition it aside with
wire. Refer to BR-21, "
Removal and Installation of Brake Caliper Assembly and Disc Rotor" .
NOTE:
Avoid depressing brake pedal while brake caliper is removed.
5. Remove coil spring and shock absorber assembly using power tool. Refer to FSU-10, "
Removal and
Installation" .
6. Separate upper link ball joint stud from steering knuckle using
Tool.

Support lower link with jack.
7. Remove cotter pin, then remove drive shaft nut.
8. Remove drive shaft mounting bolts from front final drive.
9. Remove drive shaft from wheel hub and bearing assembly.
CAUTION:

When removing drive shaft, do not apply an excessive
angle to drive shaft joint. Also be careful not to exces-
sively extend slide joint.
INSPECTION AFTER REMOVAL

Move joint up, down, left, right, and in axial direction. Check for any rough movement or significant loose-
ness.

Check boot for cracks or other damage, and for grease leakage.

If damaged, disassemble drive shaft to verify damage, and
repair or replace as necessary.
1. Cotter pin 2. Drive shaft nut 3. Drive shaft
LDIA0159E
Tool number : ST29020001 (J-24319-01)
LEIA0095E
RAA0030D

FFD-2
PRECAUTIONS
Revision: October 20052005 QX56
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EDS003PC
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WAR NIN G:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
PrecautionsEDS003PD
CAUTION:

Before starting diagnosis of the vehicle, understand symptoms well. Perform correct and system-
atic operations.

Check for the correct installation status prior removal or disassembly. When matching marks are
required, be sure they do not interfere with the function of the parts they are applied to.

Carry out an overhaul in a clean work place, Using a dust proof room is recommended.

Before disassembly, using steam or white gasoline, completely remove sand and mud from the
exterior the unit, preventing them from entering into the unit during disassembly or assembly.

Check appearance of the disassembled parts for damage, deformation, and abnormal wear. If a
malfunction is detected, replace it with a new one.

Normally replace lock pins, oil seals, and bearings with new ones every times they are removed.

In principle, tighten bolts or nuts gradually in several steps working diagonally from inside to out-
side. If tightening sequence is specified, observe it.

Clean and flush the parts sufficiently and blow them dry.

Be careful not to damage the sliding surfaces and mating surface.

When applying sealant, remove the old sealant from the mounting surface; then remove any mois-
ture, oil, and foreign materials from the application and mounting surfaces.

Always use shop paper for cleaning the inside of components.

Avoid using cotton gloves or a shop cloth to prevent entering of lint.

During assembly, observe the specified tightening torque, and new differential gear oil, Vaseline,
or multi-purpose grease, as specified for each vehicle, when necessary.

FFD-14
FRONT FINAL DRIVE ASSEMBLY
Revision: October 20052005 QX56
ASSEMBLY INSPECTION AND ADJUSTMENT

Before inspection and adjustment, drain gear oil.
Total Preload Torque
1. Rotate drive pinion back and forth 2 to 3 times to check for unusual noise and rotation malfunction.
2. Rotate drive pinion at least 20 times to check for smooth operation of the bearing.
3. Measure total preload with preload gauge.

If measured value is out of the specification, disassemble it to
check and adjust each part. Adjust the pinion bearing preload
and side bearing preload.
Adjust the pinion bearing preload first, then adjust the side bear-
ing preload.
34. Bushing 35. Bearing 36 Screw
37 Dowel pin

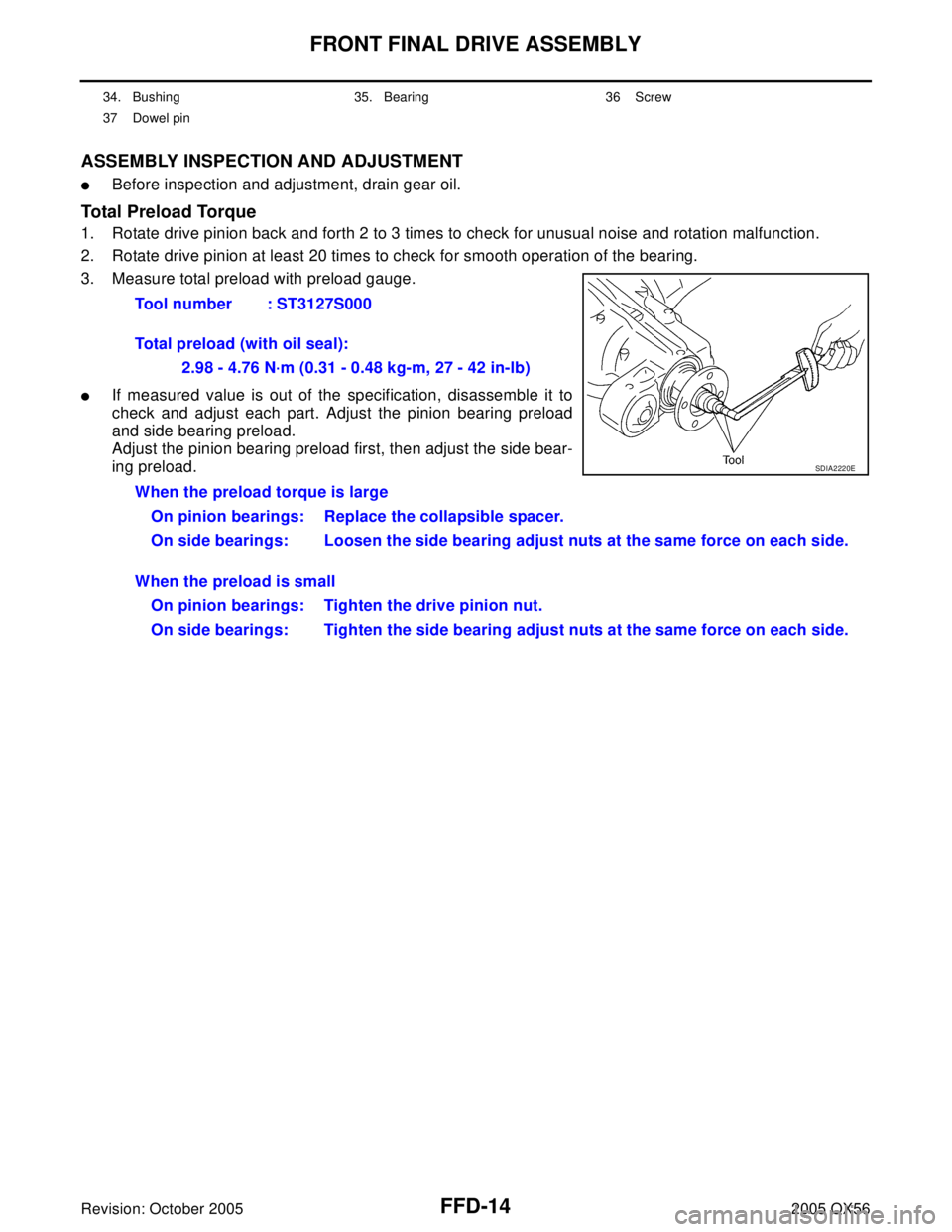

Tool number : ST3127S000
Total preload (with oil seal):
2.98 - 4.76 N·m (0.31 - 0.48 kg-m, 27 - 42 in-lb)
SDIA2220E
When the preload torque is large
On pinion bearings: Replace the collapsible spacer.
On side bearings: Loosen the side bearing adjust nuts at the same force on each side.
When the preload is small
On pinion bearings: Tighten the drive pinion nut.
On side bearings: Tighten the side bearing adjust nuts at the same force on each side.
