RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS
GI-45
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: October 20052005 QX56
RECOMMENDED CHEMICAL PRODUCTS AND SEALANTSPFP:00000
Recommended Chemical Products and SealantsEAS001G1
Refer to the following chart for help in selecting the appropriate chemical product or sealant.
Product Description PurposeNissan North America
Part No. (USA)Nissan Canada Part
No. (Canada)Aftermarket Cross-
reference Part Nos.
1Rear View Mirror
AdhesiveUsed to permanently
remount rear view mirrors
to windows.999MP-AM000P 99998-50505 Permatex 81844
2Anaerobic Liquid Gas-
ketFor metal-to-metal flange
sealing.
Can fill a 0.38 mm (0.015
inch) gap and provide
instant sealing for most
powertrain applications.999MP-AM001P 99998-50503Permatex 51813 and
51817
3High Performance
Thread SealantProvides instant sealing on
any threaded straight or
parallel threaded fitting.
(Thread sealant only, no
locking ability.)

Do not use on plastic.999MP-AM002P 999MP-AM002P Permatex 56521
4 Silicone RTVGasket Maker999MP-AM003P
(Ultra Grey)99998-50506
(Ultra Grey)Permatex Ultra Grey
82194;
Three Bond
1207,1215, 1216,
1217F and 1217G;
Nissan RTV Part No.
999MP-A7007
Gasket Maker for Maxima/
Quest 5-speed automatic
transmission
(RE5F22A)––Three Bond 1281B
or exact equivalent
in its quality
5High Temperature,
High Strength Thread
Locking Sealant (Red)Threadlocker 999MP-AM004P 999MP-AM004PPermatex 27200;
Three Bond 1360,
1360N, 1305 N&P,
1307N, 1335,
1335B, 1363B,
1377C, 1386B, D&E
and 1388
6Medium Strength
Thread Locking Seal-
ant (Blue)Threadlocker (service tool
removable)999MP-AM005P 999MP-AM005PPermatex 24200,
24206, 24240,
24283 and 09178;
Three Bond 1322,
1322N, 1324 D&N,
1333D, 1361C,
1364D, 1370C and
1374

GI-46
IDENTIFICATION INFORMATION
Revision: October 20052005 QX56
IDENTIFICATION INFORMATIONPFP:00010
Model VariationEAS001G2
Prefix and suffix designations:
Position Character Qualifier Definition
1 J Body type J: Wagon
2
PK Engine PK: VK56DE
3
4AAxleA: 2WD
W: 4WD
5LDrive L: LH
6VGradeV: LE
7 K Transmission K: RE5R05A (5A/T)
8
I40 Model I40: 2005 QX56 9
10
11 E Intake E: Multiport fuel injection system engine
12 U ZoneN: Canada
U: USA
13 A Equipment A: Standard
14
XXXXX Option Codes Option Codes 15
16
17
18
Drive Type Body Engine Transmission Destination Grade Model
2WD Wagon VK56DE RE5R05A (5A/T) U.S.A. LE JPKALVK-EUA
4WD Wagon VK56DE RE5R05A (5A/T)U.S.A.
LEJPKWLVK-EUA
Canada JPKWLVK-ENA

GI-48
IDENTIFICATION INFORMATION
Revision: October 20052005 QX56
ENGINE SERIAL NUMBER
TRANSFER SERIAL NUMBER
AUTOMATIC TRANSMISSION NUMBER
LAIA0044E
LAIA0048E
PAIA0054E

TERMINOLOGY
GI-53
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: October 20052005 QX56
***: Not applicableTransmission control module TCM A/T control unit
Turbocharger TC Turbocharger
Vehicle speed sensor VSS Vehicle speed sensor
Volume air flow sensor VAFS Air flow meter
Warm up oxidation catalyst WU-OC Catalyst
Warm up oxidation catalytic converter sys-
temWU-OC system ***
Warm up three way catalyst WU-TWC Catalyst
Warm up three way catalytic converter sys-
temWU-TWC system ***
Wide open throttle position switch WOTP switch Full switchNEW TERMNEW ACRONYM /
ABBREVIATIONOLD TERM

IDX-2
ALPHABETICAL INDEX
Numerics
2-4WD shift solenoid valve ..... TF-94
, TF-152, TF-165
4WD - Wiring diagram ....................................... TF-24
4WD shift switch ................................................ TF-66
4WD solenoid valve ................ TF-90, TF-152, TF-165
4WD system description .................................... TF-15
4WD system diagram ........................................ TF-19
A
A/C air flow ...................................................... ATC-29
A/C compressor clutch removal and installation .. ATC-
180
A/C compressor mounting ............................. ATC-179
A/C compressor precaution ............................. ATC-11
A/C compressor special service tool ................ ATC-14
A/C control operation (auto A/C) ...................... ATC-26
A/C diagnostic work flow (auto A/C) .............. ATC-132
A/C evaporator ............................................... ATC-186
A/C HFC134a (R134a) system identification ..... ATC-7
A/C HFC134a (R134a) system precaution ........ ATC-5
A/C HFC134a (R134a) system service procedure ATC-
175
A/C HFC134a (R134a) system service tools ... ATC-14
A/C HFC134a system service equipment precaution ...
ATC-11
A/C lubricant (R134a) ...................................... ATC-22
A/C lubrication oil ............................................. ATC-22
A/C operational check ....................... ATC-57, ATC-60
A/C self-diagnoses (auto A/C) ........ ATC-55, ATC-132
A/C service data specification ........................ ATC-193
A/C trouble diagnoses (auto A/C) .................... ATC-33
A/C, A - Wiring diagram ................................... ATC-43
A/T fluid checking ...................... AT-13, AT-50, MA-22
A/T fluid cooler cleaning .................................... AT-13
A/T fluid replacement ............................. AT-13, MA-24
A/T fluid temperature sensor ........................... AT-126
A/T IND - Wiring diagram .................................... DI-40
A/T indicator ........................................................ DI-40
A/T shift lock system ........................................ AT-222
A/T trouble diagnoses ........................................ AT-41
A/T Wiring diagram AT - CAN ............................ AT-96
A/T Wiring diagram AT - FTS .......................... AT-127
A/T Wiring diagram AT - MAIN ........................ AT-168
A/T Wiring diagram AT - NONDTC .................. AT-177
A/T Wiring diagram AT - PNP/SW ................... AT-105
A/T Wiring diagram AT - STSIG ...................... AT-100
A/T Wiring diagram AT - VSS A/T ................... AT-110
ABS - Wiring diagram ..................................... BRC-16
ABS (anti-lock brake system) ........................... BRC-7
Accelerator control system ............................... ACC-2
Accelerator pedal position (APP) sensor . EC-591, EC-
597, EC-611
Accelerator pedal released position learning ..... EC-90
AF1B1-Wiring diagram EC-461, EC-470, EC-479, EC-
489, EC-500, EC-510, EC-522
AF1B2-Wiring diagram EC-463, EC-472, EC-481, EC-
491, EC-502, EC-512, EC-524
AF1HB1-Wiring diagram ................................. EC-387
AF1HB2-Wiring diagram ................................. EC-389
Aiming adjustment .................................. LT-30, LT-78
Air bag ............................................................... SRS-3
Air cleaner and air duct ..................................... EM-14
Air cleaner filter replacement ............................ MA-16
Air conditioner cut control ................................. EC-28
Air flow meter - See Mass air flow sensor EC-174, EC-
183
Air fuel ratio sensor 1 .. EC-459, EC-468, EC-477, EC-
487, EC-497, EC-507, EC-519
Air fuel ratio sensor 1 heater ........................... EC-386
Air mix. door motor .......................................... ATC-70
Ambient sensor ............................. ATC-137, ATC-148
Angular tightening application ............................. EM-3
APPS1 - Wiring diagram ................................. EC-593
APPS2 - Wiring diagram ................................. EC-599
APPS3 - Wiring diagram ................................. EC-613
ASC/BS - Wiring diagram ............................... EC-571
ASC/SW - Wiring diagram .............................. EC-554
ASCBOF - Wiring diagram .............................. EC-658
ASCD ................................................................ EC-29
ASCD (automatic speed control device) ........... ACS-3
ASCD brake switch ........................... EC-569, EC-657
ASCD indicator lamp ....................................... EC-664
ASCD steering switch ..................................... EC-552
ASCIND - Wiring diagram ............................... EC-665
ATP switch ............................ TF-107, TF-110, TF-115
AUDIO - Wiring diagram .................................... AV-10
AUT/DP - Wiring diagram .................................. SE-20
Auto air conditioner - Wiring diagram .............. ATC-43
Auto anti-dazzling inside mirror ........... GW-75, GW-76
Autolamp ............................................................ LT-47
Automatic amplifier ......................................... ATC-61
Automatic drive positioner .................................. SE-11
Automatic transmission number .......................... GI-48
AV and NAVI control unit ................................... AV-63
AV communication line ...................................... AV-87
B
Back door ........................................................... BL-99
Back door trim ..................................................... EI-32
Back sonar .......................................................... DI-58
BACK/L - Wiring diagram ................................. LT-106
Back-up lamp ................................................... LT-106
Ball joint (front) ................................................ FSU-15
Basic inspection ................................................ EC-72
Battery ................................................................. SC-4
Battery/Starting/Charging System Tester SC-6, SC-12,
SC-19
BCM (Body control module) .............................. BCS-3
Block heater ...................................................... EM-73
Blower motor ................................... ATC-93, ATC-152
Body alignment ................................................ BL-172
Body component parts ..................................... BL-161
Body construction ............................................ BL-171
Body exterior paint color .................................. BL-160
Body mounting ................................................. BL-159

IDX-8
ALPHABETICAL INDEX
Torque converter installation AT-245, AT-246, AT-248,
AT-249
Torque convertor clutch solenoid valve ... AT-115, AT-
117
Tow truck towing ................................................. GI-42
Towing point ....................................................... GI-43
TPS1 - Wiring diagram .................................... EC-266
TPS2 - Wiring diagram .................................... EC-203
TPS3 - Wiring diagram .................................... EC-606
Traction control system - Wiring diagram ....... BRC-16
Transfer control device ............. TF-76, TF-80, TF-138
Transfer control unit inspection table ................. TF-36
Transfer dropping resistor .................................. TF-90
Transfer fluid temperature sensor TF-104, TF-152, TF-
165
Transfer motor .................................... TF-102, TF-140
Transfer motor relay ........................................ TF-102
Transfer oil replacement ................................... MA-24
Transfer serial number ........................................ GI-48
Transmission serial number ................................ GI-48
Tread-FR&RR (Dimensions) ............................... GI-49
Trim ..................................................................... EI-35
TRNSCV - Wiring diagram .................. BL-140, BL-156
Trouble diagnoses .............................................. GI-11
Turbine revolution sensor ................................ AT-131
TURN - Wiring diagram ...................................... LT-83
Turn signal lamp ................................................. LT-80
Two trip detection logic ...................................... EC-48
Two-pole lift ........................................................ GI-41
V
Vacuum hose (brake system) ............................ BR-19
Vacuum hose drawing (Engine control) ........... EC-114
Valve clearance ................................................ EM-51
Valve guide ....................................................... EM-65
Vanity mirror lamp ............................................. LT-129
VDC (vehicle dynamics control) ........................ BRC-7
VDC -Wiring diagram ...................................... BRC-16
Vehicle identification number .............................. GI-47
Vehicle recovery (freeing a stuck vehicle) .......... GI-43
Vehicle security (theft warning) system ............. BL-75
Vehicle speed sensor (VSS) ............................ EC-372
VEHSEC - Wiring diagram ................................. BL-79
VENT/V - Wiring diagram .................. EC-327, EC-541
Video Monitor ..................................................... AV-60
VIN registration .................................................. EC-90
Viscosity number (SAE) .................................... MA-12
W
W/ANT - Wiring diagram .................................... AV-49
Wait detection switch ......................................... TF-69
WARN - Wiring diagram ..................................... DI-31
Warning chime .................................................... DI-42
Warning lamps .................................................... DI-30
Washer, front ..................................................... WW-4
Washer, rear .................................................... WW-35
Water pump ...................................................... CO-17
Water temperature gauge ..................................... DI-5
Wheel alignment (front) ..................................... FSU-6
Wheel alignment (rear) ................................... RSU-27
Wheel bearing (front) ........................................ FAX-5
Wheel bearing (rear) ......................................... RAX-5
Wheel hub (rear) ............................................... RAX-5
Wheel size .......................................................... GI-49
Wheelbase (Dimensions) .................................... GI-49
Width (Dimensions) ............................................. GI-49
WINDOW - Wiring diagram .............................. GW-22
Window, door ...................................... GW-68, GW-71
Windshield ....................................................... GW-11
WIP/R - Wiring diagram ................................... WW-39
WIPER - Wiring diagram .................................. WW-11
Wiper, front ........................................................ WW-4
Wiper, rear ....................................................... WW-35
Wiring Diagram (Cell code) list ......................... PG-60
Wiring diagrams .................................................. GI-15
WT-T/WARN - Wiring diagram .......................... WT-11

IP-16
INSTRUMENT PANEL ASSEMBLY
Revision: October 20052005 QX56
1. Remove instrument lower cover RH. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove glove box assembly. Refer to IP-14, "
Instrument Lower Cover RH and Glove Box" .
3. Remove instrument lower cover LH. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
4. Remove shift knob and A/T console finisher. Refer to IP-13, "
A/T Finisher" .

Remove cup holder insert.

Remove shift indicator.
5. Remove cluster lid D. Refer to IP-12, "
Cluster Lid D" .
6. Disconnect shift cable and electrical harness from control device.
7. Remove control device. Refer to AT-227, "
Control Device Removal and Installation" .
8. Remove screws from center console.

Disconnect electrical harnesses.
9. Move front seats forward and remove center console assembly in a rearward direction.
10. Remove tray and mat from console bin.
11. Remove latch from console lid.
12. Remove hinge from console lid. Remove console lid.

Remove console lid mat.
13. Remove console bin.

Disconnect electrical harness from DVD player, if equipped.

Remove hinge from console bin.
14. Remove rear upper finisher.
15. Remove rear cup holder assembly.
16. Remove upper side finishers LH/RH.
17. Remove screws on each side, disconnect clips and remove console covers LH/RH.
18. Remove rear finisher assembly.

Disconnect electrical connectors.
19. Remove power point assembly.
20. Remove mask and storage compartment.
21. Remove console front bracket.
22. Remove heat duct and console rear duct.
23. Remove console rear bracket.
Assembly is in the reverse order of disassembly.
1. Console lid assembly 2. A/T finisher 3. Tray
4. Storage compartment 5. Storage compartment mask 6. Console reinforcement assembly
7. Console front bracket 8. Upper side finisher LH 9. Console cover LH
10. Rear console duct 11. Power point assembly 12. Rear cup holder assembly
13. Rear finisher assembly 14. Console rear bracket 15. Heat duct
16. Rear upper finisher 17. Console bin mat 18. Console bin
19. Console cover RH 20. Upper side finisher RH 21. A/T transmission control
22. Mask 23. Cup holder insert

CAN COMMUNICATION
LAN-5
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: October 20052005 QX56
CAN COMMUNICATIONPFP:23710
System DescriptionUKS000NU
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.

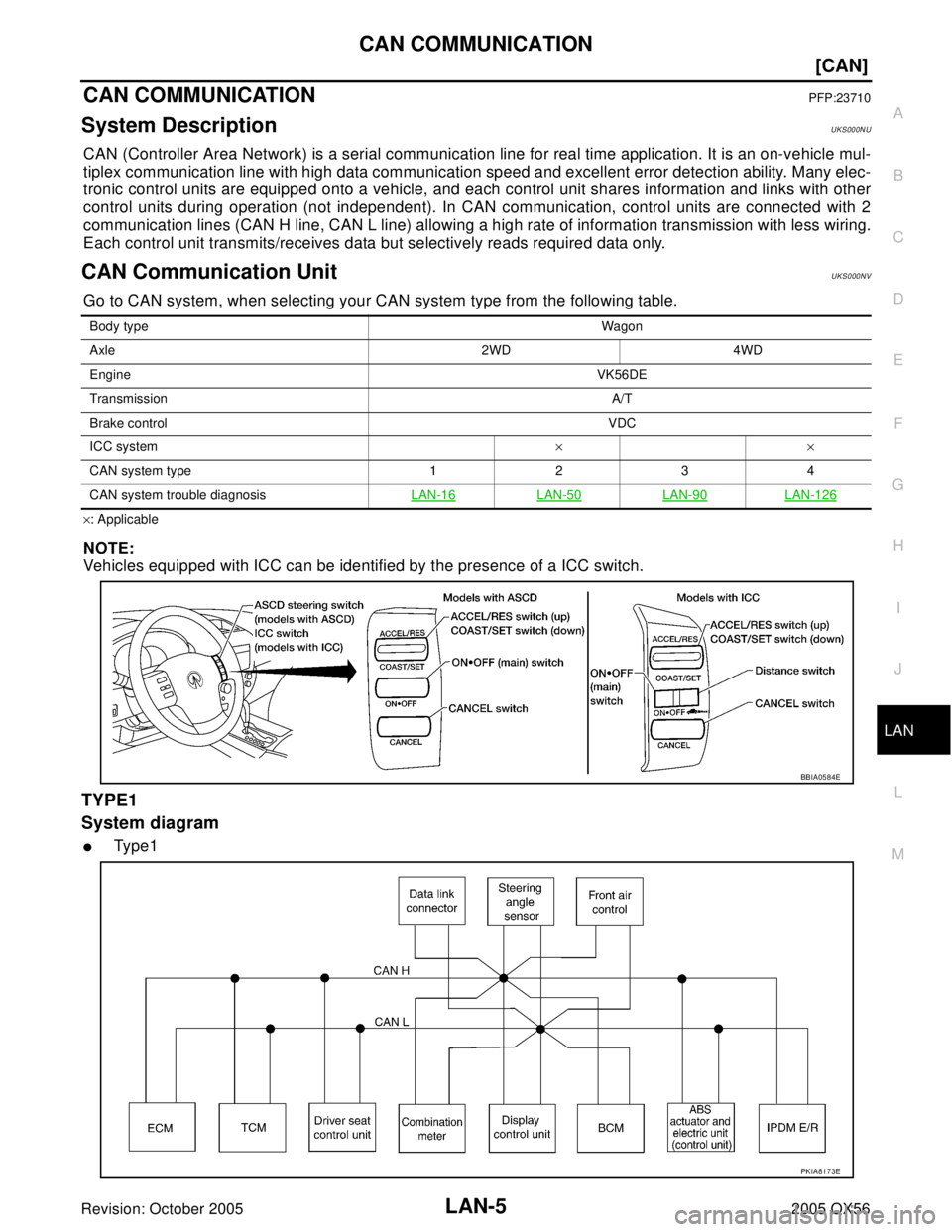

CAN Communication UnitUKS000NV
Go to CAN system, when selecting your CAN system type from the following table.
×: Applicable
NOTE:
Vehicles equipped with ICC can be identified by the presence of a ICC switch.
TYPE1
System diagram

Ty p e 1
Body typeWagon
Axle 2WD 4WD
EngineVK56DE
TransmissionA/T
Brake controlVDC
ICC system××
CAN system type 1234
CAN system trouble diagnosisLAN-16
LAN-50LAN-90LAN-126
BBIA0584E
PKIA8173E

LAN-16
[CAN]
CAN SYSTEM (TYPE 1)
Revision: October 20052005 QX56
CAN SYSTEM (TYPE 1)PFP:23710
System DescriptionUKS000P0
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.

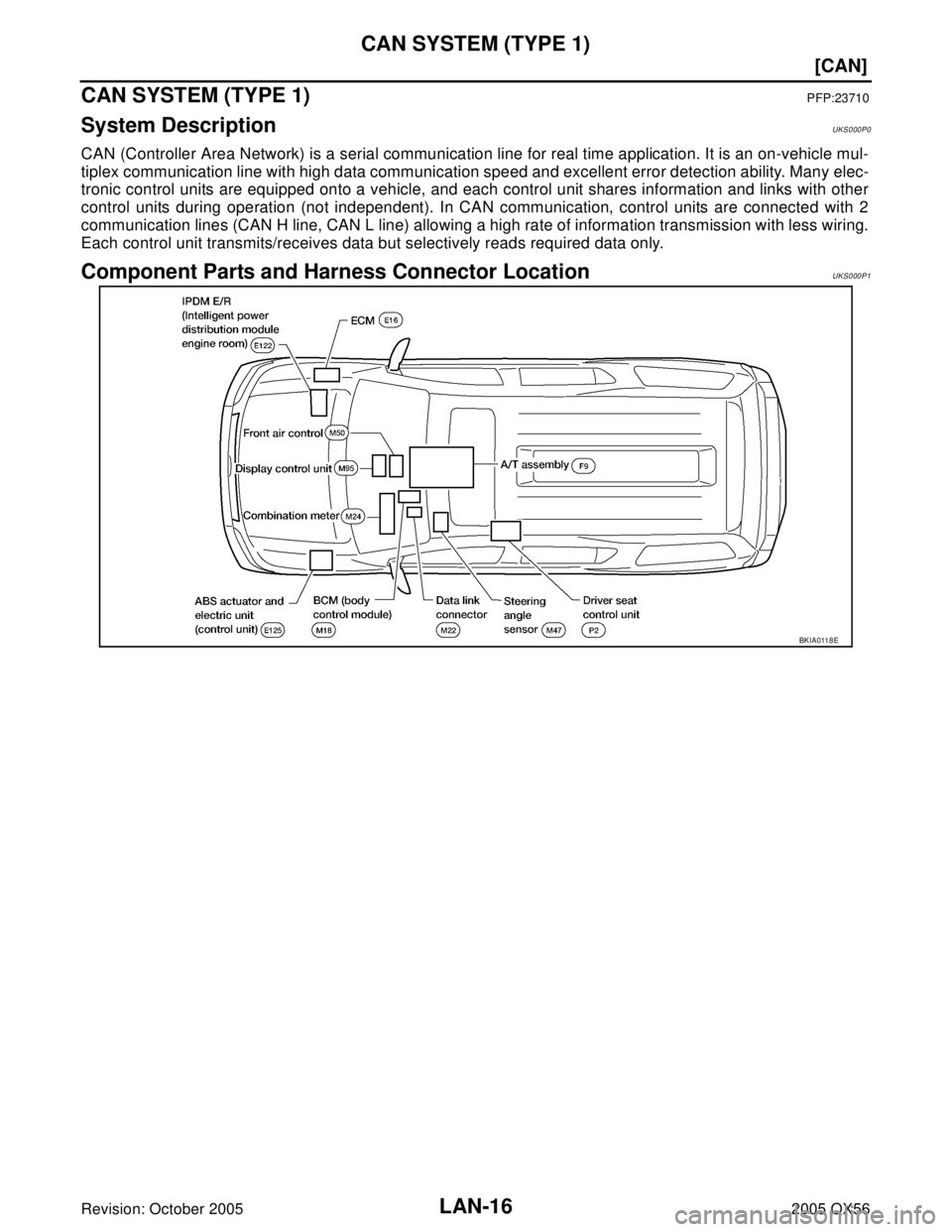

Component Parts and Harness Connector LocationUKS000P1
BKIA0118E

LAN-50
[CAN]
CAN SYSTEM (TYPE 2)
Revision: October 20052005 QX56
CAN SYSTEM (TYPE 2)PFP:23710
System DescriptionUKS001N3
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
Component Parts and Harness Connector LocationUKS001N4
BKIA0119E
