INFINITI QX4 2005 Factory Service Manual

AT-170
MAIN POWER SUPPLY AND GROUND CIRCUIT
Revision: October 20052005 QX56
3. DETECT MALFUNCTIONING ITEM
Check the following items:

Harness for short or open between battery and A/T assembly harness connector terminals 1, 2

Harness for short or open between ignition switch and A/T assembly harness connector terminal 6

10A fuse [No. 19, located in the fuse block (J/B)] and 10A fuse (No. 49, located in the IPDM E/R)

Ignition switch, Refer to PG-4, "POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK TCM GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect A/T assembly harness connector.
3. Check continuity between A/T assembly harness connector ter-
minals and ground.
If OK, check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
5. DETECT MALFUNCTIONING ITEM
Check the following items:

The A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. PERFORM SELF-DIAGNOSIS
Perform self-diagnosis. Refer to AT- 8 5 , "
SELF-DIAGNOSTIC RESULT MODE" .
OK or NG
OK >>INSPECTION END
NG-1 >> Self-diagnosis does not activate: GO TO 7.
NG-2 >> DTC is displayed: Check the malfunctioning system. Refer to AT-85, "
SELF-DIAGNOSTIC
RESULT MODE" . Continuity should exist.
SCIA2106E

MAIN POWER SUPPLY AND GROUND CIRCUIT
AT-171
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: October 20052005 QX56
7. CHECK TERMINAL CORD ASSEMBLY
1. Remove control valve with TCM. Refer to AT-231, "
Control Valve With TCM and A/T Fluid Temperature
Sensor 2" .
2. Disconnect A/T assembly harness connector and TCM connector.
3. Check continuity between A/T assembly harness connector ter-
minals and TCM connector terminals.
4. Check continuity between A/T assembly harness connector ter-
minals and TCM connector terminals.
5. If OK, check harness for short to ground and short to power.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT - 2 3 1 , "Control Valve With TCM and A/T Fluid
Temperature Sensor 2" .
NG >> Replace open circuit or short to ground and short to power in harness or connectors.
Item ConnectorTerminal
(Wire color)Continuity
A/T assembly harness con-
nectorF9 1 (W)
Ye s
TCM connector F502 9 (W)
A/T assembly harness con-
nectorF9 2 (GR)
Ye s
TCM connector F502 10 (GR)
A/T assembly harness con-
nectorF9 6 (R)
Ye s
TCM connector F502 4 (R)
SCIA5464E
Item ConnectorTerminal
(Wire color)Continuity
A/T assembly harness con-
nectorF9 5 (B)
Ye s
TCM connector F504 21 (B)
A/T assembly harness con-
nectorF9 10 (Y)
Ye s
TCM connector F504 22 (Y)
SCIA5465E

AT-172
CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION CIR-
CUIT
Revision: October 20052005 QX56
CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION CIR-
CUIT
PFP:18002
CONSULT-II Reference ValueECS00CJV
Diagnostic ProcedureECS00CJW
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to AT-85, "
SELF-DIAGNOSTIC RESULT MODE" .
Is a malfunction in the CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT-95, "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK THROTTLE POSITION SIGNAL CIRCUIT
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Depress accelerator pedal and read out the value of “CLSD THL
POS” and “W/O THL POS”.
OK or NG
OK >>INSPECTION END
NG >> Check the following items. If NG, repair or replace damaged parts.

Perform the self-diagnosis for “ENGINE” with CONSULT-II.

Open circuit or short to ground or short to power in harness or connectors.

Pin terminals for damage or loose connection with harness connector.
Item name Condition Display value
CLSD THL POSReleased accelerator pedal. ON
Fully depressed accelerator pedal. OFF
W/O THL POSFully depressed accelerator pedal. ON
Released accelerator pedal. OFF
Accelerator Pedal OperationMonitor Item
CLSD THL POS W/O THL POS
Released ON OFF
Fully depressed OFF ON
PCIA0070E

BRAKE SIGNAL CIRCUIT
AT-173
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: October 20052005 QX56
BRAKE SIGNAL CIRCUITPFP:25320
CONSULT-II Reference ValueECS00CJX
Diagnostic ProcedureECS00CJY
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to AT - 8 5 , "
SELF-DIAGNOSTIC RESULT MODE" .
Is a malfunction in the CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT- 9 5 , "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK STOP LAMP SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out ON/OFF switching action of the “BRAKE SW”.
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
3. CHECK STOP LAMP SWITCH
Check continuity between stop lamp switch harness connector termi-
nals 1 and 2.
Check stop lamp switch after adjusting brake pedal — refer to
BR-6, "
BRAKE PEDAL" .
OK or NG
OK >>INSPECTION END
NG >> Check the following items. If NG, repair or replace dam-
aged parts.

Harness for short or open between battery and stop lamp switch.

Harness for short or open between stop lamp switch and combination meter.
Item name Condition Display value
BRAKE SWDepressed brake pedal. ON
Released brake pedal. OFF
PCIA0070E
Condition Continuity
When brake pedal is depressed Yes
When brake pedal is released No
SCIA2045E

AT-174
TOW MODE SWITCH
Revision: October 20052005 QX56
TOW MODE SWITCHPFP:25129
DescriptionECS00CJZ
When tow mode switch is “ON”, tow mode switch signals are sent to TCM from combination meter by CAN
communication line.Then it`s a tow mode condition.

TOW MODE SWITCH
AT-175
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: October 20052005 QX56
Wiring Diagram — AT — TMSWECS00CK0
BCWA0413E

AT-176
TOW MODE SWITCH
Revision: October 20052005 QX56
Diagnostic ProcedureECS00CK1
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to AT-85, "
SELF-DIAGNOSTIC RESULT MODE" .
Is any malfunction in the CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT-95, "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK POWER SOURCE
1. Turn ignition switch “ON”. (Do not start engine.)
2. Check the voltage between tow mode switch connector terminal
1 and ground.
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
3. CHECK TOW MODE SWITCH
1. Turn ignition switch “OFF”.
2. Disconnect tow mode switch connector.
3. Check continuity between tow mode switch connector M67 ter-
minals 1 and 2.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace tow mode switch.
4. DETECT MALFUNCTIONING ITEM
Check the following items. If any items are damaged, repair or replace damaged parts.

Harness for short or open between combination meter connector terminal 35 and tow mode switch con-
nector terminal 1.

Harness for short or open between tow mode switch connector terminal 2 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK COMBINATION METER
Check the combination meter. Refer to DI-17, "
How to Proceed With Trouble Diagnosis" .
OK or NG
OK >>INSPECTION END
NO >> Repair or replace damaged parts.
ConditionTo w m o d e
switchData (Approx.)
When ignition switch is turned to “ON”ON 0V
OFF Battery voltage
SCIA5156E
Condition Continuity
Tow mode switch “ON” Yes
Tow mode switch “OFF” No
SCIA5584E

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-177
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: October 20052005 QX56
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007
Wiring Diagram — AT — NONDTCECS00CK2
BCWA0410E

AT-178

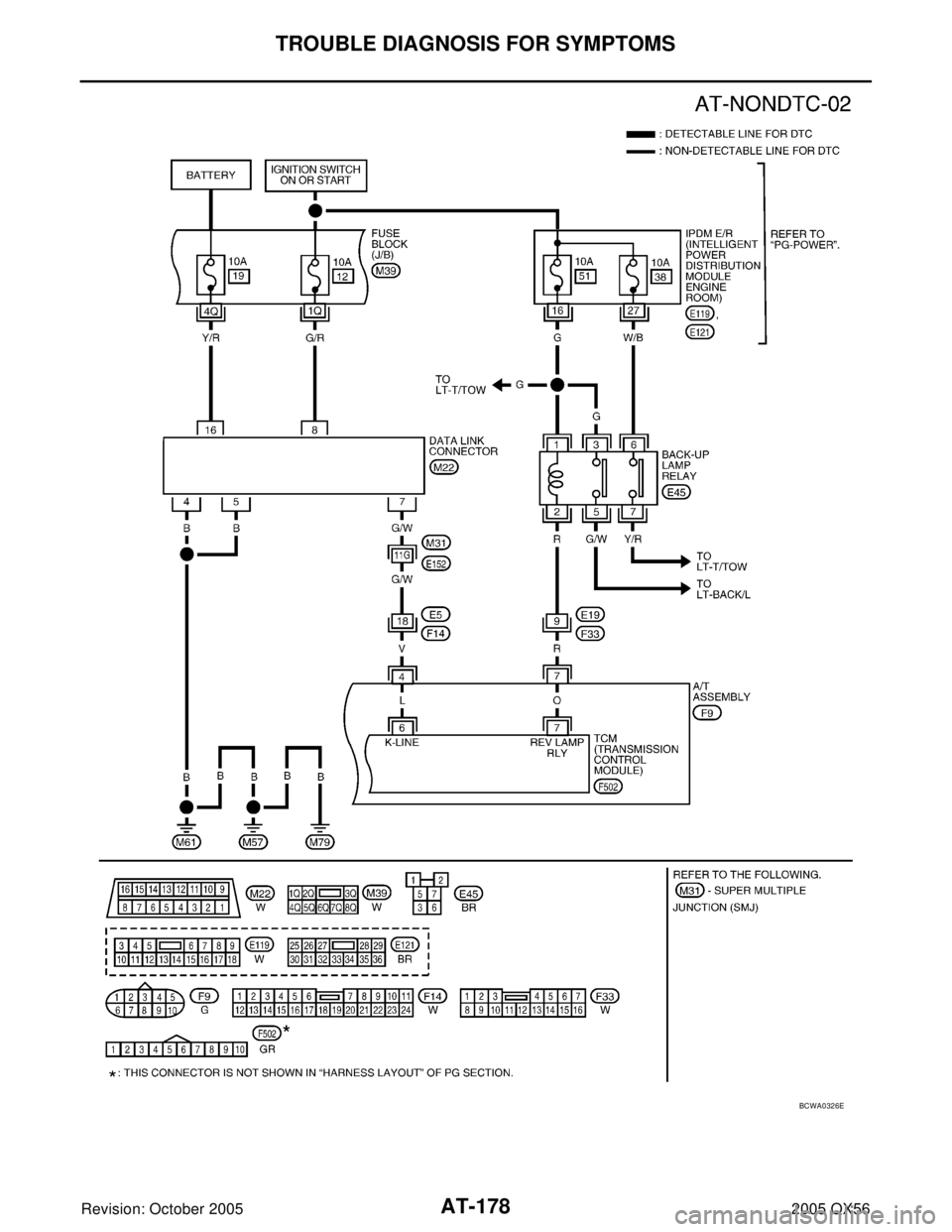

TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: October 20052005 QX56
BCWA0326E

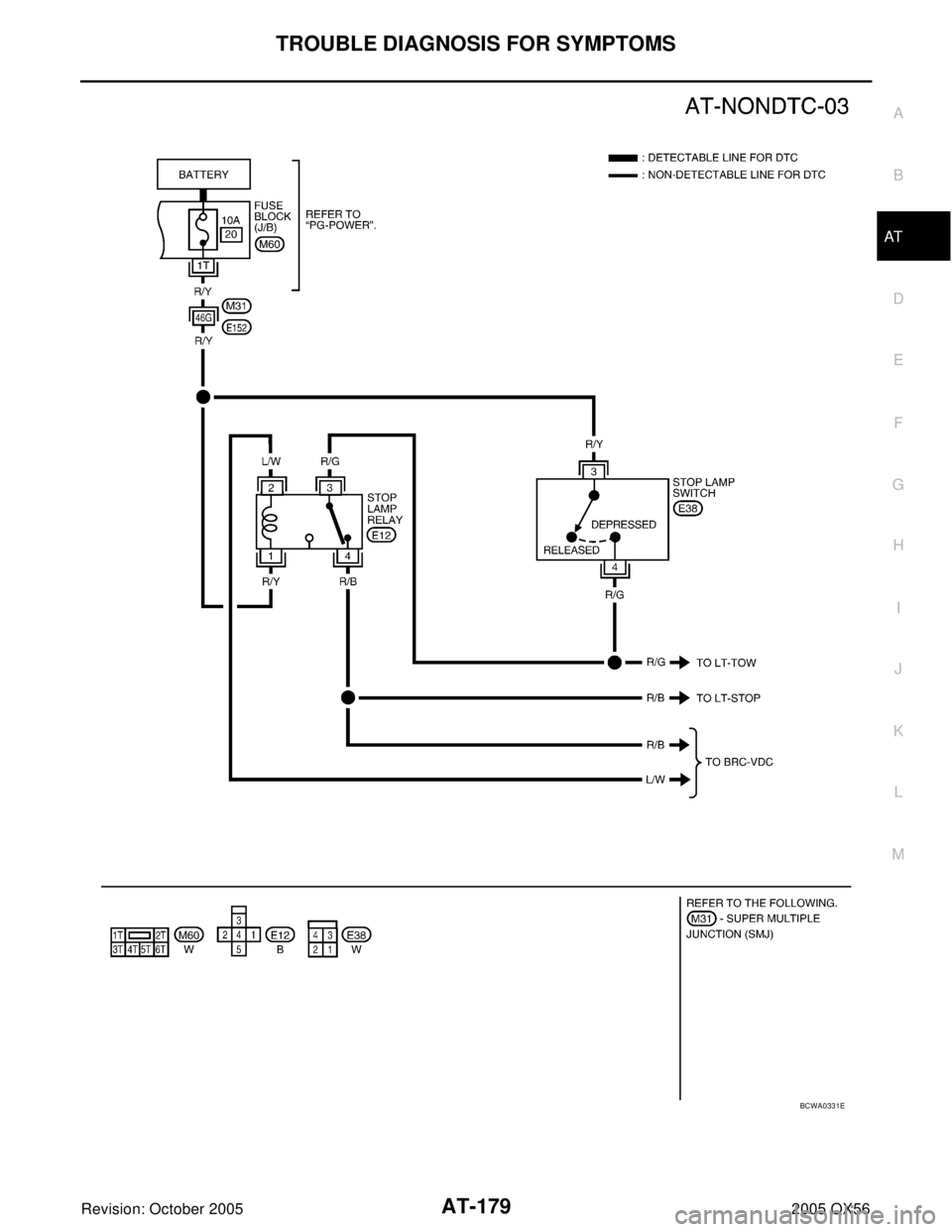

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-179
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: October 20052005 QX56
BCWA0331E
